CHEVROLET MONTE CARLO 2007 6.G Owners Manual

The ignition must be off for delayed exit lighting to
work. When the key is removed, interior
illumination will activate and remain on until one of
the following occurs:
The ignition is in RUN.
The power door locks are activated.
An illumination period of 20 seconds has
elapsed.
If during the illumination period a door is opened,
the timed illumination period will be canceled
and the interior lamps will remain on because a
door is open.
Parade Dimming
The instrument panel has an added feature called
parade dimming. This feature prohibits the
dimming of your instrument panel displays during
the daylight while the headlamps are on so
that you’ll still be able to see the displays.
Reading Lamps
The reading lamps are located on the rearview
mirror. Press the button to turn them on and off.
Electric Power Management
The vehicle has Electric Power Management (EPM)
that estimates the battery’s temperature and state
of charge. It then adjusts the voltage for best
performance and extended life of the battery.
When the battery’s state of charge is low, the
voltage is raised slightly to quickly put the charge
back in. When the state of charge is high, the
voltage is lowered slightly to prevent overcharging.
If the vehicle has a voltmeter gage or voltage
display on the Driver Information Center (DIC), you
may see the voltage move up or down. This is
normal. If there is a problem, an alert will be
displayed.
The battery can be discharged at idle if the
electrical loads are very high. This is true for
all vehicles. This is because the generator
(alternator) may not be spinning fast enough at
idle to produce all the power that is needed
for very high electrical loads.
161

A high electrical load occurs when several of the
following loads are on: headlamps, high beams,
fog lamps, rear window defogger, climate
control fan at high speed, heated seats, engine
cooling fans, trailer loads, and loads plugged into
accessory power outlets.
EPM works to prevent excessive discharge of the
battery. It does this by balancing the generator’s
output and the vehicle’s electrical needs. It
can increase engine idle speed to generate more
power, whenever needed. It can temporarily
reduce the power demands of some accessories.
Normally, these actions occur in steps or levels,
without being noticeable. In rare cases at the
highest levels of corrective action, this action may
be noticeable to the driver. If so, a Driver
Information Center (DIC) message might be
displayed, such as Battery Saver Active or Service
Battery Charging System. If this message is
displayed, it is recommended that the driver
reduce the electrical loads as much as possible.
SeeDIC Warnings and Messages on page 195.Battery Run-Down Protection
This vehicle has a feature to help prevent the
battery from being drained, if the interior courtesy
lamps, reading/map lamps, visor vanity lamps
or trunk lamp are accidentally left on. If any
of these lamps are left on, they will automatically
turn off after 10 minutes, if the ignition is off.
The lamps will not come back on again until
one of the following occurs:
The ignition is turned on.
The exterior lamps control is turned off, then
on again.
The headlamps will timeout after 10 minutes, if they
are manually turned on before the ignition is off.
Accessory Power Outlet(s)
Your vehicle has a two 12-volt outlets which can be
used to plug in electrical equipment such as a
cellular telephone, a compact disc player, etc.
162

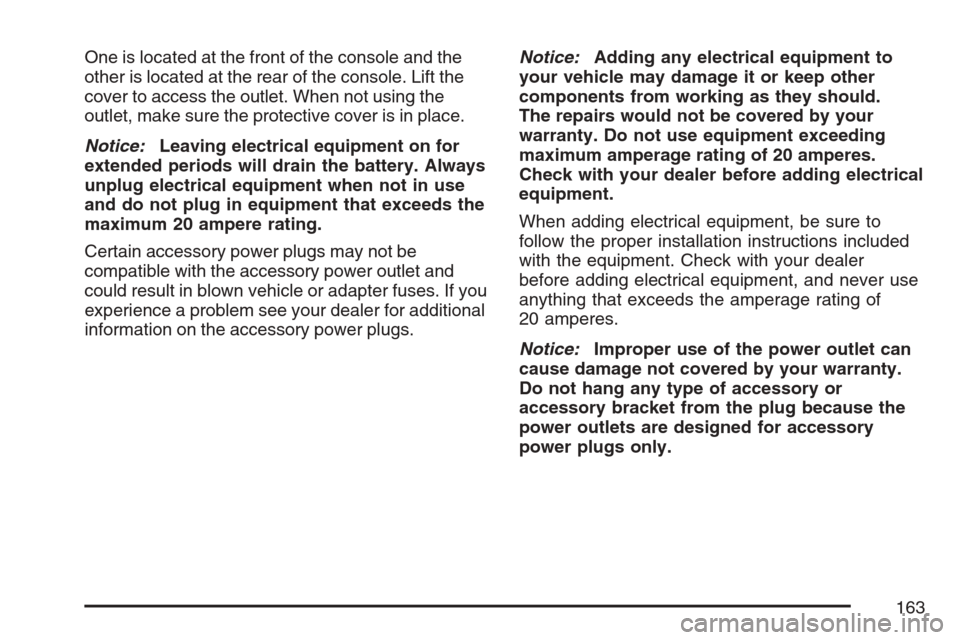

One is located at the front of the console and the
other is located at the rear of the console. Lift the
cover to access the outlet. When not using the
outlet, make sure the protective cover is in place.
Notice:Leaving electrical equipment on for
extended periods will drain the battery. Always
unplug electrical equipment when not in use
and do not plug in equipment that exceeds the
maximum 20 ampere rating.
Certain accessory power plugs may not be
compatible with the accessory power outlet and
could result in blown vehicle or adapter fuses. If you
experience a problem see your dealer for additional
information on the accessory power plugs.Notice:Adding any electrical equipment to
your vehicle may damage it or keep other
components from working as they should.
The repairs would not be covered by your
warranty. Do not use equipment exceeding
maximum amperage rating of 20 amperes.
Check with your dealer before adding electrical
equipment.
When adding electrical equipment, be sure to
follow the proper installation instructions included
with the equipment. Check with your dealer
before adding electrical equipment, and never use
anything that exceeds the amperage rating of
20 amperes.
Notice:Improper use of the power outlet can
cause damage not covered by your warranty.
Do not hang any type of accessory or
accessory bracket from the plug because the
power outlets are designed for accessory
power plugs only.
163

Ashtray(s) and Cigarette Lighter
Notice:If you put papers, pins, or other
ammable items in the ashtray, hot cigarettes
or other smoking materials could ignite
them and possibly damage your vehicle. Never
put ammable items in the ashtray.
Your vehicle may have a cigarette lighter and
ashtray located on the console. The ashtray
is removable and has a cupholder and liner
underneath. To remove the ashtray, lift it up with
the liner and pull it out.
Notice:Holding a cigarette lighter in while it
is heating will not allow the lighter to back
away from the heating element when it is hot.
Damage from overheating may occur to the
lighter or heating element, or a fuse could be
blown. Do not hold a cigarette lighter in
while it is heating.
To activate the cigarette lighter, push it into the
heating element and let go. When the lighter
is ready it will pop out by itself.
Climate Controls
Climate Control System
This vehicle may have a dual or single climate
control system. With this system you can control
the heating, cooling, defrost, defog and
ventilation for the vehicle. If this vehicle has
heated seats, seeHeated Seats on page 10.
Dual Zone with Optional Heated Seat Controls
164

Manual Operation
Turn the right knob clockwise or counterclockwise
to direct the airow inside of the vehicle.
To change the current mode, select one of the
following:
H(Vent):This mode directs air to the instrument
panel outlets.
)(Bi-Level):This mode directs half of the air to
the instrument panel outlets and the other half
to the oor outlets.
6(Floor):This mode directs most of the air to
the oor outlets, with some of the air directed
to the windshield and side window outlets. In this
mode, the system will automatically select
Outside Air.
The right knob can also be used to select defog or
defrost mode. For more information, see
“Defogging and Defrosting” later in this section.
By positioning the right knob between two modes,
a combination of those two modes is selected.
The air conditioning compressor will operate
unless the outside temperature is 40°F (4°C)
or below.
9(Fan):Turn the left knob clockwise or
counterclockwise to increase or decrease the fan
speed. If the airow seems low when the fan
is at the highest setting, the passenger
compartment air lter may need to be replaced.
For more information, seePassenger
Compartment Air Filter on page 169and
Scheduled Maintenance on page 406.
Single Zone
165

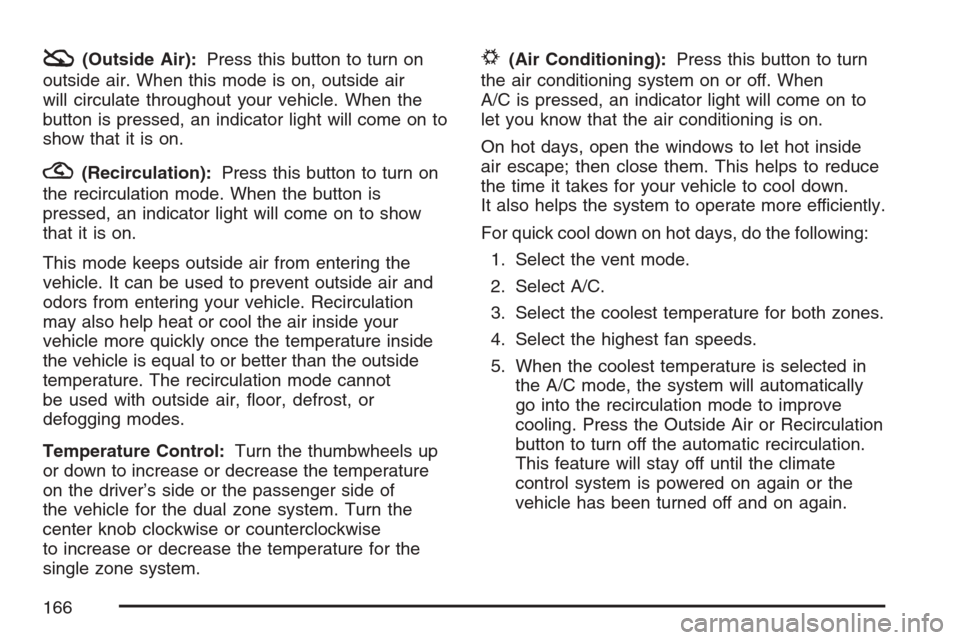

:(Outside Air):Press this button to turn on
outside air. When this mode is on, outside air
will circulate throughout your vehicle. When the
button is pressed, an indicator light will come on to
show that it is on.
?(Recirculation):Press this button to turn on
the recirculation mode. When the button is
pressed, an indicator light will come on to show
that it is on.
This mode keeps outside air from entering the
vehicle. It can be used to prevent outside air and
odors from entering your vehicle. Recirculation
may also help heat or cool the air inside your
vehicle more quickly once the temperature inside
the vehicle is equal to or better than the outside
temperature. The recirculation mode cannot
be used with outside air, oor, defrost, or
defogging modes.
Temperature Control:Turn the thumbwheels up
or down to increase or decrease the temperature
on the driver’s side or the passenger side of
the vehicle for the dual zone system. Turn the
center knob clockwise or counterclockwise
to increase or decrease the temperature for the
single zone system.
#(Air Conditioning):Press this button to turn
the air conditioning system on or off. When
A/C is pressed, an indicator light will come on to
let you know that the air conditioning is on.
On hot days, open the windows to let hot inside
air escape; then close them. This helps to reduce
the time it takes for your vehicle to cool down.
It also helps the system to operate more efficiently.
For quick cool down on hot days, do the following:
1. Select the vent mode.
2. Select A/C.
3. Select the coolest temperature for both zones.
4. Select the highest fan speeds.
5. When the coolest temperature is selected in
the A/C mode, the system will automatically
go into the recirculation mode to improve
cooling. Press the Outside Air or Recirculation
button to turn off the automatic recirculation.
This feature will stay off until the climate
control system is powered on again or the
vehicle has been turned off and on again.
166

Using these settings together for long periods of
time may cause the air inside of your vehicle
to become too dry. To prevent this from
happening, after the air inside of your vehicle has
cooled, turn the recirculation mode off.
The air conditioning system removes moisture
from the air, so you may sometimes notice a small
amount of water dripping underneath your
vehicle while idling or after turning off the engine.
This is normal.
Defogging and Defrosting
Fog on the inside of the windows is a result of
high humidity (moisture) condensing on the
cool window glass. This can be minimized if the
climate control system is used properly. There are
two modes to clear fog or frost from your
windshield. Use the defog mode to clear the
windows of fog or moisture and warm the
passengers. Use the defrost mode to remove
fog or frost from the windshield more quickly.Do not drive the vehicle until all the windows
are clear.
Turn the right knob clockwise to select the defog
or defrost mode.
-(Defog):This mode directs air equally to the
windshield and the oor outlets. When defog
is selected, the system turns off recirculation and
runs the air conditioning compressor unless
the outside temperature is below 40°F (4°C).
0(Defrost):This mode directs most of the air to
the windshield with some air to the side window
vents and the oor vents. When defrost is selected,
the system will automatically force outside air into
the vehicle. The air conditioning compressor will run
automatically in this setting, unless the outside
temperature is below 40°F (4°C).
167

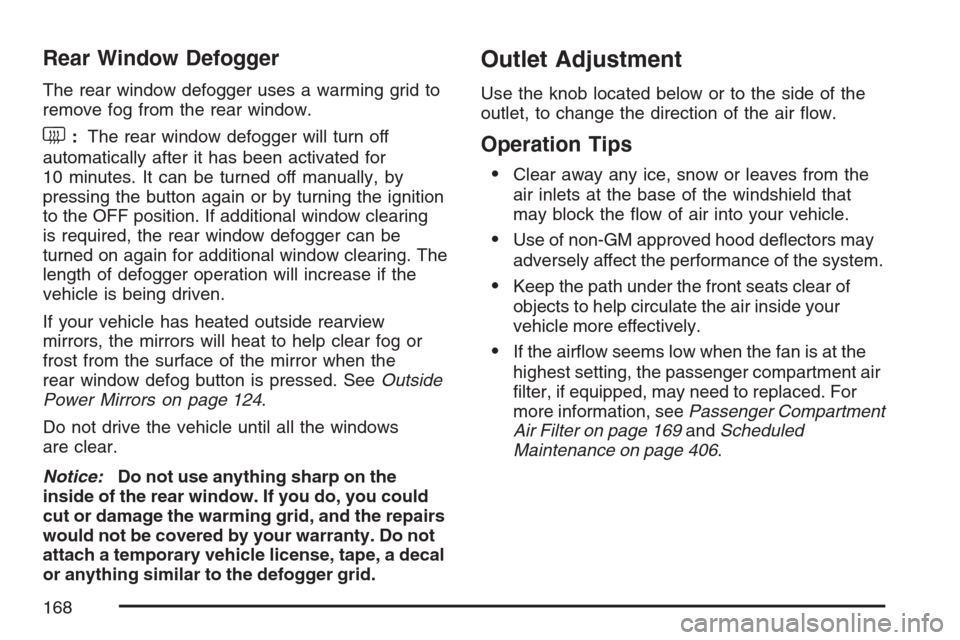

Rear Window Defogger
The rear window defogger uses a warming grid to
remove fog from the rear window.
<:The rear window defogger will turn off
automatically after it has been activated for
10 minutes. It can be turned off manually, by
pressing the button again or by turning the ignition
to the OFF position. If additional window clearing
is required, the rear window defogger can be
turned on again for additional window clearing. The
length of defogger operation will increase if the
vehicle is being driven.
If your vehicle has heated outside rearview
mirrors, the mirrors will heat to help clear fog or
frost from the surface of the mirror when the
rear window defog button is pressed. SeeOutside
Power Mirrors on page 124.
Do not drive the vehicle until all the windows
are clear.
Notice:Do not use anything sharp on the
inside of the rear window. If you do, you could
cut or damage the warming grid, and the repairs
would not be covered by your warranty. Do not
attach a temporary vehicle license, tape, a decal
or anything similar to the defogger grid.
Outlet Adjustment
Use the knob located below or to the side of the
outlet, to change the direction of the air ow.
Operation Tips
Clear away any ice, snow or leaves from the
air inlets at the base of the windshield that
may block the ow of air into your vehicle.
Use of non-GM approved hood deectors may
adversely affect the performance of the system.
Keep the path under the front seats clear of
objects to help circulate the air inside your
vehicle more effectively.
If the airow seems low when the fan is at the
highest setting, the passenger compartment air
lter, if equipped, may need to replaced. For
more information, seePassenger Compartment
Air Filter on page 169andScheduled
Maintenance on page 406.
168

Passenger Compartment Air Filter
This vehicle has a passenger compartment
particulate air lter. It is located in the engine
compartment, on the passenger’s side, under
the air inlet grille.
The lter traps most of the pollen from air entering
the climate control system. Like the engine’s air
cleaner/lter, it may need to be changed
periodically to ensure system performance. For
information on how often to change the passenger
compartment air lter, seeScheduled Maintenance
on page 406.
To change the passenger compartment air lter,
use the following steps:
1. Turn off the ignition when the windshield
wipers are in the up position.
2. Raise the vehicle hood.
3. Disconnect the windshield washer pump hose
from the fender rail and air inlet grille.
4. Peel back the hood weatherstrip from the
passenger’s side of the vehicle halfway
to center.5. Remove the air inlet grille retainers.
6. Remove the air inlet grille.
7. Remove the water deector plate.
8. Remove the old passenger compartment
air lter.
9. Reverse the steps to install the new air lter.
For best climate control system performance,
be sure to re-install the air lter.
For the type of lter to use, seeNormal
Maintenance Replacement Parts on page 416.
169

Warning Lights, Gages, and
Indicators
This part describes the warning lights and gages
that may be on your vehicle. The pictures will
help you locate them.
Warning lights and gages can signal that
something is wrong before it becomes serious
enough to cause an expensive repair or
replacement. Paying attention to your warning
lights and gages could also save you or others
from injury.
Warning lights come on when there may be or is a
problem with one of your vehicle’s functions. As
you will see in the details on the next few
pages, some warning lights come on briey when
you start the engine just to let you know they’re
working. If you are familiar with this section,
you should not be alarmed when this happens.Gages can indicate when there may be or is a
problem with one of your vehicle’s functions. Often
gages and warning lights work together to let you
know when there’s a problem with your vehicle.
When one of the warning lights comes on and
stays on when you are driving, or when one of the
gages shows there may be a problem, check
the section that tells you what to do about
it. Please follow this manual’s advice. Waiting to
do repairs can be costly – and even dangerous.
So please get to know your warning lights
and gages. They’re a big help.
Your vehicle may also have a Driver Information
Center (DIC) that works along with the warning
lights and gages. SeeDriver Information
Center (DIC) on page 186.
170
