headlamp CHEVROLET MONTE CARLO 2007 6.G Owner's Manual

Headlamps, Front Turn Signal,
Sidemarker, and Parking Lamps
A. Sidemarker
B. Low-Beam
HeadlampC. High-Beam Headlamp
D. Parking/Turn
Signal Lamp
To replace one of these bulbs, do the following:
1. Open the hood. SeeHood Release
on page 307for more information.2. Remove the screw from the headlamp
assembly.
343

3. Remove the headlamp plastic retainer by
pulling it up.
4. Pull the headlamp assembly away from the
vehicle and remove the electrical connector.
5. Remove the round dust caps to gain access
to the bulbs.
6. Turn the old bulb counterclockwise and
remove it from the retaining ring by pulling
it away from the headlamp.
7. Remove the electrical connector from the
bulb by raising the lock tab and pulling the
connector away from the bulb’s base.8. Install the electrical connector to the bulb.
9. Install the new bulb by inserting the smallest
tab on the bulb base into the matching
notch in the retaining ring. Turn the bulb a
quarter-turn clockwise until it stops.
10. Reverse Steps 1 through 5 to reinstall the
headlamp assembly.
When you reinstall the headlamp assembly,
make sure to line up the pin in the headlamp
assembly with the slot in the vehicle.
344

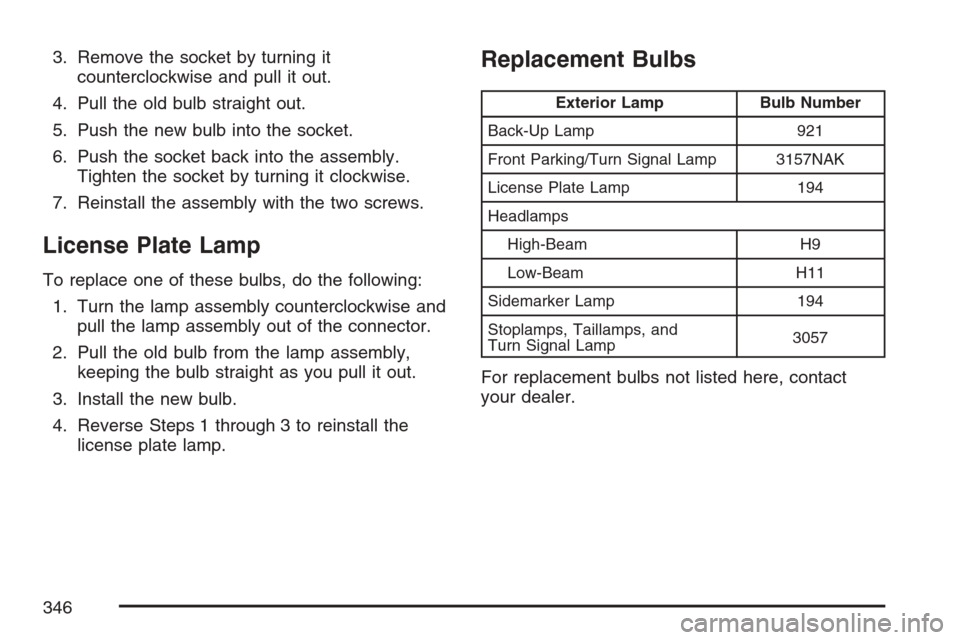

3. Remove the socket by turning it
counterclockwise and pull it out.
4. Pull the old bulb straight out.
5. Push the new bulb into the socket.
6. Push the socket back into the assembly.
Tighten the socket by turning it clockwise.
7. Reinstall the assembly with the two screws.
License Plate Lamp
To replace one of these bulbs, do the following:
1. Turn the lamp assembly counterclockwise and
pull the lamp assembly out of the connector.
2. Pull the old bulb from the lamp assembly,
keeping the bulb straight as you pull it out.
3. Install the new bulb.
4. Reverse Steps 1 through 3 to reinstall the
license plate lamp.
Replacement Bulbs
Exterior Lamp Bulb Number
Back-Up Lamp 921
Front Parking/Turn Signal Lamp 3157NAK
License Plate Lamp 194
Headlamps
High-Beam H9
Low-Beam H11
Sidemarker Lamp 194
Stoplamps, Taillamps, and
Turn Signal Lamp3057
For replacement bulbs not listed here, contact
your dealer.
346

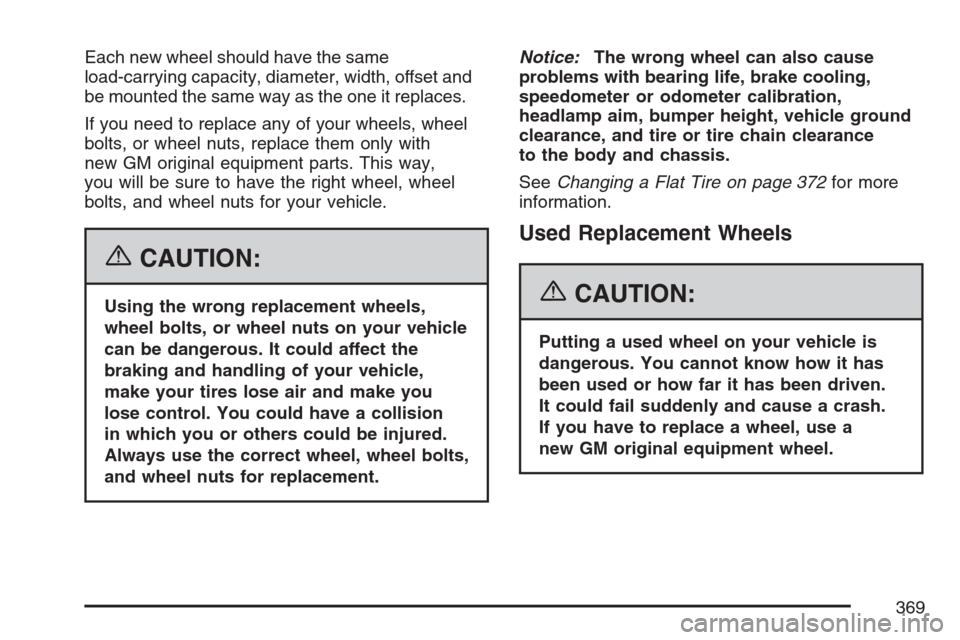

Each new wheel should have the same
load-carrying capacity, diameter, width, offset and
be mounted the same way as the one it replaces.
If you need to replace any of your wheels, wheel
bolts, or wheel nuts, replace them only with
new GM original equipment parts. This way,
you will be sure to have the right wheel, wheel
bolts, and wheel nuts for your vehicle.
{CAUTION:
Using the wrong replacement wheels,
wheel bolts, or wheel nuts on your vehicle
can be dangerous. It could affect the
braking and handling of your vehicle,
make your tires lose air and make you
lose control. You could have a collision
in which you or others could be injured.
Always use the correct wheel, wheel bolts,
and wheel nuts for replacement.Notice:The wrong wheel can also cause
problems with bearing life, brake cooling,
speedometer or odometer calibration,
headlamp aim, bumper height, vehicle ground
clearance, and tire or tire chain clearance
to the body and chassis.
SeeChanging a Flat Tire on page 372for more
information.
Used Replacement Wheels
{CAUTION:
Putting a used wheel on your vehicle is
dangerous. You cannot know how it has
been used or how far it has been driven.
It could fail suddenly and cause a crash.
If you have to replace a wheel, use a
new GM original equipment wheel.
369

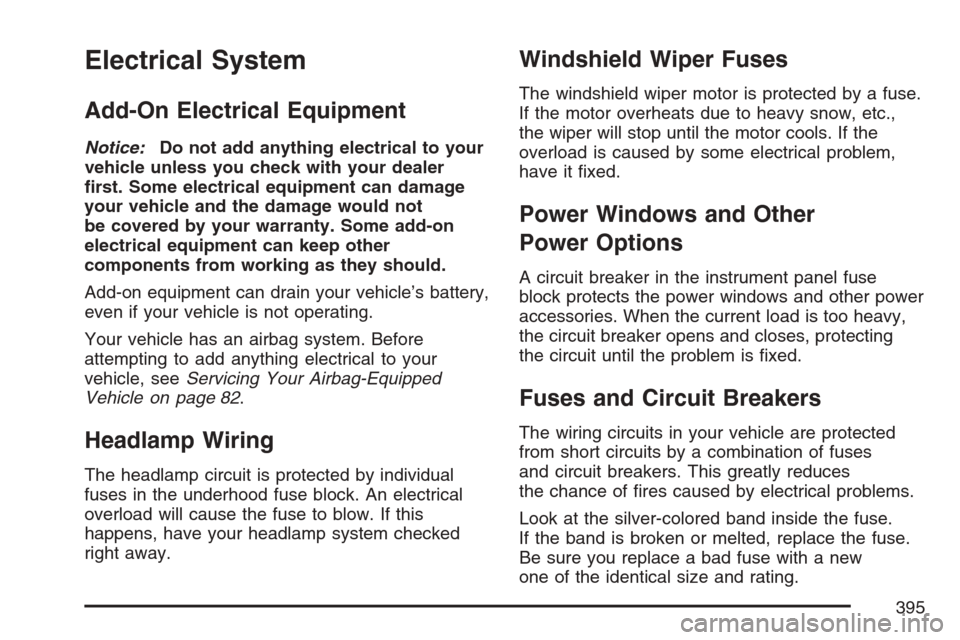

Electrical System
Add-On Electrical Equipment
Notice:Do not add anything electrical to your
vehicle unless you check with your dealer
rst. Some electrical equipment can damage
your vehicle and the damage would not
be covered by your warranty. Some add-on
electrical equipment can keep other
components from working as they should.
Add-on equipment can drain your vehicle’s battery,
even if your vehicle is not operating.
Your vehicle has an airbag system. Before
attempting to add anything electrical to your
vehicle, seeServicing Your Airbag-Equipped
Vehicle on page 82.
Headlamp Wiring
The headlamp circuit is protected by individual
fuses in the underhood fuse block. An electrical
overload will cause the fuse to blow. If this
happens, have your headlamp system checked
right away.
Windshield Wiper Fuses
The windshield wiper motor is protected by a fuse.
If the motor overheats due to heavy snow, etc.,
the wiper will stop until the motor cools. If the
overload is caused by some electrical problem,
have it xed.
Power Windows and Other
Power Options
A circuit breaker in the instrument panel fuse
block protects the power windows and other power
accessories. When the current load is too heavy,
the circuit breaker opens and closes, protecting
the circuit until the problem is xed.
Fuses and Circuit Breakers
The wiring circuits in your vehicle are protected
from short circuits by a combination of fuses
and circuit breakers. This greatly reduces
the chance of res caused by electrical problems.
Look at the silver-colored band inside the fuse.
If the band is broken or melted, replace the fuse.
Be sure you replace a bad fuse with a new
one of the identical size and rating.
395

Fuses Usage
LT SPOT Left Spot
HDLP MDL Headlamp Module
DRL 2 Daytime Running Lamps 2
FAN 2 Cooling Fan 2
FUEL/PUMP Fuel Pump
WPR Wiper
LT LO BEAM Driver’s Side Low-Beam
RT LO BEAM Passenger’s Side Low-Beam
LT HI BEAM Driver’s Side High-Beam
RT HI BEAM Passenger’s Side High-BeamRelay Usage
STRTR Starter
REAR DEFOG Rear Defogger
FAN 1 Cooling Fan 1
FAN 2 Cooling Fan 2
A/C CMPRSR Air Conditioning Compressor
FAN 3 Cooling Fan 3
FUEL/PUMP Fuel Pump
PWR/TRN Powertrain
399

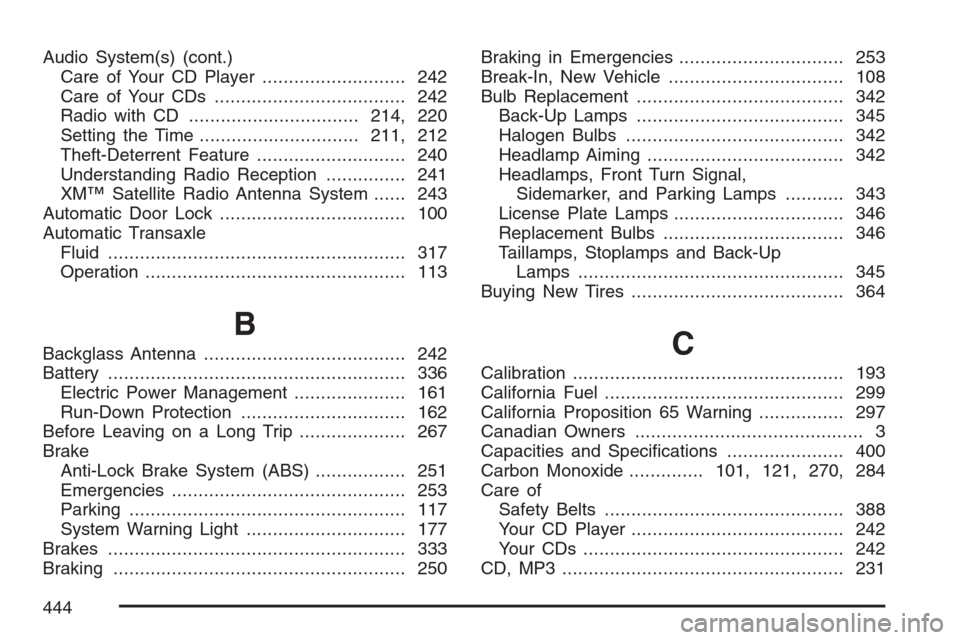

Audio System(s) (cont.)
Care of Your CD Player........................... 242
Care of Your CDs.................................... 242
Radio with CD................................214, 220
Setting the Time..............................211, 212
Theft-Deterrent Feature............................ 240
Understanding Radio Reception............... 241
XM™ Satellite Radio Antenna System...... 243
Automatic Door Lock................................... 100
Automatic Transaxle
Fluid........................................................ 317
Operation................................................. 113
B
Backglass Antenna...................................... 242
Battery........................................................ 336
Electric Power Management..................... 161
Run-Down Protection............................... 162
Before Leaving on a Long Trip.................... 267
Brake
Anti-Lock Brake System (ABS)................. 251
Emergencies............................................ 253
Parking.................................................... 117
System Warning Light.............................. 177
Brakes........................................................ 333
Braking....................................................... 250Braking in Emergencies............................... 253
Break-In, New Vehicle................................. 108
Bulb Replacement....................................... 342
Back-Up Lamps....................................... 345
Halogen Bulbs......................................... 342
Headlamp Aiming..................................... 342
Headlamps, Front Turn Signal,
Sidemarker, and Parking Lamps........... 343
License Plate Lamps................................ 346
Replacement Bulbs.................................. 346
Taillamps, Stoplamps and Back-Up
Lamps.................................................. 345
Buying New Tires........................................ 364C
Calibration................................................... 193
California Fuel............................................. 299
California Proposition 65 Warning................ 297
Canadian Owners........................................... 3
Capacities and Specications...................... 400
Carbon Monoxide..............101, 121, 270, 284
Care of
Safety Belts............................................. 388
Your CD Player........................................ 242
Your CDs ................................................. 242
CD, MP3 ..................................................... 231
444

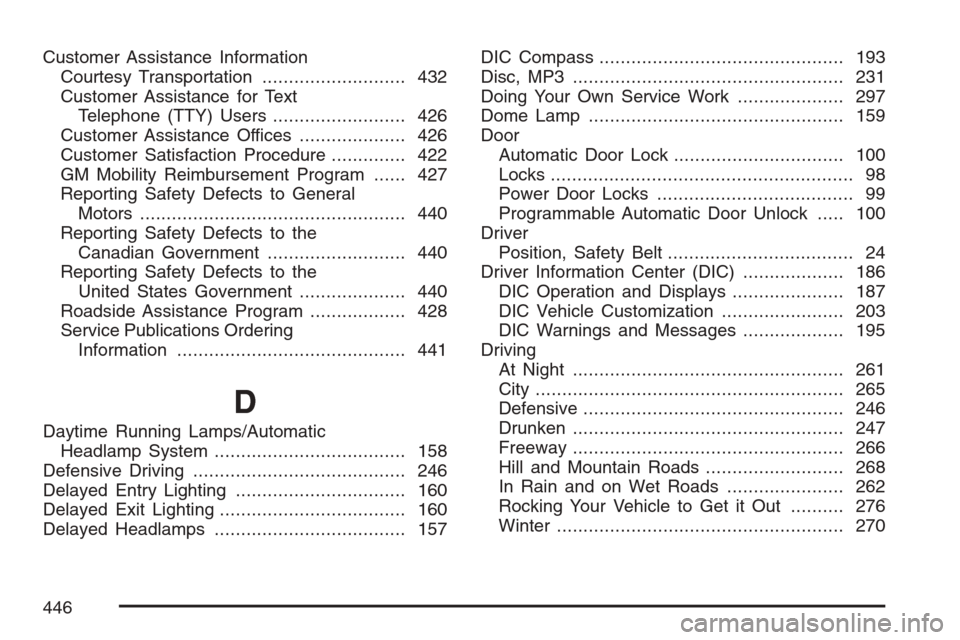

Customer Assistance Information
Courtesy Transportation........................... 432
Customer Assistance for Text
Telephone (TTY) Users......................... 426
Customer Assistance Offices.................... 426
Customer Satisfaction Procedure.............. 422
GM Mobility Reimbursement Program...... 427
Reporting Safety Defects to General
Motors.................................................. 440
Reporting Safety Defects to the
Canadian Government.......................... 440
Reporting Safety Defects to the
United States Government.................... 440
Roadside Assistance Program.................. 428
Service Publications Ordering
Information........................................... 441
D
Daytime Running Lamps/Automatic
Headlamp System.................................... 158
Defensive Driving........................................ 246
Delayed Entry Lighting................................ 160
Delayed Exit Lighting................................... 160
Delayed Headlamps.................................... 157DIC Compass.............................................. 193
Disc, MP3................................................... 231
Doing Your Own Service Work.................... 297
Dome Lamp................................................ 159
Door
Automatic Door Lock................................ 100
Locks......................................................... 98
Power Door Locks..................................... 99
Programmable Automatic Door Unlock..... 100
Driver
Position, Safety Belt................................... 24
Driver Information Center (DIC)................... 186
DIC Operation and Displays..................... 187
DIC Vehicle Customization....................... 203
DIC Warnings and Messages................... 195
Driving
At Night................................................... 261
City.......................................................... 265
Defensive................................................. 246
Drunken................................................... 247
Freeway................................................... 266
Hill and Mountain Roads.......................... 268
In Rain and on Wet Roads...................... 262
Rocking Your Vehicle to Get it Out.......... 276
Winter...................................................... 270
446

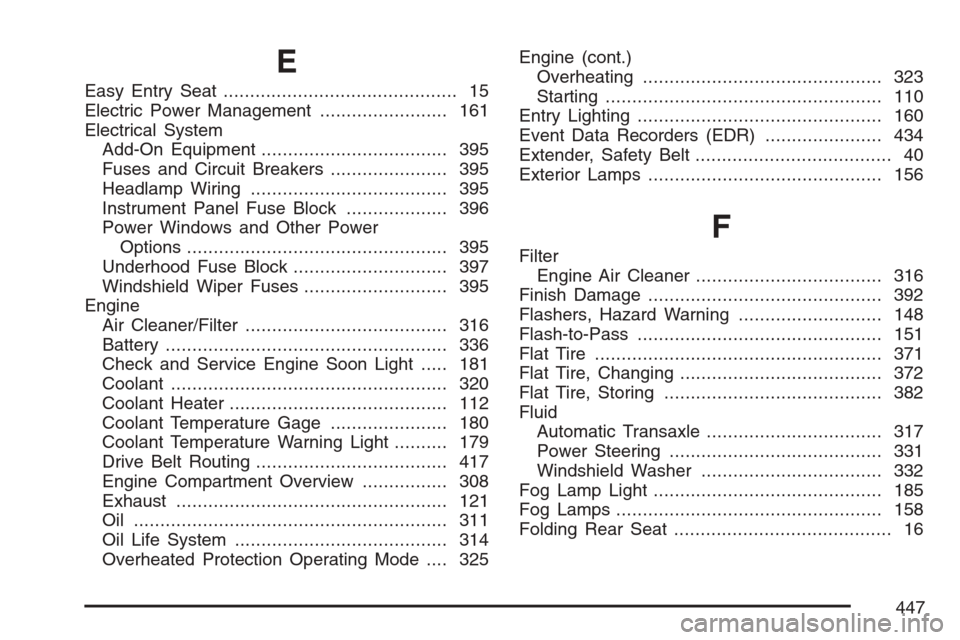

E
Easy Entry Seat............................................ 15
Electric Power Management........................ 161
Electrical System
Add-On Equipment................................... 395
Fuses and Circuit Breakers...................... 395
Headlamp Wiring..................................... 395
Instrument Panel Fuse Block................... 396
Power Windows and Other Power
Options................................................. 395
Underhood Fuse Block............................. 397
Windshield Wiper Fuses........................... 395
Engine
Air Cleaner/Filter...................................... 316
Battery..................................................... 336
Check and Service Engine Soon Light..... 181
Coolant.................................................... 320
Coolant Heater......................................... 112
Coolant Temperature Gage...................... 180
Coolant Temperature Warning Light.......... 179
Drive Belt Routing.................................... 417
Engine Compartment Overview................ 308
Exhaust................................................... 121
Oil ........................................................... 311
Oil Life System........................................ 314
Overheated Protection Operating Mode.... 325Engine (cont.)
Overheating............................................. 323
Starting.................................................... 110
Entry Lighting.............................................. 160
Event Data Recorders (EDR)...................... 434
Extender, Safety Belt..................................... 40
Exterior Lamps............................................ 156
F
Filter
Engine Air Cleaner................................... 316
Finish Damage............................................ 392
Flashers, Hazard Warning........................... 148
Flash-to-Pass.............................................. 151
Flat Tire...................................................... 371
Flat Tire, Changing...................................... 372
Flat Tire, Storing......................................... 382
Fluid
Automatic Transaxle................................. 317
Power Steering........................................ 331
Windshield Washer.................................. 332
Fog Lamp Light........................................... 185
Fog Lamps.................................................. 158
Folding Rear Seat......................................... 16
447

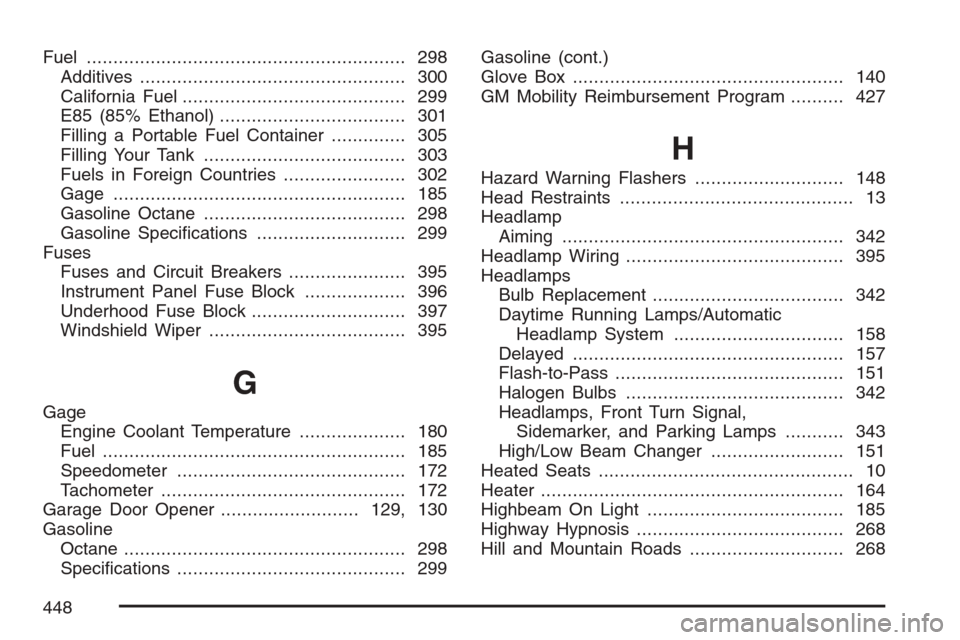

Fuel............................................................ 298
Additives.................................................. 300
California Fuel.......................................... 299
E85 (85% Ethanol)................................... 301
Filling a Portable Fuel Container.............. 305
Filling Your Tank...................................... 303
Fuels in Foreign Countries....................... 302
Gage....................................................... 185
Gasoline Octane...................................... 298
Gasoline Specications............................ 299
Fuses
Fuses and Circuit Breakers...................... 395
Instrument Panel Fuse Block................... 396
Underhood Fuse Block............................. 397
Windshield Wiper..................................... 395
G
Gage
Engine Coolant Temperature.................... 180
Fuel......................................................... 185
Speedometer........................................... 172
Tachometer.............................................. 172
Garage Door Opener..........................129, 130
Gasoline
Octane..................................................... 298
Specications........................................... 299Gasoline (cont.)
Glove Box................................................... 140
GM Mobility Reimbursement Program.......... 427
H
Hazard Warning Flashers............................ 148
Head Restraints............................................ 13
Headlamp
Aiming..................................................... 342
Headlamp Wiring......................................... 395
Headlamps
Bulb Replacement.................................... 342
Daytime Running Lamps/Automatic
Headlamp System................................ 158
Delayed................................................... 157
Flash-to-Pass........................................... 151
Halogen Bulbs......................................... 342
Headlamps, Front Turn Signal,
Sidemarker, and Parking Lamps........... 343
High/Low Beam Changer ......................... 151
Heated Seats................................................ 10
Heater......................................................... 164
Highbeam On Light..................................... 185
Highway Hypnosis....................................... 268
Hill and Mountain Roads............................. 268
448
