3. Buckle the belt. Make sure the release button
is positioned so you would be able to unbuckle
the safety belt quickly if you ever had to.4. Pull the rest of the shoulder belt all the way
out of the retractor to set the lock.
61

5. To tighten the belt, push down on the child
restraint, pull the shoulder portion of the belt
to tighten the lap portion of the belt, and
feed the shoulder belt back into the retractor.
If you are using a forward-facing child
restraint, you may nd it helpful to use your
knee to push down on the child restraint
as you tighten the belt.6. If your child restraint manufacturer
recommends using a top tether, attach and
tighten the top tether to the top tether anchor.
Refer to the instructions that came with the
child restraint and seeLower Anchors
and Tethers for Children (LATCH) on page 53.
7. Push and pull the child restraint in different
directions to be sure it is secure.
To remove the child restraint, if the top tether is
attached to the top tether anchor, disconnect
it. Unbuckle the vehicle’s safety belt and let it go
back all the way. The safety belt will move
freely again and be ready to work for an adult or
larger child passenger.
62

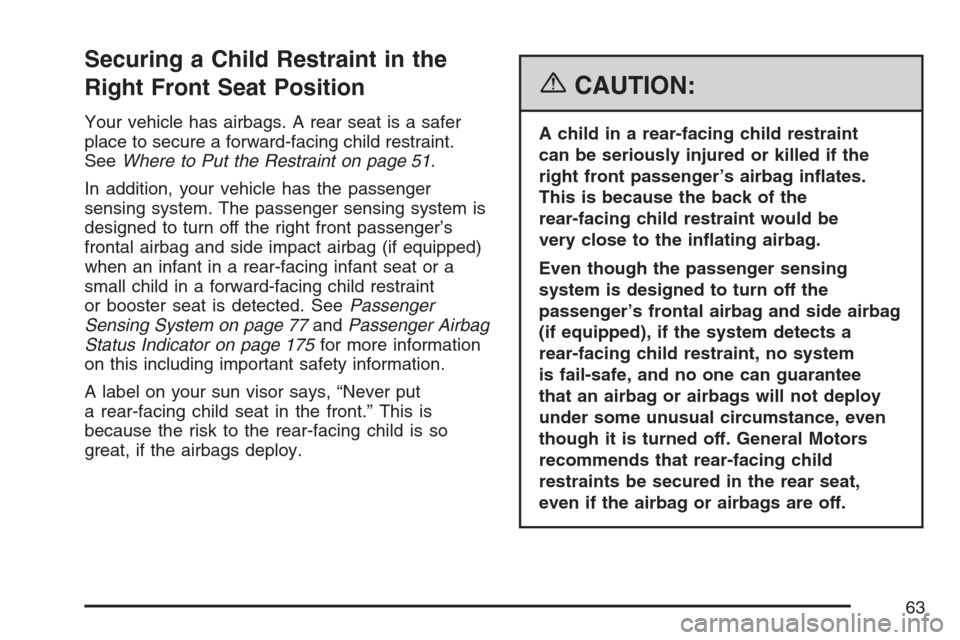

Securing a Child Restraint in the
Right Front Seat Position
Your vehicle has airbags. A rear seat is a safer
place to secure a forward-facing child restraint.
SeeWhere to Put the Restraint on page 51.
In addition, your vehicle has the passenger
sensing system. The passenger sensing system is
designed to turn off the right front passenger’s
frontal airbag and side impact airbag (if equipped)
when an infant in a rear-facing infant seat or a
small child in a forward-facing child restraint
or booster seat is detected. SeePassenger
Sensing System on page 77andPassenger Airbag
Status Indicator on page 175for more information
on this including important safety information.
A label on your sun visor says, “Never put
a rear-facing child seat in the front.” This is
because the risk to the rear-facing child is so
great, if the airbags deploy.
{CAUTION:
A child in a rear-facing child restraint
can be seriously injured or killed if the
right front passenger’s airbag inates.
This is because the back of the
rear-facing child restraint would be
very close to the inating airbag.
Even though the passenger sensing
system is designed to turn off the
passenger’s frontal airbag and side airbag
(if equipped), if the system detects a
rear-facing child restraint, no system
is fail-safe, and no one can guarantee
that an airbag or airbags will not deploy
under some unusual circumstance, even
though it is turned off. General Motors
recommends that rear-facing child
restraints be secured in the rear seat,
even if the airbag or airbags are off.
63

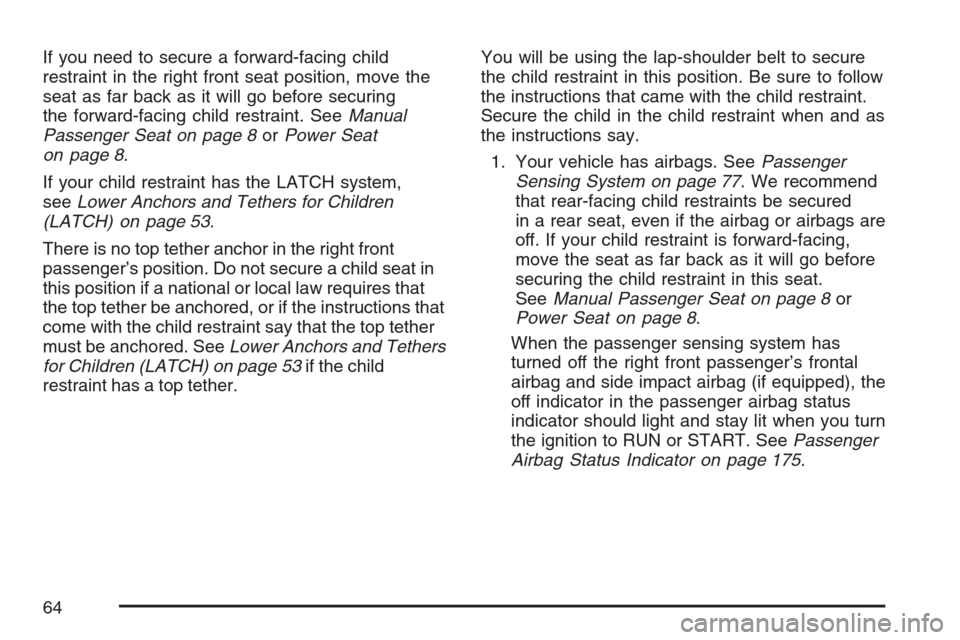

If you need to secure a forward-facing child
restraint in the right front seat position, move the
seat as far back as it will go before securing
the forward-facing child restraint. SeeManual
Passenger Seat on page 8orPower Seat
on page 8.
If your child restraint has the LATCH system,
seeLower Anchors and Tethers for Children
(LATCH) on page 53.
There is no top tether anchor in the right front
passenger’s position. Do not secure a child seat in
this position if a national or local law requires that
the top tether be anchored, or if the instructions that
come with the child restraint say that the top tether
must be anchored. SeeLower Anchors and Tethers
for Children (LATCH) on page 53if the child
restraint has a top tether.You will be using the lap-shoulder belt to secure
the child restraint in this position. Be sure to follow
the instructions that came with the child restraint.
Secure the child in the child restraint when and as
the instructions say.
1. Your vehicle has airbags. SeePassenger
Sensing System on page 77. We recommend
that rear-facing child restraints be secured
in a rear seat, even if the airbag or airbags are
off. If your child restraint is forward-facing,
move the seat as far back as it will go before
securing the child restraint in this seat.
SeeManual Passenger Seat on page 8or
Power Seat on page 8.
When the passenger sensing system has
turned off the right front passenger’s frontal
airbag and side impact airbag (if equipped), the
off indicator in the passenger airbag status
indicator should light and stay lit when you turn
the ignition to RUN or START. SeePassenger
Airbag Status Indicator on page 175.
64

2. Put the child restraint on the seat.
3. Remove the safety belt from the guide on the
head restraint by sliding the webbing through
the opening on the guide. Do not secure
the child restraint with the safety belt routed
through the guide.
4. Pick up the latch plate, and run the lap and
shoulder portions of the vehicle’s safety belt
through or around the restraint. The child
restraint instructions will show you how.
5. Buckle the belt. Make sure the release button
is positioned so you would be able to unbuckle
the safety belt quickly if you ever had to.
65

6. Pull the rest of the shoulder belt all the way
out of the retractor to set the lock.7. To tighten the belt, push down on the child
restraint, pull the shoulder portion of the belt
to tighten the lap portion of the belt, and
feed the shoulder belt back into the retractor.
If you are using a forward-facing child
restraint, you may nd it helpful to use your
knee to push down on the child restraint
as you tighten the belt. You should not be able
to pull more of the belt from the retractor
once the lock has been set.
66

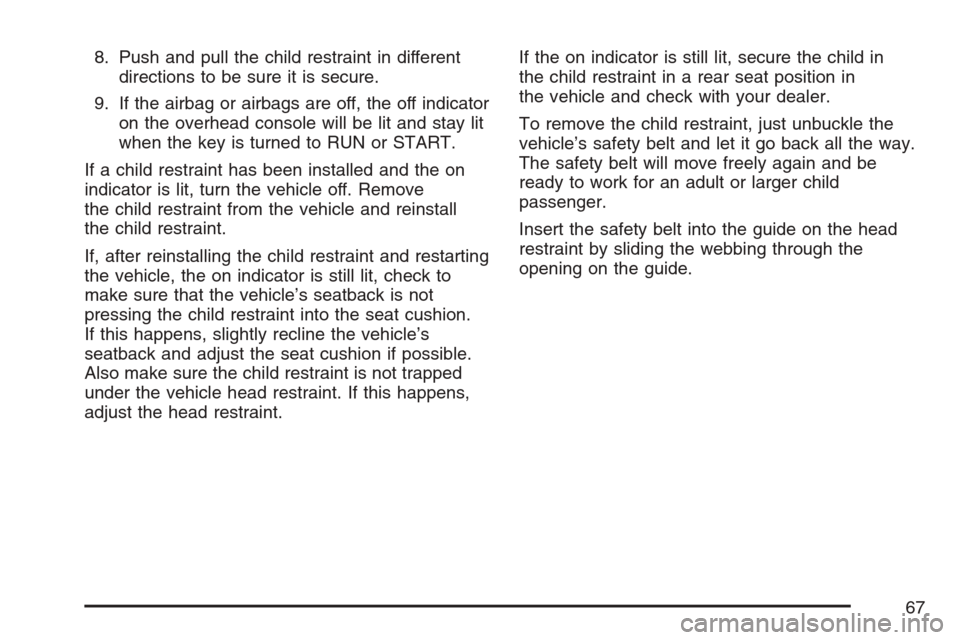

8. Push and pull the child restraint in different
directions to be sure it is secure.
9. If the airbag or airbags are off, the off indicator
on the overhead console will be lit and stay lit
when the key is turned to RUN or START.
If a child restraint has been installed and the on
indicator is lit, turn the vehicle off. Remove
the child restraint from the vehicle and reinstall
the child restraint.
If, after reinstalling the child restraint and restarting
the vehicle, the on indicator is still lit, check to
make sure that the vehicle’s seatback is not
pressing the child restraint into the seat cushion.
If this happens, slightly recline the vehicle’s
seatback and adjust the seat cushion if possible.
Also make sure the child restraint is not trapped
under the vehicle head restraint. If this happens,
adjust the head restraint.If the on indicator is still lit, secure the child in
the child restraint in a rear seat position in
the vehicle and check with your dealer.
To remove the child restraint, just unbuckle the
vehicle’s safety belt and let it go back all the way.
The safety belt will move freely again and be
ready to work for an adult or larger child
passenger.
Insert the safety belt into the guide on the head
restraint by sliding the webbing through the
opening on the guide.
67

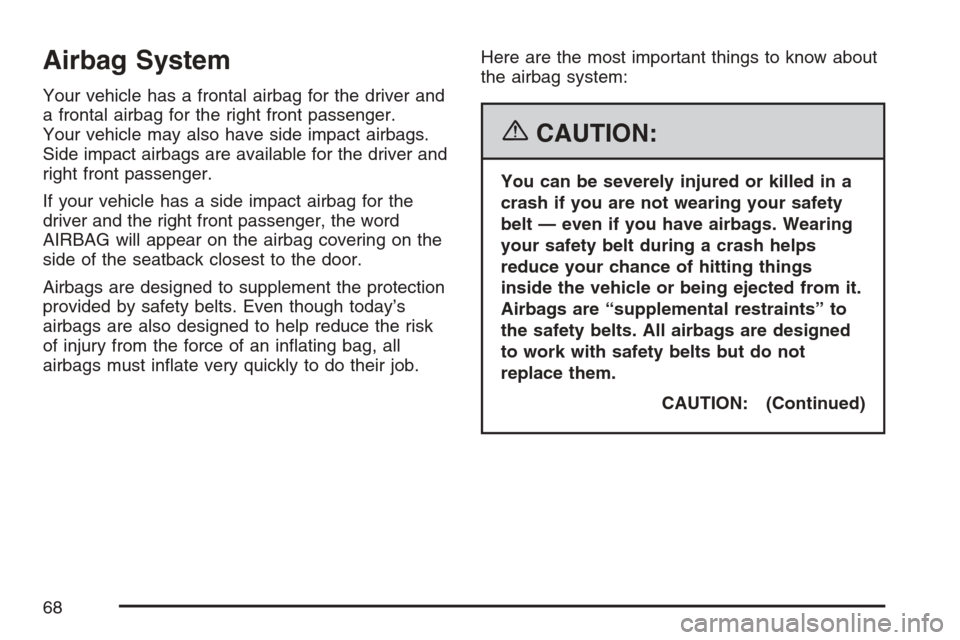

Airbag System
Your vehicle has a frontal airbag for the driver and
a frontal airbag for the right front passenger.
Your vehicle may also have side impact airbags.
Side impact airbags are available for the driver and
right front passenger.
If your vehicle has a side impact airbag for the
driver and the right front passenger, the word
AIRBAG will appear on the airbag covering on the
side of the seatback closest to the door.
Airbags are designed to supplement the protection
provided by safety belts. Even though today’s
airbags are also designed to help reduce the risk
of injury from the force of an inating bag, all
airbags must inate very quickly to do their job.Here are the most important things to know about
the airbag system:
{CAUTION:
You can be severely injured or killed in a
crash if you are not wearing your safety
belt — even if you have airbags. Wearing
your safety belt during a crash helps
reduce your chance of hitting things
inside the vehicle or being ejected from it.
Airbags are “supplemental restraints” to
the safety belts. All airbags are designed
to work with safety belts but do not
replace them.
CAUTION: (Continued)
68

CAUTION: (Continued)
Frontal airbags for the driver and right
front passenger are designed to deploy
in moderate to severe frontal and near
frontal crashes. They are not designed to
inate in rollover, rear crashes, or in many
side crashes. And, for some unrestrained
occupants, frontal airbags may provide
less protection in frontal crashes than
more forceful airbags have provided in
the past.
Side impact airbags are designed to
inate in moderate to severe crashes
where something hits the side of your
vehicle. They are not designed to inate
in frontal, in rollover, or in rear crashes.
Everyone in your vehicle should wear a
safety belt properly — whether or not
there is an airbag for that person.
{CAUTION:
Both frontal and side impact airbags
inate with great force, faster than the
blink of an eye. If you are too close to an
inating airbag, as you would be if you
were leaning forward, it could seriously
injure you. Safety belts help keep you in
position for airbag ination before and
during a crash. Always wear your safety
belt, even with frontal airbags. The driver
should sit as far back as possible while
still maintaining control of the vehicle.
Front occupants should not lean on or
sleep against the door.
69

{CAUTION:
Anyone who is up against, or very close
to, any airbag when it inates can be
seriously injured or killed. Airbags
plus lap-shoulder belts offer the best
protection for adults, but not for young
children and infants. Neither the vehicle’s
safety belt system nor its airbag system
is designed for them. Young children and
infants need the protection that a child
restraint system can provide. Always
secure children properly in your vehicle.
To read how, seeOlder Children on
page 41orInfants and Young Children
on page 44.There is an airbag
readiness light on the
instrument panel cluster,
which shows the
airbag symbol.
The system checks the airbag electrical system
for malfunctions. The light tells you if there is
an electrical problem. SeeAirbag Readiness Light
on page 174for more information.
70
