cruise control CHEVROLET MONTE CARLO 2007 6.G Owners Manual

Instrument Panel Overview........................ 146
Hazard Warning Flashers.......................... 148
Other Warning Devices............................. 148
Horn.......................................................... 148
Tilt Wheel.................................................. 148
Turn Signal/Multifunction Lever.................. 149
Turn and Lane-Change Signals................. 150
Headlamp High/Low-Beam Changer.......... 151
Flash-to-Pass............................................ 151
Windshield Wipers..................................... 151
Windshield Washer.................................... 152
Cruise Control........................................... 153
Exterior Lamps.......................................... 156
Delayed Headlamps.................................. 157
Daytime Running Lamps (DRL)/
Automatic Headlamp System.................. 158
Fog Lamps................................................ 158
Instrument Panel Brightness...................... 159
Courtesy Lamps........................................ 159
Dome Lamp.............................................. 159
Entry Lighting............................................ 160
Delayed Entry Lighting.............................. 160
Delayed Exit Lighting................................. 160
Parade Dimming........................................ 161Reading Lamps......................................... 161
Electric Power Management...................... 161
Battery Run-Down Protection..................... 162
Accessory Power Outlet(s)........................ 162
Ashtray(s) and Cigarette Lighter................ 164
Climate Controls......................................... 164
Climate Control System............................. 164
Outlet Adjustment...................................... 168
Passenger Compartment Air Filter............. 169
Warning Lights, Gages, and Indicators..... 170
Instrument Panel Cluster........................... 171
Speedometer and Odometer...................... 172
Tachometer............................................... 172
Safety Belt Reminder Light........................ 173
Passenger Safety Belt Reminder Light....... 173
Airbag Readiness Light............................. 174
Passenger Airbag Status Indicator............. 175
Charging System Light.............................. 177
Brake System Warning Light..................... 177
Anti-Lock Brake System Warning Light...... 178
Traction Control System (TCS)
Warning Light........................................ 179
Engine Coolant Temperature
Warning Light........................................ 179
Section 3 Instrument Panel
143

Engine Coolant Temperature Gage............ 180
Tire Pressure Light.................................... 180
Malfunction Indicator Lamp........................ 181
Oil Pressure Light..................................... 184
Security Light............................................ 184
Fog Lamp Light......................................... 185
Cruise Control Light.................................. 185
Highbeam On Light................................... 185
Fuel Gage................................................. 185
Driver Information Center (DIC).................. 186
DIC Operation and Displays...................... 187
DIC Compass............................................ 193
DIC Warnings and Messages.................... 195
DIC Vehicle Customization........................ 203Audio System(s)......................................... 210
Setting the Time (Without Date Display).... 211
Setting the Time (With Date Display)......... 212
Radio with CD (Base)............................... 214
Radio with CD (MP3)................................ 220
Using an MP3........................................... 231
XM Radio Messages................................. 238
Theft-Deterrent Feature............................. 240
Audio Steering Wheel Controls.................. 240
Radio Reception........................................ 241
Care of Your CDs..................................... 242
Care of the CD Player.............................. 242
Backglass Antenna.................................... 242
XM™ Satellite Radio Antenna System....... 243
Section 3 Instrument Panel
144

The main components of your instrument panel are listed here:
A. Air Vent. SeeOutlet Adjustment on page 168.
B. Remote Trunk Release Button. See “Remote
Trunk Release” underTrunk on page 101.
C. Multifunction Lever. SeeTurn
Signal/Multifunction Lever on page 149.
D. Instrument Panel Cluster. SeeInstrument Panel
Cluster on page 171.
E. Hazard Warning Flasher Button. SeeHazard
Warning Flashers on page 148.
F. Driver Information Center (DIC) Buttons. See
Driver Information Center (DIC) on page 186.
G. Audio System. SeeAudio System(s) on
page 210.
H. Exterior Lamps Control. SeeExterior Lamps
on page 156.
I. Instrument Panel Brightness. SeeInstrument
Panel Brightness on page 159.
J. Traction Control On/Off Button (If Equipped).
SeeTraction Control System (TCS) on
page 254.K. Tilt Steering Wheel Lever. SeeTilt Wheel on
page 148.
L. Cruise Control Buttons. SeeCruise Control
on page 153.
M. Hood Release. SeeHood Release on
page 307.
N. Horn. SeeHorn on page 148.
O. Audio Steering Wheel Controls (If Equipped).
SeeAudio Steering Wheel Controls on
page 240.
P. Ignition Switch. SeeIgnition Positions on
page 109.
Q. Climate Controls. SeeClimate Control System
on page 164.
R. Accessory Power Outlet. SeeAccessory Power
Outlet(s) on page 162.
S. Automatic Transaxle Shift Lever. SeeAutomatic
Transaxle Operation on page 113.
T. Glove Box. SeeGlove Box on page 140.
147

Cruise Control
With cruise control, you can maintain a speed of
about 25 mph (40 km/h) or more without
keeping your foot on the accelerator. This can
really help on long trips. Cruise control does not
work at speeds below about 25 mph (40 km/h).
{CAUTION:
Cruise control can be dangerous where
you cannot drive safely at a steady speed.
So, do not use your cruise control on
winding roads or in heavy traffic.
Cruise control can be dangerous on
slippery roads. On such roads, fast
changes in tire traction can cause
excessive wheel slip, and you could lose
control. Do not use cruise control on
slippery roads.
If your vehicle is in cruise control when the
traction control system, if your vehicle has this
feature, begins to limit wheel spin, the cruise
control will automatically disengage. SeeTractionControl System (TCS) on page 254. When road
conditions allow you to safely use it again,
the cruise control can be turned back on.
The cruise control
buttons are located on
left side of the
steering wheel.
T(On/Off):Press this button to turn cruise
control on and off. The indicator will be lit
when cruise control is on.
+ RES (Resume/Accelerate):Press this button
to make the vehicle accelerate or resume to
a previously set speed.
SET–:Press this button to set the speed or make
the vehicle decelerate.
[(Cancel):Press this button to cancel
cruise control.
153

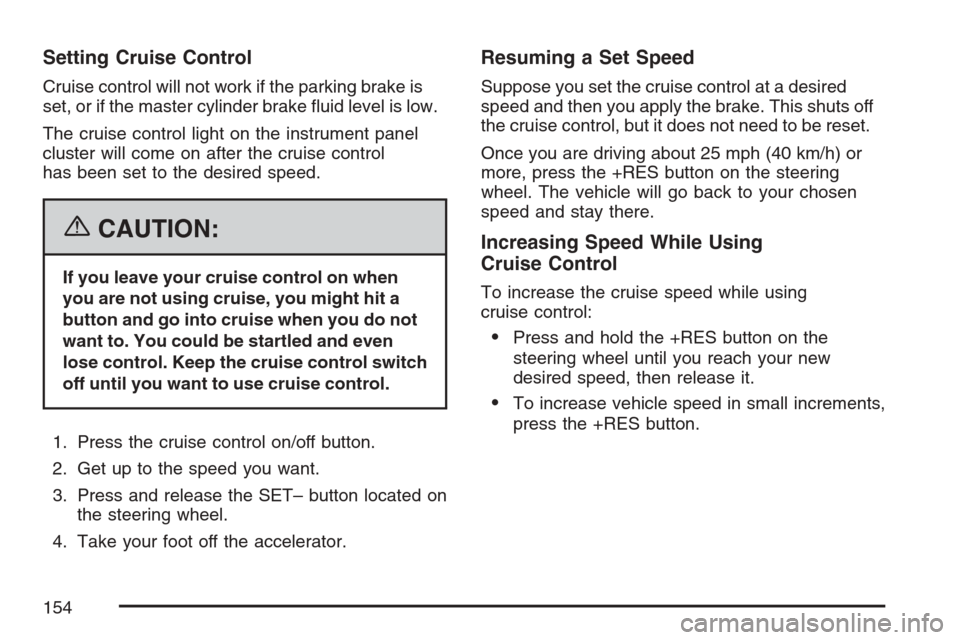

Setting Cruise Control
Cruise control will not work if the parking brake is
set, or if the master cylinder brake uid level is low.
The cruise control light on the instrument panel
cluster will come on after the cruise control
has been set to the desired speed.
{CAUTION:
If you leave your cruise control on when
you are not using cruise, you might hit a
button and go into cruise when you do not
want to. You could be startled and even
lose control. Keep the cruise control switch
off until you want to use cruise control.
1. Press the cruise control on/off button.
2. Get up to the speed you want.
3. Press and release the SET– button located on
the steering wheel.
4. Take your foot off the accelerator.
Resuming a Set Speed
Suppose you set the cruise control at a desired
speed and then you apply the brake. This shuts off
the cruise control, but it does not need to be reset.
Once you are driving about 25 mph (40 km/h) or
more, press the +RES button on the steering
wheel. The vehicle will go back to your chosen
speed and stay there.
Increasing Speed While Using
Cruise Control
To increase the cruise speed while using
cruise control:
Press and hold the +RES button on the
steering wheel until you reach your new
desired speed, then release it.
To increase vehicle speed in small increments,
press the +RES button.
154

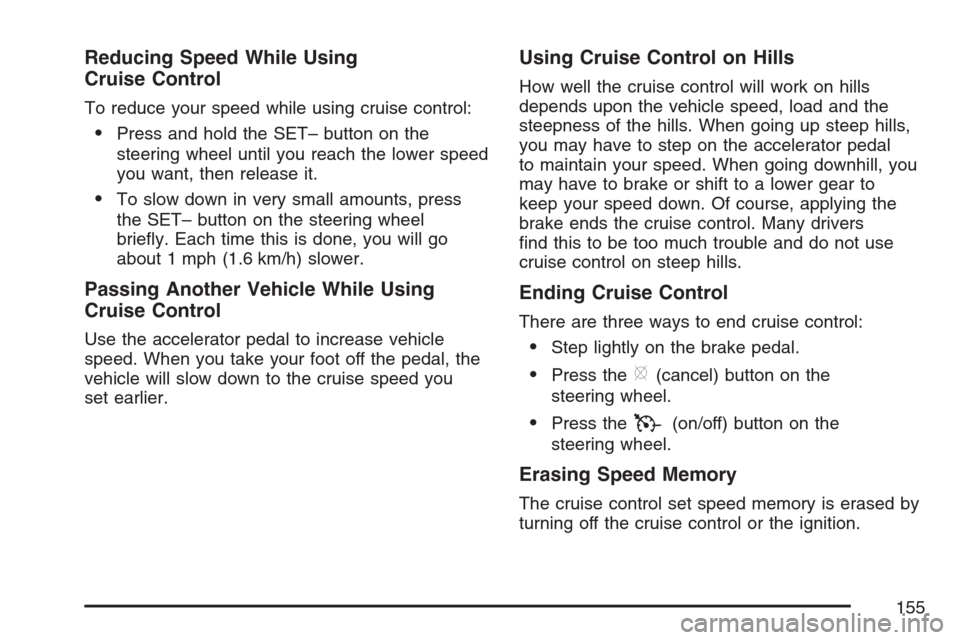

Reducing Speed While Using
Cruise Control
To reduce your speed while using cruise control:
Press and hold the SET– button on the
steering wheel until you reach the lower speed
you want, then release it.
To slow down in very small amounts, press
the SET– button on the steering wheel
briey. Each time this is done, you will go
about 1 mph (1.6 km/h) slower.
Passing Another Vehicle While Using
Cruise Control
Use the accelerator pedal to increase vehicle
speed. When you take your foot off the pedal, the
vehicle will slow down to the cruise speed you
set earlier.
Using Cruise Control on Hills
How well the cruise control will work on hills
depends upon the vehicle speed, load and the
steepness of the hills. When going up steep hills,
you may have to step on the accelerator pedal
to maintain your speed. When going downhill, you
may have to brake or shift to a lower gear to
keep your speed down. Of course, applying the
brake ends the cruise control. Many drivers
nd this to be too much trouble and do not use
cruise control on steep hills.
Ending Cruise Control
There are three ways to end cruise control:
Step lightly on the brake pedal.
Press the[(cancel) button on the
steering wheel.
Press theT(on/off) button on the
steering wheel.
Erasing Speed Memory
The cruise control set speed memory is erased by
turning off the cruise control or the ignition.
155

Fog Lamp Light
The fog lamp light will
come on when the fog
lamps are in use.
The light will go out when the fog lamps are
turned off. SeeFog Lamps on page 158for more
information.
Cruise Control Light
This light comes on
whenever you set the
cruise control.
The light goes out when the cruise control is
turned off. SeeCruise Control on page 153for
more information.
Highbeam On Light
This light comes on
when the high-beam
headlamps are in use.
SeeHeadlamp High/Low-Beam Changer on
page 151.
Fuel Gage
When the ignition is on, the fuel gage tells you
about how much fuel you have remaining.
United StatesCanada
185

Traction Control System (TCS)
Your vehicle may be equipped with a Traction
Control System that limits wheel spin. This is
especially useful in slippery road conditions. The
system operates only if it senses that one or both of
the front wheels are spinning or beginning to lose
traction. When this happens, the system reduces
engine power and may also upshift the transaxle
and apply the front brakes to limit wheel spin.
This light will ash when
your Traction Control
System is limiting wheel
spin. SeeTraction
Control System (TCS)
Warning Light on
page 179.
You may feel or hear the system working, but this
is normal.
If your vehicle is in cruise control when the
traction control system begins to limit wheel spin,
the cruise control will automatically disengage.
When road conditions allow you to safely
use it again, you may re-engage the cruise control.
SeeCruise Control Light on page 185.The Traction Control System operates in all
transaxle shift lever positions. But the system can
upshift the transaxle only as high as the shift
lever position you’ve chosen, so you should use
the lower gears only when necessary. See
Automatic Transaxle Operation on page 113.
The SERVICE TRACTION CONTROL message
will appear in the Driver Information (DIC) to
let you know if there is a problem with the system.
SeeDIC Warnings and Messages on page 195.
When this message appears, the system will
not limit wheel spin. Adjust your driving
accordingly.
To limit wheel spin, especially in slippery road
conditions, you should always leave the Traction
Control System on. But you can turn the system off
if you ever need to.
You should turn the system off if your vehicle ever
gets stuck in sand, mud or snow and rocking
the vehicle is required. SeeIf Your Vehicle
is Stuck in Sand, Mud, Ice, or Snow on page 276.
254

(f)Lubricate all key lock cylinders. Lubricate all
hinges and latches, including those for the
body doors, hood, secondary latch, pivots, spring
anchor, release pawl, rear compartment, glove
box door, console door, and any folding seat
hardware. More frequent lubrication may
be required when exposed to a corrosive
environment. Applying silicone grease on
weatherstrips with a clean cloth will make them
last longer, seal better, and not stick or squeak.
(g)If you drive regularly under dusty conditions,
the lter may require replacement more often.
(h)Change automatic transaxle uid and lter if the
vehicle is mainly driven under one or more of
these conditions:
In heavy city traffic where the outside
temperature regularly reaches 90°F (32°C)
or higher.
In hilly or mountainous terrain.
When doing frequent trailer towing.
Uses such as found in taxi, police, or delivery
service.(i)Drain, ush, and rell cooling system.
This service can be complex; you should have
your dealer perform this service. See Engine
Coolant on page 320 for what to use. Inspect
hoses. Clean radiator, condenser, pressure cap,
and ller neck. Pressure test the cooling
system and pressure cap.
(j)Check throttle system for interference or
binding and for damaged or missing parts. Replace
parts as needed. Replace any components that
have high effort or excessive wear. Do not
lubricate accelerator or cruise control cables.
(k)A uid loss in any vehicle system could indicate
a problem. Have the system inspected and
repaired and the uid level checked. Add uid if
needed.
(m)If you drive regularly under dusty conditions,
inspect the lter at each engine oil change.
(n)Visually inspect belt for fraying, excessive
cracks, or obvious damage. Replace belt if
necessary.
411

Center Console Storage Area...................... 140
Chains, Tire................................................. 370
Charging System Light................................ 177
Check
Engine Light............................................ 181
Checking Things Under the Hood................ 306
Chemical Paint Spotting.............................. 392
Child Restraints
Child Restraint Systems............................. 47
Infants and Young Children........................ 44
Lower Anchors and Tethers for Children..... 53
Older Children........................................... 41
Securing a Child Restraint in a Rear
Seat Position.......................................... 60
Securing a Child Restraint in the Right
Front Seat Position................................. 63
Where to Put the Restraint........................ 51
Cigarette Lighter.......................................... 164
Cleaning
Aluminum Wheels.................................... 390
Exterior Lamps/Lenses............................. 389
Fabric/Carpet........................................... 386
Finish Care.............................................. 389
Inside of Your Vehicle.............................. 385
Instrument Panel, Vinyl, and Other
Plastic Surfaces.................................... 388Cleaning (cont.)
Leather.................................................... 387
Tires........................................................ 391
Underbody Maintenance........................... 392
Washing Your Vehicle .............................. 389
Weatherstrips........................................... 388
Windshield and Wiper Blades................... 390
Climate Control System............................... 164
Air Filter, Passenger Compartment........... 169
Outlet Adjustment..................................... 168
Collision Damage Repair............................. 436
Comfort Guides, Rear Safety Belt................. 36
Compact Spare Tire.................................... 384
Compass..................................................... 193
Content Theft-Deterrent............................... 105
Control of a Vehicle..................................... 250
Convenience Net......................................... 141
Coolant
Engine Temperature Gage........................ 180
Engine Temperature Warning Light........... 179
Heater, Engine......................................... 112
Cooling System........................................... 326
Courtesy Lamps.......................................... 159
Cruise Control............................................. 153
Cruise Control Light.................................... 185
Cupholder(s)................................................ 140
445
