The LED light (A), on the transmitter, will flash when the
buttons on the remote keyless entry transmitter are
pressed. You can lock and unlock the vehicle’s doors
from about 20 feet (6 m) away. SeeRemote Keyless
Entry System on page 2-3for additional information.
W(Unlock):Press this button to unlock all of the
doors and the liftgate, if equipped. If all of the doors and
the trunk or liftgate are closed, the hazard lamps will
flash twice to indicate that unlocking has occurred. The
theft-deterrent system will deactivate and the security
light will turn off. The security light is located on the base
of the driver’s door lock.
If a door is not opened or if the engine is not started
within 30 seconds after pressing unlock on the remote
keyless entry transmitter, all of the doors will
automatically lock and the theft-deterrent system
will reactivate.
Q(Lock):Press this button to lock all of the doors
and the liftgate, if equipped. If all of the doors and
the trunk or liftgate are closed, the hazard lamps will
flash once and the horn will chirp to indicate that locking
has occurred. The theft-deterrent system will activate
and the security light will flash.
If the driver’s door is open while pressing lock, all of the
doors, except for the driver’s door will lock. If any door
other than the driver’s door is open while pressing lock,
all of the doors, including the driver’s door, will lock. Wagon/Hatchback Remote Keyless Entry
Transmitter
2-5
Page 86 of 336

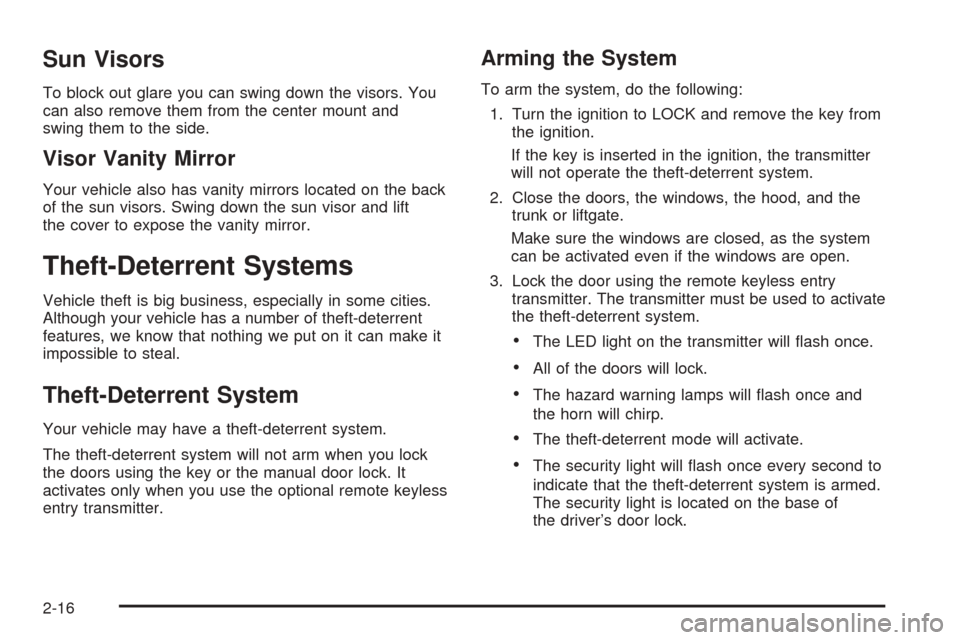

Sun Visors
To block out glare you can swing down the visors. You
can also remove them from the center mount and
swing them to the side.
Visor Vanity Mirror
Your vehicle also has vanity mirrors located on the back
of the sun visors. Swing down the sun visor and lift
the cover to expose the vanity mirror.
Theft-Deterrent Systems
Vehicle theft is big business, especially in some cities.
Although your vehicle has a number of theft-deterrent
features, we know that nothing we put on it can make it
impossible to steal.
Theft-Deterrent System
Your vehicle may have a theft-deterrent system.
The theft-deterrent system will not arm when you lock
the doors using the key or the manual door lock. It
activates only when you use the optional remote keyless
entry transmitter.
Arming the System
To arm the system, do the following:
1. Turn the ignition to LOCK and remove the key from
the ignition.
If the key is inserted in the ignition, the transmitter
will not operate the theft-deterrent system.
2. Close the doors, the windows, the hood, and the
trunk or liftgate.
Make sure the windows are closed, as the system
can be activated even if the windows are open.
3. Lock the door using the remote keyless entry
transmitter. The transmitter must be used to activate
the theft-deterrent system.
•The LED light on the transmitter will flash once.
•All of the doors will lock.
•The hazard warning lamps will flash once and
the horn will chirp.
•The theft-deterrent mode will activate.
•The security light will flash once every second to
indicate that the theft-deterrent system is armed.
The security light is located on the base of
the driver’s door lock.
2-16
Page 87 of 336

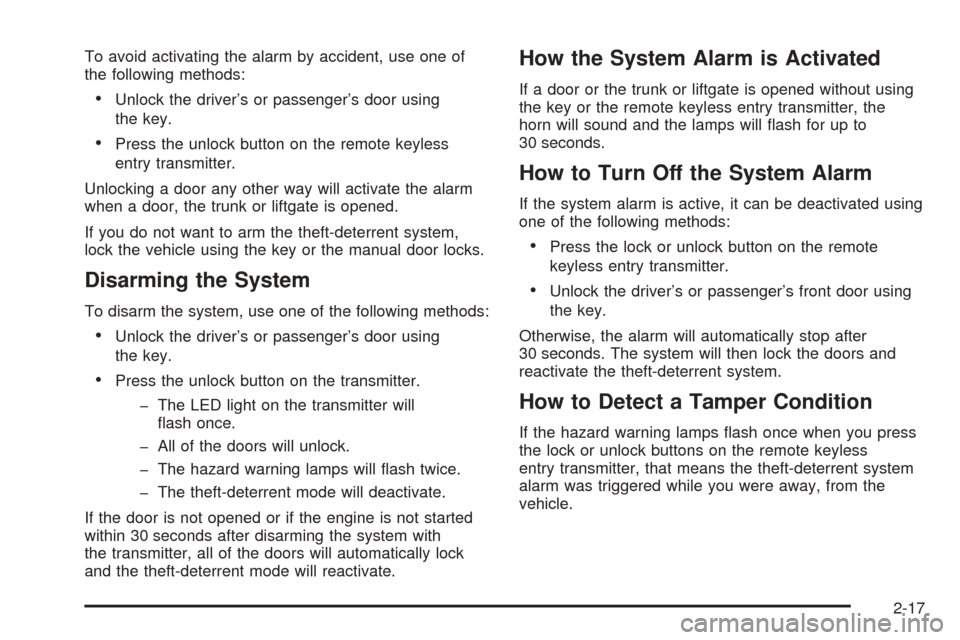

To avoid activating the alarm by accident, use one of
the following methods:
•Unlock the driver’s or passenger’s door using
the key.
•Press the unlock button on the remote keyless
entry transmitter.
Unlocking a door any other way will activate the alarm
when a door, the trunk or liftgate is opened.
If you do not want to arm the theft-deterrent system,
lock the vehicle using the key or the manual door locks.
Disarming the System
To disarm the system, use one of the following methods:
•Unlock the driver’s or passenger’s door using
the key.
•Press the unlock button on the transmitter.
- The LED light on the transmitter will
flash once.
- All of the doors will unlock.
- The hazard warning lamps will flash twice.
- The theft-deterrent mode will deactivate.
If the door is not opened or if the engine is not started
within 30 seconds after disarming the system with
the transmitter, all of the doors will automatically lock
and the theft-deterrent mode will reactivate.
How the System Alarm is Activated
If a door or the trunk or liftgate is opened without using
the key or the remote keyless entry transmitter, the
horn will sound and the lamps will flash for up to
30 seconds.
How to Turn Off the System Alarm
If the system alarm is active, it can be deactivated using
one of the following methods:
•Press the lock or unlock button on the remote
keyless entry transmitter.
•Unlock the driver’s or passenger’s front door using
the key.
Otherwise, the alarm will automatically stop after
30 seconds. The system will then lock the doors and
reactivate the theft-deterrent system.
How to Detect a Tamper Condition
If the hazard warning lamps flash once when you press
the lock or unlock buttons on the remote keyless
entry transmitter, that means the theft-deterrent system
alarm was triggered while you were away, from the
vehicle.
2-17
Page 109 of 336

Instrument Panel Overview...............................3-4
Hazard Warning Flashers................................3-8
Other Warning Devices...................................3-8
Horn.............................................................3-8
Tilt Wheel.....................................................3-9
Turn Signal/Multifunction Lever.........................3-9
Turn and Lane-Change Signals.......................3-10
Headlamp High/Low-Beam Changer.................3-10
Flash-to-Pass...............................................3-10
Windshield Wipers........................................3-11
Windshield Washer.......................................3-12
Cruise Control..............................................3-12
Exterior Lamps.............................................3-15
Headlamps on Reminder................................3-15
Daytime Running Lamps (DRL).......................3-15
Fog Lamps..................................................3-16
Instrument Panel Brightness...........................3-17
Dome Lamp.................................................3-17
Map Lamps.................................................3-18
Accessory Power Outlets...............................3-18
Ashtrays and Cigarette Lighter........................3-19
Clock..........................................................3-20
Climate Controls............................................3-21
Climate Control System.................................3-21
Outlet Adjustment.........................................3-24
Passenger Compartment Air Filter...................3-24Warning Lights, Gages, and Indicators............3-26
Instrument Panel Cluster................................3-26
Speedometer and Odometer...........................3-28
Trip Odometer..............................................3-28
Tachometer.................................................3-28
Safety Belt Reminder Light.............................3-29
Safety Belt Reminder Tone............................3-29
Airbag Readiness Light..................................3-29
Passenger Airbag Status Indicator...................3-30
Charging System Light..................................3-32
Brake System Warning Light..........................3-32
Anti-Lock Brake System Warning Light.............3-33
Speed Sensitive Power Steering (SSPS)
Warning Light...........................................3-34
Traction Control System (TCS)
Warning Light...........................................3-34
Hold Mode Light...........................................3-35
Engine Coolant Temperature Gage..................3-35
Malfunction Indicator Lamp.............................3-36
Oil Pressure Light.........................................3-38
Fog Lamp Light............................................3-39
Cruise Control Light......................................3-39
Highbeam On Light.......................................3-40
Daytime Running Lamps (DRL)
Indicator Light...........................................3-40
Section 3 Instrument Panel
3-1
Page 113 of 336

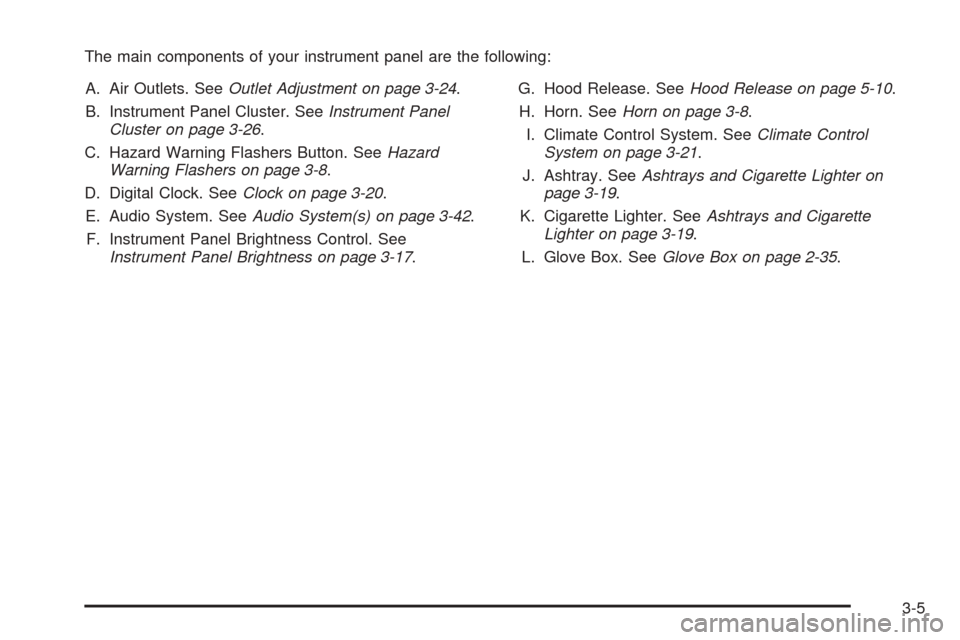

The main components of your instrument panel are the following:
A. Air Outlets. SeeOutlet Adjustment on page 3-24.
B. Instrument Panel Cluster. SeeInstrument Panel
Cluster on page 3-26.
C. Hazard Warning Flashers Button. SeeHazard
Warning Flashers on page 3-8.
D. Digital Clock. SeeClock on page 3-20.
E. Audio System. SeeAudio System(s) on page 3-42.
F. Instrument Panel Brightness Control. See
Instrument Panel Brightness on page 3-17.G. Hood Release. SeeHood Release on page 5-10.
H. Horn. SeeHorn on page 3-8.
I. Climate Control System. SeeClimate Control
System on page 3-21.
J. Ashtray. SeeAshtrays and Cigarette Lighter on
page 3-19.
K. Cigarette Lighter. SeeAshtrays and Cigarette
Lighter on page 3-19.
L. Glove Box. SeeGlove Box on page 2-35.
3-5
Page 115 of 336

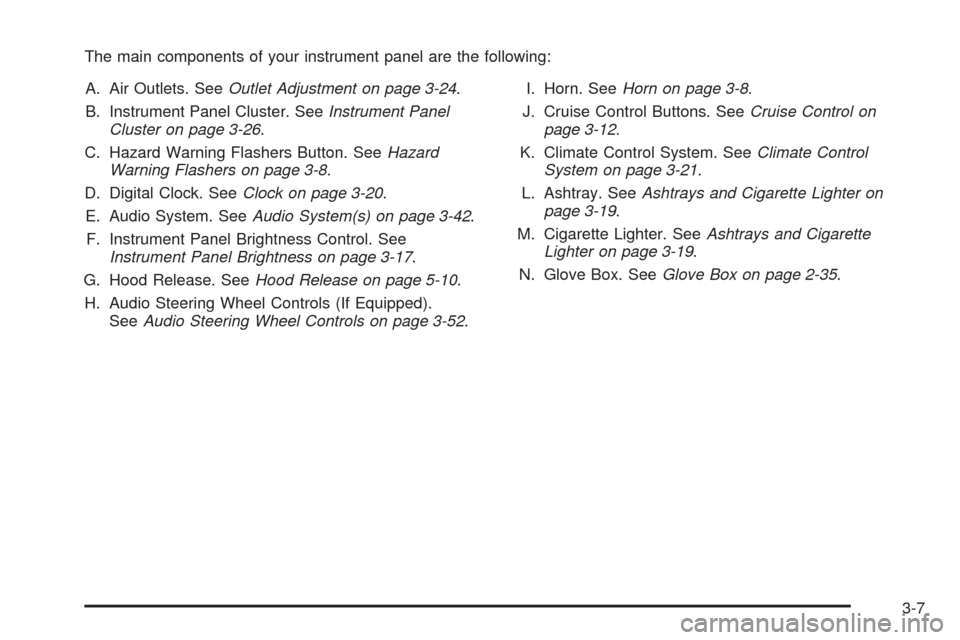

The main components of your instrument panel are the following:
A. Air Outlets. SeeOutlet Adjustment on page 3-24.
B. Instrument Panel Cluster. SeeInstrument Panel
Cluster on page 3-26.
C. Hazard Warning Flashers Button. SeeHazard
Warning Flashers on page 3-8.
D. Digital Clock. SeeClock on page 3-20.
E. Audio System. SeeAudio System(s) on page 3-42.
F. Instrument Panel Brightness Control. See
Instrument Panel Brightness on page 3-17.
G. Hood Release. SeeHood Release on page 5-10.
H. Audio Steering Wheel Controls (If Equipped).
SeeAudio Steering Wheel Controls on page 3-52.I. Horn. SeeHorn on page 3-8.
J. Cruise Control Buttons. SeeCruise Control on
page 3-12.
K. Climate Control System. SeeClimate Control
System on page 3-21.
L. Ashtray. SeeAshtrays and Cigarette Lighter on
page 3-19.
M. Cigarette Lighter. SeeAshtrays and Cigarette
Lighter on page 3-19.
N. Glove Box. SeeGlove Box on page 2-35.
3-7
Page 116 of 336

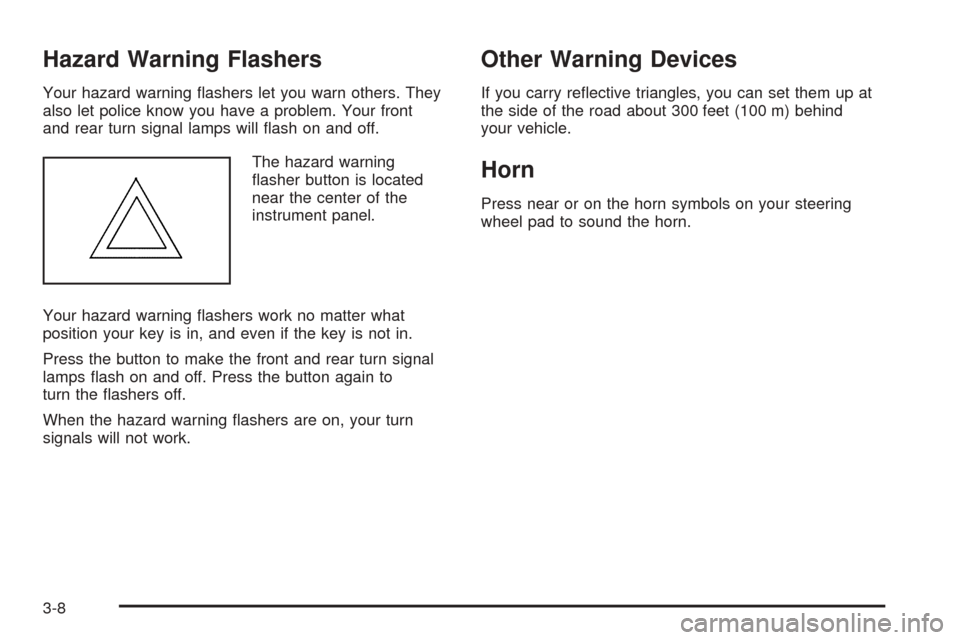

Hazard Warning Flashers
Your hazard warning flashers let you warn others. They
also let police know you have a problem. Your front
and rear turn signal lamps will flash on and off.
The hazard warning
flasher button is located
near the center of the
instrument panel.
Your hazard warning flashers work no matter what
position your key is in, and even if the key is not in.
Press the button to make the front and rear turn signal
lamps flash on and off. Press the button again to
turn the flashers off.
When the hazard warning flashers are on, your turn
signals will not work.
Other Warning Devices
If you carry reflective triangles, you can set them up at
the side of the road about 300 feet (100 m) behind
your vehicle.
Horn
Press near or on the horn symbols on your steering
wheel pad to sound the horn.
3-8
Page 278 of 336

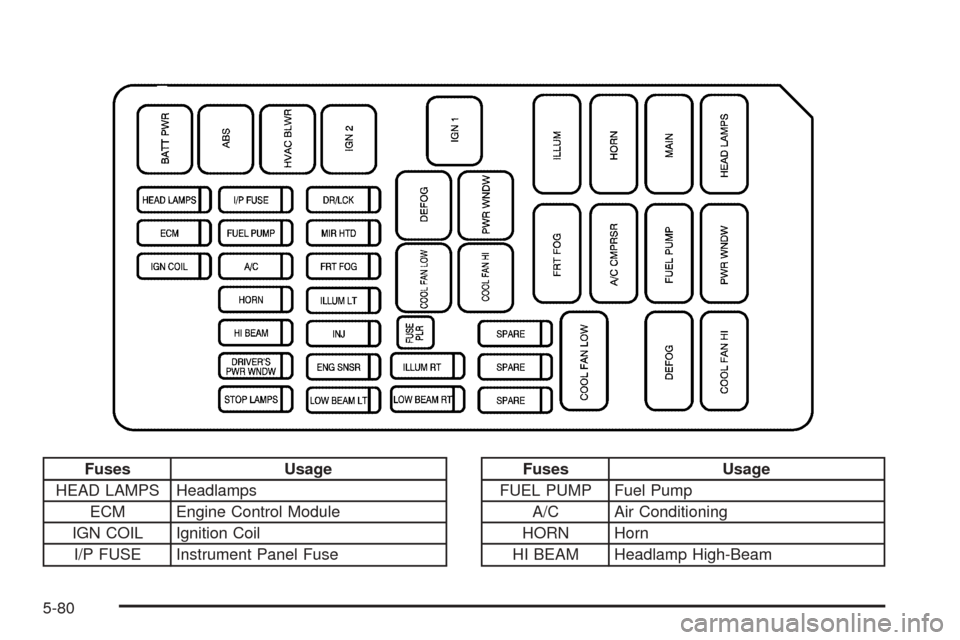

Fuses Usage
HEAD LAMPS Headlamps
ECM Engine Control Module
IGN COIL Ignition Coil
I/P FUSE Instrument Panel FuseFuses Usage
FUEL PUMP Fuel Pump
A/C Air Conditioning
HORN Horn
HI BEAM Headlamp High-Beam
5-80
Page 279 of 336

Fuses Usage
DRIVER’S
PWR WNDWDriver’s Power Window
STOP LAMPS Stoplamps
DR/LCK Door Lock
MIR HTD Heated Mirror
FRT FOG Front Fog
ILLUM LTLicense Plate Lamp, Parking
Lamp Left
INJ Injector
ENG SNSREvaporative Emission (EVAP)
Canister Purge Solenoid, Heated
Oxygen Sensor (HO2S), Cooling
Fan Relay, CMP Sensor
LOW BEAM LT Headlamp Low-Beam Left
ILLUM RTIllumination Circuit, Parking
Lamp Right
LOW BEAM RT Headlamp Low-Beam Right
SPARE Spare
SPARE Spare
SPARE Spare
BATT PWR Battery Power
ABS Anti-lock Brake System
HVAC BLWR HVAC Blower
IGN 2 Ignition 2Fuses Usage
IGN 1 Ignition 1
FUSE PLR Fuse Puller
COOL FAN
LOWCooling Fan Low
DEFOG Defog
COOL FAN HI Cooling Fan High
PWR WNDW Power Window
Relays Usage
COOL FAN
LOWCooling Fan Low
FRT FOG Front Fog
ILLUM Illumination Relay
A/C CMPRSR Air Conditioning Compressor
HORN Horn
DEFOG Defog
FUEL PUMP Fuel Pump
MAIN Main Relay
COOL FAN HI Cooling Fan High
PWR WNDW Power Window
HEAD LAMPS Headlamp Relay
5-81
Page 328 of 336

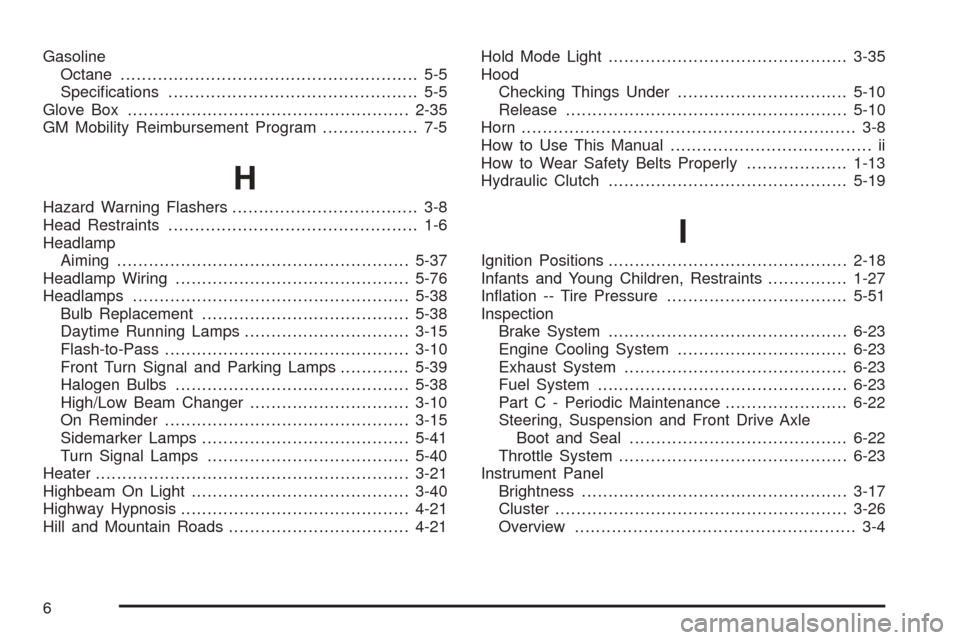

Gasoline
Octane........................................................ 5-5
Specifications............................................... 5-5
Glove Box.....................................................2-35
GM Mobility Reimbursement Program.................. 7-5
H
Hazard Warning Flashers................................... 3-8
Head Restraints............................................... 1-6
Headlamp
Aiming.......................................................5-37
Headlamp Wiring............................................5-76
Headlamps....................................................5-38
Bulb Replacement.......................................5-38
Daytime Running Lamps...............................3-15
Flash-to-Pass..............................................3-10
Front Turn Signal and Parking Lamps.............5-39
Halogen Bulbs............................................5-38
High/Low Beam Changer..............................3-10
On Reminder..............................................3-15
Sidemarker Lamps.......................................5-41
Turn Signal Lamps......................................5-40
Heater...........................................................3-21
Highbeam On Light.........................................3-40
Highway Hypnosis...........................................4-21
Hill and Mountain Roads..................................4-21Hold Mode Light.............................................3-35
Hood
Checking Things Under................................5-10
Release.....................................................5-10
Horn............................................................... 3-8
How to Use This Manual...................................... ii
How to Wear Safety Belts Properly...................1-13
Hydraulic Clutch.............................................5-19
I
Ignition Positions.............................................2-18
Infants and Young Children, Restraints...............1-27
Inflation -- Tire Pressure..................................5-51
Inspection
Brake System.............................................6-23
Engine Cooling System................................6-23
Exhaust System..........................................6-23
Fuel System...............................................6-23
Part C - Periodic Maintenance.......................6-22
Steering, Suspension and Front Drive Axle
Boot and Seal.........................................6-22
Throttle System...........................................6-23
Instrument Panel
Brightness..................................................3-17
Cluster.......................................................3-26
Overview..................................................... 3-4
6
