Driver Seat Tilt Adjuster
The manual drivers seat tilt adjuster knobs are
located on the outboard side of the seat cushion.Turn the front knob to adjust the tilt of the front
portion of the seat cushion. Turn the rear knob to
adjust the tilt of the rear portion of the seat
cushion.
11

Manual Lumbar
Your vehicle may have manually operated lumbar
support for the driver’s seat.
To adjust the front seat lumbar support, use the
lever located on the outboard side of the seatback.
Push the lever down to adjust the support for
the lower part of the seatback. Pull the lever up to
return the support to its original position.
Reclining Seatbacks
{CAUTION:
You can lose control of the vehicle if you
try to adjust a manual driver’s seat while
the vehicle is moving. The sudden
movement could startle and confuse you,
or make you push a pedal when you do
not want to. Adjust the driver’s seat only
when the vehicle is not moving.
{CAUTION:
If the seatback is not locked, it could
move forward in a sudden stop or crash.
That could cause injury to the person
sitting there. Always push and pull on the
seatback to be sure it is locked.
12

The seats have manual reclining seatbacks.
The lever used to operate them is located on the
outboard side of the seats.To recline the seatback, do the following:
1. Lift the recline lever.
2. Move the seatback to the desired position,
then release the lever to lock the seatback
in place.
3. Push and pull on the seatback to make sure it
is locked.
To return the seatback to an upright position, do
the following:
1. Lift the lever fully without applying pressure to
the seatback and the seatback will return to
the upright position.
2. Push and pull on the seatback to make sure it
is locked.
13

{CAUTION:
Sitting in a reclined position when your
vehicle is in motion can be dangerous.
Even if you buckle up, your safety belts
cannot do their job when you are reclined
like this.
The shoulder belt cannot do its job
because it will not be against your body.
Instead, it will be in front of you. In a
crash, you could go into it, receiving neck
or other injuries.
The lap belt cannot do its job either. In a
crash, the belt could go up over your
abdomen. The belt forces would be there,
not at your pelvic bones. This could cause
serious internal injuries.
For proper protection when the vehicle is
in motion, have the seatback upright.
Then sit well back in the seat and wear
your safety belt properly.
Do not have a seatback reclined if your vehicle
is moving.
14

Head Restraints
Adjust the head restraint so that the top of the
restraint is at the same height as the top of
the occupant’s head. This position reduces the
chances of a neck injury in a crash.Pull the head restraint up to raise it. To lower the
restraint, press the button, located on the top
of the seatback, and push the restraint down.
The rear seat head restraints may be adjustable
and work the same as the front head restraints.
The head restraints are removable. To remove a
restraint, press the button, located on the top
of the seatback, and lift the head restraint from the
guide sleeve. Replace the head restraint before
driving.
15

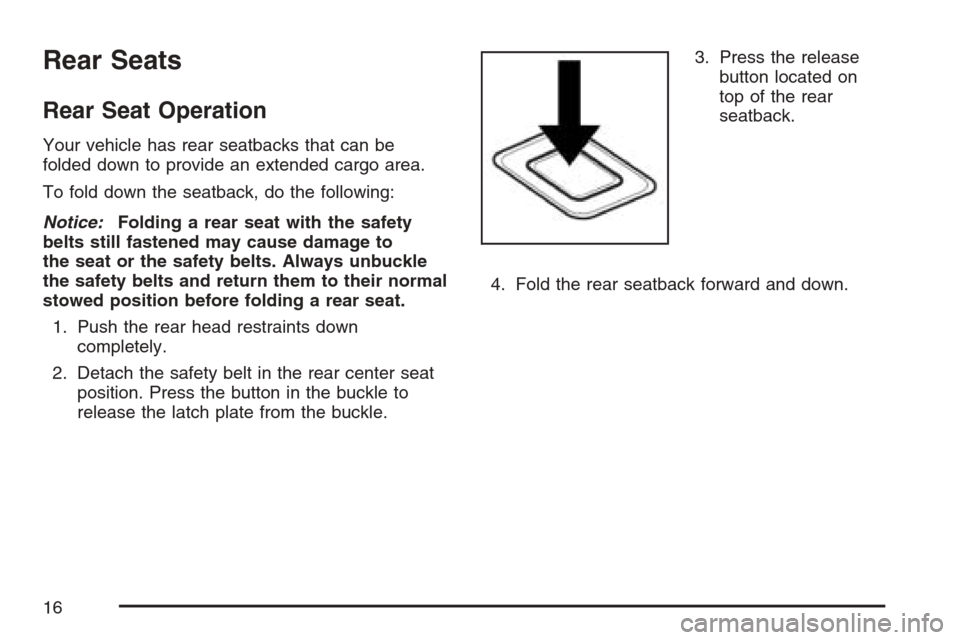

Rear Seats
Rear Seat Operation
Your vehicle has rear seatbacks that can be
folded down to provide an extended cargo area.
To fold down the seatback, do the following:
Notice:Folding a rear seat with the safety
belts still fastened may cause damage to
the seat or the safety belts. Always unbuckle
the safety belts and return them to their normal
stowed position before folding a rear seat.
1. Push the rear head restraints down
completely.
2. Detach the safety belt in the rear center seat
position. Press the button in the buckle to
release the latch plate from the buckle.3. Press the release
button located on
top of the rear
seatback.
4. Fold the rear seatback forward and down.
16

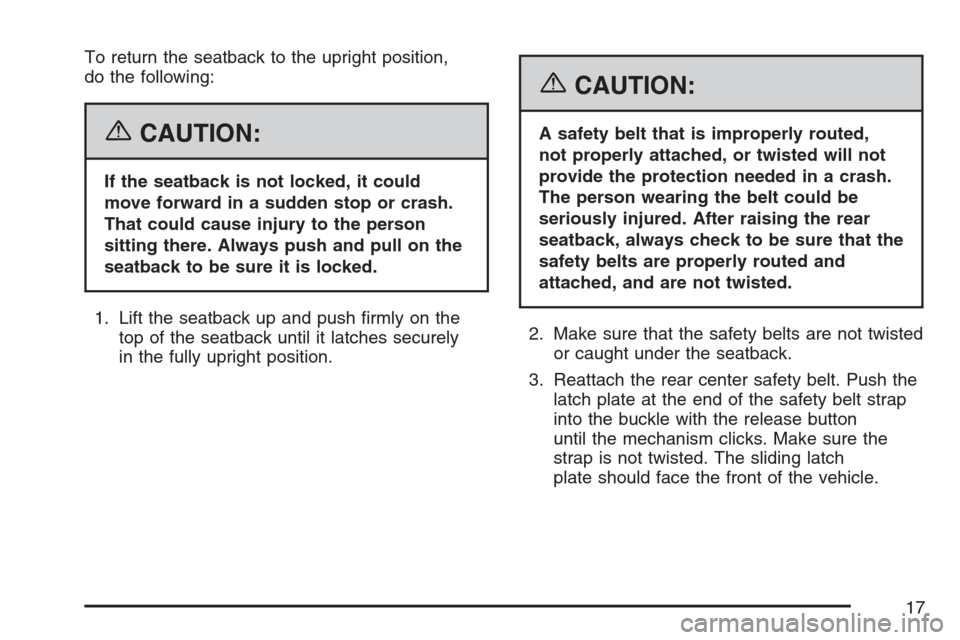

To return the seatback to the upright position,
do the following:
{CAUTION:
If the seatback is not locked, it could
move forward in a sudden stop or crash.
That could cause injury to the person
sitting there. Always push and pull on the
seatback to be sure it is locked.
1. Lift the seatback up and push firmly on the
top of the seatback until it latches securely
in the fully upright position.
{CAUTION:
A safety belt that is improperly routed,
not properly attached, or twisted will not
provide the protection needed in a crash.
The person wearing the belt could be
seriously injured. After raising the rear
seatback, always check to be sure that the
safety belts are properly routed and
attached, and are not twisted.
2. Make sure that the safety belts are not twisted
or caught under the seatback.
3. Reattach the rear center safety belt. Push the
latch plate at the end of the safety belt strap
into the buckle with the release button
until the mechanism clicks. Make sure the
strap is not twisted. The sliding latch
plate should face the front of the vehicle.
17

Safety Belts
Safety Belts: They Are for Everyone
This part of the manual tells you how to use
safety belts properly. It also tells you some things
you should not do with safety belts.
{CAUTION:
Do not let anyone ride where he or she
cannot wear a safety belt properly. If you
are in a crash and you are not wearing a
safety belt, your injuries can be much
worse. You can hit things inside the
vehicle or be ejected from it. You can be
seriously injured or killed. In the same
crash, you might not be, if you are
buckled up. Always fasten your safety
belt, and check that your passengers’
belts are fastened properly too.
{CAUTION:
It is extremely dangerous to ride in a
cargo area, inside or outside of a vehicle.
In a collision, people riding in these areas
are more likely to be seriously injured or
killed. Do not allow people to ride in any
area of your vehicle that is not equipped
with seats and safety belts. Be sure
everyone in your vehicle is in a seat and
using a safety belt properly.
Your vehicle has a light
that comes on as a
reminder to buckle up.
SeeSafety Belt
Reminder Light on
page 164.
18

In most states and in all Canadian provinces, the
law says to wear safety belts. Here is why:
They work.
You never know if you will be in a crash. If you do
have a crash, you do not know if it will be a
bad one.
A few crashes are mild, and some crashes can be
so serious that even buckled up, a person
would not survive. But most crashes are in
between. In many of them, people who buckle up
can survive and sometimes walk away. Without
belts they could have been badly hurt or killed.
After more than 40 years of safety belts in
vehicles, the facts are clear. In most crashes
buckling up does matter... a lot!Why Safety Belts Work
When you ride in or on anything, you go as fast
as it goes.
Take the simplest vehicle. Suppose it is just a
seat on wheels.
19

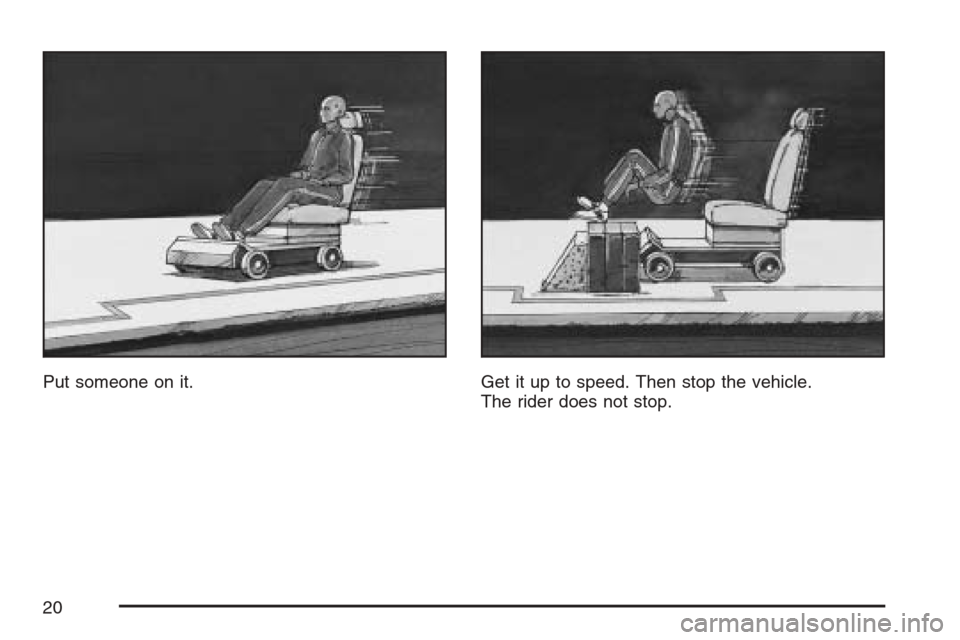

Put someone on it. Get it up to speed. Then stop the vehicle.
The rider does not stop.
