CHEVROLET S10 1999 2.G Owners Manual

yellowblue
2-43 Fog Lamps (If Equipped)
Use your fog lamps for better vision in foggy or misty
conditions. Your parking lamps or low
-beam headlamps
must be on for your fog lamps to work.
The fog lamp switch is on the instrument panel under
the lamps switch. Press the switch to turn the fog lamps
on. Press the switch again to turn them off. A light will
glow in the switch when the fog lamps are on.
The fog lamps will go off whenever your high
-beam
headlamps come on. When the high
-beam headlamps
go off, the fog lamps will come on again.
Interior Lamps
Brightness Control
Turn the thumbwheel next to the headlamp switch up to
make your instrument panel lights brighter. Turn the
thumbwheel all the way up to turn on the interior lamps.
Illuminated Entry
Your vehicle is equipped with an illuminated
entry feature.
When the doors are opened, the dome lamps will come
on if the DOME OVERRIDE button is in the ªoutº
position. When all the doors are closed, or the front door
handles are lifted and released, the lamps will stay on
for a short period of time and will turn off automatically.
If you use your keyless entry transmitter to unlock the
vehicle, the interior lights will come on for a short time
whether or not the DOME OVERRIDE button is in the
ªoutº position.

yellowblue
2-44 Exit Lighting
With exit lighting, the interior lamps will come on when
you remove the key from the ignition to help you see
while exiting the vehicle. These lights will stay on for a
short period of time and then will go out, if the DOME
OVERRIDE button is in the ªoutº position.
Front Map Lamps (If Equipped)
If your vehicle has front map lamps, they are located on
the inside rearview mirror. They will automatically come
on for approximately 40 seconds when the doors are
unlocked with the keyless entry transmitter (if equipped)
or until the ignition key is turned to RUN or
ACCESSORY. The lamps will also stay on for
approximately 40 seconds after you exit the vehicle, unless
you lock the doors with the keyless entry transmitter.
You can also turn the lamps on and off by pressing the
switch near each lamp.
Dome Lamps
The dome lamps will come on when you open the doors.
You can also turn the dome lamps on by turning the
thumbwheel, located next to the parking/headlamps
knob, all the way up to the top detent position. In this
position, the dome lamps will remain on whether the
doors are opened or closed.You can use the DOME OVERRIDE button, located
below the parking/headlamp knob, to set the dome
lamps to come on automatically when the doors are
opened, or to remain off. To turn the lamps off, press the
button into the ªinº position. With the button in this
position, the dome lamps will remain off when the doors
are open. To return the lamps to automatic operation,
press the button again and return it to the ªoutº position.
With the button in this position, the dome lamps will
come on when you open the door. This will override the
illuminated entry feature, unless you use your keyless
entry transmitter to unlock the vehicle.
Battery Run-Down Protection
This feature shuts off the dome, courtesy, vanity,
reading, glove box, cargo and underhood lamps if they
are left on for more than 20 minutes when the ignition is
off. This will keep your battery from running down.
If the battery run
-down protection shuts off the interior
lamps, it may be necessary to do one of the following to
return it to normal operation:

Shut off all lamps and close all doors, or

Turn the ignition key to RUN.

yellowblue
2-45
Mirrors
Inside Day/Night Rearview Mirror
Pull the tab under the mirror toward you to reduce glare
from headlamps behind you after dark. Push the tab
away from you for normal daytime operation.
Outside Manual Adjust Mirror
Adjust your outside mirrors so you can just see the side
of your vehicle.
You can fold them before entering a car wash. Pull the
mirrors in toward the vehicle. Push the mirrors back out
when finished.
Power Remote Control Mirror
The control is located on the
driver's door armrest.
Move the upper control to the left or right to choose the
mirror, then press the arrows on the control pad to adjust
the mirror.

yellowblue
2-46 Convex Outside Mirror
A convex mirror's surface is curved so you can see more
from the driver's seat.
CAUTION:
A convex mirror can make things (like other
vehicles) look farther away than they really are.
If you cut too sharply into the right or left lane,
you could hit a vehicle. Check your inside
mirror or glance over your shoulder before
changing lanes.
Heated Outside Rearview Mirrors
(If Equipped)
Your vehicle may be
equipped with heated
outside rearview mirrors.
When you operate the
heated mirror button on
your climate control system,
the defogger will warm the
mirrors to help clear
them of ice, snow
or condensation.
Storage Compartments
Glove Box
To open your glove box, lift the lever on the front of the
glove box and lower the door. The glove box should not
be open while driving.
Door Storage
You will find a storage compartment on each door.

yellowblue
2-47 Front Storage Area
If your vehicle has this console compartment, squeeze
the front lever while lifting the top to open it. You can
store cassettes and compact discs in the slots in front of
the compartment. There is also a lift
-out storage tray in
the console.
If your vehicle has the center armrest compartment, lift
the cover to expose the storage area which includes slots
for cassettes or compact discs and a coinholder.
Some vehicles may have a storage pocket on the back of
the bucket or 60/40 bench seats.

yellowblue
2-48
Ashtray and Cigarette Lighter
Rotate the front ashtray door down to open it.
NOTICE:
Don't put papers and other things that burn into
your ashtray. If you do, cigarettes or other
smoking materials could set them on fire,
causing damage.
To remove the front ashtray, pull the bin upward.
To use the lighter, press it in all the way, and let go.
When it's ready, it will pop back by itself.
NOTICE:
Don't hold a cigarette lighter in with your hand
while it is heating. If you do, it won't be able to
back away from the heating element when it's
ready. That can make it overload, damaging the
lighter and the heating element.
Sun Visors
To block out glare, you can swing down the top and
bottom visors. You can also swing the bottom visor from
side
-to-side. Your visors may have an extension that can
be pulled out for additional glare protection and a strap
for holding small items, such as maps.
Visor Vanity Mirror
Pull the sun visor down and lift the cover to expose the
vanity mirror.

yellowblue

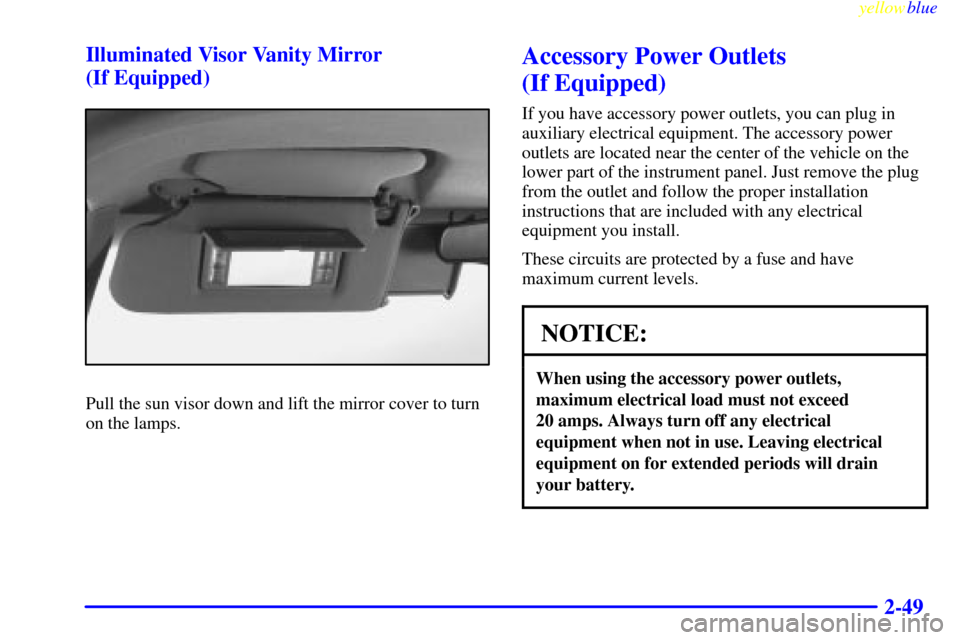

2-49 Illuminated Visor Vanity Mirror
(If Equipped)
Pull the sun visor down and lift the mirror cover to turn
on the lamps.
Accessory Power Outlets
(If Equipped)
If you have accessory power outlets, you can plug in
auxiliary electrical equipment. The accessory power
outlets are located near the center of the vehicle on the
lower part of the instrument panel. Just remove the plug
from the outlet and follow the proper installation
instructions that are included with any electrical
equipment you install.
These circuits are protected by a fuse and have
maximum current levels.
NOTICE:
When using the accessory power outlets,
maximum electrical load must not exceed
20 amps. Always turn off any electrical
equipment when not in use. Leaving electrical
equipment on for extended periods will drain
your battery.

yellowblue
2-50
Instrument Panel

yellowblue
2-51
A. Air Vents
B. Instrument Cluster
C. Transfer Case (If Equipped)
D. Glove Box
E. Audio System
F. Heated Outside Rearview Mirror Switch
(If Equipped)
G. Auxiliary Power Outlets
(If Equipped)H. Comfort Controls
I. Ashtray
J. Passenger Air Bag Off Switch
K. Brake Release
L. Fog Lamps (If Equipped)
M. Lamp Controls

yellowblue
2-52
Instrument Panel Cluster
Your instrument cluster is designed to let you know at a glance how your vehicle is running. You'll know how fast
you're going, about how much fuel you've used, and many other things you'll need to know to drive safely
and economically.
Standard Cluster, Canada Similar
