CHEVROLET S10 1999 2.G Owners Manual

yellowblue
6-63
Fuse/Circuit
BreakerUsage
A Not Used
B Not Used
1 Not UsedFuse/Circuit
BreakerUsage
2 Cigarette Lighter, Data Link
Connector
3 Cruise Control, Body Controls
TBC, Cruise Module, Cruise
Switch
4 Gages, Body Controls TBC,
Instrument Panel Cluster, B+
Power
5 Parking Lamps, Power Window
Switch, TBC, Ashtray Lamp
6 Not Used
7 Headlamp Switch, Body Controls
TBC, Headlamp Relay
8 Courtesy Lamps, Inadvertent
Power Relay
9 HVAC Control Head
10 Turn Signal
11 Instrument Panel Cluster, Engine
Controls
12 Interior Illumination

yellowblue
6-64
Fuse/Circuit
BreakerUsage
13 Auxiliary Power
14 Power Locks
15 4WD Switch, Engine Control
(VCM, PCM, Transmission)
16 Supplemental Inflatable Restraint
17 Front Wiper
18 Not Used
19 Radio Battery
20 Not Used
21 HVAC I, HVAC Control Head,
HVAC Devices
22 Anti
-Lock Brakes
23 Rear Wiper
24 Radio, Ignition

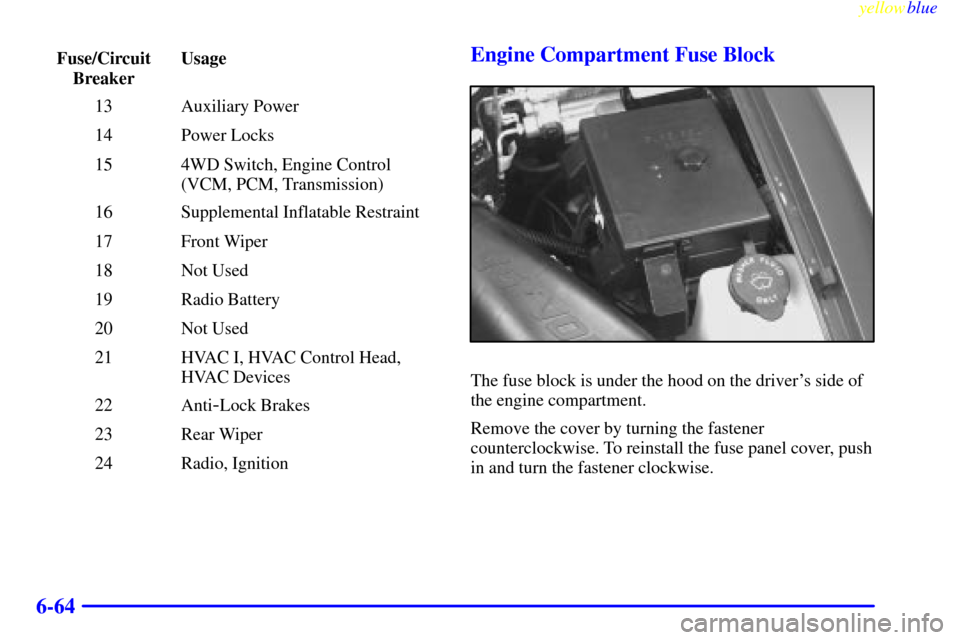

Engine Compartment Fuse Block
The fuse block is under the hood on the driver's side of
the engine compartment.
Remove the cover by turning the fastener
counterclockwise. To reinstall the fuse panel cover, push
in and turn the fastener clockwise.

yellowblue
6-65
Name Usage
TRL TRN Not Used
TRR TRN Not Used
TRL B/U Not Used
VEH B/U Vehicle Back
-Up Lamps
RT TURN Right Turn Signal FrontName Usage
LT TURN Left Turn Signal Front
HDLP W/W Not Used
LT TRN Left Turn Signal Rear
RT TRN Right Turn Signal Rear
RR PRK Right Rear Parking Lamps
TRL PRK Not Used
LT HDLP Left Headlamp
RT HDLP Right Headlamp
FR PRK Front Parking Lamps
INT BAT I/P Fuse Block Feed
ENG I Engine Sensors/Solenoids, MAF,
CAM, PURGE, VENT
ECM B Engine Control Module, Fuel
Pump Module, Oil Pressure
ABS Anti
-Lock Brake System
ECM I Engine Control Module Injectors
BTSI Brake
-Transmission Shift
Interlock

yellowblue
6-66
Name Usage
B/U LP Back
-Up Lamps
A/C Air Conditioning
W/W PMP Not Used
HORN Horn
IGN B Column Feed, IGN 2, 3, 4
RAP Retained Accessory Power
LD LEV Not Used
OXYSEN Oxygen Sensor
IGN E Engine
MIR/LKS Mirrors, Door Locks
FOG LP Fog Lamps
IGN A Starting and Charging IGN 1
STUD #2 Accessory Feeds, Electric Brake
PARKLP Parking Lamps
LR PRK Left Rear Parking LampsName Usage
IGN C Starter Solenoid, Fuel Pump,
PRNDL
HTDSEAT Not Used
HVAC HVAC System
TRCHMSL Not Used
RRDFOG Not Used
TBC Truck Body Computer
CRANK Clutch Switch, NSBU Switch
HAZLP Hazard Lamps
VECHMSL Vehicle Center High
-Mounted
Stoplamp
HTDMIR Heated Outside Mirrors
ATC Transfer Case (Four
-Wheel Drive)
STOPLP Stoplamps
RR W/W Not Used

yellowblue
6-67
Replacement Bulbs
Lamps Quantity Number
Halogen Headlamps, Composite Low
-Beam2 9006 HB4
Halogen Headlamps, Composite High
-Beam2 9005 HB3
Tail and Stoplamps 2 3057
Front Sidemarker Lamps 2 194
Front Turn Signal Lamps 2 3157NA
Center High
-Mounted Stoplamp2 577
Capacities and Specifications
Engine 2.2L L4 ªVORTECº 4300 V6 ªVORTECº 4300 V6
Type L4 V6 V6
VIN Code 4 X W
Firing Order
1
-3-4-21-6-5-4-3-21-6-5-4-3-2
Horsepower (T Series) N/A 180 at 4,400 rpm 190 at 4,400 rpm
Horsepower (S Series) 120 at 5,000 rpm 175 at 4,400 rpm 180 at 4,400 rpm
Thermostat Specification
195
F (91
C) 195
F (91
C) 195
F (91
C)
Spark Plug Gap 0.040 inches
(1.01 mm)0.060 inches
(1.52 mm)0.060 inches
(1.52 mm)

yellowblue
6-68 Wheels and Tires
Wheel Nut Torque 100 lb-ft (140 N´m) . . . . . . . . . . .
Tire Pressure See the Certification/Tire label. . . . . . .
See ªLoading Your Vehicleº in the Index.
Capacities (Approximate)
Cooling System Capacity*
Engine Quantity
2.2L L4 Auto./Manual 11.5 quarts (11.0 L)
ªVORTECº 4300 V6 Auto. 11.7 quarts (11.1 L)
ªVORTECº 4300 V6 Manual 11.9 quarts (11.3 L)
Crankcase Capacity*
Engine Quantity with Filter
2.2L L4 4.5 quarts (4.3 L)
ªVORTECº 4300 V6 4.5 quarts (4.3 L)
Automatic Transmission Capacity*
Type Quantity (Drain and Refill)
4L60E 5.0 quarts (4.7 L)
*After refill, the level must be checked.Differential Fluid
Axle Quantity
Rear 4.0 pints (1.9 L)
Front 2.6 pints (1.2 L)
Fuel Tank Capacity
Type Quantity
Standard Tank 18.5 gallons (70.0 L)
A/C Refrigerant Capacity
Type Quantity
R
-134a 1.75 lbs (0.79kg)

yellowblue
6-69
Air Conditioning Refrigerants
Not all air conditioning refrigerants are the same. If the air
conditioning system in your vehicle needs refrigerant, be
sure the proper refrigerant is used. If you're not sure, ask
your dealer.
Normal Maintenance Replacement Parts
Replacement part numbers listed in this section are based on the latest information available at the time of printing
and are subject to change. If a part listed in this manual is not the same as the part used in your vehicle when it was
built, or if you have any questions, please contact your GM dealer.
Engine 2.2L L4 ªVORTECº 4300 V6
Thermostat 10182377 12559051
Oil Filter PF47 PF52
Air Cleaner Filter A1163C A1163C
PCV Valve N/A CV769C
Automatic Transmission
Filter Kit24200796 24200796
Spark Plugs
41
-948 41-932
Fuel Filter GF481 GF481
Windshield Wiper Blades Trico (20 inches/51 cm) Trico (20 inches/51 cm)

yellowblue
6-70 Vehicle Dimensions*
Wheelbase
Reg Cab Short Box 108.3 inches (275.1 cm). . . . . .
Reg Cab Long Box 117.9 inches (299.5 cm). . . . . .
Extended Cab 122.9 inches (312.2 cm). . . . . . . . . .
Length
Reg Cab Short Box 189.0 inches (480.1 cm). . . . . .
Reg Cab Long Box 204.9 inches (520.4 cm). . . . . .
Extended Cab 203.6 inches (517.1 cm). . . . . . . . . .
Height
2WD Reg Cab 62.1 inches (157.7 cm). . . . . . . . . . .
2WD Ext Cab 62.2 inches (158.0 cm). . . . . . . . . . .
4WD Reg Cab Short Box 63.8 inches (162.1 cm). .
4WD Reg Cab Long Box 65.4 inches (166.1 cm). .
4WD Extended Cab 63.8 inches (162.1 cm). . . . . .
Width 67.9 inches (172.5 cm). . . . . . . . . . . . . . . . . . Front Tread
2WD
0.0 Wheel Offset 54.5 inches (138.4 cm). . . . . . . . .
-6.4 Wheel Offset 55.0 inches (139.6 cm). . . . . . . .
4WD
15
-inch Tires 57.3 inches (145.4 cm). . . . . . . . . . . .
31 x 10.5 Tires 61.2 inches (155.4 cm). . . . . . . . . . .
Rear Tread
2WD 54.7 inches (138.8 cm). . . . . . . . . . . . . . . . . . . .
4WD
15
-inch Tires 55.1 inches (139.9 cm). . . . . . . . . . . .
31 x 10.5 Tires 59.1 inches (150.0 cm). . . . . . . . . . .
*Figures reflect base equipment only.

7-
yellowblue
7-1
Section 7 Maintenance Schedule
This section covers the maintenance required for your vehicle. Your vehicle needs these services to retain its safety,
dependability and emission control performance.
7
-2 Introduction
7
-4 Part A: Scheduled Maintenance Services
7
-8 Short Trip/City Scheduled Maintenance
7
-29 Long Trip/Highway Scheduled Maintenance7
-42 Part B: Owner Checks and Services
7
-46 Part C: Periodic Maintenance Inspections
7
-48 Part D: Recommended Fluids and Lubricants
7
-51 Part E: Maintenance Record

yellowblue
7-2
Have you purchased the GM Protection Plan? The Plan
supplements your new vehicle warranties. See your
Warranty and Owner Assistance booklet, or your dealer
for details.
Introduction
Your Vehicle and the Environment
Proper vehicle maintenance not only helps to keep your
vehicle in good working condition, but also helps the
environment. All recommended maintenance procedures
are important. Improper vehicle maintenance can even
affect the quality of the air we breathe. Improper fluid
levels or the wrong tire inflation can increase the level
of emissions from your vehicle. To help protect our
environment, and to keep your vehicle in good
condition, please maintain your vehicle properly.
