1-58
1. Put the restraint on the seat.
2. Pick up the latch plate, and run the lap and shoulder
portions of the vehicle's safety belt through or around
the restraint. The child restraint instructions will show
you how. If the shoulder belt goes in front of the
child's face or neck, put it behind the child restraint.
3. Buckle the belt. Make sure the release button is
positioned so you would be able to unbuckle the
safety belt quickly if you ever had to.
4. Pull the rest of the shoulder belt all the way out of
the retractor to set the lock.

1-59
5. To tighten the belt, feed the shoulder belt back into the
retractor while you push down on the child restraint.
If you're using a forward
-facing child restraint, you
may find it helpful to use your knee to push down on
the child restraint as you tighten the belt.
6. Push and pull the child restraint in different
directions to be sure it is secure.
To remove the child restraint, just unbuckle the vehicle's
safety belt and let it go back all the way. The safety belt
will move freely again and be ready to work for an adult
or larger child passenger.
Securing a Child Restraint in the
Center Front Seat Position
Don't use child restraints in this position. The restraints
won't work properly.

1-60 Securing a Child Restraint in the
Center Rear Seat Position
(Extended Cab and Crew Cab)
If you have an extended cab or a crew cab pickup,
you can secure a child restraint in the center rear
seat position.
There is limited space in the rear seating area of an
extended cab model. If you want to secure a child
restraint in a rear seating position of an extended cab
model, especially in the rear center position, be sure
to study the instructions that came with your child
restraint to see if there is enough room to secure your
seat properly.You'll be using the lap belt. Be sure to follow the
instructions that came with the child restraint. Secure the
child in the child restraint when and as the instructions
say. See the earlier part about the top strap if the child
restraint has one.
1. Make the belt as long as possible by tilting the latch
plate and pulling it along the belt.

1-61
2. Put the restraint on the seat.
3. Run the vehicle's safety belt through or around the
restraint. The child restraint instructions will show
you how.4. Buckle the belt. Make sure the release button is
positioned so you would be able to unbuckle the
safety belt quickly if you ever had to.
5. To tighten the belt, pull its free end while you
push down on the child restraint. If you're using
a forward
-facing child restraint, you may find it
helpful to use your knee to push down on the
child restraint as you tighten the belt.
6. Push and pull the child restraint in different
directions to be sure it is secure.
To remove the child restraint, just unbuckle the vehicle's
safety belt. It will be ready to work for an adult or larger
child passenger.

1-62 Securing a Child Restraint in the
Right Front Seat Position
Your vehicle has a right front passenger air bag. There's a
switch on the instrument panel that you can use to turn
off the right front passenger's air bag when you want to
secure a rear
-facing child restraint at the right front
passenger's position. See ªAir Bag Off Switchº in
the Index for more on this, including important
safety information.
CAUTION:
A child in a rear-facing child restraint can be
seriously injured or killed if the right front
passenger's air bag inflates. This is because the
back of the rear
-facing child restraint would be
very close to the inflating air bag. Be sure to
turn off the air bag before using a rear
-facing
child restraint in the right front seat position.
If a forward
-facing child restraint is suitable
for your child, always move the passenger seat
as far back as it will go.
CAUTION:
If the air bag readiness light ever comes on when
you have turned off the air bag, it means that
something may be wrong with the air bag system.
The right front passenger's air bag could
inflate even though the switch is off.
CAUTION: (Continued)

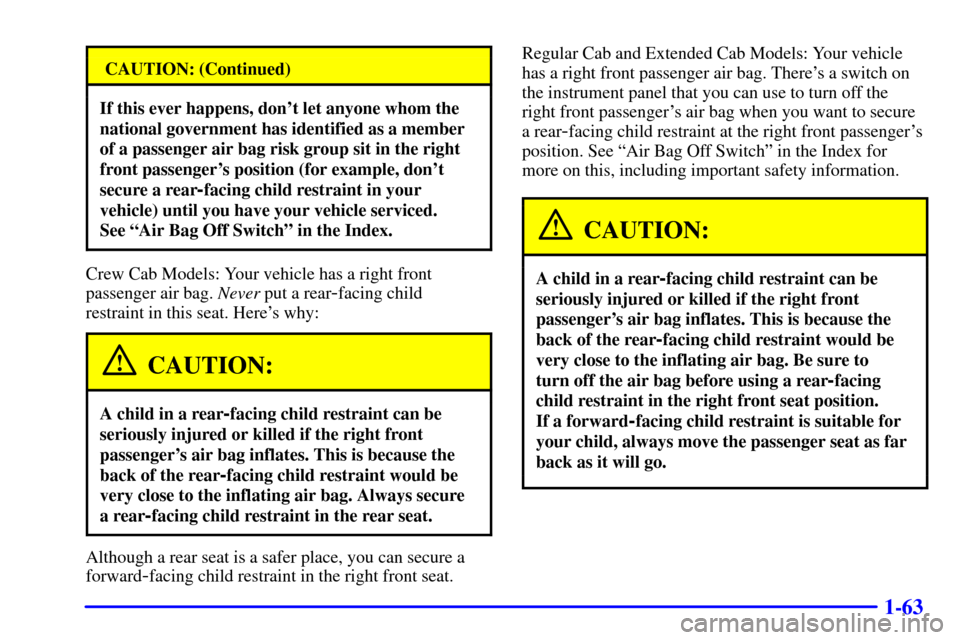

1-63
CAUTION: (Continued)
If this ever happens, don't let anyone whom the
national government has identified as a member
of a passenger air bag risk group sit in the right
front passenger's position (for example, don't
secure a rear
-facing child restraint in your
vehicle) until you have your vehicle serviced.
See ªAir Bag Off Switchº in the Index.
Crew Cab Models: Your vehicle has a right front
passenger air bag. Never put a rear
-facing child
restraint in this seat. Here's why:
CAUTION:
A child in a rear-facing child restraint can be
seriously injured or killed if the right front
passenger's air bag inflates. This is because the
back of the rear
-facing child restraint would be
very close to the inflating air bag. Always secure
a rear
-facing child restraint in the rear seat.
Although a rear seat is a safer place, you can secure a
forward
-facing child restraint in the right front seat.Regular Cab and Extended Cab Models: Your vehicle
has a right front passenger air bag. There's a switch on
the instrument panel that you can use to turn off the
right front passenger's air bag when you want to secure
a rear
-facing child restraint at the right front passenger's
position. See ªAir Bag Off Switchº in the Index for
more on this, including important safety information.
CAUTION:
A child in a rear-facing child restraint can be
seriously injured or killed if the right front
passenger's air bag inflates. This is because the
back of the rear
-facing child restraint would be
very close to the inflating air bag. Be sure to
turn off the air bag before using a rear
-facing
child restraint in the right front seat position.
If a forward
-facing child restraint is suitable for
your child, always move the passenger seat as far
back as it will go.

1-64
Although a rear seat is a safer place, you can secure a
forward
-facing child restraint in the right front seat.

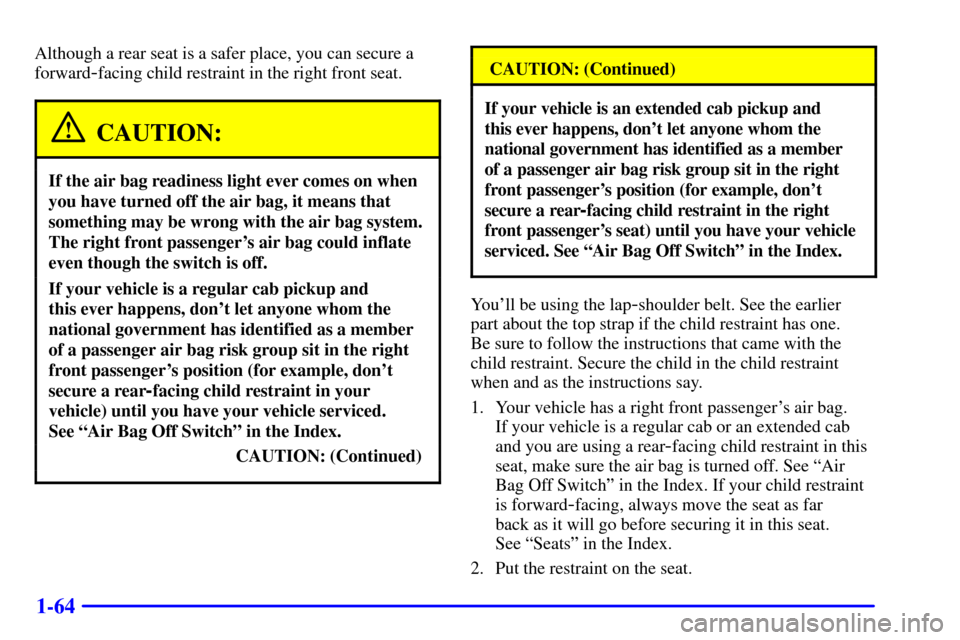

CAUTION:
If the air bag readiness light ever comes on when
you have turned off the air bag, it means that
something may be wrong with the air bag system.
The right front passenger's air bag could inflate
even though the switch is off.
If your vehicle is a regular cab pickup and
this ever happens, don't let anyone whom the
national government has identified as a member
of a passenger air bag risk group sit in the right
front passenger's position (for example, don't
secure a rear
-facing child restraint in your
vehicle) until you have your vehicle serviced.
See ªAir Bag Off Switchº in the Index.
CAUTION: (Continued)
CAUTION: (Continued)
If your vehicle is an extended cab pickup and
this ever happens, don't let anyone whom the
national government has identified as a member
of a passenger air bag risk group sit in the right
front passenger's position (for example, don't
secure a rear
-facing child restraint in the right
front passenger's seat) until you have your vehicle
serviced. See ªAir Bag Off Switchº in the Index.
You'll be using the lap-shoulder belt. See the earlier
part about the top strap if the child restraint has one.
Be sure to follow the instructions that came with the
child restraint. Secure the child in the child restraint
when and as the instructions say.
1. Your vehicle has a right front passenger's air bag.
If your vehicle is a regular cab or an extended cab
and you are using a rear
-facing child restraint in this
seat, make sure the air bag is turned off. See ªAir
Bag Off Switchº in the Index. If your child restraint
is forward
-facing, always move the seat as far
back as it will go before securing it in this seat.
See ªSeatsº in the Index.
2. Put the restraint on the seat.

1-65
3. Pick up the latch plate, and run the lap and shoulder
portions of the vehicle's safety belt through or around
the restraint. The child restraint instructions will show
you how.
If the shoulder belt goes in front of the child's face
or neck, put it behind the child restraint.
4. Buckle the belt. Make sure the release button is
positioned so you would be able to unbuckle the
safety belt quickly if you ever had to.
5. Pull the rest of the shoulder belt all the way out of
the retractor to set the lock.

1-66
6. To tighten the belt, feed the shoulder belt back
into the retractor while you push down on the child
restraint. If you're using a forward
-facing child
restraint, you may find it helpful to use your knee
to push down on the child restraint as you tighten
the belt.
7. Push and pull the child restraint in different
directions to be sure it is secure.To remove the child restraint, just unbuckle the vehicle's
safety belt and let it go back all the way. The safety belt
will move freely again and be ready to work for an adult
or larger child passenger.
If you were using a rear
-facing child restraint in a
regular cab pickup or an extended cab pickup, turn on
the right front passenger's air bag when you remove
the rear
-facing child restraint from the vehicle unless
the person who will be sitting there is a member of a
passenger air bag risk group. See ªAir Bag Off Switchº
in the Index.
CAUTION:
If the right front passenger's air bag is turned off
for a person who isn't in a risk group identified
by the national government, that person won't
have the extra protection of an air bag. In a
crash, the air bag wouldn't be able to inflate and
help protect the person sitting there. Don't turn
off the passenger's air bag unless the person
sitting there is in a risk group. See ªAir Bag Off
Switchº in the Index for more on this, including
important safety information.

1-67
Older Children
Older children who have outgrown booster seats should
wear the vehicle's safety belts.
If you have the choice, a child should sit next to a
window so the child can wear a lap
-shoulder belt and
get the additional restraint a shoulder belt can provide.
Q:What is the proper way to wear safety belts?
A:If possible, an older child should wear a
lap
-shoulder belt and get the additional restraint a
shoulder belt can provide. The shoulder belt should
not cross the face or neck. The lap belt should fit
snugly below the hips, just touching the top of the
thighs. It should never be worn over the abdomen,
which could cause severe or even fatal internal
injuries in a crash.
Accident statistics show that children are safer if they
are restrained in the rear seat.
In a crash, children who are not buckled up can strike
other people who are buckled up, or can be thrown
out of the vehicle. Older children need to use safety
belts properly.
