CHEVROLET SILVERADO 2006 1.G Owners Manual

Vehicle* Axle Ratio Maximum Trailer Weight GCWR
K-1500 Extended Cab Long Box (4WD)*
4800 V83.42
3.73
4.106,500 lbs (2 948 kg)
6,500 lbs (2 948 kg)
7,500 lbs (3 402 kg)12,000 lbs (5 443 kg)
12,000 lbs (5 443 kg)
13,000 lbs (5 897 kg)
4800 V8 (Manual)3.42
3.73
4.104,500 lbs (2 041 kg)
4,500 lbs (2 041 kg)
5,500 lbs (2 495 kg)10,000 lbs (4 536 kg)
10,000 lbs (4 536 kg)
11,000 lbs (4 990 kg)
5300 V83.42
3.73
4.107,500 lbs (3 402 kg)**
7,500 lbs (3 402 kg)**
8,500 lbs (3 856 kg)**13,000 lbs (5 897 kg)
13,000 lbs (5 897 kg)
14,000 lbs (6 350 kg)
*Fifth-wheel or gooseneck kingpin weight should be 15 percent to 25 percent of trailer weight up to 1,500 lbs (680 kg)
maximum.
**Maximum weight 6,800 lbs (3 084 kg) for fth-wheel and gooseneck.
Vehicle* Axle Ratio Maximum Trailer Weight GCWR
Silverado SS
6000 V8 3.73 7,800 lbs (3 538 kg) 13,000 lbs (5 897 kg)
Vehicle* Axle Ratio Maximum Trailer Weight GCWR
C-2500 Regular Cab Long Box HD (2WD)*
6000 V8 4.10 10,500 lbs (4 763 kg) 16,000 lbs (7 257 kg)
8100 V83.73
4.1012,000 lbs (5 443 kg)
12,000 lbs (5 443 kg)20,000 lbs (9 072 kg)
22,000 lbs (9 979 kg)
6.6L V8 Diesel 3.73 12,000 lbs (5 443 kg) 22,000 lbs (9 979 kg)
4-75

Vehicle* Axle Ratio Maximum Trailer Weight GCWR
C-2500 Extended Cab Short Box HD (2WD)*
6000 V8 4.10 10,200 lbs (4 627 kg) 16,000 lbs (7 257 kg)
8100 V83.73
4.1012,000 lbs (5 443 kg)
12,000 lbs (5 443 kg)20,000 lbs (9 072 kg)
22,000 lbs (9 979 kg)
6.6L V8 Diesel 3.73 12,000 lbs (5 443 kg) 22,000 lbs (9 979 kg)
*Fifth-wheel or gooseneck kingpin tongue weight should be 15 percent to 25 percent of trailer weight
up to 3,000 lbs (1 361 kg) maximum.
Fifth-wheel or gooseneck GCWR for 6.6L V8 Diesel 2500 HD models is 23,200 lbs (10 523 kg).

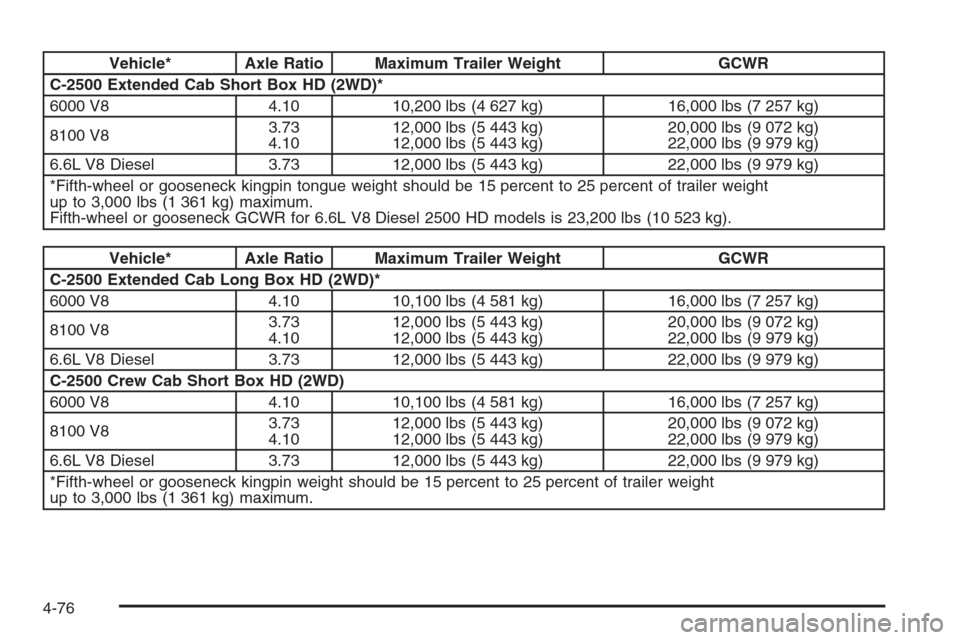

Vehicle* Axle Ratio Maximum Trailer Weight GCWR
C-2500 Extended Cab Long Box HD (2WD)*
6000 V8 4.10 10,100 lbs (4 581 kg) 16,000 lbs (7 257 kg)
8100 V83.73
4.1012,000 lbs (5 443 kg)
12,000 lbs (5 443 kg)20,000 lbs (9 072 kg)
22,000 lbs (9 979 kg)
6.6L V8 Diesel 3.73 12,000 lbs (5 443 kg) 22,000 lbs (9 979 kg)
C-2500 Crew Cab Short Box HD (2WD)
6000 V8 4.10 10,100 lbs (4 581 kg) 16,000 lbs (7 257 kg)
8100 V83.73
4.1012,000 lbs (5 443 kg)
12,000 lbs (5 443 kg)20,000 lbs (9 072 kg)
22,000 lbs (9 979 kg)
6.6L V8 Diesel 3.73 12,000 lbs (5 443 kg) 22,000 lbs (9 979 kg)
*Fifth-wheel or gooseneck kingpin weight should be 15 percent to 25 percent of trailer weight
up to 3,000 lbs (1 361 kg) maximum.
4-76

Vehicle* Axle Ratio Maximum Trailer Weight GCWR
C-2500 Crew Cab Long Box HD (2WD)
6000 V8 4.10 10,000 lbs (4 536 kg) 16,000 lbs (7 257 kg)
8100 V83.73
4.1012,000 lbs (5 443 kg)
12,000 lbs (5 443 kg)20,000 lbs (9 072 kg)
22,000 lbs (9 979 kg)
6.6L V8 Diesel 3.73 12,000 lbs (5 443 kg) 22,000 lbs (9 979 kg)
*Fifth-wheel or gooseneck kingpin weight should be 15 percent to 25 percent of trailer weight
up to 3,000 lbs (1 361 kg) maximum.

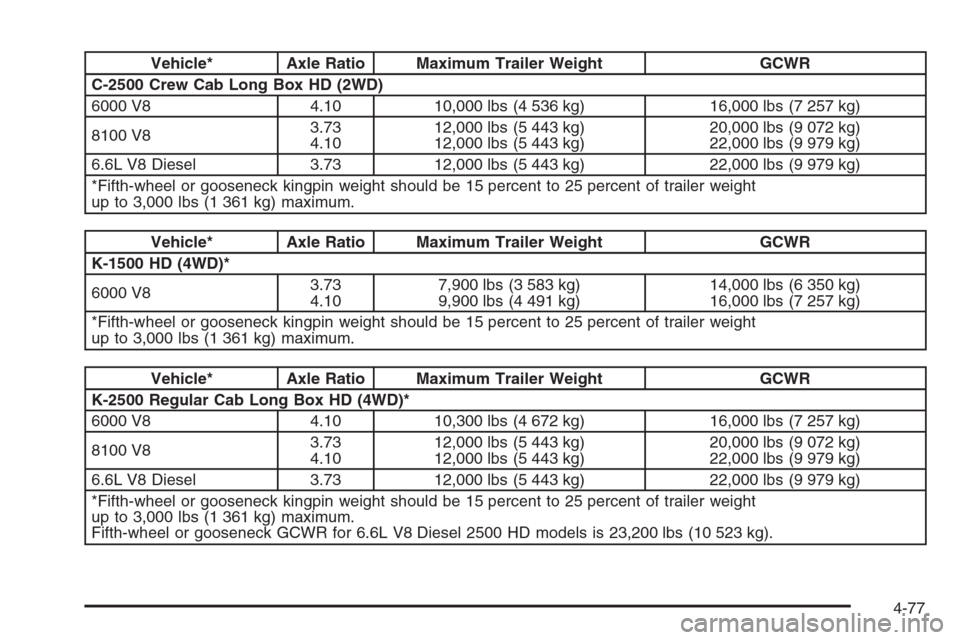

Vehicle* Axle Ratio Maximum Trailer Weight GCWR
K-1500 HD (4WD)*
6000 V83.73
4.107,900 lbs (3 583 kg)
9,900 lbs (4 491 kg)14,000 lbs (6 350 kg)
16,000 lbs (7 257 kg)
*Fifth-wheel or gooseneck kingpin weight should be 15 percent to 25 percent of trailer weight
up to 3,000 lbs (1 361 kg) maximum.
Vehicle* Axle Ratio Maximum Trailer Weight GCWR
K-2500 Regular Cab Long Box HD (4WD)*
6000 V8 4.10 10,300 lbs (4 672 kg) 16,000 lbs (7 257 kg)
8100 V83.73
4.1012,000 lbs (5 443 kg)
12,000 lbs (5 443 kg)20,000 lbs (9 072 kg)
22,000 lbs (9 979 kg)
6.6L V8 Diesel 3.73 12,000 lbs (5 443 kg) 22,000 lbs (9 979 kg)
*Fifth-wheel or gooseneck kingpin weight should be 15 percent to 25 percent of trailer weight
up to 3,000 lbs (1 361 kg) maximum.
Fifth-wheel or gooseneck GCWR for 6.6L V8 Diesel 2500 HD models is 23,200 lbs (10 523 kg).
4-77

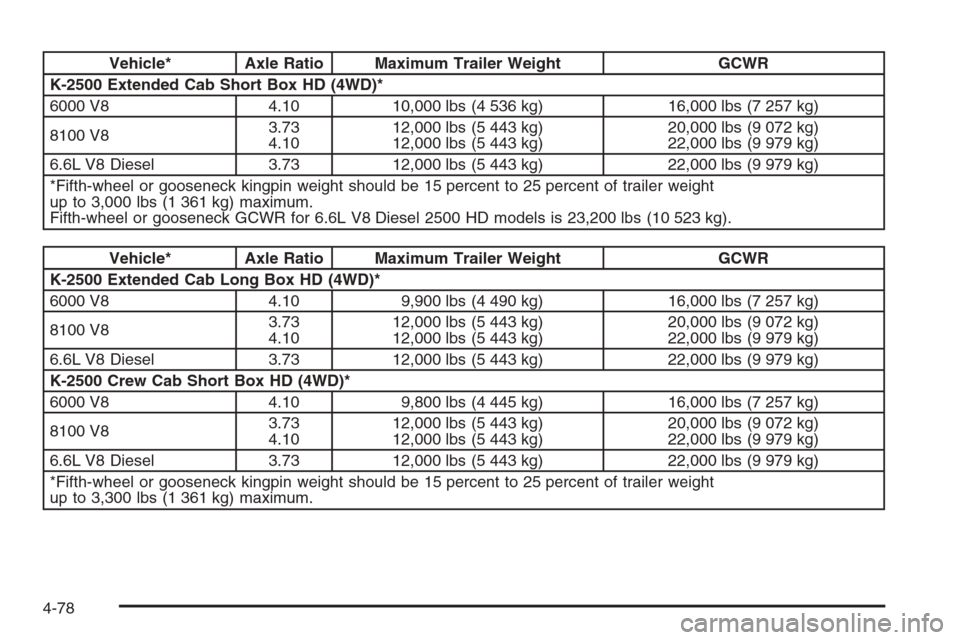

Vehicle* Axle Ratio Maximum Trailer Weight GCWR
K-2500 Extended Cab Short Box HD (4WD)*
6000 V8 4.10 10,000 lbs (4 536 kg) 16,000 lbs (7 257 kg)
8100 V83.73
4.1012,000 lbs (5 443 kg)
12,000 lbs (5 443 kg)20,000 lbs (9 072 kg)
22,000 lbs (9 979 kg)
6.6L V8 Diesel 3.73 12,000 lbs (5 443 kg) 22,000 lbs (9 979 kg)
*Fifth-wheel or gooseneck kingpin weight should be 15 percent to 25 percent of trailer weight
up to 3,000 lbs (1 361 kg) maximum.
Fifth-wheel or gooseneck GCWR for 6.6L V8 Diesel 2500 HD models is 23,200 lbs (10 523 kg).
Vehicle* Axle Ratio Maximum Trailer Weight GCWR
K-2500 Extended Cab Long Box HD (4WD)*
6000 V8 4.10 9,900 lbs (4 490 kg) 16,000 lbs (7 257 kg)
8100 V83.73
4.1012,000 lbs (5 443 kg)
12,000 lbs (5 443 kg)20,000 lbs (9 072 kg)
22,000 lbs (9 979 kg)
6.6L V8 Diesel 3.73 12,000 lbs (5 443 kg) 22,000 lbs (9 979 kg)
K-2500 Crew Cab Short Box HD (4WD)*
6000 V8 4.10 9,800 lbs (4 445 kg) 16,000 lbs (7 257 kg)
8100 V83.73
4.1012,000 lbs (5 443 kg)
12,000 lbs (5 443 kg)20,000 lbs (9 072 kg)
22,000 lbs (9 979 kg)
6.6L V8 Diesel 3.73 12,000 lbs (5 443 kg) 22,000 lbs (9 979 kg)
*Fifth-wheel or gooseneck kingpin weight should be 15 percent to 25 percent of trailer weight
up to 3,300 lbs (1 361 kg) maximum.
4-78

Vehicle* Axle Ratio Maximum Trailer Weight GCWR
K-2500 Crew Cab Long Box HD (4WD)
6000 V8 4.10 9,700 lbs (4 400 kg) 16,000 lbs (7 257 kg)
8100 V83.73
4.1012,000 lbs (5 443 kg)
12,000 lbs (5 443 kg)20,000 lbs (9 072 kg)
22,000 lbs (9 979 kg)
6.6L V8 Diesel 3.73 12,000 lbs (5 443 kg) 22,000 lbs (9 979 kg)
* Fifth-wheel or gooseneck kingpin weight should be 15 percent to 25 percent of trailer weight
up to 3,000 lbs (1 361 kg) maximum.

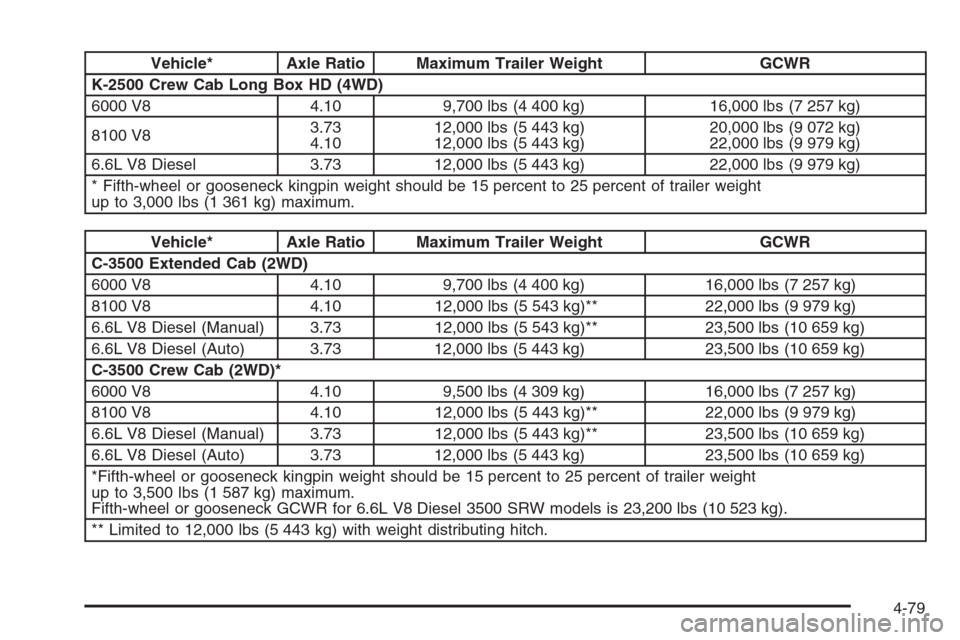

Vehicle* Axle Ratio Maximum Trailer Weight GCWR
C-3500 Extended Cab (2WD)
6000 V8 4.10 9,700 lbs (4 400 kg) 16,000 lbs (7 257 kg)
8100 V8 4.10 12,000 lbs (5 543 kg)** 22,000 lbs (9 979 kg)
6.6L V8 Diesel (Manual) 3.73 12,000 lbs (5 543 kg)** 23,500 lbs (10 659 kg)
6.6L V8 Diesel (Auto) 3.73 12,000 lbs (5 443 kg) 23,500 lbs (10 659 kg)
C-3500 Crew Cab (2WD)*
6000 V8 4.10 9,500 lbs (4 309 kg) 16,000 lbs (7 257 kg)
8100 V8 4.10 12,000 lbs (5 443 kg)** 22,000 lbs (9 979 kg)
6.6L V8 Diesel (Manual) 3.73 12,000 lbs (5 443 kg)** 23,500 lbs (10 659 kg)
6.6L V8 Diesel (Auto) 3.73 12,000 lbs (5 443 kg) 23,500 lbs (10 659 kg)
*Fifth-wheel or gooseneck kingpin weight should be 15 percent to 25 percent of trailer weight
up to 3,500 lbs (1 587 kg) maximum.
Fifth-wheel or gooseneck GCWR for 6.6L V8 Diesel 3500 SRW models is 23,200 lbs (10 523 kg).
** Limited to 12,000 lbs (5 443 kg) with weight distributing hitch.
4-79

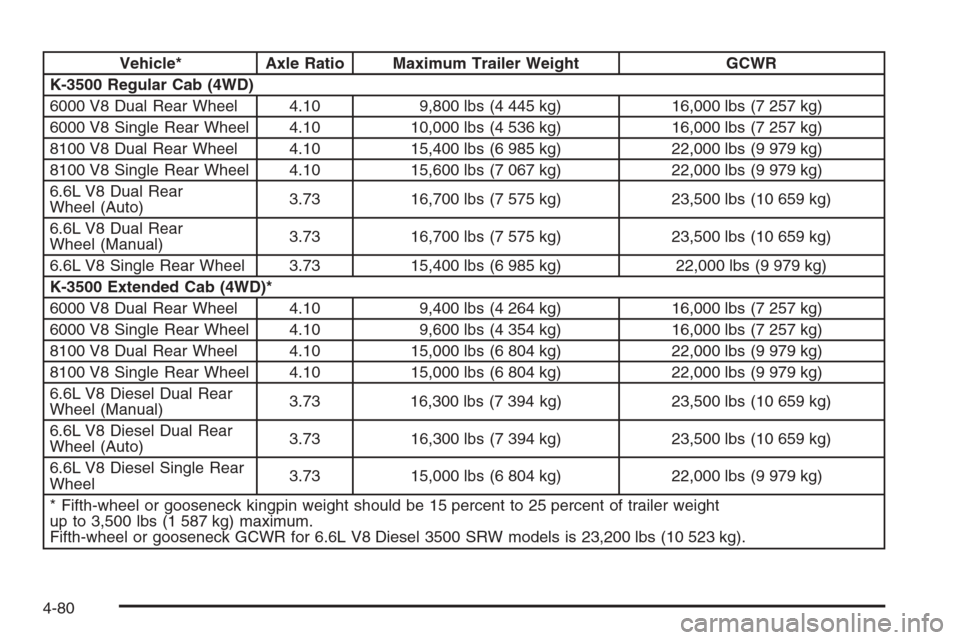

Vehicle* Axle Ratio Maximum Trailer Weight GCWR
K-3500 Regular Cab (4WD)
6000 V8 Dual Rear Wheel 4.10 9,800 lbs (4 445 kg) 16,000 lbs (7 257 kg)
6000 V8 Single Rear Wheel 4.10 10,000 lbs (4 536 kg) 16,000 lbs (7 257 kg)
8100 V8 Dual Rear Wheel 4.10 15,400 lbs (6 985 kg) 22,000 lbs (9 979 kg)
8100 V8 Single Rear Wheel 4.10 15,600 lbs (7 067 kg) 22,000 lbs (9 979 kg)
6.6L V8 Dual Rear
Wheel (Auto)3.73 16,700 lbs (7 575 kg) 23,500 lbs (10 659 kg)
6.6L V8 Dual Rear
Wheel (Manual)3.73 16,700 lbs (7 575 kg) 23,500 lbs (10 659 kg)
6.6L V8 Single Rear Wheel 3.73 15,400 lbs (6 985 kg) 22,000 lbs (9 979 kg)
K-3500 Extended Cab (4WD)*
6000 V8 Dual Rear Wheel 4.10 9,400 lbs (4 264 kg) 16,000 lbs (7 257 kg)
6000 V8 Single Rear Wheel 4.10 9,600 lbs (4 354 kg) 16,000 lbs (7 257 kg)
8100 V8 Dual Rear Wheel 4.10 15,000 lbs (6 804 kg) 22,000 lbs (9 979 kg)
8100 V8 Single Rear Wheel 4.10 15,000 lbs (6 804 kg) 22,000 lbs (9 979 kg)
6.6L V8 Diesel Dual Rear
Wheel (Manual)3.73 16,300 lbs (7 394 kg) 23,500 lbs (10 659 kg)
6.6L V8 Diesel Dual Rear
Wheel (Auto)3.73 16,300 lbs (7 394 kg) 23,500 lbs (10 659 kg)
6.6L V8 Diesel Single Rear
Wheel3.73 15,000 lbs (6 804 kg) 22,000 lbs (9 979 kg)
* Fifth-wheel or gooseneck kingpin weight should be 15 percent to 25 percent of trailer weight
up to 3,500 lbs (1 587 kg) maximum.
Fifth-wheel or gooseneck GCWR for 6.6L V8 Diesel 3500 SRW models is 23,200 lbs (10 523 kg).
4-80

Vehicle* Axle Ratio Maximum Trailer Weight GCWR
K-3500 Crew Cab (4WD)*
6000 V8 Dual Rear Wheel 4.10 9,200 lbs (4 173 kg) 16,000 lbs (7 264 kg)
6000 V8 Single Rear Wheel 4.10 9,400 lbs (4 264 kg) 16,000 lbs (7 264 kg)
8100 V8 Dual Rear Wheel 4.10 12,000 lbs (5 443 kg) 22,000 lbs (9 979 kg)
8100 V8 Single Rear Wheel 4.10 12,000 lbs (5 443kg) 22,000 lbs (9 979 kg)
6.6L V8 Diesel Single Rear
Wheel (Auto)3.73 12,000 lbs (5 443 kg) 22,000 lbs (9 979 kg)
6.6L V8 Diesel Single Rear
Wheel (Manual)3.73 12,000 lbs (5 443 kg) 22,000 lbs (9 979 kg)
6.6L V8 Diesel Dual Rear
Wheel (Auto)3.73 12,000 lbs (5 443 kg) 23,500 lbs (10 659 kg)
6.6L V8 Diesel Dual Rear
Wheel (Manual)3.73 12,000 lbs (5 443 kg) 23,500 lbs (10 659 kg)
*Fifth-wheel or gooseneck kingpin weight should be 15 percent to 25 percent of trailer weight
up to 3,500 lbs (1 587 kg) maximum.
Fifth-wheel or gooseneck GCWR for 6.6L V8 Diesel 3500 SRW models is 23,200 lbs (10 523 kg).
The Gross Combination Weight Rating (GCWR) is the
total allowable weight of the completely loaded
vehicle and trailer including any passengers, cargo,
equipment and conversions. The GCWR for your vehicle
should not be exceeded.You can ask your dealer for our trailering information or
advice, or you can write us at the address listed in your
Warranty and Owner Assistance Information Booklet.
In Canada, write to:
General Motors of Canada Limited
Customer Communications Centre, 163-005
1908 Colonel Sam Drive
Oshawa, Ontario L1H 8P7
4-81

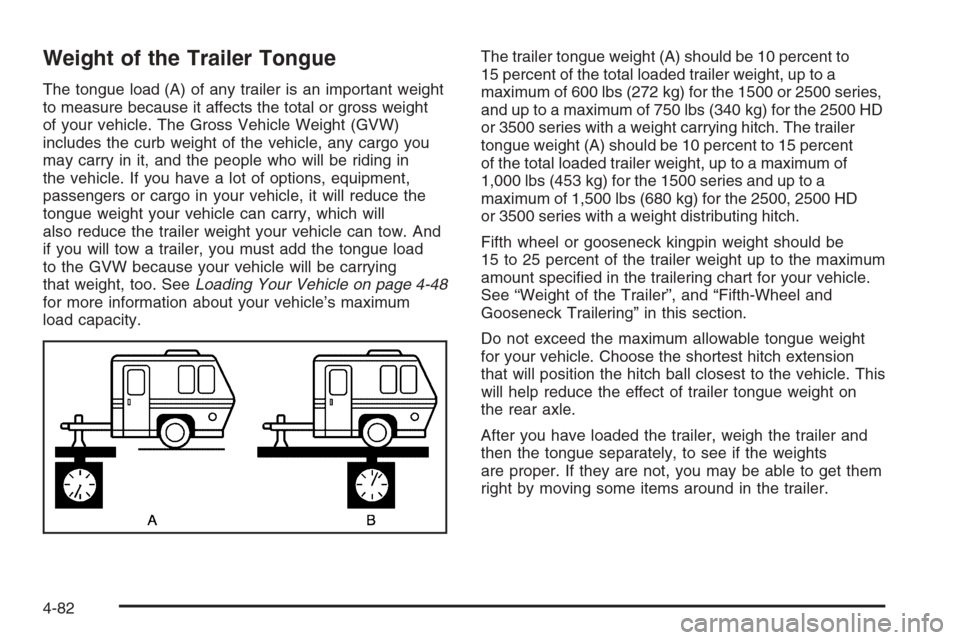

Weight of the Trailer Tongue
The tongue load (A) of any trailer is an important weight
to measure because it affects the total or gross weight
of your vehicle. The Gross Vehicle Weight (GVW)
includes the curb weight of the vehicle, any cargo you
may carry in it, and the people who will be riding in
the vehicle. If you have a lot of options, equipment,
passengers or cargo in your vehicle, it will reduce the
tongue weight your vehicle can carry, which will
also reduce the trailer weight your vehicle can tow. And
if you will tow a trailer, you must add the tongue load
to the GVW because your vehicle will be carrying
that weight, too. SeeLoading Your Vehicle on page 4-48
for more information about your vehicle’s maximum
load capacity.The trailer tongue weight (A) should be 10 percent to
15 percent of the total loaded trailer weight, up to a
maximum of 600 lbs (272 kg) for the 1500 or 2500 series,
and up to a maximum of 750 lbs (340 kg) for the 2500 HD
or 3500 series with a weight carrying hitch. The trailer
tongue weight (A) should be 10 percent to 15 percent
of the total loaded trailer weight, up to a maximum of
1,000 lbs (453 kg) for the 1500 series and up to a
maximum of 1,500 lbs (680 kg) for the 2500, 2500 HD
or 3500 series with a weight distributing hitch.
Fifth wheel or gooseneck kingpin weight should be
15 to 25 percent of the trailer weight up to the maximum
amount specied in the trailering chart for your vehicle.
See “Weight of the Trailer”, and “Fifth-Wheel and
Gooseneck Trailering” in this section.
Do not exceed the maximum allowable tongue weight
for your vehicle. Choose the shortest hitch extension
that will position the hitch ball closest to the vehicle. This
will help reduce the effect of trailer tongue weight on
the rear axle.
After you have loaded the trailer, weigh the trailer and
then the tongue separately, to see if the weights
are proper. If they are not, you may be able to get them
right by moving some items around in the trailer.
4-82

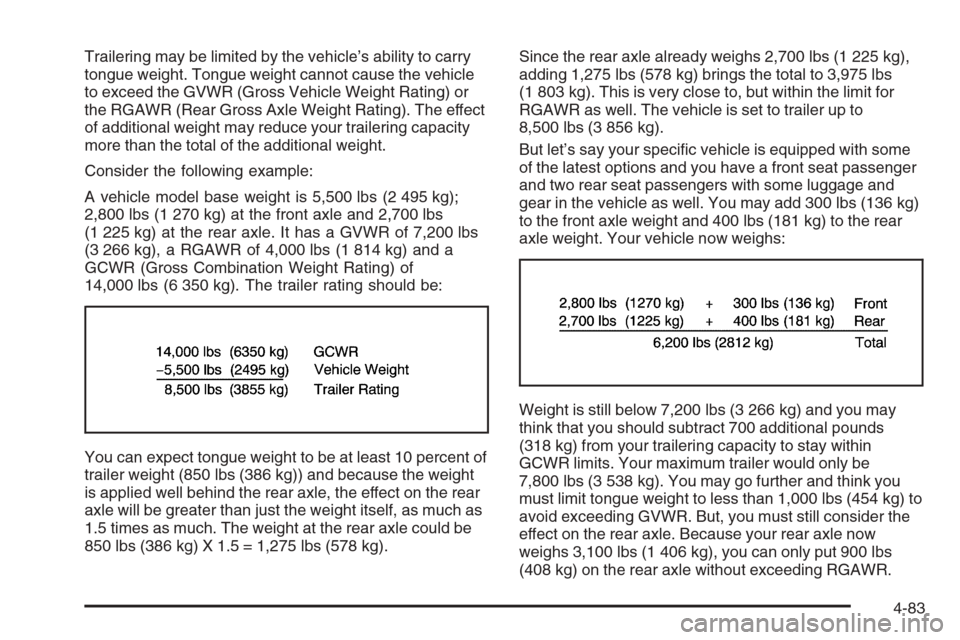

Trailering may be limited by the vehicle’s ability to carry
tongue weight. Tongue weight cannot cause the vehicle
to exceed the GVWR (Gross Vehicle Weight Rating) or
the RGAWR (Rear Gross Axle Weight Rating). The effect
of additional weight may reduce your trailering capacity
more than the total of the additional weight.
Consider the following example:
A vehicle model base weight is 5,500 lbs (2 495 kg);
2,800 lbs (1 270 kg) at the front axle and 2,700 lbs
(1 225 kg) at the rear axle. It has a GVWR of 7,200 lbs
(3 266 kg), a RGAWR of 4,000 lbs (1 814 kg) and a
GCWR (Gross Combination Weight Rating) of
14,000 lbs (6 350 kg). The trailer rating should be:
You can expect tongue weight to be at least 10 percent of
trailer weight (850 lbs (386 kg)) and because the weight
is applied well behind the rear axle, the effect on the rear
axle will be greater than just the weight itself, as much as
1.5 times as much. The weight at the rear axle could be
850 lbs (386 kg) X 1.5 = 1,275 lbs (578 kg).Since the rear axle already weighs 2,700 lbs (1 225 kg),
adding 1,275 lbs (578 kg) brings the total to 3,975 lbs
(1 803 kg). This is very close to, but within the limit for
RGAWR as well. The vehicle is set to trailer up to
8,500 lbs (3 856 kg).
But let’s say your specic vehicle is equipped with some
of the latest options and you have a front seat passenger
and two rear seat passengers with some luggage and
gear in the vehicle as well. You may add 300 lbs (136 kg)
to the front axle weight and 400 lbs (181 kg) to the rear
axle weight. Your vehicle now weighs:
Weight is still below 7,200 lbs (3 266 kg) and you may
think that you should subtract 700 additional pounds
(318 kg) from your trailering capacity to stay within
GCWR limits. Your maximum trailer would only be
7,800 lbs (3 538 kg). You may go further and think you
must limit tongue weight to less than 1,000 lbs (454 kg) to
avoid exceeding GVWR. But, you must still consider the
effect on the rear axle. Because your rear axle now
weighs 3,100 lbs (1 406 kg), you can only put 900 lbs
(408 kg) on the rear axle without exceeding RGAWR.
4-83

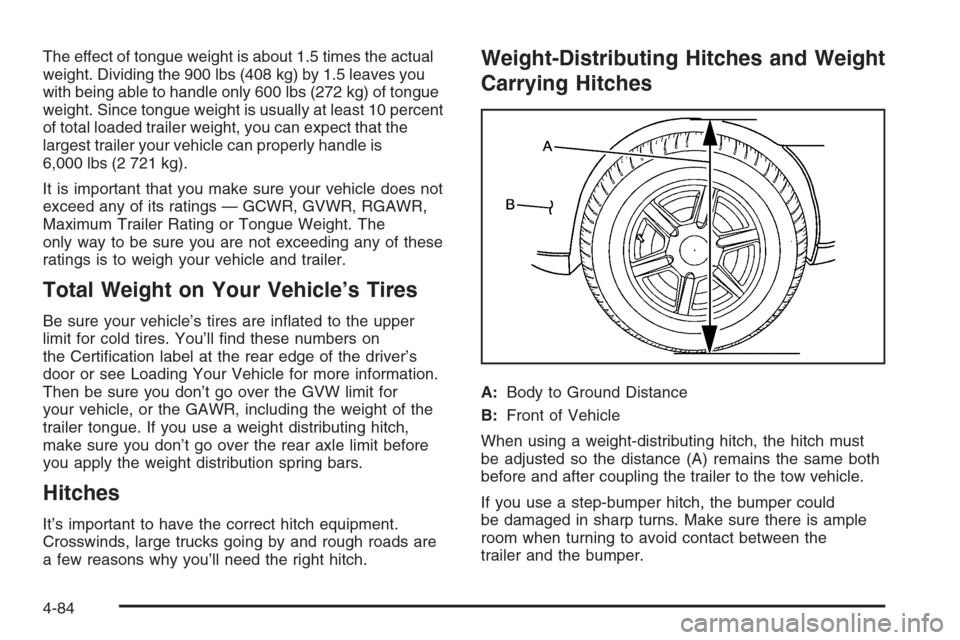

The effect of tongue weight is about 1.5 times the actual
weight. Dividing the 900 lbs (408 kg) by 1.5 leaves you
with being able to handle only 600 lbs (272 kg) of tongue
weight. Since tongue weight is usually at least 10 percent
of total loaded trailer weight, you can expect that the
largest trailer your vehicle can properly handle is
6,000 lbs (2 721 kg).
It is important that you make sure your vehicle does not
exceed any of its ratings — GCWR, GVWR, RGAWR,
Maximum Trailer Rating or Tongue Weight. The
only way to be sure you are not exceeding any of these
ratings is to weigh your vehicle and trailer.
Total Weight on Your Vehicle’s Tires
Be sure your vehicle’s tires are inated to the upper
limit for cold tires. You’ll nd these numbers on
the Certication label at the rear edge of the driver’s
door or see Loading Your Vehicle for more information.
Then be sure you don’t go over the GVW limit for
your vehicle, or the GAWR, including the weight of the
trailer tongue. If you use a weight distributing hitch,
make sure you don’t go over the rear axle limit before
you apply the weight distribution spring bars.
Hitches
It’s important to have the correct hitch equipment.
Crosswinds, large trucks going by and rough roads are
a few reasons why you’ll need the right hitch.
Weight-Distributing Hitches and Weight
Carrying Hitches
A:Body to Ground Distance
B:Front of Vehicle
When using a weight-distributing hitch, the hitch must
be adjusted so the distance (A) remains the same both
before and after coupling the trailer to the tow vehicle.
If you use a step-bumper hitch, the bumper could
be damaged in sharp turns. Make sure there is ample
room when turning to avoid contact between the
trailer and the bumper.
4-84
