CHEVROLET SILVERADO 2007 1.G Owners Manual

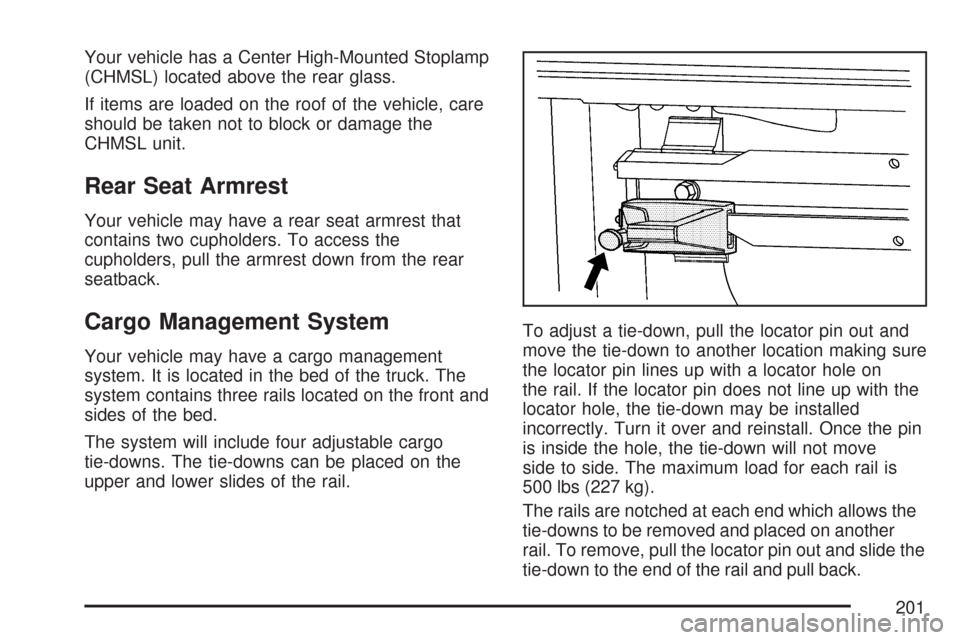

Your vehicle has a Center High-Mounted Stoplamp
(CHMSL) located above the rear glass.
If items are loaded on the roof of the vehicle, care
should be taken not to block or damage the
CHMSL unit.
Rear Seat Armrest
Your vehicle may have a rear seat armrest that
contains two cupholders. To access the
cupholders, pull the armrest down from the rear
seatback.
Cargo Management System
Your vehicle may have a cargo management
system. It is located in the bed of the truck. The
system contains three rails located on the front and
sides of the bed.
The system will include four adjustable cargo
tie-downs. The tie-downs can be placed on the
upper and lower slides of the rail.To adjust a tie-down, pull the locator pin out and
move the tie-down to another location making sure
the locator pin lines up with a locator hole on
the rail. If the locator pin does not line up with the
locator hole, the tie-down may be installed
incorrectly. Turn it over and reinstall. Once the pin
is inside the hole, the tie-down will not move
side to side. The maximum load for each rail is
500 lbs (227 kg).
The rails are notched at each end which allows the
tie-downs to be removed and placed on another
rail. To remove, pull the locator pin out and slide the
tie-down to the end of the rail and pull back.
201

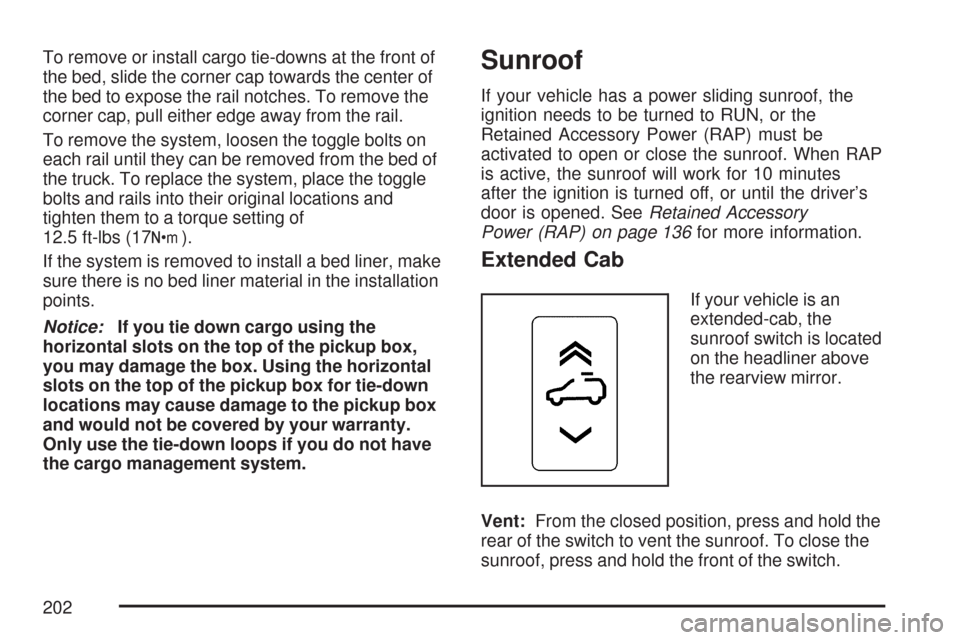

To remove or install cargo tie-downs at the front of
the bed, slide the corner cap towards the center of
the bed to expose the rail notches. To remove the
corner cap, pull either edge away from the rail.
To remove the system, loosen the toggle bolts on
each rail until they can be removed from the bed of
the truck. To replace the system, place the toggle
bolts and rails into their original locations and
tighten them to a torque setting of
12.5 ft-lbs (17
Y).
If the system is removed to install a bed liner, make
sure there is no bed liner material in the installation
points.
Notice:If you tie down cargo using the
horizontal slots on the top of the pickup box,
you may damage the box. Using the horizontal
slots on the top of the pickup box for tie-down
locations may cause damage to the pickup box
and would not be covered by your warranty.
Only use the tie-down loops if you do not have
the cargo management system.
Sunroof
If your vehicle has a power sliding sunroof, the
ignition needs to be turned to RUN, or the
Retained Accessory Power (RAP) must be
activated to open or close the sunroof. When RAP
is active, the sunroof will work for 10 minutes
after the ignition is turned off, or until the driver’s
door is opened. SeeRetained Accessory
Power (RAP) on page 136for more information.
Extended Cab
If your vehicle is an
extended-cab, the
sunroof switch is located
on the headliner above
the rearview mirror.
Vent:From the closed position, press and hold the
rear of the switch to vent the sunroof. To close the
sunroof, press and hold the front of the switch.
202

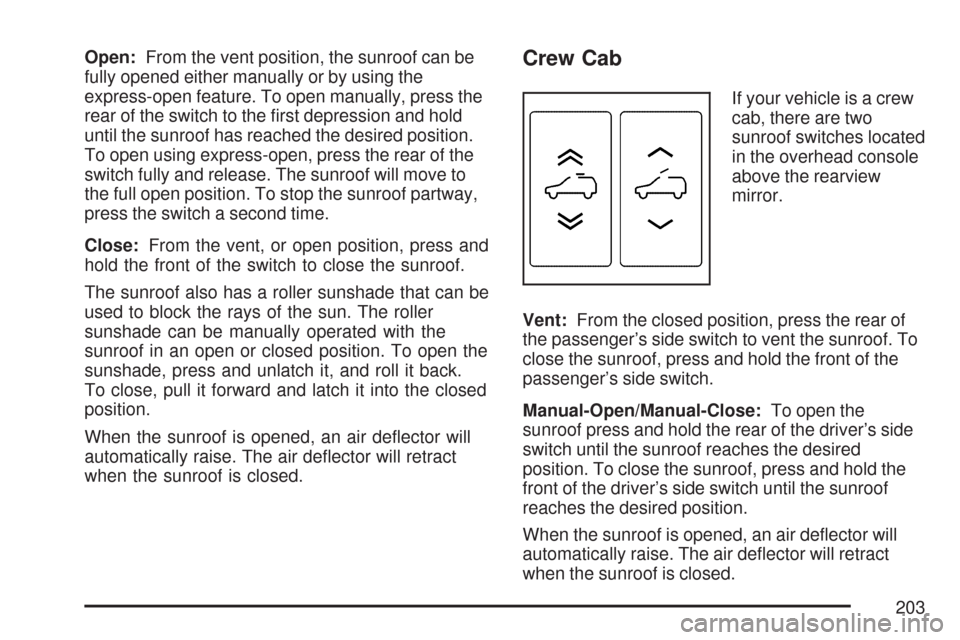

Open:From the vent position, the sunroof can be
fully opened either manually or by using the
express-open feature. To open manually, press the
rear of the switch to the rst depression and hold
until the sunroof has reached the desired position.
To open using express-open, press the rear of the
switch fully and release. The sunroof will move to
the full open position. To stop the sunroof partway,
press the switch a second time.
Close:From the vent, or open position, press and
hold the front of the switch to close the sunroof.
The sunroof also has a roller sunshade that can be
used to block the rays of the sun. The roller
sunshade can be manually operated with the
sunroof in an open or closed position. To open the
sunshade, press and unlatch it, and roll it back.
To close, pull it forward and latch it into the closed
position.
When the sunroof is opened, an air deector will
automatically raise. The air deector will retract
when the sunroof is closed.Crew Cab
If your vehicle is a crew
cab, there are two
sunroof switches located
in the overhead console
above the rearview
mirror.
Vent:From the closed position, press the rear of
the passenger’s side switch to vent the sunroof. To
close the sunroof, press and hold the front of the
passenger’s side switch.
Manual-Open/Manual-Close:To open the
sunroof press and hold the rear of the driver’s side
switch until the sunroof reaches the desired
position. To close the sunroof, press and hold the
front of the driver’s side switch until the sunroof
reaches the desired position.
When the sunroof is opened, an air deector will
automatically raise. The air deector will retract
when the sunroof is closed.
203

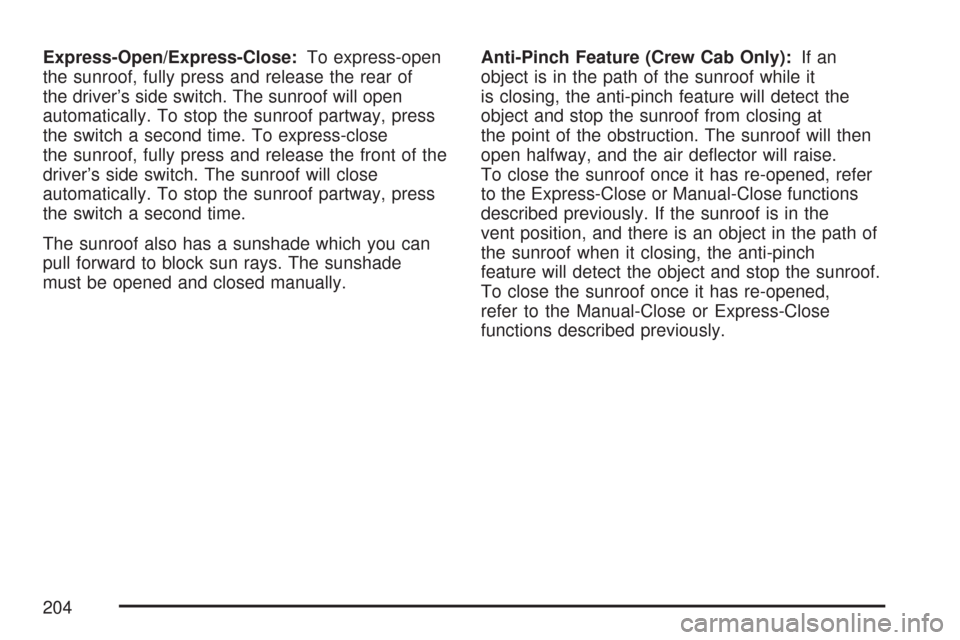

Express-Open/Express-Close:To express-open
the sunroof, fully press and release the rear of
the driver’s side switch. The sunroof will open
automatically. To stop the sunroof partway, press
the switch a second time. To express-close
the sunroof, fully press and release the front of the
driver’s side switch. The sunroof will close
automatically. To stop the sunroof partway, press
the switch a second time.
The sunroof also has a sunshade which you can
pull forward to block sun rays. The sunshade
must be opened and closed manually.Anti-Pinch Feature (Crew Cab Only):If an
object is in the path of the sunroof while it
is closing, the anti-pinch feature will detect the
object and stop the sunroof from closing at
the point of the obstruction. The sunroof will then
open halfway, and the air deector will raise.
To close the sunroof once it has re-opened, refer
to the Express-Close or Manual-Close functions
described previously. If the sunroof is in the
vent position, and there is an object in the path of
the sunroof when it closing, the anti-pinch
feature will detect the object and stop the sunroof.
To close the sunroof once it has re-opened,
refer to the Manual-Close or Express-Close
functions described previously.
204

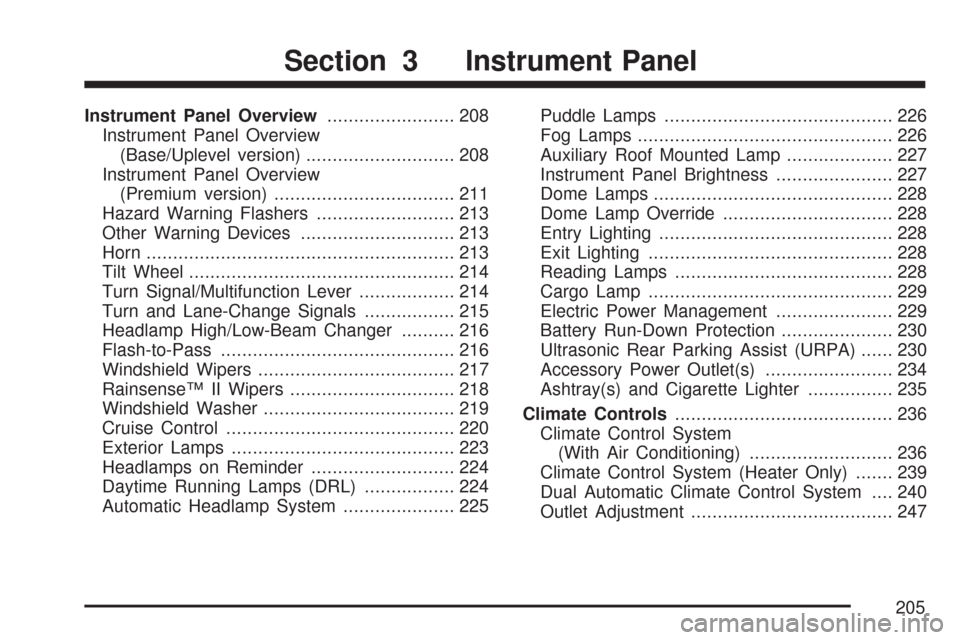

Instrument Panel Overview........................ 208
Instrument Panel Overview
(Base/Uplevel version)............................ 208
Instrument Panel Overview
(Premium version).................................. 211
Hazard Warning Flashers.......................... 213
Other Warning Devices............................. 213
Horn.......................................................... 213
Tilt Wheel.................................................. 214
Turn Signal/Multifunction Lever.................. 214
Turn and Lane-Change Signals................. 215
Headlamp High/Low-Beam Changer.......... 216
Flash-to-Pass............................................ 216
Windshield Wipers..................................... 217
Rainsense™ II Wipers............................... 218
Windshield Washer.................................... 219
Cruise Control........................................... 220
Exterior Lamps.......................................... 223
Headlamps on Reminder........................... 224
Daytime Running Lamps (DRL)................. 224
Automatic Headlamp System..................... 225Puddle Lamps........................................... 226
Fog Lamps................................................ 226
Auxiliary Roof Mounted Lamp.................... 227
Instrument Panel Brightness...................... 227
Dome Lamps............................................. 228
Dome Lamp Override................................ 228
Entry Lighting............................................ 228
Exit Lighting.............................................. 228
Reading Lamps......................................... 228
Cargo Lamp.............................................. 229
Electric Power Management...................... 229
Battery Run-Down Protection..................... 230
Ultrasonic Rear Parking Assist (URPA)...... 230
Accessory Power Outlet(s)........................ 234
Ashtray(s) and Cigarette Lighter................ 235
Climate Controls......................................... 236
Climate Control System
(With Air Conditioning)........................... 236
Climate Control System (Heater Only)....... 239
Dual Automatic Climate Control System.... 240
Outlet Adjustment...................................... 247
Section 3 Instrument Panel
205

Warning Lights, Gages, and Indicators..... 248
Instrument Panel Cluster........................... 249
Speedometer and Odometer...................... 250
Trip Odometer........................................... 250
Tachometer............................................... 250
Safety Belt Reminder Light........................ 251
Passenger Safety Belt Reminder Light
(1500 Series)......................................... 251
Airbag Readiness Light............................. 252
Airbag Off Light......................................... 252
Passenger Airbag Status Indicator............. 254
Charging System Light.............................. 256
Voltmeter Gage......................................... 257
Brake System Warning Light..................... 258
Anti-Lock Brake System Warning Light...... 259
StabiliTrak
®Indicator Light......................... 260
Engine Coolant Temperature Gage............ 260
Tire Pressure Light.................................... 261
Malfunction Indicator Lamp........................ 262Oil Pressure Gage..................................... 265
Oil Pressure Light..................................... 266
Security Light............................................ 266
Fog Lamp Light......................................... 267
Cruise Control Light.................................. 267
Highbeam On Light................................... 267
Four-Wheel-Drive Light.............................. 267
Tow/Haul Mode Light................................ 268
Fuel Gage................................................. 268
Low Fuel Warning Light............................ 269
Driver Information Center (DIC).................. 269
DIC Operation and Displays
(With DIC Buttons)................................. 270
DIC Operation and Displays
(Without DIC Buttons)............................ 277
DIC Warnings and Messages.................... 281
DIC Vehicle Customization
(With DIC Buttons)................................. 291
Section 3 Instrument Panel
206

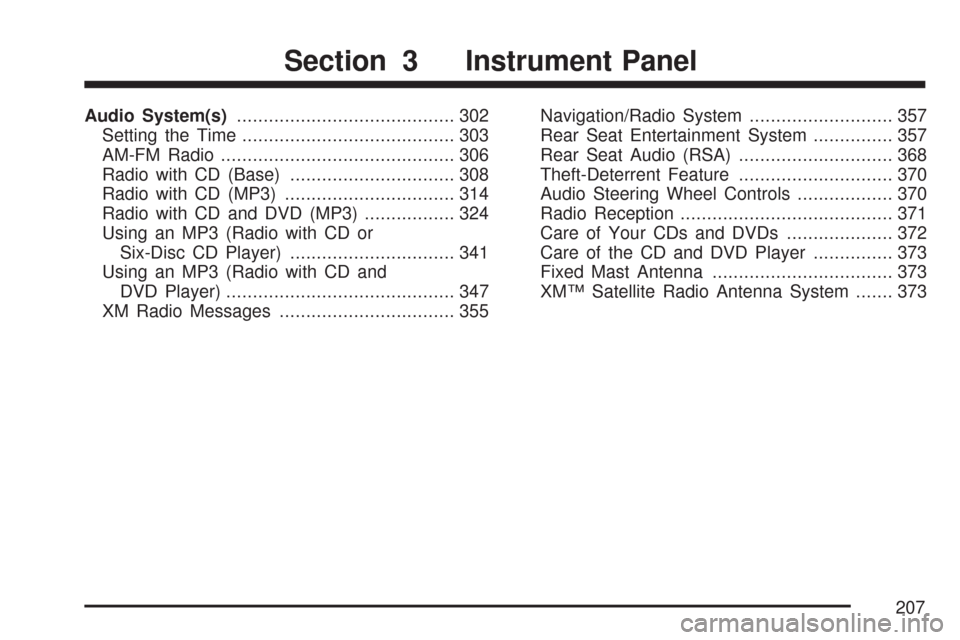

Audio System(s)......................................... 302
Setting the Time........................................ 303
AM-FM Radio............................................ 306
Radio with CD (Base)............................... 308
Radio with CD (MP3)................................ 314
Radio with CD and DVD (MP3)................. 324
Using an MP3 (Radio with CD or
Six-Disc CD Player)............................... 341
Using an MP3 (Radio with CD and
DVD Player)........................................... 347
XM Radio Messages................................. 355Navigation/Radio System........................... 357
Rear Seat Entertainment System............... 357
Rear Seat Audio (RSA)............................. 368
Theft-Deterrent Feature............................. 370
Audio Steering Wheel Controls.................. 370
Radio Reception........................................ 371
Care of Your CDs and DVDs.................... 372
Care of the CD and DVD Player............... 373
Fixed Mast Antenna.................................. 373
XM™ Satellite Radio Antenna System....... 373
Section 3 Instrument Panel
207

Instrument Panel Overview
Instrument Panel Overview (Base/Uplevel version)
208

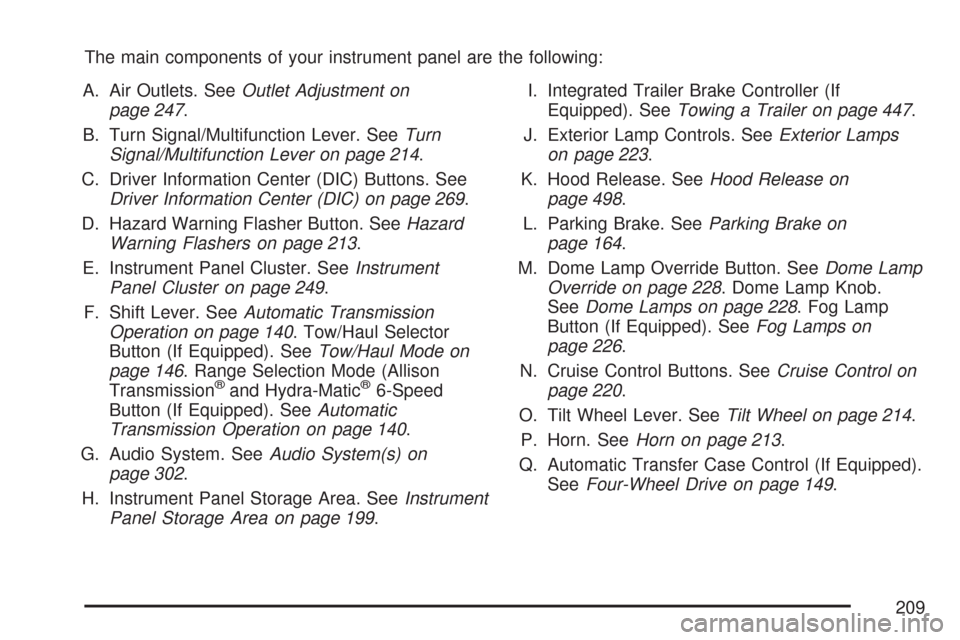

The main components of your instrument panel are the following:
A. Air Outlets. SeeOutlet Adjustment on
page 247.
B. Turn Signal/Multifunction Lever. SeeTurn
Signal/Multifunction Lever on page 214.
C. Driver Information Center (DIC) Buttons. See
Driver Information Center (DIC) on page 269.
D. Hazard Warning Flasher Button. SeeHazard
Warning Flashers on page 213.
E. Instrument Panel Cluster. SeeInstrument
Panel Cluster on page 249.
F. Shift Lever. SeeAutomatic Transmission
Operation on page 140. Tow/Haul Selector
Button (If Equipped). SeeTow/Haul Mode on
page 146. Range Selection Mode (Allison
Transmission
®and Hydra-Matic®6-Speed
Button (If Equipped). SeeAutomatic
Transmission Operation on page 140.
G. Audio System. SeeAudio System(s) on
page 302.
H. Instrument Panel Storage Area. SeeInstrument
Panel Storage Area on page 199.I. Integrated Trailer Brake Controller (If
Equipped). SeeTowing a Trailer on page 447.
J. Exterior Lamp Controls. SeeExterior Lamps
on page 223.
K. Hood Release. SeeHood Release on
page 498.
L. Parking Brake. SeeParking Brake on
page 164.
M. Dome Lamp Override Button. SeeDome Lamp
Override on page 228. Dome Lamp Knob.
SeeDome Lamps on page 228. Fog Lamp
Button (If Equipped). SeeFog Lamps on
page 226.
N. Cruise Control Buttons. SeeCruise Control on
page 220.
O. Tilt Wheel Lever. SeeTilt Wheel on page 214.
P. Horn. SeeHorn on page 213.
Q. Automatic Transfer Case Control (If Equipped).
SeeFour-Wheel Drive on page 149.
209

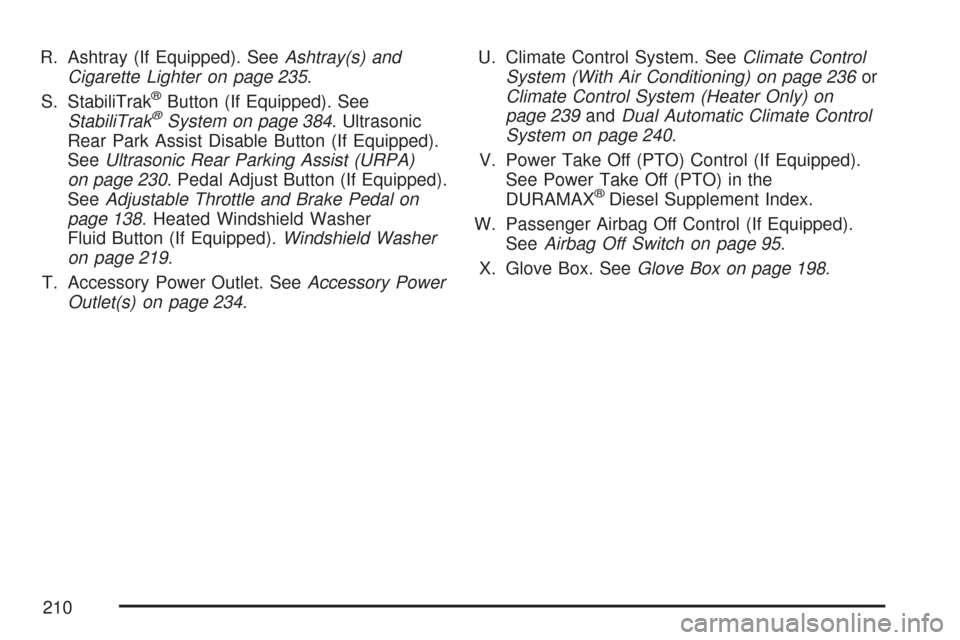

R. Ashtray (If Equipped). SeeAshtray(s) and
Cigarette Lighter on page 235.
S. StabiliTrak
®Button (If Equipped). See
StabiliTrak®System on page 384. Ultrasonic
Rear Park Assist Disable Button (If Equipped).
SeeUltrasonic Rear Parking Assist (URPA)
on page 230. Pedal Adjust Button (If Equipped).
SeeAdjustable Throttle and Brake Pedal on
page 138. Heated Windshield Washer
Fluid Button (If Equipped).Windshield Washer
on page 219.
T. Accessory Power Outlet. SeeAccessory Power
Outlet(s) on page 234.U. Climate Control System. SeeClimate Control
System (With Air Conditioning) on page 236or
Climate Control System (Heater Only) on
page 239andDual Automatic Climate Control
System on page 240.
V. Power Take Off (PTO) Control (If Equipped).
See Power Take Off (PTO) in the
DURAMAX
®Diesel Supplement Index.
W. Passenger Airbag Off Control (If Equipped).
SeeAirbag Off Switch on page 95.
X. Glove Box. SeeGlove Box on page 198.
210
