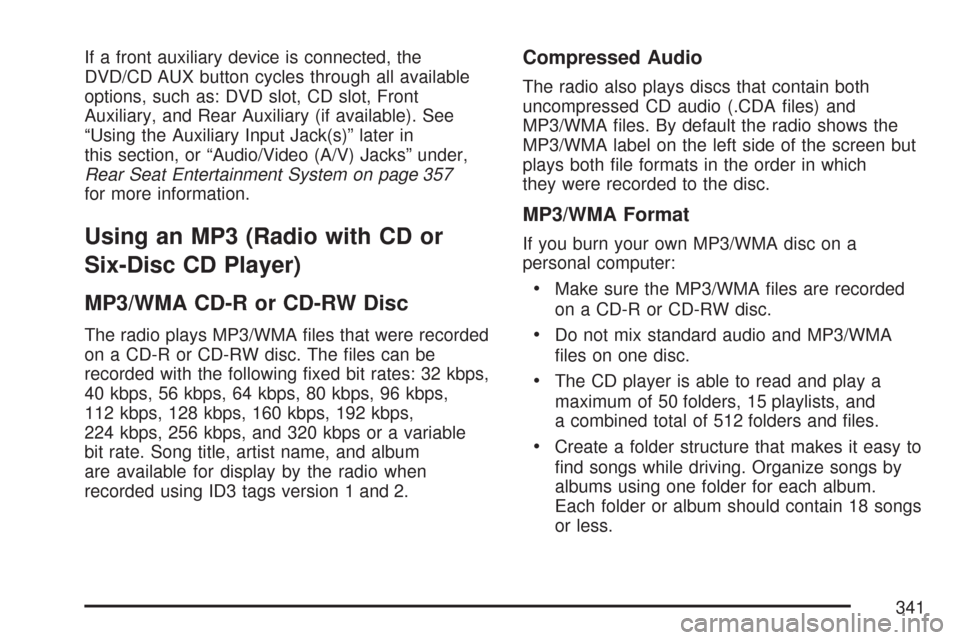

If a front auxiliary device is connected, the
DVD/CD AUX button cycles through all available
options, such as: DVD slot, CD slot, Front
Auxiliary, and Rear Auxiliary (if available). See
“Using the Auxiliary Input Jack(s)” later in
this section, or “Audio/Video (A/V) Jacks” under,
Rear Seat Entertainment System on page 357
for more information.
Using an MP3 (Radio with CD or
Six-Disc CD Player)
MP3/WMA CD-R or CD-RW Disc
The radio plays MP3/WMA les that were recorded
on a CD-R or CD-RW disc. The les can be
recorded with the following xed bit rates: 32 kbps,
40 kbps, 56 kbps, 64 kbps, 80 kbps, 96 kbps,
112 kbps, 128 kbps, 160 kbps, 192 kbps,
224 kbps, 256 kbps, and 320 kbps or a variable
bit rate. Song title, artist name, and album
are available for display by the radio when
recorded using ID3 tags version 1 and 2.
Compressed Audio
The radio also plays discs that contain both
uncompressed CD audio (.CDA les) and
MP3/WMA les. By default the radio shows the
MP3/WMA label on the left side of the screen but
plays both le formats in the order in which
they were recorded to the disc.

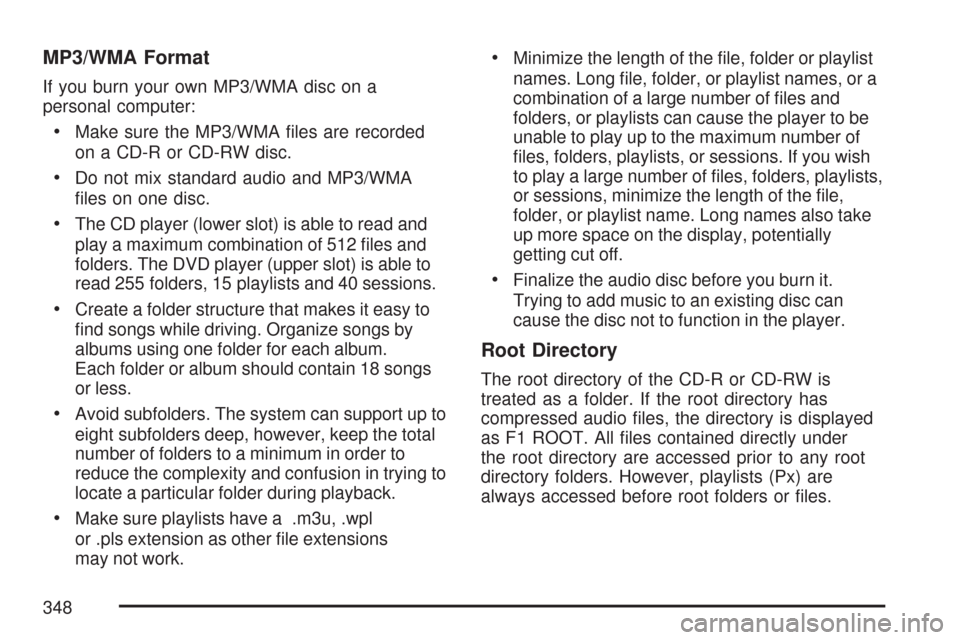

MP3/WMA Format
If you burn your own MP3/WMA disc on a
personal computer:
Make sure the MP3/WMA les are recorded
on a CD-R or CD-RW disc.
Do not mix standard audio and MP3/WMA
les on one disc.
The CD player is able to read and play a
maximum of 50 folders, 15 playlists, and
a combined total of 512 folders and les.
Create a folder structure that makes it easy to
nd songs while driving. Organize songs by
albums using one folder for each album.
Each folder or album should contain 18 songs
or less.
341

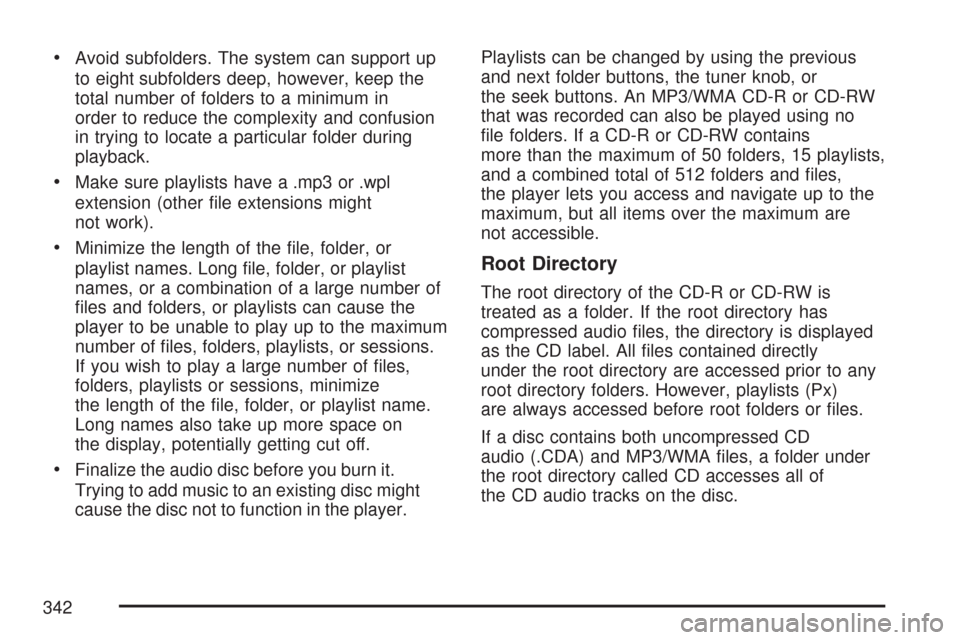

Avoid subfolders. The system can support up
to eight subfolders deep, however, keep the
total number of folders to a minimum in
order to reduce the complexity and confusion
in trying to locate a particular folder during
playback.
Make sure playlists have a .mp3 or .wpl
extension (other le extensions might
not work).
Minimize the length of the le, folder, or
playlist names. Long le, folder, or playlist
names, or a combination of a large number of
les and folders, or playlists can cause the
player to be unable to play up to the maximum
number of les, folders, playlists, or sessions.
If you wish to play a large number of les,
folders, playlists or sessions, minimize
the length of the le, folder, or playlist name.
Long names also take up more space on
the display, potentially getting cut off.
Finalize the audio disc before you burn it.
Trying to add music to an existing disc might
cause the disc not to function in the player.Playlists can be changed by using the previous
and next folder buttons, the tuner knob, or
the seek buttons. An MP3/WMA CD-R or CD-RW
that was recorded can also be played using no
le folders. If a CD-R or CD-RW contains
more than the maximum of 50 folders, 15 playlists,
and a combined total of 512 folders and les,
the player lets you access and navigate up to the
maximum, but all items over the maximum are
not accessible.
Root Directory
The root directory of the CD-R or CD-RW is
treated as a folder. If the root directory has
compressed audio les, the directory is displayed
as the CD label. All les contained directly
under the root directory are accessed prior to any
root directory folders. However, playlists (Px)
are always accessed before root folders or les.
If a disc contains both uncompressed CD
audio (.CDA) and MP3/WMA les, a folder under
the root directory called CD accesses all of
the CD audio tracks on the disc.
342

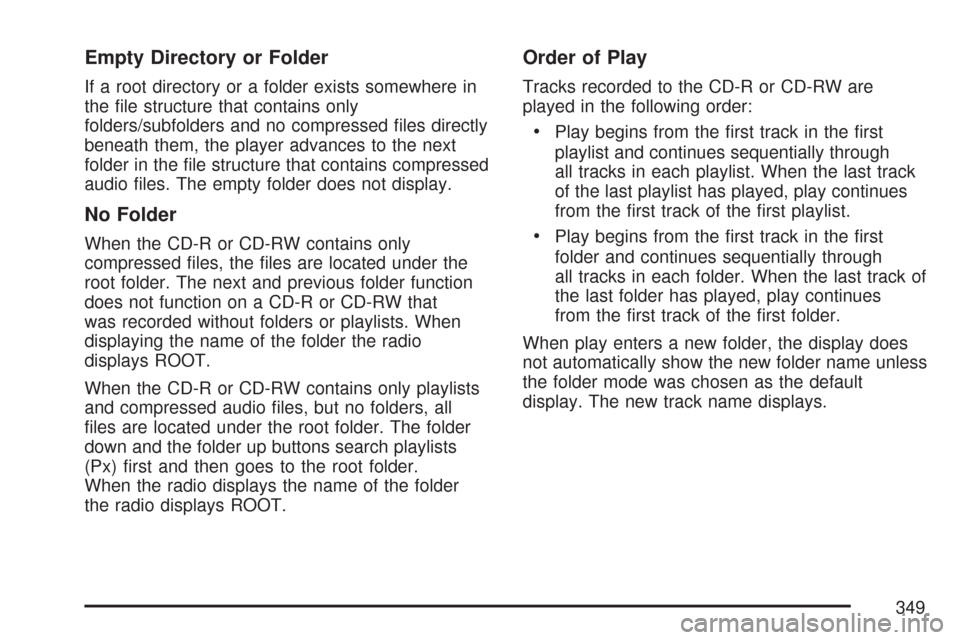

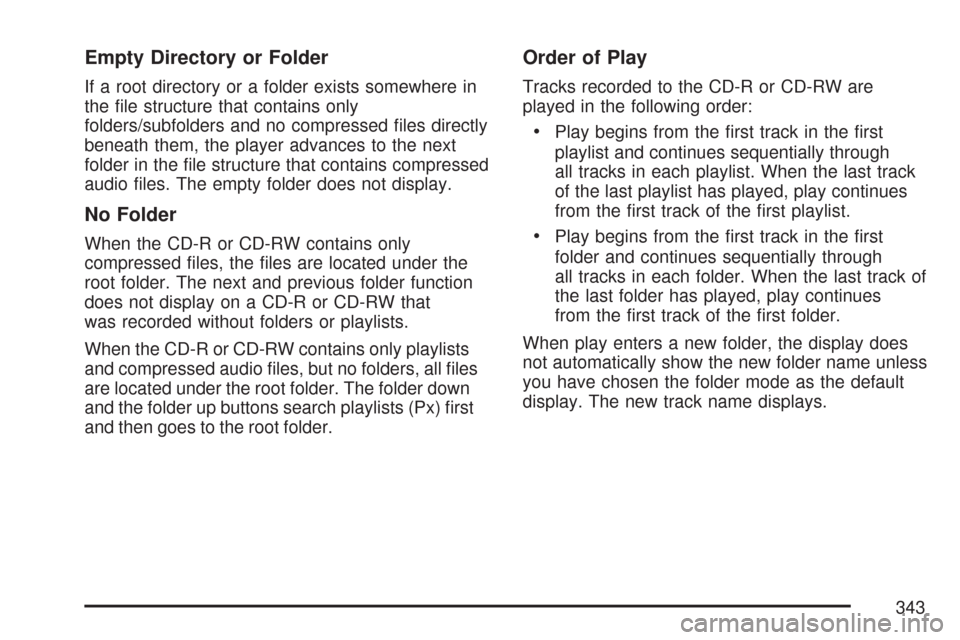

Empty Directory or Folder
If a root directory or a folder exists somewhere in
the le structure that contains only
folders/subfolders and no compressed les directly
beneath them, the player advances to the next
folder in the le structure that contains compressed
audio les. The empty folder does not display.
No Folder
When the CD-R or CD-RW contains only
compressed les, the les are located under the
root folder. The next and previous folder function
does not display on a CD-R or CD-RW that
was recorded without folders or playlists.
When the CD-R or CD-RW contains only playlists
and compressed audio les, but no folders, all les
are located under the root folder. The folder down
and the folder up buttons search playlists (Px) rst
and then goes to the root folder.
Order of Play
Tracks recorded to the CD-R or CD-RW are
played in the following order:
Play begins from the rst track in the rst
playlist and continues sequentially through
all tracks in each playlist. When the last track
of the last playlist has played, play continues
from the rst track of the rst playlist.
Play begins from the rst track in the rst
folder and continues sequentially through
all tracks in each folder. When the last track of
the last folder has played, play continues
from the rst track of the rst folder.
When play enters a new folder, the display does
not automatically show the new folder name unless
you have chosen the folder mode as the default
display. The new track name displays.
343

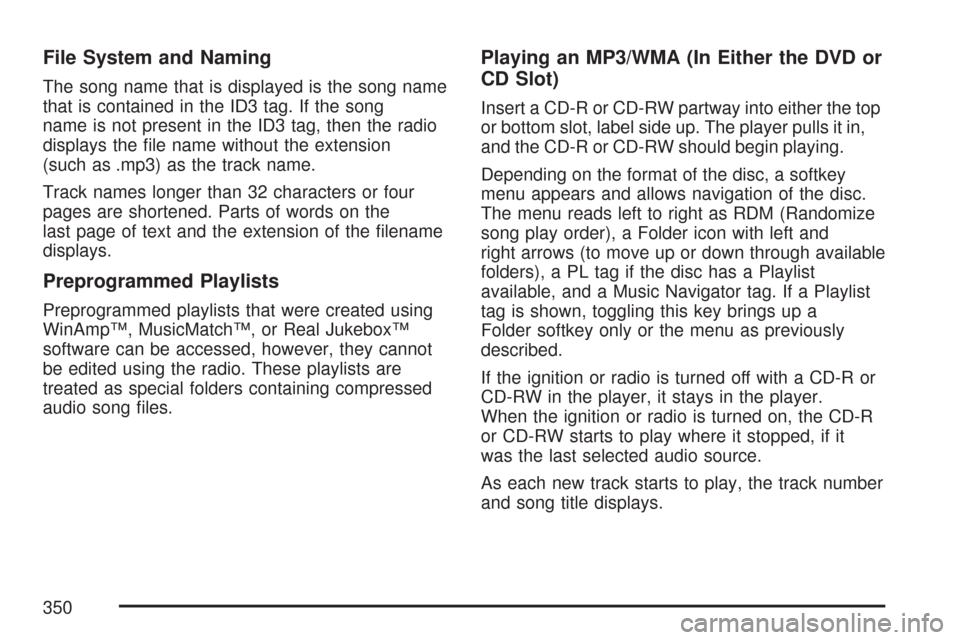

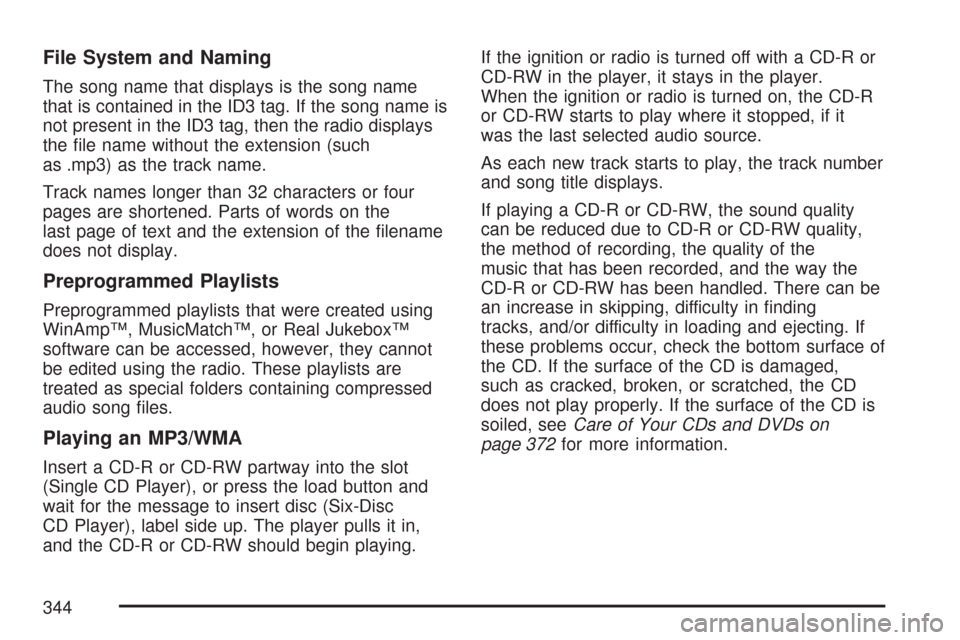

File System and Naming
The song name that displays is the song name
that is contained in the ID3 tag. If the song name is
not present in the ID3 tag, then the radio displays
the le name without the extension (such
as .mp3) as the track name.
Track names longer than 32 characters or four
pages are shortened. Parts of words on the
last page of text and the extension of the lename
does not display.
Preprogrammed Playlists
Preprogrammed playlists that were created using
WinAmp™, MusicMatch™, or Real Jukebox™
software can be accessed, however, they cannot
be edited using the radio. These playlists are
treated as special folders containing compressed
audio song les.
Playing an MP3/WMA
Insert a CD-R or CD-RW partway into the slot
(Single CD Player), or press the load button and
wait for the message to insert disc (Six-Disc
CD Player), label side up. The player pulls it in,
and the CD-R or CD-RW should begin playing.If the ignition or radio is turned off with a CD-R or
CD-RW in the player, it stays in the player.
When the ignition or radio is turned on, the CD-R
or CD-RW starts to play where it stopped, if it
was the last selected audio source.
As each new track starts to play, the track number
and song title displays.
If playing a CD-R or CD-RW, the sound quality
can be reduced due to CD-R or CD-RW quality,
the method of recording, the quality of the
music that has been recorded, and the way the
CD-R or CD-RW has been handled. There can be
an increase in skipping, difficulty in nding
tracks, and/or difficulty in loading and ejecting. If
these problems occur, check the bottom surface of
the CD. If the surface of the CD is damaged,
such as cracked, broken, or scratched, the CD
does not play properly. If the surface of the CD is
soiled, seeCare of Your CDs and DVDs on
page 372for more information.
344

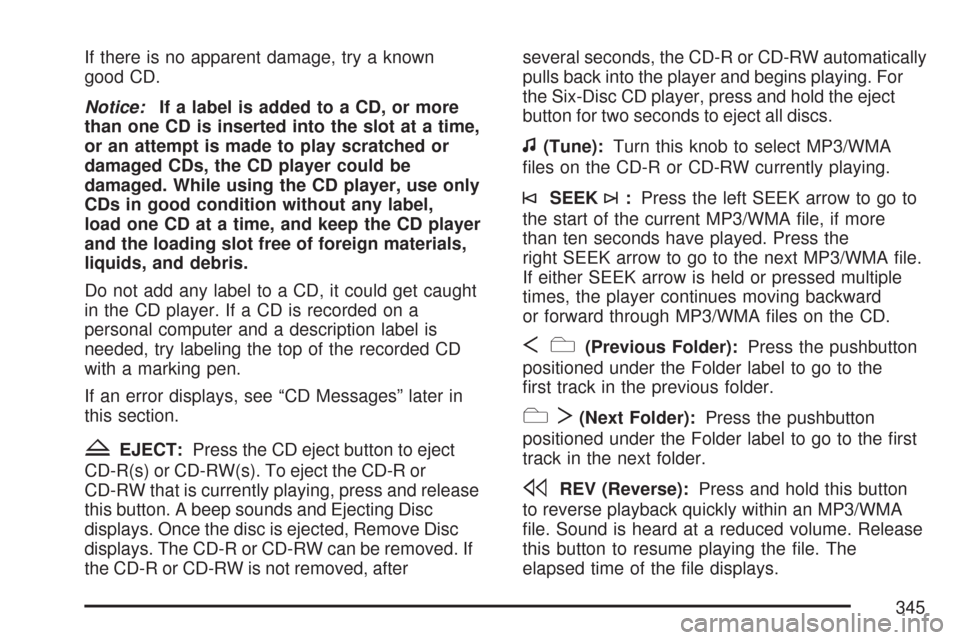

If there is no apparent damage, try a known
good CD.
Notice:If a label is added to a CD, or more
than one CD is inserted into the slot at a time,
or an attempt is made to play scratched or
damaged CDs, the CD player could be
damaged. While using the CD player, use only
CDs in good condition without any label,
load one CD at a time, and keep the CD player
and the loading slot free of foreign materials,
liquids, and debris.
Do not add any label to a CD, it could get caught
in the CD player. If a CD is recorded on a
personal computer and a description label is
needed, try labeling the top of the recorded CD
with a marking pen.
If an error displays, see “CD Messages” later in
this section.
ZEJECT:Press the CD eject button to eject
CD-R(s) or CD-RW(s). To eject the CD-R or
CD-RW that is currently playing, press and release
this button. A beep sounds and Ejecting Disc
displays. Once the disc is ejected, Remove Disc
displays. The CD-R or CD-RW can be removed. If
the CD-R or CD-RW is not removed, afterseveral seconds, the CD-R or CD-RW automatically
pulls back into the player and begins playing. For
the Six-Disc CD player, press and hold the eject
button for two seconds to eject all discs.
f(Tune):Turn this knob to select MP3/WMA
les on the CD-R or CD-RW currently playing.
©SEEK¨:Press the left SEEK arrow to go to
the start of the current MP3/WMA le, if more
than ten seconds have played. Press the
right SEEK arrow to go to the next MP3/WMA le.
If either SEEK arrow is held or pressed multiple
times, the player continues moving backward
or forward through MP3/WMA les on the CD.
Sc(Previous Folder):Press the pushbutton
positioned under the Folder label to go to the
rst track in the previous folder.
cT(Next Folder):Press the pushbutton
positioned under the Folder label to go to the rst
track in the next folder.
sREV (Reverse):Press and hold this button
to reverse playback quickly within an MP3/WMA
le. Sound is heard at a reduced volume. Release
this button to resume playing the le. The
elapsed time of the le displays.
345

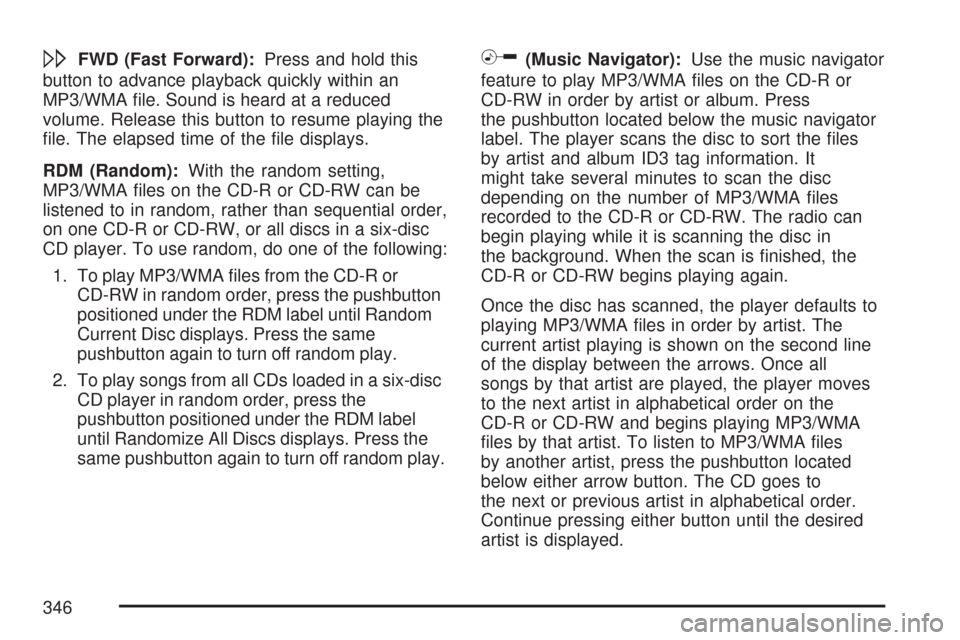

\FWD (Fast Forward):Press and hold this
button to advance playback quickly within an
MP3/WMA le. Sound is heard at a reduced
volume. Release this button to resume playing the
le. The elapsed time of the le displays.
RDM (Random):With the random setting,
MP3/WMA les on the CD-R or CD-RW can be
listened to in random, rather than sequential order,
on one CD-R or CD-RW, or all discs in a six-disc
CD player. To use random, do one of the following:
1. To play MP3/WMA les from the CD-R or
CD-RW in random order, press the pushbutton
positioned under the RDM label until Random
Current Disc displays. Press the same
pushbutton again to turn off random play.
2. To play songs from all CDs loaded in a six-disc
CD player in random order, press the
pushbutton positioned under the RDM label
until Randomize All Discs displays. Press the
same pushbutton again to turn off random play.h(Music Navigator):Use the music navigator
feature to play MP3/WMA les on the CD-R or
CD-RW in order by artist or album. Press
the pushbutton located below the music navigator
label. The player scans the disc to sort the les
by artist and album ID3 tag information. It
might take several minutes to scan the disc
depending on the number of MP3/WMA les
recorded to the CD-R or CD-RW. The radio can
begin playing while it is scanning the disc in
the background. When the scan is nished, the
CD-R or CD-RW begins playing again.
Once the disc has scanned, the player defaults to
playing MP3/WMA les in order by artist. The
current artist playing is shown on the second line
of the display between the arrows. Once all
songs by that artist are played, the player moves
to the next artist in alphabetical order on the
CD-R or CD-RW and begins playing MP3/WMA
les by that artist. To listen to MP3/WMA les
by another artist, press the pushbutton located
below either arrow button. The CD goes to
the next or previous artist in alphabetical order.
Continue pressing either button until the desired
artist is displayed.
346

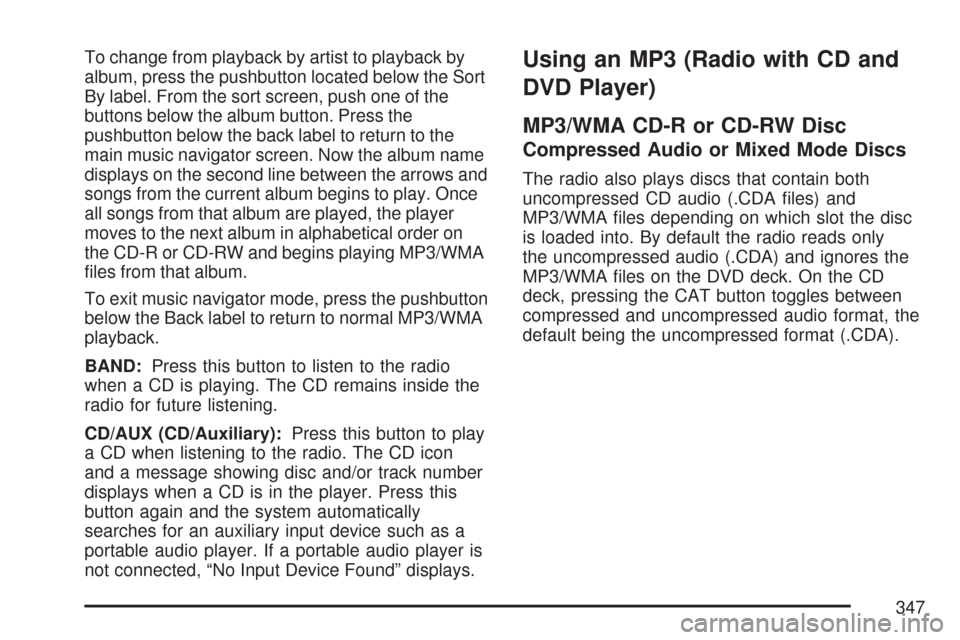

To change from playback by artist to playback by
album, press the pushbutton located below the Sort
By label. From the sort screen, push one of the
buttons below the album button. Press the
pushbutton below the back label to return to the
main music navigator screen. Now the album name
displays on the second line between the arrows and
songs from the current album begins to play. Once
all songs from that album are played, the player
moves to the next album in alphabetical order on
the CD-R or CD-RW and begins playing MP3/WMA
les from that album.
To exit music navigator mode, press the pushbutton
below the Back label to return to normal MP3/WMA
playback.
BAND:Press this button to listen to the radio
when a CD is playing. The CD remains inside the
radio for future listening.
CD/AUX (CD/Auxiliary):Press this button to play
a CD when listening to the radio. The CD icon
and a message showing disc and/or track number
displays when a CD is in the player. Press this
button again and the system automatically
searches for an auxiliary input device such as a
portable audio player. If a portable audio player is
not connected, “No Input Device Found” displays.Using an MP3 (Radio with CD and
DVD Player)
MP3/WMA CD-R or CD-RW Disc
Compressed Audio or Mixed Mode Discs
The radio also plays discs that contain both
uncompressed CD audio (.CDA les) and
MP3/WMA les depending on which slot the disc
is loaded into. By default the radio reads only
the uncompressed audio (.CDA) and ignores the
MP3/WMA les on the DVD deck. On the CD
deck, pressing the CAT button toggles between
compressed and uncompressed audio format, the
default being the uncompressed format (.CDA).
347

MP3/WMA Format
If you burn your own MP3/WMA disc on a
personal computer:
Make sure the MP3/WMA les are recorded
on a CD-R or CD-RW disc.
Do not mix standard audio and MP3/WMA
les on one disc.
The CD player (lower slot) is able to read and
play a maximum combination of 512 les and
folders. The DVD player (upper slot) is able to
read 255 folders, 15 playlists and 40 sessions.
Create a folder structure that makes it easy to
nd songs while driving. Organize songs by
albums using one folder for each album.
Each folder or album should contain 18 songs
or less.
Avoid subfolders. The system can support up to
eight subfolders deep, however, keep the total
number of folders to a minimum in order to
reduce the complexity and confusion in trying to
locate a particular folder during playback.
Make sure playlists have a .m3u, .wpl
or .pls extension as other le extensions
may not work.
Minimize the length of the le, folder or playlist
names. Long le, folder, or playlist names, or a
combination of a large number of les and
folders, or playlists can cause the player to be
unable to play up to the maximum number of
les, folders, playlists, or sessions. If you wish
to play a large number of les, folders, playlists,
or sessions, minimize the length of the le,
folder, or playlist name. Long names also take
up more space on the display, potentially
getting cut off.
Finalize the audio disc before you burn it.
Trying to add music to an existing disc can
cause the disc not to function in the player.
Root Directory
The root directory of the CD-R or CD-RW is
treated as a folder. If the root directory has
compressed audio les, the directory is displayed
as F1 ROOT. All les contained directly under
the root directory are accessed prior to any root
directory folders. However, playlists (Px) are
always accessed before root folders or les.
348

Empty Directory or Folder
If a root directory or a folder exists somewhere in
the le structure that contains only
folders/subfolders and no compressed les directly
beneath them, the player advances to the next
folder in the le structure that contains compressed
audio les. The empty folder does not display.
No Folder
When the CD-R or CD-RW contains only
compressed les, the les are located under the
root folder. The next and previous folder function
does not function on a CD-R or CD-RW that
was recorded without folders or playlists. When
displaying the name of the folder the radio
displays ROOT.
When the CD-R or CD-RW contains only playlists
and compressed audio les, but no folders, all
les are located under the root folder. The folder
down and the folder up buttons search playlists
(Px) rst and then goes to the root folder.
When the radio displays the name of the folder
the radio displays ROOT.
Order of Play
Tracks recorded to the CD-R or CD-RW are
played in the following order:
Play begins from the rst track in the rst
playlist and continues sequentially through
all tracks in each playlist. When the last track
of the last playlist has played, play continues
from the rst track of the rst playlist.
Play begins from the rst track in the rst
folder and continues sequentially through
all tracks in each folder. When the last track of
the last folder has played, play continues
from the rst track of the rst folder.
When play enters a new folder, the display does
not automatically show the new folder name unless
the folder mode was chosen as the default
display. The new track name displays.
349

File System and Naming
The song name that is displayed is the song name
that is contained in the ID3 tag. If the song
name is not present in the ID3 tag, then the radio
displays the le name without the extension
(such as .mp3) as the track name.
Track names longer than 32 characters or four
pages are shortened. Parts of words on the
last page of text and the extension of the lename
displays.
Preprogrammed Playlists
Preprogrammed playlists that were created using
WinAmp™, MusicMatch™, or Real Jukebox™
software can be accessed, however, they cannot
be edited using the radio. These playlists are
treated as special folders containing compressed
audio song les.
Playing an MP3/WMA (In Either the DVD or
CD Slot)
Insert a CD-R or CD-RW partway into either the top
or bottom slot, label side up. The player pulls it in,
and the CD-R or CD-RW should begin playing.
Depending on the format of the disc, a softkey
menu appears and allows navigation of the disc.
The menu reads left to right as RDM (Randomize
song play order), a Folder icon with left and
right arrows (to move up or down through available
folders), a PL tag if the disc has a Playlist
available, and a Music Navigator tag. If a Playlist
tag is shown, toggling this key brings up a
Folder softkey only or the menu as previously
described.
If the ignition or radio is turned off with a CD-R or
CD-RW in the player, it stays in the player.
When the ignition or radio is turned on, the CD-R
or CD-RW starts to play where it stopped, if it
was the last selected audio source.
As each new track starts to play, the track number
and song title displays.
350
