Page 381 of 596

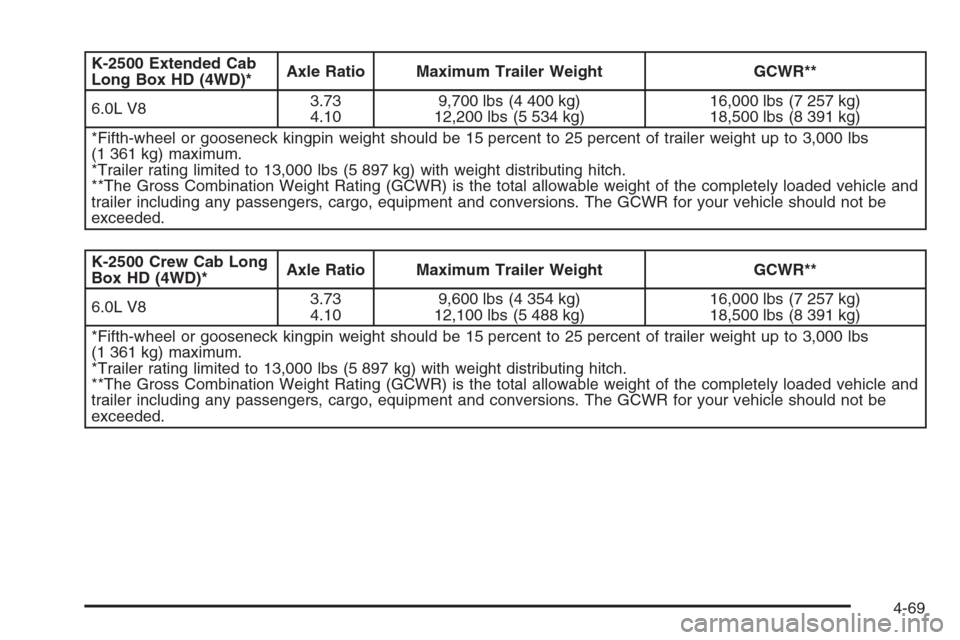

CHEVROLET SILVERADO 2008 2.G Owners Manual K-2500 Extended Cab
Long Box HD (4WD)*Axle Ratio Maximum Trailer Weight GCWR**
6.0L V83.73
4.109,700 lbs (4 400 kg)
12,200 lbs (5 534 kg)16,000 lbs (7 257 kg)
18,500 lbs (8 391 kg)
*Fifth-wheel or goo

Page 382 of 596

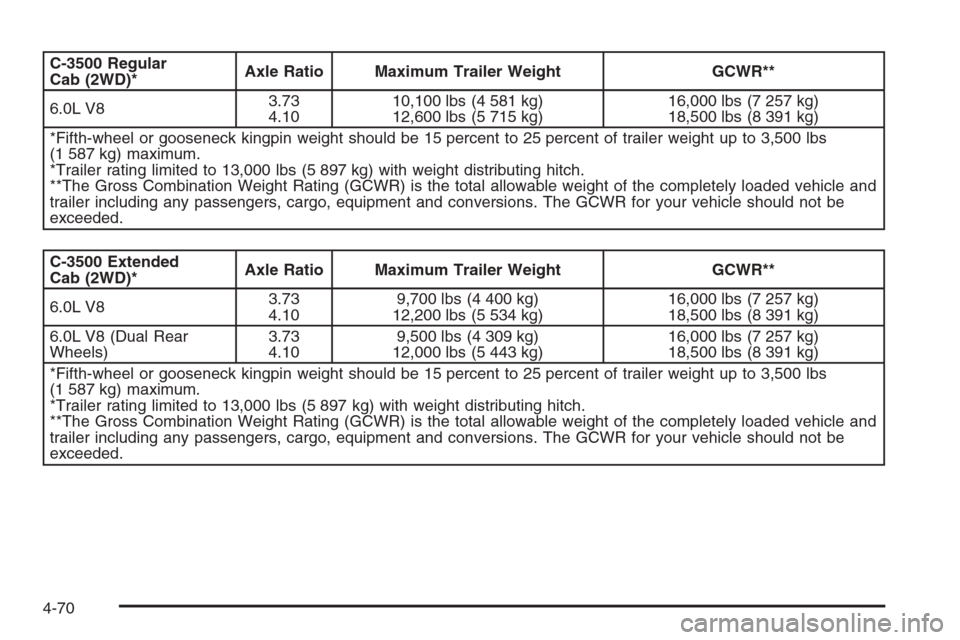

CHEVROLET SILVERADO 2008 2.G Owners Manual C-3500 Regular
Cab (2WD)*Axle Ratio Maximum Trailer Weight GCWR**
6.0L V83.73
4.1010,100 lbs (4 581 kg)
12,600 lbs (5 715 kg)16,000 lbs (7 257 kg)
18,500 lbs (8 391 kg)
*Fifth-wheel or gooseneck kingp

Page 383 of 596

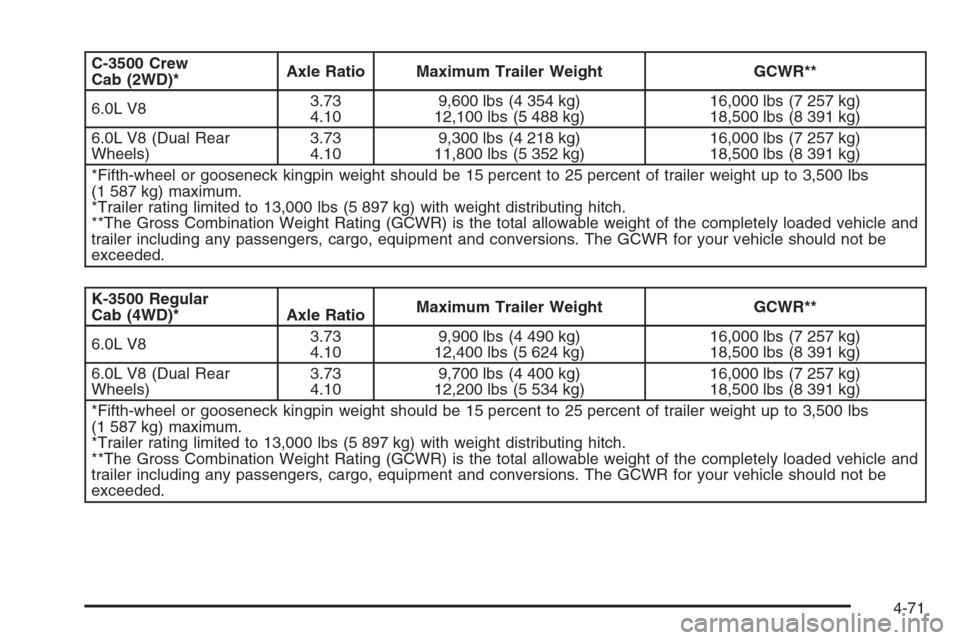

CHEVROLET SILVERADO 2008 2.G Owners Manual C-3500 Crew
Cab (2WD)*Axle Ratio Maximum Trailer Weight GCWR**
6.0L V83.73
4.109,600 lbs (4 354 kg)
12,100 lbs (5 488 kg)16,000 lbs (7 257 kg)
18,500 lbs (8 391 kg)
6.0L V8 (Dual Rear
Wheels)3.73
4.10

Page 384 of 596

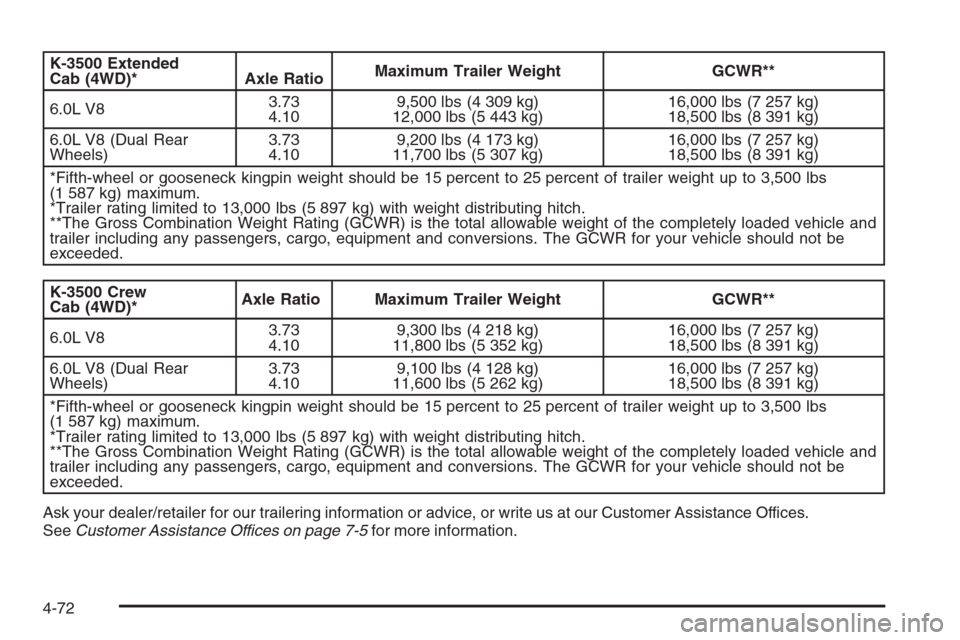

CHEVROLET SILVERADO 2008 2.G Owners Manual K-3500 Extended
Cab (4WD)* Axle RatioMaximum Trailer Weight GCWR**
6.0L V83.73
4.109,500 lbs (4 309 kg)
12,000 lbs (5 443 kg)16,000 lbs (7 257 kg)
18,500 lbs (8 391 kg)
6.0L V8 (Dual Rear
Wheels)3.73

Page 385 of 596

CHEVROLET SILVERADO 2008 2.G Owners Manual Weight of the Trailer Tongue
The tongue load (A) of any trailer is an important weight
to measure because it affects the total or gross weight
of your vehicle. The Gross Vehicle Weight (GVW)
includes

Page 386 of 596

CHEVROLET SILVERADO 2008 2.G Owners Manual Fifth wheel or gooseneck kingpin weight should be 15 to
25 percent of the trailer weight up to the maximum
amount speci�ed in the trailering chart for your vehicle.
See “Weight of the Trailer”, an

Page 387 of 596

CHEVROLET SILVERADO 2008 2.G Owners Manual But let’s say your speci�c vehicle is equipped with some
of the latest options and you have a front seat passenger
and two rear seat passengers with some luggage and
gear in the vehicle as well. You

Page 388 of 596

CHEVROLET SILVERADO 2008 2.G Owners Manual Hitches
It’s important to have the correct hitch equipment.
Crosswinds, large trucks going by and rough roads are
a few reasons why you’ll need the right hitch.
Weight-Distributing Hitches and Wei

Page 389 of 596

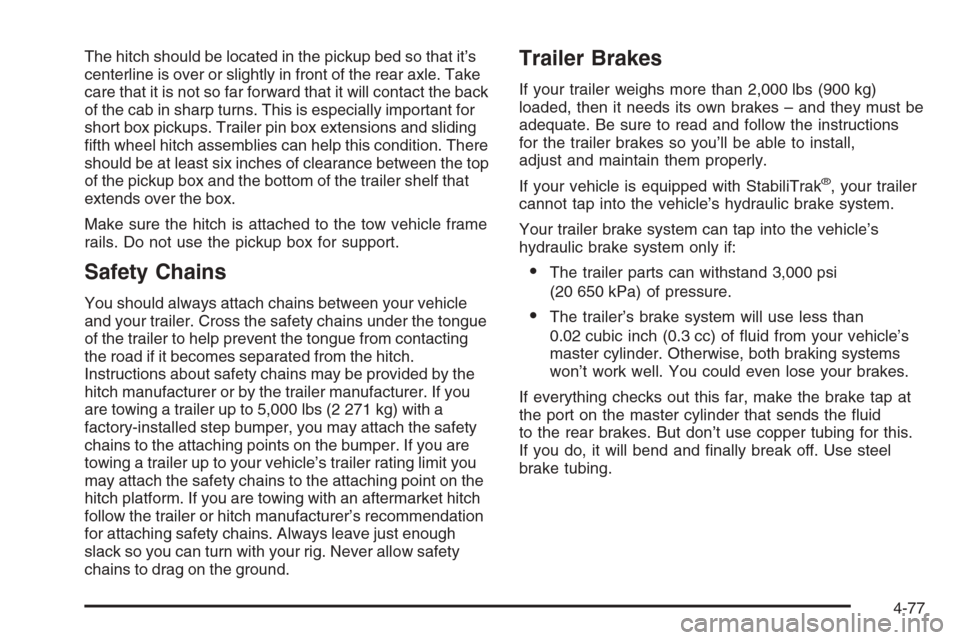

CHEVROLET SILVERADO 2008 2.G Owners Manual The hitch should be located in the pickup bed so that it’s
centerline is over or slightly in front of the rear axle. Take
care that it is not so far forward that it will contact the back
of the cab

Page 390 of 596

CHEVROLET SILVERADO 2008 2.G Owners Manual Integrated Trailer Brake Control
System
Your vehicle may have an
Integrated Trailer Brake
Control (ITBC) system for
electric trailer brakes.
This symbol is located on the Trailer Brake Control
Panel o
