CHEVROLET SILVERADO 2020 Owner's Manual

Chevrolet Silverado Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
13337620) - 2020 - CTC - 1/27/20
450 Service and Maintenance
Maintenance Replacement Parts
Replacement parts identified below by name, part number, or specification can be obtained from your dealer.
If the vehicle has a diesel engine, see the Duramax diesel supplement.Part GM Part Number ACDelco Part Number
Engine Air Cleaner/Filter With high capacity air cleaner 84121219 A3244C
Without high capacity air cleaner 84121217 A3246C
Oil Filter 2.7L L4 55495106 PF66
4.3L V6 12690385 PF63E
5.3L V8 12690385 PF63E
6.2L V8 12690385 PF63E
6.6L V8 12690385 PF63E
Passenger Compartment Air Filter 13508023 CF185
Spark Plugs 2.7L L4 12688094 41-106-IP
4.3L V6 12622441 41-114
5.3L V8 12622441 41-114
6.2L V8 12622441 41-114

Chevrolet Silverado Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
13337620) - 2020 - CTC - 1/27/20

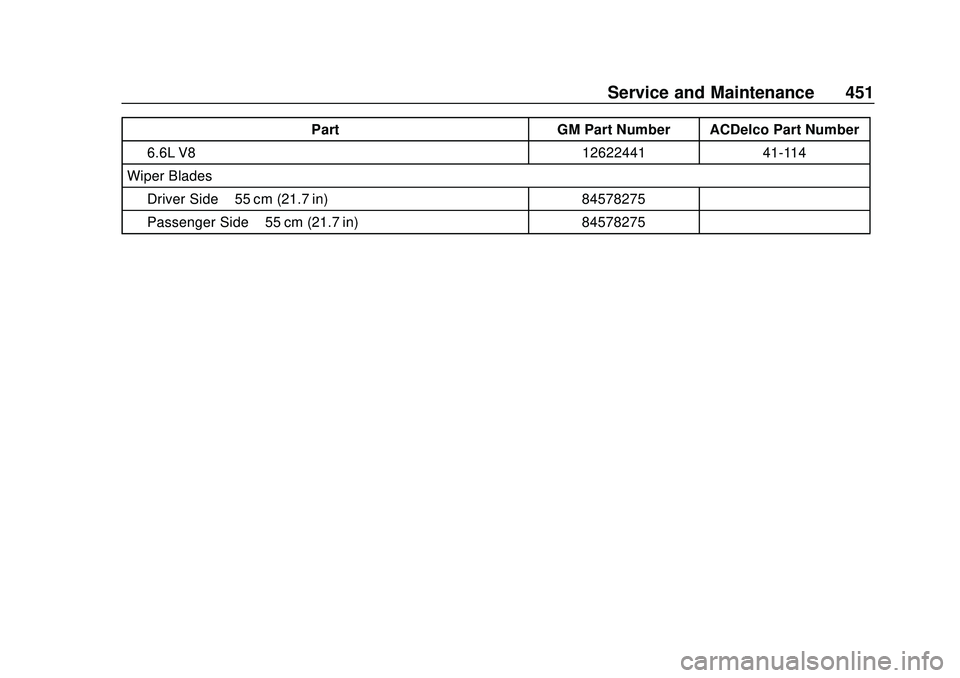

Service and Maintenance 451
PartGM Part Number ACDelco Part Number
6.6L V8 1262244141-114
Wiper Blades Driver Side –55 cm (21.7 in) 84578275—
Passenger Side –55 cm (21.7 in) 84578275—

Chevrolet Silverado Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
13337620) - 2020 - CTC - 1/27/20
452 Service and Maintenance

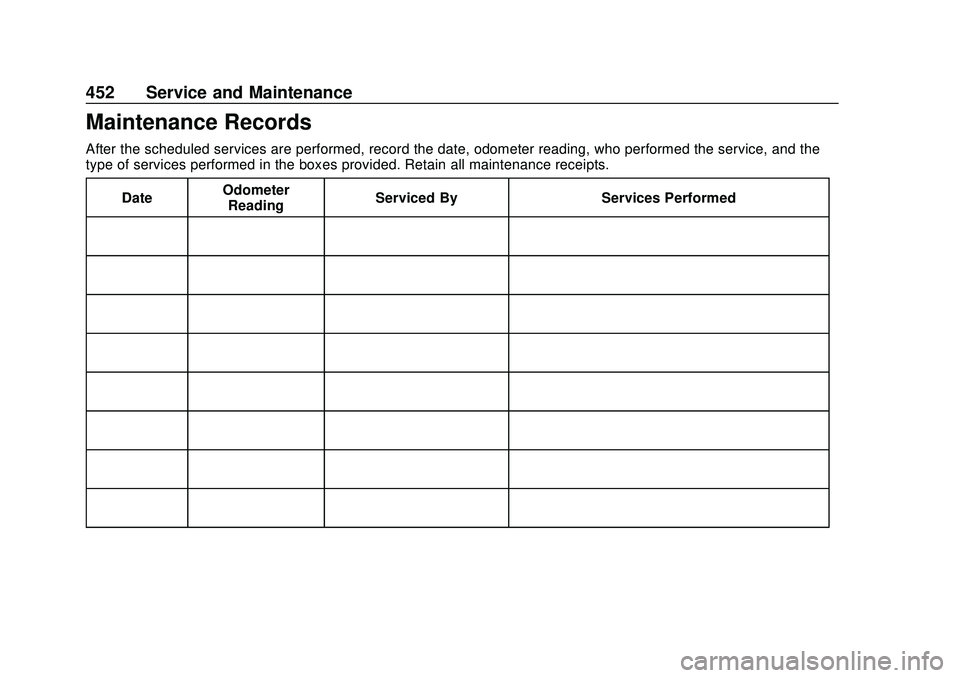

Maintenance Records
After the scheduled services are performed, record the date, odometer reading, who performed the service, and the
type of services performed in the boxes provided. Retain all maintenance receipts.Date Odometer
Reading Serviced By Services Performed

Chevrolet Silverado Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
13337620) - 2020 - CTC - 1/27/20

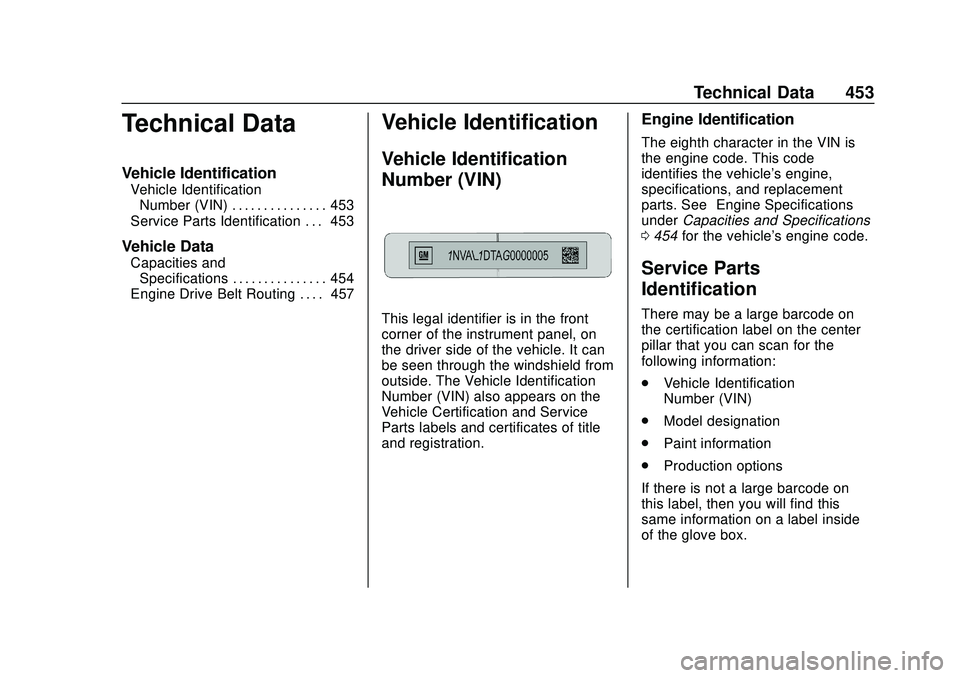

Technical Data 453
Technical Data
Vehicle Identification
Vehicle IdentificationNumber (VIN) . . . . . . . . . . . . . . . 453
Service Parts Identification . . . 453
Vehicle Data
Capacities and Specifications . . . . . . . . . . . . . . . 454
Engine Drive Belt Routing . . . . 457
Vehicle Identification
Vehicle Identification
Number (VIN)
This legal identifier is in the front
corner of the instrument panel, on
the driver side of the vehicle. It can
be seen through the windshield from
outside. The Vehicle Identification
Number (VIN) also appears on the
Vehicle Certification and Service
Parts labels and certificates of title
and registration.
Engine Identification
The eighth character in the VIN is
the engine code. This code
identifies the vehicle's engine,
specifications, and replacement
parts. See “Engine Specifications”
under Capacities and Specifications
0 454 for the vehicle's engine code.
Service Parts
Identification
There may be a large barcode on
the certification label on the center
pillar that you can scan for the
following information:
.
Vehicle Identification
Number (VIN)
. Model designation
. Paint information
. Production options
If there is not a large barcode on
this label, then you will find this
same information on a label inside
of the glove box.

Chevrolet Silverado Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
13337620) - 2020 - CTC - 1/27/20

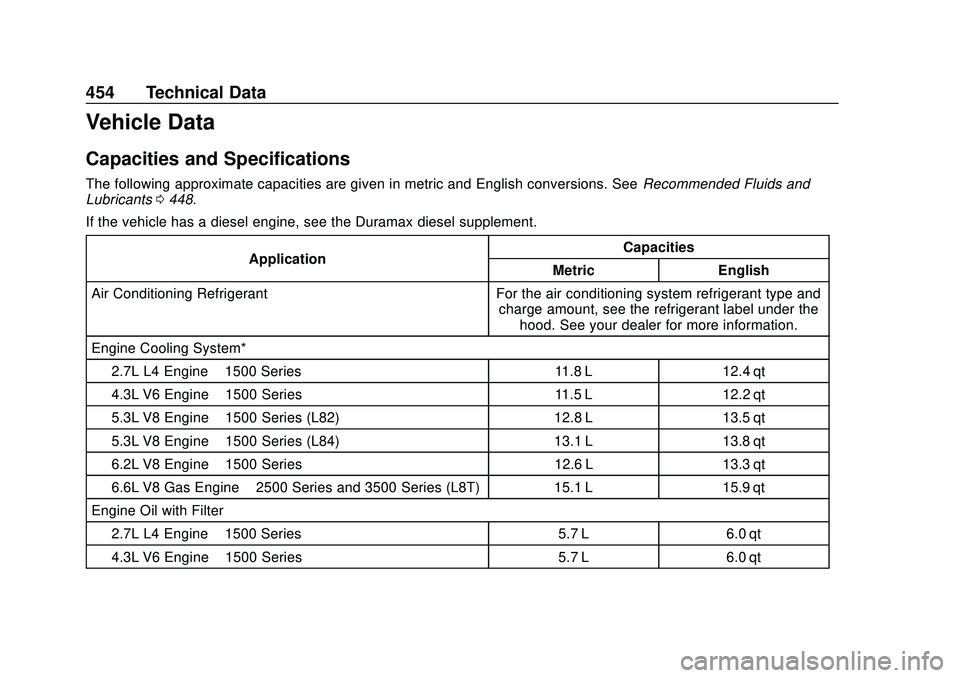

454 Technical Data
Vehicle Data
Capacities and Specifications
The following approximate capacities are given in metric and English conversions. SeeRecommended Fluids and
Lubricants 0448.
If the vehicle has a diesel engine, see the Duramax diesel supplement.
Application Capacities
Metric English
Air Conditioning Refrigerant For the air conditioning system refrigerant type and charge amount, see the refrigerant label under thehood. See your dealer for more information.
Engine Cooling System* 2.7L L4 Engine –1500 Series 11.8 L 12.4 qt
4.3L V6 Engine –1500 Series 11.5 L 12.2 qt
5.3L V8 Engine –1500 Series (L82) 12.8 L 13.5 qt
5.3L V8 Engine –1500 Series (L84) 13.1 L 13.8 qt
6.2L V8 Engine –1500 Series 12.6 L 13.3 qt
6.6L V8 Gas Engine –2500 Series and 3500 Series (L8T) 15.1 L 15.9 qt
Engine Oil with Filter 2.7L L4 Engine –1500 Series 5.7 L 6.0 qt
4.3L V6 Engine –1500 Series 5.7 L 6.0 qt

Chevrolet Silverado Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
13337620) - 2020 - CTC - 1/27/20

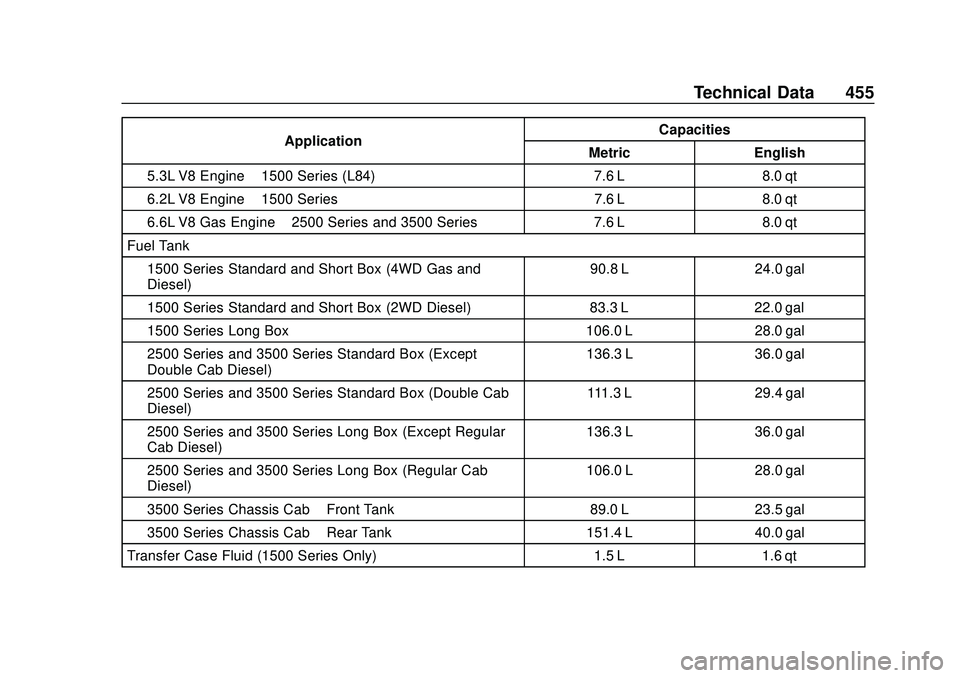

Technical Data 455
ApplicationCapacities
Metric English
5.3L V8 Engine –1500 Series (L84) 7.6 L 8.0 qt
6.2L V8 Engine –1500 Series 7.6 L 8.0 qt
6.6L V8 Gas Engine –2500 Series and 3500 Series 7.6 L 8.0 qt
Fuel Tank 1500 Series Standard and Short Box (4WD Gas and
Diesel) 90.8 L 24.0 gal
1500 Series Standard and Short Box (2WD Diesel) 83.3 L 22.0 gal
1500 Series Long Box 106.0 L 28.0 gal
2500 Series and 3500 Series Standard Box (Except
Double Cab Diesel) 136.3 L 36.0 gal
2500 Series and 3500 Series Standard Box (Double Cab
Diesel) 111.3 L 29.4 gal
2500 Series and 3500 Series Long Box (Except Regular
Cab Diesel) 136.3 L 36.0 gal
2500 Series and 3500 Series Long Box (Regular Cab
Diesel) 106.0 L 28.0 gal
3500 Series Chassis Cab –Front Tank 89.0 L 23.5 gal
3500 Series Chassis Cab –Rear Tank 151.4 L 40.0 gal
Transfer Case Fluid (1500 Series Only) 1.5 L 1.6 qt

Chevrolet Silverado Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
13337620) - 2020 - CTC - 1/27/20

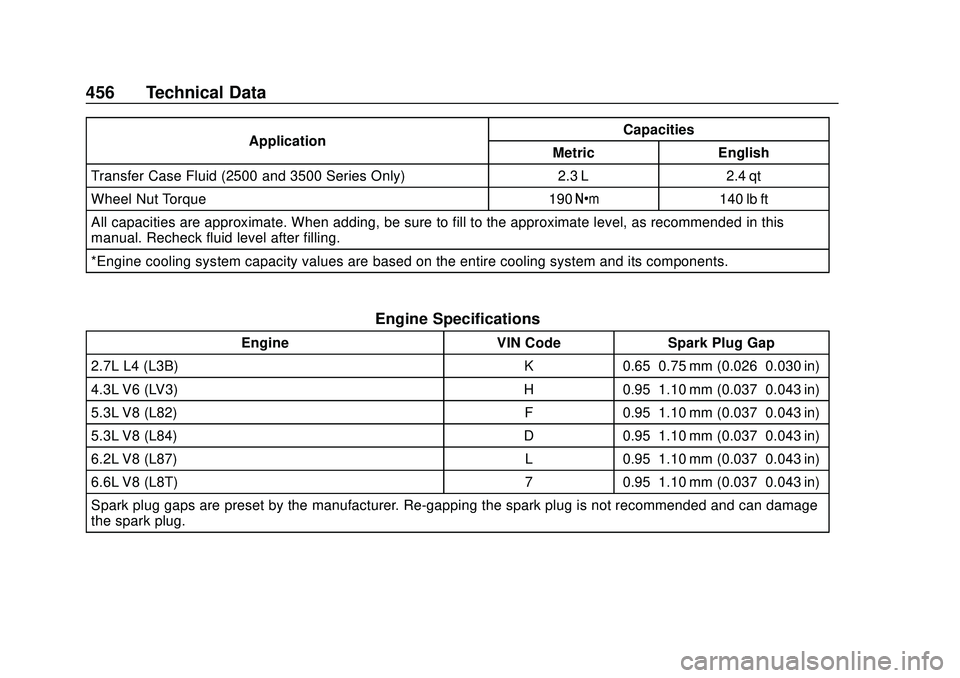

456 Technical Data
ApplicationCapacities
Metric English
Transfer Case Fluid (2500 and 3500 Series Only) 2.3 L 2.4 qt
Wheel Nut Torque 190 Y140 lb ft
All capacities are approximate. When adding, be sure to fill to the approximate level, as recommended in this
manual. Recheck fluid level after filling.
*Engine cooling system capacity values are based on the entire cooling system and its components.
Engine Specifications
Engine VIN CodeSpark Plug Gap
2.7L L4 (L3B) K0.65–0.75 mm (0.026–0.030 in)
4.3L V6 (LV3) H0.95–1.10 mm (0.037–0.043 in)
5.3L V8 (L82) F0.95–1.10 mm (0.037–0.043 in)
5.3L V8 (L84) D0.95–1.10 mm (0.037–0.043 in)
6.2L V8 (L87) L0.95–1.10 mm (0.037–0.043 in)
6.6L V8 (L8T) 70.95–1.10 mm (0.037–0.043 in)
Spark plug gaps are preset by the manufacturer. Re-gapping the spark plug is not recommended and can damage
the spark plug.

Chevrolet Silverado Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
13337620) - 2020 - CTC - 1/27/20
Technical Data 457

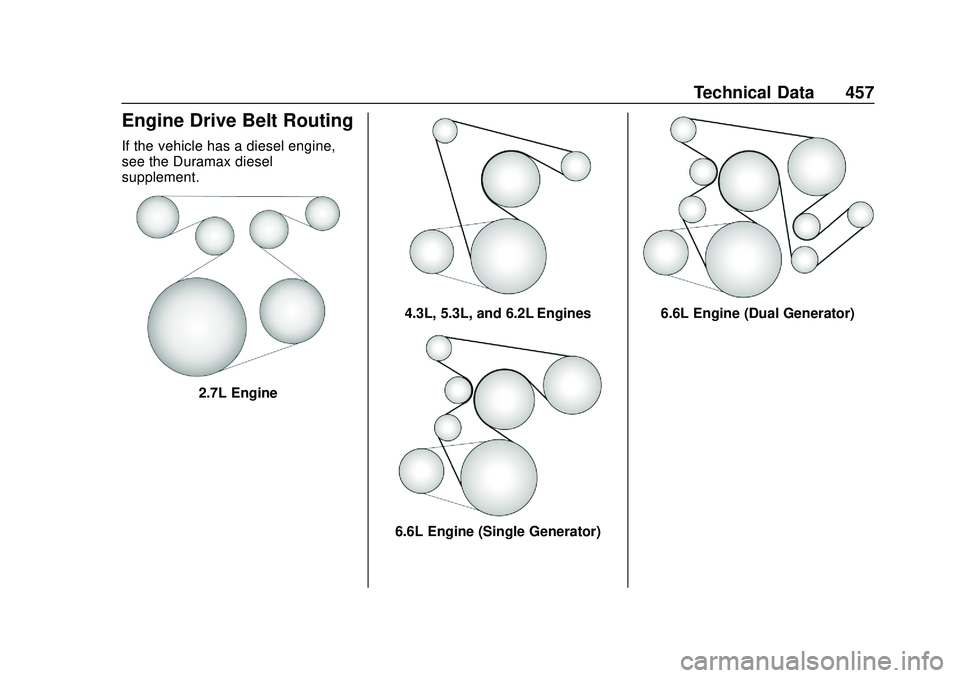

Engine Drive Belt Routing
If the vehicle has a diesel engine,
see the Duramax diesel
supplement.
2.7L Engine
4.3L, 5.3L, and 6.2L Engines
6.6L Engine (Single Generator)
6.6L Engine (Dual Generator)

Chevrolet Silverado Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
13337620) - 2020 - CTC - 1/27/20

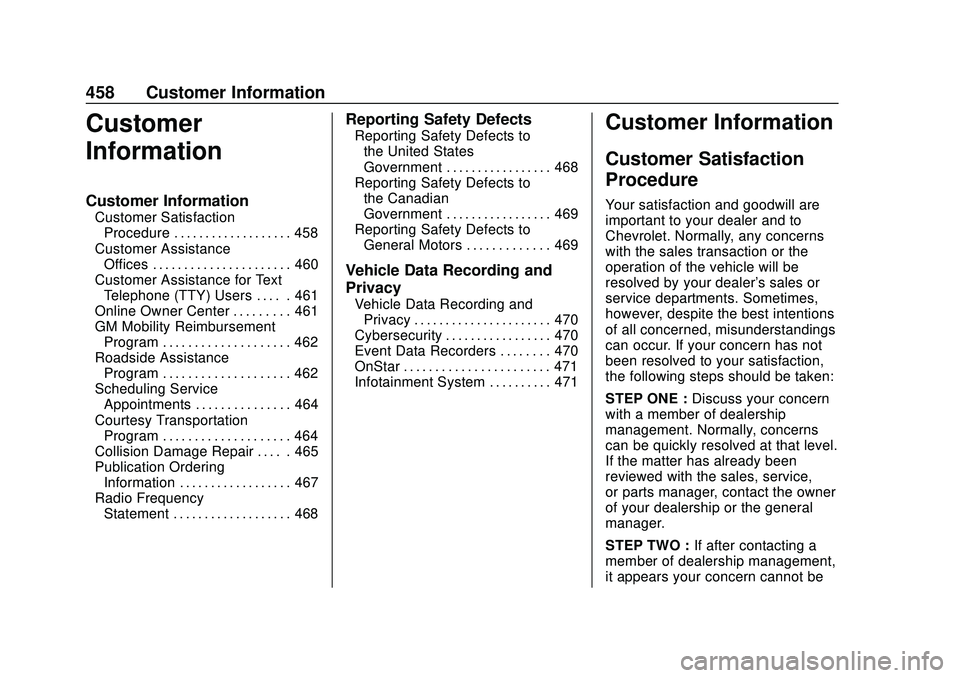

458 Customer Information
Customer
Information
Customer Information
Customer SatisfactionProcedure . . . . . . . . . . . . . . . . . . . 458
Customer Assistance Offices . . . . . . . . . . . . . . . . . . . . . . 460
Customer Assistance for Text Telephone (TTY) Users . . . . . 461
Online Owner Center . . . . . . . . . 461
GM Mobility Reimbursement Program . . . . . . . . . . . . . . . . . . . . 462
Roadside Assistance Program . . . . . . . . . . . . . . . . . . . . 462
Scheduling Service Appointments . . . . . . . . . . . . . . . 464
Courtesy Transportation Program . . . . . . . . . . . . . . . . . . . . 464
Collision Damage Repair . . . . . 465
Publication Ordering Information . . . . . . . . . . . . . . . . . . 467
Radio Frequency Statement . . . . . . . . . . . . . . . . . . . 468
Reporting Safety Defects
Reporting Safety Defects tothe United States
Government . . . . . . . . . . . . . . . . . 468
Reporting Safety Defects to the Canadian
Government . . . . . . . . . . . . . . . . . 469
Reporting Safety Defects to General Motors . . . . . . . . . . . . . 469
Vehicle Data Recording and
Privacy
Vehicle Data Recording andPrivacy . . . . . . . . . . . . . . . . . . . . . . 470
Cybersecurity . . . . . . . . . . . . . . . . . 470
Event Data Recorders . . . . . . . . 470
OnStar . . . . . . . . . . . . . . . . . . . . . . . 471
Infotainment System . . . . . . . . . . 471
Customer Information
Customer Satisfaction
Procedure
Your satisfaction and goodwill are
important to your dealer and to
Chevrolet. Normally, any concerns
with the sales transaction or the
operation of the vehicle will be
resolved by your dealer's sales or
service departments. Sometimes,
however, despite the best intentions
of all concerned, misunderstandings
can occur. If your concern has not
been resolved to your satisfaction,
the following steps should be taken:
STEP ONE : Discuss your concern
with a member of dealership
management. Normally, concerns
can be quickly resolved at that level.
If the matter has already been
reviewed with the sales, service,
or parts manager, contact the owner
of your dealership or the general
manager.
STEP TWO : If after contacting a
member of dealership management,
it appears your concern cannot be

Chevrolet Silverado Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
13337620) - 2020 - CTC - 1/27/20
Customer Information 459
resolved by your dealership without
further help, in the U.S., call the
Chevrolet Customer Assistance
Center at 1-800-222-1020. In
Canada, call General Motors of
Canada Customer Care Centre at
1-800-263-3777 (English),
or 1-800-263-7854 (French).
We encourage you to call the
toll-free number in order to give your
inquiry prompt attention. Have the
following information available to
give the Customer Assistance
representative:
.Vehicle Identification
Number (VIN). This is available
from the vehicle registration or
title, or the plate at the top left of
the instrument panel and visible
through the windshield.
. Dealership name and location.
. Vehicle delivery date and
present mileage.
When contacting Chevrolet,
remember that your concern will
likely be resolved at a dealer's
facility. That is why we suggest
following Step One first. STEP THREE
—U.S. Owners :
Both General Motors and your
dealer are committed to making
sure you are completely satisfied
with your new vehicle. However,
if you continue to remain unsatisfied
after following the procedure
outlined in Steps One and Two, you
can file with the Better Business
Bureau (BBB) Auto Line Program to
enforce your rights.
The BBB Auto Line Program is an
out-of-court program administered
by BBB National Programs, Inc. to
settle automotive disputes regarding
vehicle repairs or the interpretation
of the New Vehicle Limited
Warranty. Although you may be
required to resort to this informal
dispute resolution program prior to
filing a court action, use of the
program is free of charge and your
case will generally be heard within
40 days. If you do not agree with the
decision given in your case, you
may reject it and proceed with any
other venue for relief available
to you. You may contact the BBB Auto Line
Program using the toll-free
telephone number or write them at
the following address:
BBB Auto Line Program
BBB National Programs, Inc.
3033 Wilson Boulevard
Suite 600
Arlington, VA 22201
Telephone: 1-800-955-5100
http://www.bbb.org/council/
programs-services/
dispute-handling-and-resolution/
bbb-auto-line
This program is available in all
50 states and the District of
Columbia. Eligibility is limited by
vehicle age, mileage, and other
factors. General Motors reserves
the right to change eligibility
limitations and/or discontinue its
participation in this program.
