2. Press the button (2) in themiddle of the wiper arm
connector, and pull the wiper
blade away from the arm
connector (1).
3. Remove the wiper blade.
4. Reverse Steps 1–3 for wiper blade replacement.
Rear Wiper Blade Replacement
1. Pull the wiper arm (1) a shortdistance away from the glass.
2. Push the blade (2) away from the arm (1).
3. Once the blade pin disengages from the wiper arm, remove the
wiper blade by sliding the blade
off the arm.
4. Reverse the steps to install the new blade.
Headlamp Aiming
Headlamp aim has been preset and
should need no further adjustment.
If the vehicle is damaged in a crash,
the headlamp aim may be affected.
If adjustment to the headlamps is
necessary, see your dealer.

Black plate (24,1)Chevrolet Spark Owner Manual - 2013 - crc - 9/11/12
10-24 Vehicle Care
Bulb Replacement
For the proper type of replacement
bulbs, seeReplacement Bulbs on
page 10‑26.
For any bulb‐changing procedure
not listed in this section, contact
your dealer.
Halogen Bulbs
{WARNING
Halogen bulbs have pressurized
gas inside and can burst if you
drop or scratch the bulb. You or
others could be injured. Be sure
to read and follow the instructions
on the bulb package.
Headlamps, Front Turn
Signal and Parking
Lamps
High/Low-Beam Headlamp
1. Connector Retaining Tab
2. Connector Release
3. Headlamp Bulb To replace a headlamp bulb:
1. Open the hood. See
Hood on
page 10‑4.
2. Remove the connector retaining tab (1).
3. Disconnect the wiring harness connector from the bulb (3) by
pressing the connector
release (2) and pulling
straight back.
4. Remove the bulb (3) from the headlamp assembly by turning
counterclockwise and pulling
straight back.
5. Install the new bulb in the headlamp assembly by turning
clockwise.
6. Install the wiring harness connector to the bulb. Be sure
the connector release (2) locks
into place.
7. Install the connector retaining tab (1).

Black plate (25,1)Chevrolet Spark Owner Manual - 2013 - crc - 9/11/12
Vehicle Care 10-25
Front Turn Signal/Parking
Lamps
To replace a front turn signal bulb:
1. Open the hood. SeeHood on
page 10‑4.
2. Turn the bulb socket counterclockwise and pull it out
of the lamp housing.
3. Pull the bulb straight out of the bulb socket. 4. Install the new bulb into the
socket by pressing it in.
5. Install the socket into the lamp housing by turning it clockwise.

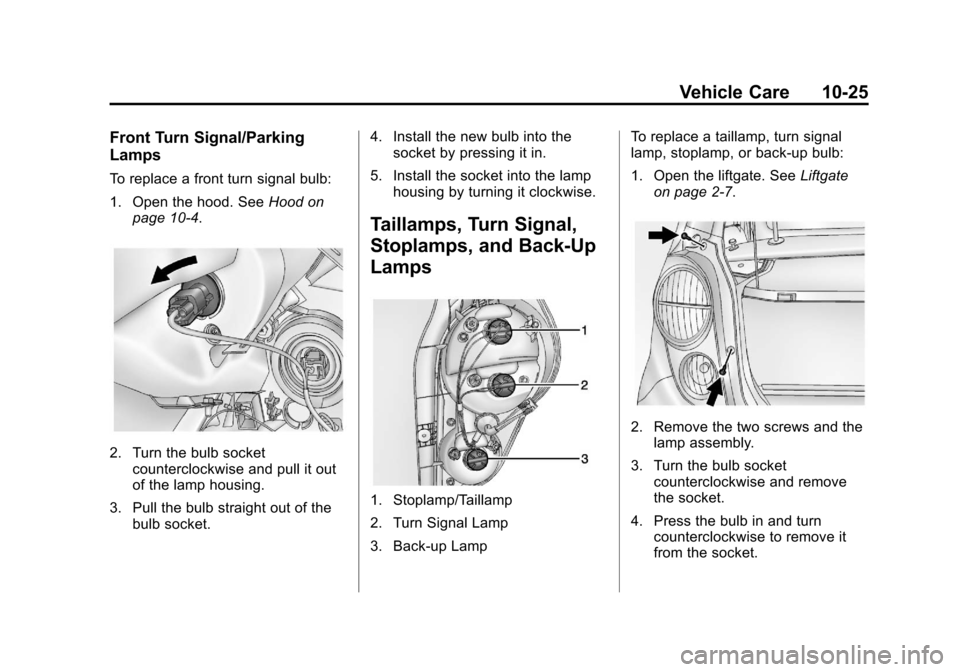

Taillamps, Turn Signal,
Stoplamps, and Back-Up
Lamps
1. Stoplamp/Taillamp
2. Turn Signal Lamp
3. Back-up Lamp To replace a taillamp, turn signal
lamp, stoplamp, or back-up bulb:
1. Open the liftgate. See
Liftgate
on page 2‑7.
2. Remove the two screws and the lamp assembly.
3. Turn the bulb socket counterclockwise and remove
the socket.
4. Press the bulb in and turn counterclockwise to remove it
from the socket.

Black plate (26,1)Chevrolet Spark Owner Manual - 2013 - crc - 9/11/12
10-26 Vehicle Care
5. Press the new bulb in and turnclockwise to install the bulb into
the socket.
6. Turn the bulb socket clockwise to reinstall.
7. Reinstall the lamp assembly and two screws.
License Plate Lamp
1. Attachment Screws
2. License Plate Bulb
3. Bulb Socket To replace a license plate
lamp bulb:
1. Remove the two screws (1) from
the license plate lamp assembly.
2. Turn and pull the license plate lamp assembly down.
3. Turn the bulb socket (3) counterclockwise and pull it out
of the lamp assembly.
4. Pull the bulb (2) straight out of the socket.
5. Push the new bulb into the socket.
6. Install the bulb socket (3) by turning clockwise into the license
plate lamp assembly.
7. Replace the license plate lamp assembly by using the two
screws to secure.
Replacement Bulbs
Exterior Lamp Bulb
Number
Back-Up Lamps 921
Front Turn Signal/
Parking Lamps 7444NA
High/Low-Beam
Headlamp H13
License
Plate Lamp W5W LL
Rear Turn Signal/
Taillamps 7443 LL
Stoplamp/
Taillamps 7443 LL
For replacement bulbs not listed
here, contact your dealer.

Black plate (27,1)Chevrolet Spark Owner Manual - 2013 - crc - 9/11/12
Vehicle Care 10-27
Electrical System
Electrical System
Overload
The vehicle has fuses and circuit
breakers to protect against an
electrical system overload.
When the current electrical load is
too heavy, the circuit breaker opens
and closes, protecting the circuit
until the current load returns to
normal or the problem is fixed. This
greatly reduces the chance of circuit
overload and fire caused by
electrical problems.
Fuses and circuit breakers protect
power devices in the vehicle.
Replace a bad fuse with a new one
of the identical size and rating.
If there is a problem on the road and
a fuse needs to be replaced, the
same amperage fuse can be
borrowed. Choose some feature of
the vehicle that is not needed to use
and replace it as soon as possible.
Headlamp Wiring
An electrical overload may cause
the lamps to go on and off, or in
some cases to remain off. Have the
headlamp wiring checked right away
if the lamps go on and off or
remain off.
Windshield Wipers
If the wiper motor overheats due to
heavy snow or ice, the windshield
wipers will stop until the motor cools
and will then restart.
Although the circuit is protected
from electrical overload, overload
due to heavy snow or ice may
cause wiper linkage damage.
Always clear ice and heavy snow
from the windshield before using the
windshield wipers.
If the overload is caused by an
electrical problem and not snow or
ice, be sure to get it fixed.
Fuses and Circuit
Breakers
The wiring circuits in the vehicle are
protected from short circuits by a
combination of fuses, circuit
breakers, and fusible thermal links.
This greatly reduces the chance of
fires caused by electrical problems.
Look at the silver-colored band
inside the fuse. If the band is broken
or melted, replace the fuse. Be sure
you replace a bad fuse with a new
one of the identical size and rating.
Fuses of the same amperage can
be temporarily borrowed from
another fuse location, if a fuse goes
out. Replace the fuse as soon as
you can.

Black plate (28,1)Chevrolet Spark Owner Manual - 2013 - crc - 9/11/12
10-28 Vehicle Care
Engine Compartment
Fuse Block
The engine compartment fuse block
is on the driver side of the vehicle,
near the battery.Notice:
Spilling liquid on any
electrical component on the
vehicle may damage it. Always
keep the covers on any electrical
component.
To access the fuses, press the tab
at the front of the cover, and lift the
cover.

Black plate (29,1)Chevrolet Spark Owner Manual - 2013 - crc - 9/11/12
Vehicle Care 10-29

Black plate (30,1)Chevrolet Spark Owner Manual - 2013 - crc - 9/11/12
10-30 Vehicle Care

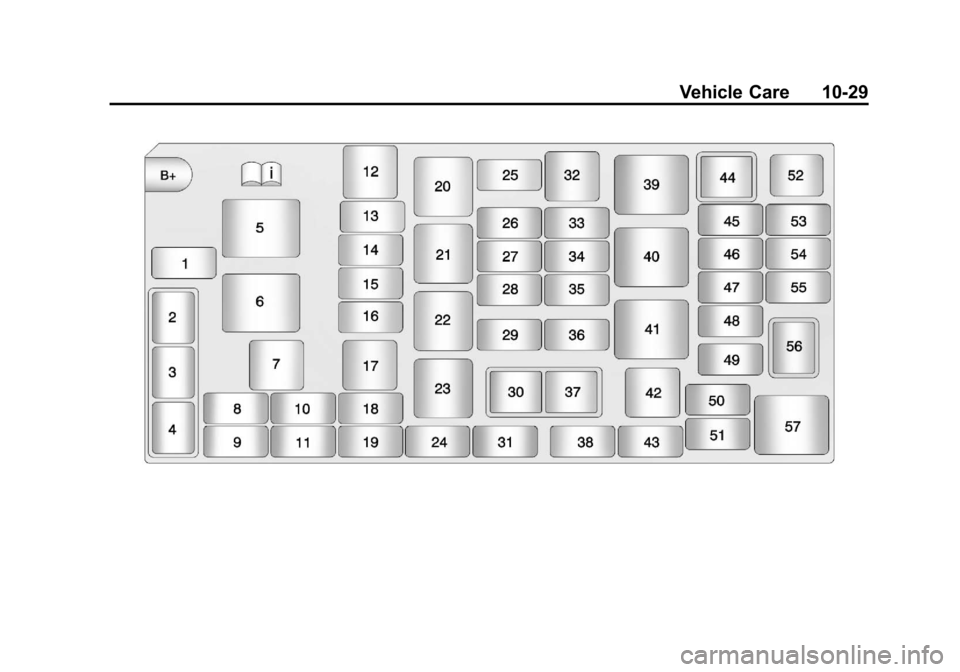

The vehicle may not be equipped
with all of the fuses, relays, and
features shown.Number Usage
1 Windshield Washer
2 Rear Window Washer Relay
3 Windshield Washer Relay
4 Horn Relay
5 Fan High Relay
6 Fan Low Relay
7 Antilock Brake System 1
8 Horn
9 Not Used
10 Not Used
11 Spare Fuse
12 Fan High
13 Front Fog Number Usage
14 Headlamp High Left
15 Headlamp High Right
16 Fan Low
17 Antilock Brake System 2
18 Not Used
19 Spare Fuse
20 Front Fog Relay
21 Headlamp High Relay
22 Fuel Pump Relay
23 Not Used
24 Spare Fuse
25 Antilock Brake System 3
26 EMIS 2
27 Canister
28 Fuel Pump Number Usage
29 Front Wiper
30 Front Wiper Control Relay
31 Spare Fuse
32 Starter
33 Ignition
34 EMIS 1
35 Not Used
36 Not Used
37 Front Wiper Speed Relay
38 Not Used
39 Start Relay
40 Engine Relay
41 RUN/CRANK Relay
42 Interior Electrical Center
43 Not Used

Black plate (31,1)Chevrolet Spark Owner Manual - 2013 - crc - 9/11/12
Vehicle Care 10-31
Number Usage44 Air Conditioning Relay
45 Air Conditioning
46 ECM/TCM 1
47 ECM/TCM 2
48 Low Vacuum Switch
49 Automatic Occupant Sensing
50 Mirror Heater
51 Rear Defog
52 Fuse Puller
53 Not Used
54 Voltage Sensing
55 Rear Wiper
56 Rear Wiper Relay
57 Rear Defog RelayAuxiliary Fuse Block
The auxiliary fuse block is located
on the driver side of the vehicle,
near the battery.
To access the fuses, press the tab
at the side of the cover, and lift the
cover.
The vehicle may not be equipped
with all of the fuses, relays, and
features shown. Number Usage
EVP RELAY EVP Relay EVP MTR EVP Motor

Black plate (32,1)Chevrolet Spark Owner Manual - 2013 - crc - 9/11/12
10-32 Vehicle Care
Instrument Panel Fuse
Block

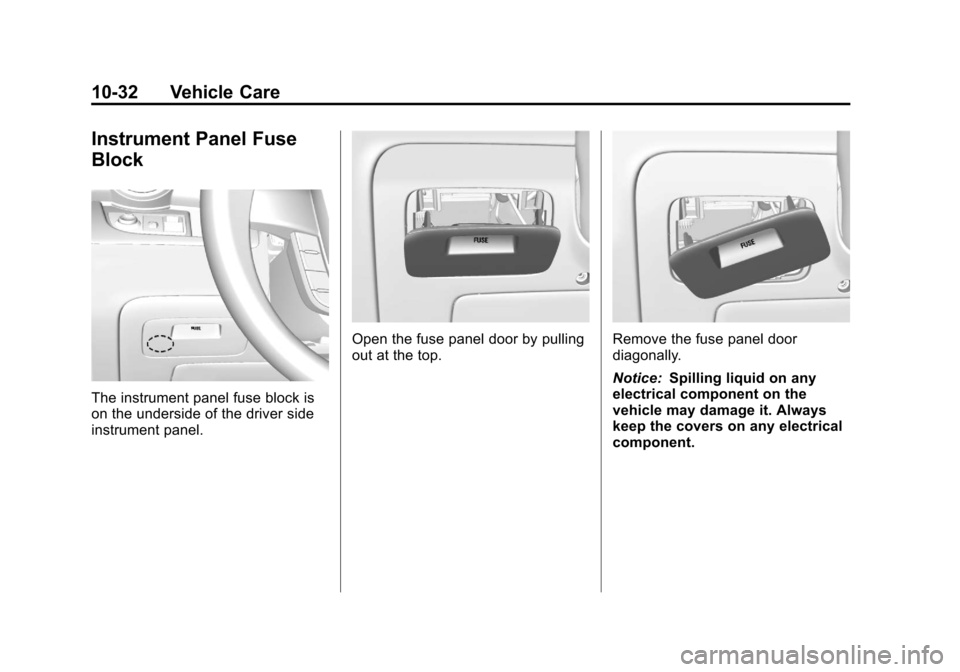

The instrument panel fuse block is
on the underside of the driver side
instrument panel.
Open the fuse panel door by pulling
out at the top.Remove the fuse panel door
diagonally.
Notice:Spilling liquid on any
electrical component on the
vehicle may damage it. Always
keep the covers on any electrical
component.
