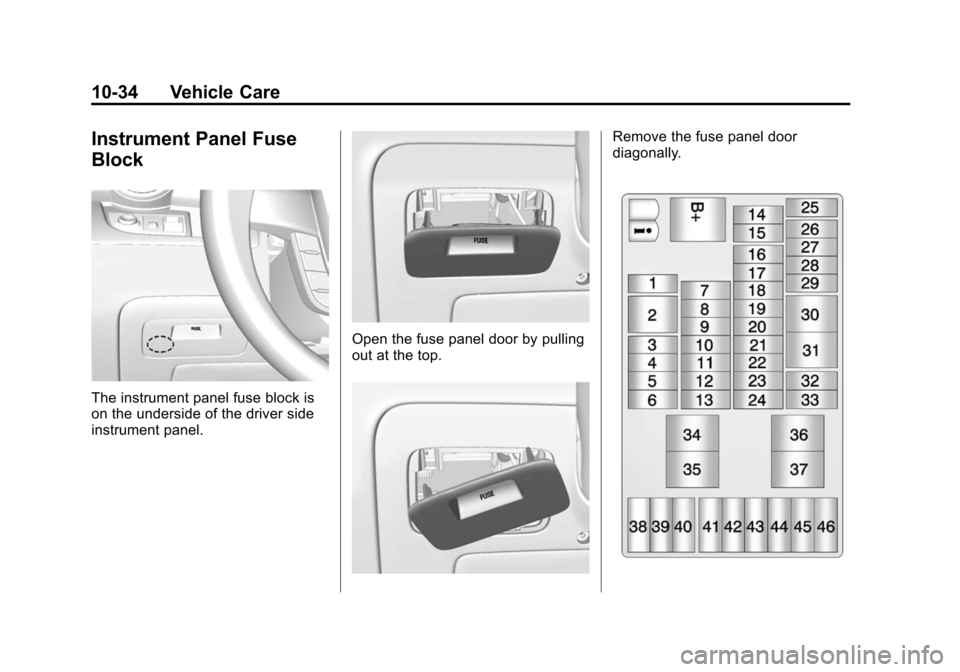

Instrument Panel Fuse
Block
The instrument panel fuse block is
on the underside of the driver side
instrument panel.
Open the fuse panel door by pulling
out at the top.
Remove the fuse panel door
diagonally.

Black plate (35,1)Chevrolet Spark Owner Manual (GMNA-Localizing-U.S./Canada-7707489) -
2015 - CRC - 11/19/14
Vehicle Care 10-35
The vehicle may not be equipped
with all of the fuses, relays, and
features shown.Number Usage
1 Not Used
2 Not Used
3 Heater, Ventilation, and Air
Conditioning
Switch
4 Heated Seat
5 Not Used
6 Blower
7 Body Control Module 4
8 Body Control Module 5
9 Body Control Module 7
10 Instrument Cluster
11 Not Used
12 Air Bag Power Number Usage
13 Radio
14 Switch Backlighting
15 Rear Parking Assist
16 Body Control Module 1
17 Body Control Module 2
18 Body Control Module 3
19 Body Control Module 6
20 Body Control Module 8
21 Heater, Ventilation, and Air
Conditioning
22 Data Link Connector
23 Discrete Logic Ignition Sensor Number Usage
24 Outside Rearview Mirror
25 Spare Fuse
26 Not Used
27 Not Used
28 Instrument Cluster
29 Air Bag Ignition
30 Rear Window
31 Front Window
32 Lighter/Auxiliary Power Outlet
33 Not Used
34 Run Relay
35 Logic Mode Relay
36 Accessory/ Retained
Accessory Power
Relay
37 Not Used
38 Radio

Black plate (36,1)Chevrolet Spark Owner Manual (GMNA-Localizing-U.S./Canada-7707489) -
2015 - CRC - 11/19/14
10-36 Vehicle Care

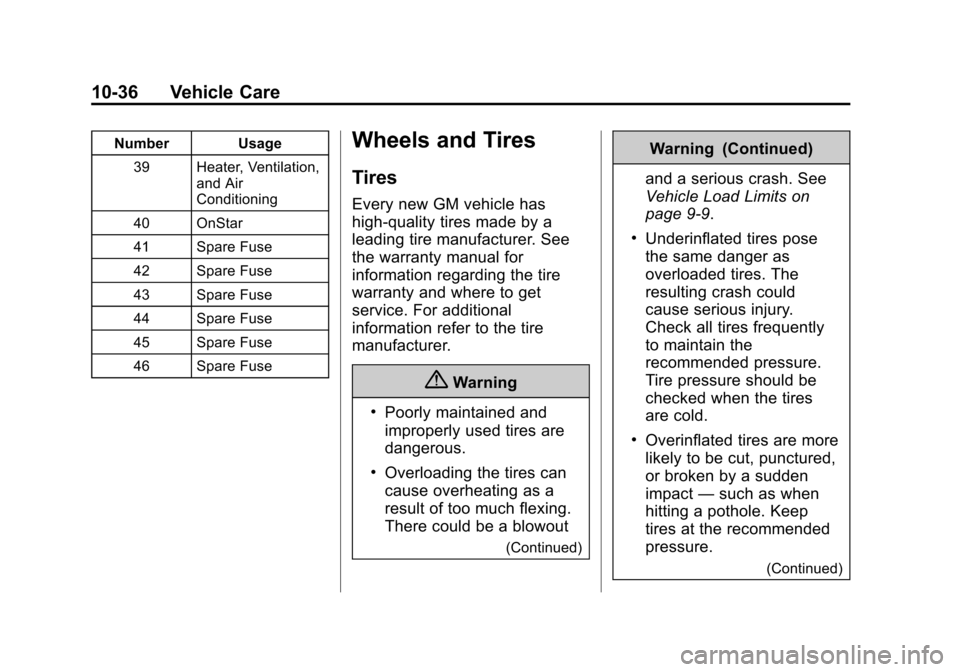

Number Usage39 Heater, Ventilation, and Air
Conditioning
40 OnStar
41 Spare Fuse
42 Spare Fuse
43 Spare Fuse
44 Spare Fuse
45 Spare Fuse
46 Spare FuseWheels and Tires
Tires
Every new GM vehicle has
high-quality tires made by a
leading tire manufacturer. See
the warranty manual for
information regarding the tire
warranty and where to get
service. For additional
information refer to the tire
manufacturer.
{Warning
.Poorly maintained and
improperly used tires are
dangerous.
.Overloading the tires can
cause overheating as a
result of too much flexing.
There could be a blowout
(Continued)
Warning (Continued)
and a serious crash. See
Vehicle Load Limits on
page 9-9.
.Underinflated tires pose
the same danger as
overloaded tires. The
resulting crash could
cause serious injury.
Check all tires frequently
to maintain the
recommended pressure.
Tire pressure should be
checked when the tires
are cold.
.Overinflated tires are more
likely to be cut, punctured,
or broken by a sudden
impact —such as when
hitting a pothole. Keep
tires at the recommended
pressure.
(Continued)
