keyless entry CHEVROLET SPARK 2015 3.G Owners Manual

Black plate (1,1)Chevrolet Spark Owner Manual (GMNA-Localizing-U.S./Canada-7707489) -
2015 - CRC - 11/19/14
In Brief 1-1
In Brief
Instrument Panel
Instrument Panel . . . . . . . . . . . . . . 1-2
Initial Drive Information
Initial Drive Information . . . . . . . . 1-3
Remote Keyless Entry (RKE)System . . . . . . . . . . . . . . . . . . . . . . 1-3
Door Locks . . . . . . . . . . . . . . . . . . . 1-4
Liftgate . . . . . . . . . . . . . . . . . . . . . . . . 1-4
Windows . . . . . . . . . . . . . . . . . . . . . . 1-6
Seat Adjustment . . . . . . . . . . . . . . 1-6
Second Row Seats . . . . . . . . . . . 1-7
Head Restraint Adjustment . . . . 1-7
Safety Belts . . . . . . . . . . . . . . . . . . . 1-7
Passenger Sensing System . . . 1-8
Mirror Adjustment . . . . . . . . . . . . . 1-8
Steering Wheel Adjustment . . . 1-9
Interior Lighting . . . . . . . . . . . . . . . 1-9
Exterior Lighting . . . . . . . . . . . . . 1-10
Windshield Wiper/Washer . . . . 1-10
Climate Controls . . . . . . . . . . . . . 1-11
Vehicle Features
Radio(s) . . . . . . . . . . . . . . . . . . . . . 1-11
Satellite Radio . . . . . . . . . . . . . . . 1-12
Portable Audio Devices . . . . . . 1-12
Bluetooth
®. . . . . . . . . . . . . . . . . . . 1-12
Steering Wheel Controls . . . . . 1-13
Cruise Control . . . . . . . . . . . . . . . 1-13
Driver Information
Center (DIC) . . . . . . . . . . . . . . . 1-14
Rear Vision Camera (RVC) . . . . . . . . . . . . . 1-14
Power Outlets . . . . . . . . . . . . . . . 1-14
Performance and Maintenance
Traction Control/Electronic Stability Control . . . . . . . . . . . . 1-15
Tire Pressure Monitor . . . . . . . . 1-15
Engine Oil Life System . . . . . . 1-15
Driving for Better Fuel Economy . . . . . . . . . . . . . . . . . . . 1-16
Roadside Assistance Program . . . . . . . . . . . . . . . . . . . . 1-16
OnStar
®. . . . . . . . . . . . . . . . . . . . . 1-16

Black plate (3,1)Chevrolet Spark Owner Manual (GMNA-Localizing-U.S./Canada-7707489) -
2015 - CRC - 11/19/14
In Brief 1-3
1.Air Vents on page 8-3.
2. Exterior Lamp Controls on
page 6-1.
3. Horn on page 5-2.
4. Instrument Cluster on page 5-8.
5. Windshield Wiper/Washer on
page 5-3.
6. Infotainment on page 7-1.
7. Information Display.
8. Hazard Warning Flashers on
page 6-3.
9. Instrument Panel Illumination
Control on page 6-5.
Power Mirrors on page 2-13 (If
Equipped).
10. Hood Release. See Hood on
page 10-5.
11. Data Link Connector (DLC) (Out of View). See Malfunction
Indicator Lamp on page 5-12.
12. Instrument Panel Fuse Block
on page 10-34. 13.
Cruise Control on page 9-30 (If
Equipped).
14. Steering Wheel Adjustment on
page 5-2.
15. Steering Wheel Controls on
page 5-2 (If Equipped).
16. Heated Front Seats on
page 3-7 (If Equipped).
17. Shift Lever. See Automatic
Transmission on page 9-21 (If
Equipped) or Manual
Transmission on page 9-23 (If
Equipped).
18. USB Port on page 7-16 (If
Equipped).
19. Climate Control Systems on
page 8-1.
20. Traction Control/Electronic
Stability Control on page 9-27.Initial Drive
Information
This section provides a brief
overview about some of the
important features that may or may
not be on your specific vehicle.
For more detailed information, refer
to each of the features which can be
found later in this owner manual.
Remote Keyless Entry
(RKE) System
For vehicles with the RKE
transmitter, it may work up to 60 m
(195 ft) away from the vehicle.

Black plate (4,1)Chevrolet Spark Owner Manual (GMNA-Localizing-U.S./Canada-7707489) -
2015 - CRC - 11/19/14
1-4 In Brief
Press the key release button to
extend the key blade. The key can
be used for the ignition and all
locks.
Press
Kto unlock the driver door or
all doors and the liftgate.
Press
Qto lock all doors and the
liftgate.
Lock and unlock feedback can be
personalized. See Vehicle
Personalization on page 5-27.
Press and release
7to initiate
vehicle locator. Press and hold
7for at least
three seconds to sound the panic
alarm.
Press
7again to cancel the panic
alarm.
See Keys on page 2-1 andRemote
Keyless Entry (RKE) System
Operation on page 2-3.
Door Locks
To lock or unlock the doors from
outside the vehicle:
.Use the key in the driver door to
lock and unlock the door.
.PressQorKon the Remote
Keyless Entry (RKE) transmitter,
if equipped, to lock and unlock
the doors. See Remote Keyless
Entry (RKE) System Operation
on page 2-3.
To lock or unlock the doors from
inside the vehicle:
.PressQorK, if equipped.
.Use the lock knob on the top of
the door panel.
See Door Locks on page 2-5 and
Central Locking System on
page 2-6.
Liftgate
To lock or unlock the liftgate from
the outside, use the key in the
liftgate lock.

Black plate (5,1)Chevrolet Spark Owner Manual (GMNA-Localizing-U.S./Canada-7707489) -
2015 - CRC - 11/19/14
In Brief 1-5

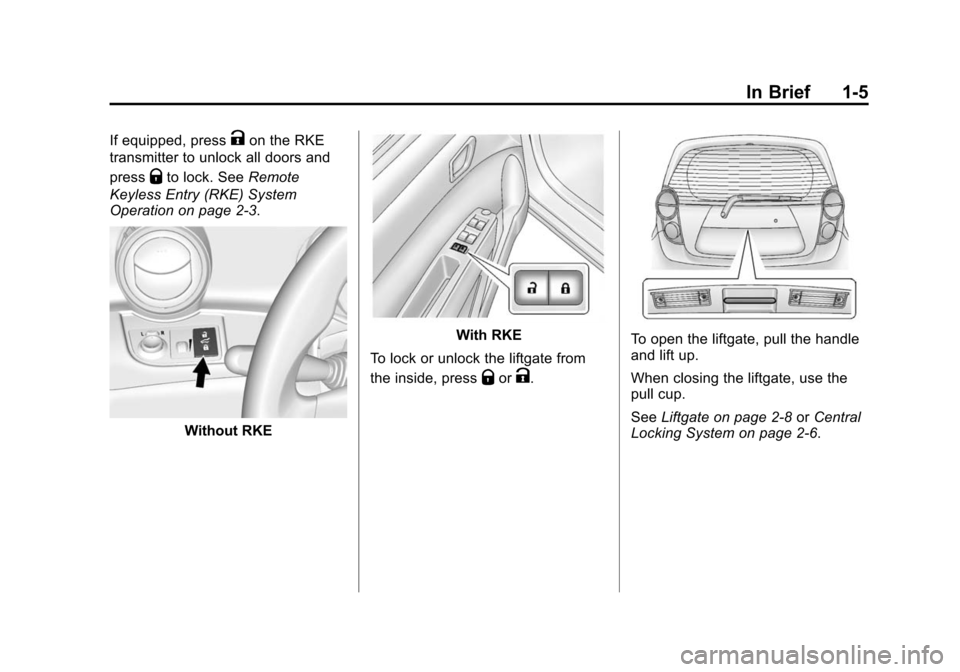

If equipped, pressKon the RKE
transmitter to unlock all doors and
press
Qto lock. See Remote
Keyless Entry (RKE) System
Operation on page 2-3.
Without RKE
With RKE
To lock or unlock the liftgate from
the inside, press
QorK.
To open the liftgate, pull the handle
and lift up.
When closing the liftgate, use the
pull cup.
See Liftgate on page 2-8 orCentral
Locking System on page 2-6.

Black plate (1,1)Chevrolet Spark Owner Manual (GMNA-Localizing-U.S./Canada-7707489) -
2015 - CRC - 11/19/14
Keys, Doors, and Windows 2-1
Keys, Doors, and
Windows
Keys and Locks
Keys . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1
Remote Keyless Entry (RKE)System . . . . . . . . . . . . . . . . . . . . . . 2-2
Remote Keyless Entry (RKE) System Operation . . . . . . . . . . . 2-3
Door Locks . . . . . . . . . . . . . . . . . . . 2-5
Central Locking System . . . . . . . 2-6
Door Ajar Reminder . . . . . . . . . . . 2-6
Delayed Locking . . . . . . . . . . . . . . 2-6
Automatic Door Locks . . . . . . . . . 2-7
Lockout Protection . . . . . . . . . . . . 2-7
Safety Locks . . . . . . . . . . . . . . . . . . 2-7
Doors
Liftgate . . . . . . . . . . . . . . . . . . . . . . . . 2-8
Vehicle Security
Vehicle Security . . . . . . . . . . . . . . 2-10
Vehicle Alarm System . . . . . . . 2-10
Immobilizer . . . . . . . . . . . . . . . . . . 2-11
Immobilizer Operation . . . . . . . . 2-11
Exterior Mirrors
Convex Mirrors . . . . . . . . . . . . . . 2-12
Manual Mirrors . . . . . . . . . . . . . . . 2-13
Power Mirrors . . . . . . . . . . . . . . . . 2-13
Folding Mirrors . . . . . . . . . . . . . . . 2-13
Interior Mirrors
Interior Rearview Mirrors . . . . . 2-14
Manual Rearview Mirror . . . . . . 2-14
Windows
Windows . . . . . . . . . . . . . . . . . . . . . 2-14
Power Windows . . . . . . . . . . . . . 2-14
Sun Visors . . . . . . . . . . . . . . . . . . . 2-15
Keys and Locks
Keys
{Warning
Leaving children in a vehicle with
the ignition key is dangerous and
children or others could be
seriously injured or killed. They
could operate the power windows
or other controls or make the
vehicle move. The windows will
function with the keys in the
ignition, and children or others
could be caught in the path of a
closing window. Do not leave
children in a vehicle with the
ignition key.

Black plate (2,1)Chevrolet Spark Owner Manual (GMNA-Localizing-U.S./Canada-7707489) -
2015 - CRC - 11/19/14
2-2 Keys, Doors, and Windows
Base Level Key
Uplevel Key
The key that is part of the Remote
Keyless Entry (RKE) transmitter can
be used for the ignition and all
locks.
Press the key release button on the
RKE transmitter to extend the key.
Press the button and the key blade
to retract the key.
See your dealer if a new key is
needed. If it becomes difficult to turn the key,
inspect the key blade for debris.
Periodically clean with a brush
or pick.
If you are locked out of the vehicle,
see
Roadside Assistance Program
on page 13-5.
With an active OnStar subscription,
an OnStar Advisor may remotely
unlock the vehicle. See OnStar
Overview on page 14-1.Remote Keyless Entry
(RKE) System
See Radio Frequency Statement on
page 13-12.
If there is a decrease in the RKE
operating range:
.Check the distance. The
transmitter may be too far from
the vehicle.
.Check the location. Other
vehicles or objects may be
blocking the signal.

Black plate (3,1)Chevrolet Spark Owner Manual (GMNA-Localizing-U.S./Canada-7707489) -
2015 - CRC - 11/19/14
Keys, Doors, and Windows 2-3
.Check the transmitter's battery.
See“Battery Replacement” later
in this section.
.If the transmitter is still not
working correctly, see your
dealer or a qualified technician
for service.
Remote Keyless Entry
(RKE) System Operation
The RKE transmitter may work up to
60 m (195 ft) away from the vehicle.
Other conditions can affect the
performance of the transmitter. See
Remote Keyless Entry (RKE)
System on page 2-2.
The following buttons are on the
transmitter:
Q(Lock): Press once to lock all
doors and the liftgate. The turn
signal indicators may flash and/or
the horn may sound to indicate
locking.
If any door is open when
Qis
pressed, all doors and the liftgate
will lock, if Unlocked Door Anti Lock
Out is disabled through vehicle
personalization. If Unlocked Door
Anti Lock Out is enabled, only the
driver door unlocks. See
“Unlocked Door Anti Lock Out”
under Vehicle Personalization on
page 5-27.
Pressing
Qmay also arm the
theft-deterrent system. See Vehicle
Alarm System on page 2-10.
Pressing
Qon the transmitter will
also lock the fuel door.
K(Unlock): Press to unlock the
driver door. Press again to unlock all
doors and the liftgate. The turn
signal indicators flash to indicate
unlocking has occurred.
See “Remote Door Unlock” under
Vehicle Personalization on
page 5-27.
Pressing
Kmay also disarm the
theft-deterrent system. See Vehicle
Alarm System on page 2-10.
Pressing
Kon the transmitter will
also unlock the fuel door.

Black plate (6,1)Chevrolet Spark Owner Manual (GMNA-Localizing-U.S./Canada-7707489) -
2015 - CRC - 11/19/14
2-6 Keys, Doors, and Windows
Warning (Continued)
injuries or even death from
heat stroke. Always lock the
vehicle whenever leaving it.
.Outsiders can easily enter
through an unlocked door
when you slow down or stop
the vehicle. Locking the doors
can help prevent this from
happening.
To lock or unlock the doors from
outside the vehicle:
.Use the key in the driver door to
lock and unlock the door.
.PressQorKon the Remote
Keyless Entry (RKE) transmitter,
if equipped, to lock and unlock
the doors. See Remote Keyless
Entry (RKE) System Operation
on page 2-3.
To lock or unlock the doors from
inside the vehicle:
.PressQorK, if equipped.
.Use the lock knob on the top of
the door panel.
Central Locking System
This system allows the doors and
liftgate to be locked and unlocked
by using the Remote Keyless Entry
(RKE) transmitter or by using the
key in the driver door.
See Door Locks on page 2-5 and
Liftgate on page 2-8.
Door Ajar Reminder
If one of the doors or the liftgate is
not closed properly while the ignition
is on, the door ajar light on the
instrument cluster comes on and
stays on until the doors are closed.
See Door Ajar Light on page 5-22.
Delayed Locking
This feature delays the locking of
the doors until five seconds after all
doors are closed.
When
Qis pressed on the power
door lock switch while the door is
open, a chime will sound three
times indicating delayed locking is
active.
The doors will lock automatically
five seconds after all doors are
closed. If a door is reopened before
that time, the five-second timer will
reset when all doors are closed
again.

Black plate (9,1)Chevrolet Spark Owner Manual (GMNA-Localizing-U.S./Canada-7707489) -
2015 - CRC - 11/19/14
Keys, Doors, and Windows 2-9
Warning (Continued)
.Adjust the climate control
system to a setting that
brings in only outside air and
set the fan speed to the
highest setting. See“Climate
Control Systems” in the
Index.
.If the vehicle is equipped with
a power liftgate, disable the
power liftgate function.
For more information about
carbon monoxide, see Engine
Exhaust on page 9-20.
{Caution
To avoid damage to the liftgate or
liftgate glass, make sure the area
above and behind the liftgate is
clear before opening it. To lock or unlock the liftgate from
the outside, use the key in the
liftgate lock.
If equipped, press
Kon the RKE
transmitter to unlock all doors and
press
Qto lock. See Remote
Keyless Entry (RKE) System
Operation on page 2-3.
Without RKE
With RKE
To lock or unlock the liftgate from
the inside, press
QorK.

Black plate (30,1)Chevrolet Spark Owner Manual (GMNA-Localizing-U.S./Canada-7707489) -
2015 - CRC - 11/19/14
5-30 Instruments and Controls
Exit Lighting
Select to set how long the exterior
lamps stay on when leaving the
vehicle and it is dark outside.
1. Turn the MENU/TUNE knob tothe desired time.
2. Press the MENU/TUNE knob to select.
Power Door Locks
Select Power Door Locks and the
following may be displayed:
.Auto Door Unlock
.Unlocked Door Anti Lock Out
.Delayed Door Lock
Auto Door Unlock
Select to set which of the doors will
automatically unlock when the
vehicle is shifted into P (Park) with
an automatic transmission, or when
the key is removed from the ignition
with a manual transmission. Select
All Doors, Driver Door, or Off. 1. Turn the MENU/TUNE knob to
the desired selection.
2. Press the MENU/TUNE knob to select.
Unlocked Door Anti Lock Out
When on, this feature will keep the
driver door from locking when the
door is open. If Off is selected, the
Delayed Door Lock menu will be
available and the door will lock as
programmed through this menu.
1. Turn the MENU/TUNE knob to On or Off.
2. Press the MENU/TUNE knob to select.
Delayed Door Lock
When on, this feature will delay the
locking of the doors after the last
door is closed.
1. Turn the MENU/TUNE knob to On or Off.
2. Press the MENU/TUNE knob to select.
Lock, Unlock Settings
Select Power Door Locks and the
following may be displayed:
.Remote Unlock Light Feedback
.Remote Lock Light and Horn
Feedback
.Remote Door Unlock
Remote Unlock Light Feedback
When on, the exterior lamps will
flash when unlocking the vehicle
with the Remote Keyless Entry
(RKE) transmitter. Select Flash
Lights or Lights Off.
1. Turn the MENU/TUNE knob to the desired selection.
2. Press the MENU/TUNE knob to select.
Remote Lock Light and Horn
Feedback
Select to set which type of feedback
is given when pressing
Qon the
RKE transmitter. Select Lights and
Horn, Lights Only, Horn Only, or Off.
