Vehicle Care 185
4. Pull the bulb (2) straight out of thesocket.
5. Push the new bulb into the socket.
6. Install the bulb socket (3) by turning clockwise into the license plate lamp
assembly.
7. Replace the license plate lamp assembly by using the two screws to secure.
Electrical System
Electrical System Overload
The vehicle has fuses and circuit breakers to
protect against an electrical system
overload.
When the current electrical load is too
heavy, the circuit breaker opens and closes,
protecting the circuit until the current load
returns to normal or the problem is fixed.
This greatly reduces the chance of circuit
overload and fire caused by electrical
problems.
Fuses and circuit breakers protect power
devices in the vehicle.
Replace a bad fuse with a new one of the
identical size and rating. If there is a problem on the road and a fuse
needs to be replaced, the same amperage
fuse can be borrowed. Choose some feature
of the vehicle that is not needed to use and
replace it as soon as possible.
Headlamp Wiring
An electrical overload may cause the lamps
to go on and off, or in some cases to
remain off. Have the headlamp wiring
checked right away if the lamps go on and
off or remain off.
Windshield Wipers
If the wiper motor overheats due to heavy
snow or ice, the windshield wipers will stop
until the motor cools and will then restart.
Although the circuit is protected from
electrical overload, overload due to heavy
snow or ice may cause wiper linkage
damage. Always clear ice and heavy snow
from the windshield before using the
windshield wipers.
If the overload is caused by an electrical
problem and not snow or ice, be sure to get
it fixed.
Fuses and Circuit Breakers
The wiring circuits in the vehicle are
protected from short circuits by a
combination of fuses and circuit breakers.
This greatly reduces the chance of damage
caused by electrical problems.
{Danger
Fuses and circuit breakers are marked
with their ampere rating. Do not exceed
the specified amperage rating when
replacing fuses and circuit breakers. Use
of an oversized fuse or circuit breaker can
result in a vehicle fire. You and others
could be seriously injured or killed.
{Warning
Installation or use of fuses that do not
meet GM’s original fuse specifications is
dangerous. The fuses could fail, and result
(Continued)

Chevrolet Spark Owner Manual (GMNA-Localizing-U.S./Canada-14622955) -
2021 - CRC - 8/17/20
Vehicle Care 187
FusesUsage
2 Transmission output speed sensor
3 Rear defogger
4 Outside mirror heater 5 Sunroof
6 Continuously variable transmission control
module
7 Mass airflow sensor
8 –
9 ABS valve
10 Regulated voltage control
11 Rear vision camera
12 –
13 –
14 Engine control module/ Transmission control
module
15 Fuel injection control module/Starter motor
16 Fuel pump motor Fuses
Usage
17 Engine control module 1
18 Engine control module 2
19 Injector/Ignition
20 A/C system 21 Intelligent battery sensor
22 Electric steering column lock
23 Cooling fan –low
24 Virtual key pass system sensor
25 Outside mirror motor control
26 Engine control module/ Transmission control
module battery
27 Canister vent solenoid
28 –
29 Automatic occupant sensing
30 Headlamp leveling motor Fuses
Usage
31 Horn
32 Front fog lamps
33 Left high-beam headlamp
34 Right high-beam headlamp
35 Air quality ionizer
36 Rear wiper 37 Left cornering lamp
38 Washer motor
39 Right cornering lamp
40 –
41 Virtual key pass system sensor
42 Starter 2
43 In-panel bussed electrical center
44 Automated manual transmission
45 Starter 1
46 ABS pump

Chevrolet Spark Owner Manual (GMNA-Localizing-U.S./Canada-14622955) -
2021 - CRC - 8/17/20

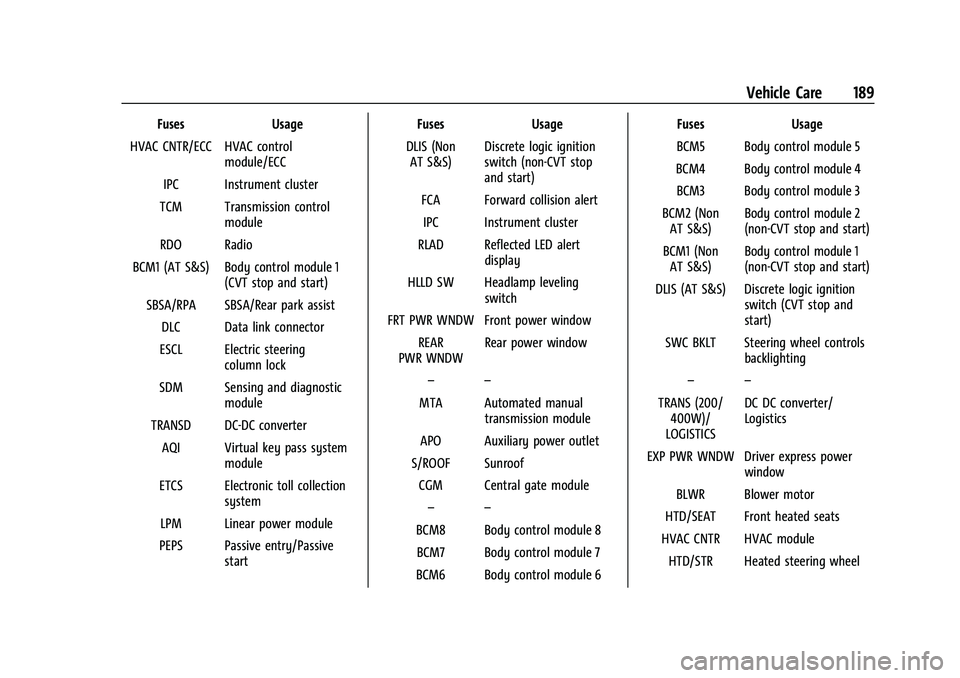

Vehicle Care 189
FusesUsage
HVAC CNTR/ECC HVAC control module/ECC
IPC Instrument cluster
TCM Transmission control module
RDO Radio
BCM1 (AT S&S) Body control module 1 (CVT stop and start)
SBSA/RPA SBSA/Rear park assist DLC Data link connector
ESCL Electric steering column lock
SDM Sensing and diagnostic module
TRANSD DC-DC converter AQI Virtual key pass system module
ETCS Electronic toll collection system
LPM Linear power module
PEPS Passive entry/Passive start Fuses
Usage
DLIS (Non AT S&S) Discrete logic ignition
switch (non-CVT stop
and start)
FCA Forward collision alert IPC Instrument cluster
RLAD Reflected LED alert display
HLLD SW Headlamp leveling switch
FRT PWR WNDW Front power window REAR
PWR WNDW Rear power window
– –
MTA Automated manual transmission module
APO Auxiliary power outlet
S/ROOF Sunroof CGM Central gate module – –
BCM8 Body control module 8 BCM7 Body control module 7
BCM6 Body control module 6 Fuses
Usage
BCM5 Body control module 5
BCM4 Body control module 4 BCM3 Body control module 3
BCM2 (Non AT S&S) Body control module 2
(non-CVT stop and start)
BCM1 (Non AT S&S) Body control module 1
(non-CVT stop and start)
DLIS (AT S&S) Discrete logic ignition switch (CVT stop and
start)
SWC BKLT Steering wheel controls backlighting
– –
TRANS (200/ 400W)/
LOGISTICS DC DC converter/
Logistics
EXP PWR WNDW Driver express power window
BLWR Blower motor
HTD/SEAT Front heated seats
HVAC CNTR HVAC module HTD/STR Heated steering wheel

Chevrolet Spark Owner Manual (GMNA-Localizing-U.S./Canada-14622955) -
2021 - CRC - 8/17/20
Vehicle Care 205
wheel leaks air, replace it. Some aluminum
wheels can be repaired. See your dealer if
any of these conditions exist.
Your dealer will know the kind of wheel that
is needed.
Each new wheel should have the same
load-carrying capacity, diameter, width,
offset, and be mounted the same way as
the one it replaces.
Replace wheels, wheel bolts, wheel nuts,
or Tire Pressure Monitor System (TPMS)
sensors with new GM original equipment
parts.
{Warning
Using the wrong replacement wheels,
wheel bolts, or wheel nuts can be
dangerous. It could affect the braking and
handling of the vehicle. Tires can lose air,
and cause loss of control, causing a crash.
Always use the correct wheel, wheel
bolts, and wheel nuts for replacement.
Caution
The wrong wheel can also cause
problems with bearing life, brake cooling,
speedometer or odometer calibration,
headlamp aim, bumper height, vehicle
ground clearance, and tire or tire chain
clearance to the body and chassis.
Used Replacement Wheels
{Warning
Replacing a wheel with a used one is
dangerous. How it has been used or how
far it has been driven may be unknown.
It could fail suddenly and cause a crash.
When replacing wheels, use a new GM
original equipment wheel.
Tire Chains
{Warning
Do not use tire chains. There is not
enough clearance. Tire chains used on a
vehicle without the proper amount of
clearance can cause damage to the(Continued)
Warning (Continued)
brakes, suspension, or other vehicle parts.
The area damaged by the tire chains
could cause loss of control and a crash.
Use another type of traction device only
if its manufacturer recommends it for the
vehicle's tire size combination and road
conditions. Follow that manufacturer's
instructions. To avoid vehicle damage,
drive slow and readjust or remove the
traction device if it contacts the vehicle.
Do not spin the wheels. If traction
devices are used, install them on the
front tires.
If a Tire Goes Flat
It is unusual for a tire to blow out while
driving, especially if the tires are maintained
properly. SeeTires0190. If air goes out of
a tire, it is much more likely to leak out
slowly. But if there ever is a blowout, here
are a few tips about what to expect and
what to do:
If a front tire fails, the flat tire creates a
drag that pulls the vehicle toward that side.
Take your foot off the accelerator pedal and
grip the steering wheel firmly. Steer to

Chevrolet Spark Owner Manual (GMNA-Localizing-U.S./Canada-14622955) -
2021 - CRC - 8/17/20
232 Service and Maintenance
Brakes
Brakes stop the vehicle and are crucial to
safe driving.
.Signs of brake wear may include chirping,
grinding, or squealing noises, or difficulty
stopping.
.Trained dealer technicians have access to
tools and equipment to inspect the brakes
and recommend quality parts engineered
for the vehicle.
Fluids
Proper fluid levels and approved fluids
protect the vehicle’s systems and
components. See Recommended Fluids and
Lubricants 0234 for GM approved fluids.
.Engine oil and windshield washer fluid
levels should be checked at every fuel fill.
.Instrument cluster lights may come on to
indicate that fluids may be low and need
to be filled.
Hoses
Hoses transport fluids and should be
regularly inspected to ensure that there are
no cracks or leaks. With a multi-point
inspection, your dealer can inspect the hoses
and advise if replacement is needed. Lamps
Properly working headlamps, taillamps, and
brake lamps are important to see and be
seen on the road.
.Signs that the headlamps need attention
include dimming, failure to light, cracking,
or damage. The brake lamps need to be
checked periodically to ensure that they
light when braking.
.With a multi-point inspection, your dealer
can check the lamps and note any
concerns.
Shocks and Struts
Shocks and struts help aid in control for a
smoother ride.
.Signs of wear may include steering wheel
vibration, bounce/sway while braking,
longer stopping distance, or uneven
tire wear.
.As part of the multi-point inspection,
trained dealer technicians can visually
inspect the shocks and struts for signs of
leaking, blown seals, or damage, and can
advise when service is needed. Tires
Tires need to be properly inflated, rotated,
and balanced. Maintaining the tires can save
money and fuel, and can reduce the risk of
tire failure.
.Signs that the tires need to be replaced
include three or more visible treadwear
indicators; cord or fabric showing through
the rubber; cracks or cuts in the tread or
sidewall; or a bulge or split in the tire.
.Trained dealer technicians can inspect and
recommend the right tires. Your dealer
can also provide tire/wheel balancing
services to ensure smooth vehicle
operation at all speeds. Your dealer sells
and services name brand tires.
Vehicle Care
To help keep the vehicle looking like new,
vehicle care products are available from your
dealer. For information on how to clean and
protect the vehicle’s interior and exterior,
see Interior Care 0220 and
Exterior Care 0217.
Wheel Alignment
Wheel alignment is critical for ensuring that
the tires deliver optimal wear and
performance.

Chevrolet Spark Owner Manual (GMNA-Localizing-U.S./Canada-14622955) -
2021 - CRC - 8/17/20
Index 259
IndexA
Accessories and Modifications . . . . . . . . . . . 162
Accessory Power . . . . . . . . . . . . . . . . . . . . . . . . . 140
Add-On Electrical Equipment . . . . . . . . . . . . . 160
Additional InformationOnStar . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 252
Additional Maintenance and Care . . . . . . . . . 231
Agreements Trademarks and License . . . . . . . . . . . . . . . . 117
Air Cleaner/Filter, Engine . . . . . . . . . . . . . . . . 169
Air Conditioning . . . . . . . . . . . . . . . . . . . . . . . . . . 119
Air Conditioning Regular Operation . . . . . . . 122
Air Filter, Passenger Compartment . . . . . . . . 122
Air Intake . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 121
Air Vents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 121
Airbag System
Check . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
How Does an Airbag Restrain? . . . . . . . . . . 40
Passenger Sensing System . . . . . . . . . . . . . . 42
What Makes an Airbag Inflate? . . . . . . . . . 40
What Will You See after an AirbagInflates? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
When Should an Airbag Inflate? . . . . . . . . 39
Where Are the Airbags? . . . . . . . . . . . . . . . . 38
Airbags Adding Equipment to the Vehicle . . . . . . . 45
Passenger Status Indicator . . . . . . . . . . . . . . 74
Readiness Light . . . . . . . . . . . . . . . . . . . . . . . . . 74 Airbags (cont'd)
Servicing Airbag-Equipped Vehicles . . . . . . 45
System Check . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Alarm Vehicle Security . . . . . . . . . . . . . . . . . . . . . . . . 18
All-Season Tires . . . . . . . . . . . . . . . . . . . . . . . . . . 190
AM-FM Radio . . . . . . . . . . . . . . . . . . . . . . . . . . . . .101
Antenna Multi-band . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 103
Antilock Brake System (ABS) . . . . . . . . . . . . . 146 Warning Light . . . . . . . . . . . . . . . . . . . . . . . . . . 78
Appearance Care
Exterior . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 217
Interior . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 220
Apple CarPlay and Android Auto . . . . . . . . . . 112
Armrest Front Seat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Assistance Program, Roadside . . . . . . . . . . . . 243
Audio Bluetooth . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 106
Automatic
Door Locks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Emergency Braking (AEB) . . . . . . . . . . . . . . 155
Headlamp System . . . . . . . . . . . . . . . . . . . . . . 93
Transmission . . . . . . . . . . . . . . . . . . . . . . . . . . . 143
Transmission Fluid . . . . . . . . . . . . . . . . . . . . . 169
Automatic Transmission Shift Lock Control Function Check . . . . . . 178

Chevrolet Spark Owner Manual (GMNA-Localizing-U.S./Canada-14622955) -
2021 - CRC - 8/17/20
260 Index
Auxiliary Jack . . . . . . . . . . . . . . . . . . . . . . . . . . . . 106
Avoiding Untrusted Media Devices . . . . . . . 103
B
BatteryExterior Lighting Battery Saver . . . . . . . . . 96
Power Protection . . . . . . . . . . . . . . . . . . . . . . . 96
Battery - North America . . . . . . . . . . . . . 176, 211
Blade Replacement, Wiper . . . . . . . . . . . . . . . 179
Bluetooth Overview . . . . . . . . . . . . . . . . . . . . . . . . . 108, 109
Bluetooth Audio . . . . . . . . . . . . . . . . . . . . . . . . . 106
Brake
System Warning Light . . . . . . . . . . . . . . . . . . 77
Brakes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 175 Antilock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 146
Assist . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 147
Fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 175
Parking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 146
Braking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 126 Automatic Emergency (AEB) . . . . . . . . . . . 155
Break-In, New Vehicle . . . . . . . . . . . . . . . . . . . . .134
Bulb Replacement Halogen Bulbs . . . . . . . . . . . . . . . . . . . . . . . . . . 181
Headlamp Aiming . . . . . . . . . . . . . . . . . . . . . . . 181
Headlamps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 181
Headlamps, Front Turn Signal,Sidemarker, and Parking Lamps . . . . . . 182 Bulb Replacement (cont'd)
High Intensity Discharge (HID)
Lighting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 181
License Plate Lamps . . . . . . . . . . . . . . . . . . . 184
Taillamps, Turn Signal, Stoplamps, and Back-up Lamps . . . . . . . . . . . . . . . . . . 184
Buying New Tires . . . . . . . . . . . . . . . . . . . . . . . . 202
C
Calibration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70
California Perchlorate Materials Requirements . . . 162
California Proposition 65 Warning . . . . . . . . . . . . . . . . . . . .162, 176, 211, Back Cover
Camera Rear Vision (RVC) . . . . . . . . . . . . . . . . . . . . . . 152
Canadian Vehicle Owners . . . . . . . . . . . . . . . . . . . 1
Capacities and Specifications . . . . . . . . . . . . . 238
Carbon Monoxide Engine Exhaust . . . . . . . . . . . . . . . . . . . . . . . . 142
Liftgate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Winter Driving . . . . . . . . . . . . . . . . . . . . . . . . . 129
Cargo Cover . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65
Tie-Downs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66
Caution, Danger, and Warning . . . . . . . . . . . . . .2
Chains, Tire . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 205 Charging System Light . . . . . . . . . . . . . . . . . . . . .75
Check
Engine Light (Malfunction Indicator) . . . . 75
Ignition Transmission Lock . . . . . . . . . . . . . 178
Child Restraints Infants and Young Children . . . . . . . . . . . . . 48
Lower Anchors and Tethers forChildren . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
Older Children . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Securing . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60, 62
Systems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
Circuit Breakers . . . . . . . . . . . . . . . . . . . . . . . . . . .185
Cleaning Exterior Care . . . . . . . . . . . . . . . . . . . . . . . . . . . . 217
Interior Care . . . . . . . . . . . . . . . . . . . . . . . . . . . 220
Climate Control Systems . . . . . . . . . . . . . . . . . . 119
Air Conditioning . . . . . . . . . . . . . . . . . . . . . . . . 119
Heating . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 119
Clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70
Cluster, Instrument . . . . . . . . . . . . . . . . . . . . . . . .72
Clutch, Hydraulic . . . . . . . . . . . . . . . . . . . . . . . . 169
Collision Damage Repair . . . . . . . . . . . . . . . . . 246
Compact Spare Tire . . . . . . . . . . . . . . . . . . . . . . 210
Compartments Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65
Compass . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70
Connected Services Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . 257

Chevrolet Spark Owner Manual (GMNA-Localizing-U.S./Canada-14622955) -
2021 - CRC - 8/17/20
262 Index
Engine (cont'd)Reduced Power Light . . . . . . . . . . . . . . . . . . . 82
Running While Parked . . . . . . . . . . . . . . . . . 142
Starting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 137
Entry Lighting . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96
Event Data Recorders . . . . . . . . . . . . . . . . . . . . 250
Exit Lighting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96
Extended Parking . . . . . . . . . . . . . . . . . . . . . . . . .142
Extender, Seat Belt . . . . . . . . . . . . . . . . . . . . . . . .35
Exterior Lamp Controls . . . . . . . . . . . . . . . . . . . . 92
Exterior Lamps Off Reminder . . . . . . . . . . . . . 92
Exterior Lighting Battery Saver . . . . . . . . . . . 96
F
Filter, Engine Air Cleaner . . . . . . . . . . . . . . . . . . . . . 169
Flash-to-Pass . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 93
Flashers, Hazard Warning . . . . . . . . . . . . . . . . . 94
Flat Tire . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 205
Changing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 207
Floor Mats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 223
Fluid Automatic Transmission . . . . . . . . . . . . . . . 169
Brakes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 175
Washer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 174
Fog Lamps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 95
Folding Mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Forward Collision Alert (FCA) System . . . . .154 Frequency Statement
Radio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 248
Front Fog Lamp Light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82
Front Seat Armrest . . . . . . . . . . . . . . . . . . . . . . . 28
Front Seats Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Heated . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Fuel Additives . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 158
Economy, Driving for Better . . . . . . . . . . . 125
Filling a Portable Fuel Container . . . . . . . 160
Filling the Tank . . . . . . . . . . . . . . . . . . . . . . . . 158
Foreign Countries . . . . . . . . . . . . . . . . . . . . . . 158
Gauge . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73
Low Fuel Warning Light . . . . . . . . . . . . . . . . 81
Prohibited Fuels . . . . . . . . . . . . . . . . . . . . . . . . 157
Recommended . . . . . . . . . . . . . . . . . . . . . . . . . . 157
Top Tier . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 157
Fuses Engine Compartment Fuse Block . . . . . . . 186
Fuses and Circuit Breakers . . . . . . . . . . . . . 185
Instrument Panel Fuse Block . . . . . . . . . . . 188
G
Gas Strut(s) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 180
Gauges
Fuel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73 Gauges (cont'd)
Odometer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
Speedometer . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
Tachometer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
Trip Odometer . . . . . . . . . . . . . . . . . . . . . . . . . . 72
Warning Lights and Indicators . . . . . . . . . . . 71
General Information
Service and Maintenance . . . . . . . . . . . . . . 225
Towing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 160
Vehicle Care . . . . . . . . . . . . . . . . . . . . . . . . . . . 162
Glove Box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65
GM Mobility Reimbursement Program . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 243
H
Halogen Bulbs . . . . . . . . . . . . . . . . . . . . . . . . . . . . 181
Hazard Warning Flashers . . . . . . . . . . . . . . . . . 94
Head Restraints . . . . . . . . . . . . . . . . . . . . . . . . . . . .25
HeadlampsAiming . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 181
Automatic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 93
Bulb Replacement . . . . . . . . . . . . . . . . . . . . . . . 181
Daytime Running Lamps (DRL) . . . . . . . . . . 93
Flash-to-Pass . . . . . . . . . . . . . . . . . . . . . . . . . . . . 93
Headlamps, Front Turn Signal,Sidemarker, and Parking Lamps . . . . . . 182
High Intensity Discharge (HID) Lighting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 181

Chevrolet Spark Owner Manual (GMNA-Localizing-U.S./Canada-14622955) -
2021 - CRC - 8/17/20
Index 263
Headlamps (cont'd)High-Beam On Light . . . . . . . . . . . . . . . . . . . . 82
High/Low Beam Changer . . . . . . . . . . . . . . . 92
Lamps On Reminder . . . . . . . . . . . . . . . . . . . . 82
Heated Front Seats . . . . . . . . . . . . . . . . . . . . . . . 28
Heated Mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Heater Engine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 139
Heating . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 119
High-Beam On Light . . . . . . . . . . . . . . . . . . . . . . 82
Hill and Mountain Roads . . . . . . . . . . . . . . . . 129
Hill Start Assist (HSA) . . . . . . . . . . . . . . . . . . . . .147
Hood . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 163
Hood Ajar Light . . . . . . . . . . . . . . . . . . . . . . . . . . . 83
Horn . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68
How to Wear Seat Belts Properly . . . . . . . . . . 31
HVAC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 119
Hydraulic Clutch . . . . . . . . . . . . . . . . . . . . . . . . . 169
I
Ignition Positions . . . . . . . . . . . . . . . . . . . . 134, 136
Ignition Transmission Lock Check . . . . . . . . .178
Immobilizer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19 Light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81
Indicator Owner Manual . . . . . . . . . . . . . . . . . . . . . . . . . . 77
Vehicle Ahead . . . . . . . . . . . . . . . . . . . . . . . . . . 79
Infants and Young Children, Restraints . . . . 48 Information
Publication Ordering . . . . . . . . . . . . . . . . . . . 247
Instrument Cluster . . . . . . . . . . . . . . . . . . . . . . . . .72
Instrument Panel Overview . . . . . . . . . . . . . . . . 4
Interior Rearview Mirrors . . . . . . . . . . . . . . . . . . 21
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1, 97
J
Jack Auxiliary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 106
Jump Starting - North America . . . . . . . . . . . . 211
K
Keyless Entry Remote (RKE) System . . . . . . . . . . . . . . . . . 9, 11
Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
L
Labeling, Tire Sidewall . . . . . . . . . . . . . . . . . . . . 191
Lamps Courtesy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 95
Daytime Running (DRL) . . . . . . . . . . . . . . . . . 93
Dome . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 95
Exterior Controls . . . . . . . . . . . . . . . . . . . . . . . . 92
Exterior Lamps Off Reminder . . . . . . . . . . . 92
Exterior Lighting Battery Saver . . . . . . . . . 96
License Plate . . . . . . . . . . . . . . . . . . . . . . . . . . . 184
Malfunction Indicator (Check Engine) . . . 75
On Reminder . . . . . . . . . . . . . . . . . . . . . . . . . . . 82 Lamps (cont'd)
Reading . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96
Lane Departure Warning (LDW) . . . . . . . . . . 156
Lane Departure Warning Light . . . . . . . . . . . . 78
Lap-Shoulder Belt . . . . . . . . . . . . . . . . . . . . . . . . . .33
LATCH System Replacing Parts after a Crash . . . . . . . . . . . 59
LATCH, Lower Anchors and Tethers for Children . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .53
LED Lighting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .182
Liftgate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Lighting Entry . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96
Exit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96
Illumination Control . . . . . . . . . . . . . . . . . . . . 95
LED . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 182
Lights Airbag Readiness . . . . . . . . . . . . . . . . . . . . . . . 74
Antilock Brake System (ABS)Warning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78
Brake System Warning . . . . . . . . . . . . . . . . . 77
Charging System . . . . . . . . . . . . . . . . . . . . . . . 75
Check Engine (Malfunction Indicator) . . . 75
Cruise Control . . . . . . . . . . . . . . . . . . . . . . . . . . 82
Door Ajar . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83
Engine Coolant Temperature
Warning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80
Engine Oil Pressure . . . . . . . . . . . . . . . . . . . . . 81
