198 Vehicle Care
The low tire pressure warning light may
come on in cool weather when the vehicle is
first started, and then turn off as the vehicle
is driven. This could be an early indicator
that the air pressure is getting low and
needs to be inflated to the proper pressure.
A Tire and Loading Information label shows
the size of the original equipment tires and
the correct inflation pressure for the tires
when they are cold. SeeVehicle Load Limits
0 131, for an example of the Tire and
Loading Information label and its location.
Also see Tire Pressure 0195.
The TPMS can warn about a low tire
pressure condition, but it does not replace
normal tire maintenance. See Tire Inspection
0 199, Tire Rotation 0200, and Tires0190.
Caution
Tire sealant materials are not all the
same. A non-approved tire sealant could
damage the TPMS sensors. TPMS sensor
damage caused by using an incorrect tire
sealant is not covered by the vehicle
warranty. Always use only the GM
approved tire sealant available through
your dealer or included in the vehicle.
TPMS Malfunction Light and Message
The TPMS will not function properly if one
or more of the TPMS sensors are missing or
inoperable. When the system detects a
malfunction, the low tire pressure warning
light, defined above, flashes for about
one minute and then stays on for the
remainder of the ignition cycle. A DIC
warning message may also display. The
malfunction light and DIC warning message,
if equipped, come on at each ignition cycle
until the problem is corrected. Some of the
conditions that can cause these to come
on are:
.One of the road tires has been replaced
with the spare tire. The spare tire does
not have a TPMS sensor. The malfunction
light and the DIC message, if equipped,
should go off after the road tire is
replaced and the sensor matching process
is performed successfully. See "TPMS
Sensor Matching Process" later in this
section.
.The TPMS sensor matching process was
not done or not completed successfully
after rotating the tires. The malfunction
light and the DIC message, if equipped,
should go off after successfully completing the sensor matching process.
See "TPMS Sensor Matching Process" later
in this section.
.One or more TPMS sensors are missing or
damaged. The malfunction light and the
DIC message, if equipped, should go off
when the TPMS sensors are installed and
the sensor matching process is performed
successfully. See your dealer for service.
.Replacement tires or wheels do not match
the original equipment tires or wheels.
Tires and wheels other than those
recommended could prevent the TPMS
from functioning properly. See
Buying
New Tires 0202.
.Operating electronic devices or being near
facilities using radio wave frequencies
similar to the TPMS could cause the TPMS
sensors to malfunction.
If the TPMS is not functioning properly, it
cannot detect or signal a low tire pressure
condition. See your dealer for service if the
TPMS malfunction light and DIC message,
if equipped, come on and stay on.
TPMS Sensor Matching Process
Each TPMS sensor has a unique
identification code. The identification code
needs to be matched to a new tire/wheel

Chevrolet Spark Owner Manual (GMNA-Localizing-U.S./Canada-14622955) -
2021 - CRC - 8/17/20
Vehicle Care 199
position after rotating the vehicle’s tires or
replacing one or more of the TPMS sensors.
Also, the TPMS sensor matching process
should be performed after replacing a spare
tire with a road tire containing the TPMS
sensor. The malfunction light and the DIC
message, if equipped, should go off at the
next ignition cycle. The sensors are matched
to the tire/wheel positions, using a TPMS
relearn tool, in the following order: driver
side front tire, passenger side front tire,
passenger side rear tire, and driver side rear.
See your dealer for service or to purchase a
relearn tool. A TPMS relearn tool can also be
purchased. See Tire Pressure Monitor Sensor
Activation Tool at
www.gmtoolsandequipment.com or call
1-800-GM TOOLS (1-800-468-6657).
There are two minutes to match the first
tire/wheel position, and five minutes overall
to match all four tire/wheel positions. If it
takes longer, the matching process stops
and must be restarted.
The TPMS sensor matching process is:1. Set the parking brake. 2. Turn the ignition on without starting the
vehicle or place the vehicle in Service
Mode. See Ignition Positions (Keyless
Access) 0136 or
Ignition Positions (Key Access) 0134.
3. Use MENU to select the Vehicle Information Menu (Menu 2) in the Driver
Information Center (DIC).
4. Use the thumbwheel (or up and down arrows) to scroll to the Tire Pressure
Learn Menu Item (Base DIC) or the Tire
Pressure Menu Item screen (Uplevel DIC).
5. Press and hold SET/CLR to begin the sensor matching process.
A message requesting acceptance of the
process may display.
6. If requested, press SET/CLR again to confirm the selection.
The horn sounds twice to signal the
receiver is in relearn mode and the TIRE
LEARN or TIRE LEARNING ACTIVE message
displays on the DIC screen.
7. Start with the driver side front tire.
8. Place the relearn tool against the tire sidewall, near the valve stem. Then press
the button to activate the TPMS sensor. A horn chirp confirms that the sensor
identification code has been matched to
this tire and wheel position.
9. Proceed to the passenger side front tire, and repeat the procedure in Step 8.
10. Proceed to the passenger side rear tire, and repeat the procedure in Step 8.
11. Proceed to the driver side rear tire, and repeat the procedure in Step 8. The horn
sounds two times to indicate the sensor
identification code has been matched to
the driver side rear tire, and the TPMS
sensor matching process is no longer
active. The TIRE LEARN or TIRE LEARNING
ACTIVE message on the DIC display
screen goes off.
12. Turn the vehicle off.
13. Set all four tires to the recommended air pressure level as indicated on the Tire
and Loading Information label.
Tire Inspection
We recommend that the tires, including
the spare tire, if the vehicle has one, be
inspected for signs of wear or damage
at least once a month.

Chevrolet Spark Owner Manual (GMNA-Localizing-U.S./Canada-14622955) -
2021 - CRC - 8/17/20
Vehicle Care 205
wheel leaks air, replace it. Some aluminum
wheels can be repaired. See your dealer if
any of these conditions exist.
Your dealer will know the kind of wheel that
is needed.
Each new wheel should have the same
load-carrying capacity, diameter, width,
offset, and be mounted the same way as
the one it replaces.
Replace wheels, wheel bolts, wheel nuts,
or Tire Pressure Monitor System (TPMS)
sensors with new GM original equipment
parts.
{Warning
Using the wrong replacement wheels,
wheel bolts, or wheel nuts can be
dangerous. It could affect the braking and
handling of the vehicle. Tires can lose air,
and cause loss of control, causing a crash.
Always use the correct wheel, wheel
bolts, and wheel nuts for replacement.
Caution
The wrong wheel can also cause
problems with bearing life, brake cooling,
speedometer or odometer calibration,
headlamp aim, bumper height, vehicle
ground clearance, and tire or tire chain
clearance to the body and chassis.
Used Replacement Wheels
{Warning
Replacing a wheel with a used one is
dangerous. How it has been used or how
far it has been driven may be unknown.
It could fail suddenly and cause a crash.
When replacing wheels, use a new GM
original equipment wheel.
Tire Chains
{Warning
Do not use tire chains. There is not
enough clearance. Tire chains used on a
vehicle without the proper amount of
clearance can cause damage to the(Continued)
Warning (Continued)
brakes, suspension, or other vehicle parts.
The area damaged by the tire chains
could cause loss of control and a crash.
Use another type of traction device only
if its manufacturer recommends it for the
vehicle's tire size combination and road
conditions. Follow that manufacturer's
instructions. To avoid vehicle damage,
drive slow and readjust or remove the
traction device if it contacts the vehicle.
Do not spin the wheels. If traction
devices are used, install them on the
front tires.
If a Tire Goes Flat
It is unusual for a tire to blow out while
driving, especially if the tires are maintained
properly. SeeTires0190. If air goes out of
a tire, it is much more likely to leak out
slowly. But if there ever is a blowout, here
are a few tips about what to expect and
what to do:
If a front tire fails, the flat tire creates a
drag that pulls the vehicle toward that side.
Take your foot off the accelerator pedal and
grip the steering wheel firmly. Steer to

Chevrolet Spark Owner Manual (GMNA-Localizing-U.S./Canada-14622955) -
2021 - CRC - 8/17/20
252 OnStar
.Receive a Diagnostic check of the vehicle's
key operating systems.
.Receive Roadside Assistance.
.Manage Wi-Fi Settings, if equipped.
Press
>to get a priority connection to an
OnStar Advisor available 24/7 to:
.Get help for an emergency.
.Be a Good Samaritan or respond to an
AMBER Alert.
.Get assistance in severe weather or other
crisis situations and find evacuation
routes.
OnStar Services
Emergency
Emergency Services require an active safety
and security plan. With Automatic Crash
Response, built-in sensors can automatically
alert a specially trained OnStar Advisor who
is immediately connected in to the vehicle
to help.
Press
>for a priority connection to an
OnStar Advisor who can contact emergency
service providers, direct them to your exact
location, and relay important information. With OnStar Crisis Assist, specially trained
Advisors are available 24 hours a day, 7 days
a week, to provide a central point of
contact, assistance, and information during a
crisis.
With Roadside Assistance, Advisors can
locate a nearby service provider to help with
a flat tire, a battery jump, or an empty
gas tank.
Security
If equipped, OnStar provides these services:
.With Stolen Vehicle Assistance, OnStar
Advisors can use GPS to pinpoint the
vehicle and help authorities quickly
recover it.
.With Remote Ignition Block, if equipped,
OnStar can block the engine from being
restarted.
.With Stolen Vehicle Slowdown,
if equipped, OnStar can work with law
enforcement to gradually slow the
vehicle down.
Theft Alarm Notification
If equipped, if the doors are locked and the
vehicle alarm sounds, a notification by text,
e-mail, or phone call will be sent. If the
vehicle is stolen, an OnStar Advisor can work
with authorities to recover the vehicle.
OnStar Additional
Information
In-Vehicle Audio Messages
Audio messages may play important
information at the following times:
.Prior to vehicle purchase. PressQto set
up an account.
.After change in ownership and at
90 days.
Transferring Service
PressQto request account transfer
eligibility information. The Advisor can
cancel or change account information.
Selling/Transferring the Vehicle
Call 1-888-4ONSTAR (1-888-466-7827)
immediately to terminate your OnStar or
connected services if the vehicle is disposed
of, sold, transferred, or if the lease ends.

Chevrolet Spark Owner Manual (GMNA-Localizing-U.S./Canada-14622955) -
2021 - CRC - 8/17/20
264 Index
Lights (cont'd)Flash-to-Pass . . . . . . . . . . . . . . . . . . . . . . . . . . . . 93
Front Fog Lamp . . . . . . . . . . . . . . . . . . . . . . . . . 82
High-Beam On . . . . . . . . . . . . . . . . . . . . . . . . . . 82
High/Low Beam Changer . . . . . . . . . . . . . . . 92
Hood Ajar . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83
Immobilizer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81
Lane Departure Warning . . . . . . . . . . . . . . . . 78
Low Fuel Warning . . . . . . . . . . . . . . . . . . . . . . 81
Operate Pedal . . . . . . . . . . . . . . . . . . . . . . . . . . 78
Reduced Engine Power . . . . . . . . . . . . . . . . . . 82
Seat Belt Reminders . . . . . . . . . . . . . . . . . . . . 73
Service Vehicle Soon . . . . . . . . . . . . . . . . . . . . 77
StabiliTrak OFF . . . . . . . . . . . . . . . . . . . . . . . . . . 79
Tire Pressure . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80
Traction Control System
(TCS)/StabiliTrak . . . . . . . . . . . . . . . . . . . . . . 80
Traction Off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79
Ultrasonic Parking Sensor . . . . . . . . . . . . . . . 79
Up-Shift . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78
Warning, Power Steering . . . . . . . . . . . . . . . 78
Locks Automatic Door . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Delayed Locking . . . . . . . . . . . . . . . . . . . . . . . . . 15
Door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Lockout Protection . . . . . . . . . . . . . . . . . . . . . . 16
Power Door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16 Loss of Control . . . . . . . . . . . . . . . . . . . . . . . . . . . 127
Low Fuel Warning Light . . . . . . . . . . . . . . . . . . .81
Lower Anchors and Tethers for
Children (LATCH System) . . . . . . . . . . . . . . . . .53
M
MaintenanceAir Conditioning Regular Operation . . . . 122
Records . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 236
Maintenance and Care Additional . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 231
Maintenance Schedule . . . . . . . . . . . . . . . . . . . 226
Recommended Fluids andLubricants . . . . . . . . . . . . . . . . . . . . . . . . . . . . 234
Malfunction Indicator Lamp . . . . . . . . . . . . . . . .75
Manual Mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Manual Transmission . . . . . . . . . . . . . . . . . . . . 144 Fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 169
Manual Windows . . . . . . . . . . . . . . . . . . . . . . . . . .22
Media Avoiding Untrusted Devices . . . . . . . . . . . . 103
Messages Engine Power . . . . . . . . . . . . . . . . . . . . . . . . . . . 88
Vehicle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87, 88
Vehicle Speed . . . . . . . . . . . . . . . . . . . . . . . . . . . 88
Mirrors
Convex . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Folding . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21 Mirrors (cont'd)
Heated . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Manual . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Manual Rearview . . . . . . . . . . . . . . . . . . . . . . . . 21
Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Mirrors, Interior Rearview . . . . . . . . . . . . . . . . . . 21
Monitor System, Tire Pressure . . . . . . . . . . . 196
Multi-band Antenna . . . . . . . . . . . . . . . . . . . . . 103
N
Navigation Connected Services . . . . . . . . . . . . . . . . . . . . 256
New Vehicle Break-In . . . . . . . . . . . . . . . . . . . . .134
O
Odometer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .72 Trip . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
Off-Road
Recovery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 127
Oil Engine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 166
Engine Oil Life System . . . . . . . . . . . . . . . . . 168
Pressure Light . . . . . . . . . . . . . . . . . . . . . . . . . . 81
Older Children, Restraints . . . . . . . . . . . . . . . . . 47
Online Owner Center . . . . . . . . . . . . . . . . . . . . 242
OnStar . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 250
OnStar Additional Information . . . . . . . . . . . 252
OnStar Emergency . . . . . . . . . . . . . . . . . . . . . . . 252
OnStar Overview . . . . . . . . . . . . . . . . . . . . . . . . . . 251

Chevrolet Spark Owner Manual (GMNA-Localizing-U.S./Canada-14622955) -
2021 - CRC - 8/17/20

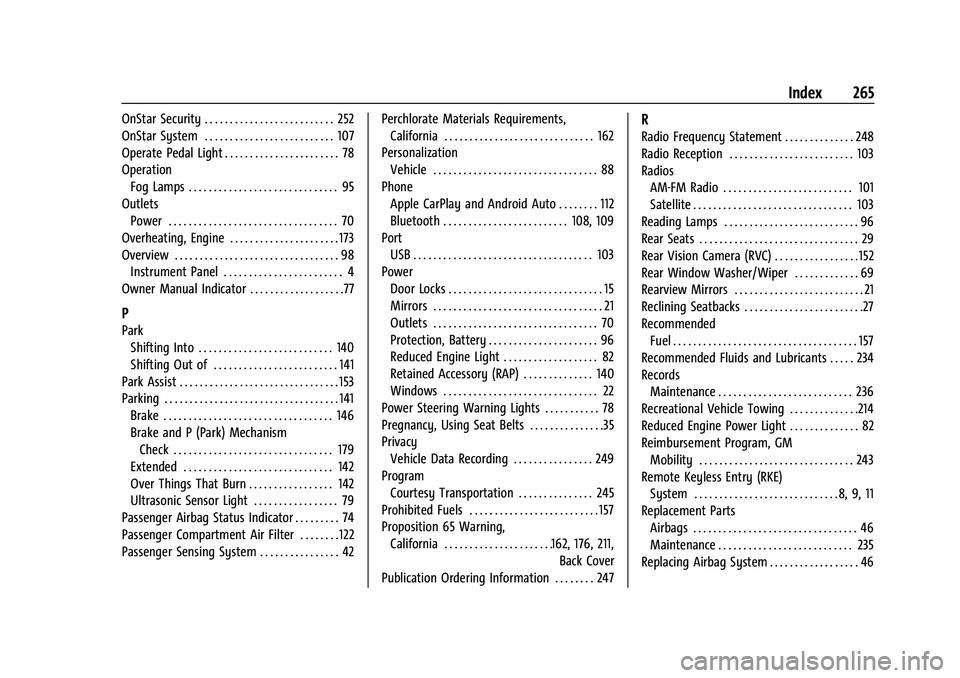

Index 265
OnStar Security . . . . . . . . . . . . . . . . . . . . . . . . . . 252
OnStar System . . . . . . . . . . . . . . . . . . . . . . . . . . 107
Operate Pedal Light . . . . . . . . . . . . . . . . . . . . . . . 78
OperationFog Lamps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 95
Outlets Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70
Overheating, Engine . . . . . . . . . . . . . . . . . . . . . . 173
Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 98 Instrument Panel . . . . . . . . . . . . . . . . . . . . . . . . 4
Owner Manual Indicator . . . . . . . . . . . . . . . . . . .77
P
Park
Shifting Into . . . . . . . . . . . . . . . . . . . . . . . . . . . 140
Shifting Out of . . . . . . . . . . . . . . . . . . . . . . . . . 141
Park Assist . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 153
Parking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 141
Brake . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 146
Brake and P (Park) MechanismCheck . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 179
Extended . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 142
Over Things That Burn . . . . . . . . . . . . . . . . . 142
Ultrasonic Sensor Light . . . . . . . . . . . . . . . . . 79
Passenger Airbag Status Indicator . . . . . . . . . 74
Passenger Compartment Air Filter . . . . . . . . 122
Passenger Sensing System . . . . . . . . . . . . . . . . 42 Perchlorate Materials Requirements,
California . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 162
Personalization Vehicle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 88
Phone Apple CarPlay and Android Auto . . . . . . . . 112
Bluetooth . . . . . . . . . . . . . . . . . . . . . . . . . 108, 109
Port USB . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 103
Power Door Locks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Outlets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70
Protection, Battery . . . . . . . . . . . . . . . . . . . . . . 96
Reduced Engine Light . . . . . . . . . . . . . . . . . . . 82
Retained Accessory (RAP) . . . . . . . . . . . . . . 140
Windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Power Steering Warning Lights . . . . . . . . . . . 78
Pregnancy, Using Seat Belts . . . . . . . . . . . . . . .35
Privacy Vehicle Data Recording . . . . . . . . . . . . . . . . 249
Program Courtesy Transportation . . . . . . . . . . . . . . . 245
Prohibited Fuels . . . . . . . . . . . . . . . . . . . . . . . . . . 157
Proposition 65 Warning, California . . . . . . . . . . . . . . . . . . . . . .162, 176, 211, Back Cover
Publication Ordering Information . . . . . . . . 247
R
Radio Frequency Statement . . . . . . . . . . . . . . 248
Radio Reception . . . . . . . . . . . . . . . . . . . . . . . . . 103
Radios AM-FM Radio . . . . . . . . . . . . . . . . . . . . . . . . . . 101
Satellite . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 103
Reading Lamps . . . . . . . . . . . . . . . . . . . . . . . . . . . 96
Rear Seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Rear Vision Camera (RVC) . . . . . . . . . . . . . . . . . 152
Rear Window Washer/Wiper . . . . . . . . . . . . . 69
Rearview Mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Reclining Seatbacks . . . . . . . . . . . . . . . . . . . . . . . .27
Recommended Fuel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 157
Recommended Fluids and Lubricants . . . . . 234
Records Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . 236
Recreational Vehicle Towing . . . . . . . . . . . . . .214
Reduced Engine Power Light . . . . . . . . . . . . . . 82
Reimbursement Program, GM Mobility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 243
Remote Keyless Entry (RKE) System . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8, 9, 11
Replacement Parts
Airbags . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . 235
Replacing Airbag System . . . . . . . . . . . . . . . . . . 46

Chevrolet Spark Owner Manual (GMNA-Localizing-U.S./Canada-14622955) -
2021 - CRC - 8/17/20
Index 267
Steering (cont'd)Power, Warning Lights . . . . . . . . . . . . . . . . . . 78
Wheel Adjustment . . . . . . . . . . . . . . . . . . . . . . 68
Wheel Controls . . . . . . . . . . . . . . . . . . . . . . . . . 68
Stoplamps and Back-up Lamps Bulb Replacement . . . . . . . . . . . . . . . . . . . . . . 184
Storage Areas
Cargo Cover . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65
Glove Box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65
Roof Rack System . . . . . . . . . . . . . . . . . . . . . . . 66
Storage Compartments . . . . . . . . . . . . . . . . . . . 65
Struts Gas . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 180
Stuck Vehicle . . . . . . . . . . . . . . . . . . . . . . . . . . . . 130
Sun Visors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
Sunroof . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
Symbols . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
System Forward Collision Alert (FCA) . . . . . . . . . . . 154
Roof Rack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66
Systems
Driver Assistance . . . . . . . . . . . . . . . . . . . . . . . 151
T
Tachometer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .72 Taillamps
Bulb Replacement . . . . . . . . . . . . . . . . . . . . . . 184
Text Telephone (TTY) Users . . . . . . . . . . . . . . 242
Theft-Deterrent Systems . . . . . . . . . . . . . . . . . . .19 Immobilizer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70
Tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 190 All-Season . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 190
Buying New Tires . . . . . . . . . . . . . . . . . . . . . . 202
Chains . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 205
Changing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 207
Compact Spare . . . . . . . . . . . . . . . . . . . . . . . . 210
Designations . . . . . . . . . . . . . . . . . . . . . . . . . . . 193
Different Size . . . . . . . . . . . . . . . . . . . . . . . . . . 203
If a Tire Goes Flat . . . . . . . . . . . . . . . . . . . . . 205
Inspection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 199
Pressure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 195
Pressure Light . . . . . . . . . . . . . . . . . . . . . . . . . . 80
Pressure Monitor Operation . . . . . . . . . . . 197
Pressure Monitor System . . . . . . . . . . . . . . 196
Rotation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 200
Sidewall Labeling . . . . . . . . . . . . . . . . . . . . . . . 191
Terminology and Definitions . . . . . . . . . . . 193
Uniform Tire Quality Grading . . . . . . . . . . 203
Wheel Alignment and Tire Balance . . . . 204
Wheel Replacement . . . . . . . . . . . . . . . . . . . . 204
When It Is Time for New Tires . . . . . . . . . 201
Winter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 191 Top Tier Fuel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 157
Towing
General Information . . . . . . . . . . . . . . . . . . . 160
Recreational Vehicle . . . . . . . . . . . . . . . . . . . 214
Vehicle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 213
Traction Control System (TCS)/StabiliTrak
Light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80
Off Light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79
Traction Control/Electronic Stability Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .147
Trademarks and License Agreements . . . . . . 117
Transmission Automatic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 143
Fluid, Automatic . . . . . . . . . . . . . . . . . . . . . . . 169
Fluid, Manual . . . . . . . . . . . . . . . . . . . . . . . . . . 169
Transportation Program, Courtesy . . . . . . . 245
Trip Odometer . . . . . . . . . . . . . . . . . . . . . . . . . . . . .72
Turn and Lane-Change Signals . . . . . . . . . . . . 94
Turn Signal Bulb Replacement . . . . . . . . . . . . . . . . . . . . . . 184
U
Ultrasonic Parking Sensor Light . . . . . . . . . . . 79
Uniform Tire Quality Grading . . . . . . . . . . . . 203
Up-Shift Light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78
USB Port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 103
Using the System . . . . . . . . . . . . . . . . . . . . . . . . . 99
