Chevrolet Spark Owner Manual (GMNA-Localizing-U.S./Canada-14622955) -
2021 - CRC - 8/17/20
200 Vehicle Care
Replace the tire if:
.The indicators at three or more
places around the tire can be seen.
.There is cord or fabric showing
through the tire's rubber.
.The tread or sidewall is cracked, cut,
or snagged deep enough to show
cord or fabric.
.The tire has a bump, bulge, or split.
.The tire has a puncture, cut, or other
damage that cannot be repaired well
because of the size or location of the
damage.
Tire Rotation
Tires should be rotated every 12 000 km
(7,500 mi). SeeMaintenance Schedule
0 226.
Tires are rotated to achieve a more
uniform wear for all tires. The first
rotation is the most important.
Anytime unusual wear is noticed, rotate
the tires as soon as possible, check for
proper tire inflation pressure, and check
for damaged tires or wheels. If the unusual wear continues after the
rotation, check the wheel alignment.
See
When It Is Time for New Tires 0201
and
Wheel Replacement 0204.Use this rotation pattern when rotating
the tires.
Do not include the compact spare tire
in the tire rotation.
Adjust the front and rear tires to the
recommended inflation pressure on the
Tire and Loading Information label after the tires have been rotated. See
Tire
Pressure 0195 and
Vehicle Load Limits 0131.
Reset the Tire Pressure Monitor System.
See Tire Pressure Monitor Operation
0 197.
Check that all wheel nuts are properly
tightened. See “Wheel Nut Torque”
under Capacities and Specifications
0 238, and “Removing the Flat Tire and
Installing the Spare Tire” underTire
Changing 0207.
{Warning
Rust or dirt on a wheel, or on the
parts to which it is fastened, can
cause wheel nuts to become loose
over time. The wheel could come off
and cause a crash. When changing a
wheel, remove any rust or dirt from
places where the wheel attaches to
the vehicle. In an emergency, a cloth
or paper towel can be used; however,
use a scraper or wire brush later to
remove all rust or dirt.

Chevrolet Spark Owner Manual (GMNA-Localizing-U.S./Canada-14622955) -
2021 - CRC - 8/17/20
202 Vehicle Care
Buying New Tires
GM has developed and matched specific
tires for the vehicle. The original
equipment tires installed were designed
to meet General Motors Tire
Performance Criteria Specification (TPC
Spec) system rating. When replacement
tires are needed, GM strongly
recommends buying tires with the same
TPC Spec rating.
GM's exclusive TPC Spec system
considers over a dozen critical
specifications that impact the overall
performance of the vehicle, including
brake system performance, ride and
handling, traction control, and tire
pressure monitoring performance. GM's
TPC Spec number is molded onto the
tire's sidewall near the tire size. If the
tires have an all-season tread design,
the TPC spec number will be followed
by MS, for mud and snow. SeeTire
Sidewall Labeling 0191.
GM recommends replacing worn tires in
complete sets of four. Uniform tread
depth on all tires will help to maintain the performance of the vehicle. Braking
and handling performance may be
adversely affected if all the tires are not
replaced at the same time. If proper
rotation and maintenance have been
done, all four tires should wear out at
about the same time. See
Tire Rotation
0 200. However, if it is necessary to
replace only one axle set of worn tires,
place the new tires on the rear axle.
Winter tires with the same speed rating
as the original equipment tires may not
be available for H, V, W, Y, and ZR
speed rated tires. Never exceed the
winter tires’ maximum speed capability
when using winter tires with a lower
speed rating.
{Warning
Tires could explode during improper
service. Attempting to mount or
dismount a tire could cause injury or
death. Only your dealer or authorized
tire service center should mount or
dismount the tires.
{Warning
Mixing tires of different sizes, brands,
or types may cause loss of control of
the vehicle, resulting in a crash or
other vehicle damage. Use the
correct size, brand, and type of tire
on all wheels.
{Warning
Using bias-ply tires on the vehicle
may cause the wheel rim flanges to
develop cracks after many miles of
driving. A tire and/or wheel could fail
suddenly and cause a crash. Use only
radial-ply tires with the wheels on
the vehicle.
If the vehicle tires must be replaced
with a tire that does not have a TPC
Spec number, make sure they are the
same size, load range, speed rating, and
construction (radial) as the original
tires.

Chevrolet Spark Owner Manual (GMNA-Localizing-U.S./Canada-14622955) -
2021 - CRC - 8/17/20
Vehicle Care 203
Vehicles that have a tire pressure
monitoring system could give an
inaccurate low-pressure warning if
non-TPC Spec rated tires are installed.
SeeTire Pressure Monitor System 0196.
The Tire and Loading Information Label
indicates the original equipment tires
on the vehicle. See Vehicle Load Limits
0 131.
Different Size Tires and Wheels
If wheels or tires are installed that are a
different size than the original equipment
wheels and tires, vehicle performance,
including its braking, ride and handling
characteristics, stability, and resistance to
rollover may be affected. If the vehicle has
electronic systems such as antilock brakes,
rollover airbags, traction control, electronic
stability control, or All-Wheel Drive, the
performance of these systems can also be
affected.
{Warning
If different sized wheels are used, there
may not be an acceptable level of
performance and safety if tires not
(Continued)
Warning (Continued)
recommended for those wheels are
selected. This increases the chance of a
crash and serious injury. Only use GM
specific wheel and tire systems developed
for the vehicle, and have them properly
installed by a GM certified technician.
See Buying New Tires 0202 and
Accessories and Modifications 0162.
Wheel Covers
Installation
Tighten the wheel nut caps by hand while
pressing on the center of the wheel cover
with the other hand. Then tighten an
additional one-quarter turn with the wheel
wrench.
Uniform Tire Quality Grading
The following information relates to the
system developed by the United States
National Highway Traffic Safety
Administration (NHTSA), which grades
tires by treadwear, traction, and
temperature performance. This applies
only to vehicles sold in the United States. The grades are molded on the
sidewalls of most passenger car tires.
The Uniform Tire Quality Grading
(UTQG) system does not apply to deep
tread, winter tires, compact spare tires,
tires with nominal rim diameters of
10 to 12 inches (25 to 30 cm), or to some
limited-production tires.
While the tires available on General
Motors passenger cars and light trucks
may vary with respect to these grades,
they must also conform to federal
safety requirements and additional
General Motors Tire Performance
Criteria (TPC) standards.
Quality grades can be found where
applicable on the tire sidewall between
tread shoulder and maximum section
width. For example:Treadwear 200 Traction AA Temperature A
All Passenger Car Tires Must Conform to
Federal Safety Requirements In Addition
To These Grades.

Chevrolet Spark Owner Manual (GMNA-Localizing-U.S./Canada-14622955) -
2021 - CRC - 8/17/20
Vehicle Care 205
wheel leaks air, replace it. Some aluminum
wheels can be repaired. See your dealer if
any of these conditions exist.
Your dealer will know the kind of wheel that
is needed.
Each new wheel should have the same
load-carrying capacity, diameter, width,
offset, and be mounted the same way as
the one it replaces.
Replace wheels, wheel bolts, wheel nuts,
or Tire Pressure Monitor System (TPMS)
sensors with new GM original equipment
parts.
{Warning
Using the wrong replacement wheels,
wheel bolts, or wheel nuts can be
dangerous. It could affect the braking and
handling of the vehicle. Tires can lose air,
and cause loss of control, causing a crash.
Always use the correct wheel, wheel
bolts, and wheel nuts for replacement.
Caution
The wrong wheel can also cause
problems with bearing life, brake cooling,
speedometer or odometer calibration,
headlamp aim, bumper height, vehicle
ground clearance, and tire or tire chain
clearance to the body and chassis.
Used Replacement Wheels
{Warning
Replacing a wheel with a used one is
dangerous. How it has been used or how
far it has been driven may be unknown.
It could fail suddenly and cause a crash.
When replacing wheels, use a new GM
original equipment wheel.
Tire Chains
{Warning
Do not use tire chains. There is not
enough clearance. Tire chains used on a
vehicle without the proper amount of
clearance can cause damage to the(Continued)
Warning (Continued)
brakes, suspension, or other vehicle parts.
The area damaged by the tire chains
could cause loss of control and a crash.
Use another type of traction device only
if its manufacturer recommends it for the
vehicle's tire size combination and road
conditions. Follow that manufacturer's
instructions. To avoid vehicle damage,
drive slow and readjust or remove the
traction device if it contacts the vehicle.
Do not spin the wheels. If traction
devices are used, install them on the
front tires.
If a Tire Goes Flat
It is unusual for a tire to blow out while
driving, especially if the tires are maintained
properly. SeeTires0190. If air goes out of
a tire, it is much more likely to leak out
slowly. But if there ever is a blowout, here
are a few tips about what to expect and
what to do:
If a front tire fails, the flat tire creates a
drag that pulls the vehicle toward that side.
Take your foot off the accelerator pedal and
grip the steering wheel firmly. Steer to

Chevrolet Spark Owner Manual (GMNA-Localizing-U.S./Canada-14622955) -
2021 - CRC - 8/17/20

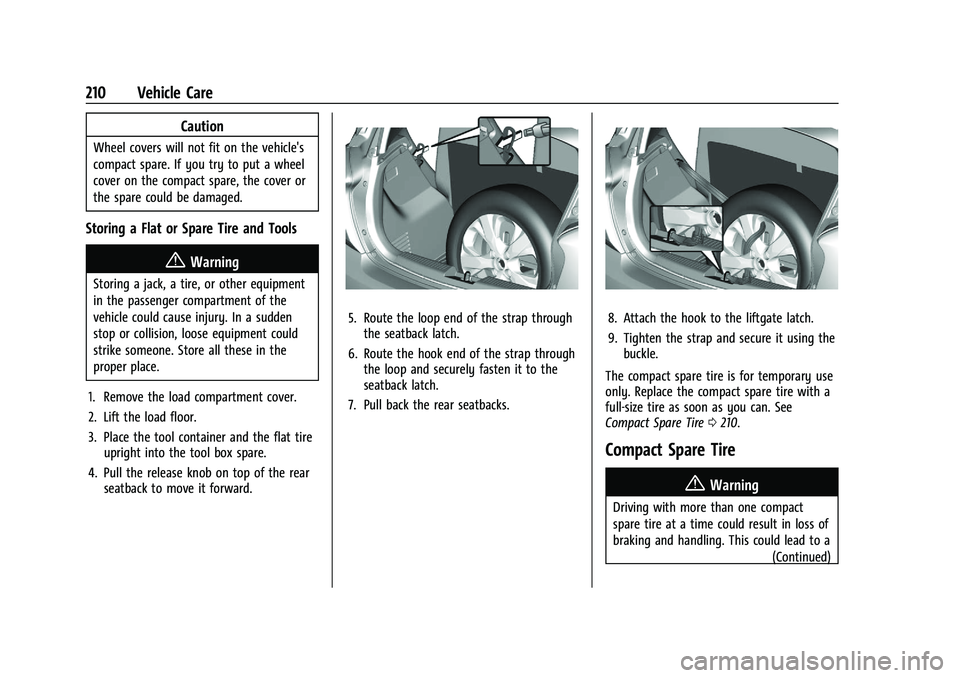

210 Vehicle Care
Caution
Wheel covers will not fit on the vehicle's
compact spare. If you try to put a wheel
cover on the compact spare, the cover or
the spare could be damaged.
Storing a Flat or Spare Tire and Tools
{Warning
Storing a jack, a tire, or other equipment
in the passenger compartment of the
vehicle could cause injury. In a sudden
stop or collision, loose equipment could
strike someone. Store all these in the
proper place.
1. Remove the load compartment cover.
2. Lift the load floor.
3. Place the tool container and the flat tire upright into the tool box spare.
4. Pull the release knob on top of the rear seatback to move it forward.
5. Route the loop end of the strap throughthe seatback latch.
6. Route the hook end of the strap through the loop and securely fasten it to the
seatback latch.
7. Pull back the rear seatbacks.8. Attach the hook to the liftgate latch.
9. Tighten the strap and secure it using the buckle.
The compact spare tire is for temporary use
only. Replace the compact spare tire with a
full-size tire as soon as you can. See
Compact Spare Tire 0210.
Compact Spare Tire
{Warning
Driving with more than one compact
spare tire at a time could result in loss of
braking and handling. This could lead to a
(Continued)

Chevrolet Spark Owner Manual (GMNA-Localizing-U.S./Canada-14622955) -
2021 - CRC - 8/17/20
Index 267
Steering (cont'd)Power, Warning Lights . . . . . . . . . . . . . . . . . . 78
Wheel Adjustment . . . . . . . . . . . . . . . . . . . . . . 68
Wheel Controls . . . . . . . . . . . . . . . . . . . . . . . . . 68
Stoplamps and Back-up Lamps Bulb Replacement . . . . . . . . . . . . . . . . . . . . . . 184
Storage Areas
Cargo Cover . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65
Glove Box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65
Roof Rack System . . . . . . . . . . . . . . . . . . . . . . . 66
Storage Compartments . . . . . . . . . . . . . . . . . . . 65
Struts Gas . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 180
Stuck Vehicle . . . . . . . . . . . . . . . . . . . . . . . . . . . . 130
Sun Visors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
Sunroof . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
Symbols . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
System Forward Collision Alert (FCA) . . . . . . . . . . . 154
Roof Rack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66
Systems
Driver Assistance . . . . . . . . . . . . . . . . . . . . . . . 151
T
Tachometer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .72 Taillamps
Bulb Replacement . . . . . . . . . . . . . . . . . . . . . . 184
Text Telephone (TTY) Users . . . . . . . . . . . . . . 242
Theft-Deterrent Systems . . . . . . . . . . . . . . . . . . .19 Immobilizer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70
Tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 190 All-Season . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 190
Buying New Tires . . . . . . . . . . . . . . . . . . . . . . 202
Chains . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 205
Changing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 207
Compact Spare . . . . . . . . . . . . . . . . . . . . . . . . 210
Designations . . . . . . . . . . . . . . . . . . . . . . . . . . . 193
Different Size . . . . . . . . . . . . . . . . . . . . . . . . . . 203
If a Tire Goes Flat . . . . . . . . . . . . . . . . . . . . . 205
Inspection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 199
Pressure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 195
Pressure Light . . . . . . . . . . . . . . . . . . . . . . . . . . 80
Pressure Monitor Operation . . . . . . . . . . . 197
Pressure Monitor System . . . . . . . . . . . . . . 196
Rotation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 200
Sidewall Labeling . . . . . . . . . . . . . . . . . . . . . . . 191
Terminology and Definitions . . . . . . . . . . . 193
Uniform Tire Quality Grading . . . . . . . . . . 203
Wheel Alignment and Tire Balance . . . . 204
Wheel Replacement . . . . . . . . . . . . . . . . . . . . 204
When It Is Time for New Tires . . . . . . . . . 201
Winter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 191 Top Tier Fuel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 157
Towing
General Information . . . . . . . . . . . . . . . . . . . 160
Recreational Vehicle . . . . . . . . . . . . . . . . . . . 214
Vehicle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 213
Traction Control System (TCS)/StabiliTrak
Light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80
Off Light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79
Traction Control/Electronic Stability Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .147
Trademarks and License Agreements . . . . . . 117
Transmission Automatic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 143
Fluid, Automatic . . . . . . . . . . . . . . . . . . . . . . . 169
Fluid, Manual . . . . . . . . . . . . . . . . . . . . . . . . . . 169
Transportation Program, Courtesy . . . . . . . 245
Trip Odometer . . . . . . . . . . . . . . . . . . . . . . . . . . . . .72
Turn and Lane-Change Signals . . . . . . . . . . . . 94
Turn Signal Bulb Replacement . . . . . . . . . . . . . . . . . . . . . . 184
U
Ultrasonic Parking Sensor Light . . . . . . . . . . . 79
Uniform Tire Quality Grading . . . . . . . . . . . . 203
Up-Shift Light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78
USB Port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 103
Using the System . . . . . . . . . . . . . . . . . . . . . . . . . 99

Chevrolet Spark Owner Manual (GMNA-Localizing-U.S./Canada-14622955) -
2021 - CRC - 8/17/20
268 Index
Using This Manual . . . . . . . . . . . . . . . . . . . . . . . . . .2
V
VehicleAlarm System . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Canadian Owners . . . . . . . . . . . . . . . . . . . . . . . . . 1
Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 126
Identification Number (VIN) . . . . . . . . . . . . 237
Load Limits . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 131
Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . 87, 88
Personalization . . . . . . . . . . . . . . . . . . . . . . . . . 88
Security . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Service Soon Light . . . . . . . . . . . . . . . . . . . . . . 77
Speed Messages . . . . . . . . . . . . . . . . . . . . . . . . 88
Towing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 213
Vehicle Ahead Indicator . . . . . . . . . . . . . . . . . . . 79
Vehicle Care Tire Pressure . . . . . . . . . . . . . . . . . . . . . . . . . . . 195
Vehicle Data Recording and Privacy . . . . . . 249
Ventilation, Air . . . . . . . . . . . . . . . . . . . . . . . . . . . 121
Visors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
W
Warning Brake System Light . . . . . . . . . . . . . . . . . . . . . 77
Caution and Danger . . . . . . . . . . . . . . . . . . . . . 2
Lane Departure (LDW) . . . . . . . . . . . . . . . . . 156
Warning Lights, Gauges, and Indicators . . . . 71 Warnings
Hazard Flashers . . . . . . . . . . . . . . . . . . . . . . . . . 94
Washer Fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . .174
Wheel Covers . . . . . . . . . . . . . . . . . . . . . . . . . . . . 203
Wheels Alignment and Tire Balance . . . . . . . . . . . . 204
Different Size . . . . . . . . . . . . . . . . . . . . . . . . . . 203
Replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . 204
When It Is Time for New Tires . . . . . . . . . . . 201
Where to Put the Restraint . . . . . . . . . . . . . . . .52
Windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21 Manual . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Windshield Replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . 180
Wiper/Washer . . . . . . . . . . . . . . . . . . . . . . . . . . 68
Winter Driving . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 129
Winter Tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 191
Wiper Blade Replacement . . . . . . . . . . . . . . . . 179
Wipers Rear Washer . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69
