CHEVROLET SSR 2004 1.G Owners Manual

{CAUTION:
Do not load your vehicle any heavier than the
GVWR, or either the maximum front or rear
GAWR. If you do, parts on your vehicle can
break, and it can change the way your vehicle
handles. These could cause you to lose
control and crash. Also, overloading can
shorten the life of your vehicle.
Using heavier suspension components to get added
durability might not change your weight ratings. Ask your
dealer to help you load your vehicle the right way.
Notice:Overloading your vehicle may cause
damage. Repairs would not be covered by your
warranty. Do not overload your vehicle.
If you put things inside your vehicle — like suitcases,
tools, packages, or anything else — they will go as fast
as the vehicle goes. If you have to stop or turn
quickly, or if there is a crash, they’ll keep going.
{CAUTION:
Things you put inside your vehicle can strike
and injure people in a sudden stop or turn, or
in a crash.
Put things in the rear area of your vehicle.
Try to spread the weight evenly.
Never stack heavier things, like suitcases,
above the tops of the seats inside the
vehicle or in the cargo area when the
convertible top is lowered.
If you carry tall objects in the cargo area,
secure them properly and have the
convertible top fastened in the raised
position.
Do not leave an unsecured child restraint
in your vehicle.
When you carry something inside the
vehicle, secure it whenever you can.
4-37

Payload
This is the maximum load capacity that your vehicle can
carry. Be sure to include the weight of the occupants
as part of your load. If you added any accessories
or equipment after your vehicle left the factory,
remember to subtract the weight of these things from
the payload. Your dealer can help you with this.
Remember not to exceed the Gross Axle Weight
Rating (GAWR) of the front or rear axle. SeeLoading
Your Vehicle on page 4-32.
Add-On Equipment
When you carry removable items, you may need to put
a limit on how many people you carry inside your
vehicle. Be sure to weigh your vehicle before you buy
and install the new equipment.
Notice:Overloading your vehicle may cause
damage. Repairs would not be covered by your
warranty. Do not overload your vehicle.
Remember not to exceed the Gross Axle Weight Rating
(GAWR) of the rear axle. SeeLoading Your Vehicle
on page 4-32.
Trailer Recommendations
You must subtract your hitch load from the Cargo
Weight Rating (CWR) for your vehicle. The CWR is the
maximum weight of the load your vehicle can carry.
The CWR does not include the weight of the people
inside, but you can gure about 150 lbs. (68 kg) for each
seating position. The total cargo load must not be
more than the vehicle’s CWR. Make sure to weigh your
vehicle with your trailer attached, so that you won’t
go over the GVWR or the GAWR.
You’ll get the best performance if you spread out the
weight of your load the right way, and if you choose the
correct hitch and trailer brakes.
For more information, seeTowing a Trailer on page 4-39
later in this section.
4-38

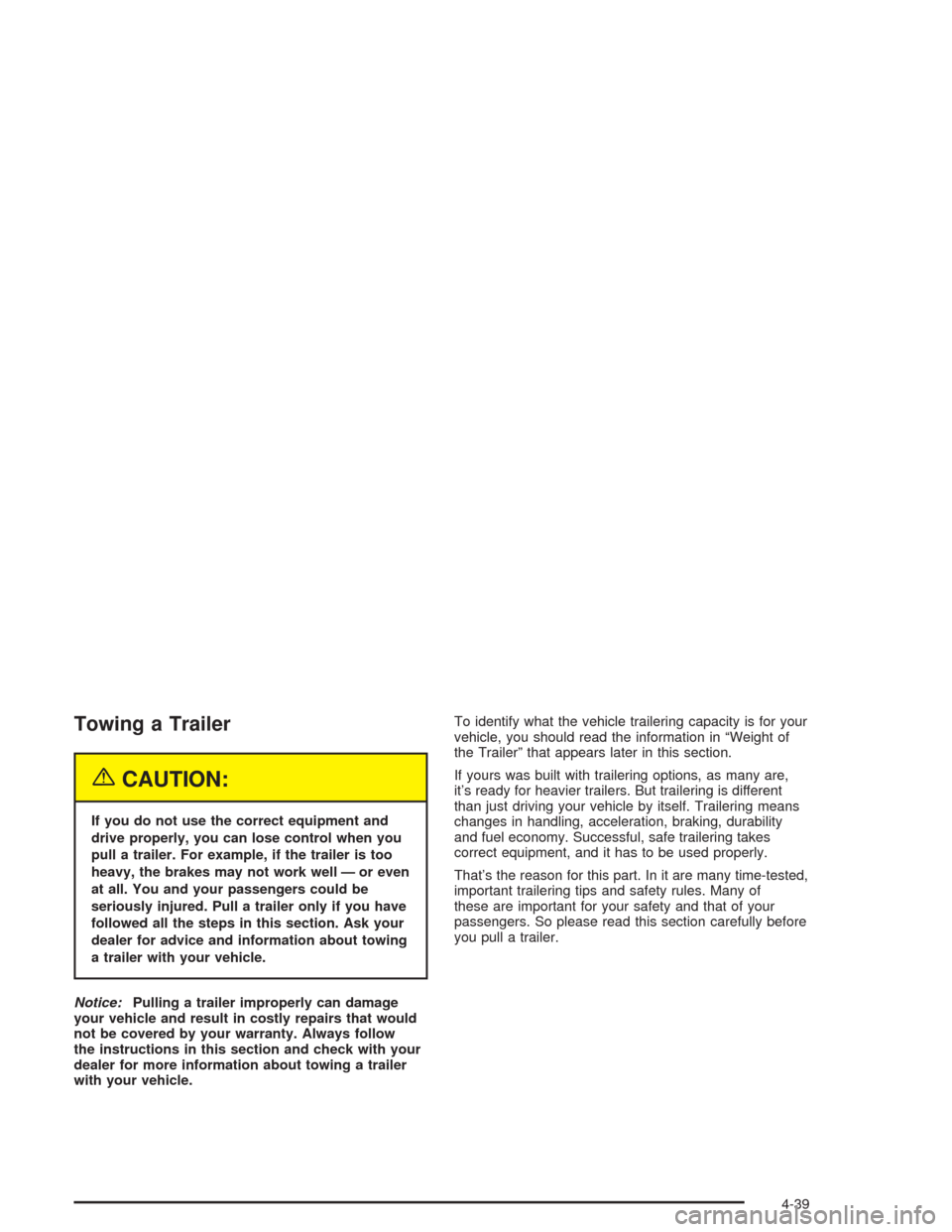

Towing a Trailer
{CAUTION:
If you do not use the correct equipment and
drive properly, you can lose control when you
pull a trailer. For example, if the trailer is too
heavy, the brakes may not work well — or even
at all. You and your passengers could be
seriously injured. Pull a trailer only if you have
followed all the steps in this section. Ask your
dealer for advice and information about towing
a trailer with your vehicle.
Notice:Pulling a trailer improperly can damage
your vehicle and result in costly repairs that would
not be covered by your warranty. Always follow
the instructions in this section and check with your
dealer for more information about towing a trailer
with your vehicle.To identify what the vehicle trailering capacity is for your
vehicle, you should read the information in “Weight of
the Trailer” that appears later in this section.
If yours was built with trailering options, as many are,
it’s ready for heavier trailers. But trailering is different
than just driving your vehicle by itself. Trailering means
changes in handling, acceleration, braking, durability
and fuel economy. Successful, safe trailering takes
correct equipment, and it has to be used properly.
That’s the reason for this part. In it are many time-tested,
important trailering tips and safety rules. Many of
these are important for your safety and that of your
passengers. So please read this section carefully before
you pull a trailer.
4-39

If You Decide To Pull A Trailer
If you do, here are some important points:
There are many different laws, including speed limit
restrictions, having to do with trailering. Make sure
your rig will be legal, not only where you live
but also where you’ll be driving. A good source for
this information can be state or provincial police.
Don’t tow a trailer at all during the rst 500 miles
(800 km) your new vehicle is driven. Your engine,
axle or other parts could be damaged.
Then, during the rst 500 miles (800 km) that you
tow a trailer, don’t drive over 50 mph (80 km/h)
and don’t make starts at full throttle. This helps your
engine and other parts of your vehicle wear in at
the heavier loads.
Tow the trailer in DRIVE (D). You may want to shift
the transmission to THIRD (3) or, if necessary, a
lower gear if the transmission shifts too often under
heavy loads and/or hilly conditions.
Three important considerations have to do with weight:
Weight of the trailer
Weight of the trailer tongue
Weight on your vehicle’s tires
4-40

Weight of the Trailer
How heavy can a trailer safely be?
It depends on how you plan to use your rig. For
example, speed, altitude, road grades, outside
temperature and how much your vehicle is used to pull
a trailer are all important. And, it can also depend
on any special equipment that you have on your vehicle.
Maximum trailer weight is calculated assuming the
driver and one passenger are in the tow vehicle and it
has all the required trailering equipment. The weight
of additional optional equipment, passengers and cargo
in the tow vehicle must be subtracted from the
maximum trailer weight. The weight of the trailer tongue
also affects the maximum trailer weight. See “Weight
of the Trailer Tongue” later in this section.
Your vehicle is a two-wheel drive vehicle. The axle
ratio is 3.73, the maximum trailer weight is
2,500 lbs. (1 134 kg) and the Gross Combination
Weight Rating (GCWR) is 8,000 lbs. (3 629 kg).The Gross Combination Weight Rating (GCWR) is the
total allowable weight of the completely loaded
vehicle and trailer including any passengers, cargo,
equipment and conversions. The GCWR for your vehicle
should not be exceeded.
You can ask your dealer for trailering information or
advice, or you can write us at the address listed in your
Warranty and Owner Assistance Information Booklet.
In Canada, write to:
General Motors of Canada Limited
Customer Communication Centre, 163-005
1908 Colonel Sam Drive
Oshawa, Ontario L1H 8P7
4-41

Weight of the Trailer Tongue
The tongue load (A) of any trailer is an important weight
to measure because it affects the total gross weight
of your vehicle. The Gross Vehicle Weight (GVW)
includes the curb weight of the vehicle, any cargo you
may carry in it, and the people who will be riding in
the vehicle. If you have a lot of options, equipment,
passengers or cargo in your vehicle, it will reduce the
tongue weight your vehicle can carry, which will
also reduce the trailer weight your vehicle can tow. And
if you will tow a trailer, you must add the tongue load
to the GVW because your vehicle will be carrying
that weight, too. SeeLoading Your Vehicle on page 4-32
for more information about your vehicle’s maximum
load capacity.
The trailer tongue weight (A) should be 10 percent to
15 percent of the total loaded trailer weight, up to
a maximum of 250 lbs (113 kg) with the equipped hitch.
Do not exceed the maximum allowable tongue weight
for your vehicle. Only use the equipped hitch that comes
with your vehicle.
After you’ve loaded your trailer, weigh the trailer and
then the tongue, separately to see if the weights
are proper. If they aren’t, you may be able to get them
right simply by moving some items around in the
trailer.
4-42

Total Weight on Your Vehicle’s Tires
Be sure your vehicle’s tires are inated to the upper limit
for cold tires. You’ll nd these numbers on the
Certication label at the rear edge of the driver’s door.
SeeLoading Your Vehicle on page 4-32. Then be
sure you don’t go over the GVW limit for your vehicle,
including the weight of the trailer tongue.
Hitches
Your vehicle is compatible only with the following
trailering hitch. To order this hitch, see your dealer.
A. Centering Device
B. Handwheel
C. Lock
D. Ball RodE. Ball (purchased
separately)
F. Chain Loop
4-43

Installing the Ball Rod
To install the ball rod do the following:
1. Remove the cover of the housing located behind
the license plate area by pushing in the tabs and
pulling downward.2. Be sure the unit is unlocked before pretensioning.
Unlock using the key.
4-44

Then pretension the ball rod by pulling out the
handwheel and turning it counterclockwise. When
the ball is pretensioned, it means:
The red area of the handwheel should be
opposite the white marking on the ball rod.
The key cannot be withdrawn.
The ball rod can only be installed in this position.
If the key is inserted and the lock is open,
tighten the handwheel slightly and turn clockwise
as far as the stop. Insert the ball rod as far
into the housing as it will go. When this happens,
you will hear the lock engage.3. Check that the ball rod is tight by doing the
following:
Close the lock, withdraw the key, and install the
lock cover securely.
The green area on the handwheel should be
opposite the white dot on the ball rod.
Move the hitch back and forth to ensure it is
properly secured.
If you cannot complete all of the above checks, repeat
the assembly procedure.
4-45

Removing the Ball Rod
To remove the ball rod do the following:
1. Open the lock cover on the handwheel and unlock
with the key.2. Hold the ball rod tight with one hand, tighten the
handwheel slightly and turn it clockwise as far as
it will go.
3. Pull the ball rod down and off. Store the ball rod for
future use.
4-46
