5. Separate the bulb assembly from the wiring
harness and replace the unit.
6. Put the socket back into the headlamp assembly in
the vehicle by turning it clockwise.
7. Reinstall the headlamp cover and tighten the
fastener.
Front Turn Signal, Sidemarker and
Parking Lamps
Front Turn and Parking Lamps
To change the front turn or parking lamps do the
following:
1. Locate the bar that runs across the front of the
vehicle and remove the two screws located near
the front of the hood that hold the bar in place.
2. Release the tabs that attach the bar to the
headlamps.
3. Pull outward on the bar to remove it from the vehicle.
5-45

4. Locate and release the tabs behind the grille that
hold the lamp assembly in place. Unsnap the tabs
and push forward to remove the lamp assembly.
5. Turn the bulb socket counterclockwise to access
the bulb.
6. Pull the old bulb out of the socket and push in a
new bulb.
7. Reverse the steps to reinstall the lamp assembly.
Sidemarker Lamps
To replace the bulbs in the sidemarker lamps do the
following:
1. Reach underneath the vehicle to locate and release
the clips holding the lamp assembly in place.
2. Push the assembly forward.
3. Turn the bulb socket counterclockwise until you
hear a click.
4. Pull the old bulb out of the socket and push in a
new bulb.
5. Reverse steps to reinstall the lamp assembly.
5-46

Center High-Mounted
Stoplamp (CHMSL)
It is recommended that this component be replaced as
a unit. See your dealer.
Taillamps
To change the taillamp bulbs, do the following:
1. Reach underneath the rear of the vehicle.
2. Find the bulb socket, twist counterclockwise, and
remove it from the lamp assembly.3. Pull the old bulb out of the socket and push in a
new bulb.
4. Reinstall the socket into the lamp assembly and
turn it clockwise to secure.
5-47

Back-Up Lamps
To replace the bulb in the back-up lamps, do the
following:
1. Reach underneath the vehicle near the license
plate and nd the bulb socket.
2. To remove the socket from the lamp assembly,
locate and squeeze the release tab while turning
the socket counterclockwise.3. Turn the bulb counterclockwise and then pull
outward to remove it from the socket.
4. Insert a new bulb into the socket and turn it
clockwise to secure it.
5. Reverse the previous steps to reinstall the lamp
assembly on the vehicle.
Replacement Bulbs
Exterior Lamp Bulb Number
Back-Up Lamps 2057
High Beam Headlamp 9005HB3
Low Beam Headlamp H11
Parking Lamps T20
Sidemarker Lamps 194
Taillamps 3157
Turn Signal Lamps T20
*For all other bulbs not listed here, contact your dealer.
5-48

Windshield Wiper Blade
Replacement
Windshield wiper blades should be inspected
periodically for wear and cracking. SeeScheduled
Maintenance on page 6-4.
Replacement blades come in different types and are
removed in different ways. For proper type and length,
seeNormal Maintenance Replacement Parts on
page 6-15.
Notice:Allowing the wiper blade arm to touch
the windshield when no wiper blade is installed
could damage the windshield. Any damage
that occurs would not be covered by your warranty.
Do not allow the wiper blade arm to touch the
windshield.
1. To remove the old wiper blades, lift the wiper arm
until it locks into a vertical position.A. Blade Assembly
B. Arm Assembly
C. Locking TabD. Blade Pivot
E. Hook Slot
F. Arm Hook
2. Press down on the blade assembly pivot locking
tab. Pull down on the blade assembly to release it
from the wiper arm hook.
5-49

3. Remove the insert from the blade assembly. The
insert has two notches at one end that are locked
by bottom claws of the blade assembly. At the
notched end, pull the insert from the blade
assembly.4. To install the new wiper insert, slide the insert (D),
notched end last, into the end with two blade
claws (A). Slide the insert all the way through the
blade claws at the opposite end (B). The plastic
caps (C) will be forced off as the insert is fully
inserted.
5. Be sure that the notches are locked by the bottom
claws. Make sure that all other claws are properly
locked on both sides of the insert slots.
5-50

A. Claw in Notch
B. Correct InstallationC. Incorrect Installation
6. Put the blade assembly pivot in the wiper arm hook.
Pull up until the pivot locking tab locks in the
hook slot.
7. Carefully lower the wiper arm and blade assembly
onto the windshield.
Tires
Your new vehicle comes with high-quality tires made by
a leading tire manufacturer. If you ever have questions
about your tire warranty and where to obtain service,
see your GM Warranty booklet for details. For additional
information refer to the tire manufacturer’s booklet
included with your vehicle’s Owner’s Manual.
{CAUTION:
Poorly maintained and improperly used
tires are dangerous.
Overloading your tires can cause
overheating as a result of too much
friction. You could have an air-out and a
serious accident. SeeLoading Your
Vehicle on page 4-32.
CAUTION: (Continued)
5-51

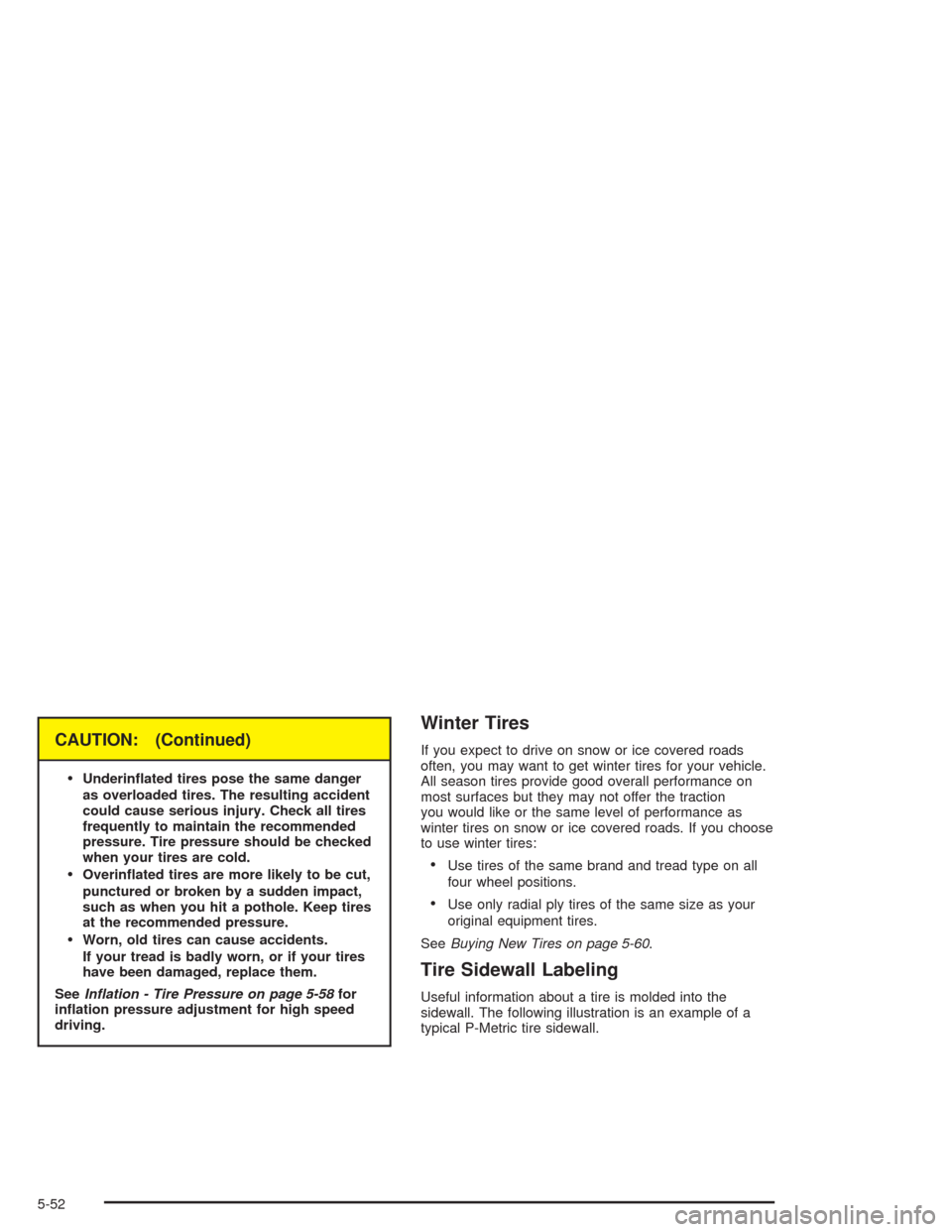

CAUTION: (Continued)

Underinated tires pose the same danger
as overloaded tires. The resulting accident
could cause serious injury. Check all tires
frequently to maintain the recommended
pressure. Tire pressure should be checked
when your tires are cold.
Overinated tires are more likely to be cut,
punctured or broken by a sudden impact,
such as when you hit a pothole. Keep tires
at the recommended pressure.
Worn, old tires can cause accidents.
If your tread is badly worn, or if your tires
have been damaged, replace them.
SeeInflation - Tire Pressure on page 5-58for
ination pressure adjustment for high speed
driving.
Winter Tires
If you expect to drive on snow or ice covered roads
often, you may want to get winter tires for your vehicle.
All season tires provide good overall performance on
most surfaces but they may not offer the traction
you would like or the same level of performance as
winter tires on snow or ice covered roads. If you choose
to use winter tires:
Use tires of the same brand and tread type on all
four wheel positions.
Use only radial ply tires of the same size as your
original equipment tires.
SeeBuying New Tires on page 5-60.
Tire Sidewall Labeling
Useful information about a tire is molded into the
sidewall. The following illustration is an example of a
typical P-Metric tire sidewall.
5-52

(A) Tire Size:The tire size code is a combination
of letters and numbers used to dene a particular
tire’s width, height, aspect ratio, construction type,
and service description. See the Tire Size illustration
later in this section for more detail.
(B) Tire Performance Criteria Specication
(TPC Spec):Original equipment tires designed to
GM’s specic tire performance criteria have a
TPC specication code molded onto the sidewall.
GM’s TPC specications meet or exceed all federal
safety guidelines.
(C) Department of Transportation (DOT):The
Department of Transportation (DOT) code indicates that
the tire is in compliance with the U.S. Department of
Transportation Motor Vehicle Safety Standards.
(D) Tire Identication Number (TIN):The letters
and numbers following the DOT code are the Tire
Identication Number (TIN). The TIN shows the
manufacturer and plant code, tire size, and date the
tire was manufactured. The TIN is molded onto
both sides of the tire, although only one side may
have the date of manufacture.
5-53

(E) Tire Ply Material:The type of cord and number
of plies in the sidewall and under the tread.
(F) Uniform Tire Quality Grading (UTQG):Tire
manufacturers are required to grade tires based on
three performance factors: treadwear, traction,
and temperature resistance. For more information, see
Uniform Tire Quality Grading on page 5-61.
(G) Maximum Cold Ination Load Limit:Maximum
load that can be carried and the maximum pressure
needed to support that load. For information on
recommended tire pressure seeInation - Tire Pressure
on page 5-58andLoading Your Vehicle on page 4-32.Tire Size
The following illustration shows, an example of, a typical
passenger car tire size.
(A) Passenger (P-Metric) Tire:The United States
version of a metric tire sizing system. The letter “P” as
the rst character in the tire size means a passenger
vehicle tire engineered to standards set by the U.S. Tire
and Rim Association.
(B) Tire Width:The three-digit number indicates the
tire section width in millimeters from sidewall to sidewall.
