CHEVROLET SUBURBAN 1999 8.G Owners Manual

yellowblue
4-59
Step-Bumper Pad
If your vehicle has a rear step bumper, it may be
equipped with a rear step pad at the center of
the bumper.
If you will be using the
bumper to tow a trailer, you
must remove the center
cutout circle to install the
trailer ball. You must also
remove both outer cutouts
to attach the trailer
safety chains.
To remove the pad, lift the
edge of the pad from the
rear of the bumper and
swing it forward. When the
pad releases from the
bumper holes, lift the
pad off.

yellowblue
4-60
-NOTES

5-
yellowblue
5-1
Section 5 Problems On The Road
Here you'll find what to do about some problems that can occur on the road.
5
-2 Hazard Warning Flashers
5
-2 Other Warning Devices
5
-3 Jump Starting
5
-8 Towing Your Vehicle
5
-9 Engine Overheating (Gasoline Engine)5
-11 Cooling System (Gasoline Engine)
5
-19 Engine Fan Noise
5
-19 If a Tire Goes Flat
5
-20 Changing a Flat Tire
5
-36 If You're Stuck: In Sand, Mud, Ice or Snow

yellowblue
5-2
Hazard Warning Flashers
Your hazard warning flashers let you warn others. They
also let police know you have a problem. Your front and
rear turn signal lamps will flash on and off.
Press the button at the top
of the steering column all
the way down to make your
front and rear turn signal
lamps flash on and off.
Your hazard warning flashers work no matter what
position your key is in, and even if the key isn't in.
To turn off the flashers, push the button until the first
click and release.
When the hazard warning flashers are on, your turn
signals won't work.
Other Warning Devices
If you carry reflective triangles, you can set one up at
the side of the road about 300 feet (100 m) behind
your vehicle.

yellowblue
5-3

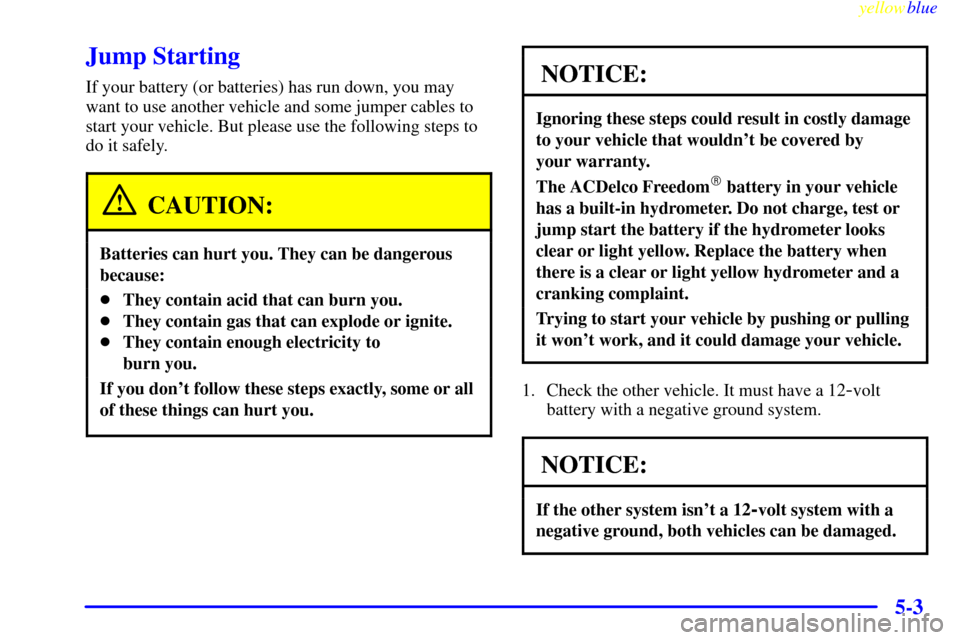

Jump Starting
If your battery (or batteries) has run down, you may
want to use another vehicle and some jumper cables to
start your vehicle. But please use the following steps to
do it safely.
CAUTION:
Batteries can hurt you. They can be dangerous
because:

They contain acid that can burn you.

They contain gas that can explode or ignite.

They contain enough electricity to
burn you.
If you don't follow these steps exactly, some or all
of these things can hurt you.
NOTICE:
Ignoring these steps could result in costly damage
to your vehicle that wouldn't be covered by
your warranty.
The ACDelco Freedom battery in your vehicle
has a built-in hydrometer. Do not charge, test or
jump start the battery if the hydrometer looks
clear or light yellow. Replace the battery when
there is a clear or light yellow hydrometer and a
cranking complaint.
Trying to start your vehicle by pushing or pulling
it won't work, and it could damage your vehicle.
1. Check the other vehicle. It must have a 12-volt
battery with a negative ground system.
NOTICE:
If the other system isn't a 12-volt system with a
negative ground, both vehicles can be damaged.

yellowblue
5-4
2. Get the vehicles close enough so the jumper cables
can reach, but be sure the vehicles aren't touching
each other. If they are, it could cause a ground
connection you don't want. You wouldn't be able to
start your vehicle, and the bad grounding could
damage the electrical systems.
To avoid the possibility of the vehicles rolling, set
the parking brake firmly on both vehicles involved in
the jump start procedure. Put an automatic
transmission in PARK (P) or a manual transmission
in NEUTRAL (N) before setting the parking brake.
If you have a four
-wheel-drive vehicle, be sure the
transfer case is not in NEUTRAL (N).
3. Turn off the ignition on both vehicles. Unplug
unnecessary accessories plugged into the cigarette
lighter or accessory power outlets. Turn off all lamps
that aren't needed as well as radios. This will avoid
sparks and help save both batteries. And it could
save your radio!
NOTICE:
If you leave your radio on, it could be badly
damaged. The repairs wouldn't be covered by
your warranty.
4. Open the hoods and locate the batteries. Find
the positive (+) and negative (
-) terminals on
each battery.
CAUTION:
If your vehicle has air conditioning, the auxiliary
electric fan under the hood can start up even
when the engine is not running and can injure
you. Keep hands, clothing and tools away from
any underhood electric fan.

yellowblue
5-5
CAUTION:
Using a match near a battery can cause battery
gas to explode. People have been hurt doing this,
and some have been blinded. Use a flashlight if
you need more light.
Be sure the batteries have enough water. You
don't need to add water to the ACDelco
Freedom

battery (or batteries) installed in
every new GM vehicle. But if a battery has filler
caps, be sure the right amount of fluid is there. If
it is low, add water to take care of that first. If
you don't, explosive gas could be present.
Battery fluid contains acid that can burn you.
Don't get it on you. If you accidentally get it in
your eyes or on your skin, flush the place with
water and get medical help immediately.
5. Check that the jumper cables don't have loose or
missing insulation. If they do, you could get a shock.
The vehicles could be damaged, too.
Before you connect the cables, here are some basic
things you should know. Positive (+) will go to
positive (+) and negative (
-) will go to a metal
engine part. Don't connect positive (+) to
negative (
-) or you'll get a short that would damage
the battery and maybe other parts, too.
On vehicles equipped with dual batteries, make any
battery connections to the primary battery located on
the passenger's side of the vehicle.
CAUTION:
Fans or other moving engine parts can injure you
badly. Keep your hands away from moving parts
once the engine is running.

yellowblue
5-6
6. Connect the red positive (+) cable to the positive (+)
terminal of the vehicle with the dead battery.
7. Don't let the other end
touch metal. Connect it
to the positive (+)
terminal of the
good battery.
8. Now connect the
black negative (
-) cable
to the good battery's
negative (
-) cable.
Don't let the other end
touch anything until the
next step. The other end
of the negative (
-) cable
doesn't go to the
dead battery.
It goes to a heavy unpainted metal part of the vehicle
with the dead battery.

yellowblue
5-7
9. Attach the cable at least 18 inches (45 cm) away
from the dead battery, but not near engine parts that
move. The electrical connection is just as good
there, but the chance of sparks getting back to the
battery is much less.
10. Now start the vehicle with the good battery and run
the engine for a while.
11. Try to start the vehicle with the dead battery.
If it won't start after a few tries, it probably
needs service.12. Remove the cables in reverse order to prevent
electrical shorting. Take care that they don't touch
each other or any other metal.
A. Heavy Metal Engine Part
B. Good Battery
C. Dead Battery

yellowblue
5-8
Towing Your Vehicle
CAUTION:
To help avoid serious personal injury to you
or others:

Never let passengers ride in a vehicle that is
being towed.

Never tow faster than safe or posted speeds.

Never tow with damaged parts not
fully secured.

Never get under your vehicle after it has
been lifted by the tow truck.

Always secure the vehicle on each side with
separate safety chains when towing it.

Use only the correct hooks.
NOTICE:
Use the proper towing equipment to avoid
damage to the bumper, fascia or fog lamp areas
of the vehicle.
With current trends in automotive styles and design, it is
essential that the correct towing equipment is used to
tow a vehicle. Your vehicle can be towed with
sling
-type equipment, wheel lift equipment or car carrier
equipment. Two
-Wheel-Drive vehicle towing limits for
sling
-type equipment and wheel lift equipment:

Front Towing
-- 35 mph (55km/h) for
50 miles (80 km)

Rear Towing
-- 55 mph (88km/h) or legal speed
limit and the distance is unlimited.
Four
-Wheel-Drive vehicles must have the transfer case
in NEUTRAL (N) and the towing limits for sling
-type
equipment and wheel lift equipment:

Front Towing -- 55 mph (88 km/h) or legal speed
limit and distance is unlimited

Rear Towing
-- 35 mph (55 km/h) for
50 miles (80 km).
Consult your dealer or a professional towing service if
you need to have your vehicle towed. See ªRoadside
Assistanceº in the Index.
