7-41
Ignition Transmission Lock Check
While parked, and with the parking brake set, try to turn
the ignition key to LOCK in each shift lever position.

The key should turn to LOCK only when the shift
lever is in PARK (P).

The key should come out only in LOCK.
Parking Brake and Automatic Transmission
PARK (P) Mechanism Check
CAUTION:
When you are doing this check, your vehicle
could begin to move. You or others could be
injured and property could be damaged. Make
sure there is room in front of your vehicle in case
it begins to roll. Be ready to apply the regular
brake at once should the vehicle begin to move.
Park on a fairly steep hill, with the vehicle facing
downhill. Keeping your foot on the regular brake, set the
parking brake.

To check the parking brake's holding ability:
With the engine running and transmission in
NEUTRAL (N), slowly remove foot pressure from
the regular brake pedal. Do this until the vehicle is
held by the parking brake only.

To check the PARK (P) mechanism's holding ability:
With the engine running, shift to PARK (P). Then
release all brakes.
Underbody Flushing Service
At least every spring, use plain water to flush any
corrosive materials from the underbody. Take care to
clean thoroughly any areas where mud and other debris
can collect.

yellowblue
7-42
Part C: Periodic Maintenance
Inspections
Listed in this part are inspections and services which
should be performed at least twice a year (for instance,
each spring and fall). You should let your dealer's
service department or other qualified service center do
these jobs. Make sure any necessary repairs are
completed at once.
Proper procedures to perform these services may be
found in a service manual. See ªService and Owner
Publicationsº in the Index.
Steering and Suspension Inspection
Inspect the front and rear suspension and steering
system for damaged, loose or missing parts, signs of
wear or lack of lubrication. Inspect the power steering
lines and hoses for proper hook
-up, binding, leaks,
cracks, chafing, etc.
Exhaust System Inspection
Inspect the complete exhaust system. Inspect the body
near the exhaust system. Look for broken, damaged,
missing or out
-of-position parts as well as open seams,
holes, loose connections or other conditions which could
cause a heat build
-up in the floor pan or could let
exhaust fumes into the vehicle. See ªEngine Exhaustº in
the Index.
Engine Cooling System Inspection
Inspect the hoses and have them replaced if they are
cracked, swollen or deteriorated. Inspect all pipes,
fittings and clamps; replace as needed. Clean the
outside of the radiator and air conditioning condenser.
To help ensure proper operation, a pressure test of the
cooling system and pressure cap is recommended at
least once a year.

yellowblue
7-43 Throttle System Inspection
Inspect the throttle system for interference or binding,
and for damaged or missing parts. Replace parts as
needed. Replace any components that have high effort
or excessive wear. Do not lubricate accelerator and
cruise control cables.
Drive Axle Service
Check rear/front axle fluid level and add as needed.
Check constant velocity joints and axle seals for leaking.
Transfer Case (Four-Wheel Drive)
Inspection
Every 12 months or at oil change intervals, check front
axle and transfer case and add lubricant when necessary.
On manual shift transfer case, oil the control lever pivot
point. Check vent hose at transfer case for kinks and
proper installation. More frequent lubrication may be
required on off
-road use.
Brake System Inspection
Inspect the complete system. Inspect brake lines and
hoses for proper hook
-up, binding, leaks, cracks,
chafing, etc. Inspect disc brake pads for wear and rotors
for surface condition. Also inspect drum brake linings
for wear and cracks. Inspect other brake parts, including
drums, wheel cylinders, calipers, parking brake, etc.
Check parking brake adjustment. You may need to have
your brakes inspected more often if your driving habits
or conditions result in frequent braking.

yellowblue
7-44
Part D: Recommended Fluids
and Lubricants
NOTE: Fluids and lubricants identified below by name, part
number or specification may be obtained from your dealer.
USAGE
FLUID/LUBRICANT
Engine Oil
(Gasoline
Engine)Engine Oil with the American
Petroleum Institute Certified For
Gasoline Engines ªStarburstº
symbol of the proper viscosity. To
determine the preferred viscosity
for your vehicle's engine, see
ªEngine Oilº in the Index.
Engine Coolant50/50 mixture of clean, drinkable
water and use only GM
Goodwrench

DEX-COOL
or
Havoline
DEX-COOL
Coolant.
See ªEngine Coolantº in the Index.
Hydraulic Brake
SystemDelco Supreme 11
Brake Fluid
(GM Part No. 12377967 or
equivalent DOT
-3 Brake Fluid).
Windshield
Washer SolventGM Optikleen
Washer Solvent
(GM Part No. 1051515)
or equivalent.
USAGEFLUID/LUBRICANT
Parking Brake
Cable GuidesChassis Lubricant (GM Part
No. 12377985 or equivalent) or
lubricant meeting requirements
of NLGI # 2, Category LB
or GC
-LB.
Power Steering
SystemGM Power Steering Fluid (GM
Part No. 1052884
- 1 pint,
1050017
- 1 quart, or equivalent).
Automatic
TransmissionDEXRON
-III Automatic
Transmission Fluid.
Key Lock
CylindersMulti-Purpose Lubricant,
Superlube
(GM Part
No. 12346241 or equivalent).
Chassis
LubricationChassis Lubricant (GM Part
No. 12377985 or equivalent) or
lubricant meeting requirements
of NLGI # 2, Category LB
or GC
-LB.
Front Wheel
BearingsWheel Bearing Lubricant meeting
requirements of NLGI # 2,
Category GC or GC
-LB (GM Part
No. 1051344 or equivalent).

yellowblue
7-45
USAGEFLUID/LUBRICANT
Front and Rear
Axle (Standard
Differential)SAE 80W-90 Axle Lubricant (GM
Part No. 1052271 or equivalent).
Rear Axle
(Locking
Differential)SAE 80W-90 Axle Lubricant; Use
only GM Part No. 1052271. Do
not add friction modifier.
Manual Transfer
CaseDEXRON
-III Automatic
Transmission Fluid.
Automatic
Transfer CaseAutomatic Transfer Case Fluid
(GM Part No. 12378396).
Front Axle
Propshaft Spline
and Universal
JointsChassis Lubricant (GM Part
No. 12377985 or equivalent) or
lubricant meeting requirements
of NLGI # 2, Category LB or
GC
-LB.
One-Piece
Propshaft Spline
(With Two
-Wheel
Drive)
Spline Lubricant, Special
Lubricant (GM Part
No. 12345879) or lubricant
meeting requirements of
GM 9985830.
USAGEFLUID/LUBRICANT
Hood Latch
Assembly,
Secondary Latch,
Pivots, Spring
Anchor and
Release PawlLubriplate
Lubricant Aerosol
(GM Part No. 12346293 or
equivalent) or lubricant meeting
requirements of NLGI # 2,
Category LB or GC
-LB.
Hood and Door
HingesMulti-Purpose Lubricant,
Superlube
(GM Part No.
12346241 or equivalent).
Body Door
Hinge Pins,
Tailgate Hinge
and Linkage,
Folding Seat and
Fuel Door HingeMulti-Purpose Lubricant,
Superlube
(GM Part
No. 12346241 or equivalent).
Outer Tailgate
Handle Pivot
PointsMulti-Purpose Lubricant,
Superlube
(GM Part
No. 12346241 or equivalent).
Weatherstrip
ConditioningDielectric Silicone Grease (GM
Part No. 12345579 or equivalent).
Weatherstrip
SqueaksSynthetic Grease with Teflon,
Superlube
(GM Part
No. 12371287 or equivalent).

yellowblue
7-46
Part E: Maintenance Record
After the scheduled services are performed, record the
date, odometer reading and who performed the service
in the boxes provided after the maintenance interval.
Any additional information from ªOwner Checks andServicesº or ªPeriodic Maintenanceº can be added on
the following record pages. Also, you should retain all
maintenance receipts. Your owner information portfolio
is a convenient place to store them.
Maintenance Record
DATEODOMETER
READINGSERVICED BYMAINTENANCE PERFORMED

yellowblue
7-47
Maintenance Record
DATEODOMETER
READINGSERVICED BYMAINTENANCE PERFORMED

yellowblue
7-48
Maintenance Record
DATEODOMETER
READINGSERVICED BYMAINTENANCE PERFORMED

8-
yellowblue
8-1
Section 8 Customer Assistance Information
Here you will find out how to contact Chevrolet if you need assistance. This section also tells you how to obtain
service publications and how to report any safety defects.
8
-2 Customer Satisfaction Procedure
8
-4 Customer Assistance for Text Telephone
(TTY) Users
8
-4 Customer Assistance Offices
8
-5 GM Mobility Program for Persons
with Disabilities
8
-6 Chevrolet Roadside Assistance Program
8
-7 Canadian Roadside Assistance
8
-8 Courtesy Transportation8
-9 Warranty Information
8
-10 Reporting Safety Defects to the United
States Government
8
-10 Reporting Safety Defects to the
Canadian Government
8
-11 Reporting Safety Defects to General Motors
8
-11 Ordering Service and Owner Publications
in Canada

yellowblue
8-2

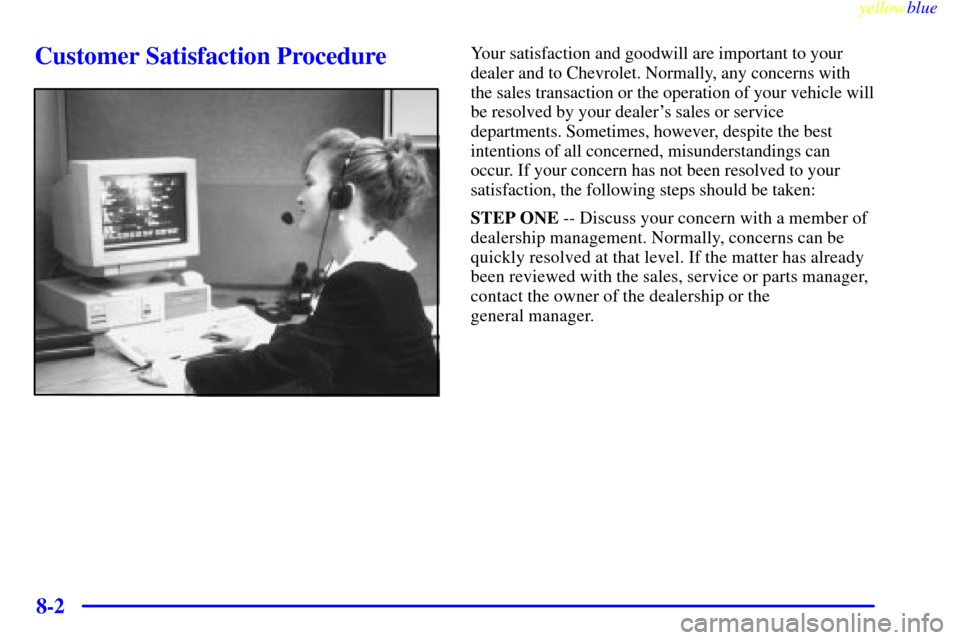

Customer Satisfaction ProcedureYour satisfaction and goodwill are important to your
dealer and to Chevrolet. Normally, any concerns with
the sales transaction or the operation of your vehicle will
be resolved by your dealer's sales or service
departments. Sometimes, however, despite the best
intentions of all concerned, misunderstandings can
occur. If your concern has not been resolved to your
satisfaction, the following steps should be taken:
STEP ONE -- Discuss your concern with a member of
dealership management. Normally, concerns can be
quickly resolved at that level. If the matter has already
been reviewed with the sales, service or parts manager,
contact the owner of the dealership or the
general manager.
