Page 81 of 424
yellowblue
2-11 Parking at Night
Park in a lighted spot, close all windows and lock your
vehicle. Remember to keep your valuables out of sight.
Put them in a storage area, or take them with you.
Parking Lots
If you park in a lot where someone will be watching
your vehicle, it's best to lock it up and take your keys.
But what if you have to leave your ignition key? What if
you have to leave something valuable in your vehicle?
Put your valuables in a storage area, like your
glove box.
Lock all the doors except the driver's.
Passlock
Your vehicle is equipped with the Passlock
theft
-deterrent system.
Passlock is a passive theft
-deterrent system. Passlock
enables fuel if the ignition lock cylinder is turned with a
valid key. If a correct key is not used or the ignition lock
cylinder is tampered with, fuel is disabled.During normal operation, the SECURITY light will go
off approximately five seconds after the key is turned to
the RUN ignition position.
If the engine stalls and the SECURITY light flashes,
wait until the light stops flashing before trying to restart
the engine. Remember to release the key from START
as soon as the engine starts.
If the engine is running and the SECURITY light comes
on, you will be able to restart the engine if you turn the
engine off. However, your Passlock system is not
working properly and must be serviced by your dealer.
Your vehicle is not protected by Passlock at this time.
You may also want to check the fuse (see ªFuses and
Circuit Breakersº in the Index). See your dealer
for service.
In an emergency, call the Roadside Assistance Center.
Page 123 of 424
yellowblue
2-53
Storage Compartments
Your vehicle has a variety of storage compartments
designed to store small items.
Glove Box
To open your glove box, move the switch button toward
the passenger's side and pull the door open.
Center Overhead Console (If Equipped)
Your vehicle may have an overhead console. It has
storage compartments inside it. Your vehicle may also
have a Universal Transmitter, see ªUniversal
Transmitterº later in this section.
Installing a Garage Door Opener
If you have a garage door opener, the front overhead
compartment can be used to conveniently store
the opener.
1. To install the garage door opener, first open the
compartment door by pressing the release
button forward.
2. Peel the protective
backing from the hook
and loop patch. Press it
firmly to the back of
your garage door opener,
as close to the center of
the opener as possible.
3. Center the garage door opener activation button over
the console door button, and press the opener firmly
into place.
The pegs inside the compartment door are used to
make sure the button on the compartment door will
contact the control button on the garage door opener.
Page 139 of 424
yellowblue
2-69
A. Dome Lamp Switch
B. Lamp Controls
C. Air Outlets
D. Multifunction Lever
E. Instrument Cluster
F. Gearshift Lever
G. Audio System
H. Comfort Control System
I. Glove Box
J. AshtrayK. Cupholder
L. Auxiliary Power Outlets
M. Storage Area or Compact Disc Player (If Equipped)
N. Rear Window Defogger Switch (If Equipped)
O. Automatic Transfer Case Switch (If Equipped)
P. Tilt Lever (If Equipped)
Q. Parking Brake Release
R. Hood Release
S. Fuse Block
Page 264 of 424
yellowblue
5-22
If your two-door utility
model has a jack cover,
turn the wing nut
counterclockwise and
take the cover off.
To take the jack out, turn the wing nut counterclockwise
and take it and the retainer off. Take the jack and storage
box out and take the tools out of the box.
Your vehicle may have a pair of emergency gloves
secured to the jack. You can use them when changing
the tire, or during other emergency situations.
Remember to replace them with the jack, so you will
have them if needed later.
To open the jack cover on four-door utility models, turn
the wing nut counterclockwise and take the cover off.
To take the jack out, turn the wing
-head bolt
counterclockwise and take it and the retainer off. Take
the jack and storage box out and take the tools out of
the box.
Your vehicle may have a pair of emergency gloves
secured to the jack. You can use them when changing
the tire, or during other emergency situations.
Remember to replace them with the jack, so you will
have them if needed later.
Page 265 of 424
yellowblue
5-23

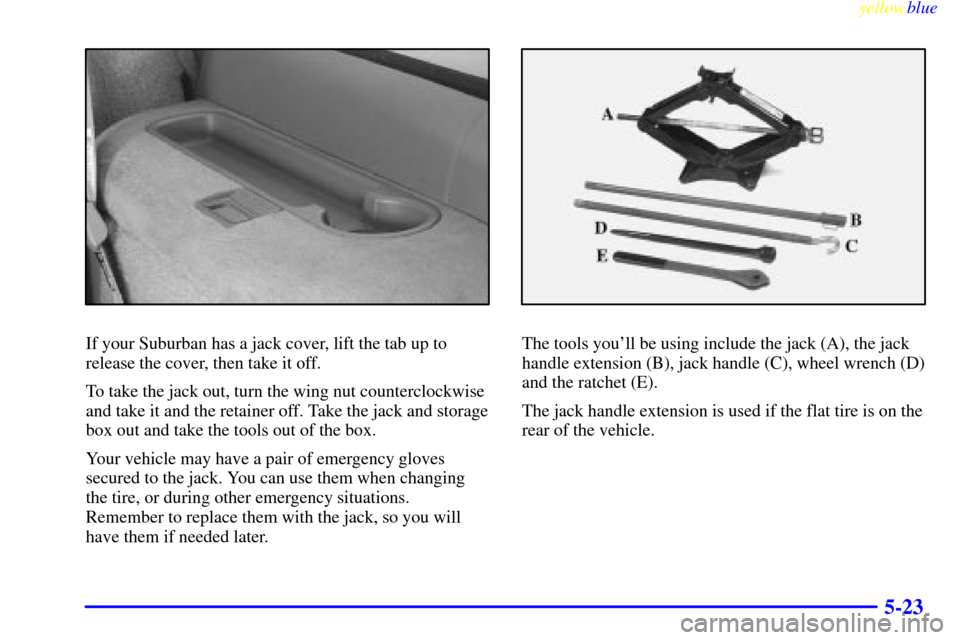

If your Suburban has a jack cover, lift the tab up to
release the cover, then take it off.
To take the jack out, turn the wing nut counterclockwise
and take it and the retainer off. Take the jack and storage
box out and take the tools out of the box.
Your vehicle may have a pair of emergency gloves
secured to the jack. You can use them when changing
the tire, or during other emergency situations.
Remember to replace them with the jack, so you will
have them if needed later.The tools you'll be using include the jack (A), the jack
handle extension (B), jack handle (C), wheel wrench (D)
and the ratchet (E).
The jack handle extension is used if the flat tire is on the
rear of the vehicle.
Page 273 of 424
yellowblue
5-31

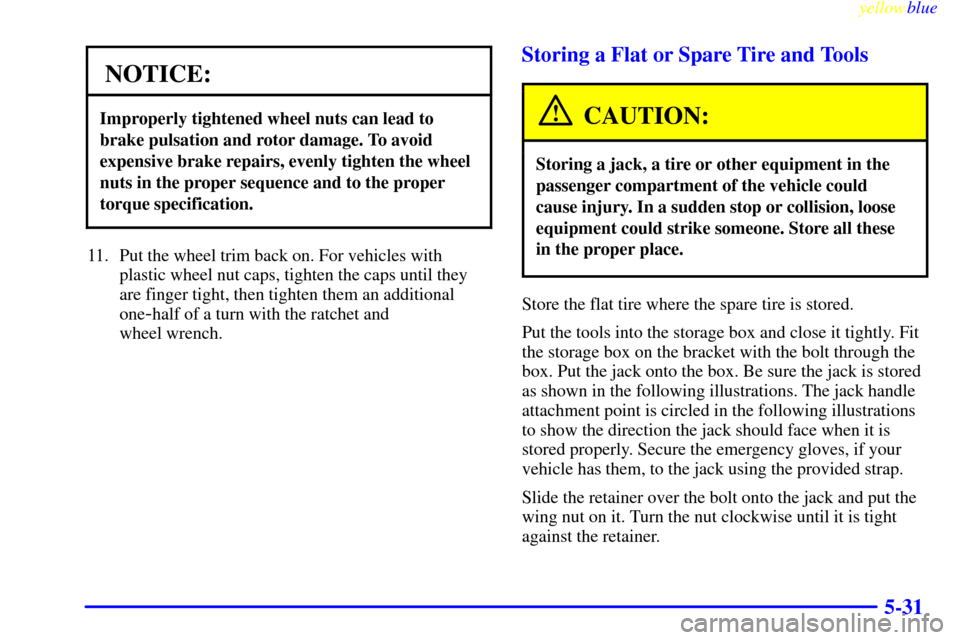

NOTICE:
Improperly tightened wheel nuts can lead to
brake pulsation and rotor damage. To avoid
expensive brake repairs, evenly tighten the wheel
nuts in the proper sequence and to the proper
torque specification.
11. Put the wheel trim back on. For vehicles with
plastic wheel nut caps, tighten the caps until they
are finger tight, then tighten them an additional
one
-half of a turn with the ratchet and
wheel wrench.
Storing a Flat or Spare Tire and Tools
CAUTION:
Storing a jack, a tire or other equipment in the
passenger compartment of the vehicle could
cause injury. In a sudden stop or collision, loose
equipment could strike someone. Store all these
in the proper place.
Store the flat tire where the spare tire is stored.
Put the tools into the storage box and close it tightly. Fit
the storage box on the bracket with the bolt through the
box. Put the jack onto the box. Be sure the jack is stored
as shown in the following illustrations. The jack handle
attachment point is circled in the following illustrations
to show the direction the jack should face when it is
stored properly. Secure the emergency gloves, if your
vehicle has them, to the jack using the provided strap.
Slide the retainer over the bolt onto the jack and put the
wing nut on it. Turn the nut clockwise until it is tight
against the retainer.
Page 339 of 424
yellowblue
6-59
Vehicle Identification Number (VIN)
This is the legal identifier for your vehicle. It appears on
a plate in the front corner of the instrument panel, on the
driver's side. You can see it if you look through the
windshield from outside your vehicle. The VIN also
appears on the Vehicle Certification and Service Parts
labels and the certificates of title and registration.
Engine Identification
The 8th character in your VIN is the engine code. This
code will help you identify your engine, specifications
and replacement parts.
Service Parts Identification Label
You'll find this label on the inside of the glove box. It's
very helpful if you ever need to order parts. On this
label is:
your VIN,
the model designation,
paint information and
a list of all production options and
special equipment.
Be sure that this label is not removed from the vehicle.
Page 342 of 424
yellowblue
6-62
Fuse/Circuit
BreakerUsage
1 Stop/TCC Switch, Buzzer, CHMSL,
Hazard Lamps, Stoplamps
2 Transfer Case
3 Courtesy Lamps, Cargo Lamp, Glove
Box Lamp, Dome/Reading Lamps,
Vanity Mirrors, Power MirrorsFuse/Circuit
BreakerUsage
4 Instrument Cluster, DRL Relay, Lamp
Switch, Keyless Entry, Low Coolant
Module, Illuminated Entry Module,
DRAC (Diesel Engine)
5 Rear Comfort Controls
6 Cruise Control
7 Auxiliary Power Outlet
8 Crank
9 License Lamp, Parking Lamps,
Taillamps, Roof Marker Lamps,
Tailgate Lamps, Front Sidemarkers,
Fog Lamp Relay, Door Switch
Illumination, Fender Lamps,
Headlamp Switch Illumination
10 Air Bag System
11 Wiper Motor, Washer Pump
12 A/C, A/C Blower, High Blower Relay
13 Power Amp, Rear Liftglass, Cigarette
Lighter, Door Lock Relay, Power
Lumbar Seat
Page 417 of 424
yellowblue
9-5
Fuel 6-3 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Canada 6-3 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Filling a Portable Container 6-8 . . . . . . . . . . . . . . . . . . . . . .
Filling Your Tank 6-5 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Gage 2-82 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
In Foreign Countries 6-5 . . . . . . . . . . . . . . . . . . . . . . . . . . .
System Capacity 6-68 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Fuses and Circuit Breakers 6-61 . . . . . . . . . . . . . . . . . . . . . . .
Gages
Engine Coolant Temperature 2-76 . . . . . . . . . . . . . . . . . . . .
Engine Oil Pressure 2-79 . . . . . . . . . . . . . . . . . . . . . . . . . . .
Fuel 2-82 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Speedometer 2-71 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Tachometer 2-71 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Voltmeter 2-74 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Garage Door Opener 2-53 . . . . . . . . . . . . . . . . . . . . . . . . . . . .
GAWR 4-44 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Gear Positions, Automatic Transmission 2-16 . . . . . . . . . . . . .
Glove Box 2-53 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
GM Vehicle Care/Appearance Materials 6-58 . . . . . . . . . . . . .
Gross Axle Weight Rating 4-44 . . . . . . . . . . . . . . . . . . . . . . . .
Gross Vehicle Weight Rating 4-44 . . . . . . . . . . . . . . . . . . . . . .
Guide en Fran†ais ii. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
GVWR 4
-44 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Halogen Bulbs 6-35 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Hazard Warning Flashers 5-2 . . . . . . . . . . . . . . . . . . . . . . . . . .
Head Restraints 1-6 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Headlamps 2
-40 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Bulb Replacement 6-35, 6-36, 6-37, 6-65 . . . . . . . . . . . . .
High/Low Beam Changer 2-35 . . . . . . . . . . . . . . . . . . . . . .
On Reminder 2-41 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Wiring 6-60 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Hearing Impaired, Customer Assistance 8-4 . . . . . . . . . . . . . .
Heated Front Seats 1-4 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Heating 3-4, 3-7 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
High-Beam Headlamps 2-35 . . . . . . . . . . . . . . . . . . . . . . . . . .
Highway Hypnosis 4-36 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Hill and Mountain Roads 4-36 . . . . . . . . . . . . . . . . . . . . . . . . .
Hitches, Trailer 4-51 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Hood, Checking Things Under 6-8 . . . . . . . . . . . . . . . . . . . . .
Hood Release 6-9 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Horn 2-33 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Hydroplaning 4-32 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Ignition Positions 2-12 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Ignition Transmission Lock Check 7-41 . . . . . . . . . . . . . . . . .
Illuminated Entry 2-42 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Inflation, Tire 6-43 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Inside Rearview Mirror 2-43, 2-47 . . . . . . . . . . . . . . . . . . . . .
Inspections 7-42 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Brake System 7-43 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Drive Axle 7-43 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Engine Cooling System 7-42 . . . . . . . . . . . . . . . . . . . . . . . .
Exhaust System 7-42 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Steering 7-42 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Suspension 7-42 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Throttle System 7-43 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Transfer Case (Four-Wheel Drive) 7-43 . . . . . . . . . . . . . . .
