hood release CHEVROLET SUBURBAN 1999 8.G Owners Manual

yellowblue
2-69
A. Dome Lamp Switch
B. Lamp Controls
C. Air Outlets
D. Multifunction Lever
E. Instrument Cluster
F. Gearshift Lever
G. Audio System
H. Comfort Control System
I. Glove Box
J. AshtrayK. Cupholder
L. Auxiliary Power Outlets
M. Storage Area or Compact Disc Player (If Equipped)
N. Rear Window Defogger Switch (If Equipped)
O. Automatic Transfer Case Switch (If Equipped)
P. Tilt Lever (If Equipped)
Q. Parking Brake Release
R. Hood Release
S. Fuse Block

yellowblue
4-23
Q:Am I likely to stall when going downhill?
A:It's much more likely to happen going uphill. But if
it happens going downhill, here's what to do.

Stop your vehicle by applying the regular brakes.
Apply the parking brake.

Shift to PARK (P) and, while still braking, restart
the engine.

Shift back to a low gear, release the parking brake,
and drive straight down.

If the engine won't start, get out and get help.
Driving Across an Incline
Sooner or later, an off-road trail will probably go across
the incline of a hill. If this happens, you have to decide
whether to try to drive across the incline. Here are some
things to consider:

A hill that can be driven straight up or down may be
too steep to drive across. When you go straight up or
down a hill, the length of the wheel base (the
distance from the front wheels to the rear wheels)
reduces the likelihood the vehicle will tumble end
over end. But when you drive across an incline, the
much more narrow track width (the distance between
the left and right wheels) may not prevent the vehicle
from tilting and rolling over. Also, driving across an
incline puts more weight on the downhill wheels.
This could cause a downhill slide or a rollover.

Surface conditions can be a problem when you drive
across a hill. Loose gravel, muddy spots, or even wet
grass can cause your tires to slip sideways, downhill.
If the vehicle slips sideways, it can hit something
that will trip it (a rock, a rut, etc.) and roll over.

yellowblue

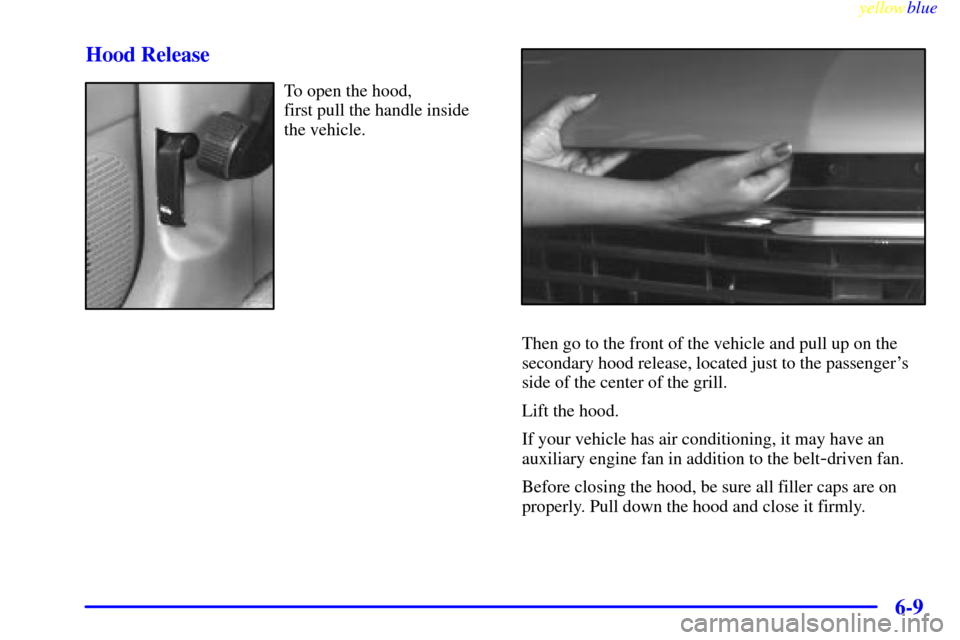

6-9 Hood Release
To open the hood,
first pull the handle inside
the vehicle.
Then go to the front of the vehicle and pull up on the
secondary hood release, located just to the passenger's
side of the center of the grill.
Lift the hood.
If your vehicle has air conditioning, it may have an
auxiliary engine fan in addition to the belt
-driven fan.
Before closing the hood, be sure all filler caps are on
properly. Pull down the hood and close it firmly.

yellowblue
7-39
Also look for any opened or broken air bag coverings,
and have them repaired or replaced. (The air bag system
does not need regular maintenance.)
Wiper Blade Check
Inspect wiper blades for wear or cracking. Replace blade
inserts that appear worn or damaged or that streak or
miss areas of the windshield. Also see ªWiper Blades,
Cleaningº in the Index.
Air Cleaner Filter Restriction Indicator Check
Your vehicle has an indicator on the engine that lets you
know when the air cleaner filter is dirty and needs to be
changed. Check indicator at least twice a year or when
your oil is changed, whichever occurs first. See ªAir
Cleanerº in the Index for more information. Inspect your
air cleaner filter restriction indicator more often if the
vehicle is used in dusty areas or under off road conditions.
Weatherstrip Lubrication
Silicone grease on weatherstrips will make them last
longer, seal better, and not stick or squeak. Apply
silicone grease with a clean cloth. During very cold,
damp weather more frequent application may be
required. (See ªRecommended Fluids and Lubricantsº
in the Index.)Automatic Transmission Check
Check the transmission fluid level; add if needed. See
ªAutomatic Transmission Fluidº in the Index. A fluid
loss may indicate a problem. Check the system and
repair if needed.
At Least Once a Year
Key Lock Cylinders Service
Lubricate the key lock cylinders with the lubricant
specified in Part D.
Body Lubrication Service
Lubricate all body hood, body door hinges, body door
hinge pins, hood latch assembly, secondary hood latch,
pivots, spring anchor, release pawl, rear compartment
hinges, outer tailgate handle pivot points, latches,
tailgate hinge, tailgate linkage, fuel door hinge, locks
and folding seat hardware. Part D tells you what to use.
More frequent lubrication may be required when
exposed to a corrosive environment.

yellowblue
7-45
USAGEFLUID/LUBRICANT
Front and Rear
Axle (Standard
Differential)SAE 80W-90 Axle Lubricant (GM
Part No. 1052271 or equivalent).
Rear Axle
(Locking
Differential)SAE 80W-90 Axle Lubricant; Use
only GM Part No. 1052271. Do
not add friction modifier.
Manual Transfer
CaseDEXRON
-III Automatic
Transmission Fluid.
Automatic
Transfer CaseAutomatic Transfer Case Fluid
(GM Part No. 12378396).
Front Axle
Propshaft Spline
and Universal
JointsChassis Lubricant (GM Part
No. 12377985 or equivalent) or
lubricant meeting requirements
of NLGI # 2, Category LB or
GC
-LB.
One-Piece
Propshaft Spline
(With Two
-Wheel
Drive)
Spline Lubricant, Special
Lubricant (GM Part
No. 12345879) or lubricant
meeting requirements of
GM 9985830.
USAGEFLUID/LUBRICANT
Hood Latch
Assembly,
Secondary Latch,
Pivots, Spring
Anchor and
Release PawlLubriplate
Lubricant Aerosol
(GM Part No. 12346293 or
equivalent) or lubricant meeting
requirements of NLGI # 2,
Category LB or GC
-LB.
Hood and Door
HingesMulti-Purpose Lubricant,
Superlube
(GM Part No.
12346241 or equivalent).
Body Door
Hinge Pins,
Tailgate Hinge
and Linkage,
Folding Seat and
Fuel Door HingeMulti-Purpose Lubricant,
Superlube
(GM Part
No. 12346241 or equivalent).
Outer Tailgate
Handle Pivot
PointsMulti-Purpose Lubricant,
Superlube
(GM Part
No. 12346241 or equivalent).
Weatherstrip
ConditioningDielectric Silicone Grease (GM
Part No. 12345579 or equivalent).
Weatherstrip
SqueaksSynthetic Grease with Teflon,
Superlube
(GM Part
No. 12371287 or equivalent).

yellowblue
9-5
Fuel 6-3 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Canada 6-3 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Filling a Portable Container 6-8 . . . . . . . . . . . . . . . . . . . . . .
Filling Your Tank 6-5 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Gage 2-82 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
In Foreign Countries 6-5 . . . . . . . . . . . . . . . . . . . . . . . . . . .
System Capacity 6-68 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Fuses and Circuit Breakers 6-61 . . . . . . . . . . . . . . . . . . . . . . .
Gages
Engine Coolant Temperature 2-76 . . . . . . . . . . . . . . . . . . . .
Engine Oil Pressure 2-79 . . . . . . . . . . . . . . . . . . . . . . . . . . .
Fuel 2-82 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Speedometer 2-71 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Tachometer 2-71 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Voltmeter 2-74 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Garage Door Opener 2-53 . . . . . . . . . . . . . . . . . . . . . . . . . . . .
GAWR 4-44 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Gear Positions, Automatic Transmission 2-16 . . . . . . . . . . . . .
Glove Box 2-53 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
GM Vehicle Care/Appearance Materials 6-58 . . . . . . . . . . . . .
Gross Axle Weight Rating 4-44 . . . . . . . . . . . . . . . . . . . . . . . .
Gross Vehicle Weight Rating 4-44 . . . . . . . . . . . . . . . . . . . . . .
Guide en Fran†ais ii. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
GVWR 4
-44 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Halogen Bulbs 6-35 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Hazard Warning Flashers 5-2 . . . . . . . . . . . . . . . . . . . . . . . . . .
Head Restraints 1-6 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Headlamps 2
-40 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Bulb Replacement 6-35, 6-36, 6-37, 6-65 . . . . . . . . . . . . .
High/Low Beam Changer 2-35 . . . . . . . . . . . . . . . . . . . . . .
On Reminder 2-41 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Wiring 6-60 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Hearing Impaired, Customer Assistance 8-4 . . . . . . . . . . . . . .
Heated Front Seats 1-4 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Heating 3-4, 3-7 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
High-Beam Headlamps 2-35 . . . . . . . . . . . . . . . . . . . . . . . . . .
Highway Hypnosis 4-36 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Hill and Mountain Roads 4-36 . . . . . . . . . . . . . . . . . . . . . . . . .
Hitches, Trailer 4-51 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Hood, Checking Things Under 6-8 . . . . . . . . . . . . . . . . . . . . .
Hood Release 6-9 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Horn 2-33 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Hydroplaning 4-32 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Ignition Positions 2-12 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Ignition Transmission Lock Check 7-41 . . . . . . . . . . . . . . . . .
Illuminated Entry 2-42 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Inflation, Tire 6-43 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Inside Rearview Mirror 2-43, 2-47 . . . . . . . . . . . . . . . . . . . . .
Inspections 7-42 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Brake System 7-43 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Drive Axle 7-43 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Engine Cooling System 7-42 . . . . . . . . . . . . . . . . . . . . . . . .
Exhaust System 7-42 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Steering 7-42 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Suspension 7-42 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Throttle System 7-43 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Transfer Case (Four-Wheel Drive) 7-43 . . . . . . . . . . . . . . .
