CHEVROLET SUBURBAN 2000 9.G User Guide
Manufacturer: CHEVROLET, Model Year: 2000, Model line: SUBURBAN, Model: CHEVROLET SUBURBAN 2000 9.GPages: 407, PDF Size: 2.88 MB
Page 11 of 407
ix
For example,
these symbols
are used on an
original battery:
CAUTION
POSSIBLE
INJURY
PROTECT
EYES BY
SHIELDING
CAUSTIC
BATTERY
ACID COULD
CAUSE
BURNS
AVOID
SPARKS OR
FLAMES
SPARK OR
FLAME
COULD
EXPLODE
BATTERY
These symbols
are important
for you and
your passengers
whenever your
vehicle is
driven:
DOOR LOCK
UNLOCK
FASTEN
SEAT
BELTS
POWER
WINDOW
AIR BAG
These symbols
have to do with
your lamps:
MASTER
LIGHTING
SWITCH
TURN
SIGNALS
PARKING
LAMPS
HAZARD
WARNING
FLASHER
DAYTIME
RUNNING
LAMPS
FOG LAMPS
These symbols
are on some of
your controls:
WINDSHIELD
WIPER
WINDSHIELD
WASHER
WINDSHIELD
DEFROSTER
REAR
WINDOW
DEFOGGER
VENTILATING
FAN
These symbols
are used on
warning and
indicator lights:
ENGINE
COOLANT
TEMP
BATTERY
CHARGING
SYSTEM
BRAKE
COOLANT
ENGINE OIL
PRESSURE
ANTI-LOCK
BRAKES
Here are some
other symbols
you may see:
FUSE
LIGHTER
HORN
SPEAKER
FUEL
Vehicle Symbols
These are some of the symbols you may find on your vehicle.
Page 12 of 407
x

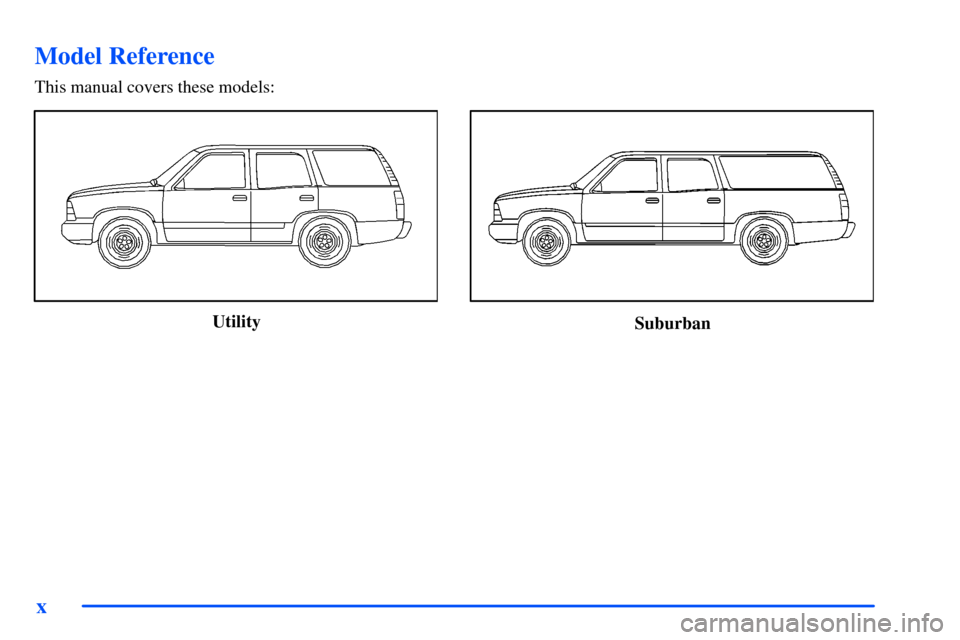

Model Reference
This manual covers these models:
UtilitySuburban
Page 13 of 407

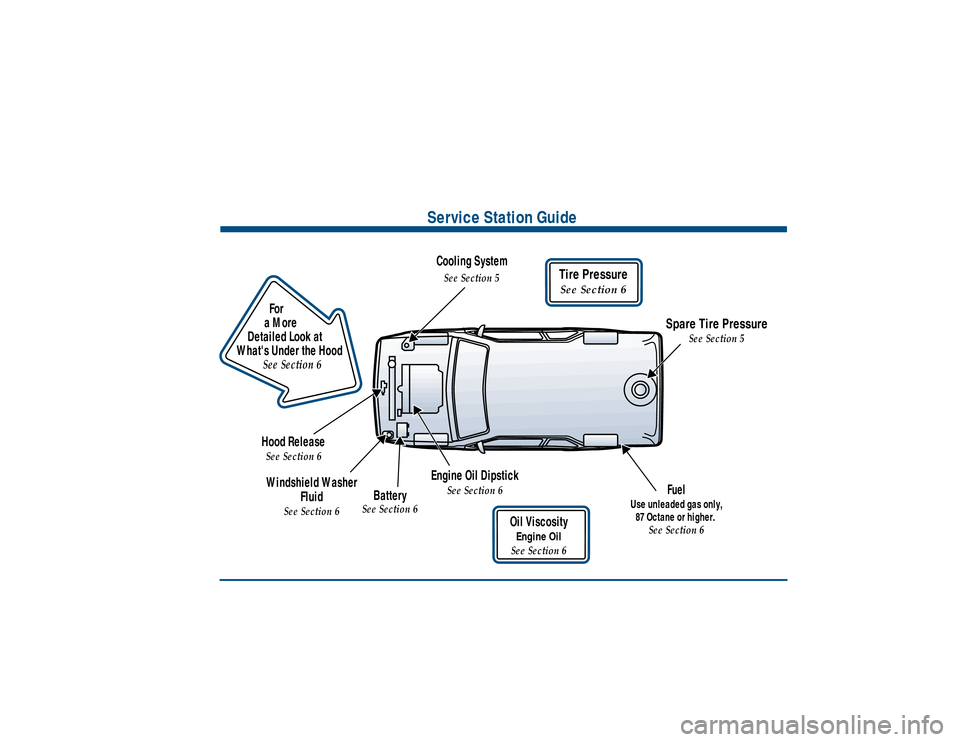

Service Station Guide
Oil Viscosity
Engine Oil
See Section 6
Engine Oil Dipstick
See Section 6Fuel
Use unleaded gas only,
87 Octane or higher.
See Section 6
Cooling System
See Section 5
Hood Release
See Section 6
Windshield Washer
Fluid
See Section 6
Spare Tire Pressure
See Section 5
Battery
See Section 6
Tire Pressure
See Section 6
For
a More
Detailed Look at
What's Under the Hood
See Section 6
Page 14 of 407
1-
1-1

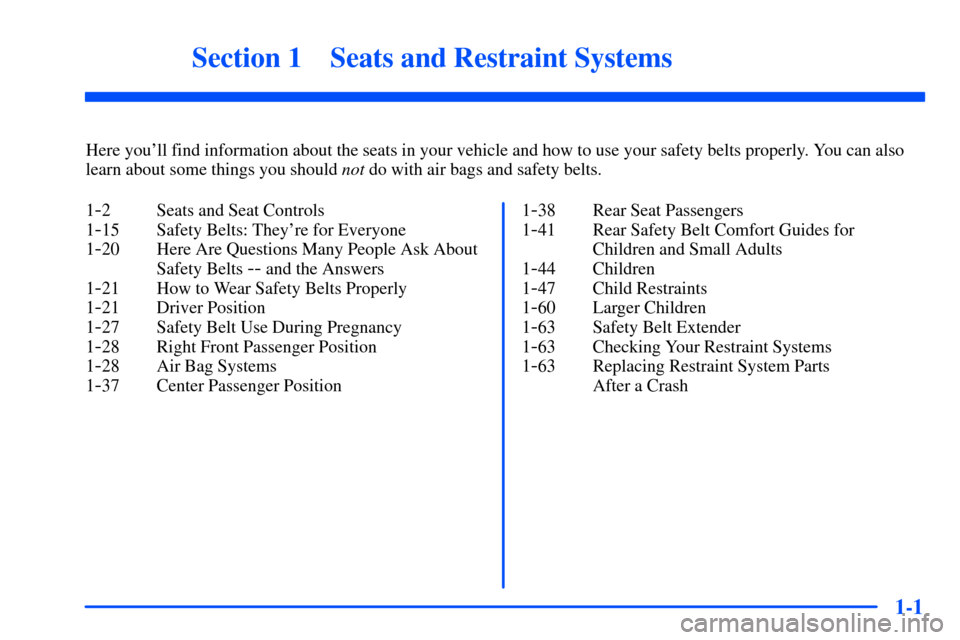

Section 1 Seats and Restraint Systems
Here you'll find information about the seats in your vehicle and how to use your safety belts properly. You can also
learn about some things you should not do with air bags and safety belts.
1
-2 Seats and Seat Controls
1
-15 Safety Belts: They're for Everyone
1
-20 Here Are Questions Many People Ask About
Safety Belts
-- and the Answers
1
-21 How to Wear Safety Belts Properly
1
-21 Driver Position
1
-27 Safety Belt Use During Pregnancy
1
-28 Right Front Passenger Position
1
-28 Air Bag Systems
1
-37 Center Passenger Position1
-38 Rear Seat Passengers
1
-41 Rear Safety Belt Comfort Guides for
Children and Small Adults
1
-44 Children
1
-47 Child Restraints
1
-60 Larger Children
1
-63 Safety Belt Extender
1
-63 Checking Your Restraint Systems
1
-63 Replacing Restraint System Parts
After a Crash
Page 15 of 407
1-2
Seats and Seat Controls
This section tells you about the seats -- how to adjust
them, and fold them up and down. It also tells you about
reclining front seatbacks and head restraints.
Manual Front Seat
CAUTION:
You can lose control of the vehicle if you try to
adjust a manual driver's seat while the vehicle is
moving. The sudden movement could startle and
confuse you, or make you push a pedal when you
don't want to. Adjust the driver's seat only when
the vehicle is not moving.
If your vehicle has a manual bucket or split bench seat,
you can adjust it with this lever located at the front of
the seat.
Lift the lever at the front of the seat to unlock it. Using
your body, slide the seat to where you want it. Then,
release the lever and try to move the seat with your body
in order to make sure the seat is locked into place.
Page 16 of 407
1-3

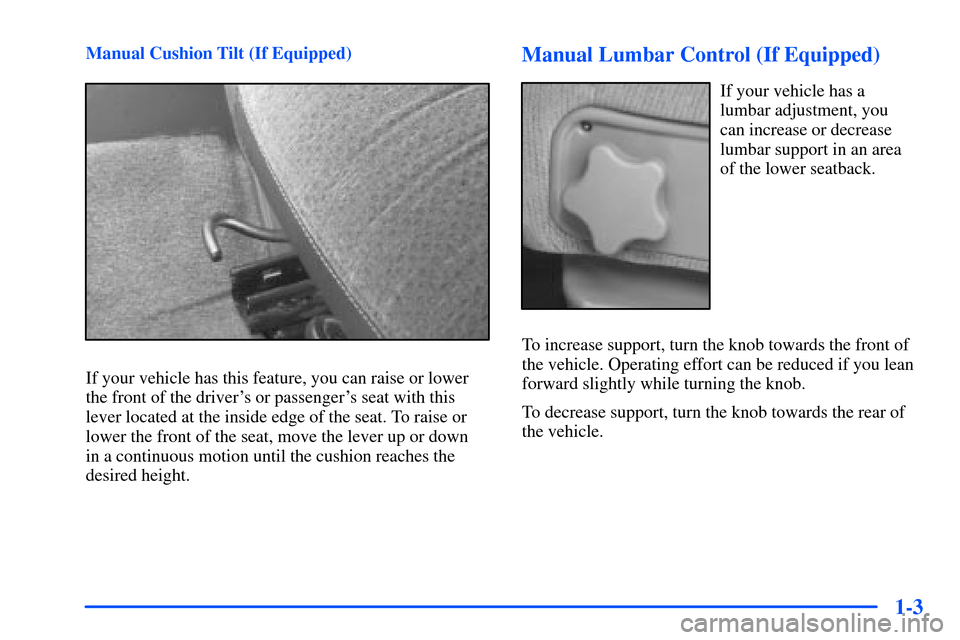

Manual Cushion Tilt (If Equipped)
If your vehicle has this feature, you can raise or lower
the front of the driver's or passenger's seat with this
lever located at the inside edge of the seat. To raise or
lower the front of the seat, move the lever up or down
in a continuous motion until the cushion reaches the
desired height.
Manual Lumbar Control (If Equipped)
If your vehicle has a
lumbar adjustment, you
can increase or decrease
lumbar support in an area
of the lower seatback.
To increase support, turn the knob towards the front of
the vehicle. Operating effort can be reduced if you lean
forward slightly while turning the knob.
To decrease support, turn the knob towards the rear of
the vehicle.
Page 17 of 407

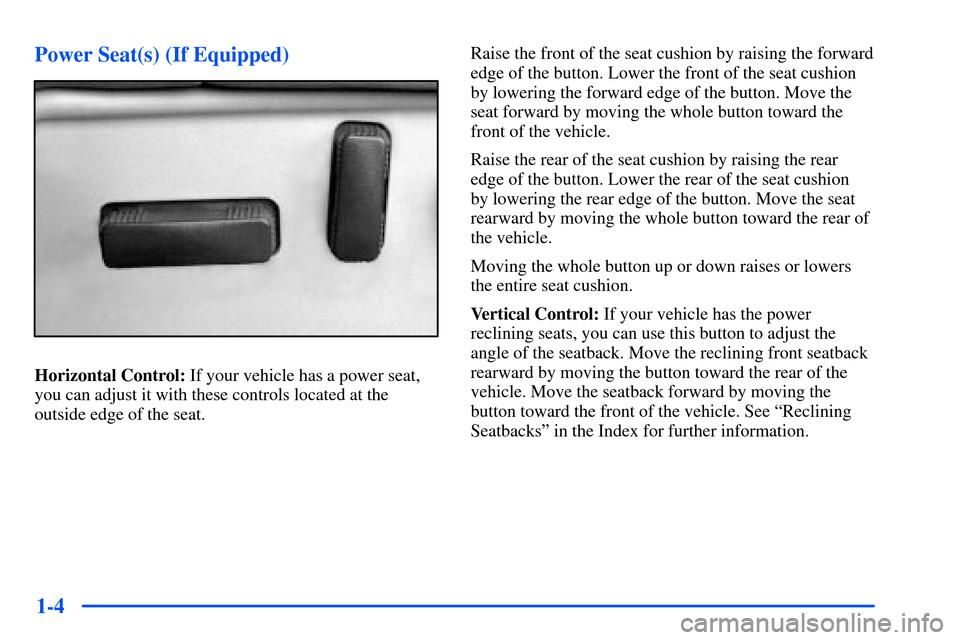

1-4 Power Seat(s) (If Equipped)
Horizontal Control: If your vehicle has a power seat,
you can adjust it with these controls located at the
outside edge of the seat.Raise the front of the seat cushion by raising the forward
edge of the button. Lower the front of the seat cushion
by lowering the forward edge of the button. Move the
seat forward by moving the whole button toward the
front of the vehicle.
Raise the rear of the seat cushion by raising the rear
edge of the button. Lower the rear of the seat cushion
by lowering the rear edge of the button. Move the seat
rearward by moving the whole button toward the rear of
the vehicle.
Moving the whole button up or down raises or lowers
the entire seat cushion.
Vertical Control: If your vehicle has the power
reclining seats, you can use this button to adjust the
angle of the seatback. Move the reclining front seatback
rearward by moving the button toward the rear of the
vehicle. Move the seatback forward by moving the
button toward the front of the vehicle. See ªReclining
Seatbacksº in the Index for further information.
Page 18 of 407

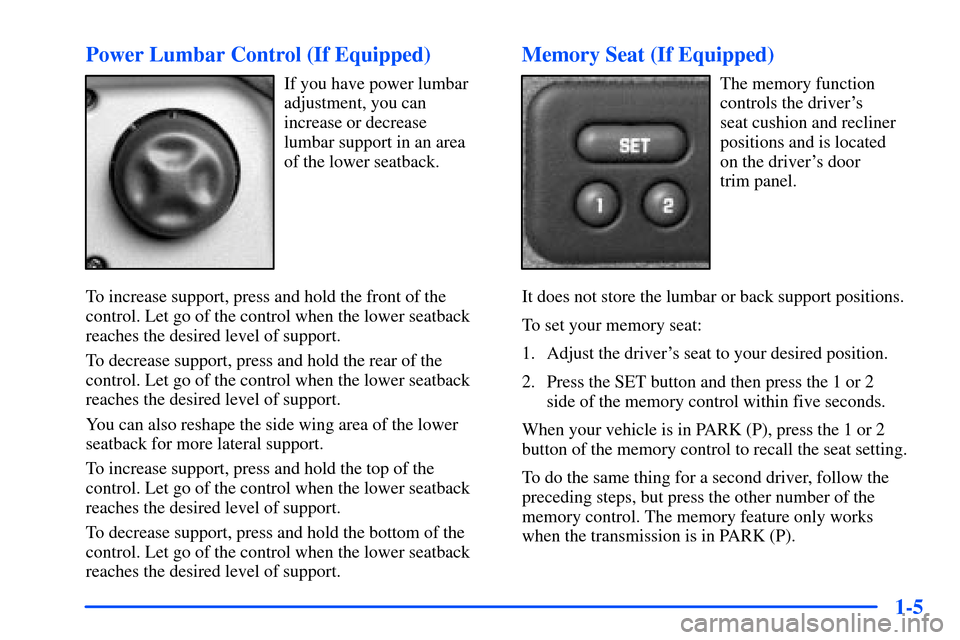

1-5 Power Lumbar Control (If Equipped)
If you have power lumbar
adjustment, you can
increase or decrease
lumbar support in an area
of the lower seatback.
To increase support, press and hold the front of the
control. Let go of the control when the lower seatback
reaches the desired level of support.
To decrease support, press and hold the rear of the
control. Let go of the control when the lower seatback
reaches the desired level of support.
You can also reshape the side wing area of the lower
seatback for more lateral support.
To increase support, press and hold the top of the
control. Let go of the control when the lower seatback
reaches the desired level of support.
To decrease support, press and hold the bottom of the
control. Let go of the control when the lower seatback
reaches the desired level of support.
Memory Seat (If Equipped)
The memory function
controls the driver's
seat cushion and recliner
positions and is located
on the driver's door
trim panel.
It does not store the lumbar or back support positions.
To set your memory seat:
1. Adjust the driver's seat to your desired position.
2. Press the SET button and then press the 1 or 2
side of the memory control within five seconds.
When your vehicle is in PARK (P), press the 1 or 2
button of the memory control to recall the seat setting.
To do the same thing for a second driver, follow the
preceding steps, but press the other number of the
memory control. The memory feature only works
when the transmission is in PARK (P).
Page 19 of 407

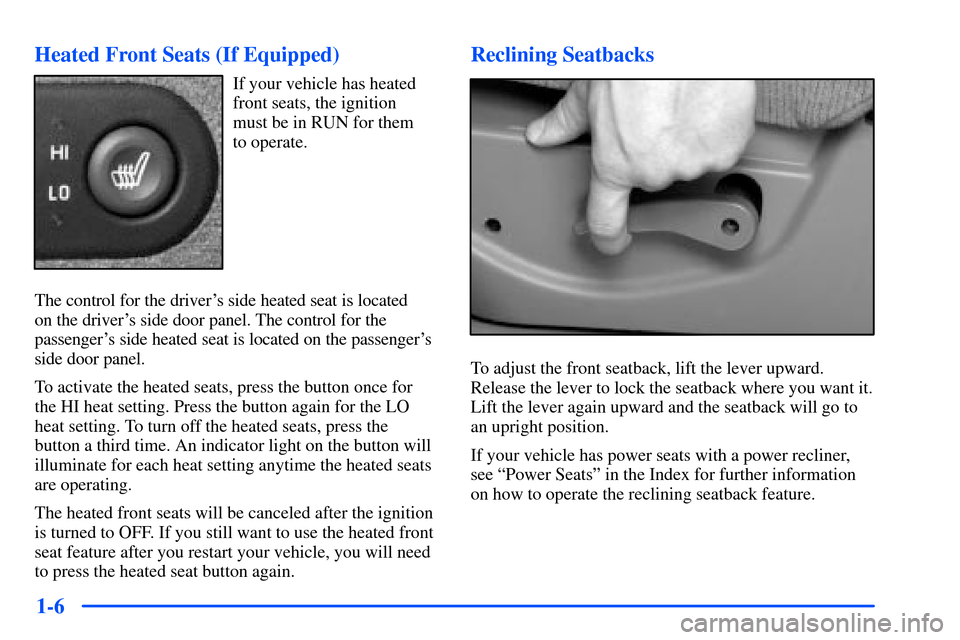

1-6 Heated Front Seats (If Equipped)
If your vehicle has heated
front seats, the ignition
must be in RUN for them
to operate.
The control for the driver's side heated seat is located
on the driver's side door panel. The control for the
passenger's side heated seat is located on the passenger's
side door panel.
To activate the heated seats, press the button once for
the HI heat setting. Press the button again for the LO
heat setting. To turn off the heated seats, press the
button a third time. An indicator light on the button will
illuminate for each heat setting anytime the heated seats
are operating.
The heated front seats will be canceled after the ignition
is turned to OFF. If you still want to use the heated front
seat feature after you restart your vehicle, you will need
to press the heated seat button again.
Reclining Seatbacks
To adjust the front seatback, lift the lever upward.
Release the lever to lock the seatback where you want it.
Lift the lever again upward and the seatback will go to
an upright position.
If your vehicle has power seats with a power recliner,
see ªPower Seatsº in the Index for further information
on how to operate the reclining seatback feature.
Page 20 of 407
1-7

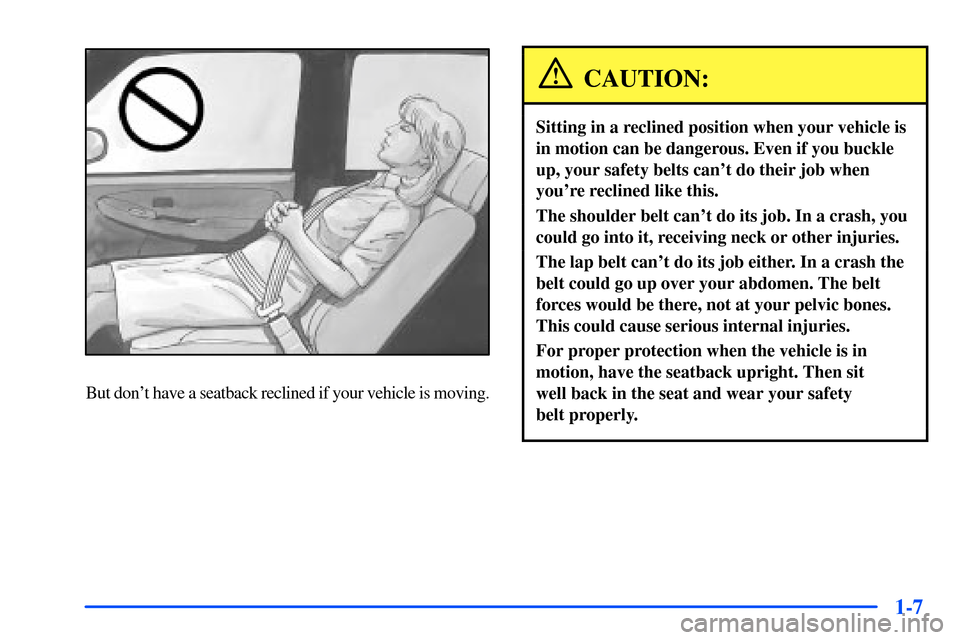

But don't have a seatback reclined if your vehicle is moving.
CAUTION:
Sitting in a reclined position when your vehicle is
in motion can be dangerous. Even if you buckle
up, your safety belts can't do their job when
you're reclined like this.
The shoulder belt can't do its job. In a crash, you
could go into it, receiving neck or other injuries.
The lap belt can't do its job either. In a crash the
belt could go up over your abdomen. The belt
forces would be there, not at your pelvic bones.
This could cause serious internal injuries.
For proper protection when the vehicle is in
motion, have the seatback upright. Then sit
well back in the seat and wear your safety
belt properly.
