Page 291 of 407

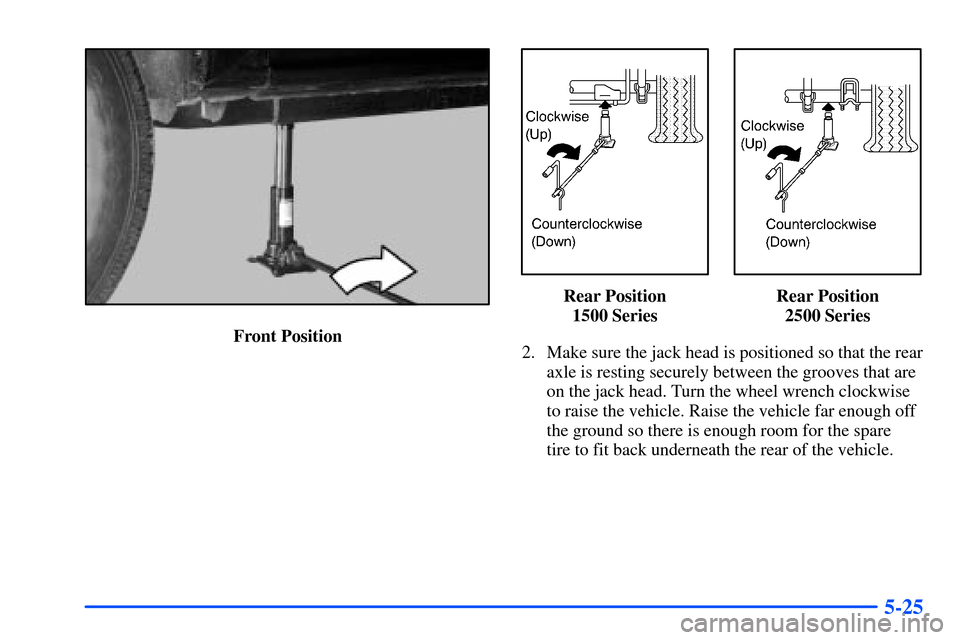

CHEVROLET SUBURBAN 2000 9.G Owners Manual 5-25
Front Position
Rear Position
1500 SeriesRear Position
2500 Series
2. Make sure the jack head is positioned so that the rear
axle is resting securely between the grooves that are
on the jack head.

Page 292 of 407

CHEVROLET SUBURBAN 2000 9.G Owners Manual 5-26

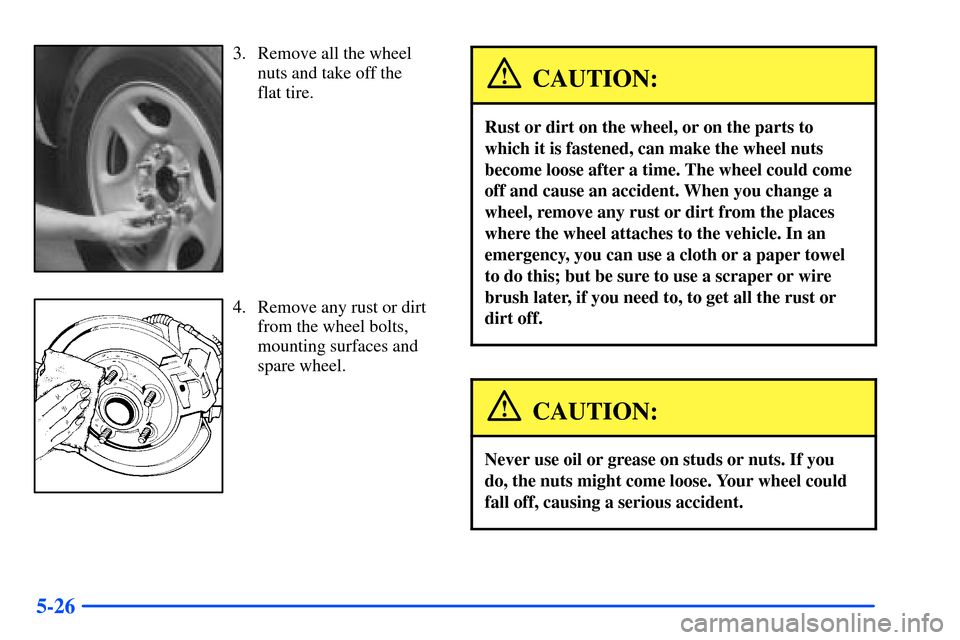

3. Remove all the wheel
nuts and take off the
flat tire.
4. Remove any rust or dirt
from the wheel bolts,
mounting surfaces and
spare wheel.
CAUTION:
Rust or dirt on the wheel, or on the parts t

Page 293 of 407

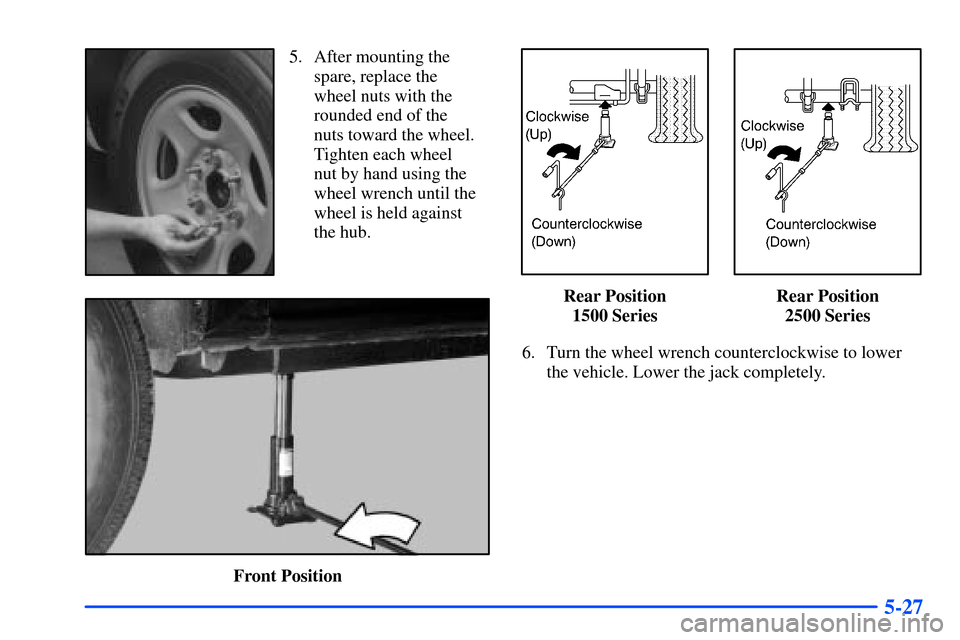

CHEVROLET SUBURBAN 2000 9.G Owners Manual 5-27
5. After mounting the
spare, replace the
wheel nuts with the
rounded end of the
nuts toward the wheel.
Tighten each wheel
nut by hand using the
wheel wrench until the
wheel is held against
the

Page 294 of 407

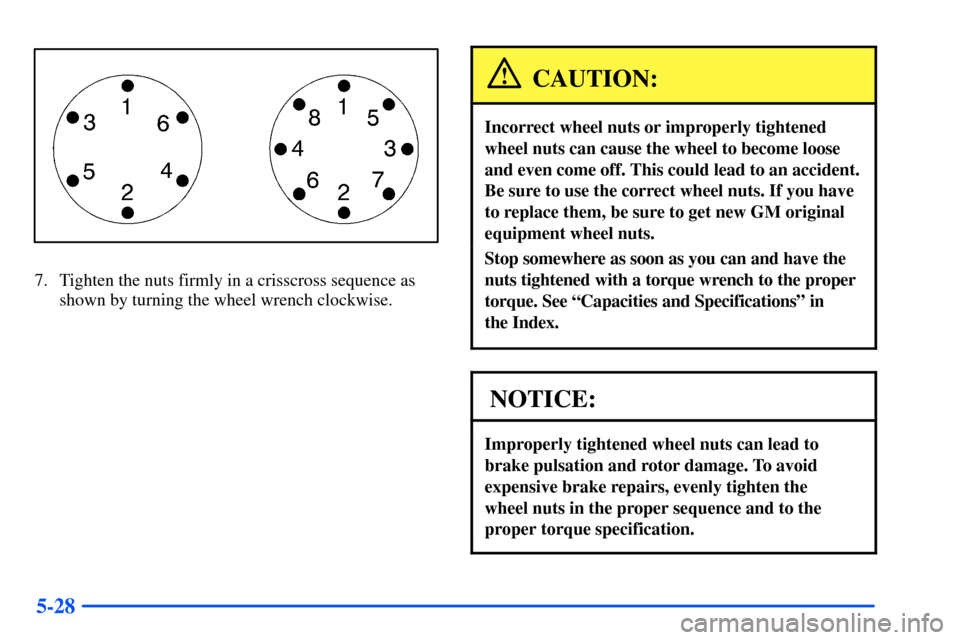

CHEVROLET SUBURBAN 2000 9.G Owners Manual 5-28
7. Tighten the nuts firmly in a crisscross sequence as
shown by turning the wheel wrench clockwise.
CAUTION:
Incorrect wheel nuts or improperly tightened
wheel nuts can cause the wheel to become

Page 295 of 407

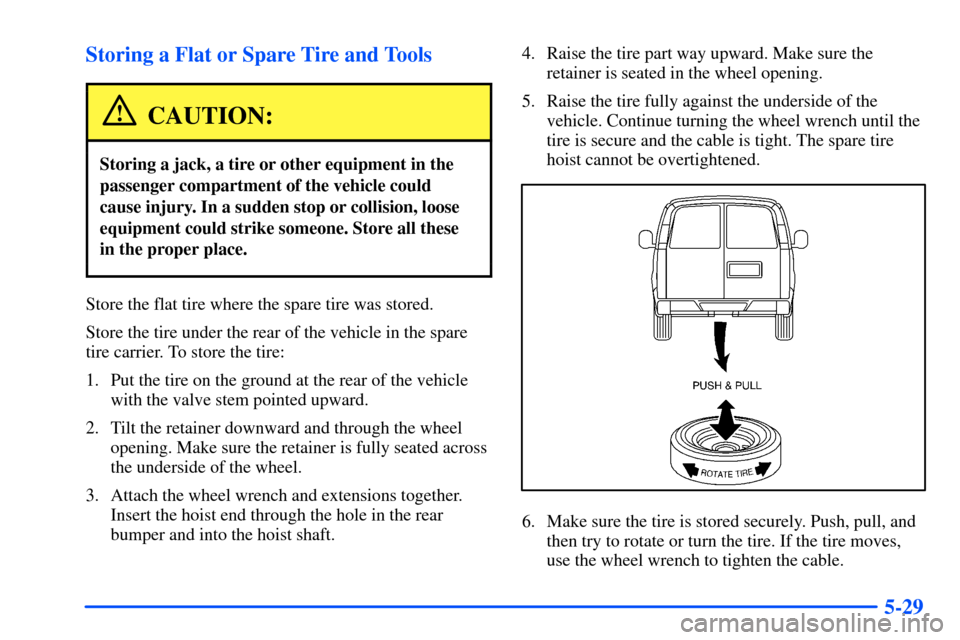

CHEVROLET SUBURBAN 2000 9.G Owners Manual 5-29 Storing a Flat or Spare Tire and Tools
CAUTION:
Storing a jack, a tire or other equipment in the
passenger compartment of the vehicle could
cause injury. In a sudden stop or collision, loose
equi

Page 296 of 407

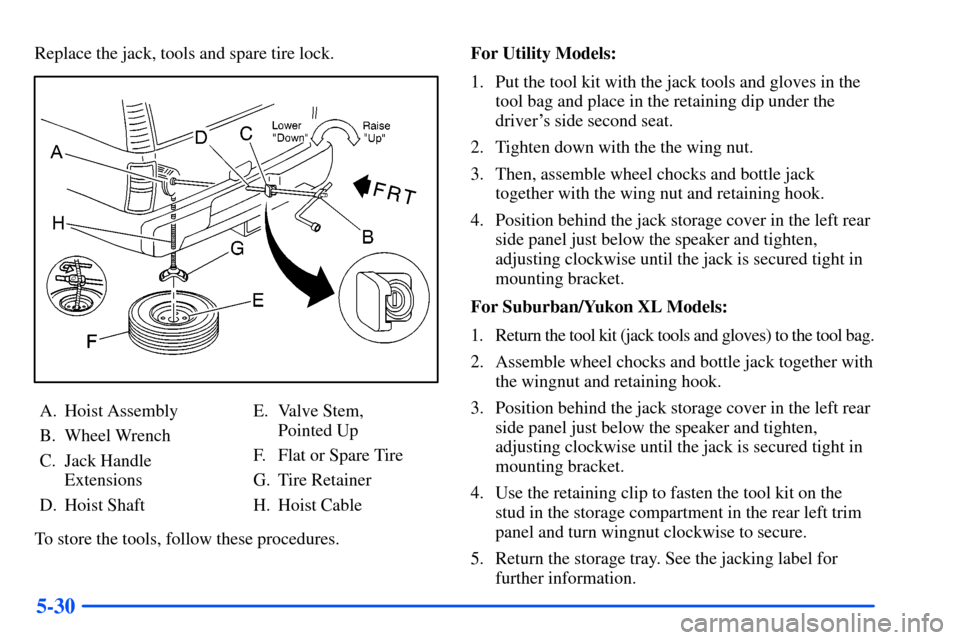

CHEVROLET SUBURBAN 2000 9.G Owners Manual 5-30
Replace the jack, tools and spare tire lock.
A. Hoist Assembly
B. Wheel Wrench
C. Jack Handle
Extensions
D. Hoist ShaftE. Valve Stem,
Pointed Up
F. Flat or Spare Tire
G. Tire Retainer
H. Hoist C

Page 297 of 407

CHEVROLET SUBURBAN 2000 9.G Owners Manual 5-31

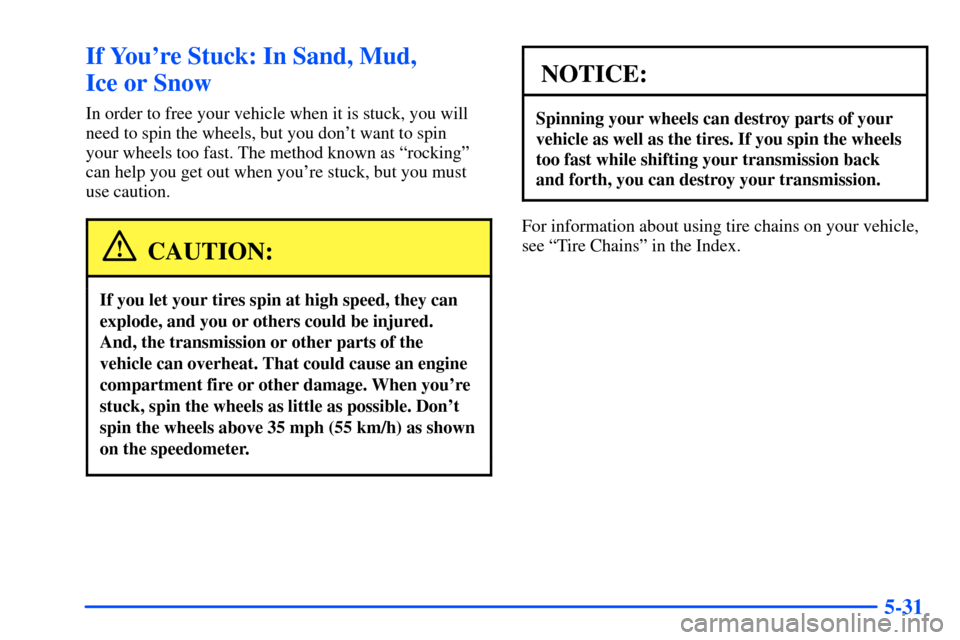

If Youre Stuck: In Sand, Mud,
Ice or Snow
In order to free your vehicle when it is stuck, you will
need to spin the wheels, but you dont want to spin
your wheels too fast. The method known as

Page 298 of 407

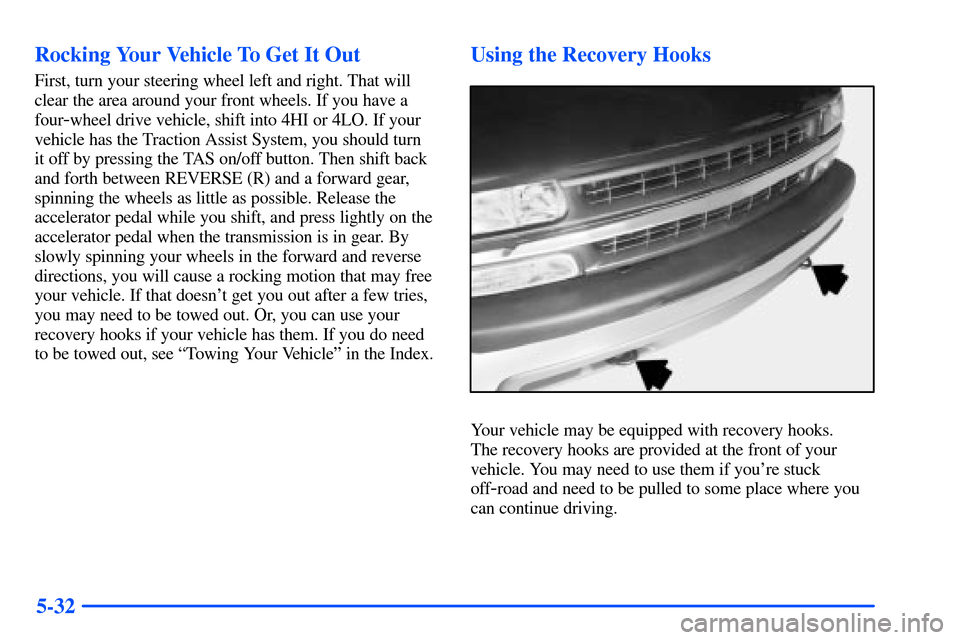

CHEVROLET SUBURBAN 2000 9.G Owners Manual 5-32 Rocking Your Vehicle To Get It Out
First, turn your steering wheel left and right. That will
clear the area around your front wheels. If you have a
four
-wheel drive vehicle, shift into 4HI or 4L

Page 299 of 407

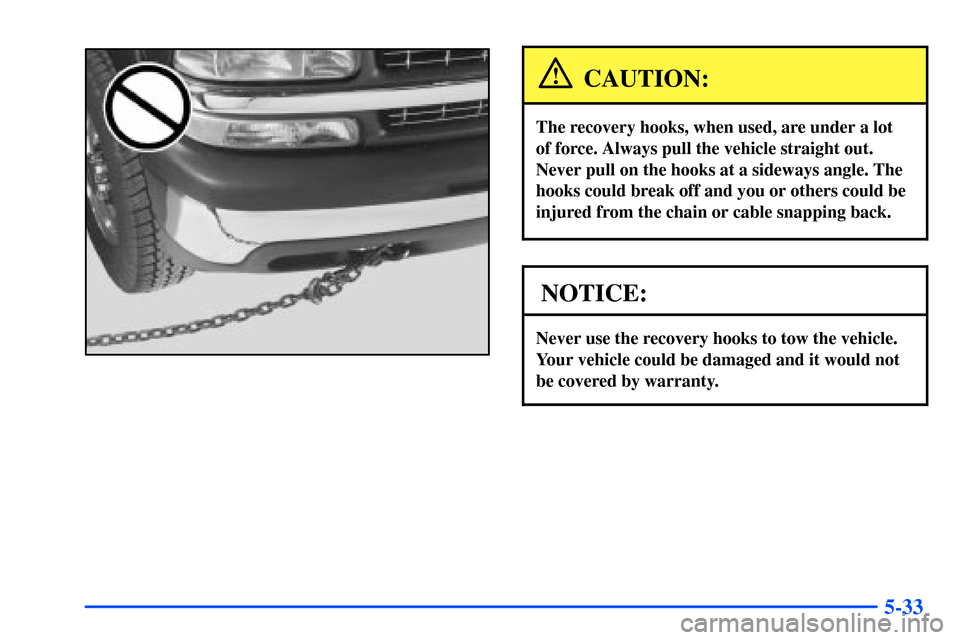

CHEVROLET SUBURBAN 2000 9.G Owners Manual 5-33
CAUTION:
The recovery hooks, when used, are under a lot
of force. Always pull the vehicle straight out.
Never pull on the hooks at a sideways angle. The
hooks could break off and you or others c

Page 300 of 407

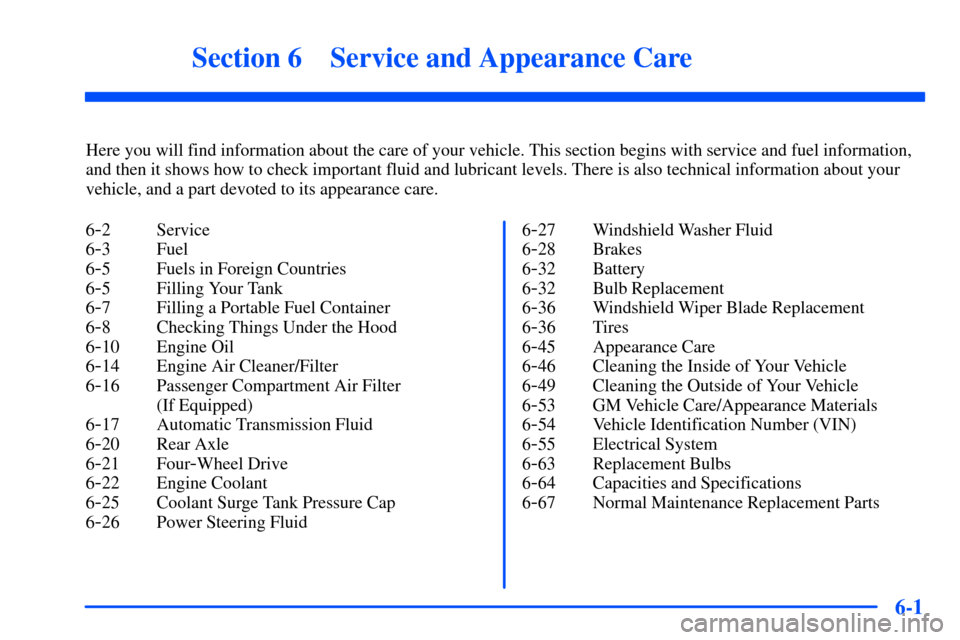

CHEVROLET SUBURBAN 2000 9.G Owners Manual 6-
6-1
Section 6 Service and Appearance Care
Here you will find information about the care of your vehicle. This section begins with service and fuel information,
and then it shows how to check import
