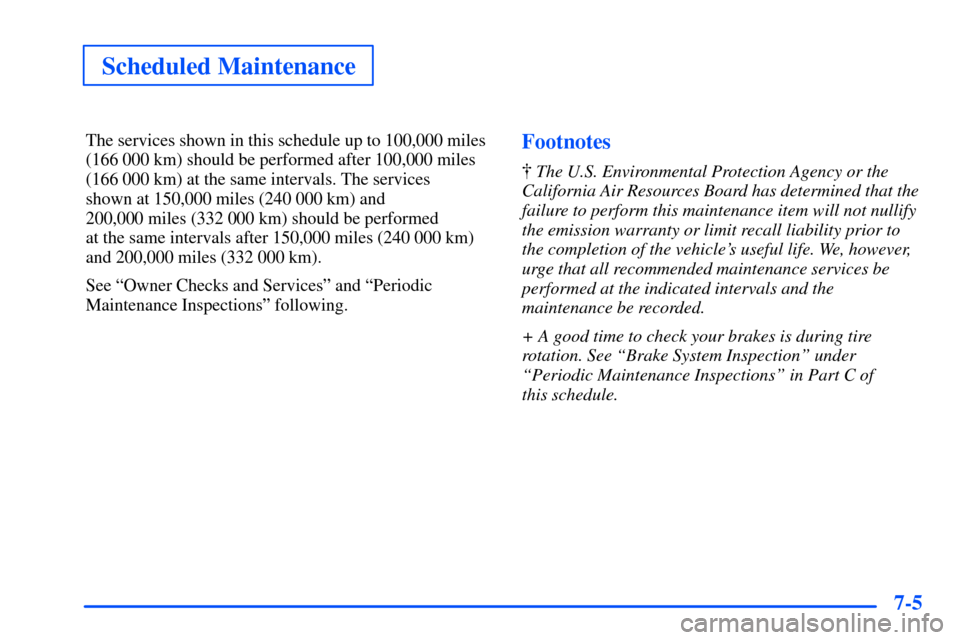

Page 371 of 407
Scheduled Maintenance
7-5
The services shown in this schedule up to 100,000 miles
(166 000 km) should be performed after 100,000 miles
(166 000 km) at the same intervals. The services
shown at 150,000 miles (240 000 km) and
200,000 miles (332 000 km) should be performed
at the same intervals after 150,000 miles (240 000 km)
and 200,000 miles (332 000 km).
See ªOwner Checks and Servicesº and ªPeriodic
Maintenance Inspectionsº following.Footnotes
The U.S. Environmental Protection Agency or the
California Air Resources Board has determined that the
failure to perform this maintenance item will not nullify
the emission warranty or limit recall liability prior to
the completion of the vehicle's useful life. We, however,
urge that all recommended maintenance services be
performed at the indicated intervals and the
maintenance be recorded.
+ A good time to check your brakes is during tire
rotation. See ªBrake System Inspectionº under
ªPeriodic Maintenance Inspectionsº in Part C of
this schedule.
Page 372 of 407
Scheduled Maintenance
7-6Engine Oil and Chassis Lubrication
Scheduled Maintenance
Change engine oil and filter as indicated by
the GM Oil Life System (or every 12 months,
whichever occurs first). Reset the system. The system
will show you when to change the oil
-- usually between
3,000 miles (5 000 km) and 7,500 miles (12 500 km)
since your last oil change. Under severe conditions, the
indicator may come on before 3,000 miles (5 000 km).
Never drive your vehicle more than 7,500 miles
(12 500 km) or 12 months without an oil and
filter change.The system won't detect dust in the oil. So if you
drive in a dusty area, be sure to change your oil and
filter every 3,000 miles (5 000 km) or sooner if the
CHANGE ENGINE OIL message appears. Remember
to reset the Oil Life System when the oil and filter have
been changed. See ªOil Life Systemº in the Index for
information on resetting.
An Emission Control Service.
Lubricate chassis components with each engine oil and
filter change. Lubricate the front suspension, ball joints,
steering linkage, transmission shift linkage, transfer case
shift linkage, parking brake cable guides, and brake
front axle. Ball joints should not be lubricated unless
their temperature is 10F (
-12C) or higher, or they
could be damaged.

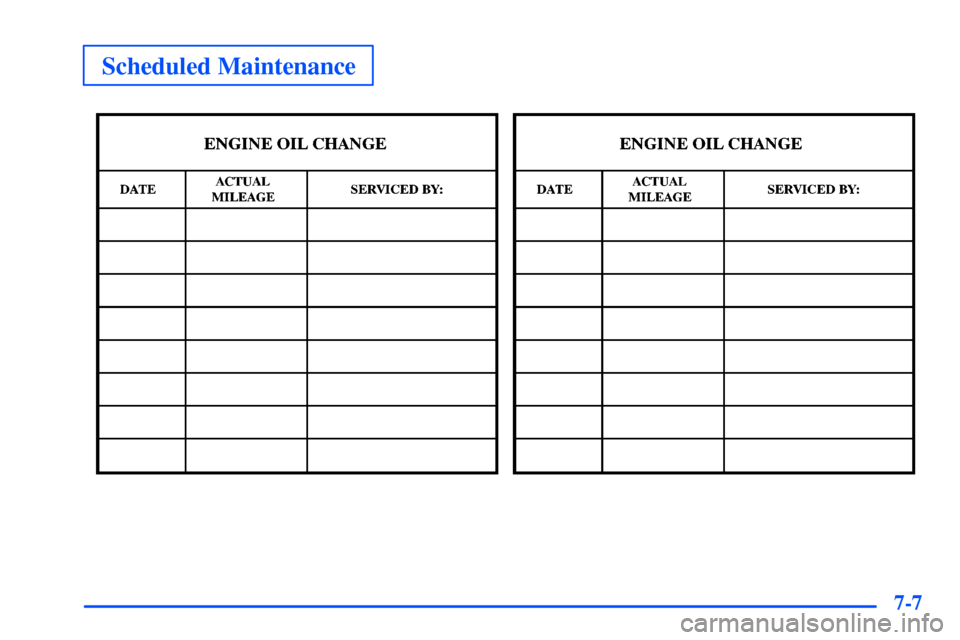

Page 373 of 407
Scheduled Maintenance
7-7

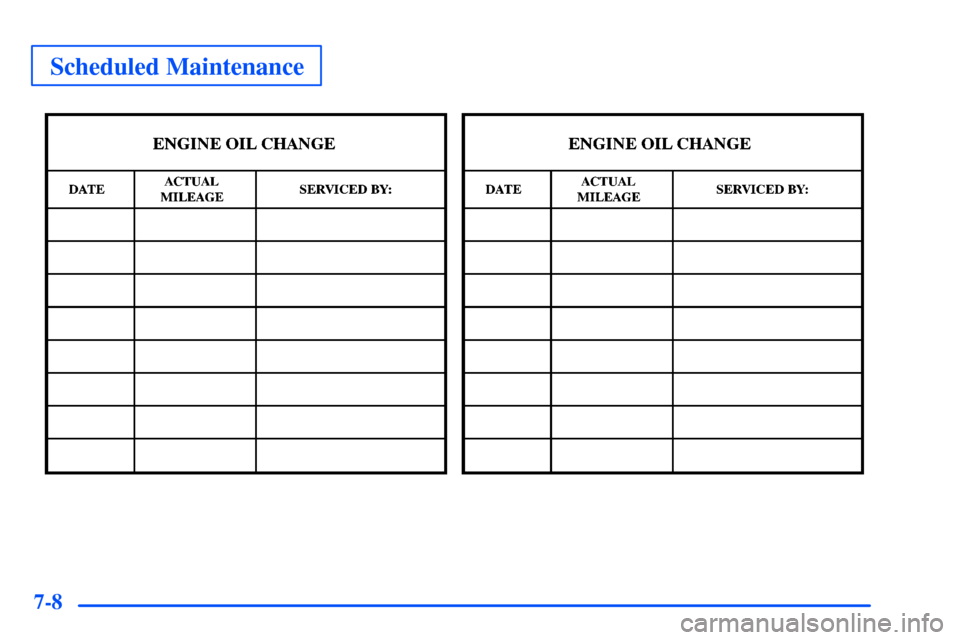

Page 374 of 407
Scheduled Maintenance
7-8

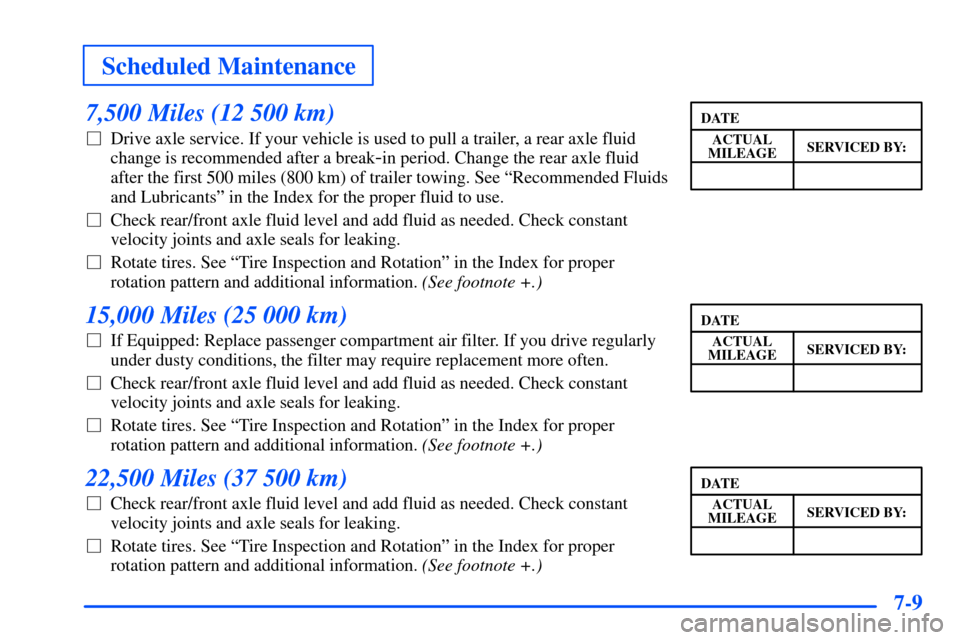

Page 375 of 407
Scheduled Maintenance
7-9
7,500 Miles (12 500 km)
Drive axle service. If your vehicle is used to pull a trailer, a rear axle fluid
change is recommended after a break
-in period. Change the rear axle fluid
after the first 500 miles (800 km) of trailer towing. See ªRecommended Fluids
and Lubricantsº in the Index for the proper fluid to use.
Check rear/front axle fluid level and add fluid as needed. Check constant
velocity joints and axle seals for leaking.
Rotate tires. See ªTire Inspection and Rotationº in the Index for proper
rotation pattern and additional information. (See footnote +.)
15,000 Miles (25 000 km)
If Equipped: Replace passenger compartment air filter. If you drive regularly
under dusty conditions, the filter may require replacement more often.
Check rear/front axle fluid level and add fluid as needed. Check constant
velocity joints and axle seals for leaking.
Rotate tires. See ªTire Inspection and Rotationº in the Index for proper
rotation pattern and additional information. (See footnote +.)
22,500 Miles (37 500 km)
Check rear/front axle fluid level and add fluid as needed. Check constant
velocity joints and axle seals for leaking.
Rotate tires. See ªTire Inspection and Rotationº in the Index for proper
rotation pattern and additional information. (See footnote +.)
ACTUAL
SERVICED BY:MILEAGE
DATE
ACTUAL
SERVICED BY:MILEAGE
DATE
ACTUAL
SERVICED BY:MILEAGE
DATE

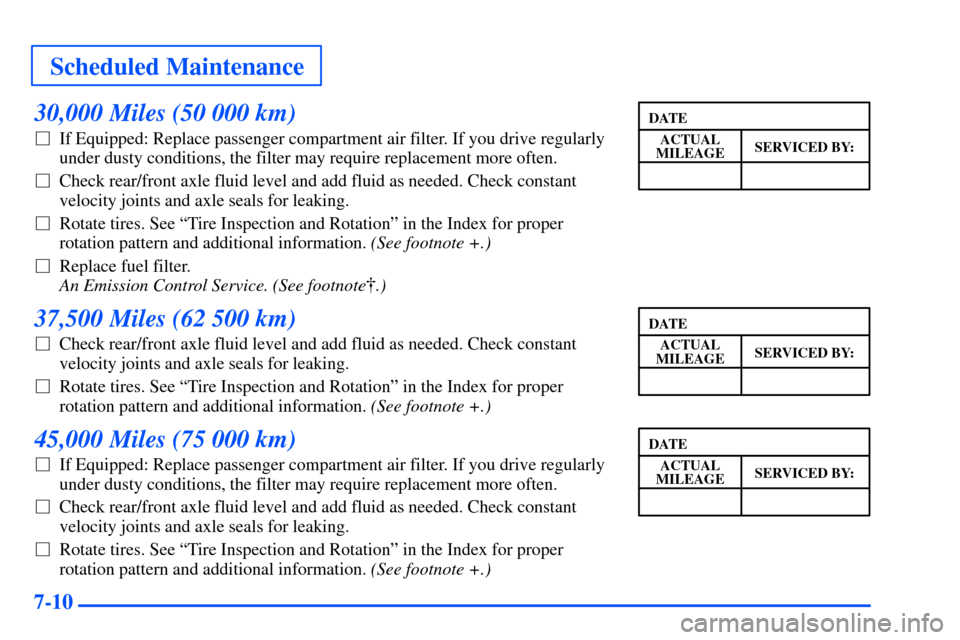

Page 376 of 407
Scheduled Maintenance
7-10
30,000 Miles (50 000 km)
If Equipped: Replace passenger compartment air filter. If you drive regularly
under dusty conditions, the filter may require replacement more often.
Check rear/front axle fluid level and add fluid as needed. Check constant
velocity joints and axle seals for leaking.
Rotate tires. See ªTire Inspection and Rotationº in the Index for proper
rotation pattern and additional information. (See footnote +.)
Replace fuel filter.
An Emission Control Service. (See footnote.)
37,500 Miles (62 500 km)
Check rear/front axle fluid level and add fluid as needed. Check constant
velocity joints and axle seals for leaking.
Rotate tires. See ªTire Inspection and Rotationº in the Index for proper
rotation pattern and additional information. (See footnote +.)
45,000 Miles (75 000 km)
If Equipped: Replace passenger compartment air filter. If you drive regularly
under dusty conditions, the filter may require replacement more often.
Check rear/front axle fluid level and add fluid as needed. Check constant
velocity joints and axle seals for leaking.
Rotate tires. See ªTire Inspection and Rotationº in the Index for proper
rotation pattern and additional information. (See footnote +.)
ACTUAL
SERVICED BY:MILEAGE
DATE
ACTUAL
SERVICED BY:MILEAGE
DATE
ACTUAL
SERVICED BY:MILEAGE
DATE

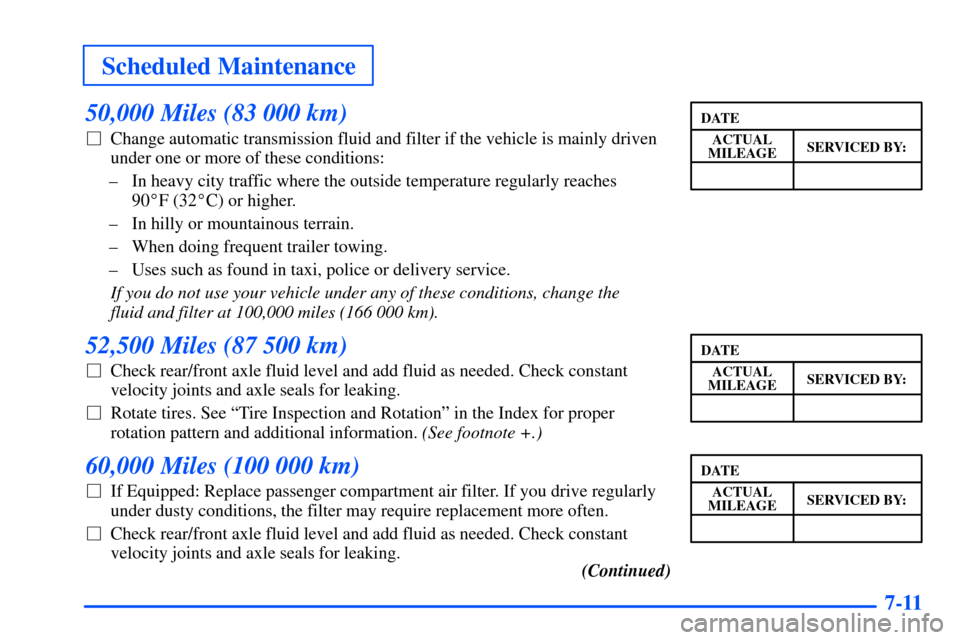

Page 377 of 407
Scheduled Maintenance
7-11
50,000 Miles (83 000 km)
Change automatic transmission fluid and filter if the vehicle is mainly driven
under one or more of these conditions:
± In heavy city traffic where the outside temperature regularly reaches
90F (32C) or higher.
± In hilly or mountainous terrain.
± When doing frequent trailer towing.
± Uses such as found in taxi, police or delivery service.
If you do not use your vehicle under any of these conditions, change the
fluid and filter at 100,000 miles (166 000 km).
52,500 Miles (87 500 km)
Check rear/front axle fluid level and add fluid as needed. Check constant
velocity joints and axle seals for leaking.
Rotate tires. See ªTire Inspection and Rotationº in the Index for proper
rotation pattern and additional information. (See footnote +.)
60,000 Miles (100 000 km)
If Equipped: Replace passenger compartment air filter. If you drive regularly
under dusty conditions, the filter may require replacement more often.
Check rear/front axle fluid level and add fluid as needed. Check constant
velocity joints and axle seals for leaking.
(Continued)
ACTUAL
SERVICED BY:MILEAGE
DATE
ACTUAL
SERVICED BY:MILEAGE
DATE
ACTUAL
SERVICED BY:MILEAGE
DATE

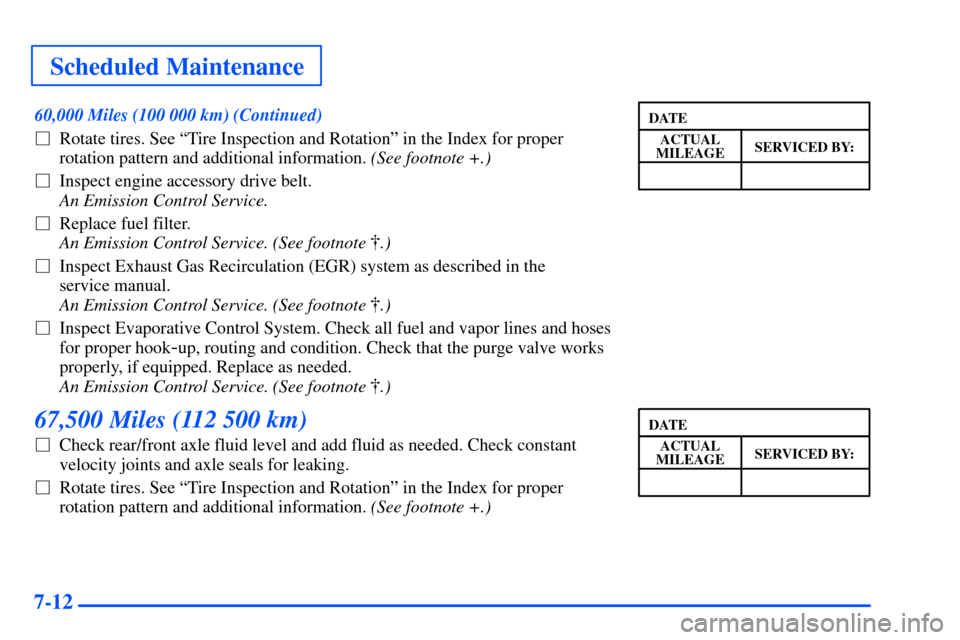

Page 378 of 407
Scheduled Maintenance
7-12
60,000 Miles (100 000 km) (Continued)
Rotate tires. See ªTire Inspection and Rotationº in the Index for proper
rotation pattern and additional information. (See footnote +.)
Inspect engine accessory drive belt.
An Emission Control Service.
Replace fuel filter.
An Emission Control Service. (See footnote .)
Inspect Exhaust Gas Recirculation (EGR) system as described in the
service manual.
An Emission Control Service. (See footnote .)
Inspect Evaporative Control System. Check all fuel and vapor lines and hoses
for proper hook
-up, routing and condition. Check that the purge valve works
properly, if equipped. Replace as needed.
An Emission Control Service. (See footnote .)
67,500 Miles (112 500 km)
Check rear/front axle fluid level and add fluid as needed. Check constant
velocity joints and axle seals for leaking.
Rotate tires. See ªTire Inspection and Rotationº in the Index for proper
rotation pattern and additional information. (See footnote +.)
ACTUAL
SERVICED BY:MILEAGE
DATE
ACTUAL
SERVICED BY:MILEAGE
DATE

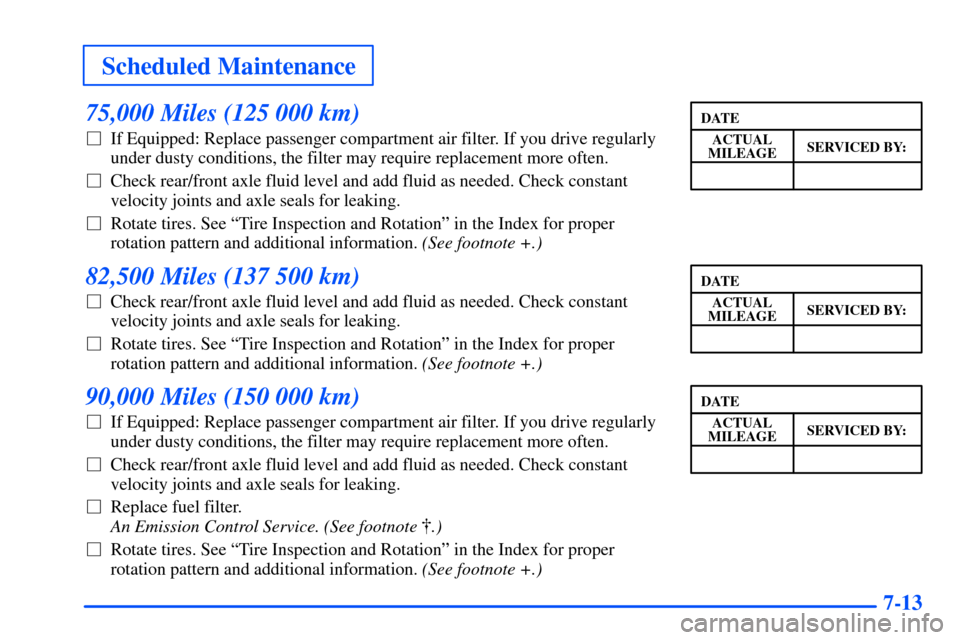

Page 379 of 407
Scheduled Maintenance
7-13
75,000 Miles (125 000 km)
If Equipped: Replace passenger compartment air filter. If you drive regularly
under dusty conditions, the filter may require replacement more often.
Check rear/front axle fluid level and add fluid as needed. Check constant
velocity joints and axle seals for leaking.
Rotate tires. See ªTire Inspection and Rotationº in the Index for proper
rotation pattern and additional information. (See footnote +.)
82,500 Miles (137 500 km)
Check rear/front axle fluid level and add fluid as needed. Check constant
velocity joints and axle seals for leaking.
Rotate tires. See ªTire Inspection and Rotationº in the Index for proper
rotation pattern and additional information. (See footnote +.)
90,000 Miles (150 000 km)
If Equipped: Replace passenger compartment air filter. If you drive regularly
under dusty conditions, the filter may require replacement more often.
Check rear/front axle fluid level and add fluid as needed. Check constant
velocity joints and axle seals for leaking.
Replace fuel filter.
An Emission Control Service. (See footnote .)
Rotate tires. See ªTire Inspection and Rotationº in the Index for proper
rotation pattern and additional information. (See footnote +.)
ACTUAL
SERVICED BY:MILEAGE
DATE
ACTUAL
SERVICED BY:MILEAGE
DATE
ACTUAL
SERVICED BY:MILEAGE
DATE

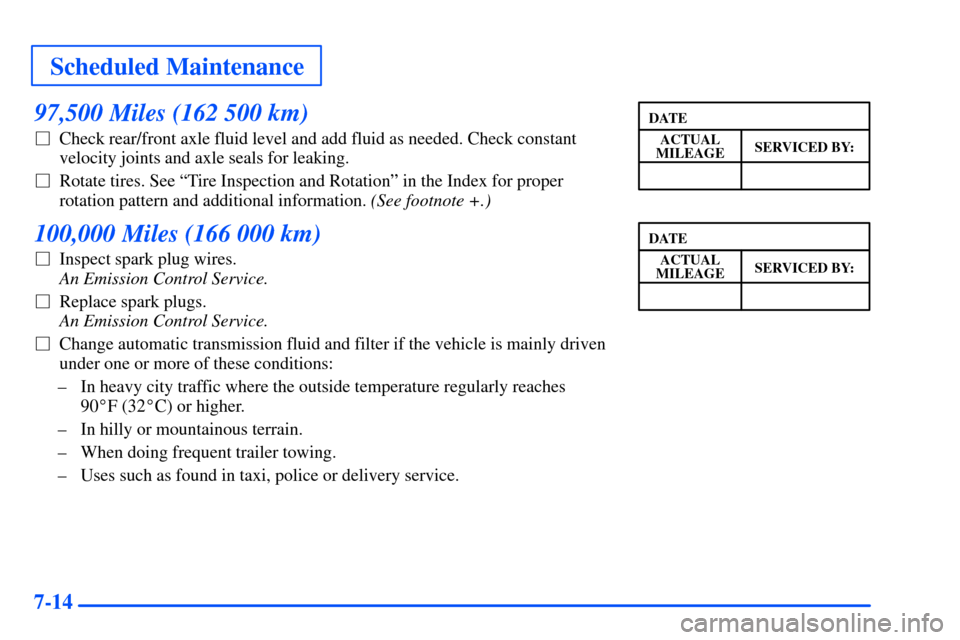

Page 380 of 407
Scheduled Maintenance
7-14
97,500 Miles (162 500 km)
Check rear/front axle fluid level and add fluid as needed. Check constant
velocity joints and axle seals for leaking.
Rotate tires. See ªTire Inspection and Rotationº in the Index for proper
rotation pattern and additional information. (See footnote +.)
100,000 Miles (166 000 km)
Inspect spark plug wires.
An Emission Control Service.
Replace spark plugs.
An Emission Control Service.
Change automatic transmission fluid and filter if the vehicle is mainly driven
under one or more of these conditions:
± In heavy city traffic where the outside temperature regularly reaches
90F (32C) or higher.
± In hilly or mountainous terrain.
± When doing frequent trailer towing.
± Uses such as found in taxi, police or delivery service.
ACTUAL
SERVICED BY:MILEAGE
DATE
ACTUAL
SERVICED BY:MILEAGE
DATE
