2-10

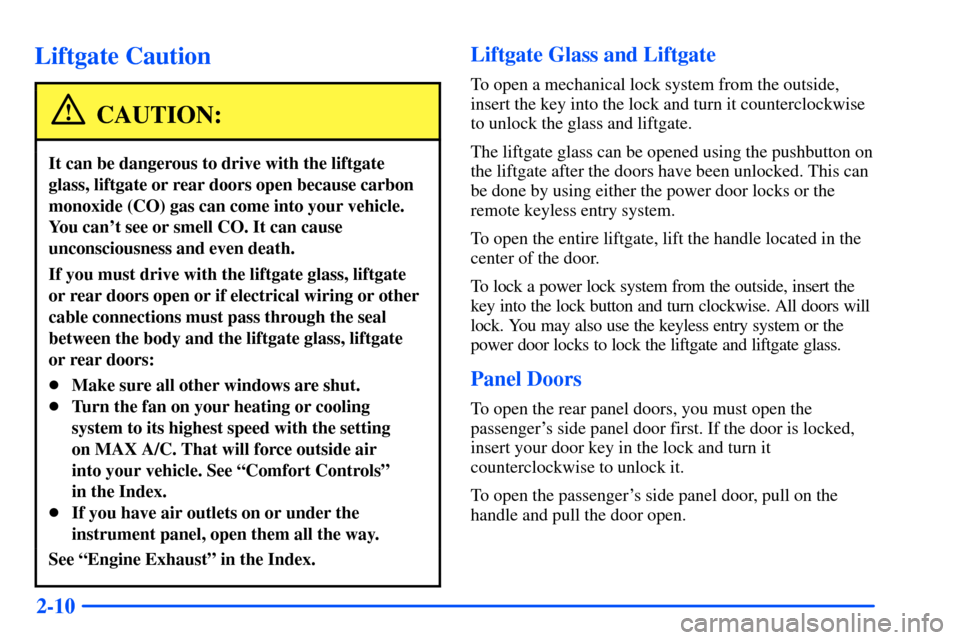

Liftgate Caution
CAUTION:
It can be dangerous to drive with the liftgate
glass, liftgate or rear doors open because carbon
monoxide (CO) gas can come into your vehicle.
You can't see or smell CO. It can cause
unconsciousness and even death.
If you must drive with the liftgate glass, liftgate
or rear doors open or if electrical wiring or other
cable connections must pass through the seal
between the body and the liftgate glass, liftgate
or rear doors:

Make sure all other windows are shut.

Turn the fan on your heating or cooling
system to its highest speed with the setting
on MAX A/C. That will force outside air
into your vehicle. See ªComfort Controlsº
in the Index.

If you have air outlets on or under the
instrument panel, open them all the way.
See ªEngine Exhaustº in the Index.
Liftgate Glass and Liftgate
To open a mechanical lock system from the outside,
insert the key into the lock and turn it counterclockwise
to unlock the glass and liftgate.
The liftgate glass can be opened using the pushbutton on
the liftgate after the doors have been unlocked. This can
be done by using either the power door locks or the
remote keyless entry system.
To open the entire liftgate, lift the handle located in the
center of the door.
To lock a power lock system from the outside, insert the
key into the lock button and turn clockwise. All doors will
lock. You may also use the keyless entry system or the
power door locks to lock the liftgate and liftgate glass.
Panel Doors
To open the rear panel doors, you must open the
passenger's side panel door first. If the door is locked,
insert your door key in the lock and turn it
counterclockwise to unlock it.
To open the passenger's side panel door, pull on the
handle and pull the door open.

3-
3-1

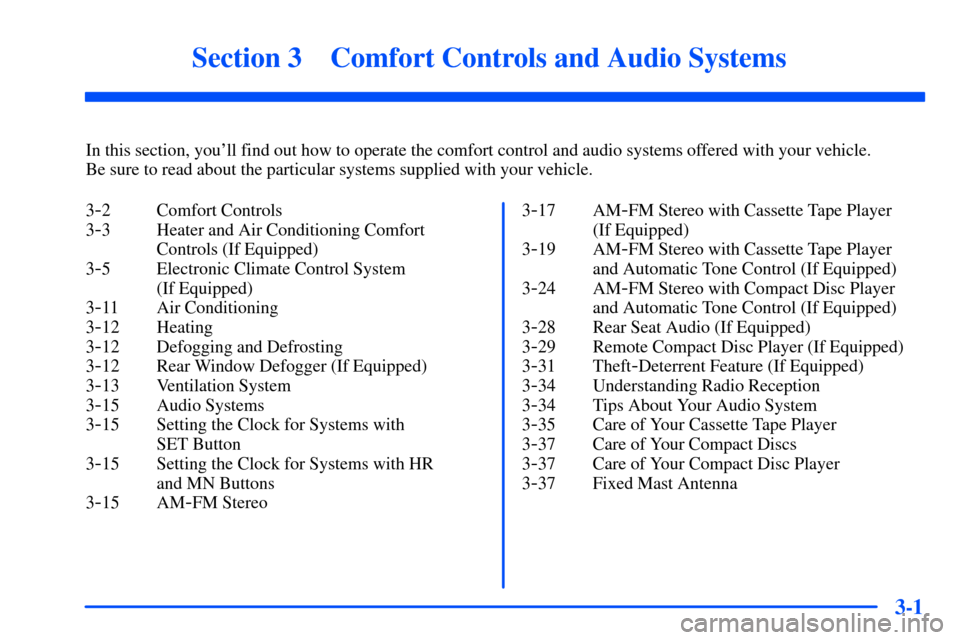

Section 3 Comfort Controls and Audio Systems
In this section, you'll find out how to operate the comfort control and audio systems offered with your vehicle.
Be sure to read about the particular systems supplied with your vehicle.
3
-2 Comfort Controls
3
-3 Heater and Air Conditioning Comfort
Controls (If Equipped)
3
-5 Electronic Climate Control System
(If Equipped)
3
-11 Air Conditioning
3
-12 Heating
3
-12 Defogging and Defrosting
3
-12 Rear Window Defogger (If Equipped)
3
-13 Ventilation System
3
-15 Audio Systems
3
-15 Setting the Clock for Systems with
SET Button
3
-15 Setting the Clock for Systems with HR
and MN Buttons
3
-15 AM-FM Stereo3
-17 AM-FM Stereo with Cassette Tape Player
(If Equipped)
3
-19 AM-FM Stereo with Cassette Tape Player
and Automatic Tone Control (If Equipped)
3
-24 AM-FM Stereo with Compact Disc Player
and Automatic Tone Control (If Equipped)
3
-28 Rear Seat Audio (If Equipped)
3
-29 Remote Compact Disc Player (If Equipped)
3
-31 Theft-Deterrent Feature (If Equipped)
3
-34 Understanding Radio Reception
3
-34 Tips About Your Audio System
3
-35 Care of Your Cassette Tape Player
3
-37 Care of Your Compact Discs
3
-37 Care of Your Compact Disc Player
3
-37 Fixed Mast Antenna

3-30

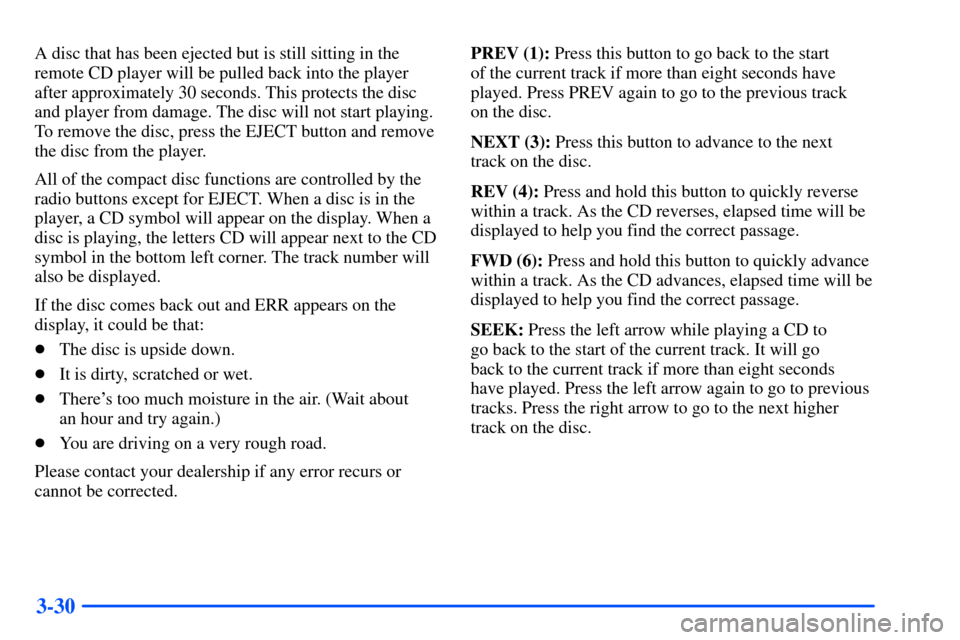

A disc that has been ejected but is still sitting in the
remote CD player will be pulled back into the player
after approximately 30 seconds. This protects the disc
and player from damage. The disc will not start playing.
To remove the disc, press the EJECT button and remove
the disc from the player.
All of the compact disc functions are controlled by the
radio buttons except for EJECT. When a disc is in the
player, a CD symbol will appear on the display. When a
disc is playing, the letters CD will appear next to the CD
symbol in the bottom left corner. The track number will
also be displayed.
If the disc comes back out and ERR appears on the
display, it could be that:

The disc is upside down.

It is dirty, scratched or wet.

There's too much moisture in the air. (Wait about
an hour and try again.)

You are driving on a very rough road.
Please contact your dealership if any error recurs or
cannot be corrected.PREV (1): Press this button to go back to the start
of the current track if more than eight seconds have
played. Press PREV again to go to the previous track
on the disc.
NEXT (3): Press this button to advance to the next
track on the disc.
REV (4): Press and hold this button to quickly reverse
within a track. As the CD reverses, elapsed time will be
displayed to help you find the correct passage.
FWD (6): Press and hold this button to quickly advance
within a track. As the CD advances, elapsed time will be
displayed to help you find the correct passage.
SEEK: Press the left arrow while playing a CD to
go back to the start of the current track. It will go
back to the current track if more than eight seconds
have played. Press the left arrow again to go to previous
tracks. Press the right arrow to go to the next higher
track on the disc.

6-63

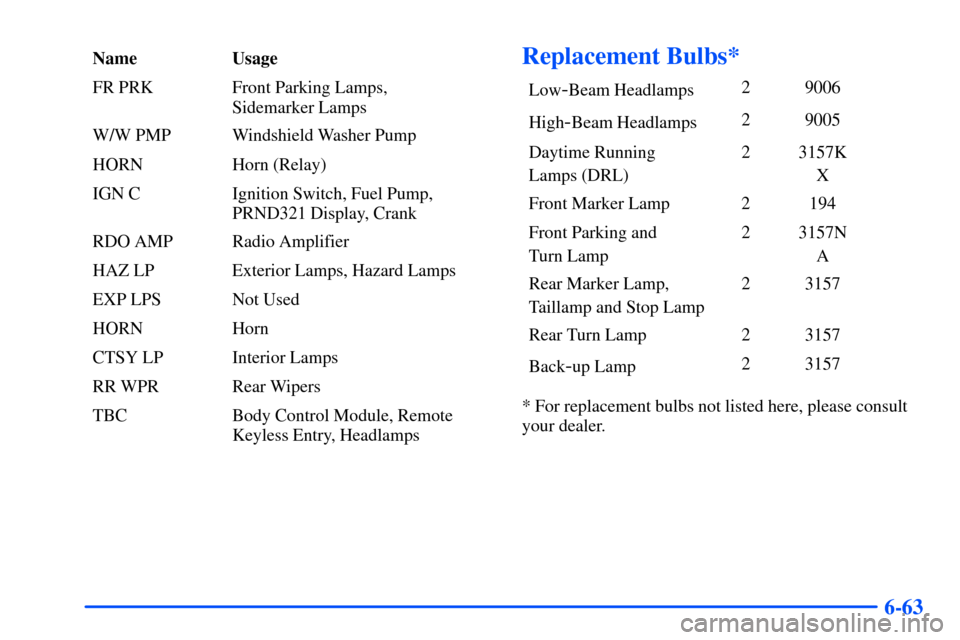

Name Usage
FR PRK Front Parking Lamps,
Sidemarker Lamps
W/W PMP Windshield Washer Pump
HORN Horn (Relay)
IGN C Ignition Switch, Fuel Pump,
PRND321 Display, Crank
RDO AMP Radio Amplifier
HAZ LP Exterior Lamps, Hazard Lamps
EXP LPS Not Used
HORN Horn
CTSY LP Interior Lamps
RR WPR Rear Wipers
TBC Body Control Module, Remote
Keyless Entry, HeadlampsReplacement Bulbs*
Low-Beam Headlamps2 9006
High
-Beam Headlamps2 9005
Daytime Running
Lamps (DRL)2 3157K
X
Front Marker Lamp 2 194
Front Parking and
Turn Lamp2 3157N
A
Rear Marker Lamp,
Taillamp and Stop Lamp2 3157
Rear Turn Lamp 2 3157
Back
-up Lamp2 3157
* For replacement bulbs not listed here, please consult
your dealer.
