CHEVROLET SUBURBAN 2001 9.G Owners Manual

2-53 Driver's Outside Auto-Dimming Rearview
Mirror (If Equipped)
The driver's side outside mirror will adjust for the glare
of headlamps behind you. This feature is controlled by
the on and off settings found on the electrochromic
mirror. See ªElectrochromic Day/Night Rearview
Mirror with Compass and Temperatureº in the Index.
Convex Outside Mirror
Your passenger's side mirror is convex. A convex
mirror's surface is curved so you can see more from
the driver's seat.
CAUTION:
A convex mirror can make things (like other
vehicles) look farther away than they really are.
If you cut too sharply into the right lane, you
could hit a vehicle on your right. Check your
inside mirror or glance over your shoulder before
changing lanes.
Storage Compartments
Your vehicle has a variety of storage compartments
designed to store small items.
Glove Box
To open your glove box, lift up the latch and pull the
door open.
Cupholders
Your vehicle has cupholders located in the dash, the front
and rear floor console (if equipped), the second seat fold
down armrest (if equipped) and in the quarter trim.

2-54 Center Console Storage Area (If Equipped)
Your vehicle may have a console compartment between
the bucket seats.
To open it, insert the console key into the lock and
unlock the console. Press the button and swing the
console lid open.
The console has a place to store coins, tissues, pens and
a clip to hold business cards.
Your console has a cupholder that swings down for the rear
seat passengers to use and may have a compact disc holder.
Armrest Storage Compartment
(If Equipped)
Your vehicle may have a center armrest storage
compartment in the front bench seat.
To open it, fold down the armrest and press the latch
handle located at the front of the armrest. Then, let the
lid pop up and swing open.
The storage compartment has a cassette/compact disc
holder. The holder will store up to six compact disc
cases and five cassette tape cases or a total of
eleven cassette tape cases.
If not used to store cassette or compact disc cases, the
storage area can be used to store a laptop computer.
The storage compartment also has a tray to use for writing.
Rear Storage Compartment
Your vehicle has a storage compartment located in the rear
cargo area of the vehicle in the driver's side trim panel.
To open the utility compartment, press in on the release
latch and swing the compartment door open.
To open the Suburban/Yukon XL compartment, pull the
latch to access.

2-55 Cargo Security Shade (If Equipped)
CAUTION:
An improperly stored cargo cover could be
thrown about the vehicle during a collision or
sudden maneuver. You or others could be
injured. If you remove the cover, always store it
outside of the vehicle. When you put it back,
always be sure that it is securely reattached.
If you have a cargo security shade, you can use it to
cover items in the cargo area of your vehicle.
To use the shade, pull the shade handle toward the rear
of the vehicle. Latch the shade posts into the retaining
sockets on the cargo area trim panels.
To return the shade to the retracted position, pull up on
the shade handle to release the shade posts from the
retaining sockets. Let the shade move forward to the full
retracted position.To remove the shade from the vehicle, first let the shade
go all the way into the holder. Then, grasping the
passenger's side shade endcap, push the shade endcap
toward the driver's side of the vehicle. The endcap
should lock in the compressed position. Lift the shade
up on the passenger's side, swing the shade rearward
and take it out of the vehicle.
To put the shade in the vehicle, first make sure the shade
slot in the holder faces rearward with the round surface
facing down. Then, hold the shade at an angle and place
the shade holder tab into the slot in the driver's side trim
panel. Move the other end of the shade forward and hold
it next to the passenger's side trim panel slot.
Push the button on top of the passenger's side endcap.
This will allow the shade to extend into the trim slot.
Lightly pull on the shade holder to make sure it is
secure. On Suburban/Yukon XL models there are
two slots. The slots furthest forward allow the shade to
be used if the third seat is removed or folded down.

2-56 Cargo Tie Downs
There are cargo tie downs
in the rear cargo area that
allow you to strap cargo in
and keep it from moving
inside the vehicle.
When not using the tie downs, flip them down out of
the way.
Convenience Net (If Equipped)
You may have a convenience net in the rear of your
vehicle to help keep small loads, like grocery bags, in
place during sharp turns or quick stops and starts.
The net is not designed for larger, heavier items.
To install the net, attach the hooks to the raised cargo
tie downs. Then, attach the cord loops to the button
retainers in the side trim.
You can unhook the net so that it will lie flat when
you're not using it.
Luggage Carrier (If Equipped)
If you have the luggage carrier, you can load things on
top of your vehicle.
The luggage carrier has slats and siderails attached to
the roof and crossrails which can be moved back and
forth to help secure cargo. Tie the load to the siderails
or siderail supports.
NOTICE:
Loading cargo that weighs more than
200 lbs. (90.6 kg) on the luggage carrier may
damage your vehicle. When you carry large
things, never let them hang over the rear or the
sides of your vehicle. Load your cargo so that it
rests on the slats and does not scratch or damage
the vehicle. Put the cargo against the siderails
and fasten it securely to the luggage carrier.
Don't exceed the maximum vehicle capacity when loading
your vehicle. For more information on vehicle capacity
and loading, see ªLoading Your Vehicleº in the Index.

2-57
To prevent damage or loss of cargo as you're leaving,
check now and then to make sure the luggage and cargo
are still securely fastened.
Be sure the cargo is properly loaded.

If small heavy objects are placed on the roof, place
the load in the area over the rear wheels (behind the
rear side door on Suburban/Yukon XL Models).
If you need to, cut a piece of 3/8 inch plywood to fit
inside the crossrails and siderails to spread the load.
If plywood is used, tie it to the siderail supports.

Tie the load to the crossrails or the siderail supports.
Use the crossrails only to keep the load from sliding.
To move the crossrails, pull out on the latch release
handle at each end. Slide the crossrail to the desired
position balancing the force side to side. Push the
release handle back into the latched position and
slide the crossrail back and forth slightly to be sure
the latch snaps securely into place.
If you need to carry long items, move the crossrails
as far apart as they will go. Tie the load to the
crossrails and the siderails or siderail supports. Also
tie the load to the bumpers. Do not tie the load so
tightly that the crossrails or siderails are damaged.

For the purpose of wind noise reduction, locate the
front crossrail approximately 18 to 24 inches
(46 cm to 58 cm) rearward of the front supports.

After moving a crossrail, be sure it is securely locked
into the siderail.
Your vehicle has a Center High
-Mounted
Stoplamp (CHMSL) located above the glass or above
the rear load doors.
If items are loaded on the roof of the vehicle,
care should be taken not to block or damage the
CHMSL unit.

2-58
Ashtrays and Cigarette Lighter
Front Ashtray
The front ashtray is located near the center of the
instrument panel. Pull on the bottom of the ashtray door
to open it.
NOTICE:
If you store paper or other things that burn in
your ashtrays, they could be set on fire by
cigarettes or other smoking materials. That could
cause a fire and possibly damage your vehicle.
Do not store papers and other things that burn
in your ashtrays.
To remove the front ashtray, press the retainer spring
and pull the ashtray toward you. To replace the ashtray,
place the ashtray on the slides at the side of its location
in the instrument panel. Then slide the ashtray back to
its original position.
To use the cigarette lighter, push it in all the way, and let
go. When it's ready, it will pop back out by itself.
NOTICE:
Holding a cigarette lighter in with your hand
while it's heating can make it overload, damaging
the lighter and the heating element. Just push the
lighter all the way in and let go. When it's done,
it will pop back by itself.

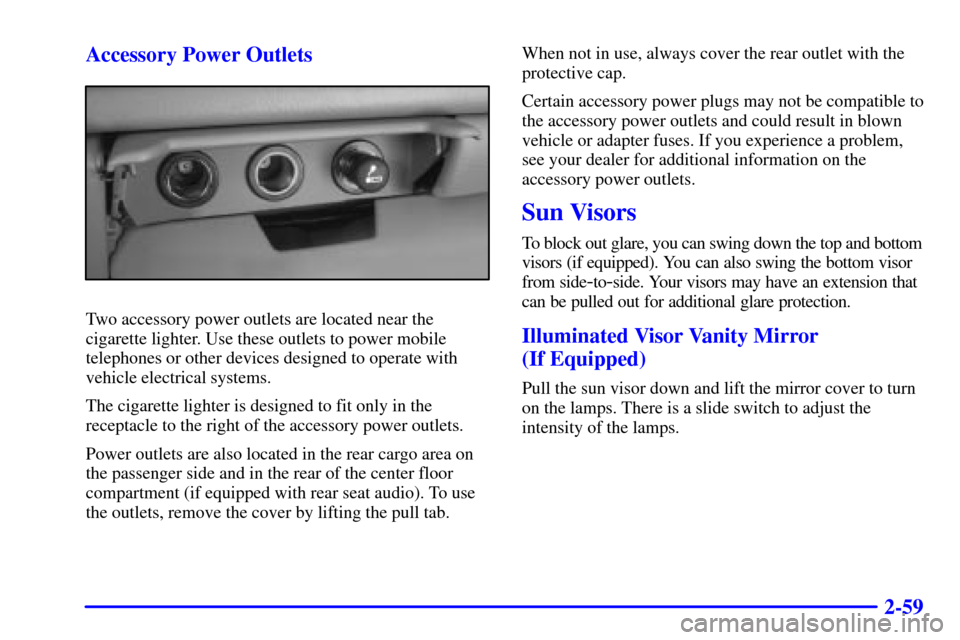

2-59 Accessory Power Outlets
Two accessory power outlets are located near the
cigarette lighter. Use these outlets to power mobile
telephones or other devices designed to operate with
vehicle electrical systems.
The cigarette lighter is designed to fit only in the
receptacle to the right of the accessory power outlets.
Power outlets are also located in the rear cargo area on
the passenger side and in the rear of the center floor
compartment (if equipped with rear seat audio). To use
the outlets, remove the cover by lifting the pull tab.When not in use, always cover the rear outlet with the
protective cap.
Certain accessory power plugs may not be compatible to
the accessory power outlets and could result in blown
vehicle or adapter fuses. If you experience a problem,
see your dealer for additional information on the
accessory power outlets.
Sun Visors
To block out glare, you can swing down the top and bottom
visors (if equipped). You can also swing the bottom visor
from side
-to-side. Your visors may have an extension that
can be pulled out for additional glare protection.
Illuminated Visor Vanity Mirror
(If Equipped)
Pull the sun visor down and lift the mirror cover to turn
on the lamps. There is a slide switch to adjust the
intensity of the lamps.

2-60

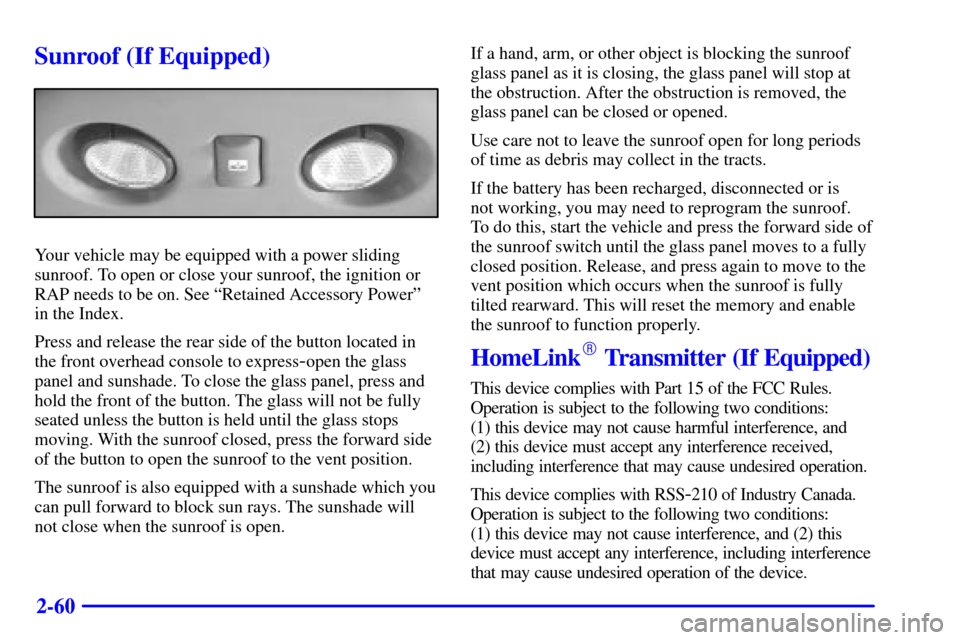

Sunroof (If Equipped)
Your vehicle may be equipped with a power sliding
sunroof. To open or close your sunroof, the ignition or
RAP needs to be on. See ªRetained Accessory Powerº
in the Index.
Press and release the rear side of the button located in
the front overhead console to express
-open the glass
panel and sunshade. To close the glass panel, press and
hold the front of the button. The glass will not be fully
seated unless the button is held until the glass stops
moving. With the sunroof closed, press the forward side
of the button to open the sunroof to the vent position.
The sunroof is also equipped with a sunshade which you
can pull forward to block sun rays. The sunshade will
not close when the sunroof is open.If a hand, arm, or other object is blocking the sunroof
glass panel as it is closing, the glass panel will stop at
the obstruction. After the obstruction is removed, the
glass panel can be closed or opened.
Use care not to leave the sunroof open for long periods
of time as debris may collect in the tracts.
If the battery has been recharged, disconnected or is
not working, you may need to reprogram the sunroof.
To do this, start the vehicle and press the forward side of
the sunroof switch until the glass panel moves to a fully
closed position. Release, and press again to move to the
vent position which occurs when the sunroof is fully
tilted rearward. This will reset the memory and enable
the sunroof to function properly.HomeLink
Transmitter (If Equipped)
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received,
including interference that may cause undesired operation.
This device complies with RSS
-210 of Industry Canada.
Operation is subject to the following two conditions:
(1) this device may not cause interference, and (2) this
device must accept any interference, including interference
that may cause undesired operation of the device.

2-61
Changes and modifications to this system by other than
an authorized service facility could void authorization to
use this equipment.
Programming the Transmitter
Do not use the HomeLink
Transmitter with any garage
door opener that does not have the ªstop and reverseº
feature. This includes any garage door opener model
manufactured before April 1, 1982.
Be sure that people and objects are clear of the garage
door you are programming.
Your vehicle's engine should be turned off while
programming the transmitter. Follow these steps to
program up to three channels:
1. If you have previously programmed a transmitter
channel, proceed to Step 2. Otherwise, hold down
the two outside buttons on the HomeLink
Transmitter until the indicator light begins to flash
rapidly (after 20 seconds). Then release the buttons.
This procedure initializes the memory and erases any
previous settings for all three channels.
2. Decide which one of the three channels you want to
program. Hold the end of the hand
-held transmitter
about 2 to 5 inches (5 to 13 cm) away from the
surface of the HomeLink Transmitter so that you
can still see the indicator light.3. Using both hands, press the hand
-held transmitter
button and the desired button on the HomeLink
Transmitter. Continue to press both buttons
through Step 4.
4. Hold down both buttons until you see the light on
the HomeLink Transmitter flash rapidly. The rapid
flashing indicates that the HomeLink Transmitter has
been programmed. Release both buttons once the
light starts to flash rapidly.
If you have trouble programming the HomeLink
Transmitter, make sure that you have followed the
directions exactly as described and that the battery in the
hand
-held transmitter is not dead. If you still cannot
program it, turn the hand
-held transmitter end over end
and try again. The HomeLink Transmitter may not work
with older garage door openers that do not meet current
Federal Consumer Safety Standards. If you cannot
program the transmitter after repeated attempts, refer to
ªTraining a Garage Door Opener with Rolling Codesº
later in this section or contact the manufacturer of the
unit at 1
-800-355-3515.
Be sure to keep the original hand
-held transmitter
in case you need to erase and reprogram the
HomeLink Transmitter.

2-62
Canadian Owners: During programming, the
hand
-held transmitter may automatically stop
transmitting after one or two seconds. In this case, you
should press and re
-press the button on the hand-held
transmitter every two seconds without ever releasing the
button on the HomeLink Transmitter. Release both
buttons when the indicator light on the HomeLink
Transmitter begins to flash rapidly.
Operating the Transmitter
Press and hold the appropriate button on the
HomeLink
Transmitter. The indicator light
comes on while the signal is being transmitted.
If the hand
-held transmitter appears to program the
HomeLink Transmitter but does not open your garage
door, and if the garage door opener was manufactured
after 1996, the garage door opener may have a ªrolling
codeº system. A rolling code system changes the code
of the garage door opener every time you open or close
the garage door.
To determine if you have this system, press the
button on the HomeLink Transmitter that you have
programmed already. If the indicator light flashes
rapidly for one to two seconds, then turns solid, the
garage door opener has a rolling code system. In a
rolling code system, the garage door motor head unit
must be trained to the HomeLink Transmitter.
Training a Garage Opener with a ªRolling
Codeº Feature (If Equipped)
If you have not previously programmed the hand-held
transmitter to the HomeLink
Transmitter, see
ªProgramming the Transmitterº listed previously.
If you have completed this programming already, you
now need to train the garage door opener motor head
unit to recognize the HomeLink Transmitter. Refer to
your garage door opener owner's manual for the proper
transmitter training procedure for your garage door
opener brand.
1. Find the training button on the garage door opener
motor head unit. The exact location and color will
vary by garage door opener brand. If you have
difficulty finding the training button, refer to your
garage door opener owner's manual.
Because of the steps involved, it may be helpful
to have another person assist in programming
the transmitter.
2. Press the training button on the garage door
opener motor head unit. An indicator light will
begin to flash when the motor head unit enters the
training mode.
Following this step, you have 30 seconds to
start Step 3.
