CHEVROLET SUBURBAN 2002 9.G Owners Manual

6-70
Instrument Panel Fuse Block
The fuse block access door
is on the driver's side edge
of the instrument panel. Pull
off the cover to access the
fuse block.
You can remove fuses with a fuse extractor which is
mounted to the fuse block access door. To remove fuses
if you don't have a fuse extractor, hold the end of the
fuse between your thumb and index finger and pull
straight out.
You may have spare fuses located behind the fuse block
access door. These can be used to replace a bad fuse.
However, make sure it is of the correct amperage.
Fuse Usage
HVAC 1 Climate Control System
IGN 3 Ignition, Power Seats
BRAKE Anti
-Lock Brake System

6-71
Fuse Usage
HTR A/C Climate Control System
IGN 0 PRND321 Display,
Odometer, PCM
CRUISE Cruise Control, Instrument Cluster
4WD Four
-Wheel Drive System,
Auxiliary Battery
TURN Exterior Lamps, Turn Signals,
Hazard Lamps
RR WIPER Rear Window Wiper
WS WPR Windshield Wipers
SEO IGN Special Equipment Option,
Ignition, OnStar


ILLUM Interior Lamps
IGN 1 Ignition, Instrument Panel
SEO ACCY Special Equipment Option
Accessory, Cellular Telephone
L BODY Retained Accessory Power Relay
CRANK Starting SystemFuse Usage
AIR BAG Air Bag
MIR/LOCK Power Mirrors, Power Door Locks
SEAT Power Seat Circuit Breaker
DR LOCK Power Door Locks
RAP #1 Retained Accessory Power Relay
LOCK Power Door Locks
INT PRK Interior Lamps
UNLOCK Power Door Locks
DRV UNLOCK Power Door Lock Relay
L DOOR Power Door Lock Relay
PWR WDO Power Window Circuit Breaker
RDO I Audio System, OnStar

RAP #2 Rear Power Windows, Sunroof,
Radio, OnStar

LOCK Power Door Lock Relay
UNLOCK Power Door Lock Relay

6-72
Center Instrument Panel Fuse Block
The center instrument panel fuse block is located
underneath the instrument panel, to the left of the
steering column.Relay Name Usage
SEO Special Equipment Option
HTD ST Heated Seats
SPARE Not Used
VANITY Headliner Wiring
TRAILER Trailer Brake Wiring
PWR ST Power Seats
SPARE Not Used
UPF Upfitter
PARK LAMP Parking Lamps (Relay)
FRT PRK EXPT* Not Used
SPARE 2 Not Used
PUDDLE LP Puddle Lamps
SL RIDE Not Used
SPARE 3 Not Used
INADV PWR Interior Lights Feed (Relay)
CTSY LP Courtesy Lamps (Relay)
CEL PHONE Cellular Telephone Wiring

6-73

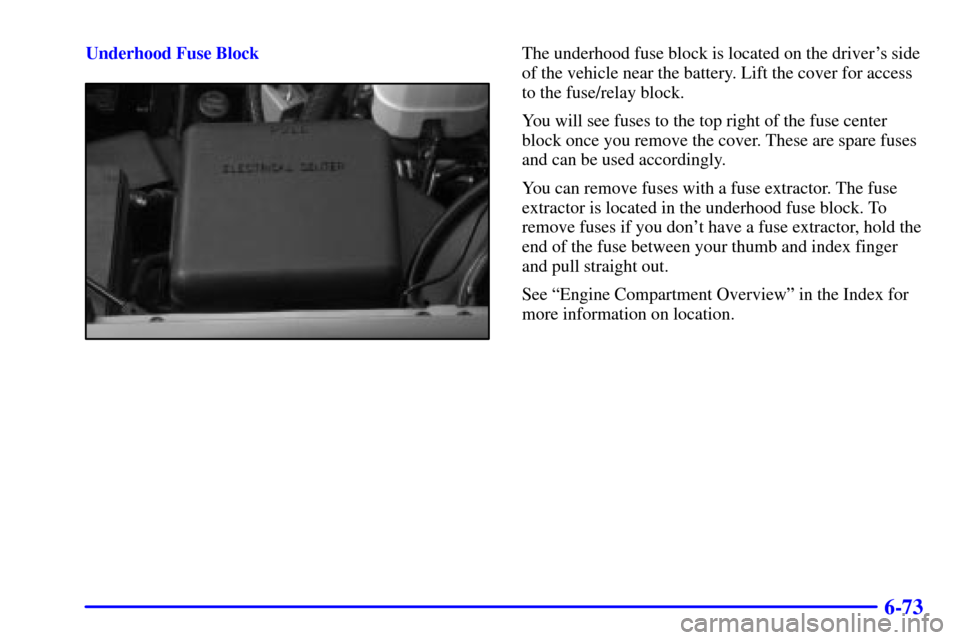

Underhood Fuse BlockThe underhood fuse block is located on the driver's side
of the vehicle near the battery. Lift the cover for access
to the fuse/relay block.
You will see fuses to the top right of the fuse center
block once you remove the cover. These are spare fuses
and can be used accordingly.
You can remove fuses with a fuse extractor. The fuse
extractor is located in the underhood fuse block. To
remove fuses if you don't have a fuse extractor, hold the
end of the fuse between your thumb and index finger
and pull straight out.
See ªEngine Compartment Overviewº in the Index for
more information on location.

6-74

6-75
Fuse Usage
STUD #1 Accessory Power/Trailer Wiring
Feed/Load Leveling
ABS Anti
-Lock Brakes
IGN A Ignition Switch
AIR A.I.R. System
RAP #1 Retained Accessory Power, Power
Mirrors, Power Door Locks,
Power Seat(s)
IGN B Ignition Switch
RAP #2 Retained Accessory Power/Rear
Power Windows, Sunroof, Radio
STUD #2 Accessory Power/Trailer Wiring
Brake Feed
TRL R TRN Right Turn Signal Trailer Wiring
TRL L TRN Left Turn Signal Trailer Wiring
IGN 1 Ignition, Fuel Controls
INJ B Ignition, Fuel Controls (Relay)
STARTER Starter (Relay)Fuse Usage
PARK LP Parking Lamps
FRT HVAC Climate Control System
STOP LP Exterior Lamps, Stoplamps
ECM I PCM
CHMSL Center High Mounted Stoplamp
VEH STOP Stoplamps, Cruise Control
TRL B/U Backup Lamps Trailer Wiring
INJ A Fuel Controls, Ignition
RR HVAC Rear HVAC
VEH B/U Vehicle Backup Lamps
ENG 1 Engine Controls, Canister Purge,
Fuel System
ETC Electronic Throttle Control
IGN E A/C Compressor Relay, Rear
Window Defogger, Daytime
Running Lamps, A.I.R. System
B/U LP Backup Lamps, Automatic
Transmission Shift Lock
Control System

6-76
Fuse Usage
ATC Automatic Transfer Case
RR DEFOG Rear Window Defogger, Heated
Mirrors (Relay)
RTD Autoride
(Real Time Damping)
RR PRK Right Rear Parking Lamps
ECM B PCM
F/PMP Fuel Pump (Relay)
O2 A Oxygen Sensors
O2 B Oxygen Sensors
LR PRK Left Rear Parking Lamps
RR DEFOG Rear Window Defogger,
Heated Mirrors
HDLP Headlamps (Relay)
TRL PRK Parking Lamps Trailer Wiring
PRIME Not Used
RT HDLP Right Headlamps
DRL Daytime Running Lamps (Relay)
HTD MIR Heated MirrorsFuse Usage
LT HDLP Left Headlamps
A/C Air Conditioning
AUX PWR Cigarette Lighter, Auxiliary
Power Outlets
SEO 2 Special Equipment Option Power,
Power Seats, Aux Roof Mnt Lamp
SEO 1 Special Equipment Option
Power, Aux Roof Mnt Lamp,
Cell Phone, OnStar


DRL Daytime Running Lamps
A/C A/C (Relay)
FOG LP Fog Lamps
FOG LP Fog Lamps (Relay)
RADIO Audio System, Instrument Cluster,
Climate Control System
CIGAR Cigarette Lighter, Auxiliary
Power Outlets
RT TURN Right Turn Signals
BTSI Automatic Transmission Shift
Lock Control System

6-77
Fuse Usage
LT TURN Left Turn Signals
FR PRK Front Parking Lamps,
Sidemarker Lamps
W/W PMP Windshield Washer Pump
HORN Horn (Relay)
IGN C Ignition Switch, Fuel Pump,
PRND321 Display, Crank
RDO AMP Radio Amplifier
HAZ LP Exterior Lamps, Hazard Lamps
EXP LPS Not Used
HORN Horn
CTSY LP Interior Lamps
RR WPR Rear Wipers
TBC Body Control Module, Remote
Keyless Entry, HeadlampsReplacement Bulbs
Low-Beam Headlamps2 9006
High
-Beam Headlamps2 9005
Daytime Running
Lamps (DRL)2 4157K
Front Roof Marker Lamp 5 194
Front Parking and
Turn Lamp2 3157A
Rear Marker Lamp,
Taillamp and Stop Lamp2 3157
Rear Turn Lamp 2 3157
Back
-up Lamp2 3157
For any bulb not listed here contact your dealer.

6-78
Capacities and Specifications
Please refer to ªRecommended Fluids and Lubricantsº in the Index for more information. All capacities
are approximate.
Engine Type VIN Code Spark Plug Gap
VORTEC 4800 V8 V 0.060 inches (1.52 mm)
VORTEC 5300 V8 T 0.060 inches (1.52 mm)
VORTEC 6000 V8 U 0.060 inches (1.52 mm)
VORTEC 8100 V8 G 0.060 inches (1.52 mm)
Wheels and Tires
Model Description Torque
C/K 1500 6 bolts (14 mm)
140 lb
-ft (190 N´m)
C/K 2500 8 bolts (14 mm)
140 lb
-ft (190 N´m)
Tire Pressure See the Certification/Tire label on the rear edge of the driver's door
or the incomplete vehicle document in the cab.

6-79 Cooling System Capacity
After refill, the level must be rechecked. See ªCooling Systemº in the Index.
Engine Transmission Quantity
VORTEC 4800 V8 Automatic with front A/C 14.4 quarts (13.6 L)
VORTEC 4800 V8 Automatic with front and rear A/C 15.8 quarts (15.0 L)
VORTEC 5300 V8 Automatic with front A/C 14.4 quarts (13.6 L)
VORTEC 5300 V8* Automatic with front and rear A/C 15.8 quarts (15.0 L)
VORTEC 6000 V8 Automatic 15.8 quarts (15.0 L)
VORTEC 6000 V8** Automatic with engine oil cooler 15.4 quarts (14.6 L)
VORTEC 8100 V8 Automatic 20.7 quarts (19.6 L)
* Vehicles equipped with the optional air conditioner.
** Vehicles equipped with the optional engine oil cooler.
Add one liter if equipped with rear heating for all engines.
