Section 1 Seats and Restraint Systems
Here you'll find information about the seats in your vehicle and how to use your safety belts properly. You can also
learn about some things you should not do with air bags and safety belts.
1
-2 Seats and Seat Controls
1
-22 Safety Belts: They're for Everyone
1
-27 Here Are Questions Many People Ask About
Safety Belts
-- and the Answers
1
-28 How to Wear Safety Belts Properly
1
-28 Driver Position
1
-35 Safety Belt Use During Pregnancy
1
-36 Right Front Passenger Position
1
-36 Air Bag Systems
1
-46 Center Passenger Position1
-47 Rear Seat Passengers
1
-51 Rear Safety Belt Comfort Guides for Children
and Small Adults
1
-54 Children
1
-58 Restraint Systems for Children
1
-76 Older Children
1
-79 Safety Belt Extender
1
-79 Checking Your Restraint Systems
1
-79 Replacing Restraint System Parts
After a Crash

1-2
Seats and Seat Controls
This section tells you about the seats -- how to adjust
them, and fold them up and down. It also tells you about
reclining front seatbacks and head restraints.
Manual Front Seat
CAUTION:
You can lose control of the vehicle if you try to
adjust a manual driver's seat while the vehicle is
moving. The sudden movement could startle and
confuse you, or make you push a pedal when you
don't want to. Adjust the driver's seat only when
the vehicle is not moving.
If your vehicle has a manual bucket or a split bench seat,
you can adjust it with this lever located at the front of
the seat.
Lift the lever to unlock the seat. Using your body, slide
the seat to where you want it and release the lever. Try
to move the seat with your body to make sure the seat is
locked into place.

1-4 Power Seat(s) (If Equipped)
If your vehicle has a power seat, you can adjust it with
these controls located on the outboard sides of the seats.

Raise or lower the front of the seat cushion by
raising or lowering the forward edge of the
horizontal control.

Move the seat forward or rearward by moving the
whole horizontal control forward or rearward.

Raise or lower the rear of the seat cushion by raising
or lowering the rear edge of the horizontal control.

Moving the whole horizontal control up or down
raises or lowers the entire seat cushion.
If your vehicle has power reclining seats, you can use
the vertical control to adjust the angle of the seatback.
Move the reclining front seatback rearward or forward
by moving the control toward the rear or the front of
the vehicle. See ªReclining Seatbacksº in the Index for
further information.

1-6 Heated Front Seats (If Equipped)
If your vehicle has this
feature, the button used to
control the driver's heated
seat is located on the
driver's door panel. The
button used to control the
passenger's heated seat is
located on the passenger's
door panel.
To activate the heated seats, press the button once for
the HI heat setting. Press the button again for the LO
heat setting. To turn off the heated seats, press the
button a third time. An indicator light will illuminate for
each heat setting anytime the heated seats are operating.
The ignition must be in RUN for them to operate.
The heated front seats will be canceled after the ignition
is turned to OFF. If you still want to use the heated front
seat feature after you restart your vehicle, you will need
to press the heated seat button again.
Reclining Seatbacks
To adjust the front seatback, lift the manual lever located
on the outboard side of the seat. Release the lever to
lock the seatback where you want it. Lift the lever again
without pushing on the seatback and the seatback will
go to an upright position.
If your vehicle has power seats with a power recliner,
see ªPower Seatsº in the Index for further information
on how to operate the reclining seatback feature.

1-8 Head Restraints
Slide the head restraint up or down so that the top of the
restraint is closest to the top of your head. This position
reduces the chance of a neck injury in a crash.On some models, the head restraints tilt forward and
rearward also.
The rear seat head restraints in your vehicle may be
adjustable. They work the same as the front seat head
restraints, except they do not tilt forward or rearward.
Rear Seats
60/40 Split Bench Seat
Tahoe/Yukon: The rear seat may have a 60/40 split
seat which may be folded down to give you more
cargo space.
Suburban/Yukon XL: The second row rear seat of
Suburban/Yukon XL models may have a 60/40 split
seat. Either side of the rear seat may be folded down
to provide more cargo space.

1-9
Folding the Seatbacks
CAUTION:
If the seatback isn't locked, it could move
forward in a sudden stop or crash. That could
cause injury to the person sitting there. Always
press rearward on the seatback to be sure it
is locked.
On all models with 60/40 split bench seats, you must
insert the center occupant lap belt latch plate into the
loop provided, on the underside of the folded forward
seat cushion, before folding the rear seat back down on
the driver's side.
You may have to adjust the location of the latch plate on
the webbing so that it reaches the loop. Stowing in this
loop will reduce the chances of damaging and soiling
the belt. Remember to remove the latch plate from the
loop before the seat is returned to the passenger position.
On Suburban/Yukon XL insert the two buckles into
the retainer in the seatback, before folding the rear
seat on the driver's side. The buckles will be out of
the way when the seat is folded and will be available
for passengers to use when the seat is returned to the
passenger position. Also, make sure that nothing is
under or in front of the seat and that the head restraints
are completely lowered.
On Tahoe/Yukon models the rear seatbacks may be
equipped with rearward folding head restraints. When
the seatback is being folded down, the head restraint will
automatically fold rearward to allow a flat load floor for
cargo or entry to the third row seat (if equipped).

1-11
Make sure that the buckles on the driver's side seatback
are accessible to the outboard and center occupant and
are not under the seat cushions.
On Tahoe/Yukon models make sure the head restraints
are returned to the upright position.
Bucket Seats (Suburban/Yukon XL
Second Row)
If your vehicle has bucket seats, the seatbacks can be
reclined and the seats can be folded to give you more
cargo room.
Reclining the Seatbacks
On the Suburban/Yukon XL models with bucket seats,
the seatbacks can be reclined. To adjust the seatback do
the following:
1. Pull forward the lever located at the base of the back.
2. Release the lever to lock the seatback where you
want it. If you pull the lever without pushing on the
seatback, the seatback will go to an upright position.Folding the Seatbacks
CAUTION:
If the seatback isn't locked, it could move forward
in a sudden stop or crash. That could cause injury
to the person sitting there. Always press rearward
on the seatback to be sure it is locked.
The seatbacks on the bucket seats may be folded
forward to give you more cargo space.
In order to fold the back of a bucket seat into a
horizontal load floor, the back must be in its upright
position, and not reclined.

1-12
CAUTION:
If a head restraint is not installed on the seatback
or stored in the vehicle properly, it could be thrown
about the vehicle in a crash or sudden maneuver.
People in the vehicle could be injured. Remove the
head restraints only when you need to fold the seat,
and be sure that the head restraints are stored
securely in the space provided in the folded up
seat cushion. When the seat is returned to the
passenger position, be sure the head restraints are
installed properly.
On Suburban/Yukon XL models with rear bucket seats,
the head restraints need to be removed in order to fold
the rear seats. To do this follow these directions:
1. Lift the head restraints up until they stop.
2. Press in the button on the side of the head restraint
guide cap and lift up on the head restraint.
3. Do the same for the other cap.
The head restraint can be removed and stored in the
space provided in the folded up seat cushion.To fold the seatbacks on the bucket seats, do the following:
1. Pull up on the strap loop
located at the rear of the
seat cushion and pull the
seat cushion up. Then
fold it forward.
2. Push the
seatback release
lever rearward
and pull the
seatback forward.
Then fold it until
it is flat.
If the seatback cannot fold flat because it interferes with
the cushion, try moving the front seat forward and/or
bringing the front seatback more upright.

1-16
4. Squeeze the release lever, located in the lower
middle to unlatch the seat from the floor, while
pulling the seat out.
5. While holding the rear of the seat up, roll the seat out
of the vehicle.

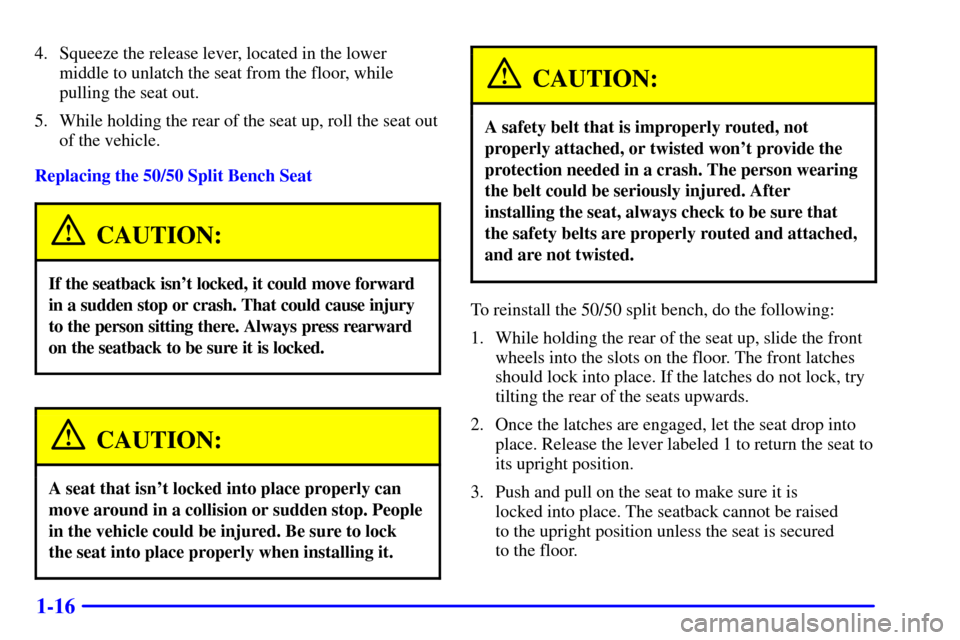

Replacing the 50/50 Split Bench Seat
CAUTION:
If the seatback isn't locked, it could move forward
in a sudden stop or crash. That could cause injury
to the person sitting there. Always press rearward
on the seatback to be sure it is locked.
CAUTION:
A seat that isn't locked into place properly can
move around in a collision or sudden stop. People
in the vehicle could be injured. Be sure to lock
the seat into place properly when installing it.
CAUTION:
A safety belt that is improperly routed, not
properly attached, or twisted won't provide the
protection needed in a crash. The person wearing
the belt could be seriously injured. After
installing the seat, always check to be sure that
the safety belts are properly routed and attached,
and are not twisted.
To reinstall the 50/50 split bench, do the following:
1. While holding the rear of the seat up, slide the front
wheels into the slots on the floor. The front latches
should lock into place. If the latches do not lock, try
tilting the rear of the seats upwards.
2. Once the latches are engaged, let the seat drop into
place. Release the lever labeled 1 to return the seat to
its upright position.
3. Push and pull on the seat to make sure it is
locked into place. The seatback cannot be raised
to the upright position unless the seat is secured
to the floor.

1-21

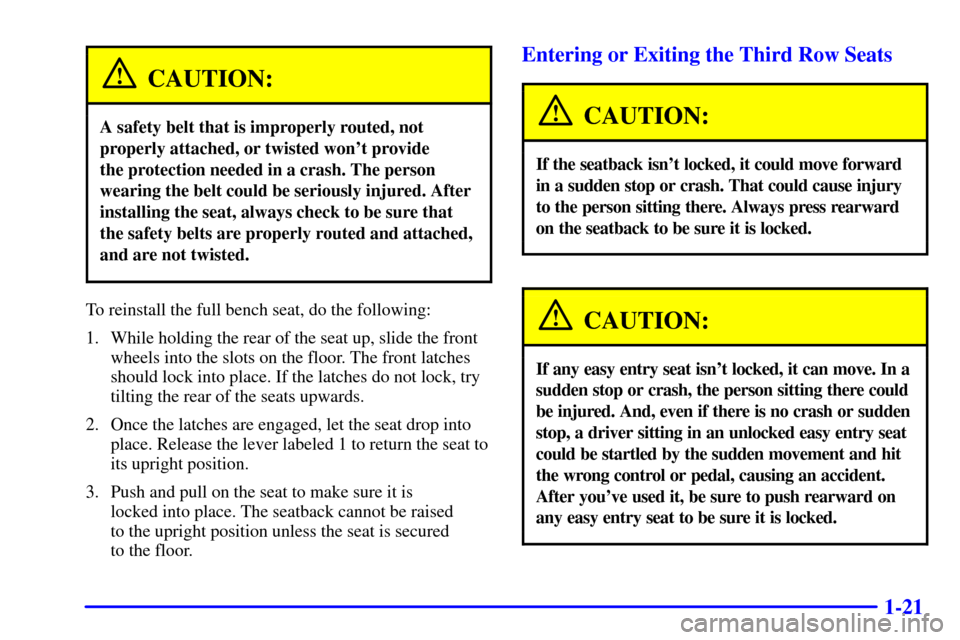

CAUTION:
A safety belt that is improperly routed, not
properly attached, or twisted won't provide
the protection needed in a crash. The person
wearing the belt could be seriously injured. After
installing the seat, always check to be sure that
the safety belts are properly routed and attached,
and are not twisted.
To reinstall the full bench seat, do the following:
1. While holding the rear of the seat up, slide the front
wheels into the slots on the floor. The front latches
should lock into place. If the latches do not lock, try
tilting the rear of the seats upwards.
2. Once the latches are engaged, let the seat drop into
place. Release the lever labeled 1 to return the seat to
its upright position.
3. Push and pull on the seat to make sure it is
locked into place. The seatback cannot be raised
to the upright position unless the seat is secured
to the floor.
Entering or Exiting the Third Row Seats
CAUTION:
If the seatback isn't locked, it could move forward
in a sudden stop or crash. That could cause injury
to the person sitting there. Always press rearward
on the seatback to be sure it is locked.
CAUTION:
If any easy entry seat isn't locked, it can move. In a
sudden stop or crash, the person sitting there could
be injured. And, even if there is no crash or sudden
stop, a driver sitting in an unlocked easy entry seat
could be startled by the sudden movement and hit
the wrong control or pedal, causing an accident.
After you've used it, be sure to push rearward on
any easy entry seat to be sure it is locked.
