Page 401 of 556

CHEVROLET SUBURBAN 2004 9.G Owners Manual A. Engine Air Cleaner/Filter. SeeEngine Air
Cleaner/Filter on page 5-22.
B. Coolant Surge Tank. SeeCooling System on
page 5-32.
C. Air Filter Restriction Indicator (If Equipped). See
Engine Air Cleane

Page 402 of 556

CHEVROLET SUBURBAN 2004 9.G Owners Manual When you open the hood on the VORTEC™ 8100 V8 engine you’ll see the following:
5-16

Page 403 of 556

CHEVROLET SUBURBAN 2004 9.G Owners Manual A. Engine Air Cleaner/Filter. SeeEngine Air
Cleaner/Filter on page 5-22.
B. Coolant Surge Tank. SeeCooling System on
page 5-32.
C. Air Filter Restriction Indicator (If Equipped). See
Engine Air Cleane

Page 404 of 556

CHEVROLET SUBURBAN 2004 9.G Owners Manual When to Add Engine Oil
If the oil is at or below the cross-hatched area at the tip
of the dipstick, then you will need to add at least one
quart of oil. But you must use the right kind. This section
e

Page 405 of 556

CHEVROLET SUBURBAN 2004 9.G Owners Manual SAE 5W-30
As shown in the viscosity chart, SAE 5W-30 is best
for your vehicle. However, if it is going to be 0°F
(–18°C) or above and SAE 5W-30 is not available,
you may use SAE 10W-30.
These num

Page 406 of 556

CHEVROLET SUBURBAN 2004 9.G Owners Manual Notice:Use only engine oil identi�ed as meeting
GM Standard GM6094M and showing the American
Petroleum Institute Certi�ed For Gasoline Engines
starburst symbol. Failure to use the recommended
oil can

Page 407 of 556

CHEVROLET SUBURBAN 2004 9.G Owners Manual How to Reset the CHANGE ENGINE OIL
Message
The GM Oil Life System calculates when to change
your engine oil and �lter based on vehicle use. Anytime
your oil is changed, reset the system so it can
calc

Page 408 of 556

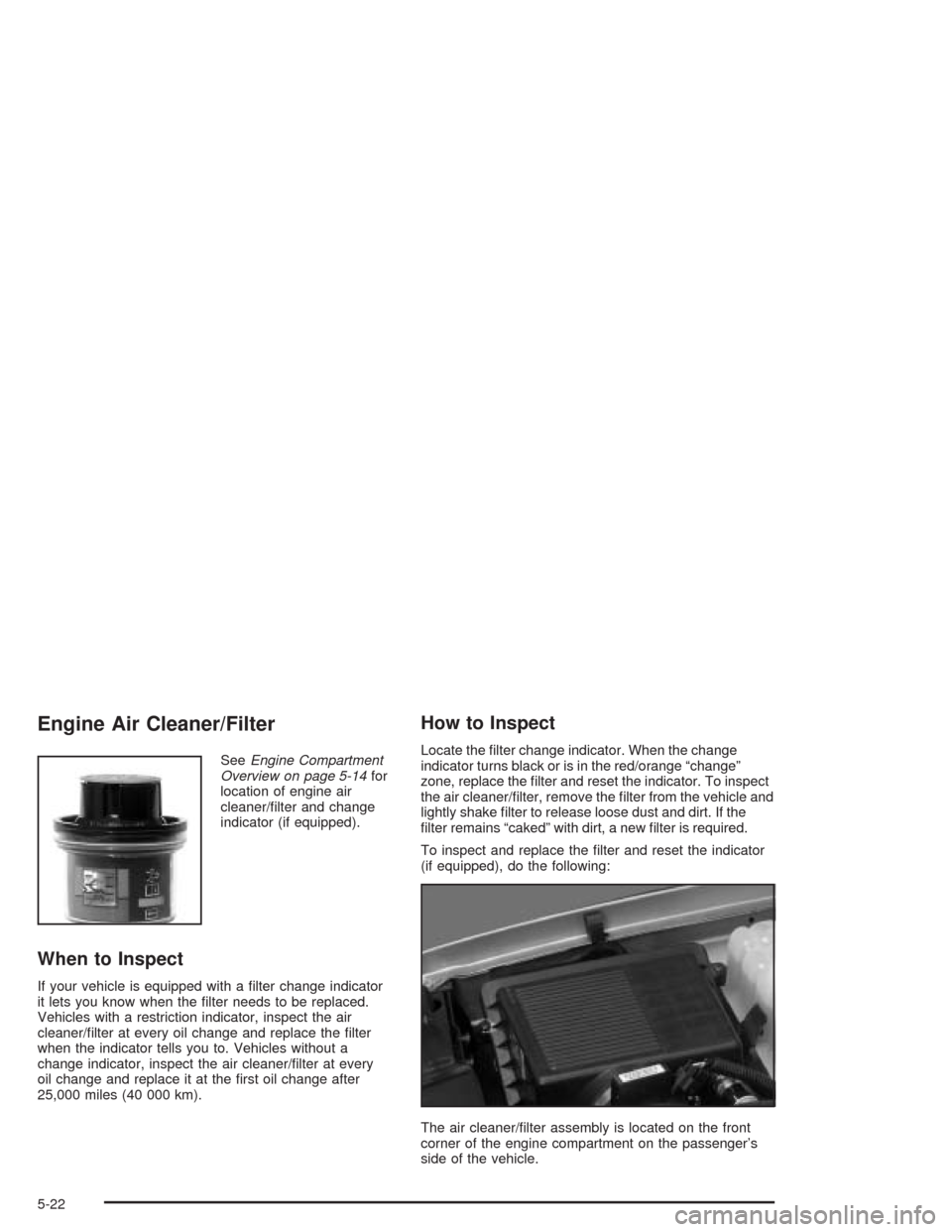

CHEVROLET SUBURBAN 2004 9.G Owners Manual Engine Air Cleaner/Filter
SeeEngine Compartment
Overview on page 5-14for
location of engine air
cleaner/�lter and change
indicator (if equipped).
When to Inspect
If your vehicle is equipped with a �lt

Page 409 of 556

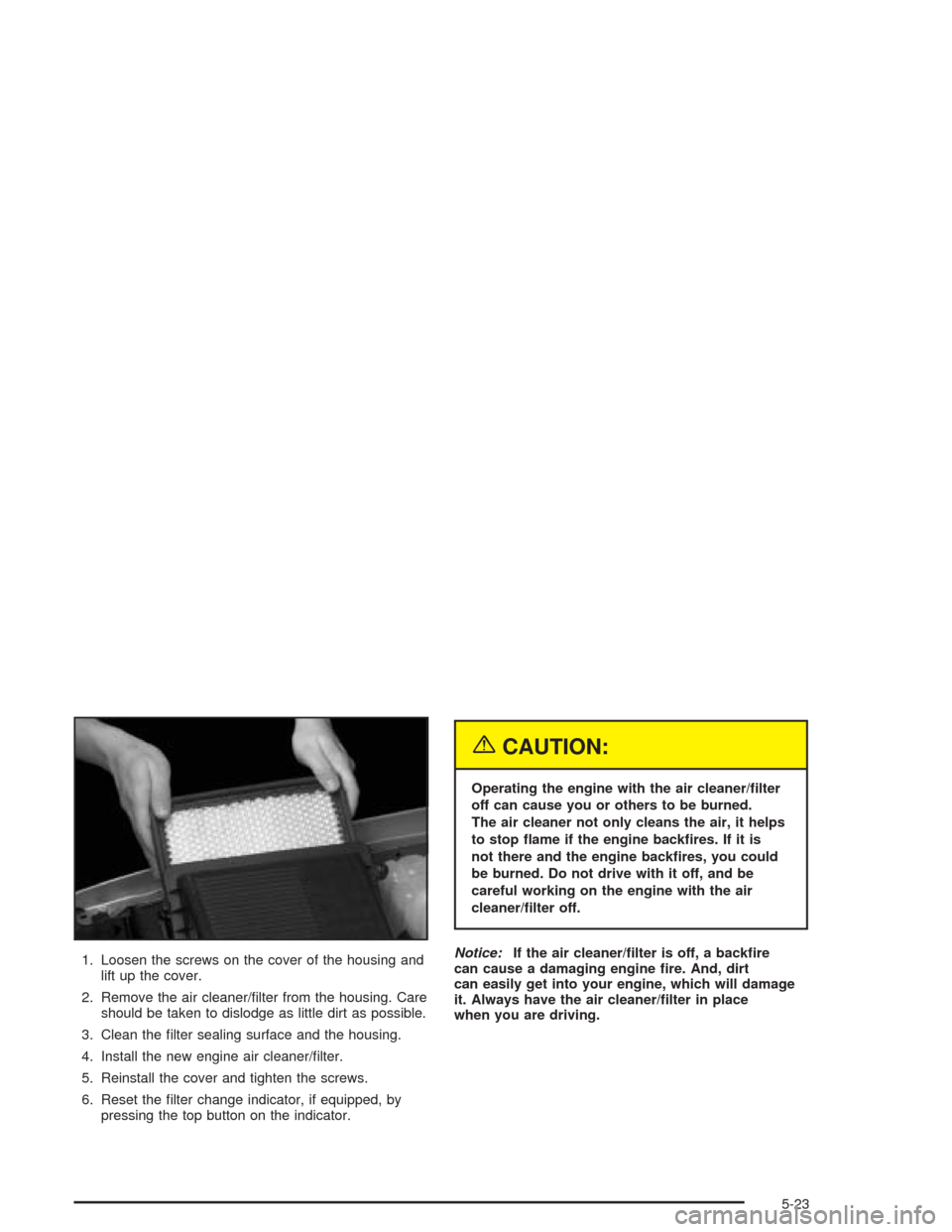

CHEVROLET SUBURBAN 2004 9.G Owners Manual 1. Loosen the screws on the cover of the housing and
lift up the cover.
2. Remove the air cleaner/�lter from the housing. Care
should be taken to dislodge as little dirt as possible.
3. Clean the �lte

Page 410 of 556

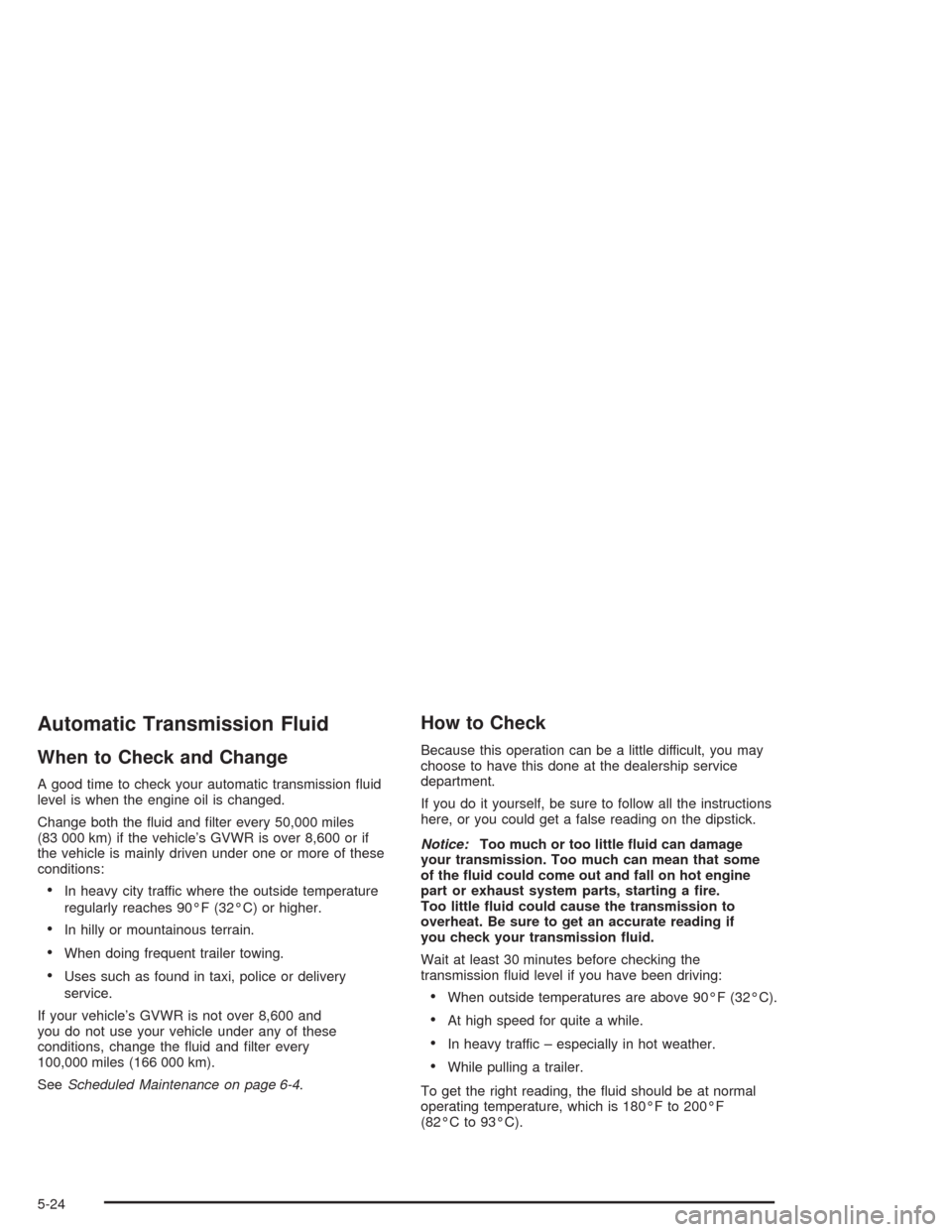

CHEVROLET SUBURBAN 2004 9.G Owners Manual Automatic Transmission Fluid
When to Check and Change
A good time to check your automatic transmission �uid
level is when the engine oil is changed.
Change both the �uid and �lter every 50,000 miles
(
