Power Lumbar
If the seats have power lumbar, the controls used
to operate this feature are located on the
outboard side of the seats.
To increase lumbar support, press and hold
the front of the control.
To decrease lumbar support, press and hold
the rear of the control.
To raise the height of the lumbar support,
press and hold the top of the control.
To lower the height of the lumbar support,
press and hold the bottom of the control.
Release the control when the lower seatback
reaches the desired level of lumbar support.
Your vehicle may have a memory function which
allows seat settings to be saved and recalled.
SeeMemory Seat, Mirrors, and Pedals on page 13
for more information.
Keep in mind that as your seating position
changes, as it may during long trips, so should the
position of your lumbar support. Adjust the seat
as needed.
11

Heated Seats
On vehicles with heated
front seats, the controls
are located on the
driver’s and passenger’s
doors, near the door
handle.
I(Heated Seatback):Press this button to turn
on the heated seatback.
The light on the button will come on to indicate
that the feature is working. Press the button
to cycle through the temperature settings of high,
medium, and low and to turn the heat to the
seatback off. Indicator lights below the button show
the level of heat selected: three for high, two for
medium, and one for low.
J(Heated Seat and Seatback):Press this
button to turn on the heated seat and seatback.
The light on the button will come on to indicate that
the feature is working. Press the button to cycle
through the temperature settings of high, medium,
and low and to turn the heat to the seat off.
Indicator lights above the button will show the level
of heat selected: three for high, two for medium,
and one for low.
The heated seats will be canceled ten seconds
after the ignition is turned off. If you want to
use the heated seat feature after you restart your
vehicle, you will need to press the appropriate
heated seat or seatback button again.
12

Memory Seat, Mirrors, and Pedals
Your vehicle may have the memory package.
The controls for this
feature are located on
the driver’s door
panel, and are used to
program and recall
memory settings for the
driver’s seat, outside
mirrors, and the
adjustable throttle and
brake pedal.
To save your positions in memory, do the
following:
1. Adjust the driver’s seat, including the seatback
recliner and lumbar, both outside mirrors, and
the throttle and brake pedals to a comfortable
position.
SeeOutside Power Mirrors on page 170and
Adjustable Throttle and Brake Pedal on
page 143for more information.Not all mirrors will have the ability to save and
recall their positions.
Not all adjustable throttles and brake pedals
will have the ability to save and recall
their positions.
2. Press and hold button 1 until two beeps are
heard indicating that the position has been
stored.
A second seating, mirror, and throttle and brake
pedal position can be programmed by repeating
the above steps and pressing button 2.
To recall the memory positions, the vehicle must be
in PARK (P). Press and release either button 1 or
button 2 corresponding to the desired driving
position. The seat, outside mirrors, and adjustable
throttle and brake pedals will move to the position
previously stored. You will hear a single beep.
If you use the remote keyless entry transmitter to
enter your vehicle and the remote recall memory
feature is on, automatic seat, adjustable mirror,
and adjustable pedal movements will occur.
See “MEMORY SEAT RECALL” underDIC Vehicle
Customization (With DIC Buttons) on page 280
for more information.
13

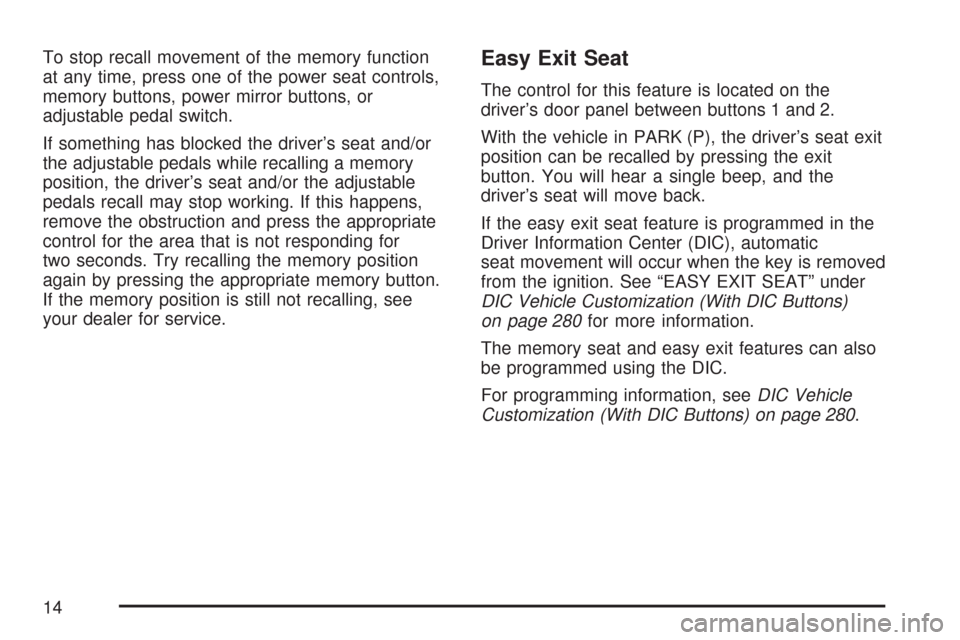

To stop recall movement of the memory function
at any time, press one of the power seat controls,
memory buttons, power mirror buttons, or
adjustable pedal switch.
If something has blocked the driver’s seat and/or
the adjustable pedals while recalling a memory
position, the driver’s seat and/or the adjustable
pedals recall may stop working. If this happens,
remove the obstruction and press the appropriate
control for the area that is not responding for
two seconds. Try recalling the memory position
again by pressing the appropriate memory button.
If the memory position is still not recalling, see
your dealer for service.Easy Exit Seat
The control for this feature is located on the
driver’s door panel between buttons 1 and 2.
With the vehicle in PARK (P), the driver’s seat exit
position can be recalled by pressing the exit
button. You will hear a single beep, and the
driver’s seat will move back.
If the easy exit seat feature is programmed in the
Driver Information Center (DIC), automatic
seat movement will occur when the key is removed
from the ignition. See “EASY EXIT SEAT” under
DIC Vehicle Customization (With DIC Buttons)
on page 280for more information.
The memory seat and easy exit features can also
be programmed using the DIC.
For programming information, seeDIC Vehicle
Customization (With DIC Buttons) on page 280.
14

Reclining Seatbacks
Manual Reclining Seatbacks
{CAUTION:
You can lose control of the vehicle if you
try to adjust a manual driver’s seat while
the vehicle is moving. The sudden
movement could startle and confuse you,
or make you push a pedal when you do
not want to. Adjust the driver’s seat only
when the vehicle is not moving.
{CAUTION:
If the seatback is not locked, it could
move forward in a sudden stop or crash.
That could cause injury to the person
sitting there. Always push and pull on the
seatback to be sure it is locked.If the seats have manual reclining seatbacks, the
lever used to operate them is located on the
outboard side of the seat(s).
To recline the seatback, do the following:
1. Lift the recline lever.
2. Move the seatback to the desired position,
then release the lever to lock the seatback
in place.
3. Push and pull on the seatback to make sure it
is locked.
15

To return the seatback to an upright position, do
the following:
1. Lift the lever fully without applying pressure to
the seatback and the seatback will return to
the upright position.
2. Push and pull on the seatback to make sure it
is locked.Power Reclining Seatbacks
If the seats have power reclining seatbacks, the
control used to recline them is located on the
outboard side of the seat behind the power seat
control.
To recline the seatback, tilt the top of the
control rearward.
To bring the seatback forward, tilt the top of
the control forward.
16

{CAUTION:
Sitting in a reclined position when your
vehicle is in motion can be dangerous.
Even if you buckle up, your safety belts
cannot do their job when you are reclined
like this.
The shoulder belt cannot do its job. In a
crash, you could go into it, receiving neck
or other injuries.
The lap belt cannot do its job either. In a
crash the belt could go up over your
abdomen. The belt forces would be there,
not at your pelvic bones. This could cause
serious internal injuries.
For proper protection when the vehicle is
in motion, have the seatback upright.
Then sit well back in the seat and wear
your safety belt properly.
Do not have a seatback reclined if your vehicle is
moving.
17

Head Restraints
Adjust the head restraint so that the top of the
restraint is at the same height as the top of
the occupant’s head. This position reduces the
chance of a neck injury in a crash.Pull the head restraint up
to raise it. To lower the
head restraint, press the
release button (A),
located on the top of
the seatback, while
you push the head
restraint down.
The front seats may have head restraints that also
tilt forward and rearward.
To tilt the head restraint, grasp the top of the
restraint while pressing the button (B), located on
the inboard side of the head restraint, and
move it forward or rearward until the desired
locking position is reached. Try to move the head
restraint after the button is released to make
sure that it is locked in place.
The second row seats may have head rests that
can be adjusted up and down, but they do not tilt.
18

Center Seat
Your vehicle may have a front center seat.
The seatback doubles as an armrest and
cupholder/storage area for the driver and
passenger when the center seat is not used. Do
not use it as a seating position when the seatback
is folded down.
For information on safety belts for this position,
seeCenter Front Passenger Position on page 53.
Rear Seats
Heated Seats
If the rear seats have
the heated seat feature,
the buttons used to
control this feature are
located on the Rear
Seat Audio (RSA) panel.
M(Heated Seat):To heat the seat cushion,
press the button with the heated seat symbol.
A heated seat symbol will be shown in the RSA
display to indicate that the feature is on. Press the
button to cycle through the temperature settings
of high, medium, and low, and to turn it off.
Driver’s Side RSA
Heated Seat Button
Only shown
19

Indicator bars next to the symbol will designate
the level of heat selected: three for high, two
for medium, and one for low.
The heated seats will be canceled ten seconds
after the ignition is turned off. If the vehicle
is restarted, the heated seat button will need to be
pressed again to restart the feature.
60/40 Split Bench Seat
(Second Row)
If your vehicle has a 60/40 split bench, the seat(s)
can be folded for additional cargo space or
folded and tumbled for easy entry and exit to the
third row seats, if your vehicle has them. These
seats will have either the manual fold and tumble
feature or the automatic seat release fold and
tumble feature.
Manual Fold and Tumble Feature
Folding and Tumbling the Seat(s)
To fold and tumble the seat, do the following:
1. Make sure that there is nothing under, in front
of, or on the seat.
Notice:Folding a rear seat with the safety belts
still fastened may cause damage to the seat or
the safety belts. Always unbuckle the safety
belts and return them to their normal stowed
position before folding a rear seat.
2. Lift the lever, located on the outboard side of
the seat, to release the seatback.
20
