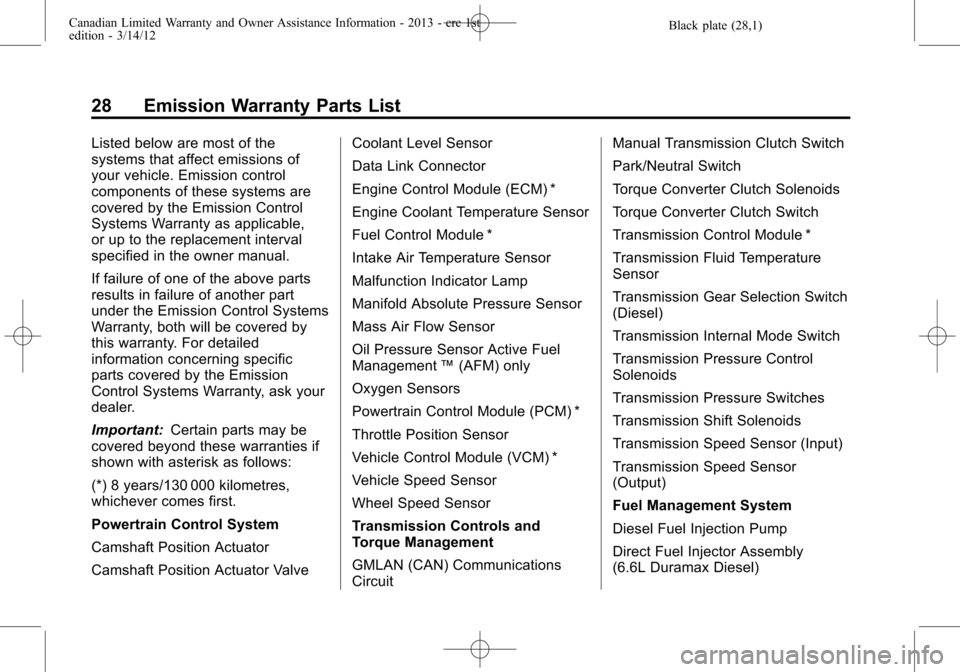

28 Emission Warranty Parts List
Listed below are most of the
systems that affect emissions of
your vehicle. Emission control
components of these systems are
covered by the Emission Control
Systems Warranty as applicable,
or up to the replacement interval
specified in the owner manual.
If failure of one of the above parts
results in failure of another part
under the Emission Control Systems
Warranty, both will be covered by
this warranty. For detailed
information concerning specific
parts covered by the Emission
Control Systems Warranty, ask your
dealer.
Important:Certain parts may be
covered beyond these warranties if
shown with asterisk as follows:
(*) 8 years/130 000 kilometres,
whichever comes first.
Powertrain Control System
Camshaft Position Actuator
Camshaft Position Actuator ValveCoolant Level Sensor
Data Link Connector
Engine Control Module (ECM) *
Engine Coolant Temperature Sensor
Fuel Control Module *
Intake Air Temperature Sensor
Malfunction Indicator Lamp
Manifold Absolute Pressure Sensor
Mass Air Flow Sensor
Oil Pressure Sensor Active Fuel
Management™(AFM) only
Oxygen Sensors
Powertrain Control Module (PCM) *
Throttle Position Sensor
Vehicle Control Module (VCM) *
Vehicle Speed Sensor
Wheel Speed Sensor
Transmission Controls and
Torque Management
GMLAN (CAN) Communications
CircuitManual Transmission Clutch Switch
Park/Neutral Switch
Torque Converter Clutch Solenoids
Torque Converter Clutch Switch
Transmission Control Module *
Transmission Fluid Temperature
Sensor
Transmission Gear Selection Switch
(Diesel)
Transmission Internal Mode Switch
Transmission Pressure Control
Solenoids
Transmission Pressure Switches
Transmission Shift Solenoids
Transmission Speed Sensor (Input)
Transmission Speed Sensor
(Output)
Fuel Management System
Diesel Fuel Injection Pump
Direct Fuel Injector Assembly
(6.6L Duramax Diesel)

Black plate (30,1)Canadian Limited Warranty and Owner Assistance Information - 2013 - crc 1st
edition - 3/14/12
30 Emission Warranty Parts List
Positive Crankcase Ventilation
(PCV) System
Oil Filler Cap
PCV Filter
PCV Oil Separator
PCV Valve
Exhaust Gas Recirculation (EGR)
System
EGR Feed and Delivery Pipes or
Cast-In Passages
EGR Valve Cooler (6.6L Duramax
Diesel)
EGR Valve
Secondary Air Injection System
Air Pump
Check Valves
Evaporative Emission Control
System (Gasoline Engines)
Canister
Canister Purge Solenoid Valve
Canister Vent SolenoidFuel Feed and Return Pipes and
Hoses
Fuel Filler Cap
Fuel Level Sensor
Fuel Limiter Vent Valve
Fuel Tank(s)
Fuel Tank Filler Pipe (with
Restrictor)
Fuel Tank Vacuum or Pressure
Sensor
Hybrid
Auxiliary Transmission Fluid Pump
Battery Cooling Fan
Battery Pack Control
Module (BPCM)
Battery Pack Current Sensor
Brake Pedal Travel Sensor
Drive Motors
Drive Motor Resolvers
Drive Motor/Generator Control
Module *Electro-Hydraulic Brake Control
Module (EBCM) *
Energy Storage Control Module *
Fuel Filler Pipe Adapter Seal
Hybrid Batteries
Hybrid Battery Temperature Sensors
Hybrid Battery Voltage Sensors
SGCM Coolant Circuit
Starter Generator
Starter Generator Control
Module (SGCM) *
Traction Power Inverter
Module (TPIM) *
Transmission Substrate
Temperature Sensor
Voltec Specific Components
VICM—Vehicle Integration Control
Module
Voltec RESS Battery *

Black plate (31,1)Canadian Limited Warranty and Owner Assistance Information - 2013 - crc 1st
edition - 3/14/12

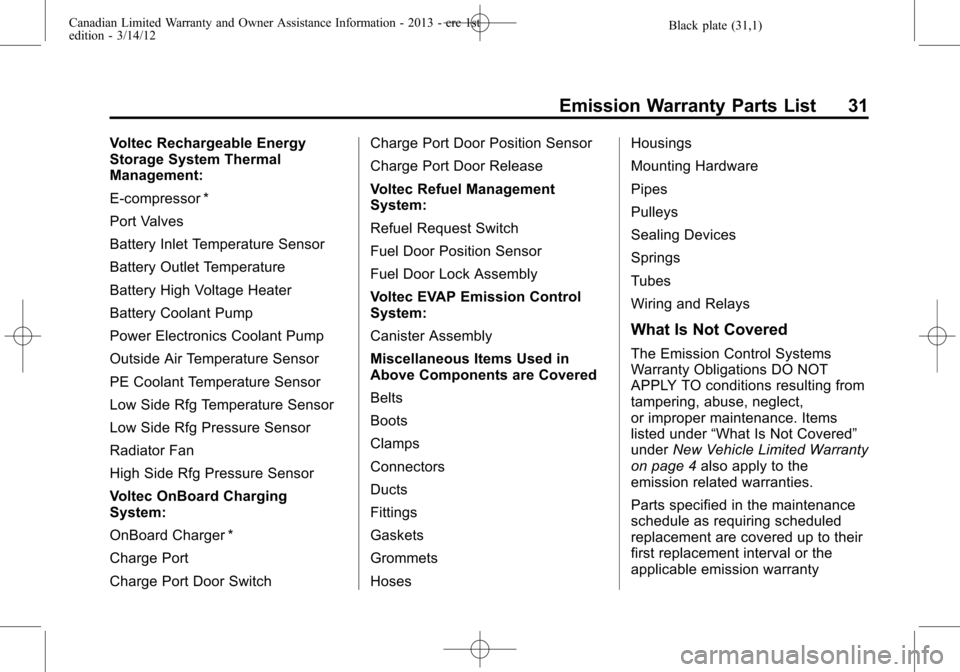

Emission Warranty Parts List 31
Voltec Rechargeable Energy
Storage System Thermal
Management:
E-compressor *
Port Valves
Battery Inlet Temperature Sensor
Battery Outlet Temperature
Battery High Voltage Heater
Battery Coolant Pump
Power Electronics Coolant Pump
Outside Air Temperature Sensor
PE Coolant Temperature Sensor
Low Side Rfg Temperature Sensor
Low Side Rfg Pressure Sensor
Radiator Fan
High Side Rfg Pressure Sensor
Voltec OnBoard Charging
System:
OnBoard Charger *
Charge Port
Charge Port Door SwitchCharge Port Door Position Sensor
Charge Port Door Release
Voltec Refuel Management
System:
Refuel Request Switch
Fuel Door Position Sensor
Fuel Door Lock Assembly
Voltec EVAP Emission Control
System:
Canister Assembly
Miscellaneous Items Used in
Above Components are Covered
Belts
Boots
Clamps
Connectors
Ducts
Fittings
Gaskets
Grommets
HosesHousings
Mounting Hardware
Pipes
Pulleys
Sealing Devices
Springs
Tubes
Wiring and Relays
What Is Not Covered
The Emission Control Systems
Warranty Obligations DO NOT
APPLY TO conditions resulting from
tampering, abuse, neglect,
or improper maintenance. Items
listed under“What Is Not Covered”
underNew Vehicle Limited Warranty
on page 4also apply to the
emission related warranties.
Parts specified in the maintenance
schedule as requiring scheduled
replacement are covered up to their
first replacement interval or the
applicable emission warranty
