2-84
If the Light Is Flashing
The following may prevent more serious damage to
your vehicle:

Reducing vehicle speed.

Avoiding hard accelerations.

Avoiding steep uphill grades.

If you are towing a trailer, reduce the amount of
cargo being hauled as soon as it is possible.
If the light stops flashing and remains on steady, see ªIf
the Light Is On Steadyº following.
If the light continues to flash, when it is safe to do so,
stop the vehicle. Find a safe place to park your vehicle.
Turn the key off, wait at least 10 seconds and restart the
engine. If the light remains on steady, see ªIf the Light
Is On Steadyº following. If the light is still flashing,
follow the previous steps, and drive the vehicle to your
dealer or qualified service center for service.If the Light Is On Steady
You may be able to correct the emission system
malfunction by considering the following:
Did you recently put fuel into your vehicle?

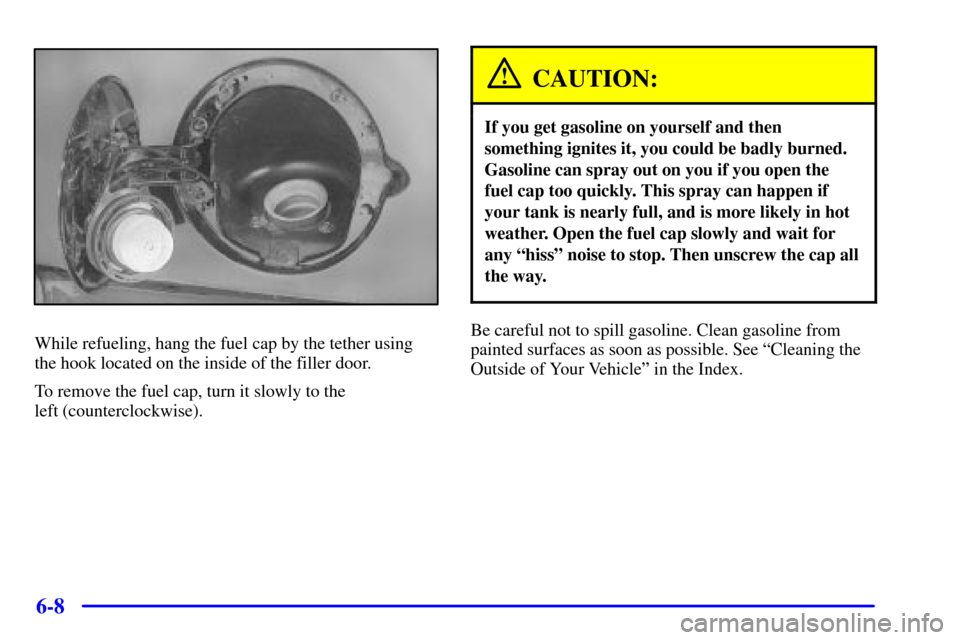

If so, reinstall the fuel cap, making sure to fully install
the cap. See ªFilling Your Tankº in the Index. The
diagnostic system can determine if the fuel cap has been
left off or improperly installed. A loose or missing fuel
cap will allow fuel to evaporate into the atmosphere. A
few driving trips with the cap properly installed should
turn the light off.
Did you just drive through a deep puddle of water?
If so, your electrical system may be wet. The condition
will usually be corrected when the electrical system
dries out. A few driving trips should turn the light off.

2-88
Here are some situations you may experience with
your fuel gage. None of these indicate a problem with
the fuel gage.

At the gas station, the fuel pump shuts off before the
gage reads full.

It takes a little more or less fuel to fill up than the
fuel gage indicated. For example, the gage may have
indicated the tank was half full, but it actually took a
little more or less than half the tank's capacity to fill
the tank.

The gage goes back to empty when you turn off
the ignition.
Message Center
The message center is located on the left side of the
instrument panel cluster. It gives you important safety
and maintenance facts. When you turn the ignition on,
the entire center lights up for just a few seconds. As
needed, the message center will display one of the
following messages. The message center is capable
of alternating among different messages if needed.
Battery
If this message is displayed
when the engine is running,
you may have a problem
with your charging system.
The battery display will also stay on while the key is in
RUN until the engine is started.
If the message stays on after starting the engine it could
indicate a problem with the generator drive belt, or some
other charging system problem. Have it checked right
away. Driving with this message displayed could drain
your battery.
If you must drive a short distance with this message
displayed, it helps to turn off all your accessories, such
as the radio and the air conditioner.

3-13 Air Conditioning
On hot days, open the windows long enough to let hot
air inside escape. This reduces the time it takes for your
vehicle to cool down. Then keep your windows closed
for the air conditioner to work its best.
The A/C button, below the mode knob, allows the air
coming into your vehicle to be cooled. This setting is
useful for normal cooling on hot days.
The recirculation button allows the air inside your
vehicle to be recirculated. This setting helps to
maximize your air conditioner's performance and your
vehicle's fuel economy. This setting also cools air the
fastest and can be used to keep unwanted odors and/or
dust from entering the vehicle. When using the air
conditioner, turn off the recirculation button after the
vehicle reaches a comfortable interior temperature.
When the right knob on the control panel is between
floor and defrost, the recirculation feature will not
function to reduce window fogging.When you use A/C with the recirculation button pushed
in, turn off recirculation as soon as the vehicle reaches a
comfortable interior temperature.
Maximum air conditioning performance is obtained by
pressing the A/C button, the recirculation button and
turning the temperature knob fully counterclockwise to
the blue area. This setting also cools air the fastest. After
the vehicle's interior reaches a comfortable temperature,
press the outside air button to place the air conditioning
system in the normal mode.
Passenger Compartment Air Filter (If Equipped)
If your vehicle has air conditioning, it is equipped with
a passenger compartment air filter, which filters outside
air entering the vehicle. For information on replacing
the filter see ªPassenger Compartment Air Filterº in
the Index.

4-49
Then, shut the engine off and close the window almost
all the way to preserve the heat. Start the engine again
and repeat this only when you feel really uncomfortable
from the cold. But do it as little as possible. Preserve the
fuel as long as you can. To help keep warm, you can get
out of the vehicle and do some fairly vigorous exercises
every half hour or so until help comes.
Recreational Vehicle Towing
Recreational vehicle towing means towing your
vehicle behind another vehicle
-- such as behind a
motorhome. The two most common types of
recreational vehicle towing are known as ªdinghy
towingº (towing your vehicle with all four wheels on
the ground) and ªdolly towingº (towing your vehicle
with two wheels on the ground and two wheels up
on a device known as a ªdollyº).
With the proper preparation and equipment, many
vehicles can be towed in these ways. See ªDinghy
Towingº and ªDolly Towing,º following.Here are some important things to consider before you
do recreational vehicle towing:

What's the towing capacity of the towing
vehicle? Be sure you read the tow vehicle
manufacturer's recommendations.

How far will you tow? Some vehicles have
restrictions on how far and how long they can tow.

Do you have the proper towing equipment? See your
dealer or trailering professional for additional advice
and equipment recommendations.

Is your vehicle ready to be towed? Just as you
would prepare your vehicle for a long trip, you'll
want to make sure your vehicle is prepared to be
towed. See ªBefore Leaving on a Long Tripº
in the Index.

4-53
Loading Your Vehicle
The Certification/Tire label is found on the rear edge of
the driver's door or in the Incomplete Vehicle Document
in the cab.
The label shows the size of your original tires and the
inflation pressures needed to obtain the gross weight
capacity of your vehicle. This is called the GVWR
(Gross Vehicle Weight Rating). The GVWR includes the
weight of the vehicle, all occupants, fuel and cargo.The Certification/Tire label also tells you the maximum
weights for the front and rear axles, called Gross Axle
Weight Rating (GAWR). To find out the actual loads on
your front and rear axles, you need to go to a weigh
station and weigh your vehicle. Your dealer can help
you with this. Be sure to spread out your load equally
on both sides of the centerline.
Never exceed the GVWR for your vehicle, or the
GAWR for either the front or rear axle.
The Certification/Tire label also contains information
about your Front Axle Reserve Capacity. See ªFront
Axle Reserve Capacityº later in this section.
And, if you do have a heavy load, you should spread
it out.

4-56
NOTICE:
Pulling a trailer improperly can damage your
vehicle and result in costly repairs not covered by
your warranty. To pull a trailer correctly, follow
the advice in this part, and see your dealer for
important information about towing a trailer with
your vehicle. Additional rear axle maintenance is
required for a vehicle used to tow a trailer. See
ªScheduled Maintenance Servicesº in the Index.
To identify what the vehicle trailering capacity is for
your vehicle, you should read the information in
ªWeight of the Trailerº that appears later in this section.
If yours was built with trailering options, as many are,
it's ready for heavier trailers. But trailering is different
than just driving your vehicle by itself. Trailering means
changes in handling, durability and fuel economy.
Successful, safe trailering takes correct equipment, and
it has to be used properly.
That's the reason for this part. In it are many
time
-tested, important trailering tips and safety rules.
Many of these are important for your safety and that of
your passengers. So please read this section carefully
before you pull a trailer.
If You Do Decide To Pull A Trailer
If you do, here are some important points:

There are many different laws, including speed limit
restrictions, having to do with trailering. Make sure
your rig will be legal, not only where you live but
also where you'll be driving. A good source for this
information can be state or provincial police.

Consider using a sway control if your trailer will
weigh less than 5,000 lbs. (2 270 kg). You should
always use a sway control if your trailer will weigh
more than 5,000 lbs. (2 270 kg). You can ask a hitch
dealer about sway controls.

Don't tow a trailer at all during the first 500 miles
(800 km) your new vehicle is driven. Your engine,
axle or other parts could be damaged.

Then, during the first 500 miles (800 km) that you
tow a trailer, don't drive over 50 mph (80 km/h) and
don't make starts at full throttle. This helps your
engine and other parts of your vehicle wear in at the
heavier loads.

6-
6-1
Section 6 Service and Appearance Care
Here you will find information about the care of your vehicle. This section begins with service and fuel information,
and then it shows how to check important fluid and lubricant levels. There is also technical information about your
vehicle, and a part devoted to its appearance care.
6
-2 Service
6
-3 Fuel (Gasoline)
6
-5 Fuel E-85 (85% Ethanol)
6

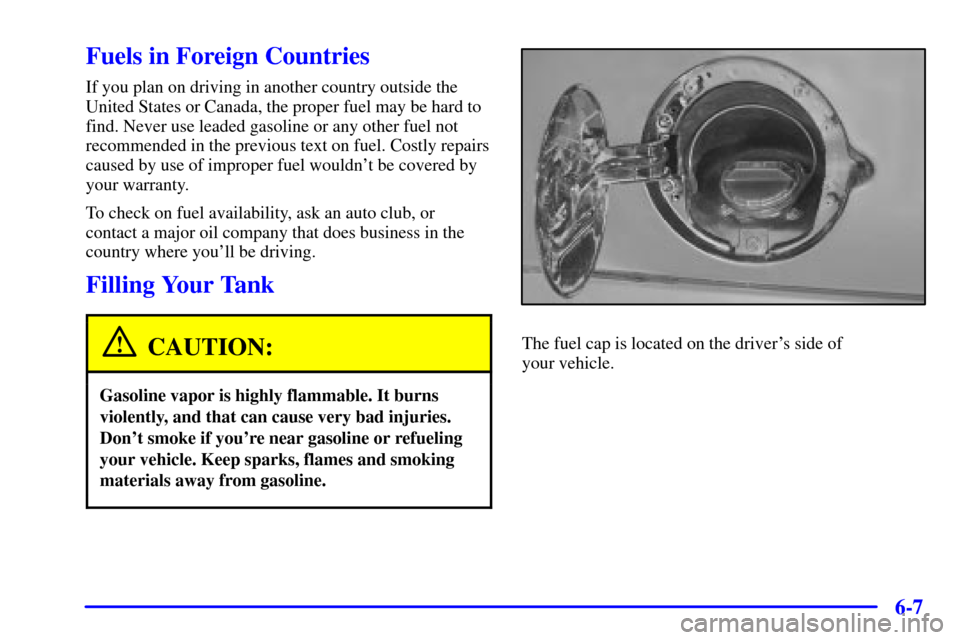

-7 Fuels in Foreign Countries
6
-7 Filling Your Tank
6
-9 Filling a Portable Fuel Container
6
-10 Checking Things Under the Hood
6
-15 Engine Oil
6
-21 Engine Air Cleaner/Filter
6
-23 Passenger Compartment Air Filter
(If Equipped)
6
-24 Automatic Transmission Fluid
6
-27 Rear Axle
6
-28 Four-Wheel Drive
6
-31 Engine Coolant
6
-34 Coolant Surge Tank Pressure Cap6
-35 Power Steering Fluid
6
-36 Windshield Washer Fluid
6
-37 Brakes
6
-41 Battery
6
-42 Bulb Replacement
6
-48 Windshield Wiper Blade Replacement
6
-49 Tires
6
-59 Appearance Care
6
-60 Cleaning the Inside of Your Vehicle
6
-63 Cleaning the Outside of Your Vehicle
6
-67 GM Vehicle Care/Appearance Materials
6
-68 Vehicle Identification Number (VIN)
6
-69 Electrical System
6
-77 Replacement Bulbs
6
-78 Capacities and Specifications
6
-81 Normal Maintenance Replacement Parts

6-6
Only vehicles that have the 5.3L V8 engine
(VIN Code Z) may use 85% ethanol fuel (E
-85).
Many service stations will not have an 85% ethanol
fuel (E
-85) pump available. The U. S. Department
of Energy has an alternative fuels website
(http://afdcmap.nrel.gov/nrel/) that can help you find
E
-85 fuel. Those stations that do have E-85 should
have a label indicating ethanol content. Do not use the
fuel if the ethanol content is greater than 85%.
Your vehicle may not operate properly if the ethanol
content is greater than 85%.
At a minimum, E
-85 should meet ASTM
Specification D 5798.
To insure quick starts in the wintertime, the E
-85 fuel
must be formulated properly for your climate according
to ASTM specification D 5798. If you have trouble
starting on E
-85, it may be because your E-85 fuel is not
properly formulated for your climate. If this happens,
switching to gasoline or adding gasoline to your fuel
tank may improve starting. Your vehicle is designed to
accommodate a mixture of gasoline and E
-85 fuel. For
good starting and heater efficiency below 32
F (0
C),
the fuel mix in the fuel tank should contain no more than
70% ethanol.E
-85 has less energy per gallon than gasoline, so you'll
need to refill your fuel tank more often when using E
-85
than when you're using gasoline. Regular unleaded
gasoline is recommended when pulling a trailer. For
payload capacity with ethanol fuel see ªLoading Your
Vehicleº in the Index.
NOTICE:
Some additives are not compatible with E-85 fuel and
may harm your fuel system. Damage caused by
additives wouldn't be covered by your new vehicle
warranty. Don't use additives with E
-85 fuel.
NOTICE:
Your vehicle was not designed for fuel that contains
methanol. It can corrode metal parts in your fuel
system and also damage plastic and rubber parts.
That damage wouldn't be covered under your
warranty. Don't use fuel containing methanol.

6-7
Fuels in Foreign Countries
If you plan on driving in another country outside the
United States or Canada, the proper fuel may be hard to
find. Never use leaded gasoline or any other fuel not
recommended in the previous text on fuel. Costly repairs
caused by use of improper fuel wouldn't be covered by
your warranty.
To check on fuel availability, ask an auto club, or
contact a major oil company that does business in the
country where you'll be driving.
Filling Your Tank
CAUTION:
Gasoline vapor is highly flammable. It burns
violently, and that can cause very bad injuries.
Don't smoke if you're near gasoline or refueling
your vehicle. Keep sparks, flames and smoking
materials away from gasoline.
The fuel cap is located on the driver's side of
your vehicle.

6-8
While refueling, hang the fuel cap by the tether using
the hook located on the inside of the filler door.
To remove the fuel cap, turn it slowly to the
left (counterclockwise).
CAUTION:
If you get gasoline on yourself and then
something ignites it, you could be badly burned.
Gasoline can spray out on you if you open the
fuel cap too quickly. This spray can happen if
your tank is nearly full, and is more likely in hot
weather. Open the fuel cap slowly and wait for
any ªhissº noise to stop. Then unscrew the cap all
the way.
Be careful not to spill gasoline. Clean gasoline from
painted surfaces as soon as possible. See ªCleaning the
Outside of Your Vehicleº in the Index.
