The heated seats will be canceled after the ignition is
turned off. If you still want to use the heated seat feature
after you restart your vehicle, you will need to press
the heated seat button again.
Reclining Seatbacks
Manual Reclining Seatbacks
{CAUTION:
If the seatback is not locked, it could move
forward in a sudden stop or crash. That could
cause injury to the person sitting there. Always
push and pull on the seatback to be sure it is
locked.If your seats have manual reclining seatbacks, the lever
used to operate them is located on the outboard side
of the seat(s).
To recline the seatback, do the following:
1. Lift the recline lever.
2. Move the seatback to the desired position, then
release the lever to lock the seatback in place.
3. Push and pull on the seatback to make sure
it is locked.
1-5

To return the seatback to an upright position, do the
following:
1. Lift the lever fully without applying pressure to
the seatback and the seatback will return to the
upright position.
{CAUTION:
If the seatback is not locked, it could move
forward in a sudden stop or crash. That could
cause injury to the person sitting there. Always
push and pull on the seatback to be sure it is
locked.
2. Push and pull on the seatback to make sure it
is locked.
Power Reclining Seatbacks
If your seats have power reclining seatbacks, use the
vertical power seat control located on the outboard side
of the seat(s).
To recline the seatback, press the control toward
the rear of the vehicle.
To raise the seatback, press the control toward the
front of the vehicle.
1-6

{CAUTION:
Sitting in a reclined position when your vehicle
is in motion can be dangerous. Even if you
buckle up, your safety belts cannot do their
job when you are reclined like this.
The shoulder belt cannot do its job because
it will not be against your body. Instead, it will
be in front of you. In a crash, you could go
into it, receiving neck or other injuries. The lap
belt cannot do its job either. In a crash, the
belt could go up over your abdomen. The
belt forces would be there, not at your pelvic
bones. This could cause serious internal
injuries.
For proper protection when the vehicle is in
motion, have the seatback upright. Then sit
well back in the seat and wear your safety
belt properly.
Do not have a seatback reclined if your vehicle is moving.
1-7

Head Restraints
Adjust the head restraint so that the top of the restraint
is at the same height as the top of the occupant’s
head. This position reduces the chance of a neck injury
in a crash.Pull the head restraint up to raise it. Push the head
restraint down to lower it.
Each front head restraint can also be tilted forward to four
positions by pulling on it. A click will sound after each tilt
position is reached. Pull the head restraint forward, past
the last position, to release it to the upright position.
The rear seat head restraints are also adjustable up and
down, but they do not tilt.
1-8

Rear Seats
Rear Seat Operation
Entering or Exiting the Third Row
Seats
Regular Models
If your vehicle has the 60/40 Split Bench seat in the
second row, you must ip and fold the second row
seat following the instructions later in this section. See
60/40 Split Bench Seat (Second Row) on page 1-11.
To exit the third row seat with no assistance, do
the following:
1. Reach over the second
row seat and pull up on
the strap loop located
in the center of the
seat where the
seatback and the seat
cushion meet. Then
pull the seat cushion up
and push it forward.
2. Next, push the seatback forward until it is at with
the oor.
{CAUTION:
If the seatback is not locked, it could move
forward in a sudden stop or crash. That could
cause injury to the person sitting there. Always
push and pull on the seatback to be sure it is
locked.
Return the seat to the normal seating position when
nished. Push and pull on the seatback to make sure it
is locked in place.
1-9

Extended Models
The passenger’s side of both the second row 60/40 split
bench seat and the second row bucket seat has an
easy entry/exit feature. This makes it easy to get in and
out of the third row seat.
To operate the easy entry seat, do the following:
1. Lift the release lever on the outboard side of the
back of the seat.
2. Tilt the seatback toward the front of the vehicle and
the seat will release.
3. Pull (push if you are exiting the third row with no
assistance) the seat forward until it stops.{CAUTION:
A safety belt that is improperly routed, not
properly attached, or twisted will not provide
the protection needed in a crash. The person
wearing the belt could be seriously injured.
After raising the rear seatback, always check
to be sure that the safety belts are properly
routed and attached, and are not twisted.
{CAUTION:
If the seatback is not locked, it could move
forward in a sudden stop or crash. That could
cause injury to the person sitting there. Always
push and pull on the seatback to be sure it is
locked.
Return the seat to the normal seating position when
nished. Push and pull on the seatback to make sure it
is locked in place.
1-10

60/40 Split Bench Seat
(Second Row)
If your vehicle has a 60/40 split bench, the seats can be
ipped and folded for additional cargo space.
Flip and Fold Feature
To ip and fold the seat, do the following:
1. Make sure that there is nothing under or in front of
the seat.
2. Make sure that the headrests are completely
lowered or removed.
On regular models, the rear seatbacks may be
equipped with rearward folding headrests. When the
seatback is being folded forward, the head rest
will automatically fold rearward.On extended models, the headrests need to be
removed and stored. To do this, push the button at
the base of the head rest, and pull the head rest
out from the seatback. Slide the head rest pins into
the holes on the top of the seat cushion.
3. Pull up on the strap
loop located at the rear
of the seat cushion
and ip the seat
cushion forward.
1-11

4.Regular models:Push the seatback forward until
it is at.
Extended models:On the passenger side, lift the
lever at the base of the seat to release the
seatback. Push the seatback forward until it is at.
If the seatback cannot fold at because it interferes with
the cushion, try moving the front seat forward and/or
bring the front seatback more upright.Once the seatbacks are folded forward, on extended
models only, the rear seat footwell area will be exposed
and will have to be covered by the load oor panels.
To create a load oor, do the following:
1. Release the panels from the seatbacks by pushing
forward on the latches.
2. Fold the panels back to cover the rear seat
footwell area.
1-12

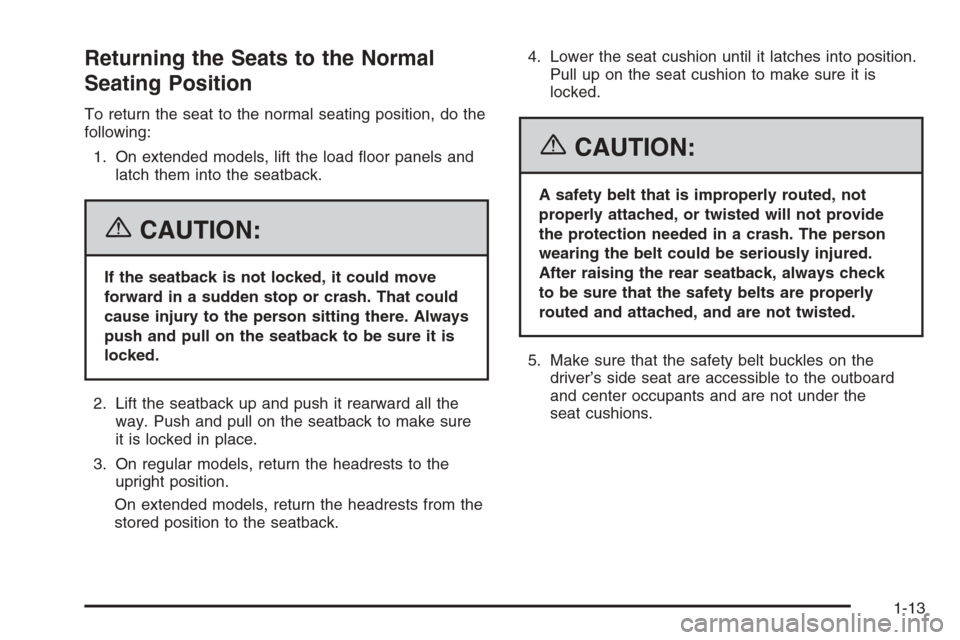

Returning the Seats to the Normal
Seating Position
To return the seat to the normal seating position, do the
following:
1. On extended models, lift the load oor panels and
latch them into the seatback.
{CAUTION:
If the seatback is not locked, it could move
forward in a sudden stop or crash. That could
cause injury to the person sitting there. Always
push and pull on the seatback to be sure it is
locked.
2. Lift the seatback up and push it rearward all the
way. Push and pull on the seatback to make sure
it is locked in place.
3. On regular models, return the headrests to the
upright position.
On extended models, return the headrests from the
stored position to the seatback.4. Lower the seat cushion until it latches into position.
Pull up on the seat cushion to make sure it is
locked.
{CAUTION:
A safety belt that is improperly routed, not
properly attached, or twisted will not provide
the protection needed in a crash. The person
wearing the belt could be seriously injured.
After raising the rear seatback, always check
to be sure that the safety belts are properly
routed and attached, and are not twisted.
5. Make sure that the safety belt buckles on the
driver’s side seat are accessible to the outboard
and center occupants and are not under the
seat cushions.
1-13

50/50 Split Bench Seat (Third Row)
If your vehicle has a 50/50 split bench seat, the
seatback(s) can be folded and the entire seat(s) can
be tilted, or removed from the vehicle.
Folding the Seatback(s)
To fold the seatback, do the following:
Pull up on the release lever labeled 1, located on
the rear of the seatback, and push the seatback
forward.
Unfolding the Seatback(s)
To return the seatback to the upright position, do the
following:
1. Pull up on the release lever labeled 1, located on
the rear of the seatback. Then pull up on seatback
until it locks into the upright position.
{CAUTION:
If the seatback is not locked, it could move
forward in a sudden stop or crash. That could
cause injury to the person sitting there. Always
push and pull on the seatback to be sure it is
locked.
2. Push and pull on the seatback to make sure it is
locked.
1-14
