CHEVROLET TAHOE 2007 3.G Owner's Guide

Automatic Release Fold and Tumble
Feature
The transmission must be in PARK (P) for this
feature to work.
Folding and Tumbling the Seat(s)
{CAUTION:
Automatically folding and tumbling the
seat when someone is sitting in the seat,
could cause injury to the person sitting
there. Always make sure there is no one
sitting in the seat before pressing the
automatic seat release button.
To fold and tumble the seat, do the following:
1. Make sure that there is nothing under, in front
of, or on the seat.
Notice:Folding a rear seat with the safety belts
still fastened may cause damage to the seat or
the safety belts. Always unbuckle the safety
belts and return them to their normal stowed
position before folding a rear seat.2. From the front
seats, press one of
the automatic
seat release buttons
located on the
overhead console.
When accessing the third row seats, if your
vehicle has them, from the outside of the
vehicle, press the button on the panel behind
either rear door.
One press of the button automatically folds the
seatback at and tumbles the seat forward.
There will be a slight delay between the folding
of the seatback and the tumbling of the seat.Overhead Console
Buttons shown
31

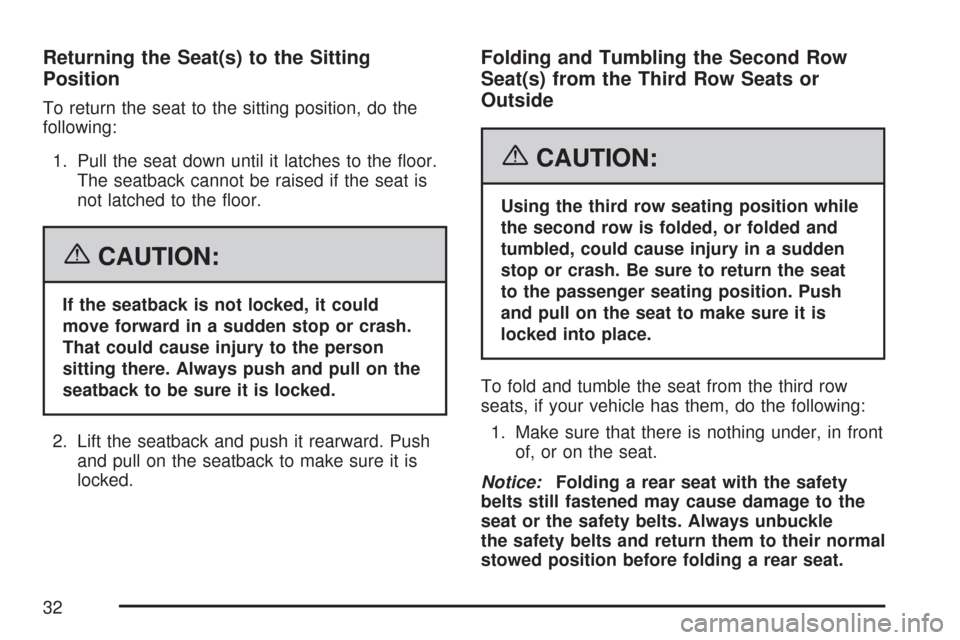

Returning the Seat(s) to the Sitting
Position
To return the seat to the sitting position, do the
following:
1. Pull the seat down until it latches to the oor.
The seatback cannot be raised if the seat is
not latched to the oor.
{CAUTION:
If the seatback is not locked, it could
move forward in a sudden stop or crash.
That could cause injury to the person
sitting there. Always push and pull on the
seatback to be sure it is locked.
2. Lift the seatback and push it rearward. Push
and pull on the seatback to make sure it is
locked.
Folding and Tumbling the Second Row
Seat(s) from the Third Row Seats or
Outside
{CAUTION:
Using the third row seating position while
the second row is folded, or folded and
tumbled, could cause injury in a sudden
stop or crash. Be sure to return the seat
to the passenger seating position. Push
and pull on the seat to make sure it is
locked into place.
To fold and tumble the seat from the third row
seats, if your vehicle has them, do the following:
1. Make sure that there is nothing under, in front
of, or on the seat.
Notice:Folding a rear seat with the safety
belts still fastened may cause damage to the
seat or the safety belts. Always unbuckle
the safety belts and return them to their normal
stowed position before folding a rear seat.
32

2. Press the automatic
seat release button
located on the
panel behind the
rear doors.
One press of the button automatically folds the
seatback at and tumbles the seat forward.
There will be a slight delay between the folding
of the seatback and the tumbling of the seat.
Third Row Seat
If the vehicle has a third row seat, the seatback(s)
can be folded and the entire seat can be
tumbled, or removed from the vehicle.
Folding the Seatback(s)
To fold the seatback, do the following:
1. Open the liftgate to access the controls for
the seat.
2. Remove all items on the seat cushion.
Notice:Folding a rear seat with the safety
belts still fastened may cause damage to the
seat or the safety belts. Always unbuckle
the safety belts and return them to their normal
stowed position before folding a rear seat.
3. Lift the release lever,
located on the bottom
rear of the seatback
on the outboard
side of the seat, and
the seatback will
fold forward.
Driver’s Side Rear Panel
Button shown
33

Unfolding the Seatback(s)
To return the seatback to the upright position, do
the following:
1. Open the liftgate to access the controls for
the seat.
2. Pull up on the seatback until it locks into the
upright position.
{CAUTION:
If the seatback is not locked, it could
move forward in a sudden stop or crash.
That could cause injury to the person
sitting there. Always push and pull on the
seatback to be sure it is locked.
3. Push and pull on the seatback to make sure it
is locked.
Tumbling the Third Row Seat
The seat can be tumbled forward for additional
cargo space.To tumble the seat, do the following:
1. Open the liftgate to access the controls for
the seat.
2. Make sure the head rests are completely
lowered, there is nothing under, in front of,
or on the seat, and all items are removed from
the cupholder and storage bin, if the seat is
a two-passenger seat.
3. Fold the seatbacks forward using the
instructions previously listed under “Folding
the Seatbacks”. You will not be able to unlatch
the seat from the oor unless the seatback
is folded down.
4. Unlatch the seat
from the oor by
lifting the lever
located next to the
carrying handle
on the rear of the
seat near the
bottom.
5. Lift the rear of the seat up from the oor.
34

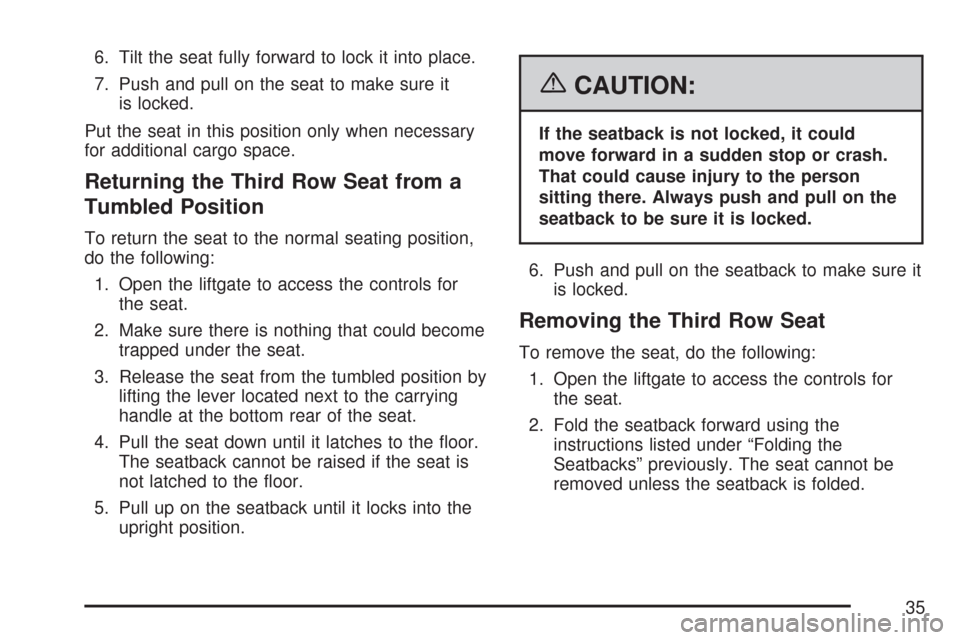

6. Tilt the seat fully forward to lock it into place.
7. Push and pull on the seat to make sure it
is locked.
Put the seat in this position only when necessary
for additional cargo space.
Returning the Third Row Seat from a
Tumbled Position
To return the seat to the normal seating position,
do the following:
1. Open the liftgate to access the controls for
the seat.
2. Make sure there is nothing that could become
trapped under the seat.
3. Release the seat from the tumbled position by
lifting the lever located next to the carrying
handle at the bottom rear of the seat.
4. Pull the seat down until it latches to the oor.
The seatback cannot be raised if the seat is
not latched to the oor.
5. Pull up on the seatback until it locks into the
upright position.
{CAUTION:
If the seatback is not locked, it could
move forward in a sudden stop or crash.
That could cause injury to the person
sitting there. Always push and pull on the
seatback to be sure it is locked.
6. Push and pull on the seatback to make sure it
is locked.
Removing the Third Row Seat
To remove the seat, do the following:
1. Open the liftgate to access the controls for
the seat.
2. Fold the seatback forward using the
instructions listed under “Folding the
Seatbacks” previously. The seat cannot be
removed unless the seatback is folded.
35

3. Unlatch the seat
from the oor by
pulling the carrying
handle, located
at the rear of
the seat, rearward.
4. Roll the seat out of the vehicle. There is a
track in the oor to guide the seat wheels
out of the vehicle.
Installing the Third Row Seat
To install the seat, do the following:
1. Open the liftgate to access the rear of the
vehicle.
2. Slide the front outboard seat wheels into the
track on the oor and roll the seat forward.
The front latches should lock into place. If the
latches do not lock, try tilting the rear of
the seat upward slightly.3. Lower the rear of the seat and push down on
the seat to engage the rear oor latches.
{CAUTION:
A seat that is not locked into place
properly can move around in a collision or
sudden stop. People in the vehicle could
be injured. Be sure to lock the seat into
place properly when installing it.
4. Push and pull on the seat to make sure it is
locked into place. The seatback cannot be
raised to the upright position unless the seat is
secured to the oor.
5. Pull up on the seatback until it locks into the
upright position.
36

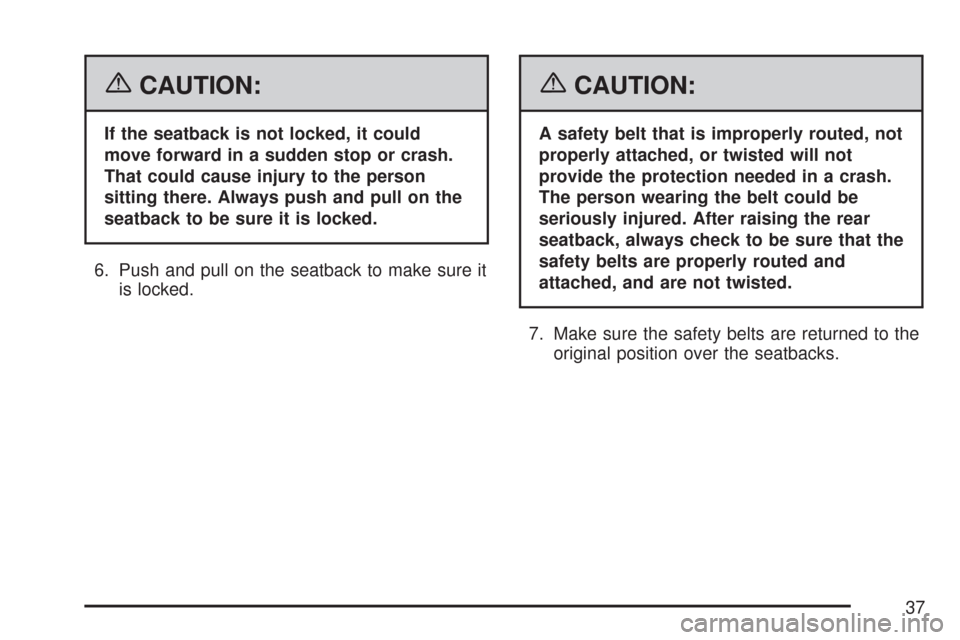

{CAUTION:
If the seatback is not locked, it could
move forward in a sudden stop or crash.
That could cause injury to the person
sitting there. Always push and pull on the
seatback to be sure it is locked.
6. Push and pull on the seatback to make sure it
is locked.
{CAUTION:
A safety belt that is improperly routed, not
properly attached, or twisted will not
provide the protection needed in a crash.
The person wearing the belt could be
seriously injured. After raising the rear
seatback, always check to be sure that the
safety belts are properly routed and
attached, and are not twisted.
7. Make sure the safety belts are returned to the
original position over the seatbacks.
37

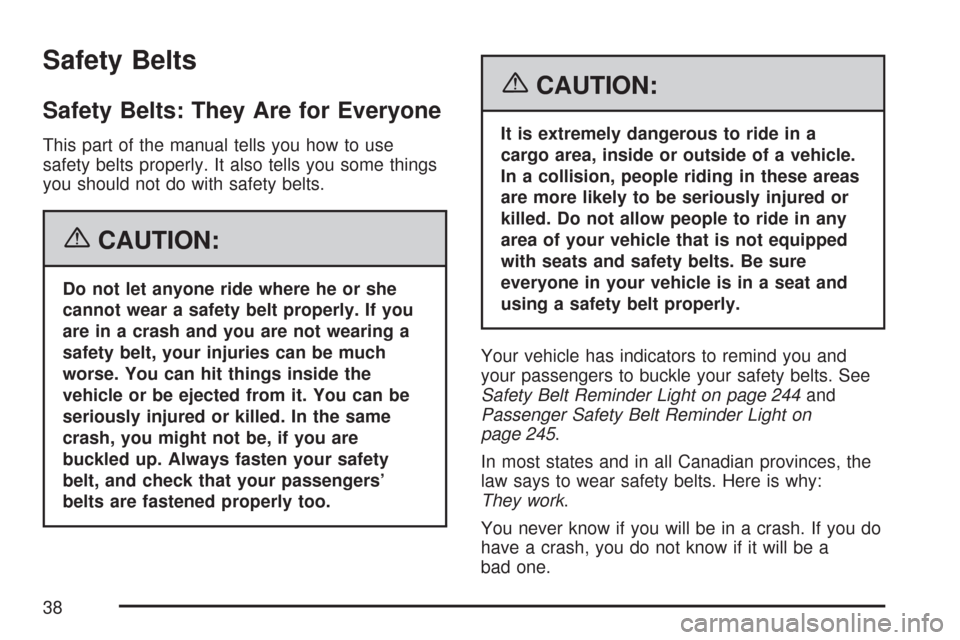

Safety Belts
Safety Belts: They Are for Everyone
This part of the manual tells you how to use
safety belts properly. It also tells you some things
you should not do with safety belts.
{CAUTION:
Do not let anyone ride where he or she
cannot wear a safety belt properly. If you
are in a crash and you are not wearing a
safety belt, your injuries can be much
worse. You can hit things inside the
vehicle or be ejected from it. You can be
seriously injured or killed. In the same
crash, you might not be, if you are
buckled up. Always fasten your safety
belt, and check that your passengers’
belts are fastened properly too.
{CAUTION:
It is extremely dangerous to ride in a
cargo area, inside or outside of a vehicle.
In a collision, people riding in these areas
are more likely to be seriously injured or
killed. Do not allow people to ride in any
area of your vehicle that is not equipped
with seats and safety belts. Be sure
everyone in your vehicle is in a seat and
using a safety belt properly.
Your vehicle has indicators to remind you and
your passengers to buckle your safety belts. See
Safety Belt Reminder Light on page 244and
Passenger Safety Belt Reminder Light on
page 245.
In most states and in all Canadian provinces, the
law says to wear safety belts. Here is why:
They work.
You never know if you will be in a crash. If you do
have a crash, you do not know if it will be a
bad one.
38

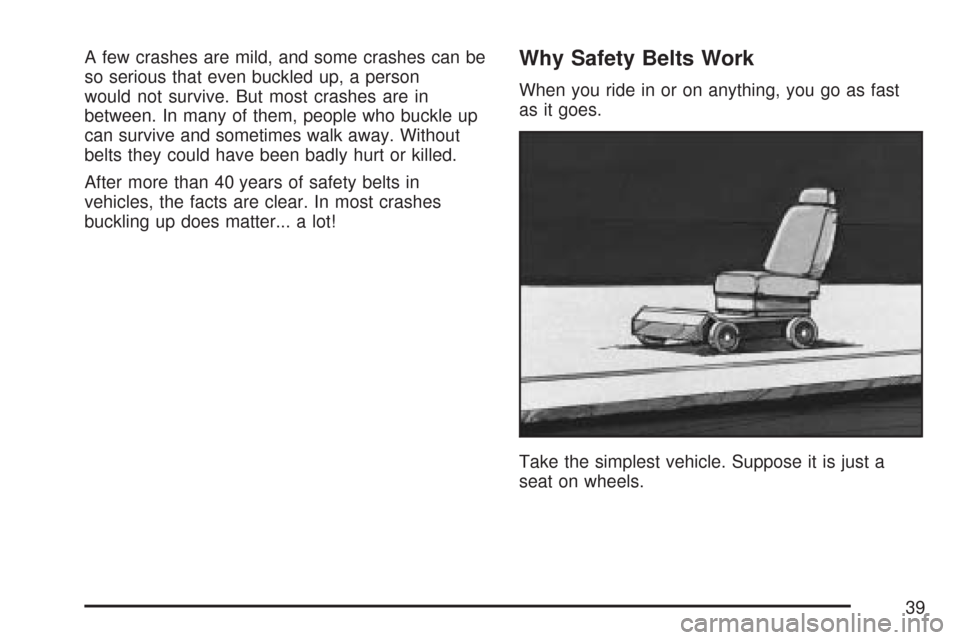

A few crashes are mild, and some crashes can be
so serious that even buckled up, a person
would not survive. But most crashes are in
between. In many of them, people who buckle up
can survive and sometimes walk away. Without
belts they could have been badly hurt or killed.
After more than 40 years of safety belts in
vehicles, the facts are clear. In most crashes
buckling up does matter... a lot!Why Safety Belts Work
When you ride in or on anything, you go as fast
as it goes.
Take the simplest vehicle. Suppose it is just a
seat on wheels.
39

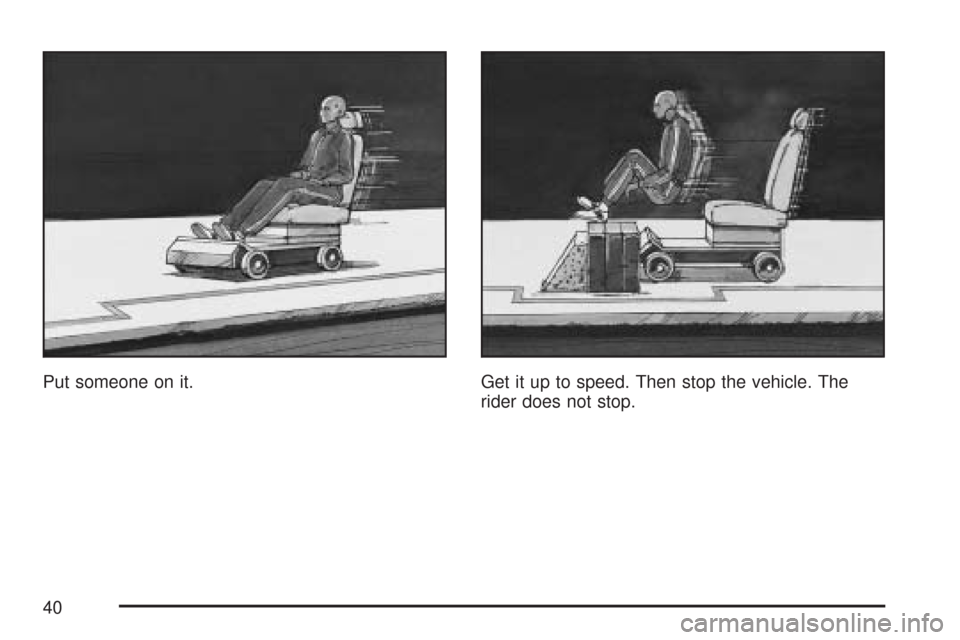

Put someone on it. Get it up to speed. Then stop the vehicle. The
rider does not stop.
