CHEVROLET TAHOE 2008 3.G Owners Manual

Notice:If the jumper cables are connected or
removed in the wrong order, electrical shorting may
occur and damage the vehicle. The repairs would
not be covered by your warranty. Always connect
and remove the jumper cables in the correct
order, making sure that the cables do not touch
each other or other metal.
A. Heavy, Unpainted Metal Engine Part or Remote
Negative (−) Terminal
B. Good Battery or Remote Positive (+) and Remote
Negative (−) Terminals
C. Dead Battery or Remote Positive (+) TerminalTo disconnect the jumper cables from both vehicles do
the following:
1. Disconnect the black negative (−) cable from the
vehicle that had the bad battery.
2. Disconnect the black negative (−) cable from the
vehicle with the good battery.
3. Disconnect the red positive (+) cable from the
vehicle with the good battery.
4. Disconnect the red positive (+) cable from the other
vehicle.
5. Return the remote positive (+) terminal cover, if the
vehicle has one, to its original position.
Jumper Cable Removal
5-53

Rear Axle
When to Check Lubricant
It is not necessary to regularly check rear axle uid
unless you suspect there is a leak or you hear an
unusual noise. A uid loss could indicate a problem.
Have it inspected and repaired.
All axle assemblies are lled by volume of uid during
production. They are not lled to reach a certain level.
When checking the uid level on any axle, variations in
the readings can be caused by factory ll differences
between the minimum and the maximum uid volume.
Also, if a vehicle has just been driven before checking the
uid level, it may appear lower than normal because uid
has traveled out along the axle tubes and has not drained
back to the sump area. Therefore, a reading taken ve
minutes after the vehicle has been driven will appear to
have a lower uid level than a vehicle that has been
stationary for an hour or two. Remember that the rear
axle assembly must be supported to get a true reading.
How to Check Lubricant
1500 Series
5-54

To get an accurate reading, the vehicle should be on a
level surface.
For all 4.8L and 5.3L 1500 series and all
6.2L all wheel drive 1500 series luxury model
applications, the proper level is from 0.04 inch to
0.75 inch (1.0 mm to 19.0 mm) below the bottom
of the ller plug hole, located on the rear axle.
Add only enough uid to reach the proper level.
For all 6.0L 1500 series and all non-all wheel drive
1500 series luxury model applications, the proper
level is from 0.6 inch to 1.6 inches (15 mm to 40 mm)
below the bottom of the ller plug hole, located on
the rear axle. Add only enough uid to reach the
proper level.
The proper ll level for the 2500 series is from 0 to
1/2 inch (0 to 13 mm) below the bottom of the ller
plug hole, located at the front of the axle. Add only
enough uid to reach the proper level.
Four-Wheel Drive
Lubricant checks in this section also apply to these
vehicles. There are two additional systems that need
lubrication.
Transfer Case
When to Check Lubricant
It is not necessary to regularly check transfer case uid
unless you suspect there is a leak, or you hear an
unusual noise. A uid loss could indicate a problem.
Have it inspected and repaired. 2500 Series
5-55

How to Check Lubricant
A:Fill Plug
B:Drain Plug
To get an accurate reading, the vehicle should be on a
level surface.
If the level is below the bottom of the ll plug hole, you
will need to add some lubricant. Add enough lubricant
to raise the level to the bottom of the ll plug hole.
Use care not to overtighten the plug.
When to Change Lubricant
Refer to the Maintenance Schedule to determine
how often to change the lubricant. SeeScheduled
Maintenance on page 6-4.
What to Use
Refer to the Maintenance Schedule to determine what
kind of lubricant to use. SeeRecommended Fluids
and Lubricants on page 6-13.
Front Axle
When to Check and Change Lubricant
It is not necessary to regularly check front axle uid
unless you suspect there is a leak or you hear an
unusual noise. A uid loss could indicate a problem.
Have it inspected and repaired.
How to Check Lubricant
To get an accurate reading, the vehicle should be on a
level surface. Automatic Transfer Case
5-56

A:Fill Plug
B:Drain PlugA:Fill Plug
B:Drain Plug
When the differential is cold, add enough lubricant
to raise the level from 0 (0 mm) to 1/8 inch
(3.2 mm) below the ller plug hole.
When the differential is at operating temperature
(warm), add enough lubricant to raise the level
to the bottom of the ller plug hole. 1500 Series
2500 Series
5-57

What to Use
Refer to the Maintenance Schedule to determine what
kind of lubricant to use. SeeRecommended Fluids
and Lubricants on page 6-13.

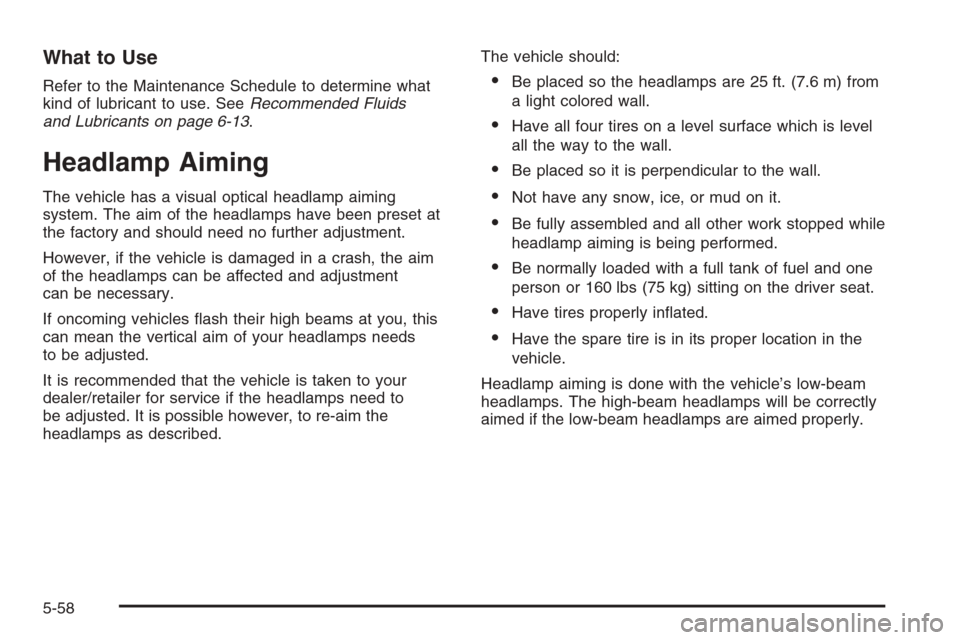

Headlamp Aiming
The vehicle has a visual optical headlamp aiming
system. The aim of the headlamps have been preset at
the factory and should need no further adjustment.
However, if the vehicle is damaged in a crash, the aim
of the headlamps can be affected and adjustment
can be necessary.
If oncoming vehicles ash their high beams at you, this
can mean the vertical aim of your headlamps needs
to be adjusted.
It is recommended that the vehicle is taken to your
dealer/retailer for service if the headlamps need to
be adjusted. It is possible however, to re-aim the
headlamps as described.The vehicle should:
Be placed so the headlamps are 25 ft. (7.6 m) from
a light colored wall.
Have all four tires on a level surface which is level
all the way to the wall.
Be placed so it is perpendicular to the wall.
Not have any snow, ice, or mud on it.
Be fully assembled and all other work stopped while
headlamp aiming is being performed.
Be normally loaded with a full tank of fuel and one
person or 160 lbs (75 kg) sitting on the driver seat.
Have tires properly inated.
Have the spare tire is in its proper location in the
vehicle.
Headlamp aiming is done with the vehicle’s low-beam
headlamps. The high-beam headlamps will be correctly
aimed if the low-beam headlamps are aimed properly.
5-58

To adjust the vertical aim:
1. Open the hood. SeeHood Release on page 5-14
for more information.
2. Locate the aim dot on the lens of the low-beam
headlamp.
3. Record the distance from the ground to the aim dot
on the low-beam headlamp.4. At a wall measure from the ground upward (A) to
the recorded distance from Step 3 and mark it.
5. Draw or tape a horizontal line (B) on the wall or at
surface the width of the vehicle at the height of the
mark in Step 4.
Notice:Do not cover a headlamp to improve beam
cut-off when aiming. Covering a headlamp may
cause excessive heat build-up which may cause
damage to the headlamp.
6. Turn on the low-beam headlamps and place a
piece of cardboard or equivalent in front of the
headlamp not being adjusted. This allows only the
beam of light from the headlamp being adjusted
to be seen on the at surface.
5-59

7. Locate the vertical headlamp aiming screws, which
are under the hood near each headlamp assembly.
The adjustment screw can be turned with a
E8 Torx
®socket.
8. Turn the vertical aiming screw until the headlamp
beam is aimed to the horizontal tape line. Turn it
clockwise or counterclockwise to raise or lower the
angle of the beam.9. Make sure that the light from the headlamp is
positioned at the bottom edge of the horizontal
tape line. The lamp on the left (A) shows the correct
headlamp aim. The lamp on the right (B) shows
the incorrect headlamp aim.
10. Repeat Steps 7 through 9 for the opposite
headlamp.
5-60

Bulb Replacement
For the proper type of replacement bulbs, see
Replacement Bulbs on page 5-63.
For any bulb changing procedure not listed in this
section, contact your dealer/retailer.
Halogen Bulbs
{CAUTION:
Halogen bulbs have pressurized gas inside and
can burst if you drop or scratch the bulb. You or
others could be injured. Be sure to read and
follow the instructions on the bulb package.
Taillamps, Turn Signal, Stoplamps
and Back-up Lamps
If your vehicle is a Two-mode Hybrid, see the Two-mode
Hybrid manual for more information.
A. Taillamp/Stoplamp
B. Back-up Lamp
C. Turn Signal
Lamp/Taillamp
5-61

To replace one of these bulbs:
1. Open the liftgate. SeePower Liftgate on page 2-14
for more information.
2. Remove the two
screws from the
taillamp assembly.
3. Pull the taillamp assembly rearward until the inner
pins on the taillamp assembly are disengaged from
the vehicle.4. Press the release tab, if bulb socket has one, and
turn the bulb socket counterclockwise to remove it
from the taillamp assembly.
5. Pull the old bulb straight out from the bulb socket.
6. Press a new bulb into the bulb socket and insert
it into the taillamp assembly. Turn the bulb socket
clockwise into the taillamp assembly until it clicks.
7. Reinstall the taillamp assembly. When reinstalling,
make sure to line up the pins on the taillamp
assembly with the vehicle. If this is not done the
taillamp assembly cannot be correctly installed.
