CHEVROLET TAHOE 2008 3.G Manual PDF

For models with 60/40 second row seating, the top
tether anchors are located at the bottom rear of the seat
cushion for each seating position in the second row.
Be sure to use an anchor located on the same side
of the vehicle as the seating position where the
child restraint will be placed.For vehicles with a two passenger third row seat, there
is one top tether anchor located at the bottom rear
of the seat cushion that can be used for the rear driver
side seating position in the third row. Never install
two top tethers using the same top tether anchor.
For vehicles with a three passenger third row seat,
there is one top tether anchor located at the bottom
rear of the seat cushion that can be used for either the
third row center or driver side seating position. Never
install two top tethers using the same top tether anchor. Second Row Seat — 60/40
Third Row Seat — Two or Three Passenger
1-65

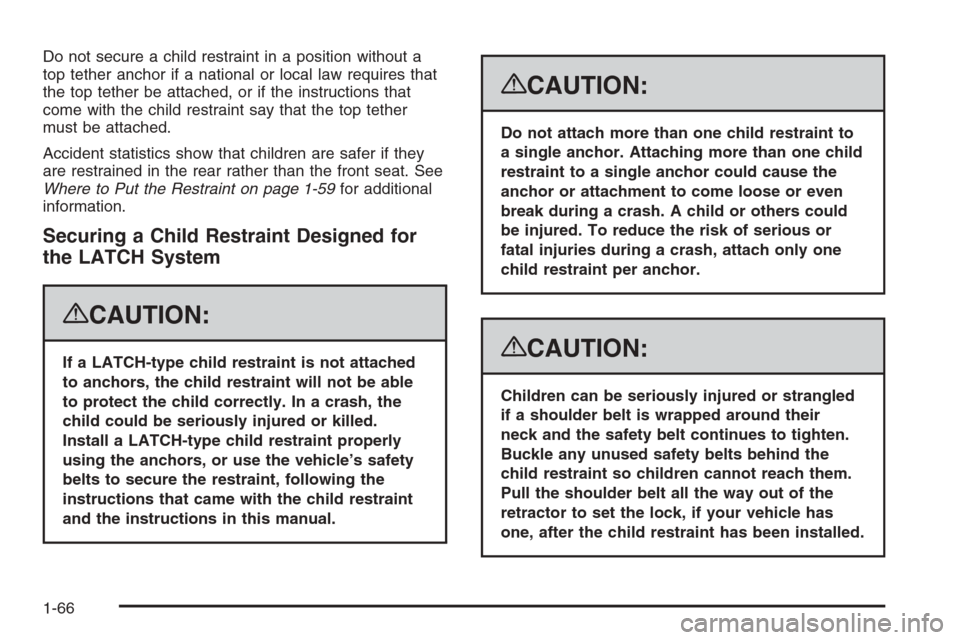

Do not secure a child restraint in a position without a
top tether anchor if a national or local law requires that
the top tether be attached, or if the instructions that
come with the child restraint say that the top tether
must be attached.
Accident statistics show that children are safer if they
are restrained in the rear rather than the front seat. See
Where to Put the Restraint on page 1-59for additional
information.
Securing a Child Restraint Designed for
the LATCH System
{CAUTION:
If a LATCH-type child restraint is not attached
to anchors, the child restraint will not be able
to protect the child correctly. In a crash, the
child could be seriously injured or killed.
Install a LATCH-type child restraint properly
using the anchors, or use the vehicle’s safety
belts to secure the restraint, following the
instructions that came with the child restraint
and the instructions in this manual.
{CAUTION:
Do not attach more than one child restraint to
a single anchor. Attaching more than one child
restraint to a single anchor could cause the
anchor or attachment to come loose or even
break during a crash. A child or others could
be injured. To reduce the risk of serious or
fatal injuries during a crash, attach only one
child restraint per anchor.
{CAUTION:
Children can be seriously injured or strangled
if a shoulder belt is wrapped around their
neck and the safety belt continues to tighten.
Buckle any unused safety belts behind the
child restraint so children cannot reach them.
Pull the shoulder belt all the way out of the
retractor to set the lock, if your vehicle has
one, after the child restraint has been installed.
1-66

Notice:Do not let the LATCH attachments rub
against the vehicle’s safety belts. This may damage
these parts. If necessary, move buckled safety
belts to avoid rubbing the LATCH attachments.
Do not fold the empty rear seat with a safety belt
buckled. This could damage the safety belt or
the seat. Unbuckle and return the safety belt to
its stowed position.
1. Attach and tighten the lower attachments to the
lower anchors. If the child restraint does not have
lower attachments or the desired seating position
does not have lower anchors, secure the child
restraint with the top tether and the safety belts.
Refer to your child restraint manufacturer
instructions and the instructions in this manual.
1.1. Find the lower anchors for the desired
seating position.
1.2. Put the child restraint on the seat.
1.3. Attach and tighten the lower attachments on
the child restraint to the lower anchors.2. If the child restraint manufacturer recommends that
the top tether be attached, attach and tighten the
top tether to the top tether anchor, if the vehicle has
one. Refer to the child restraint instructions and
the following steps:
2.1. Find the top tether anchor.
2.2. Route, attach and tighten the top tether
according to your child restraint instructions
and the following instructions:
If the position you are
using does not have a
headrest or head restraint
and you are using a
single tether, route the
tether over the seatback.
1-67

If the position you are
using does not have a
headrest or head restraint
and you are using a
dual tether, route the
tether over the seatback.
If the position you are
using has an adjustable
headrest or head restraint
and you are using a
dual tether, route the
tether around the
headrest or head restraint.If the position you are
using has an adjustable
headrest or head restraint
and you are using a
single tether, raise the
headrest or head restraint
and route the tether
under the headrest or
head restraint and
in between the headrest
or head restraint posts.
3. Push and pull the child restraint in different
directions to be sure it is secure.
1-68

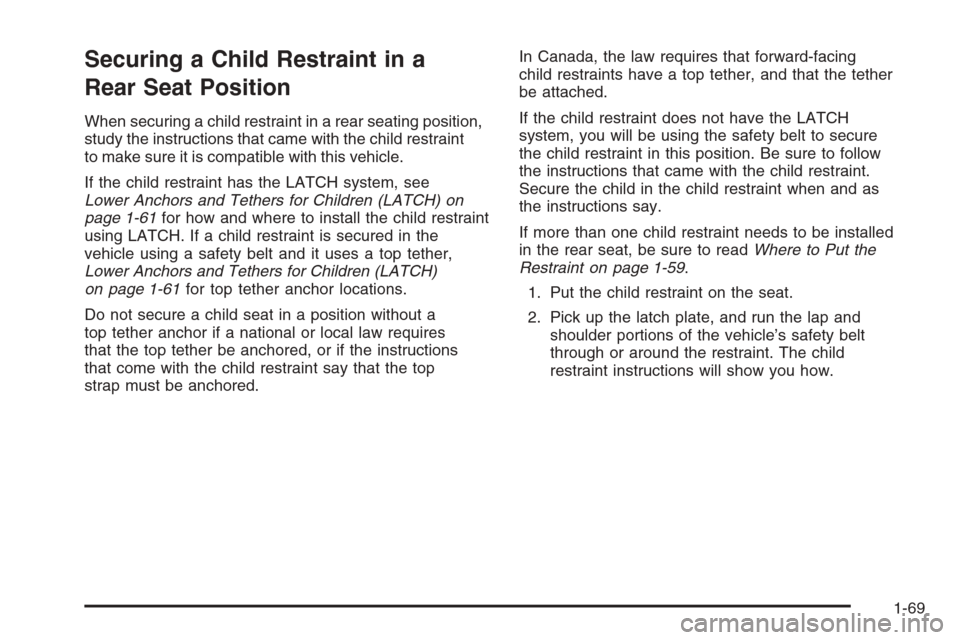

Securing a Child Restraint in a
Rear Seat Position
When securing a child restraint in a rear seating position,
study the instructions that came with the child restraint
to make sure it is compatible with this vehicle.
If the child restraint has the LATCH system, see
Lower Anchors and Tethers for Children (LATCH) on
page 1-61for how and where to install the child restraint
using LATCH. If a child restraint is secured in the
vehicle using a safety belt and it uses a top tether,
Lower Anchors and Tethers for Children (LATCH)
on page 1-61for top tether anchor locations.
Do not secure a child seat in a position without a
top tether anchor if a national or local law requires
that the top tether be anchored, or if the instructions
that come with the child restraint say that the top
strap must be anchored.In Canada, the law requires that forward-facing
child restraints have a top tether, and that the tether
be attached.
If the child restraint does not have the LATCH
system, you will be using the safety belt to secure
the child restraint in this position. Be sure to follow
the instructions that came with the child restraint.
Secure the child in the child restraint when and as
the instructions say.
If more than one child restraint needs to be installed
in the rear seat, be sure to readWhere to Put the
Restraint on page 1-59.
1. Put the child restraint on the seat.
2. Pick up the latch plate, and run the lap and
shoulder portions of the vehicle’s safety belt
through or around the restraint. The child
restraint instructions will show you how.
1-69

3. Push the latch plate into the buckle until it clicks.
Position the release button on the buckle so
that the safety belt could be quickly unbuckled
if necessary.4. Pull the rest of the shoulder belt all the way out
of the retractor to set the lock.
1-70

5. To tighten the belt, push down on the child restraint,
pull the shoulder portion of the belt to tighten
the lap portion of the belt and feed the shoulder
belt back into the retractor. When installing a
forward-facing child restraint, it may be helpful to
use your knee to push down on the child restraint
as you tighten the belt.6. If the child restraint has a top tether, follow the
child restraint manufacturer’s instructions regarding
the use of the top tether. SeeLower Anchors
and Tethers for Children (LATCH) on page 1-61
for more information.
7. Push and pull the child restraint in different
directions to be sure it is secure.
To remove the child restraint, unbuckle the vehicle safety
belt and let it return to the stowed position. If the top
tether is attached to a top tether anchor, disconnect it.
1-71

Securing a Child Restraint in the
Center Front Seat Position
{CAUTION:
A child in a child restraint in the center front
seat can be badly injured or killed by the
frontal airbags if they inate. Never secure
a child restraint in the center front seat.
Secure a child restraint in a rear seat.
Do not use child restraints in the center front seat
position.
Securing a Child Restraint in the
Right Front Seat Position
Your vehicle has airbags. A rear seat is a safer place
to secure a forward-facing child restraint. SeeWhere
to Put the Restraint on page 1-59.In addition, your vehicle has a passenger sensing
system which is designed to turn off the right front
passenger’s frontal airbag under certain conditions.
SeePassenger Sensing System on page 1-85
andPassenger Airbag Status Indicator on page 3-38
for more information on this, including important
safety information.
A label on your sun visor says, “Never put a rear-facing
child seat in the front.” This is because the risk to the
rear-facing child is so great, if the airbag deploys.
{CAUTION:
A child in a rear-facing child restraint can be
seriously injured or killed if the right front
passenger airbag inates. This is because
the back of the rear-facing child restraint
would be very close to the inating airbag.
CAUTION: (Continued)
1-72

CAUTION: (Continued)
A child in a forward-facing child restraint can
be seriously injured or killed if the right front
passenger airbag inates and the passenger
seat is in a forward position.
Even if the passenger sensing system has
turned off the right front passenger frontal
airbag, no system is fail-safe. No one can
guarantee that an airbag will not deploy under
some unusual circumstance, even though
it is turned off.
Secure rear-facing child restraints in a rear
seat, even if the airbag is off. If you secure a
forward-facing child restraint in the right front
seat, always move the front passenger seat
as far back as it will go. It is better to secure
the child restraint in a rear seat.
SeePassenger Sensing System on page 1-85
for additional information.If your child restraint has the LATCH system, seeLower
Anchors and Tethers for Children (LATCH) on page 1-61
for how to install your child restraint using LATCH. If you
secure a child restraint using a safety belt and it uses a
top tether, seeLower Anchors and Tethers for Children
(LATCH) on page 1-61for top tether anchor locations.
Do not secure a child seat in a position without a top
tether anchor if a national or local law requires that the
top tether be anchored, or if the instructions that come
with the child restraint say that the top strap must be
anchored.
In Canada, the law requires that forward-facing child
restraints have a top tether, and that the tether be
attached.
You will be using the lap-shoulder belt to secure the
child restraint in this position. Follow the instructions that
came with the child restraint.
1. Move the seat as far back as it will go before
securing the forward-facing child restraint.
When the passenger sensing system has turned
off the right front passenger’s frontal airbag,
the off indicator on the passenger airbag status
indicator should light and stay lit when you start
the vehicle. SeePassenger Airbag Status Indicator
on page 3-38.
2. Put the child restraint on the seat.
1-73

3. Pick up the latch plate, and run the lap and shoulder
portions of the vehicle’s safety belt through or
around the restraint. The child restraint instructions
will show you how.
4. Push the latch plate into the buckle until it clicks.
Make sure the release button is positioned so you
would be able to unbuckle the safety belt quickly
if necessary.5. Pull the rest of the shoulder belt all the way out of
the retractor to set the lock.
1-74
