Page 8 of 60
Black plate (2,1)Chevrolet Tahoe Police and Special Service Packages - 2012
3-2 Seats and Restraints
Q: How can I identify the airbag“deployment zone” in my
vehicle?
A: See Airbag Deployment
Diagrams on page 3‑4 for more
information. The diagrams
provide the approximate
dimensions of the “deployment
zones” for your specialty vehicle.
Before doing any service work,
including the installation of any
equipment, consult the
appropriate service manual.
Q: Is it possible to shield equipment so it does not
interfere with airbag
deployment?
A: While shielding may protect
certain equipment from being
damaged or dislodged, it may
also negatively affect how an
airbag inflates. Therefore, we
cannot recommend the
placement of any equipment in
the deployment zone, even
when shielding. Q: Can the installation of push
bumpers on the front end of
the vehicle affect the
deployment of the airbag?
A: It is not likely that installing push
bumpers will affect sensing for
the airbag as long as the vehicle
structure itself is not modified.
GM is not aware of any adverse
defects from the many push
bumpers that have been
installed on current model GM
police vehicles with airbags.
Q: Is there anything I might add to the front or sides of the
vehicle that could keep the
airbags from working
properly?
A: Yes. If you add things that
change your vehicle's frame,
bumper system, height, front end
or side sheet metal, they may
keep the airbag system from
working properly. Also, the
airbag system may not work
properly if you relocate any of
the airbag sensors. If you have any questions about this, you
should contact Customer
Assistance before you modify
your vehicle. The phone
numbers and addresses for
Customer Assistance are in
Step Two of the Customer
Satisfaction Procedures in the
owner manual. See
“Customer
Satisfaction Procedure” in the
owner manual Index.
The service manual has information
about the location of the airbag
sensors, sensing and diagnostic
module, and airbag wiring. See
“Service Publications Ordering
Information” in the owner manual.
Page 35 of 60
Black plate (5,1)Chevrolet Tahoe Police and Special Service Packages - 2012
Special Equipment Options 15-5
The vehicle is equipped with wiring
provisions for a 12-volt battery
power supply. Refer to the following
information when adding electrical
accessories that will use the 12-volt
power supply feeds connected to
the vehicle's electrical system. The
wiring harness is located below the
instrument panel near the center of
the vehicle. The following
information describes the breaker
and relay location and provides a
wiring diagram to aid in connecting
customer equipment.
Electrical Connections
Notice:Before modifying or
adding any wiring, be sure that it
will work properly with your
vehicle's wiring system. Because
there are so many modifications
that can be made for many
different bodies and accessories,
GM cannot take responsibility for
any changes made. Such
changes may not be covered by
your GM Warranty. Have the work
done by an experienced electrical
technician. All wiring must be properly
protected by fuses, etc. and must
be routed properly so that it will
not be cut, pinched or rubbed by
other parts of the vehicle. Do not
route wiring in areas where it will
be very hot. Be sure not to
overload the vehicle's wiring,
connectors and components. All
added wire must be at least the
same size as the wire being
attached to for proper fuse
protection.
Installation Instructions
–12‐Volt
Accessory Power Supply
1. Disconnect the negative (−)
battery cable at the battery. The
negative (−) battery cable must
be disconnected before the
positive wiring lead is connected
to the power accessory.
2. Locate the power supply harnesses, one under the
instrument panel near the center
of the vehicle, and one within the
driver side rear cargo area jack
stowage compartment. 3. Prepare the wires that are to be
used to connect the power
accessory. Do not remove the
unused wires. Tape unused
wires back in their original
position under the instrument
panel.
4. Complete the wiring installation of the customer added
accessory with additional wire
required for the specific
electrical accessory power
connection. The wire gauge,
3.0 mm² (12 gauge), should be
the same as the wiring of the
installed harness.
5. The ignition must be turned to OFF prior to attaching the cables
to the battery, or serious damage
to the Body Control Module
(BCM) may result.
The windshield wiper switch and
the radio must be turned off
before attaching cables to the
battery.
Page 38 of 60
Black plate (8,1)Chevrolet Tahoe Police and Special Service Packages - 2012
15-8 Special Equipment Options

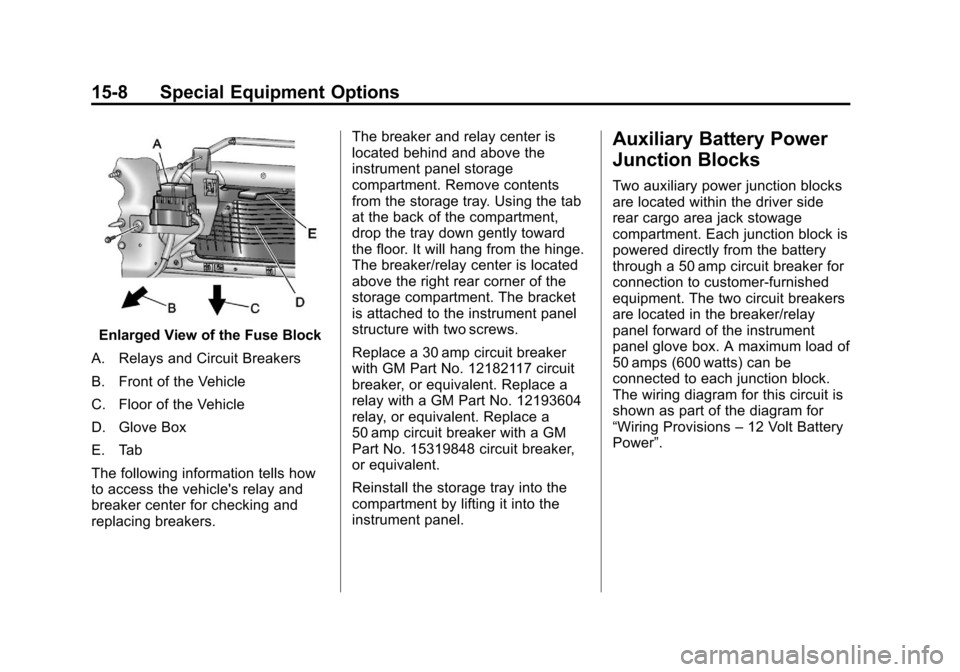

Enlarged View of the Fuse Block
A. Relays and Circuit Breakers
B. Front of the Vehicle
C. Floor of the Vehicle
D. Glove Box
E. Tab
The following information tells how
to access the vehicle's relay and
breaker center for checking and
replacing breakers. The breaker and relay center is
located behind and above the
instrument panel storage
compartment. Remove contents
from the storage tray. Using the tab
at the back of the compartment,
drop the tray down gently toward
the floor. It will hang from the hinge.
The breaker/relay center is located
above the right rear corner of the
storage compartment. The bracket
is attached to the instrument panel
structure with two screws.
Replace a 30 amp circuit breaker
with GM Part No. 12182117 circuit
breaker, or equivalent. Replace a
relay with a GM Part No. 12193604
relay, or equivalent. Replace a
50 amp circuit breaker with a GM
Part No. 15319848 circuit breaker,
or equivalent.
Reinstall the storage tray into the
compartment by lifting it into the
instrument panel.
Auxiliary Battery Power
Junction Blocks
Two auxiliary power junction blocks
are located within the driver side
rear cargo area jack stowage
compartment. Each junction block is
powered directly from the battery
through a 50 amp circuit breaker for
connection to customer‐furnished
equipment. The two circuit breakers
are located in the breaker/relay
panel forward of the instrument
panel glove box. A maximum load of
50 amps (600 watts) can be
connected to each junction block.
The wiring diagram for this circuit is
shown as part of the diagram for
“Wiring Provisions
–12 Volt Battery
Power”.
Page 49 of 60
Black plate (19,1)Chevrolet Tahoe Police and Special Service Packages - 2012
Special Equipment Options 15-19
Wiring Diagram for SEO TRW
Page 51 of 60
Black plate (21,1)Chevrolet Tahoe Police and Special Service Packages - 2012
Special Equipment Options 15-21

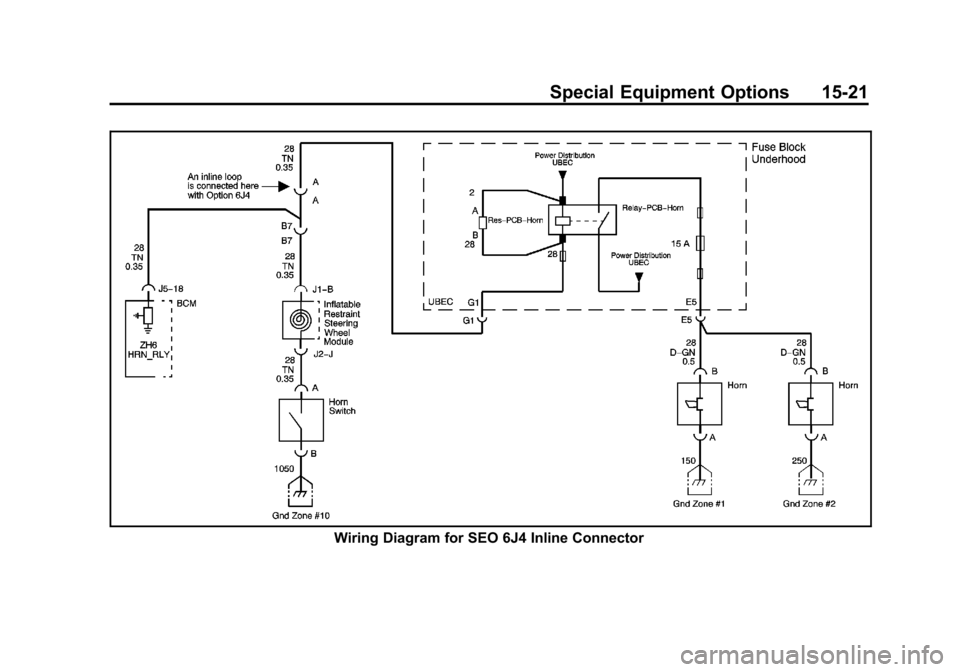

Wiring Diagram for SEO 6J4 Inline Connector
Page 53 of 60
Black plate (23,1)Chevrolet Tahoe Police and Special Service Packages - 2012
Special Equipment Options 15-23

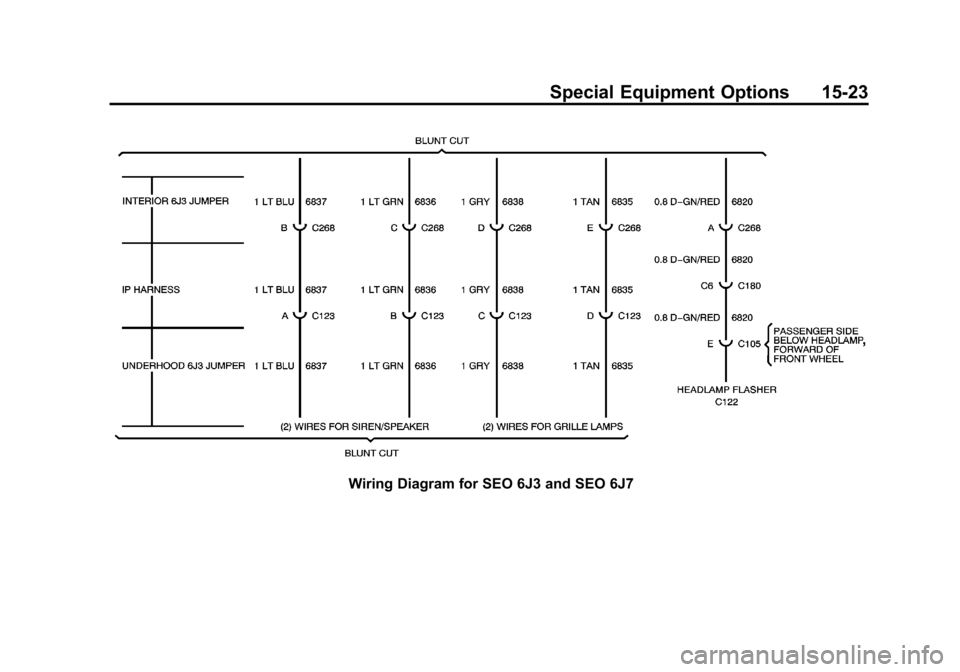

Wiring Diagram for SEO 6J3 and SEO 6J7
Page 55 of 60
Black plate (25,1)Chevrolet Tahoe Police and Special Service Packages - 2012
Special Equipment Options 15-25

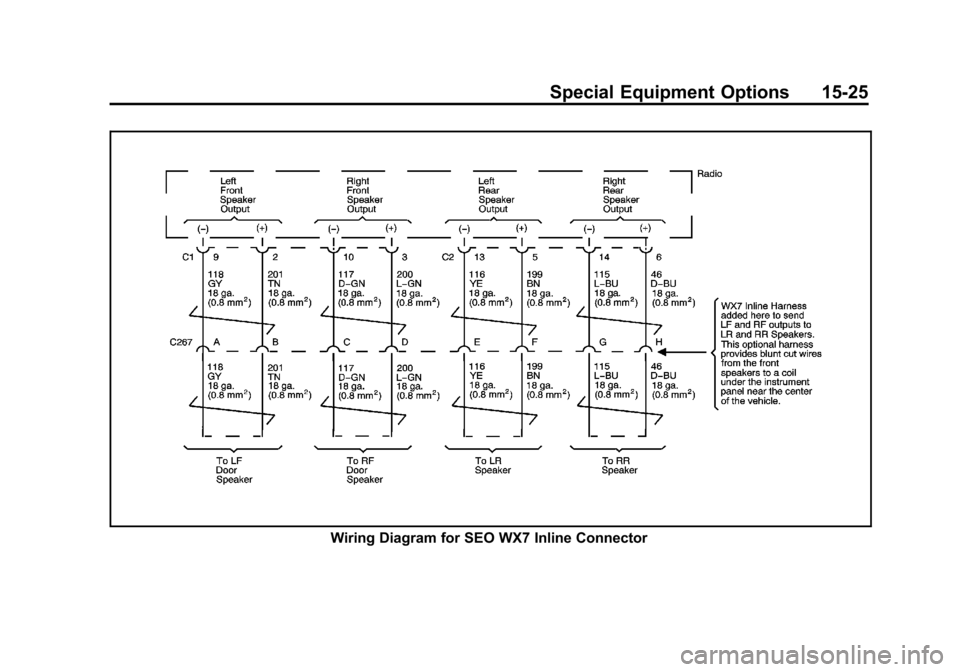

Wiring Diagram for SEO WX7 Inline Connector
