Black plate (5,1)Chevrolet Tahoe Police and Special Service Packages - 2013 - CRC - 3/30/12
Seats and Restraints 3-5

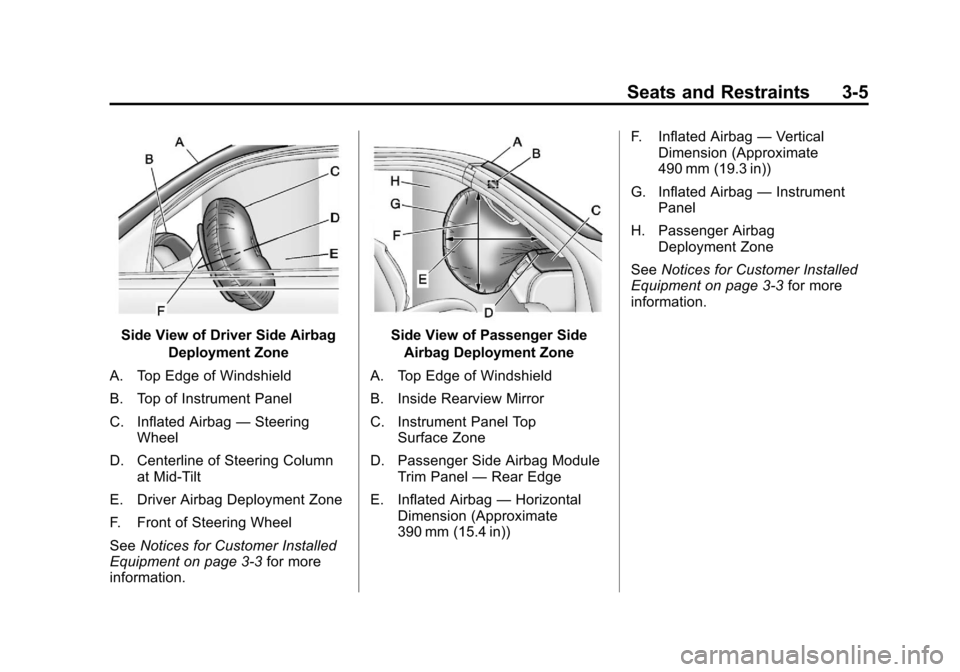

Side View of Driver Side AirbagDeployment Zone
A. Top Edge of Windshield
B. Top of Instrument Panel
C. Inflated Airbag —Steering
Wheel
D. Centerline of Steering Column at Mid-Tilt
E. Driver Airbag Deployment Zone
F. Front of Steering Wheel
See Notices for Customer Installed
Equipment on page 3‑3 for more
information.Side View of Passenger Side
Airbag Deployment Zone
A. Top Edge of Windshield
B. Inside Rearview Mirror
C. Instrument Panel Top Surface Zone
D. Passenger Side Airbag Module Trim Panel —Rear Edge
E. Inflated Airbag —Horizontal
Dimension (Approximate
390 mm (15.4 in)) F. Inflated Airbag
—Vertical
Dimension (Approximate
490 mm (19.3 in))
G. Inflated Airbag —Instrument
Panel
H. Passenger Airbag Deployment Zone
See Notices for Customer Installed
Equipment on page 3‑3 for more
information.
Page 12 of 60
Black plate (6,1)Chevrolet Tahoe Police and Special Service Packages - 2013 - CRC - 3/30/12
3-6 Seats and Restraints

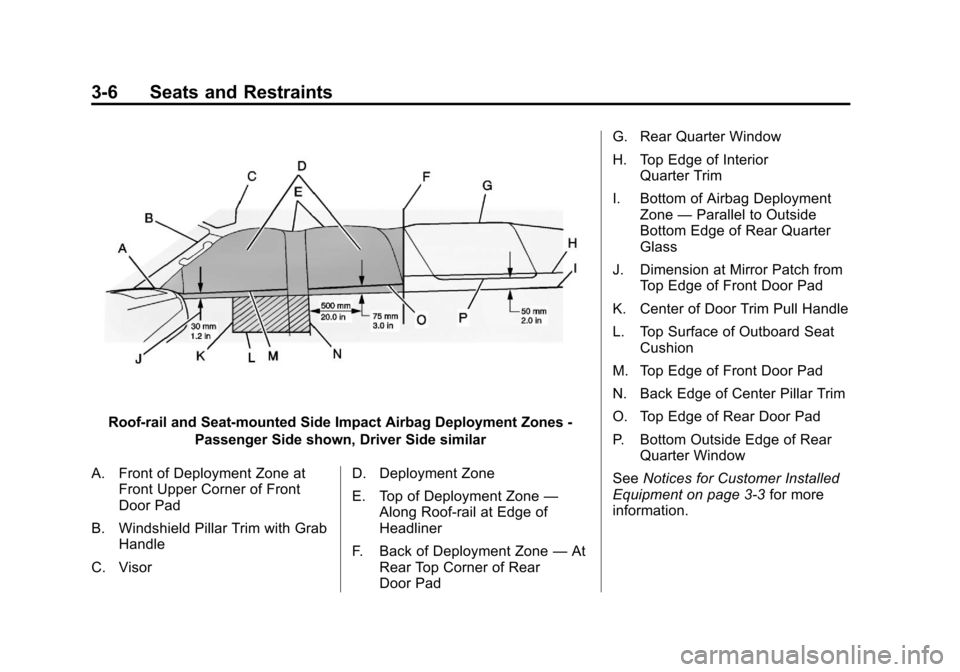

Roof-rail and Seat-mounted Side Impact Airbag Deployment Zones -Passenger Side shown, Driver Side similar
A. Front of Deployment Zone at Front Upper Corner of Front
Door Pad
B. Windshield Pillar Trim with Grab Handle
C. Visor D. Deployment Zone
E. Top of Deployment Zone
—
Along Roof-rail at Edge of
Headliner
F. Back of Deployment Zone —At
Rear Top Corner of Rear
Door Pad G. Rear Quarter Window
H. Top Edge of Interior
Quarter Trim
I. Bottom of Airbag Deployment Zone —Parallel to Outside
Bottom Edge of Rear Quarter
Glass
J. Dimension at Mirror Patch from Top Edge of Front Door Pad
K. Center of Door Trim Pull Handle
L. Top Surface of Outboard Seat Cushion
M. Top Edge of Front Door Pad
N. Back Edge of Center Pillar Trim
O. Top Edge of Rear Door Pad
P. Bottom Outside Edge of Rear Quarter Window
See Notices for Customer Installed
Equipment on page 3‑3 for more
information.
Page 13 of 60
Black plate (7,1)Chevrolet Tahoe Police and Special Service Packages - 2013 - CRC - 3/30/12
Seats and Restraints 3-7

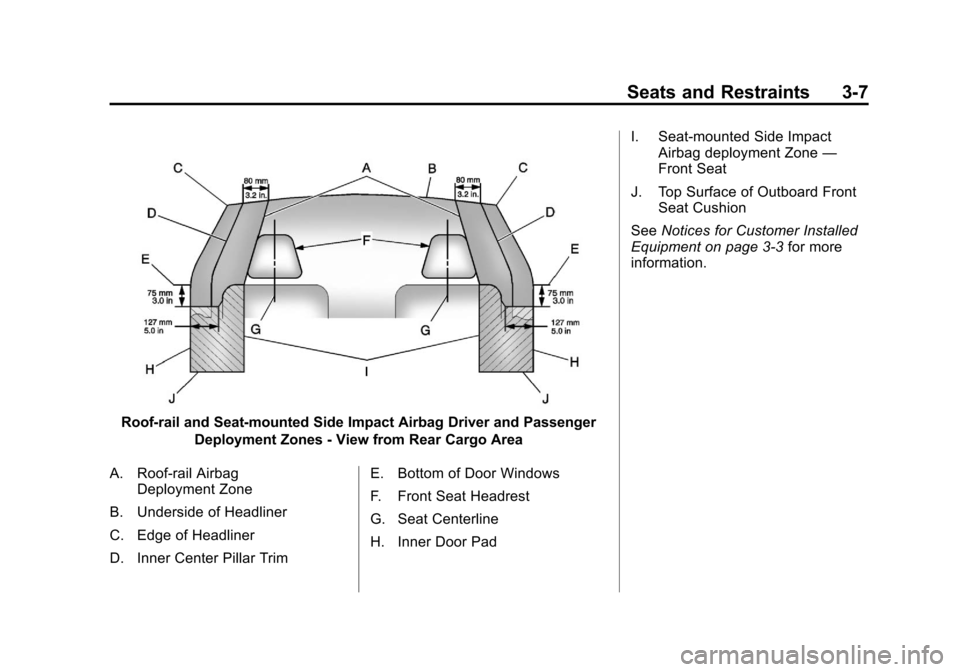

Roof-rail and Seat-mounted Side Impact Airbag Driver and PassengerDeployment Zones - View from Rear Cargo Area
A. Roof-rail Airbag Deployment Zone
B. Underside of Headliner
C. Edge of Headliner
D. Inner Center Pillar Trim E. Bottom of Door Windows
F. Front Seat Headrest
G. Seat Centerline
H. Inner Door PadI. Seat-mounted Side Impact
Airbag deployment Zone —
Front Seat
J. Top Surface of Outboard Front Seat Cushion
See Notices for Customer Installed
Equipment on page 3‑3 for more
information.
Page 14 of 60
Black plate (8,1)Chevrolet Tahoe Police and Special Service Packages - 2013 - CRC - 3/30/12
3-8 Seats and Restraints
2NOTES
Page 15 of 60
Black plate (1,1)Chevrolet Tahoe Police and Special Service Packages - 2013 - CRC - 3/30/12
Instruments and Controls 5-1
Instruments and
Controls
Warning Lights, Gauges, and
Indicators
Instrument Cluster . . . . . . . . . . . . 5-2
Speedometer . . . . . . . . . . . . . . . . . 5-3
Odometer . . . . . . . . . . . . . . . . . . . . . 5-3
Information Displays
Driver InformationCenter (DIC) . . . . . . . . . . . . . . . . . 5-3
Page 16 of 60
Black plate (2,1)Chevrolet Tahoe Police and Special Service Packages - 2013 - CRC - 3/30/12
5-2 Instruments and Controls
Warning Lights, Gauges, and Indicators
Instrument Cluster

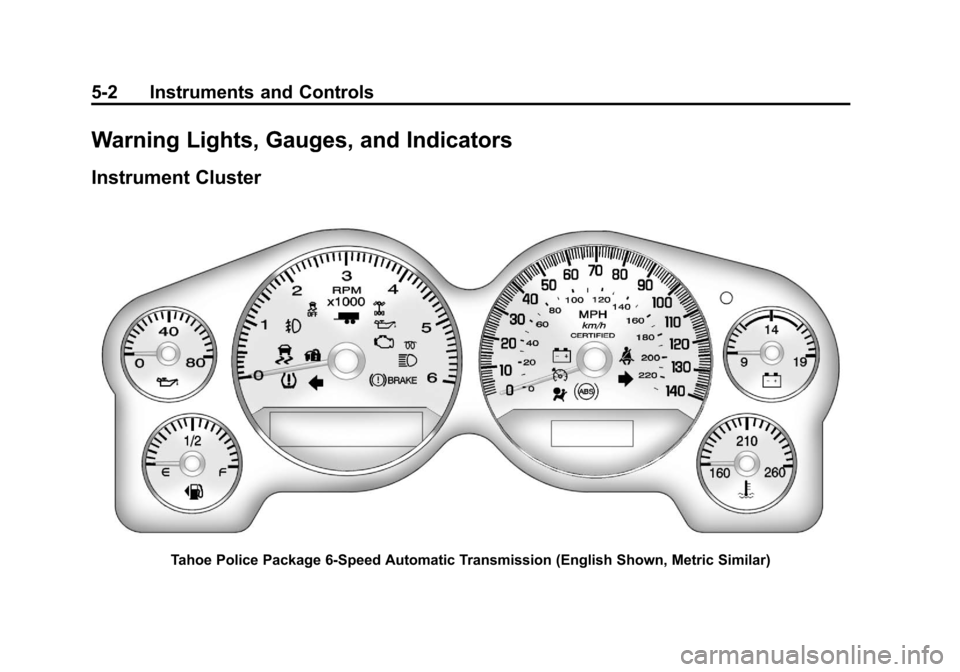

Tahoe Police Package 6-Speed Automatic Transmission (English Shown, Metric Similar)
Page 17 of 60
Black plate (3,1)Chevrolet Tahoe Police and Special Service Packages - 2013 - CRC - 3/30/12

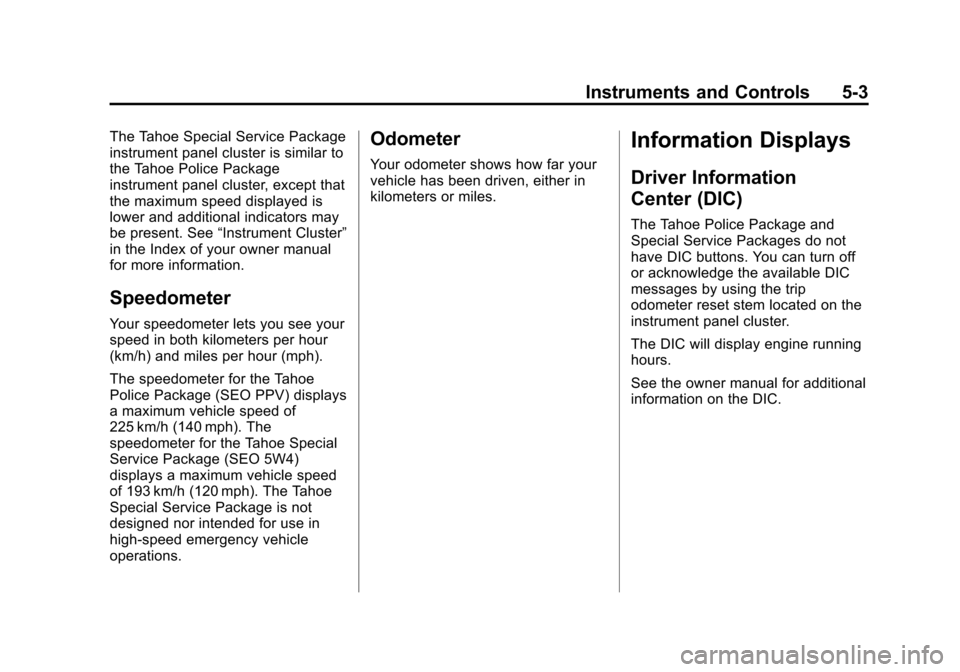

Instruments and Controls 5-3
The Tahoe Special Service Package
instrument panel cluster is similar to
the Tahoe Police Package
instrument panel cluster, except that
the maximum speed displayed is
lower and additional indicators may
be present. See“Instrument Cluster”
in the Index of your owner manual
for more information.
Speedometer
Your speedometer lets you see your
speed in both kilometers per hour
(km/h) and miles per hour (mph).
The speedometer for the Tahoe
Police Package (SEO PPV) displays
a maximum vehicle speed of
225 km/h (140 mph). The
speedometer for the Tahoe Special
Service Package (SEO 5W4)
displays a maximum vehicle speed
of 193 km/h (120 mph). The Tahoe
Special Service Package is not
designed nor intended for use in
high-speed emergency vehicle
operations.
Odometer
Your odometer shows how far your
vehicle has been driven, either in
kilometers or miles.
Information Displays
Driver Information
Center (DIC)
The Tahoe Police Package and
Special Service Packages do not
have DIC buttons. You can turn off
or acknowledge the available DIC
messages by using the trip
odometer reset stem located on the
instrument panel cluster.
The DIC will display engine running
hours.
See the owner manual for additional
information on the DIC.
Page 18 of 60
Black plate (4,1)Chevrolet Tahoe Police and Special Service Packages - 2013 - CRC - 3/30/12
5-4 Instruments and Controls
2NOTES
Page 19 of 60
Black plate (1,1)Chevrolet Tahoe Police and Special Service Packages - 2013 - CRC - 3/30/12

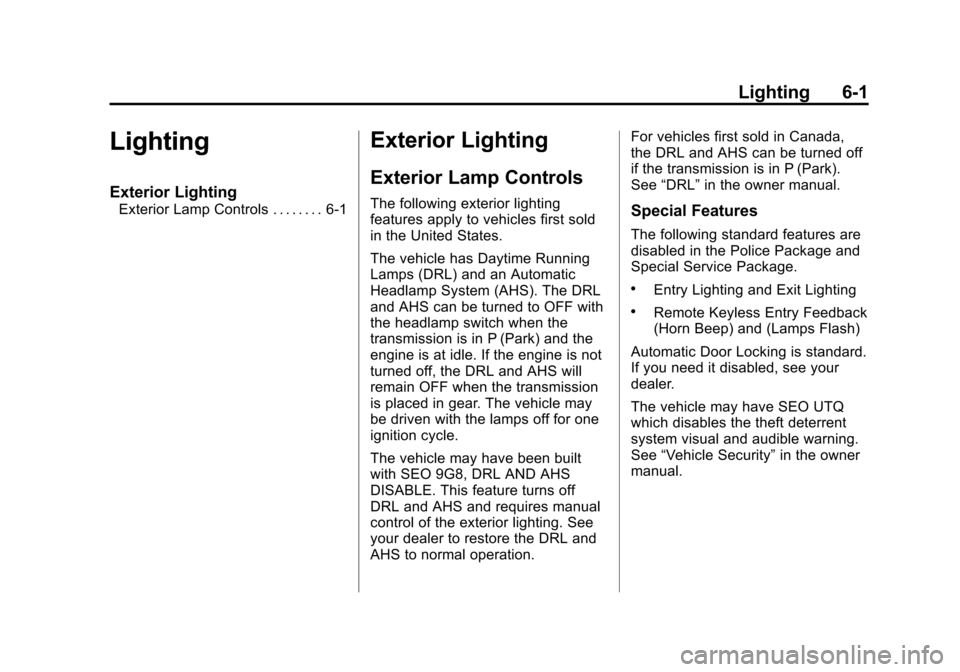

Lighting 6-1
Lighting
Exterior Lighting
Exterior Lamp Controls . . . . . . . . 6-1
Exterior Lighting
Exterior Lamp Controls
The following exterior lighting
features apply to vehicles first sold
in the United States.
The vehicle has Daytime Running
Lamps (DRL) and an Automatic
Headlamp System (AHS). The DRL
and AHS can be turned to OFF with
the headlamp switch when the
transmission is in P (Park) and the
engine is at idle. If the engine is not
turned off, the DRL and AHS will
remain OFF when the transmission
is placed in gear. The vehicle may
be driven with the lamps off for one
ignition cycle.
The vehicle may have been built
with SEO 9G8, DRL AND AHS
DISABLE. This feature turns off
DRL and AHS and requires manual
control of the exterior lighting. See
your dealer to restore the DRL and
AHS to normal operation.For vehicles first sold in Canada,
the DRL and AHS can be turned off
if the transmission is in P (Park).
See
“DRL” in the owner manual.Special Features
The following standard features are
disabled in the Police Package and
Special Service Package.
.Entry Lighting and Exit Lighting
.Remote Keyless Entry Feedback
(Horn Beep) and (Lamps Flash)
Automatic Door Locking is standard.
If you need it disabled, see your
dealer.
The vehicle may have SEO UTQ
which disables the theft deterrent
system visual and audible warning.
See “Vehicle Security” in the owner
manual.
