turn signal bulb CHEVROLET TAHOE 2020 Owners Manual

Chevrolet Tahoe/Suburban Owner Manual (GMNA-Localizing-U.S./Canada/
Mexico-13566622) - 2020 - CRC - 4/15/19

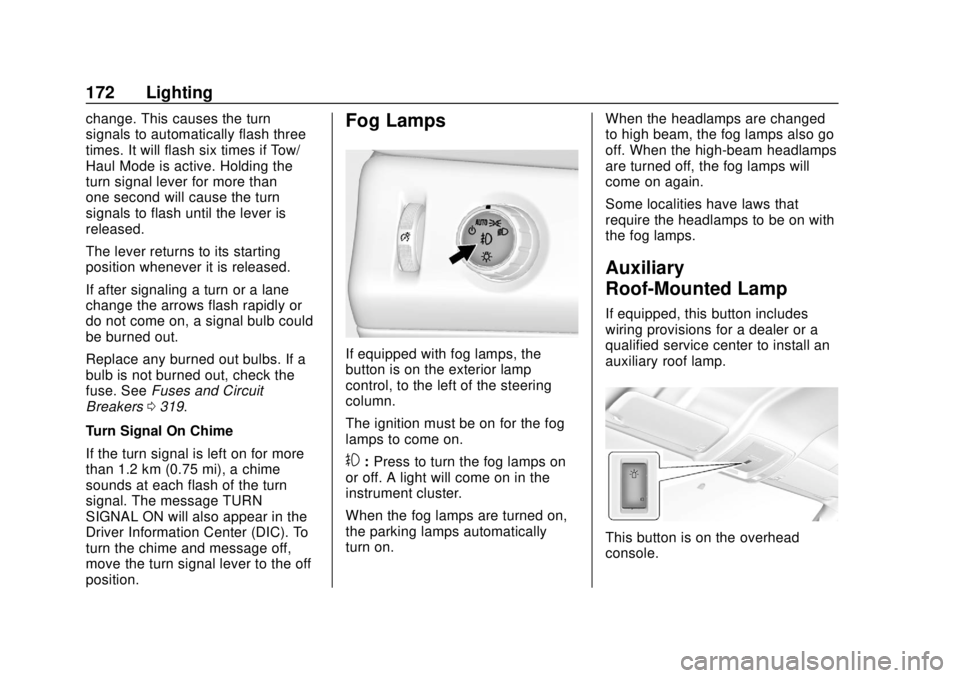

172 Lighting
change. This causes the turn
signals to automatically flash three
times. It will flash six times if Tow/
Haul Mode is active. Holding the
turn signal lever for more than
one second will cause the turn
signals to flash until the lever is
released.
The lever returns to its starting
position whenever it is released.
If after signaling a turn or a lane
change the arrows flash rapidly or
do not come on, a signal bulb could
be burned out.
Replace any burned out bulbs. If a
bulb is not burned out, check the
fuse. SeeFuses and Circuit
Breakers 0319.
Turn Signal On Chime
If the turn signal is left on for more
than 1.2 km (0.75 mi), a chime
sounds at each flash of the turn
signal. The message TURN
SIGNAL ON will also appear in the
Driver Information Center (DIC). To
turn the chime and message off,
move the turn signal lever to the off
position.Fog Lamps
If equipped with fog lamps, the
button is on the exterior lamp
control, to the left of the steering
column.
The ignition must be on for the fog
lamps to come on.
#: Press to turn the fog lamps on
or off. A light will come on in the
instrument cluster.
When the fog lamps are turned on,
the parking lamps automatically
turn on. When the headlamps are changed
to high beam, the fog lamps also go
off. When the high-beam headlamps
are turned off, the fog lamps will
come on again.
Some localities have laws that
require the headlamps to be on with
the fog lamps.
Auxiliary
Roof-Mounted Lamp
If equipped, this button includes
wiring provisions for a dealer or a
qualified service center to install an
auxiliary roof lamp.
This button is on the overhead
console.

Chevrolet Tahoe/Suburban Owner Manual (GMNA-Localizing-U.S./Canada/
Mexico-13566622) - 2020 - CRC - 4/24/19

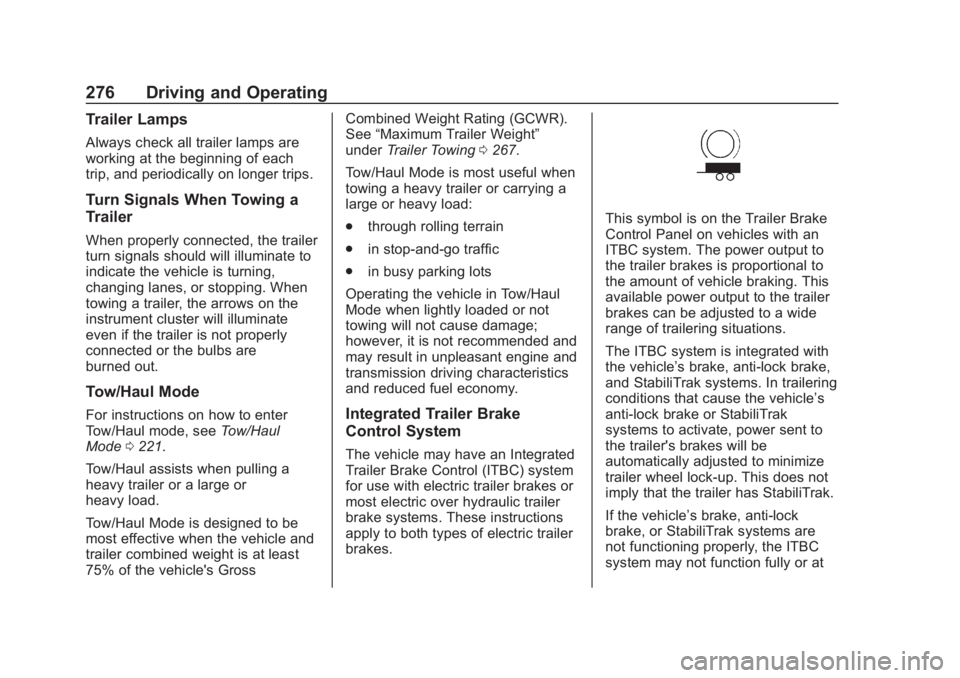

276 Driving and Operating
Trailer Lamps
Always check all trailer lamps are
working at the beginning of each
trip, and periodically on longer trips.
Turn Signals When Towing a
Trailer
When properly connected, the trailer
turn signals should will illuminate to
indicate the vehicle is turning,
changing lanes, or stopping. When
towing a trailer, the arrows on the
instrument cluster will illuminate
even if the trailer is not properly
connected or the bulbs are
burned out.
Tow/Haul Mode
For instructions on how to enter
Tow/Haul mode, seeTow/Haul
Mode 0221.
Tow/Haul assists when pulling a
heavy trailer or a large or
heavy load.
Tow/Haul Mode is designed to be
most effective when the vehicle and
trailer combined weight is at least
75% of the vehicle's Gross Combined Weight Rating (GCWR).
See
“Maximum Trailer Weight”
under Trailer Towing 0267.
Tow/Haul Mode is most useful when
towing a heavy trailer or carrying a
large or heavy load:
. through rolling terrain
. in stop-and-go traffic
. in busy parking lots
Operating the vehicle in Tow/Haul
Mode when lightly loaded or not
towing will not cause damage;
however, it is not recommended and
may result in unpleasant engine and
transmission driving characteristics
and reduced fuel economy.Integrated Trailer Brake
Control System
The vehicle may have an Integrated
Trailer Brake Control (ITBC) system
for use with electric trailer brakes or
most electric over hydraulic trailer
brake systems. These instructions
apply to both types of electric trailer
brakes.
This symbol is on the Trailer Brake
Control Panel on vehicles with an
ITBC system. The power output to
the trailer brakes is proportional to
the amount of vehicle braking. This
available power output to the trailer
brakes can be adjusted to a wide
range of trailering situations.
The ITBC system is integrated with
the vehicle’ s brake, anti-lock brake,
and StabiliTrak systems. In trailering
conditions that cause the vehicle’s
anti-lock brake or StabiliTrak
systems to activate, power sent to
the trailer's brakes will be
automatically adjusted to minimize
trailer wheel lock-up. This does not
imply that the trailer has StabiliTrak.
If the vehicle’s brake, anti-lock
brake, or StabiliTrak systems are
not functioning properly, the ITBC
system may not function fully or at

Chevrolet Tahoe/Suburban Owner Manual (GMNA-Localizing-U.S./Canada/
Mexico-13566622) - 2020 - CRC - 4/15/19
Vehicle Care 283
Vehicle Care
General Information
General Information . . . . . . . . . . 284
California Proposition65 Warning . . . . . . . . . . . . . . . . . 285
California Perchlorate Materials Requirements . . . . . 285
Accessories and Modifications . . . . . . . . . . . . . . . . 285
Vehicle Checks
Doing Your OwnService Work . . . . . . . . . . . . . . . 286
Hood . . . . . . . . . . . . . . . . . . . . . . . . . 286
Engine Compartment Overview . . . . . . . . . . . . . . . . . . . . 288
Engine Oil . . . . . . . . . . . . . . . . . . . . 293
Engine Oil Life System . . . . . . . 295
Automatic Transmission Fluid (6-Speed Transmission) . . . . . 296
Automatic Transmission Fluid (10-Speed Transmission) . . . 299
Engine Air Cleaner/Filter . . . . . . 300
Cooling System . . . . . . . . . . . . . . 301
Engine Overheating . . . . . . . . . . 305
Engine Fan . . . . . . . . . . . . . . . . . . . 306
Washer Fluid . . . . . . . . . . . . . . . . . 306
Brakes . . . . . . . . . . . . . . . . . . . . . . . 307 Brake Fluid . . . . . . . . . . . . . . . . . . . 308
Battery - North America . . . . . . 309
Four-Wheel Drive . . . . . . . . . . . . . 310
Front Axle . . . . . . . . . . . . . . . . . . . . 310
Rear Axle . . . . . . . . . . . . . . . . . . . . . 311
Starter Switch Check . . . . . . . . . 311
Automatic Transmission Shift
Lock Control Function
Check . . . . . . . . . . . . . . . . . . . . . . . 311
Ignition Transmission Lock Check . . . . . . . . . . . . . . . . . . . . . . . 311
Park Brake and P (Park) Mechanism Check . . . . . . . . . . 312
Wiper Blade Replacement . . . . 312
Glass Replacement . . . . . . . . . . 313
Windshield Replacement . . . . . 313
Gas Strut(s) . . . . . . . . . . . . . . . . . . 314
Headlamp Aiming
Headlamp Aiming . . . . . . . . . . . . 315
Bulb Replacement
Bulb Replacement . . . . . . . . . . . . 315
Halogen Bulbs . . . . . . . . . . . . . . . . 315
High Intensity Discharge (HID) Lighting . . . . . . . . . . . . . . . . . . . . . 315
LED Lighting . . . . . . . . . . . . . . . . . 315
Headlamps . . . . . . . . . . . . . . . . . . . 316
Fog Lamps . . . . . . . . . . . . . . . . . . . 316
Front Turn Signal Lamps . . . . . 316 Taillamps, Turn Signal,
Stoplamps, and Back-Up
Lamps . . . . . . . . . . . . . . . . . . . . . . 317
License Plate Lamp . . . . . . . . . . 318
Electrical System
Electrical System Overload . . . 319
Fuses and Circuit Breakers . . . 319
Engine Compartment Fuse Block . . . . . . . . . . . . . . . . . . . . . . . . 320
Instrument Panel Fuse Block (Left) . . . . . . . . . . . . . . . . . 324
Instrument Panel Fuse Block (Right) . . . . . . . . . . . . . . . . . . . . . . 327
Rear Compartment Fuse Block . . . . . . . . . . . . . . . . . . . . . . . . 329
Wheels and Tires
Tires . . . . . . . . . . . . . . . . . . . . . . . . . . 330
All-Season Tires . . . . . . . . . . . . . . 331
Winter Tires . . . . . . . . . . . . . . . . . . 331
Low-Profile Tires . . . . . . . . . . . . . 332
All-Terrain Tires . . . . . . . . . . . . . . . 332
Tire Sidewall Labeling . . . . . . . . 332
Tire Designations . . . . . . . . . . . . . 333
Tire Terminology andDefinitions . . . . . . . . . . . . . . . . . . 334
Tire Pressure . . . . . . . . . . . . . . . . . 337
Tire Pressure for High-Speed Operation . . . . . . . . . . . . . . . . . . . 338

Chevrolet Tahoe/Suburban Owner Manual (GMNA-Localizing-U.S./Canada/
Mexico-13566622) - 2020 - CRC - 4/15/19
316 Vehicle Care
Headlamps
Driver Side
1. Low-Beam Headlamp
2. High-Beam Headlamp
3. Turn Signal Lamp
See your dealer for passenger side
replacement.
Headlamp
1. Open the hood. SeeHood
0 286
2. Remove the headlamp bulb assembly cover by turning it
counterclockwise. 3. Turn the bulb socket
counterclockwise to remove it
from the headlamp assembly
and pull it straight out.
4. Unplug the electrical connector from the old bulb by releasing
the clip on the bulb socket.
5. Replace the bulb and reverse Steps 1-4 to reinstall.
Fog Lamps
To replace the front fog lamp bulb:
1. Locate the fog lamp under the front bumper. 2. Disconnect the electrical
connector from the fog lamp
bulb assembly by pressing the
connector release.
3. Turn the bulb counterclockwise to remove it from the housing.
4. Replace the bulb and reverse Steps 1-3 to reinstall.
Front Turn Signal Lamps
1. Open the hood. See Hood
0 286
2. Reach in and access the bulb socket from inside the engine
compartment.
3. Turn the bulb socket counterclockwise to remove it
from the headlamp assembly
and pull it straight out.
4. Remove the bulb by pulling it straight out of the socket bulb
socket.
5. Replace it with a new bulb.
6. Reinstall the new bulb socket into the headlamp assembly
and turn it clockwise to secure.

Chevrolet Tahoe/Suburban Owner Manual (GMNA-Localizing-U.S./Canada/
Mexico-13566622) - 2020 - CRC - 4/15/19
Vehicle Care 317
Taillamps, Turn Signal,
Stoplamps, and Back-Up
Lamps
1. Back-up Lamp
2. Stoplamp/Turn Signal Lamp
The taillamp on this vehicle is an
LED. For replacement, contact your
dealer.
To replace one of these bulbs:1. Open the liftgate. See Liftgate
0 27.
2. Remove the taillamp closeout
cover from the lamp assembly
by pulling rearward from the
top and bottom at the same
time to unfasten the snap tabs.3. Remove the two screws fromthe taillamp assembly.
4. Pull the taillamp assembly straight back to remove.
5. Turn the bulb socket counterclockwise to remove it
from the taillamp assembly.

Chevrolet Tahoe/Suburban Owner Manual (GMNA-Localizing-U.S./Canada/-
Mexico-13566622) - 2020 - CRC - 4/24/19

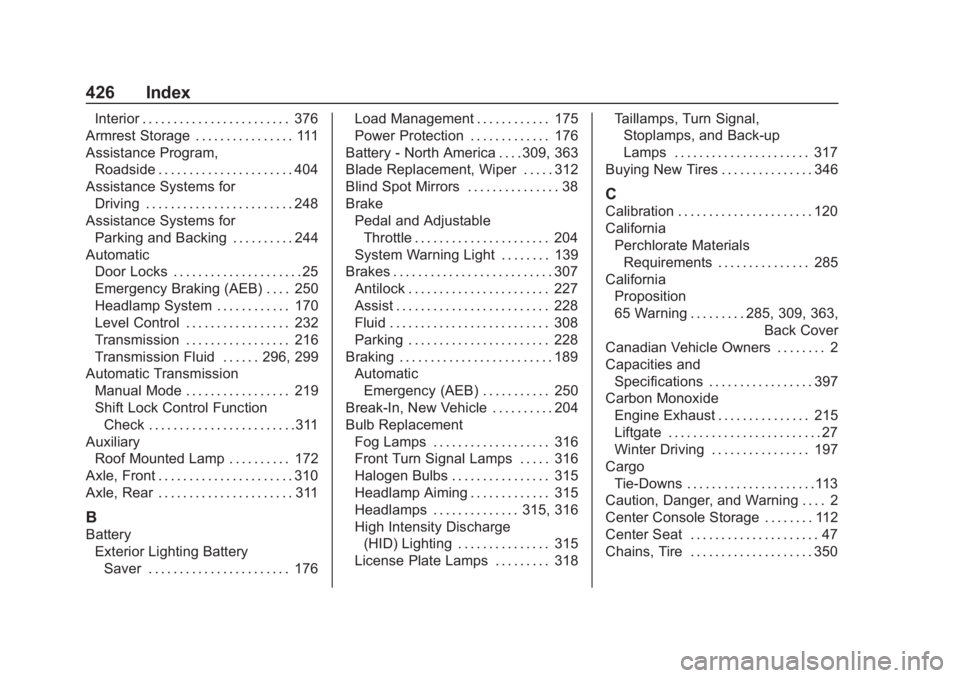

426 Index
Interior . . . . . . . . . . . . . . . . . . . . . . . . 376
Armrest Storage . . . . . . . . . . . . . . . . 111
Assistance Program,
Roadside . . . . . . . . . . . . . . . . . . . . . . 404
Assistance Systems for Driving . . . . . . . . . . . . . . . . . . . . . . . . 248
Assistance Systems for
Parking and Backing . . . . . . . . . . 244
Automatic Door Locks . . . . . . . . . . . . . . . . . . . . . 25
Emergency Braking (AEB) . . . . 250
Headlamp System . . . . . . . . . . . . 170
Level Control . . . . . . . . . . . . . . . . . 232
Transmission . . . . . . . . . . . . . . . . . 216
Transmission Fluid . . . . . . 296, 299
Automatic Transmission
Manual Mode . . . . . . . . . . . . . . . . . 219
Shift Lock Control FunctionCheck . . . . . . . . . . . . . . . . . . . . . . . .311
Auxiliary Roof Mounted Lamp . . . . . . . . . . 172
Axle, Front . . . . . . . . . . . . . . . . . . . . . . 310
Axle, Rear . . . . . . . . . . . . . . . . . . . . . . 311
B
Battery Exterior Lighting BatterySaver . . . . . . . . . . . . . . . . . . . . . . . 176 Load Management . . . . . . . . . . . . 175
Power Protection . . . . . . . . . . . . . 176
Battery - North America . . . . 309, 363
Blade Replacement, Wiper . . . . . 312
Blind Spot Mirrors . . . . . . . . . . . . . . . 38
Brake Pedal and Adjustable
Throttle . . . . . . . . . . . . . . . . . . . . . . 204
System Warning Light . . . . . . . . 139
Brakes . . . . . . . . . . . . . . . . . . . . . . . . . . 307 Antilock . . . . . . . . . . . . . . . . . . . . . . . 227
Assist . . . . . . . . . . . . . . . . . . . . . . . . . 228
Fluid . . . . . . . . . . . . . . . . . . . . . . . . . . 308
Parking . . . . . . . . . . . . . . . . . . . . . . . 228
Braking . . . . . . . . . . . . . . . . . . . . . . . . . 189 Automatic
Emergency (AEB) . . . . . . . . . . . 250
Break-In, New Vehicle . . . . . . . . . . 204
Bulb Replacement Fog Lamps . . . . . . . . . . . . . . . . . . . 316
Front Turn Signal Lamps . . . . . 316
Halogen Bulbs . . . . . . . . . . . . . . . . 315
Headlamp Aiming . . . . . . . . . . . . . 315
Headlamps . . . . . . . . . . . . . . 315, 316
High Intensity Discharge(HID) Lighting . . . . . . . . . . . . . . . 315
License Plate Lamps . . . . . . . . . 318 Taillamps, Turn Signal,
Stoplamps, and Back-up
Lamps . . . . . . . . . . . . . . . . . . . . . . 317
Buying New Tires . . . . . . . . . . . . . . . 346
C
Calibration . . . . . . . . . . . . . . . . . . . . . . 120
California Perchlorate MaterialsRequirements . . . . . . . . . . . . . . . 285
California Proposition
65 Warning . . . . . . . . . .285, 309, 363,
Back Cover
Canadian Vehicle Owners . . . . . . . . 2
Capacities and Specifications . . . . . . . . . . . . . . . . . 397
Carbon Monoxide Engine Exhaust . . . . . . . . . . . . . . . 215
Liftgate . . . . . . . . . . . . . . . . . . . . . . . . . 27
Winter Driving . . . . . . . . . . . . . . . . 197
Cargo Tie-Downs . . . . . . . . . . . . . . . . . . . . .113
Caution, Danger, and Warning . . . . 2
Center Console Storage . . . . . . . . 112
Center Seat . . . . . . . . . . . . . . . . . . . . . 47
Chains, Tire . . . . . . . . . . . . . . . . . . . . 350

Chevrolet Tahoe/Suburban Owner Manual (GMNA-Localizing-U.S./Canada/-
Mexico-13566622) - 2020 - CRC - 4/24/19

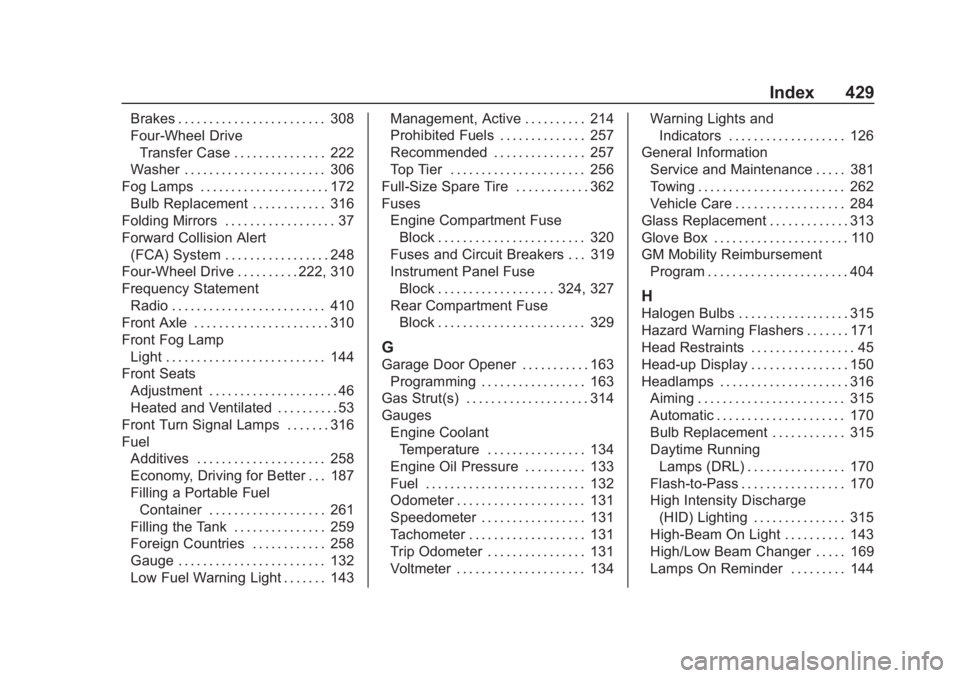

Index 429
Brakes . . . . . . . . . . . . . . . . . . . . . . . . 308
Four-Wheel DriveTransfer Case . . . . . . . . . . . . . . . 222
Washer . . . . . . . . . . . . . . . . . . . . . . . 306
Fog Lamps . . . . . . . . . . . . . . . . . . . . . 172 Bulb Replacement . . . . . . . . . . . . 316
Folding Mirrors . . . . . . . . . . . . . . . . . . 37
Forward Collision Alert
(FCA) System . . . . . . . . . . . . . . . . . 248
Four-Wheel Drive . . . . . . . . . . 222, 310
Frequency Statement Radio . . . . . . . . . . . . . . . . . . . . . . . . . 410
Front Axle . . . . . . . . . . . . . . . . . . . . . . 310
Front Fog Lamp Light . . . . . . . . . . . . . . . . . . . . . . . . . . 144
Front Seats
Adjustment . . . . . . . . . . . . . . . . . . . . . 46
Heated and Ventilated . . . . . . . . . . 53
Front Turn Signal Lamps . . . . . . . 316
Fuel Additives . . . . . . . . . . . . . . . . . . . . . 258
Economy, Driving for Better . . . 187
Filling a Portable Fuel
Container . . . . . . . . . . . . . . . . . . . 261
Filling the Tank . . . . . . . . . . . . . . . 259
Foreign Countries . . . . . . . . . . . . 258
Gauge . . . . . . . . . . . . . . . . . . . . . . . . 132
Low Fuel Warning Light . . . . . . . 143 Management, Active . . . . . . . . . . 214
Prohibited Fuels . . . . . . . . . . . . . . 257
Recommended . . . . . . . . . . . . . . . 257
Top Tier . . . . . . . . . . . . . . . . . . . . . . 256
Full-Size Spare Tire . . . . . . . . . . . . 362
Fuses Engine Compartment Fuse
Block . . . . . . . . . . . . . . . . . . . . . . . . 320
Fuses and Circuit Breakers . . . 319
Instrument Panel Fuse Block . . . . . . . . . . . . . . . . . . . 324, 327
Rear Compartment Fuse Block . . . . . . . . . . . . . . . . . . . . . . . . 329
G
Garage Door Opener . . . . . . . . . . . 163Programming . . . . . . . . . . . . . . . . . 163
Gas Strut(s) . . . . . . . . . . . . . . . . . . . . 314
Gauges Engine CoolantTemperature . . . . . . . . . . . . . . . . 134
Engine Oil Pressure . . . . . . . . . . 133
Fuel . . . . . . . . . . . . . . . . . . . . . . . . . . 132
Odometer . . . . . . . . . . . . . . . . . . . . . 131
Speedometer . . . . . . . . . . . . . . . . . 131
Tachometer . . . . . . . . . . . . . . . . . . . 131
Trip Odometer . . . . . . . . . . . . . . . . 131
Voltmeter . . . . . . . . . . . . . . . . . . . . . 134 Warning Lights and
Indicators . . . . . . . . . . . . . . . . . . . 126
General Information Service and Maintenance . . . . . 381
Towing . . . . . . . . . . . . . . . . . . . . . . . . 262
Vehicle Care . . . . . . . . . . . . . . . . . . 284
Glass Replacement . . . . . . . . . . . . . 313
Glove Box . . . . . . . . . . . . . . . . . . . . . . 110
GM Mobility Reimbursement
Program . . . . . . . . . . . . . . . . . . . . . . . 404
H
Halogen Bulbs . . . . . . . . . . . . . . . . . . 315
Hazard Warning Flashers . . . . . . . 171
Head Restraints . . . . . . . . . . . . . . . . . 45
Head-up Display . . . . . . . . . . . . . . . . 150
Headlamps . . . . . . . . . . . . . . . . . . . . . 316Aiming . . . . . . . . . . . . . . . . . . . . . . . . 315
Automatic . . . . . . . . . . . . . . . . . . . . . 170
Bulb Replacement . . . . . . . . . . . . 315
Daytime RunningLamps (DRL) . . . . . . . . . . . . . . . . 170
Flash-to-Pass . . . . . . . . . . . . . . . . . 170
High Intensity Discharge (HID) Lighting . . . . . . . . . . . . . . . 315
High-Beam On Light . . . . . . . . . . 143
High/Low Beam Changer . . . . . 169
Lamps On Reminder . . . . . . . . . 144

Chevrolet Tahoe/Suburban Owner Manual (GMNA-Localizing-U.S./Canada/-
Mexico-13566622) - 2020 - CRC - 4/24/19
434 Index
Reclining Seatbacks . . . . . . . . . . . . 48
Second Row . . . . . . . . . . . . . . . . . . . . 55
Third Row Seat . . . . . . . . . . . . . . . . . 59
Second Row Seats . . . . . . . . . . . . . . 55
Securing Child Restraints . . . . . . . . . . .104, 106, 107
Security
Light . . . . . . . . . . . . . . . . . . . . . . . . . . 143
OnStar . . . . . . . . . . . . . . . . . . . . . . . 416
Vehicle . . . . . . . . . . . . . . . . . . . . . . . . . 33
Vehicle Alarm . . . . . . . . . . . . . . . . . . . 33
Service . . . . . . . . . . . . . . . . . . . . . . . . . 185 Accessories andModifications . . . . . . . . . . . . . . . . 285
Doing Your Own Work . . . . . . . . 286
Maintenance Records . . . . . . . . 395
Maintenance, General Information . . . . . . . . . . . . . . . . . . 381
Parts Identification . . . . . . . . . . . . 396
Scheduling Appointments . . . . . 406
Services
Special Application . . . . . . . . . . . 388
Servicing the Airbag . . . . . . . . . . . . . 85
Shift Lock Control Function Check, Automatic
Transmission . . . . . . . . . . . . . . . . . . 311
Shifting Into Park . . . . . . . . . . . . . . . . . . . . . . 212 Out of Park . . . . . . . . . . . . . . . . . . . 214
Side Blind Zone Alert (SBZA) . . . 252
Signals, Turn and
Lane-Change . . . . . . . . . . . . . . . . . 171
Special Application Services . . . . 388
Specifications and Capacities . . . . . . . . . . . . . . . . . . . . . 397
Speedometer . . . . . . . . . . . . . . . . . . . 131
StabiliTrak OFF Light . . . . . . . . . . . . . . . . . . . . . 142
Start Assist, Hill . . . . . . . . . . . . . . . . . 228
Start Vehicle, Remote . . . . . . . . . . . 23
Starter Switch Check . . . . . . . . . . . 311
Starting the Engine . . . . . . . . . . . . . 209
Steering . . . . . . . . . . . . . . . . . . . . . . . . 189 Heated Wheel . . . . . . . . . . . . . . . . .117
Wheel Adjustment . . . . . . . . . . . . .116
Wheel Controls . . . . . . . . . . . . . . . .117
Steps Power Assist . . . . . . . . . . . . . . . . . . . 32
Stoplamps and Back-up Lamps
Bulb Replacement . . . . . . . . . . . . 317
Storage Rear . . . . . . . . . . . . . . . . . . . . . . . . . . . 111
Storage Areas
Armrest . . . . . . . . . . . . . . . . . . . . . . . . 111
Center Console . . . . . . . . . . . . . . . .112
Convenience Net . . . . . . . . . . . . . .113 Floor Console . . . . . . . . . . . . . . . . .113
Glove Box . . . . . . . . . . . . . . . . . . . . .110
Instrument Panel . . . . . . . . . . . . . .110
Roof Rack System . . . . . . . . . . . . .113
Sunglasses . . . . . . . . . . . . . . . . . . . . 111
Storage Compartments . . . . . . . . . 110
Struts Gas . . . . . . . . . . . . . . . . . . . . . . . . . . . 314
Stuck Vehicle . . . . . . . . . . . . . . . . . . . 198
Sun Visors . . . . . . . . . . . . . . . . . . . . . . . 42
Sunglass Storage . . . . . . . . . . . . . . . 111
Sunroof . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Symbols . . . . . . . . . . . . . . . . . . . . . . . . . . 3
System Forward CollisionAlert (FCA) . . . . . . . . . . . . . . . . . . 248
Infotainment . . . . . . . . . . . . . 177, 413
Roof Rack . . . . . . . . . . . . . . . . . . . . .113
Systems Driver Assistance . . . . . . . . . . . . . 243
T
Tachometer . . . . . . . . . . . . . . . . . . . . . 131
TaillampsBulb Replacement . . . . . . . . . . . . 317
Text Telephone (TTY) Users . . . . 403
Theft-Deterrent Systems . . . . . . . . . 35

Chevrolet Tahoe/Suburban Owner Manual (GMNA-Localizing-U.S./Canada/-
Mexico-13566622) - 2020 - CRC - 4/24/19

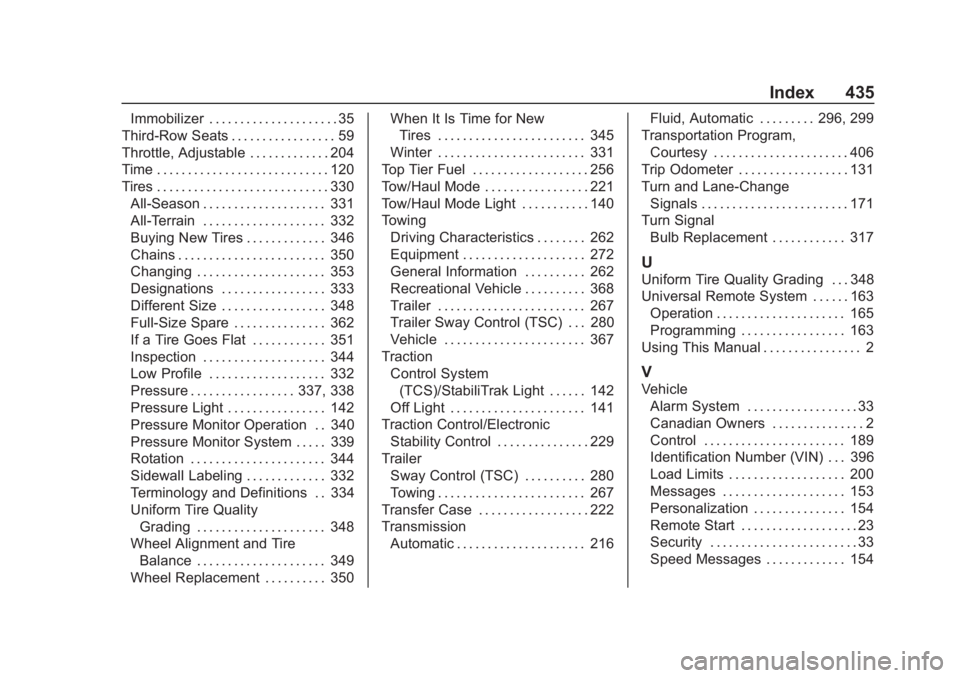

Index 435
Immobilizer . . . . . . . . . . . . . . . . . . . . . 35
Third-Row Seats . . . . . . . . . . . . . . . . . 59
Throttle, Adjustable . . . . . . . . . . . . . 204
Time . . . . . . . . . . . . . . . . . . . . . . . . . . . . 120
Tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . 330
All-Season . . . . . . . . . . . . . . . . . . . . 331
All-Terrain . . . . . . . . . . . . . . . . . . . . 332
Buying New Tires . . . . . . . . . . . . . 346
Chains . . . . . . . . . . . . . . . . . . . . . . . . 350
Changing . . . . . . . . . . . . . . . . . . . . . 353
Designations . . . . . . . . . . . . . . . . . 333
Different Size . . . . . . . . . . . . . . . . . 348
Full-Size Spare . . . . . . . . . . . . . . . 362
If a Tire Goes Flat . . . . . . . . . . . . 351
Inspection . . . . . . . . . . . . . . . . . . . . 344
Low Profile . . . . . . . . . . . . . . . . . . . 332
Pressure . . . . . . . . . . . . . . . . . 337, 338
Pressure Light . . . . . . . . . . . . . . . . 142
Pressure Monitor Operation . . 340
Pressure Monitor System . . . . . 339
Rotation . . . . . . . . . . . . . . . . . . . . . . 344
Sidewall Labeling . . . . . . . . . . . . . 332
Terminology and Definitions . . 334
Uniform Tire QualityGrading . . . . . . . . . . . . . . . . . . . . . 348
Wheel Alignment and Tire Balance . . . . . . . . . . . . . . . . . . . . . 349
Wheel Replacement . . . . . . . . . . 350 When It Is Time for New
Tires . . . . . . . . . . . . . . . . . . . . . . . . 345
Winter . . . . . . . . . . . . . . . . . . . . . . . . 331
Top Tier Fuel . . . . . . . . . . . . . . . . . . . 256
Tow/Haul Mode . . . . . . . . . . . . . . . . . 221
Tow/Haul Mode Light . . . . . . . . . . . 140
Towing Driving Characteristics . . . . . . . . 262
Equipment . . . . . . . . . . . . . . . . . . . . 272
General Information . . . . . . . . . . 262
Recreational Vehicle . . . . . . . . . . 368
Trailer . . . . . . . . . . . . . . . . . . . . . . . . 267
Trailer Sway Control (TSC) . . . 280
Vehicle . . . . . . . . . . . . . . . . . . . . . . . 367
Traction Control System
(TCS)/StabiliTrak Light . . . . . . 142
Off Light . . . . . . . . . . . . . . . . . . . . . . 141
Traction Control/Electronic Stability Control . . . . . . . . . . . . . . . 229
Trailer
Sway Control (TSC) . . . . . . . . . . 280
Towing . . . . . . . . . . . . . . . . . . . . . . . . 267
Transfer Case . . . . . . . . . . . . . . . . . . 222
Transmission Automatic . . . . . . . . . . . . . . . . . . . . . 216 Fluid, Automatic . . . . . . . . . 296, 299
Transportation Program,
Courtesy . . . . . . . . . . . . . . . . . . . . . . 406
Trip Odometer . . . . . . . . . . . . . . . . . . 131
Turn and Lane-Change Signals . . . . . . . . . . . . . . . . . . . . . . . . 171
Turn Signal
Bulb Replacement . . . . . . . . . . . . 317
U
Uniform Tire Quality Grading . . . 348
Universal Remote System . . . . . . 163Operation . . . . . . . . . . . . . . . . . . . . . 165
Programming . . . . . . . . . . . . . . . . . 163
Using This Manual . . . . . . . . . . . . . . . . 2
V
Vehicle Alarm System . . . . . . . . . . . . . . . . . . 33
Canadian Owners . . . . . . . . . . . . . . . 2
Control . . . . . . . . . . . . . . . . . . . . . . . 189
Identification Number (VIN) . . . 396
Load Limits . . . . . . . . . . . . . . . . . . . 200
Messages . . . . . . . . . . . . . . . . . . . . 153
Personalization . . . . . . . . . . . . . . . 154
Remote Start . . . . . . . . . . . . . . . . . . . 23
Security . . . . . . . . . . . . . . . . . . . . . . . . 33
Speed Messages . . . . . . . . . . . . . 154
