relay CHEVROLET TAHOE 2022 Owners Manual

Chevrolet Tahoe/Suburban Owner Manual (GMNA-Localizing-U.S./Canada/
Mexico-13690484) - 2021 - crc - 8/17/20
Vehicle Care 337
FusesUsage
69 Starter pinion 71 Cool fan motor lower
72 Right cool fan motor/ Lower
73 Left trailer stop turn lamp
74 TIM 2 75 DEFC
76 ELEC RNG BDS
78 ECM
79 –
80 Cabin cool pump 17W 81 Right trailer stop turn lamp
82 TIM 1
83 FTZM
84 Trailer battery 85 Engine
86 ECM 87 Injector B even
88 02 B sensor Fuses
Usage
89 02 A sensor
90 Injector A odd 91 ECM throttle control
92 Cool fan clutch AERO shutter
Relays Usage
5 –
18 DC/AC inverter
23 –
35 Park lamp
36 Run/Crank
43 Secondary axle motor
59 A/C clutch
64 Starter motor 70 Starter pinion 77 PowertrainInstrument Panel Fuse Block
The right instrument panel fuse block access
door is on the passenger side edge of the
instrument panel.
Pull off the cover to access the fuse block.

Chevrolet Tahoe/Suburban Owner Manual (GMNA-Localizing-U.S./Canada/
Mexico-13690484) - 2021 - crc - 8/17/20

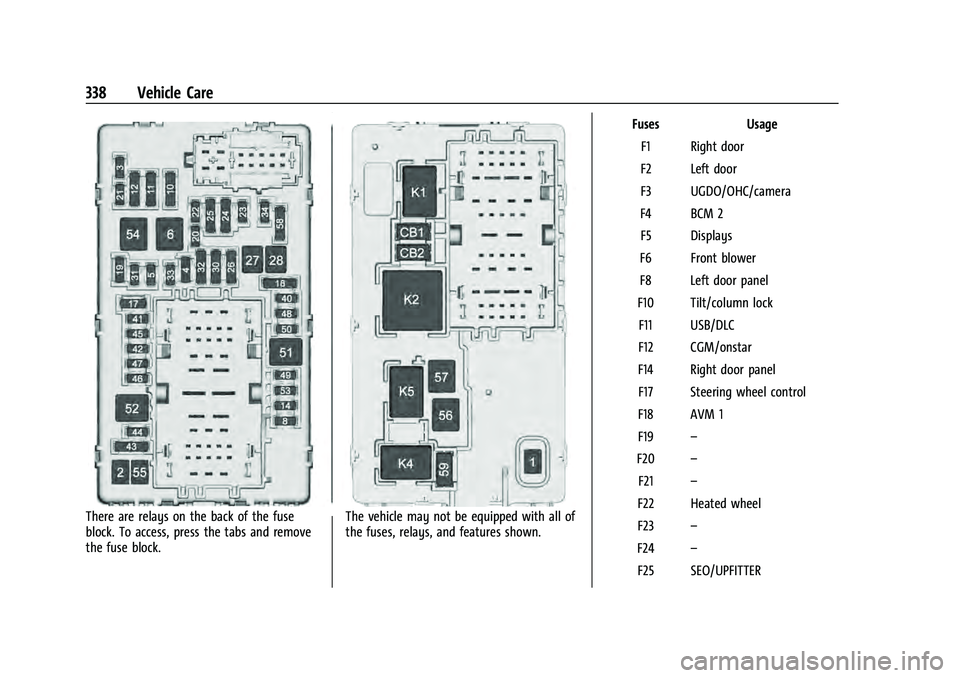

338 Vehicle Care
There are relays on the back of the fuse
block. To access, press the tabs and remove
the fuse block.The vehicle may not be equipped with all of
the fuses, relays, and features shown. Fuses Usage
F1 Right door
F2 Left door
F3 UGDO/OHC/camera
F4 BCM 2 F5 Displays
F6 Front blower
F8 Left door panel
F10 Tilt/column lock F11 USB/DLC
F12 CGM/onstar
F14 Right door panel F17 Steering wheel control
F18 AVM 1
F19 –
F20 –
F21 –
F22 Heated wheel
F23 –
F24 –
F25 SEO/UPFITTER

Chevrolet Tahoe/Suburban Owner Manual (GMNA-Localizing-U.S./Canada/
Mexico-13690484) - 2021 - crc - 8/17/20

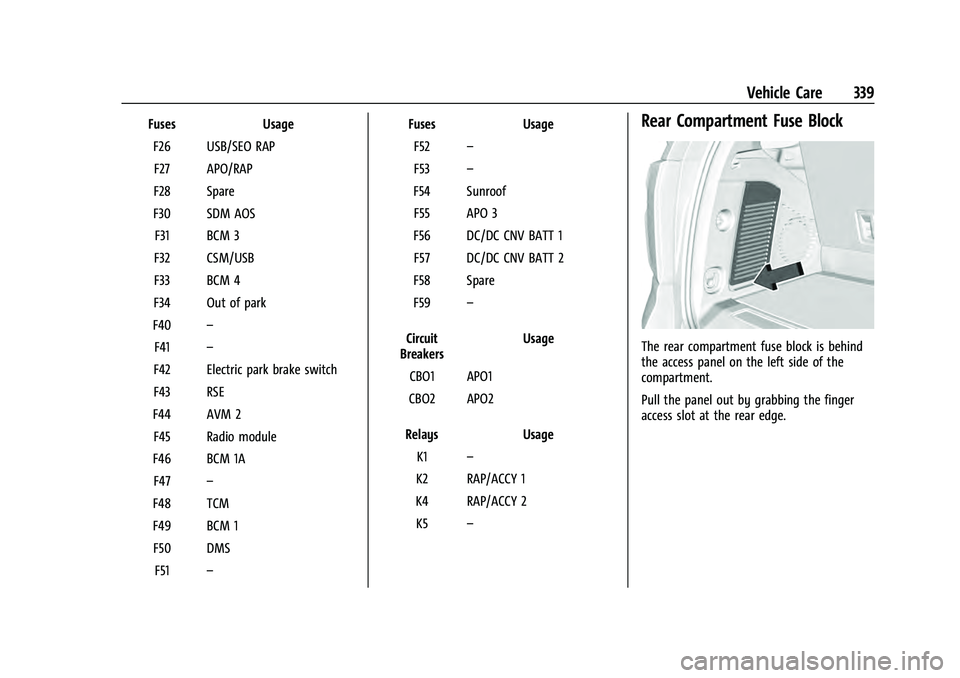

Vehicle Care 339
FusesUsage
F26 USB/SEO RAP F27 APO/RAP
F28 Spare
F30 SDM AOS F31 BCM 3
F32 CSM/USB
F33 BCM 4
F34 Out of park
F40 –
F41 –
F42 Electric park brake switch
F43 RSE
F44 AVM 2 F45 Radio module
F46 BCM 1A F47 –
F48 TCM
F49 BCM 1 F50 DMS F51 – Fuses
Usage
F52 –
F53 –
F54 Sunroof F55 APO 3
F56 DC/DC CNV BATT 1 F57 DC/DC CNV BATT 2
F58 Spare
F59 –
Circuit
Breakers Usage
CBO1 APO1
CBO2 APO2
Relays Usage
K1 –
K2 RAP/ACCY 1
K4 RAP/ACCY 2 K5 –Rear Compartment Fuse Block
The rear compartment fuse block is behind
the access panel on the left side of the
compartment.
Pull the panel out by grabbing the finger
access slot at the rear edge.

Chevrolet Tahoe/Suburban Owner Manual (GMNA-Localizing-U.S./Canada/
Mexico-13690484) - 2021 - crc - 8/17/20

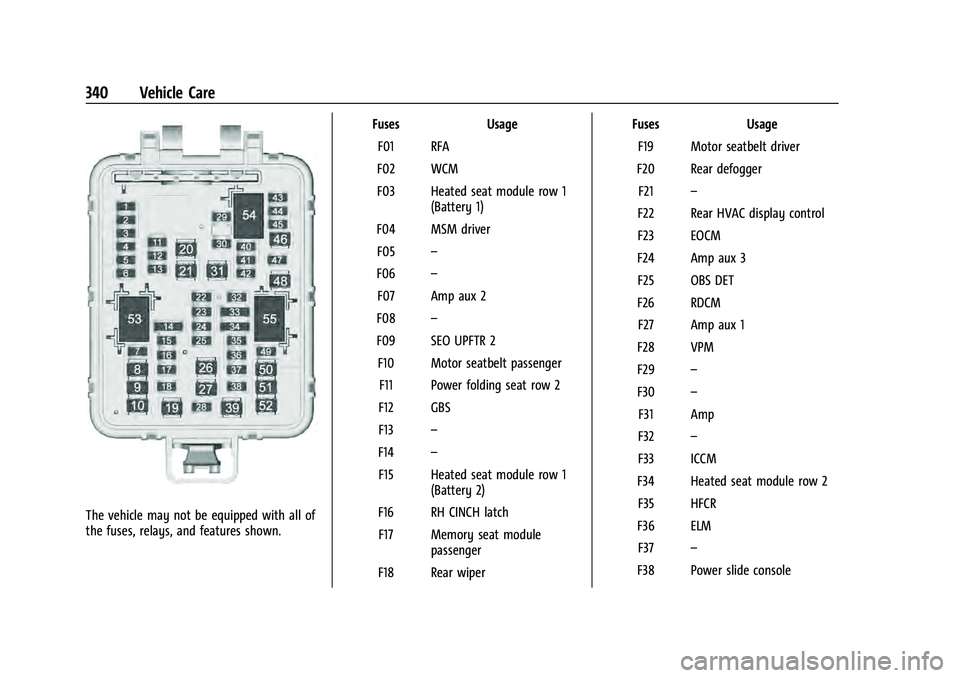

340 Vehicle Care
The vehicle may not be equipped with all of
the fuses, relays, and features shown.Fuses Usage
F01 RFA
F02 WCM
F03 Heated seat module row 1 (Battery 1)
F04 MSM driver F05 –
F06 –
F07 Amp aux 2
F08 –
F09 SEO UPFTR 2 F10 Motor seatbelt passenger F11 Power folding seat row 2
F12 GBS
F13 –
F14 –
F15 Heated seat module row 1 (Battery 2)
F16 RH CINCH latch F17 Memory seat module passenger
F18 Rear wiper Fuses Usage
F19 Motor seatbelt driver
F20 Rear defogger F21 –
F22 Rear HVAC display control
F23 EOCM
F24 Amp aux 3 F25 OBS DET
F26 RDCM F27 Amp aux 1
F28 VPM
F29 –
F30 –
F31 Amp
F32 –
F33 ICCM
F34 Heated seat module row 2 F35 HFCR
F36 ELM F37 –
F38 Power slide console

Chevrolet Tahoe/Suburban Owner Manual (GMNA-Localizing-U.S./Canada/
Mexico-13690484) - 2021 - crc - 8/17/20
OnStar 413
.Receive a Diagnostic check of the vehicle's
key operating systems.
.Receive Roadside Assistance.
.Manage Wi-Fi Settings, if equipped.
Press
>to get a priority connection to an
OnStar Advisor available 24/7 to:
.Get help for an emergency.
.Be a Good Samaritan or respond to an
AMBER Alert.
.Get assistance in severe weather or other
crisis situations and find evacuation
routes.
OnStar Services
Emergency
Emergency Services require an active safety
and security plan. With Automatic Crash
Response, built-in sensors can automatically
alert a specially trained OnStar Advisor who
is immediately connected in to the vehicle
to help.
Press
>for a priority connection to an
OnStar Advisor who can contact emergency
service providers, direct them to your exact
location, and relay important information. With OnStar Crisis Assist, specially trained
Advisors are available 24 hours a day, 7 days
a week, to provide a central point of
contact, assistance, and information during a
crisis.
With Roadside Assistance, Advisors can
locate a nearby service provider to help with
a flat tire, a battery jump, or an empty
gas tank.
Security
If equipped, OnStar provides these services:
.With Stolen Vehicle Assistance, OnStar
Advisors can use GPS to pinpoint the
vehicle and help authorities quickly
recover it.
.With Remote Ignition Block, if equipped,
OnStar can block the engine from being
restarted.
.With Stolen Vehicle Slowdown,
if equipped, OnStar can work with law
enforcement to gradually slow the
vehicle down.
Theft Alarm Notification
If equipped, if the doors are locked and the
vehicle alarm sounds, a notification by text,
e-mail, or phone call will be sent. If the
vehicle is stolen, an OnStar Advisor can work
with authorities to recover the vehicle.
OnStar Additional
Information
In-Vehicle Audio Messages
Audio messages may play important
information at the following times:
.Prior to vehicle purchase. PressQto set
up an account.
.After change in ownership and at
90 days.
Transferring Service
PressQto request account transfer
eligibility information. The Advisor can
cancel or change account information.
Selling/Transferring the Vehicle
Call 1-888-4ONSTAR (1-888-466-7827)
immediately to terminate your OnStar or
connected services if the vehicle is disposed
of, sold, transferred, or if the lease ends.
