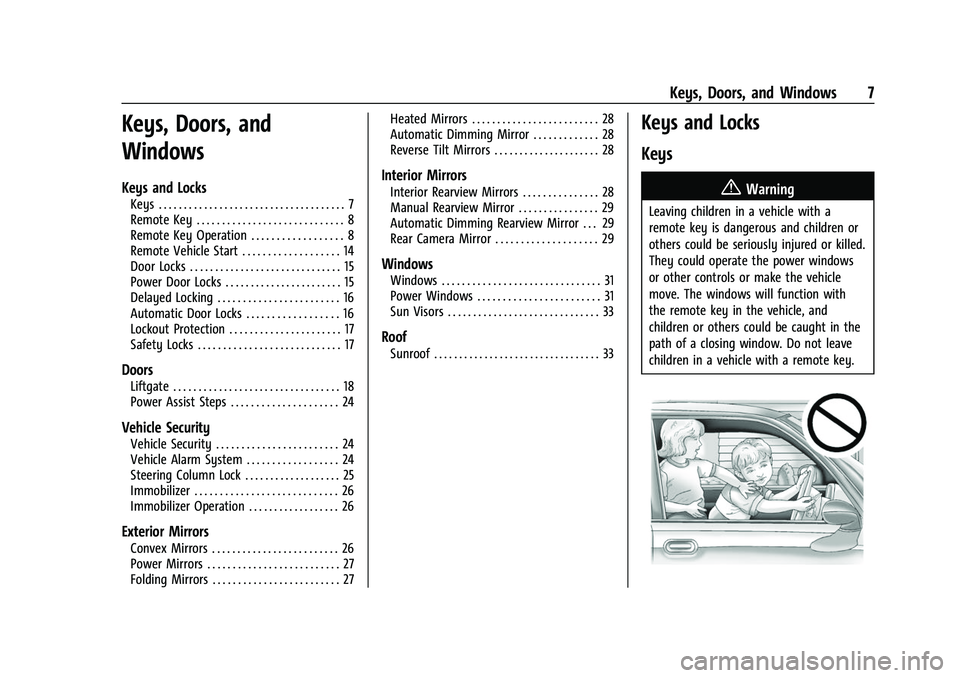

Chevrolet Tahoe/Suburban Owner Manual (GMNA-Localizing-U.S./Canada/
Mexico-16416971) - 2023 - CRC - 4/25/22
Keys, Doors, and Windows 7
Keys, Doors, and
Windows
Keys and Locks
Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Remote Key . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Remote Key Operation . . . . . . . . . . . . . . . . . . 8
Remote Vehicle Start . . . . . . . . . . . . . . . . . . . 14
Door Locks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Power Door Locks . . . . . . . . . . . . . . . . . . . . . . . 15
Delayed Locking . . . . . . . . . . . . . . . . . . . . . . . . 16
Automatic Door Locks . . . . . . . . . . . . . . . . . . 16
Lockout Protection . . . . . . . . . . . . . . . . . . . . . . 17
Safety Locks . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Doors
Liftgate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Power Assist Steps . . . . . . . . . . . . . . . . . . . . . 24
Vehicle Security
Vehicle Security . . . . . . . . . . . . . . . . . . . . . . . . 24
Vehicle Alarm System . . . . . . . . . . . . . . . . . . 24
Steering Column Lock . . . . . . . . . . . . . . . . . . . 25
Immobilizer . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Immobilizer Operation . . . . . . . . . . . . . . . . . . 26
Exterior Mirrors
Convex Mirrors . . . . . . . . . . . . . . . . . . . . . . . . . 26
Power Mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Folding Mirrors . . . . . . . . . . . . . . . . . . . . . . . . . 27Heated Mirrors . . . . . . . . . . . . . . . . . . . . . . . . . 28
Automatic Dimming Mirror . . . . . . . . . . . . . 28
Reverse Tilt Mirrors . . . . . . . . . . . . . . . . . . . . . 28
Interior Mirrors
Interior Rearview Mirrors . . . . . . . . . . . . . . . 28
Manual Rearview Mirror . . . . . . . . . . . . . . . . 29
Automatic Dimming Rearview Mirror . . . 29
Rear Camera Mirror . . . . . . . . . . . . . . . . . . . . 29
Windows
Windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Power Windows . . . . . . . . . . . . . . . . . . . . . . . . 31
Sun Visors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Roof
Sunroof . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Keys and Locks
Keys
{Warning
Leaving children in a vehicle with a
remote key is dangerous and children or
others could be seriously injured or killed.
They could operate the power windows
or other controls or make the vehicle
move. The windows will function with
the remote key in the vehicle, and
children or others could be caught in the
path of a closing window. Do not leave
children in a vehicle with a remote key.

Chevrolet Tahoe/Suburban Owner Manual (GMNA-Localizing-U.S./Canada/
Mexico-16416971) - 2023 - CRC - 4/25/22
26 Keys, Doors, and Windows
To keep the steering column from binding,
straighten the front wheels before turning
off the vehicle.
Immobilizer
SeeRadio Frequency Statement 0419.
Immobilizer Operation
This vehicle has a passive theft-deterrent
system.
The system does not have to be manually
armed or disarmed.
The vehicle is automatically immobilized
when the vehicle is turned off.
The immobilization system is disarmed
when the ignition is turned on or to
accessory mode and a valid remote key is
present in the vehicle.
The security light, in the instrument cluster,
comes on if there is a problem with arming
or disarming the theft-deterrent system. The system has one or more remote keys
matched to an immobilizer control unit in
the vehicle. Only a correctly matched
remote key will start the vehicle. If the
remote key is ever damaged, you may not
be able to start your vehicle.
When trying to start the vehicle, the
security light may come on briefly.
If the engine does not start and the security
light stays on, there is a problem with the
system. Turn the ignition off and try again.
If the vehicle will not change ignition modes
(accessory mode, on, off), and the remote
key appears to be undamaged, try another
remote key. Or, you may try placing the
remote key in the backup location. See
Remote Key Operation
08.
If the ignition modes will not change with
the other remote key or in the backup
location, the vehicle needs service. If the
ignition does change modes, the first
remote key may be faulty. See your dealer.
It is possible for the immobilizer system to
learn new or replacement remote keys. Up
to eight remote keys can be programmed
for the vehicle. To program additional remote keys, see
“Programming Remote
Keys to the Vehicle” underRemote Key
Operation 08.
Do not leave the remote key or device that
disarms or deactivates the theft-deterrent
system in the vehicle.
Exterior Mirrors
Convex Mirrors
{Warning
A convex mirror can make things, like
other vehicles, look farther away than
they really are. If you cut too sharply
into the right lane, you could hit a
vehicle on the right. Check the inside
mirror or glance over your shoulder
before changing lanes.
The passenger side mirror is convex shaped.
A convex mirror surface is curved so more
can be seen from the driver seat.

Chevrolet Tahoe/Suburban Owner Manual (GMNA-Localizing-U.S./Canada/
Mexico-16416971) - 2023 - CRC - 4/25/22
122 Instruments and Controls
Low Fuel Warning Light
A Low Fuel Warning Light near the fuel
gauge comes on briefly when the ignition is
turned on as a check to show it is working.
For vehicles with a reconfigurable cluster,
this light is in the display area and may not
come on when the ignition is turned on.
It also comes on when the fuel gauge
indicator nears empty. The light turns off
when fuel is added. If it does not, have the
vehicle serviced.
Security Light
The security light should come on briefly as
the engine is started. If it does not come on,
have the vehicle serviced by your dealer.
If the system is working normally, the
indicator light turns off.
If the light stays on and the engine does
not start, there could be a problem with the
theft-deterrent system. SeeImmobilizer
Operation 026.
High-Beam On Light
This light comes on when the high-beam
headlamps are in use. See Headlamp High/
Low-Beam Changer 0138.
IntelliBeam Light
This light comes on when the IntelliBeam
system, if equipped, is enabled. See Exterior
Lamp Controls 0136.
Lamps On Reminder
This light comes on when the exterior lamps
are in use, except when only the Daytime
Running Lamps (DRL) are active. See Exterior
Lamp Controls 0136.
Cruise Control Light
The cruise control light is white when the
cruise control is on and ready, and turns
green when the cruise control is set and
active.
See Cruise Control 0234.

Chevrolet Tahoe/Suburban Owner Manual (GMNA-Localizing-U.S./Canada/-
Mexico-16416971) - 2023 - CRC - 4/25/22
Index 435
High-Speed Operation . . . . . . . . . . . . . . . . . . . 359
HillDescent Control (HDC) . . . . . . . . . . . . . . . . . 227
Descent Control Light . . . . . . . . . . . . . . . . . . . 117
Hill and Mountain Roads . . . . . . . . . . . . . . . . 202
Hill Start Assist (HSA) . . . . . . . . . . . . . . . . . . . . 225
Hood . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 320
Horn . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 95
How to Wear Seat Belts Properly . . . . . . . . . .53
HVAC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 186, 189
I
Ignition Positions . . . . . . . . . . . . . . . . . . . . . . . . 209
Immobilizer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Indicator Pedestrian Ahead . . . . . . . . . . . . . . . . . . . . . . . 118
Vehicle Ahead . . . . . . . . . . . . . . . . . . . . . . . . . . 117
Indicators Warning Lights and Gauges . . . . . . . . . . . . 101
Infants and Young Children, Restraints . . . . . 71
Information Publication Ordering . . . . . . . . . . . . . . . . . . . 418
Infotainment Using the System . . . . . . . . . . . . . . . . . . . . . . 146
Infotainment System . . . . . . . . . . . . . . . . . . . . .421 Rear Seat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 154
Inspection Multi-Point Vehicle . . . . . . . . . . . . . . . . . . . . 402 Instrument Cluster . . . . . . . . . . . . . . . . . . .102, 104
Instrument Panel
Storage Area . . . . . . . . . . . . . . . . . . . . . . . . . . . . 88
Instrument Panel Overview . . . . . . . . . . . . . . . . .5
Interior Rearview Mirrors . . . . . . . . . . . . . . . . . 28
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . 2, 143
J
Jump Starting - North America . . . . . . . . . . . . . . . 383
K
Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7Remote . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Remote Operation . . . . . . . . . . . . . . . . . . . . . . . 8
L
Labeling, Tire Sidewall . . . . . . . . . . . . . . . . . . . 354
LampsDaytime Running (DRL) . . . . . . . . . . . . . . . . 138
Dome . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 140
Exterior Controls . . . . . . . . . . . . . . . . . . . . . . . 136
Exterior Lamps Off Reminder . . . . . . . . . . . 137
Exterior Lighting Battery Saver . . . . . . . . 142
Flash-to-Pass . . . . . . . . . . . . . . . . . . . . . . . . . . . 138
High/Low Beam Changer . . . . . . . . . . . . . . 138
Malfunction Indicator (CheckEngine) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 114
On Reminder . . . . . . . . . . . . . . . . . . . . . . . . . . 122 Lamps (cont'd)
Reading . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 141
Lane Change Alert (LCA) . . . . . . . . . . . . . . . . . . . . . 280
Keep Assist (LKA) . . . . . . . . . . . . . . . . . . . . . . 283
Keep Assist Light . . . . . . . . . . . . . . . . . . . . . . . 117
Lap-Shoulder Belt . . . . . . . . . . . . . . . . . . . . . . . . . .55
LATCH System
Replacing Parts after a Crash . . . . . . . . . . . 82
LATCH, Lower Anchors and Tethers for Children . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76
LED Lighting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .341
Liftgate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
Lighting
Entry . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 141
Exit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 141
Illumination Control . . . . . . . . . . . . . . . . . . . 140
LED . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 341
Lights Airbag Readiness . . . . . . . . . . . . . . . . . . . . . . . 112
Antilock Brake System (ABS)Warning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 116
Automatic Emergency Braking (AEB) Disabled . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 117
Brake System Warning . . . . . . . . . . . . . . . . . 115
Charging System . . . . . . . . . . . . . . . . . . . . . . . 113
Check Engine (Malfunction Indicator) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 114

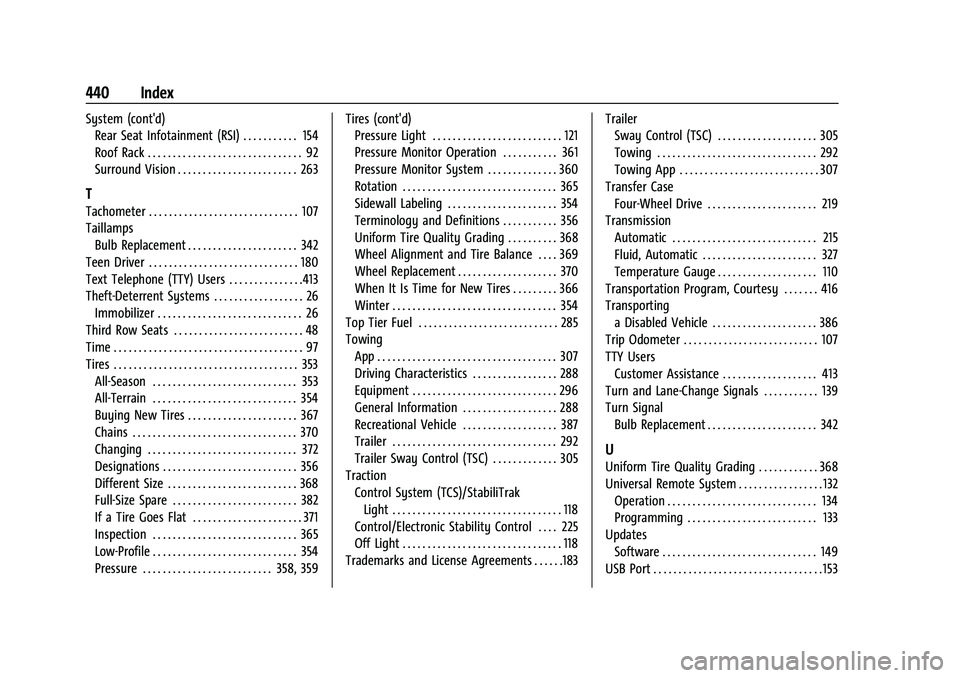

Chevrolet Tahoe/Suburban Owner Manual (GMNA-Localizing-U.S./Canada/-
Mexico-16416971) - 2023 - CRC - 4/25/22
440 Index
System (cont'd)Rear Seat Infotainment (RSI) . . . . . . . . . . . 154
Roof Rack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92
Surround Vision . . . . . . . . . . . . . . . . . . . . . . . . 263
T
Tachometer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 107
Taillamps
Bulb Replacement . . . . . . . . . . . . . . . . . . . . . . 342
Teen Driver . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 180
Text Telephone (TTY) Users . . . . . . . . . . . . . . .413
Theft-Deterrent Systems . . . . . . . . . . . . . . . . . . 26 Immobilizer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Third Row Seats . . . . . . . . . . . . . . . . . . . . . . . . . . 48
Time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 97
Tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 353 All-Season . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 353
All-Terrain . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 354
Buying New Tires . . . . . . . . . . . . . . . . . . . . . . 367
Chains . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 370
Changing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 372
Designations . . . . . . . . . . . . . . . . . . . . . . . . . . . 356
Different Size . . . . . . . . . . . . . . . . . . . . . . . . . . 368
Full-Size Spare . . . . . . . . . . . . . . . . . . . . . . . . . 382
If a Tire Goes Flat . . . . . . . . . . . . . . . . . . . . . . 371
Inspection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 365
Low-Profile . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 354
Pressure . . . . . . . . . . . . . . . . . . . . . . . . . . 358, 359 Tires (cont'd)
Pressure Light . . . . . . . . . . . . . . . . . . . . . . . . . . 121
Pressure Monitor Operation . . . . . . . . . . . 361
Pressure Monitor System . . . . . . . . . . . . . . 360
Rotation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 365
Sidewall Labeling . . . . . . . . . . . . . . . . . . . . . . 354
Terminology and Definitions . . . . . . . . . . . 356
Uniform Tire Quality Grading . . . . . . . . . . 368
Wheel Alignment and Tire Balance . . . . 369
Wheel Replacement . . . . . . . . . . . . . . . . . . . . 370
When It Is Time for New Tires . . . . . . . . . 366
Winter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 354
Top Tier Fuel . . . . . . . . . . . . . . . . . . . . . . . . . . . . 285
Towing App . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 307
Driving Characteristics . . . . . . . . . . . . . . . . . 288
Equipment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 296
General Information . . . . . . . . . . . . . . . . . . . 288
Recreational Vehicle . . . . . . . . . . . . . . . . . . . 387
Trailer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 292
Trailer Sway Control (TSC) . . . . . . . . . . . . . 305
Traction Control System (TCS)/StabiliTrakLight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 118
Control/Electronic Stability Control . . . . 225
Off Light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 118
Trademarks and License Agreements . . . . . .183 Trailer
Sway Control (TSC) . . . . . . . . . . . . . . . . . . . . 305
Towing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 292
Towing App . . . . . . . . . . . . . . . . . . . . . . . . . . . . 307
Transfer Case Four-Wheel Drive . . . . . . . . . . . . . . . . . . . . . . 219
Transmission
Automatic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 215
Fluid, Automatic . . . . . . . . . . . . . . . . . . . . . . . 327
Temperature Gauge . . . . . . . . . . . . . . . . . . . . 110
Transportation Program, Courtesy . . . . . . . 416
Transporting
a Disabled Vehicle . . . . . . . . . . . . . . . . . . . . . 386
Trip Odometer . . . . . . . . . . . . . . . . . . . . . . . . . . . 107
TTY Users Customer Assistance . . . . . . . . . . . . . . . . . . . 413
Turn and Lane-Change Signals . . . . . . . . . . . 139
Turn Signal Bulb Replacement . . . . . . . . . . . . . . . . . . . . . . 342
U
Uniform Tire Quality Grading . . . . . . . . . . . . 368
Universal Remote System . . . . . . . . . . . . . . . . . 132Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 134
Programming . . . . . . . . . . . . . . . . . . . . . . . . . . 133
Updates
Software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 149
USB Port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 153
