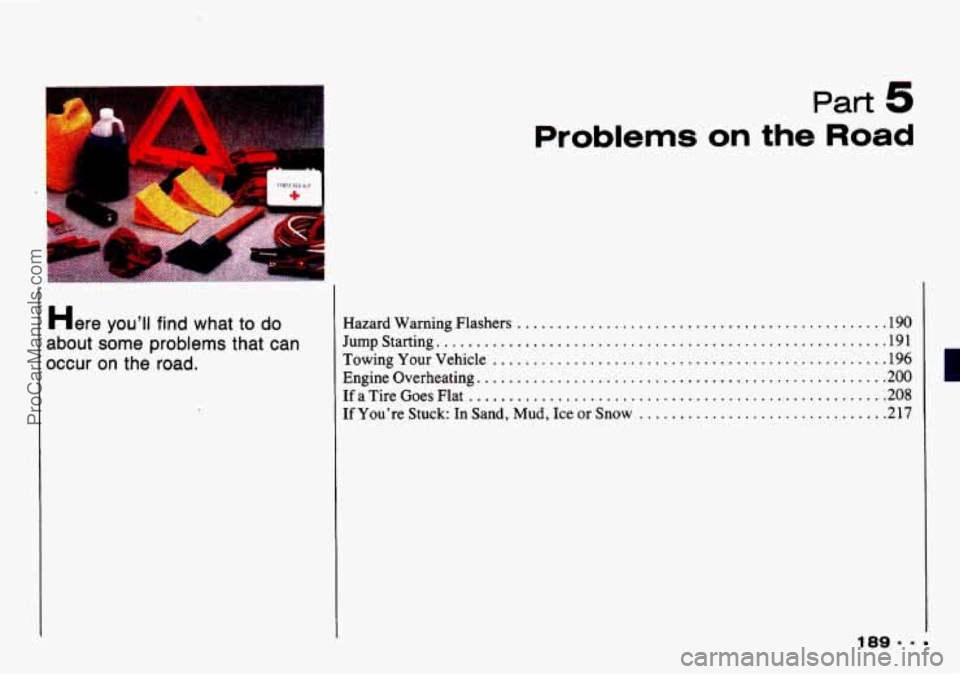

CHEVROLET TRACKER 1993 Owners Manual

R
Here you’ll find what to do
about some problems that can
occur
on the road.
Problems on the Road
Hazard Warning Flashers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .190
rumpstarting ........................................................ 191
I‘owingYourVehicle ................................................. 196
3ngineOverheating
................................................... 200
[faTireGoesFlat .................................................... 208
[f You’re Stuck: In Sand, Mud, Ice or Snow . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .217
189- -
ProCarManuals.com

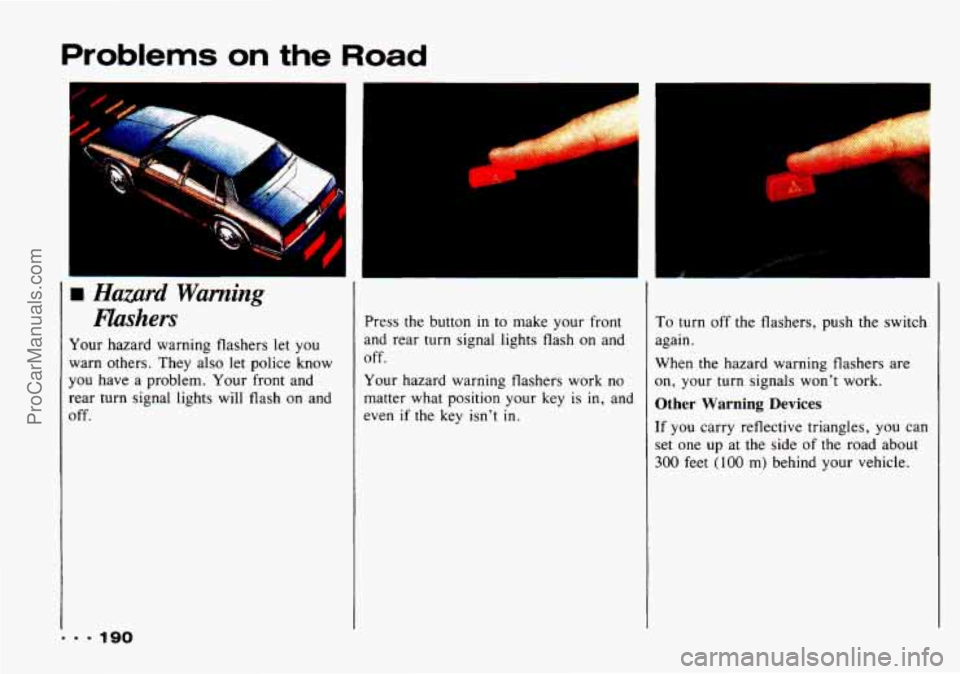

Problems on the Road
I Hazard Warning fishers
Your hazard warning flashers let you
warn others. They also let police know
you have a problem. Your front and
rear turn signal lights will flash on and
off.
Press th e button in t :o mak 'our fr 'on t
and rear turn signal lights flash on and
off.
Your hazard warning flashers work no
matter what position your key is in, and
even
if the key isn't in. To turn
again.
off the flashers,
push the switch
When the hazard warning flashers are
on, your turn signals won't work.
Other Warning Devices
If you carry reflective triangles, you can
set one up at the side
of the road about
300 feet (100 m) behind your vehicle.
ProCarManuals.com

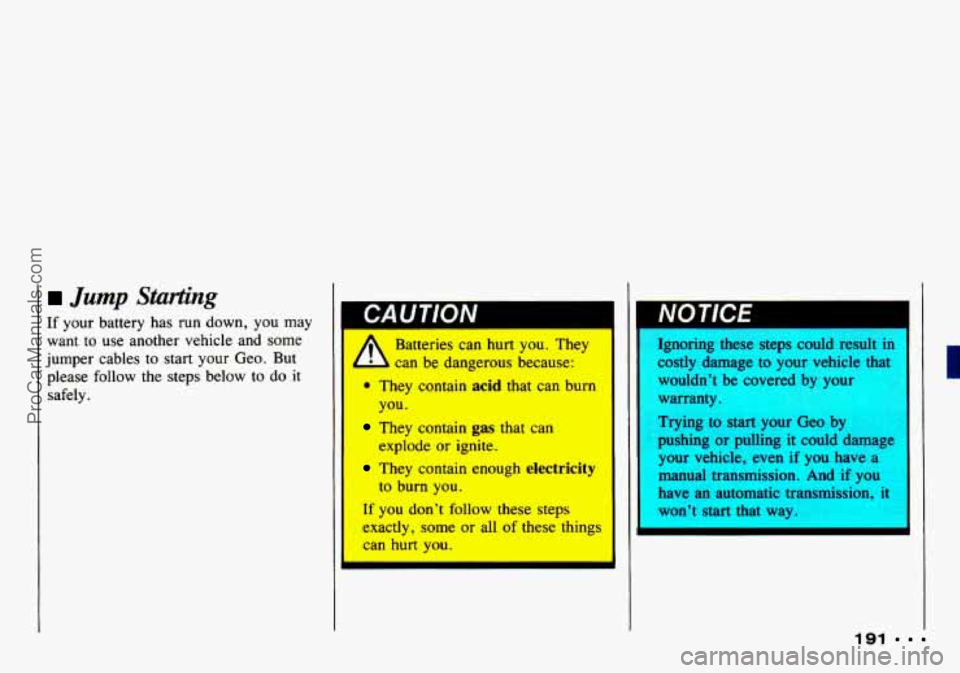

Jump Startirtg
If your battery has run down, you may
want to use another vehicle and
some
jumper cables to start your Geo. But
please follow the steps below to do it
safely. Batteries
can hurt you.
They
L can be dangerous because:
0 They contain acid that can burn
They contain gas that can
They contain enough electricity
If you don't follow these steps
exactly, some or
all of these thin
can hurt you.
you.
explode or ignite.
to burn you. Ignoring these steps could result in
costly
damage to your vehicle that
wouldn't be covered by your
warranty.
Trying
to start your Geo by
pushing or pulling it could damage
your vehicle, even if you have
a
manual transmission. And if you
have an automatic transmission, it
won't start that way.
191
ProCarManuals.com

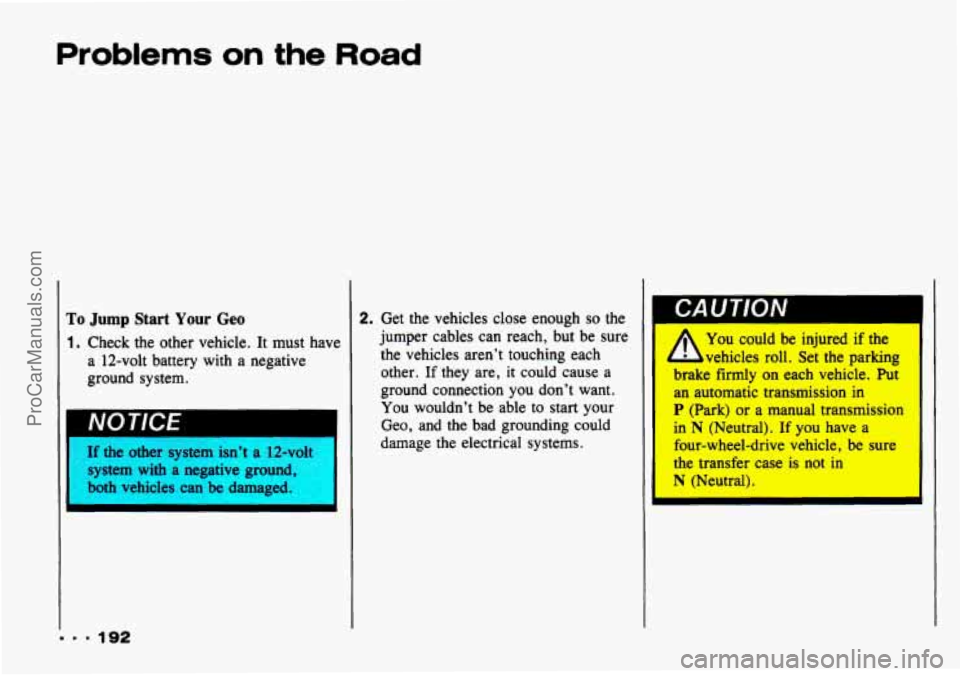

Problems on the Road
To Jump Start Your Geo
1. Check the other vehicle. It must have
a 12-volt battery with a negative
ground system.
If the other system isn’t a 12-volt I
system with a negative ground,
both vehicles can
be damaged.
I I
2. Get the vehicles close enough so the
jumper cables can reach, but be sure
the vehicles aren’t touching each
other.
If they are, it could cause a
ground connection you don’t want.
You wouldn’t be able
to start your
Geo, and the bad grounding could
darnage the electrical systems.
CAUTION -1
A
You could be injured if the
vehicles roll. Set the parking
brake firmly on each vehicle. Put
an automatic transmission in
P (Park) or a manual transmission
in
N (Neutral). If you have a
four-wheel-drive vehicle, be sure
the transfer case
is not in
N (Neutral).
ProCarManuals.com

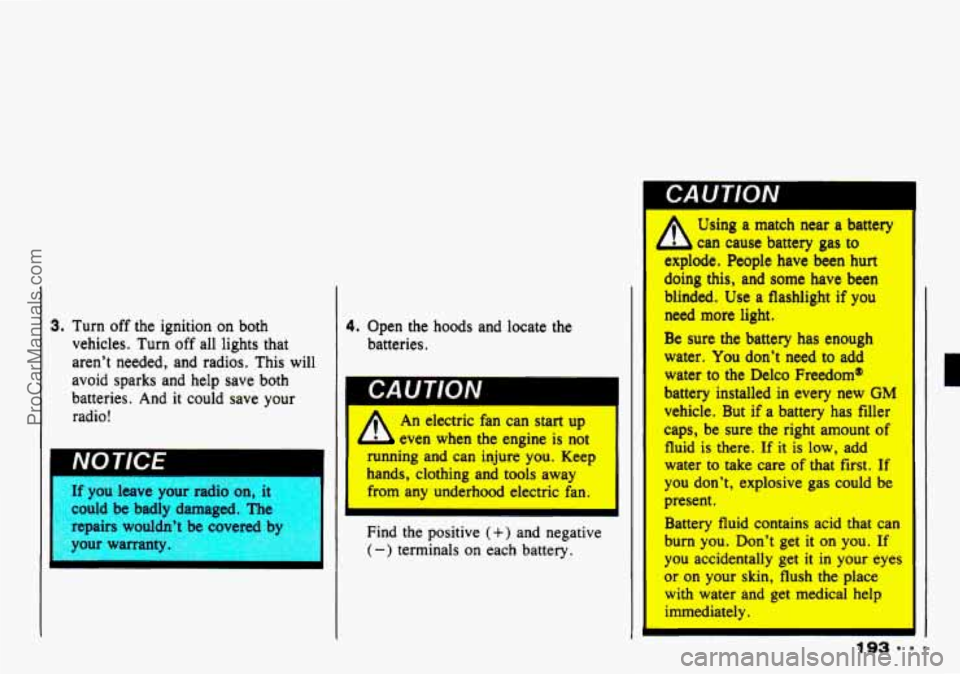

3. Turn off the ignition on both
vehicles. Turn
off all lights that
aren’t needed, and radios. This will
avoid sparks and help save both
batteries. And
it could save your
radio!
f you leave your radio on, it
ould be badly damaged.
Thc
?pairs wouldn’i 2 cove--? by
our warrant.
4. Open the hoods and locate the
batteries.
CA UTiON
A An electric fan can start up
- even when the engine is not
running and
can injure you. Keep
hands, clothing and tools away from any underhood electric fan.
Find the positive
(+) and negative
(-) terminals on each battery. Using
a match near
a battery
can cause battery gas to
explode. People
have been hurt
doing this, and some have been
blinded. Use a flashlight if
you
need more light.
Be sure the battery has enough
water. You don’t need to add
water to the Delco Freedom*
battery installed
in every new GM
vehicle. But if a battery has filler
caps, be sure the right amount of
fluid is there. If it is low, add
water
to take care of that first. If
you don’t, explosive gas could be
present.
Battery fluid contains acid that can
burn you. Don’t get
it on you. If
you accidentally get
it in your eyes
or on your skin, flush the place
with water and get medical help
immediately.
ProCarManuals.com

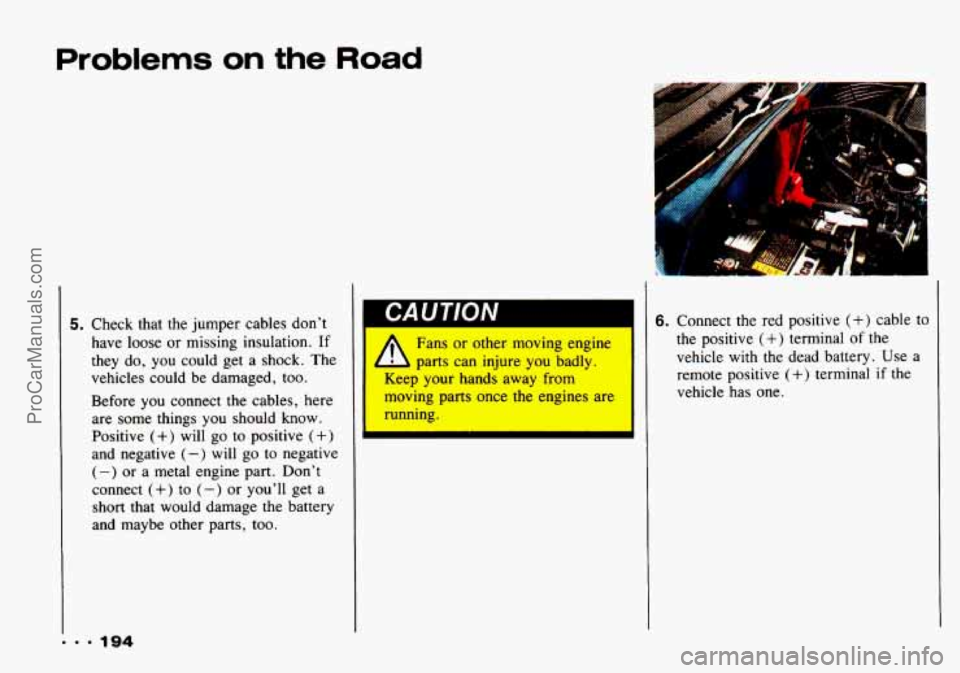

Problems on the Road
5. Check that the jumper cables don’t
have loose or missing insulation.
If
they do, you could get a shock. The
vehicles could be damaged, too.
Before you connect
the cables, here
are some things you should
know.
Positive (+) will go to positive (+)
and negative (-) will go to negative
(-) or a metal engine part. Don’t
connect
(+) to (-) or you’ll get a
short that would damage the battery
and maybe other parts, too.

Fans or other moving engine
parts can injure you badly.
-eep your hands away from
moving parts once the engines are
running.
6. Connect the red positive (+) cable to
the positive
(+) terminal of the
vehicle with the dead battery. Use a
remote positive
(+) terminal if the
vehicle has one.
ProCarManuals.com

1 L

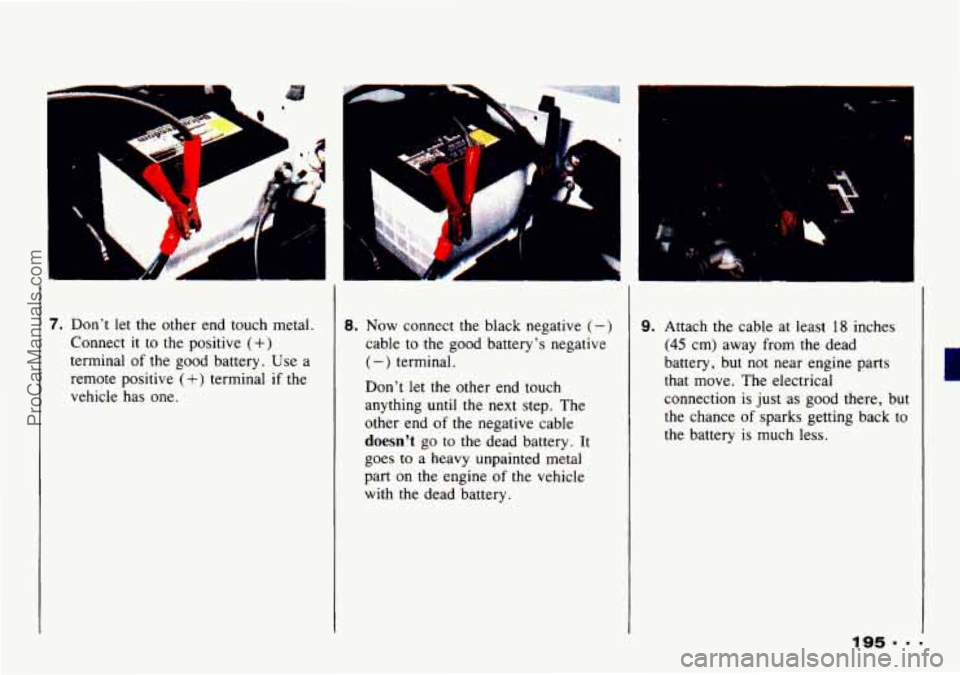

7. Don’t let the other end touch metal.
Connect
it to the positive (+)
terminal of the good battery. Use a
remote positive
(+) terminal if the
vehicle has one.
8. Now connect the black negative (-)
cable to the good battery’s negative
( -) terminal.
Don’t let the other end touch
anything
until the next step. The
other end
of the negative cable
doesn’t go to the dead battery. It
goes
to a heavy unpainted metal
part on the engine
of the vehicle
with the dead battery.
L
P
9. Attach the cable at least 18 inches
(45 cm) away from the dead
battery, but not near engine parts
that move. The electrical
connection is just as good there, but
the chance
of sparks getting back to
the battery
is much less.
ProCarManuals.com

Problems on the Road

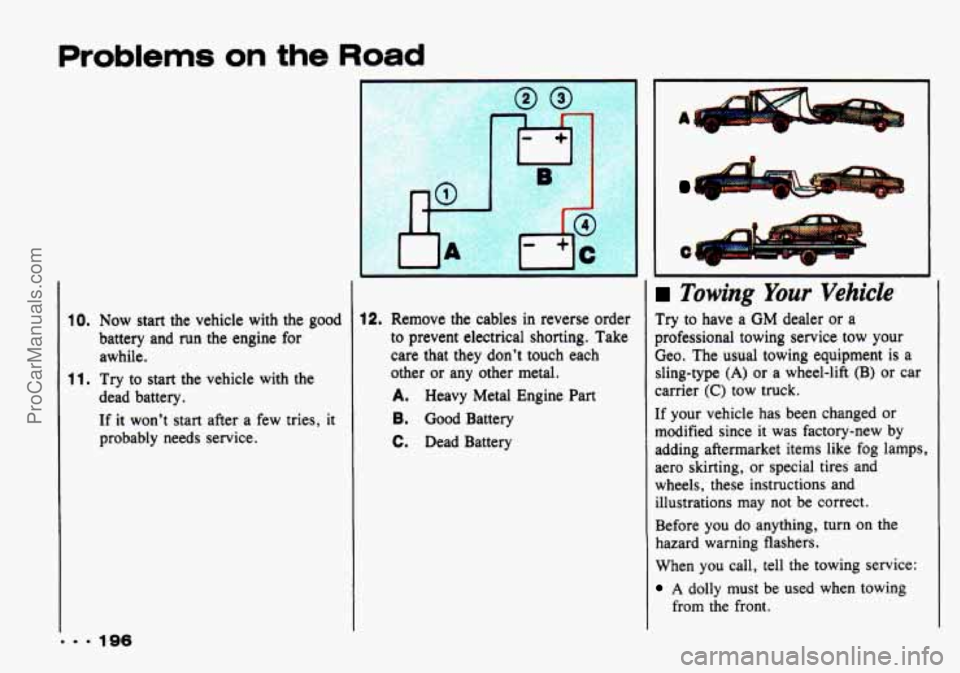

10. Now start the vehicle with the good
battery and
run the engine for
awhile.
dead battery.
If it won't start after a few tries, it
probably needs service.
11. Try to start the vehicle with the
I
I-
12. Remove the cables in reverse order
to prevent electrical shorting. Take
care that they don't touch each
other or any other metal.
A. Heavy Metal Engine Part
B. Good Battery
C. Dead Battery
r
L
Towing Your Vehicle
Try to have a GM dealer or a
professional towing service tow your
Geo. The usual towing equipment is
a
sling-type (A) or a wheel-lift (B) or car
carrier
(C) tow truck.
If your vehicle has been changed or
modified since it was factory-new by
adding aftermarket items like fog lamps,
aero skirting, or special tires and
wheels, these instructions and
illustrations may not be correct.
Before you
do anything, turn on the
hazard warning flashers.
When you call, tell the towing service:
A dolly must be used when towing
from the front.
ProCarManuals.com

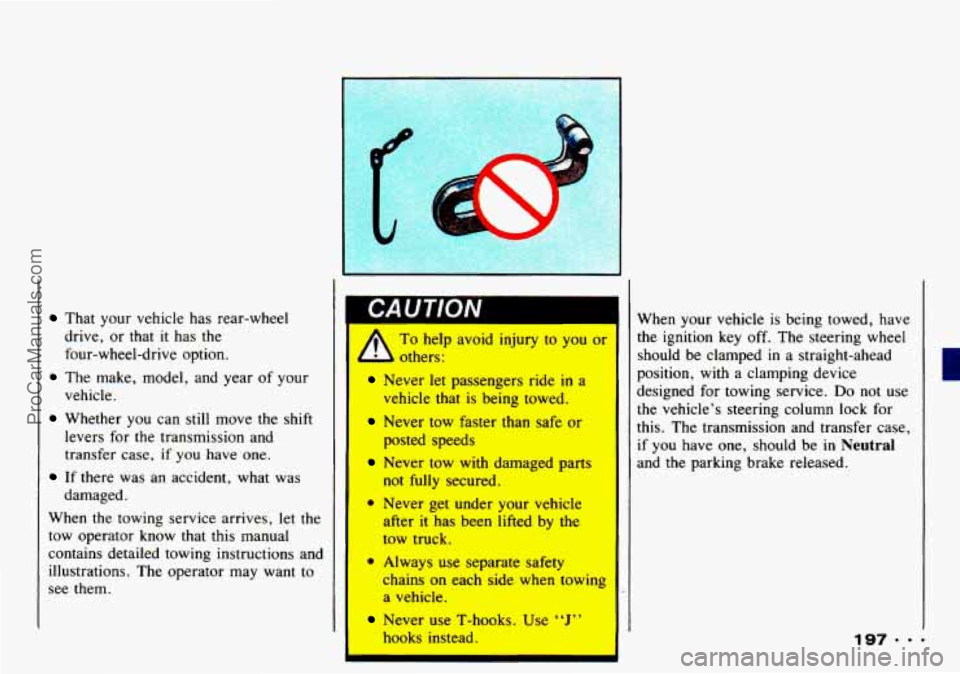

That your vehicle has rear-wheel
drive, or that
it has the
four-wheel-drive option.
vehicle.
The make, model, and year of your
Whether you can still move the shift
levers for the transmission and
transfer case,
if you have one.
If there was an accident, what was
damaged.
When the towing service arrives, let the
tow operator know that this manual
contains detailed towing instructions and
illustrations. The operator may want to
see them.
* T- help avoid injury to you or
Never let passengers ride in a
vehicle that is being towed.
Never tow faster than safe or
posted speeds
Never tow with damaged parts
not fully secured.
0 Never get under your vehicle
after it
has been lifted by the
tow truck.
chains on each side when towing
a vehicle.
hooks instead.
* Always use separate safety
Never use T-hooks. Use “J”
When your vehicle is being towed, have
the ignition key off. The steering wheel
should be clamped
in a straight-ahead
position, with
a clamping device
designed for towing service.
Do not use
the vehicle’s steering column lock for
this. The transmission and transfer case,
if you have one, should be in Neutral
and the parking brake released.
ProCarManuals.com

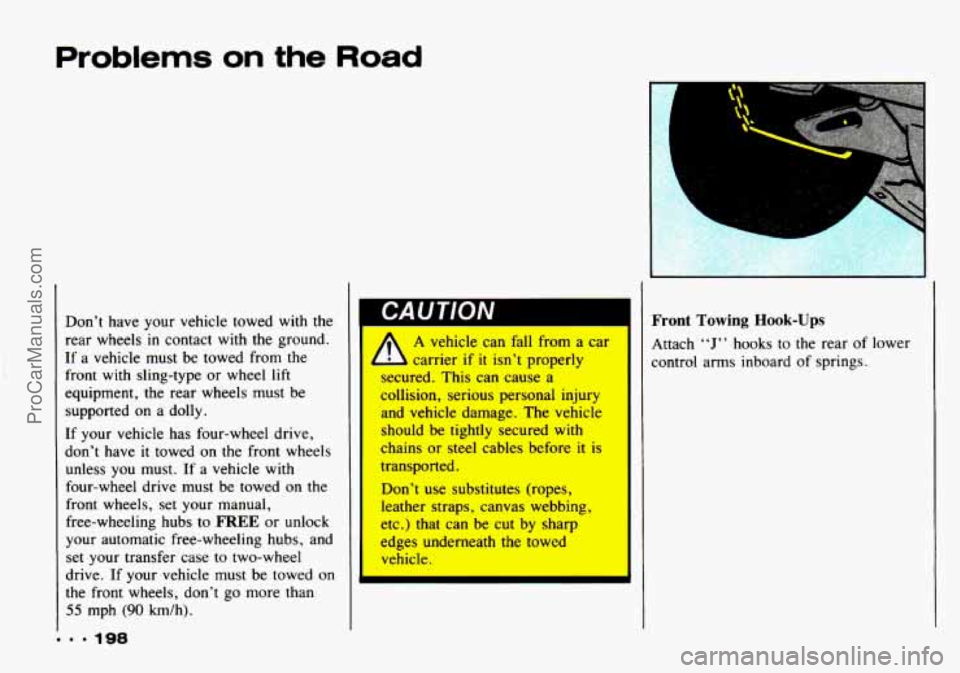

Problems on the Road
front with sling-type or wheel lift
equipment, the rear wheels must be
supported on a dolly.
If your vehicle has four-wheel drive,
don’t have it towed on the front wheels
unless you must. If a vehicle with
four-wheel drive must be towed on the
front wheels, set your manual,
free-wheeling hubs to
FREE or unlock
your automatic free-wheeling hubs, and
set your transfer case to two-wheel
drive.
If your vehicle must be towed on
the front wheels, don’t go more than
55 mph (90 km/h).
= 9.198
CAUTION Don’t have your vehicle towed with the I
rear wheels in contact with the ground.
If
a vehicle must be towed from the I A vehicle can fall from a car A
’ carrier if it isn’t properly
,,cured. This can cause a
collision, serious personal injury
and vehicle damage. The vehicle
should be tightly secured with
chains or steel cables before it is
transported.
Don’t use substitutes (ropes,
leather straps, canvas webbing,
etc.) that can be cut by sharp
edges underneath
the towed
vehicle.
Front Towing Hook-Ups
Attach “J” hooks to the rear o
control arms inboard of springs
If lower
