1. Hold the brake pedal down with your
right foot and set the parking brake.
2. Move the shift lever into “P” (Park)
position like this:
0 Hold in the button on the lever,
and push the lever all
the way
toward the front of your vehicle.
3. If you have four-wheel drive, be sure
the transfer case is
in a drive gear -
not in “N” (Neutral).
4. Move the key to “LOCK.”
5. Remove the key and take it with you.
If you can walk away from your
vehicle
with the key in your hand,
your vehicle is
in “P” (Park).
Leaving Your Vehicle with the
Engine Running
(AUTOMATIC TRANSMISSION)
A CAUTION:
Xt can be dangerous to leave your
vehicle with the engine running. Your
vehicle could move suddenly if the
shift lever is not fully in “P” (Park)
with the parking brake firmly set.
I€ YOU have four-wheel drive and
your transfer case is in “N” (Neutral),
your vehicle
will be free to roll, even
if your shift lever
is in “F‘” (Park). So
be sure the transfer case is in a drive
gear
- not in “N’ (Neutral).
And, if you leave the vehicle with the
engine running, it
could overheat and
even catch
fie. You or others could
be injured. Don’t leave your vehicle
with the engine running unless
you
have to.
Torque Lock
(AUTOMATIC TRANSMISSION)
If you are parking on a hill and you don’t
shift your transmission into “P” (Park)
properly, the weight
of the vehicle may
put too much force
on the parking pawl in
the transmission. You may find it difficult
to pull the shift lever out of “P” (Park).
This is called ”torque lock.” To prevent
torque lock, set the parking brake and
then shift into “P“ (Park) properly before
you leave the driver‘s seat. To find out
how, see “Shifting into ’P7 (Park)’‘ in the
Index.
When you are ready
to drive, move the
shift lever
out of “P?’ (Park) BEFORE you
release the parking brake.
If “torque lock” does occur, you may
need
to have another vehicle push yours a
little uphill
to take some of the pressure
from
the transmission, so you can pull the
shift lever out of ’bP’’ (Park).
Shifting out of P (Park)
(AUTOMATIC TRANSMISSION)
Your Geo has a brake-transmission shift
interlock. You have
to fully apply your
regular brake before
you can shift from
.‘P’’ (Park) when the ignition is in the
49 ... ProCarManuals.com

Features and Controls
“ON” position. See “Automatic
Transmission”
in the Index.
If you cannot shift out of “P” (Park), ease
pressure on the shift lever
- push the
shift lever all the
way into “P” (Park) and
release the shift lever button as you
maintain brake application. Then press
the shift lever button and move the shift
lever into the gear you wish.
/-
8
If you ever hold the brake pedal down bul
still can’t shift out of “P’ (Park), try this:
1. Apply And hold the brake until the en(
of step
6.
2. If the engine is running, shut it off.
Turn the key to
“ON” or “ACC.”
3. Find the access hole cover (A) on the
driver’s side
of the console, near the
shift lever.
4. Remove the screw (B) and cover (A).
5. Inside you’ll see the return plate (C).
Using your finger, move the return
plate toward the rear of the vehicle
until it stops.
6. Move the shift lever into the gear you
want.
7. Have the vehicle fixed as soon as you
can.
Parking Your Vehitle
(MANUAL TRANSMISSION)
Before you get out of your vehicle,
put your manual transmission in “R”
(Reverse) and firmly apply the parking
brake.
If you have four-wheel drive, be sure
your transfer case is
in a drive gear.
Your vehicle could roll
if it isn’t.
If your vehicle is equipped to tow a
trailer, see “Towing a Trailer” in the
Index.
... 50
ProCarManuals.com

A green arrow on the instrument panel
will flash in the direction of the turn or
lane change.
To signal a lane change, just raise or
lower the lever
until the green arrow starts
to flash. Hold
it there until you complete
your lane change. The lever
will return by
itself
when you release it.
As you signal a turn or a lane change, if
the arrows don’t flash but just stay on, a
signal bulb may be burned out and other
drivers
won’t see your turn signal.
If a bulb is burned out, replace
it to help
avoid an accident. If the green arrows
don’t go on at all when you signal a turn,
check the fuse (see “Fuses and Circuit
Breakers” in the Index) and for
burned-out bulbs.
Operation of Lights
Although your vehicle’s lighting system
(headlights, parking lights, fog lamps,
sidemarker lights and taillights) meets all
applicable federal lighting requirements,
certain states and provinces may apply
their own lighting regulations that may
require special attention before you
operate these lights.
For example, some jurisdictions may
require that you operate your fog lamps
only when your lower beam headlights
are also
on, or that headlights be turned
on whenever you must use your
windshield wipers. In addition, most
jurisdictions prohibit driving solely
with
parking lights, especially at dawn or dusk.
It is recommended that you check with
your own state or provincial highway
authority for applicable lighting
regulations. Turn the
outside part
of the lever to
control the lights. There are three
positions
for the light switch.
OFF: All lights are off.
-300:: The parking lights, taillights,
license plate light and the instrument
panel lighting come on. The
headlights are
off.
/, , :The headlights and all other
operating lights come on. . ‘8’’-
Lights On Reminder
If you turn the ignition off, remove the
key, open the door and leave
the lights on,
a chime will remind you to turn off your
lights.
55 ... ProCarManuals.com

Features and Controls
3utside Manual Adjust Mirrors
The mirrors should be adjusted by hand
io that you can just see the side of your
Iehicle, when you are sitting in a
:omfortable position.
Storage and
Compartments
Glove Box
To open the glove box, pull the latch
toward you. Use
your key to lock and
unlock the glove
box.
loor Storage Compartments
lach door has a storage compartment.
... 60
ProCarManuals.com

Features and Controls
Tachometer
The tachometer shows engine speed in
thousands of revolutions per minute
(rpm).
You can use it while driving to
select correct shift points. The tachometel
may not return to zero when the engine
is
not running.
NOTICE:
Do not operate the engine with the
tachometer in
the red area, or engine
damage may occur.
r
I:
!
1
1
1
... 68
and Indicators
This section describes the warning lights
and gages that may be on your vehicle.
The pictures will help you locate them.
Warning lights and gages can signal that
something
is wrong before it becomes
serious enough to cause
an expensive
repair or replacement. Paying attention to
your warning lights and gages could also
save you or others from injury.
Warning lights go
on when there may be
or is a problem with one
of your vehicle’s
functions.
As you will see in the details
on the next few pages, some warning
lights come
on briefly when you turn the
ignition key just to let you know they’re
working. If you are familiar with this
section, you should not be alarmed when
this happens.
Gages can indicate when there may be or
is a problem with one of your vehicle’s
functions. Often gages and warning lights
work together to
let you know when
there’s a problem with your vehicle.
When one of the warning lights comes
on
and stays on when you are driving, or
when one
of the gages shows there may be
a problem, check the section that
tells
you what to do about it. Please follow the
manual’s advice. Waiting to
do repairs
can be costly
- and even dangerous. So
please get to know your warning lights
and gages. They’re a big help.
ProCarManuals.com

According to the American Medical
Association,
a 180-pound (82 kg) person
who drinks three 12-ounce (355 ml)
bottles
of beer in an hour will end up with
a BAC of about 0.06 percent. The person
would reach the same BAC by drinking
three 4-ounce (120 ml) glasses of wine or
three mixed drinks if each had
1 - 1/2
ounces (45 ml)
of a liquor like whiskey,
gin or vodka.
It’s
the amount of alcohol that counts. For
example,
if the same person drank three
double martinis
(3 ounces or 90 ml of
liquor each) within an hour, the person‘s
BAC would be close
to 0.12 percent. A
person who consumes food just before
or
during drinking will have a slightly lower
BAC level.
DRINKING THAT Will
IN THE TIME SHOWN
RESULT IN A BAC OF .05%
1 HOURS
’ HOURS
HOUR
100 120 la0 160 160 200 220 240
BODY WEIGHT IN POUNDS
The law in most U.S. states sets the legal
limit at
a BAC of 0.10 percent. In Canada
the limit is 0.08 percent, and
in some
other countries it’s lower than that. The
BAC will be over 0.10 percent after three
to six drinks (in one hour). Of course, as
we’ve seen.
it depends on how much
alcohol is
in the drinks, and how quickly
the person drinks them. But it’s very important
to keep
in mind
that
the ability to drive is affected well
below a RAC of
0.10 percent. Research
shows that the driving skills
of many
people are impaired at a BAC
approaching 0.05 percent, and that the
effects are worse at night.
All drivers are
impaired at BAC levels above 0.05
percent. Statistics show that the chance
of
being in an accident increases sharply for
drivers who have a BAC
of 0.05 percent
or above.
A driver with a BAC level of
0.06 percent (three beers in one hour for a
180-pound or 82 kg person) has doubled
his
or her chance of having an accident.
At a BAC level of 0.10 percent, the
chance of that driver having an accident
is
six times greater; at a level of 0.15
percent, the chances are twenty-five times
greater! And, the body takes about
an
hour to rid itself of the alcohol in one
drink. No amount of coffee or number of
cold showers will speed that up.
‘‘I’ll be careful” isn’t the right answer.
What
if there’s an emergency, a need to
take sudden action, as when
a child darts
into the street? A person with
a higher
BAC might not be able
to react quickly
enough
to avoid the collision.
101 . m.
ProCarManuals.com

Traveling to Remote Areas
It makes sense to plan your trip,
especially when going to a remote area.
Know the terrain and plan your route. You
are much less likely to get bad surprises.
Get accurate maps of trails and terrain.
Try to learn of any blocked or closed
roads.
It’s also a good idea to travel with at least
one other vehicle.
If something happens
to one of them, the other can help quickly.
Does your vehicle have a winch? If
so, be
sure to read the winch instructions. In a
remote area, a winch can be handy if you
get stuck. But you’ll want to know how to
use it properly.
Getting Familiar with Off-Road
Driving
It’s a good idea to practice in an area
that’s safe and close to home before you
go into the wilderness. Off-road driving
does require some new and different
driving skills. Here’s what we mean.
Tune your senses to different kinds of
signals. Your eyes, for example, need to
constantly sweep the terrain for
unexpected obstacles. Your ears need to
listen for unusual tire or engine sounds. With
your arms, hands, feet, and body
you’ll need to respond to vibrations and
vehicle bounce.
Controlling your vehicle is the key to
successful off-road driving. One
of the
best ways to control your vehicle is to
control your speed. Here are some things
to keep in mind. At higher speeds:
0 you approach things faster and you
have less time to scan the terrain for
obstacles.
0 you have less time to react.
0 you have more vehicle bounce when
you drive over obstacles.
0 you’ll need more distance for braking,
especially since you’re on an unpaved
surface.
Scanning the Terrain
Off-road driving can take you over many
different kinds of terrain. You need to be
familiar with the terrain and its many
different features. Here are some things to
consider.
Surface Conditions. Off-roading can
take you over hard-packed dirt, gravel,
rocks, grass, sand, mud, snow or ice.
Each of these surfaces affects the steering,
acceleration, and braking of your vehicle
in different ways. Depending upon the
kind of surface you are on, you may
experience slipping, sliding, wheel
spinning, delayed acceleration, poor
traction, and longer braking distances.
Surface Obstacles. Unseen or hidden
obstacles can be hazardous.
A rock, log,
hole, rut, or bump can startle you if
you’re not prepared for them. Often these
obstacles are hidden by grass, bushes,
snow or even the rise and fall
of the
terrain itself. Here are some things to
consider:
0 Is the path ahead clear?
0 Will the surface texture change
abruptly up ahead?
109 ...
ProCarManuals.com

Your Driving and the Road
2. Set the parking brake.
3. If your Geo is a four-wheel-drive
vehicle, set your manual freewheeling
hubs
to ”FREE” or unlock your
automatic I‘reewheeling hubs. See “Four-wheel Drive”
in the Index.
4. Turn the ignilion key to ”ACC’‘ to
unlock the steering wheel.
5. Clamp the steering wheel in a
straight-ahead position, with a
clamping device designed for towing.
6. Release the parking brake.
I NOTICE:
I
Make sure that the towing speed does
not exceed
55 mph (90 km/h), or
your Geo could be badly damaged.
~~
Towing Your Geo from the Front
NOTICE:
If your vehicle has automatic free-
wheeling hubs
or two-wheel drive,
do not tow
it on all four wheels. If
you do, your transmission could be
damaged.
If you have a four-wheel-drive vehicle
with manual freewheeling hubs, it can be
towed from the front with
all four wheels
on the ground. Follow these steps:
1. Set the parking brake.
2. Turn the ignition key to “ACC” to
unlock the steering wheel.
3. Shift your automatic transmission into
“P” (Park), or your manual
transmission into “2” (Second).
4. Shift the transfer case to “N”
(Neutral).
“Four-wheel Drive”
in the Index.
5. Set the hubs to “FREE.” See
6. Reledse the parking brake,
Stop towing every 200 miles
(300 km)
and start the engine. Leave the transfer
case shift lever
in ”N” (Neutral). Shift
your automatic transmission
to “D”
(Drive); leave a manual transmission
in
“2” (Second) and release the clutch. Run
the engine
at medium speed for one
minute to circulate the oil in the transfer
case. Turn the ignition key to
“ACC.”
Now, you can continue towing your Geo.
I
NOTICE:
I
Make sure the towing speed does not
exceed
SO mph (80 km/h), or your
Geo could be badly damaged.
I
. . .130
ProCarManuals.com

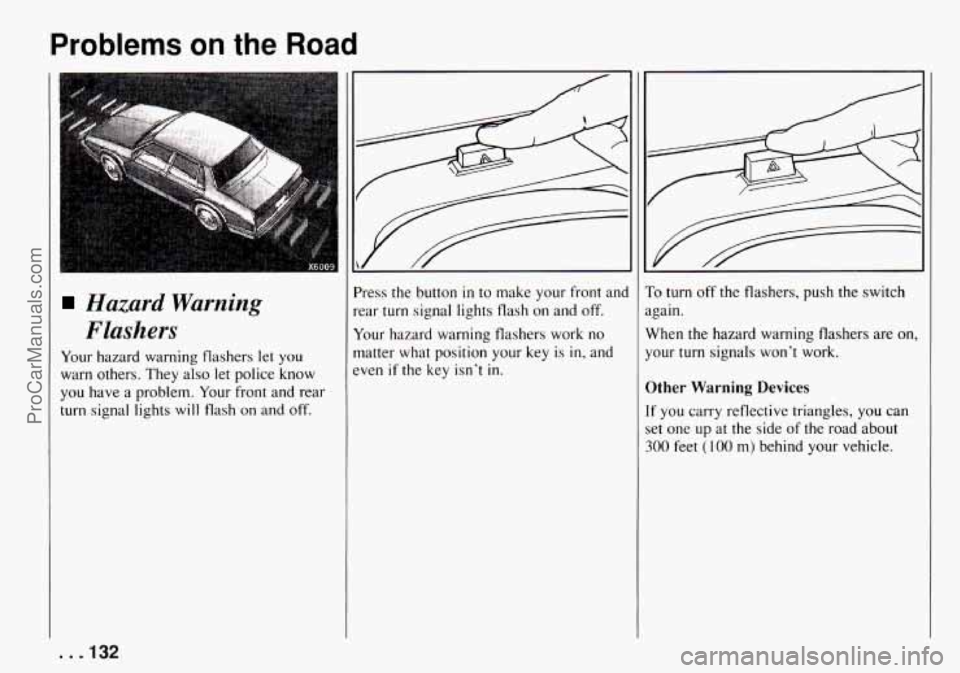

Problems on the Road
j
Hazard Warning
Flashers
Your hazard warning flashers let you
warn others. They also let police know
you have a problem. Your front and rear
turn signal lights
will tlash on and off. Press the button
in to make your front and
rear
turn signal lights flash on and off.
Your hazard warning flashers work no
matter what position your key
is in, and
even
if the key isn't in.
To turn off the flashers, push the switch
again.
When the hazard warning flashers are on,
your turn signals won't work.
Other Warning Devices
If you carry reflective triangles, you can
set one up at the side
of the road about
300 feet (100 m> behind your vehicle.
. . .I32
ProCarManuals.com

G
A CAUTION:
To help avoid injury to you or others:
0
i.
0
0
0
0
Never let passengers ride in a
vehicle that
is being towed.
Never
tow faster than safe or
Never tow with damaged parts
not fully secured.
Never get under
your vehicle
after
it has been lifted by the tow
truck.
Always use seperate safety
chains
on each side when towing
a vehicle.
Never use
T-hooks. Use “J”
hooks instead.
posted speeds.
When your vehicle is being towed, have
the ignition key
off. The steering wheel
should
be clamped in a straight-ahead
position, with a clamping device designed
for towing service.
Do not use the
vehicle’s steering column
lock for this.
The transmi.ssion and transfer case,
if you
have one, should be in “Neutral” and the
parking brake released.
Don’t have
your vehicle towed with the
rear wheels
in contact with the ground. If
a vehicle must be towed from the front
with sling-type or wheel lift equipment,
the rear wheels
must be supported on a
If your vehicle has four-wheel drive,
don’t have
it towed on the front wheels
unless
you must. If a vehicle with
four-wheel drive
must be towed on the
front wheels,
set your tnanual,
freewheeling hubs
to “FREE” or unlock
your automatic freewheeling hubs, and set
your transfer case to two-wheel drive. If
your vehicle must be towed on the front
wheels, don‘t
go more than 55 rnph (90
km/h).
dolly.
131 . . . ProCarManuals.com
