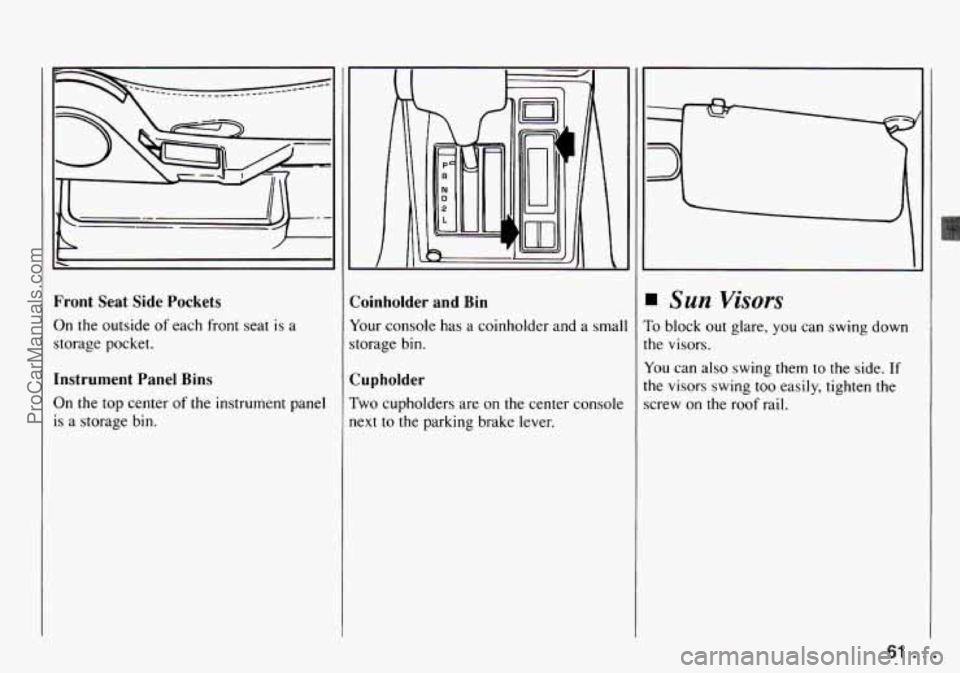

Front Seat Side Pockets
On the outside
of each front seat is a
storage pocket.
Instrument Panel Bins
On
the top center of the instrument panel
is a storage bin. Coinholder
and Bin
Your console
has a coinholder and a smal
storage bin.
Cupholder
Two cupholders are on the center console
next to the parking brake lever.
Sun Visors
To block out glare, you can swing down
the visors.
You can also swing them to the side.
If
the visors swing too easily, tighten the
screw on the roof rail.
61 ...
ProCarManuals.com

Features and Controls
a problem with the fuse or bulb. Have
it fixed right away.
Sometimes when the engine is idling
at a stop, the light may blink on and
off. This is normal.
If you make a hard stop, the light may
come on for a moment. This is
normal.
A CAUTION:
Don't keep driving if the oil pressure
is low, If' you do, your engine can
be~ome so hot that it catches fae.
You UT ol;krers could be burned.
Check your oil as SQOD as possible
and have yaw vehicle serviced.
NOTICE:
Damage to your engine from
neglected oil problems can be costly
and is not covered by your warranty.
laytime Running Lights (DRL)
ndicator Light (Canada)
F your vehicle was first sold, when new,
I Canada, you will have this light on the
xtrument panel.
It goes on whenever the
laytime Running Lights are on.
Convertible Top (OPTION)
Your convertible top features a sunroof, a
removable rear window and a removable
canvas top.
A CAlJTtON:
... 72
ProCarManuals.com

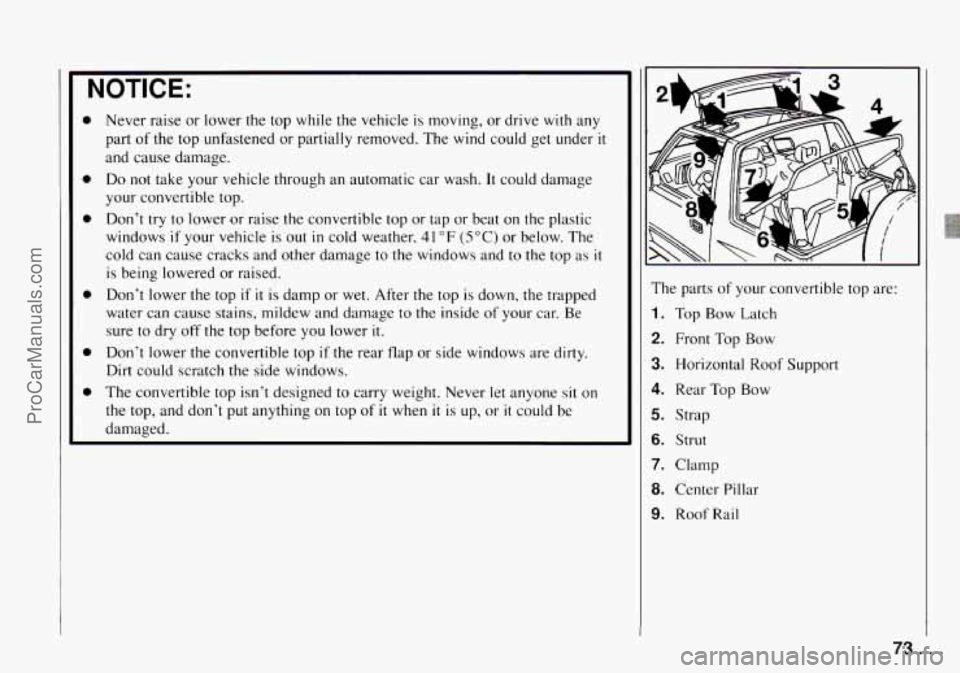

NOTICE:
e
e
e
0
e
e
Never raise or lower the top while the vehicle is moving, or drive with any
part of the top unfastened or partially removed. The
wind could get under it
and cause damage.
Do
not take your vehicle through an automatic car wash. It could damage
your convertible top.
Don’t try
to lower or raise the convertible top or tap or beat on the plastic
windows if your vehicle is out in cold weather,
4 1 OF (5°C) or below. The
cold can cause cracks and other damage
to the windows and to the top as it
is being lowered or raised.
Don’t lower the top
if it is damp or wet. After the top is down, the trapped
water
can cause stains, mildew and damage to the inside of your car. Be
sure
to dry off the top before you lower it.
Don’t lower the convertible top
if the rear flap or side windows are dirty.
Dirt could scratch the side windows.
The convertible top isn’t designed to carry weight. Never
let anyone sit on
the top, and don’t put anything on top
of it when it is up, or it could be
damaged. The
parts of your convertible top are:
1. Top Bow Latch
2. Front Top Bow
3. Horizontal Roof Support
4. Rear Top Bow
5. Strap
6. Strut
7. Clamp
8. Center Pillar
9. Roof Rail
73 ..
ProCarManuals.com

Features and Controls

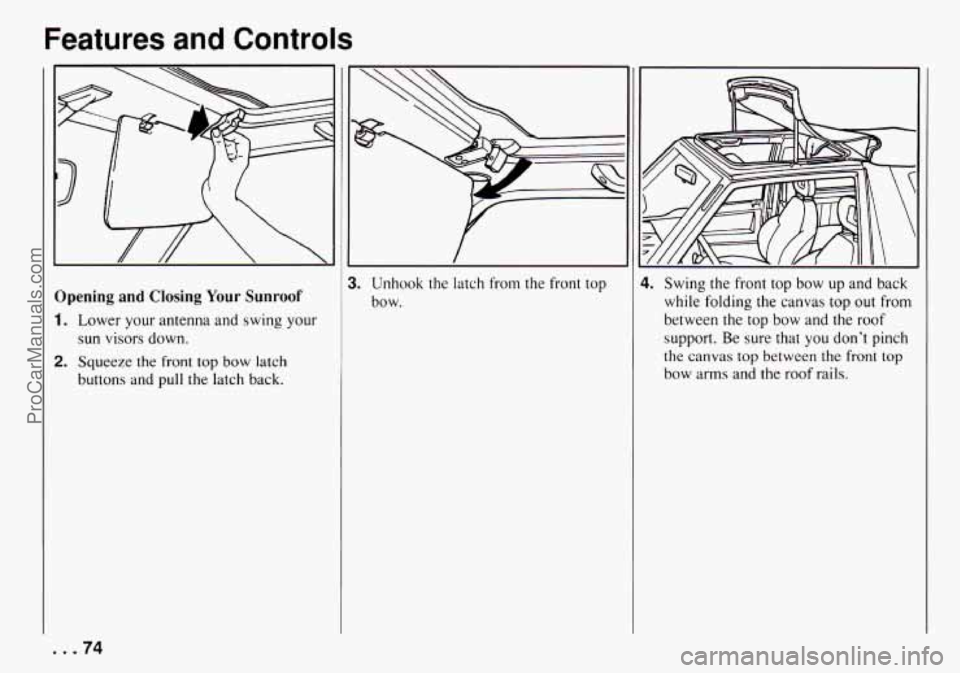

Opening and Closing Your Sunroof
1.
2.
Lower your antenna and swing your
sun visors down.
Squeeze the front
top bow latch
buttons and pull the latch back.
I 'I
3. Unhook the latch from the front top 4. Swing the front top bow up and back
bow. while-folding the canvas top
out from
between
the top bow and the roof
support. Be sure that you don't pinch
the canvas
top between the front top
bow arms and the roof rails.
... 74
ProCarManuals.com

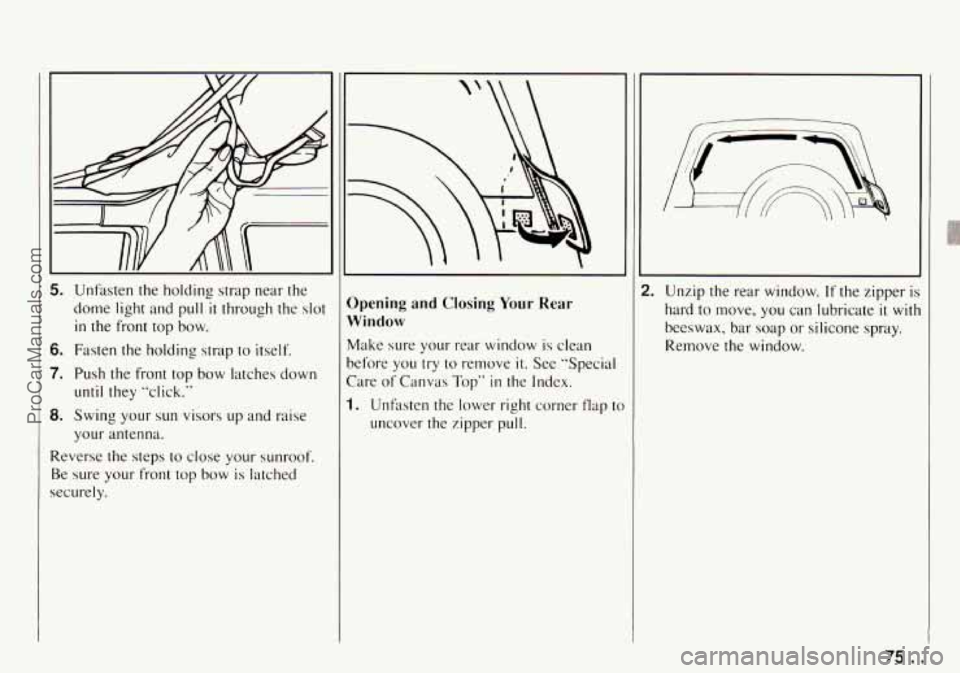

5. Unfasten the holding strap near the
dome light and pull
it through the slot
in the front top bow.
6. Fasten the holding strap to itself.
7. Push the front top bow latches down
8. Swing your sun visors up and raise
Reverse the steps
to close your sunroof.
Be sure
your front top bow is latched
securely. until they “click.“
your antenna.
“\
Opening and Closing Your Rear
Window
Make sure your rear window is clean
before you
try to remove it. See “Special
Care
of Canvas Top” in the Index.
1. Unfaten the lower right corner flap t(
uncover the zipper pull. Unzip the rear window.
If the zipper is
hard to move, you can lubricate it with
beeswax, bar soap or silicone spray.
Remove the window.
/3.. . ProCarManuals.com

Features and Controls
Y

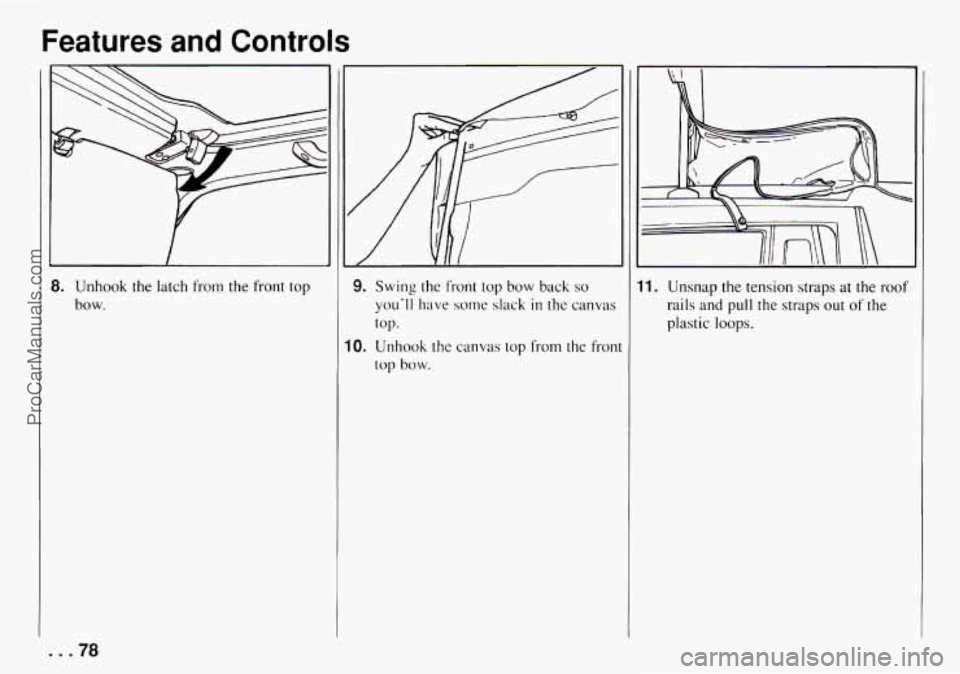

8. Unhook the latch from the front top
bow.
J
9. Swing the front top bow back so
you'll have some slack in the canvas
top.
top
bow.
10. Unhook the canvas top from the front
11. Unsnap the tension straps at the roof
rails and pull the straps out of the
plastic loops.
... 78
ProCarManuals.com

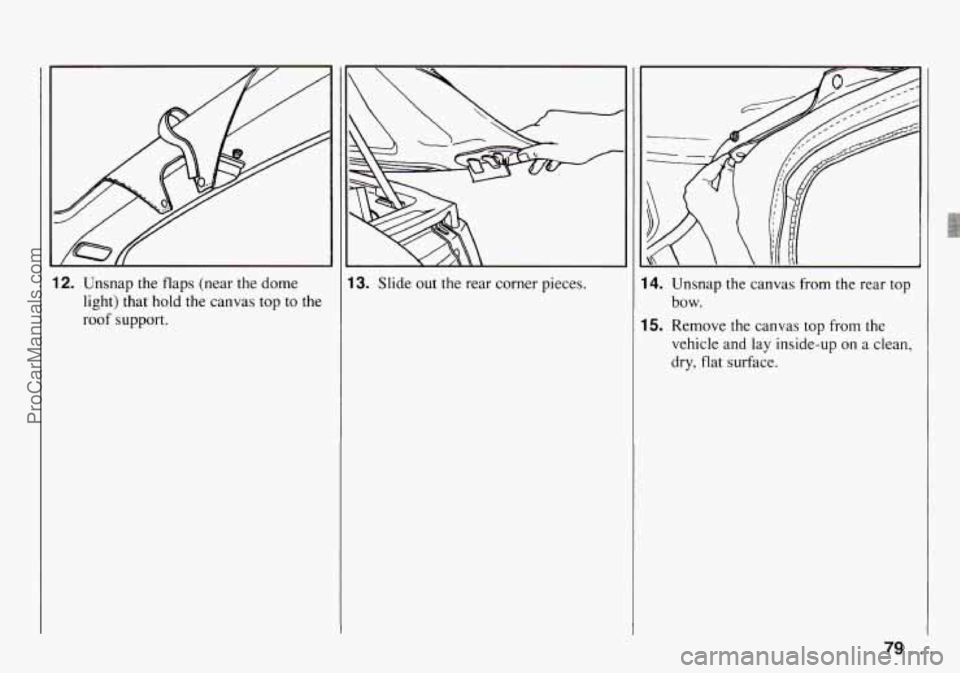

12. Unsnap the flaps (near the dome
light) that hold the canvas top to the
roof support.
13. Slide out the rear corner pieces. 14. Unsnap the canvas from the rear top
15. Remove the canvas top from the
bow.
vehicle and lay inside-up on a clean,
dry, flat surface.
79 ...
