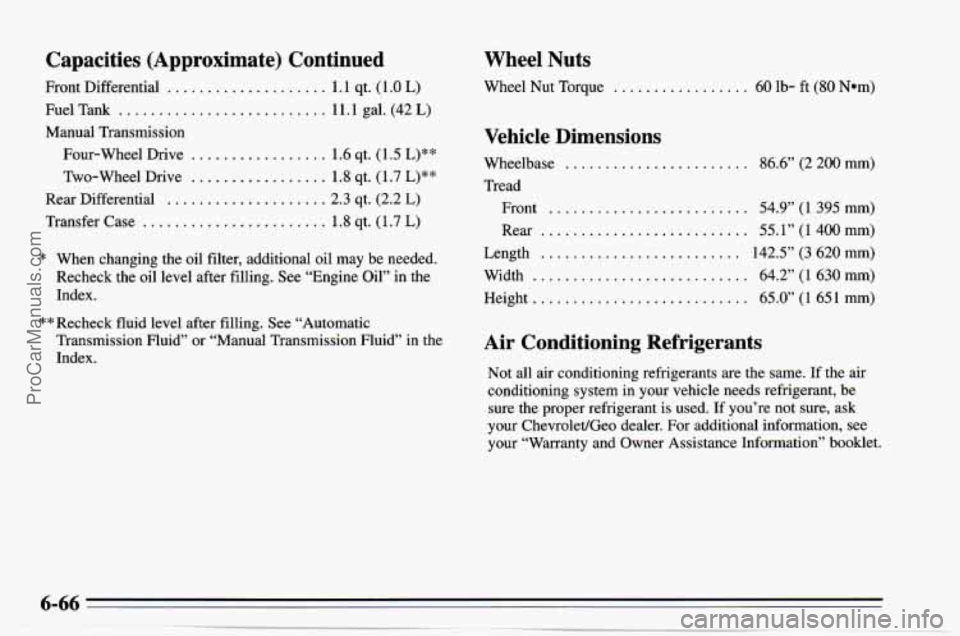

dimensions CHEVROLET TRACKER 1995 Owners Manual

Capacities (Approximate) Continued
Front Differential .................... 1.1 qt. (1 .O L)
Fuel Tank .......................... 11.1 gal. (42 L)
Manual Transmission
Four-wheel Drive
................. 1.6 qt. (1.5 L)**
Two-Wheel Drive ................. 1.8 qt. (1.7 L)**
Rear Differential .................... 2.3 qt. (2.2 L)
Transfer Case ....................... 1.8 qt. (1.7 L)
* When changing the oil filter, additional oil may be needed.
Recheck the oil level after filling. See “Engine Oil” in the
Index.
** Recheck fluid level after filling. See “Automatic
Transmission Fluid” or “Manual Transmission Fluid” in the
Index.
Wheel Nuts
Wheel Nut Torque ................. 60 lb- ft (80 Nom)
Vehicle Dimensions
Wheelbase ....................... 86.6” (2 200 mm)
Tread Front
......................... 54.9” (1 395 mm)
Rear
.......................... 55.1” (1 400 mm)
Length
......................... 142.5” (3 620 mm)
Width
........................... 64.2” (1 630 mm)
Height
........................... 65.0” (1 65 1 mm)
Air Conditioning Refrigerants
Not all air conditioning refrigerants are the same. If the air
conditioning system
in your vehicle needs refrigerant, be
sure the proper refrigerant is used. If you’re not sure, ask
your Chevrolet/Geo dealer.
For additional information, see
your “Warranty and Owner Assistance Information” booklet.
ProCarManuals.com

Front ....................................... 5-8
Rear ....................................... 5-10
Towing. Recreational Vehicle ..................... 4-40
Trailer Tongue Weight ........................... 4-46
Trailer Towing
................................. 4-44
Brakes
..................................... 4-48
Driving on Grades
............................ 4-50
Driving with a Trailer
......................... 4-48
Hitches
.................................... 4-47
Maintenance
................................ 4-51
Parking on Hills
............................. 4-50
Safety Chains
............................... 4-47
Turn Signals ................................ 4-49
Total Weight
on Your Vehicle’s Tires ............. 4-47
Towing a Trailer
............................. 4-44
Weight
of a Trailer ........................... 4-46
Transmission Fluid. Automatic
.................... 6- 19
Transmission Fluid. Manual ....................... 6-22
Transfer Case
.................................. 2- 19
Turn Signal and Lane Change Indicator ............. 2-28
Turn SignalLamps Control/Headlamp Beam Lever
.... 2-28
Turn Signals When Towing a Trailer
................ 4-49
Trip Odometer
................................. 2-42
Underbody Flushing
........................... 7-5 1
Underbody Maintenance ......................... 6-57
Using the Recovery
Hooks ....................... 5-32
Vehicle Damage Warnings
......................... iv
Vehicle Dimensions Chart ........................ 6-66
Vehicle Identification Number
(VIN) ............... 6-59
Vehicle Loading ................................ 4-42
Vehicle Storage ................................ 6-34
Vehicle Symbols ................................... v
Vehicle. Control of a ............................. 4-5
Vehicle. Leaving Your
............................ 2-3
Vehicles First Sold
in Canada 11
Ventilation System. Flow-Through .................. 3-4
Ventilation Tips
................................. 3-4
Vision. Night
.................................. 4-27
Visors. Sun
.................................... 2-35
.. ........................
warning Devices ............................... 5-2
Warning Lights. Gages and Indicators
............... 2-43
Washing Your Vehicle
........................... 6-53
Water. Driving Through Deep Standing ............. 2-11
Wheel
Nut Torque ......................... 5-29. 6-66
Wheel Replacement
............................. 6-47
Wheel Replacement. Used
........................ 6-48
Windows
..................................... 2-26
Windows. Manual
.............................. 2-26
Windows. Rear Swing-Out Side
................... 2-26
Windshield Washer Fluid
.................... 2-3 1. 6-30
Windshield Washers ............................. 2-31
Windshield WasherlWiper Lever
................... 2-30
Windshield Wipers
.............................. 2-30
Winter. Driving
in .............................. 4-36
WiperNasher. Rear Window
...................... 2-32
Warning Flashers. Hazard
......................... 5-1
Warnings. Battery ................................ 5-2
Weatherstrips
.................................. 6-53
WreckerTowing
................................. 5-6
